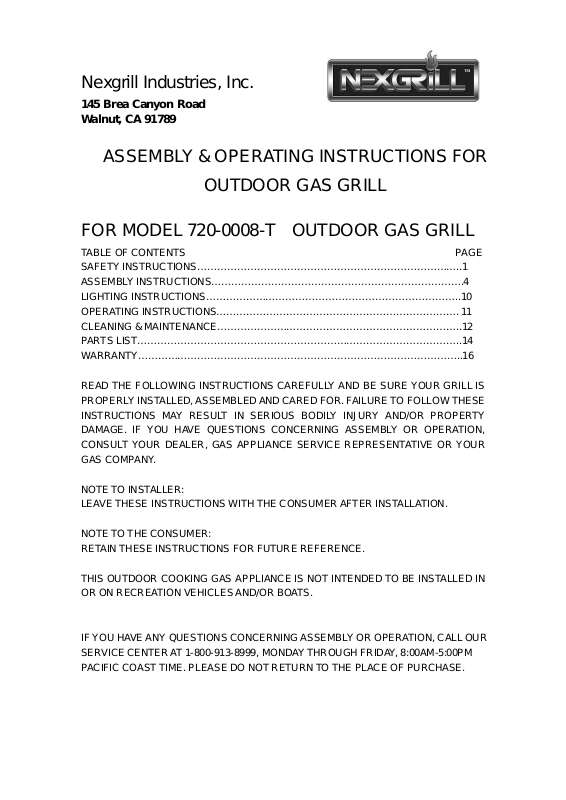

Nex 720-0008-t Installation Template

Nexgrill Industries, Inc.

145 Brea Canyon Road
Walnut, CA 91789

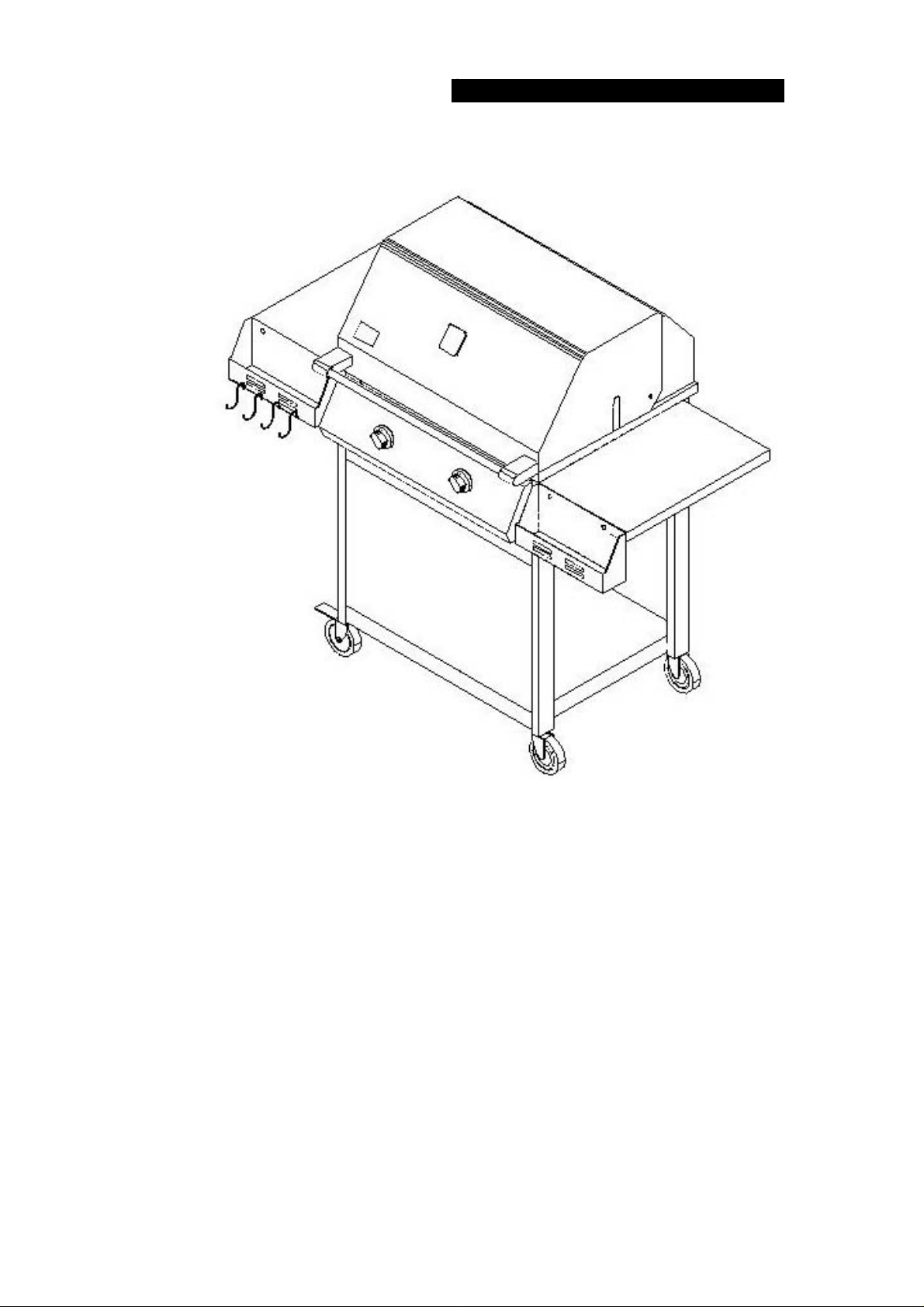

ASSEMBLY & OPERATING INSTRUCTIONS FOR

OUTDOOR GAS GRILL

FOR MODEL 720-0008-T OUTDOOR GAS GRILL

TABLE OF CONTENTS PAGE
SAFETY INSTRUCTIONS……………………………………………………………………..1
ASSEMBLY INSTRUCTIONS………………………………………………………………….4
LIGHTING INSTRUCTIONS…………………………………………………………………..10
OPERATING INSTRUCTIONS………………………………………………………………. 11
CLEANING & MAINTENANCE………………………………………………………………..12

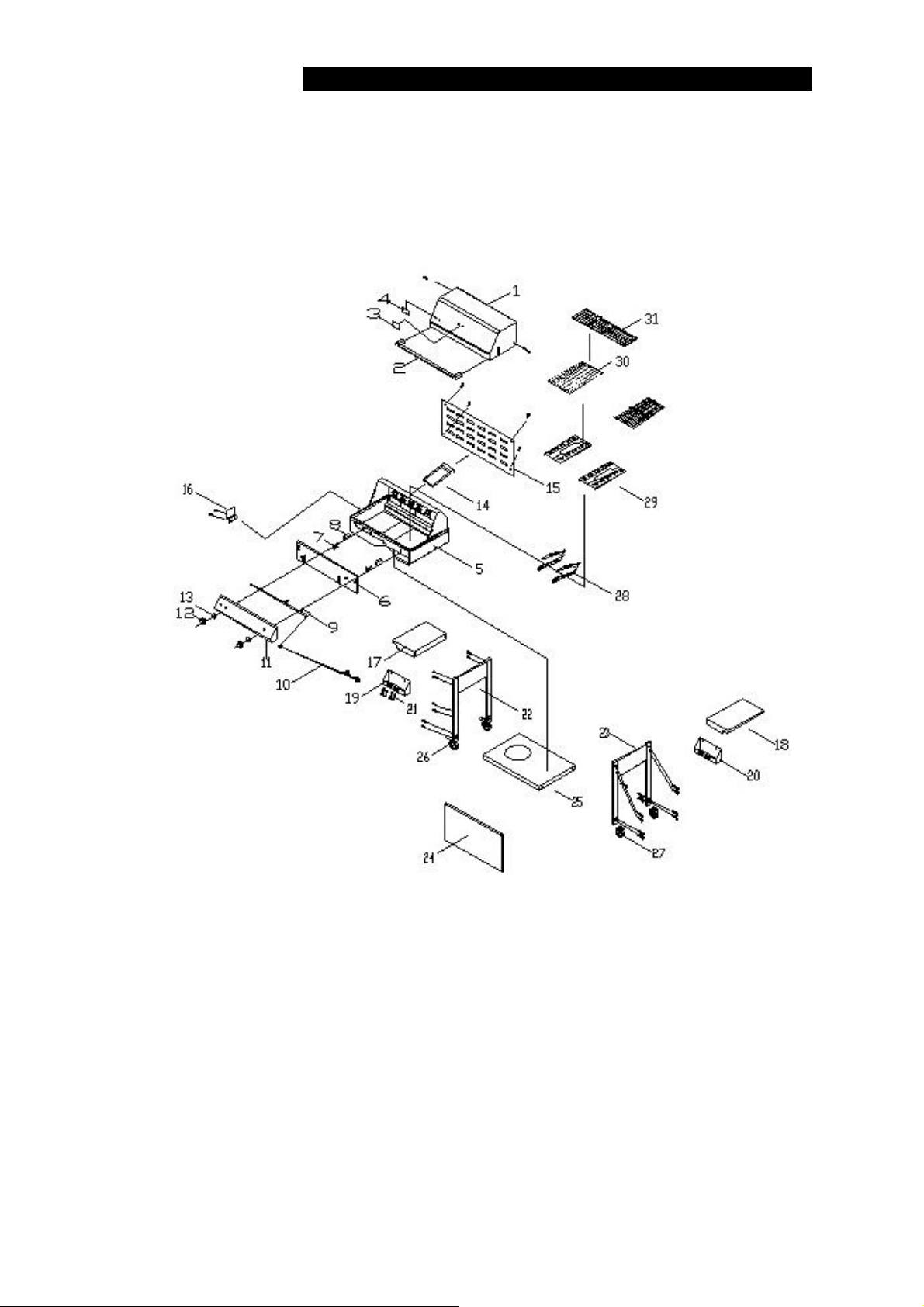

PARTS LIST……………………………………………………………………………………..14
WARRANTY……………………………………………………………………………………..16

READ THE FOLLOWING INSTRUCTIONS CAREFULLY AND BE SURE YOUR GRILL IS
PROPERL Y INSTALLED, ASSEMBLED AND CARED FOR. FAILURE TO FOLLOW THESE
INSTRUCTIONS MAY RESULT IN SERIOUS BODILY INJURY AND/OR PROPERTY
DAMAGE. IF YOU HAVE QUESTIONS CONCERNING ASSEMBLY OR OPERATION,
CONSULT YOUR DEALER, GAS APPLIANCE SERVICE REPRESENTATIVE OR YOUR
GAS COMPANY.

NOTE TO INSTALLER:
LEAVE THESE INSTRUCTIONS WITH THE CONSUMER AFTER INSTALLATION.

NOTE TO THE CONSUMER:
RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

THIS OUTDOOR COOKING GAS APPLIANCE IS NOT INTENDED TO BE INSTALLED IN
OR ON RECREATION VEHICLES AND/OR BOATS.

IF YOU HAVE ANY QUESTIONS CONCERNING ASSEMBLY OR OPERATION, CALL OUR
SERVICE CENTER AT 1-800-913-8999, MONDAY THROUGH FRIDAY, 8:00AM-5:00PM
PACIFIC COAST TIME. PLEASE DO NOT RETURN T O THE PLACE OF PURCHASE.

Safety Instructions

Read carefully before assembling and
operating your Gas Grill.

INST ALLA TION

This gas grill must be installed in accordance
with the local codes or if in an area without
local
codes with the latest edition of the National
Fuel Gas Codes ANSI Z223.1.In Canada,
installation must conform to the standard
CAN/CGA. 1-b149.1 and/or 2 installation
Code for Gas Burning Appliances and
Equipment.

THE LOCA TION FOR YOUR GRILL

Do NOT use your gas grill in garages, porches
breezeways, sheds or other enclosed areas.
Your gas grill is to be used OUTDOOR ONL Y.
Always keep proper clearance from
combustible
construction, at least 21’’from the back and
side to any combustible surface that will burn.
Do not obstruct the flow of combustion and
ventilation air around the grill housing.

This outdoor cooking gas appliance is not
intended to be installed in or on recreational
vehicles and or boats.

FOR YOUR SAFETY

Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.

Do not store empty or full spare gas cylinders
under or near this or any other appliance.

Keep the fuel hose and any electrical cord
away from hot surfaces. Protect fuel hose from
dripping grease. Avoid unnecessary twisting of
hose. Visually inspect hose prior to each use
for cuts, cracks, excessive wear or other
damage. Replace hose, if necessary.

NEVER test for gas leaks with a lighted match
or open flame. NEVER light grill with lid closed
or before checking to insure burners are fully
seated over gas valve.

NEVER lean over cooking surface while
lighting grill. Use barbecue tools with wood
handles and good quality insulated oven mitts
when operating grill.

1

IF YOU SMELL GAS

1. Shut off gas to the appliance its

PROTECT CHILDREN: Keep them away from
grill during use and until grill has cooled after
you are finished. Do not allow children to
operate grill.

CHECKING FOR GAS LEAKS NEVER TEST
FOR LEAKS WITH A FLAME

Prior to first use and at the beginning of each
new season(or, if using LP, whenever gas
cylinder is changed)it is a must for you to
check for gas leaks.
Follow these steps:

1. Make soap solution by missing one part

2. Turn off heat control valves, and then turn

3. Apply the soap solution to all gas

4. If you have a gas leak that you cannot

LP GAS CYLINDER SAFETY

Your gas grill is designed for use with a
standard 20 Ib LP gas cylinder. DO NOT
CONNECT YOUR GRILL TO AN LP GAS
CYLINDER EXCEEDING THIS CAPACITY. A
tank of approximately 12 inches in diameter by
18-1/2 inches high should be the maximum size
tank used.

LP gas cylinder is not provided with this grill.
When you buy LP gas cylinder, be sure
that(1)the cylinder must be provided with a
shutoff valve terminating in a LP-gas supply
cylinder valve outlet specified, as applicable, for
Connection No.510 in the Standard for
Compressed Gas Cylinder Valve Outlet and Inlet
Connections, ANSI/CGA-V-1, or Connection
NO.600 in the Compressed Gas Associate’s
Limited Standard Cylinder Valve outlet
connection for Propane-Small Valve

source.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, immediately call
your gas supplier.

liquid detergent and one part water. Ratio
1:4 soap to water.

on gas at source.
connections. bubbles will appear in the

soap solution if connections are not
properly sealed. Tighten or repair as
necessary.

repair, turn off the gas at the source
disconnect fuel line from grill and
immediately call your grill dealer and gas
supplier for professional assistance.

turn off at the supply cylinder.

Safety Instructions

Series or a combination LP-gas cylinder valve
and quick-disconnect assembly complying with

1.5.5-c and a safety relief device having a direct
communication with the vapor space of the
cylinder,(2) the cylinder supply system must be
arranged for vapor withdrawal, and (3)the
cylinder used must include a collar to protect the
cylinder valve.

The LP gas cylinder must be constructed and
marked in accordance with specification of U.S.
Department of Transportation(DOT). In
Canadian, gas cylinders must meet Canadian
Transportation and Communication (CTC)
specifications.

DANGER: If you smell or hear the hiss of
escaping gas from the LP gas cylinder . Get away
from the LP gas cylinder. Do not attempt to
correct the problem yourself. Call your fire
department(Do not make the call from near the
LP gas cylinder your telephone is an electrical
device)

Never connect an unregulated LP gas cylinder to
your grill. A gas regulator adjusted to have an
outlet pressure of 11’’Water column(W.C.)is
supplied for connection to the LP gas cylinder.
The pressure regulator and hose assembly
supplied with the appliance must be used.
Replacement pressure regulators and hose
assembly must be those specified by the
appliance manufacturer.

Have your LP gas cylinder filled by a reputable
LP gas dealer, and visually inspected and
re-qualified at each filling.

Have your LP gas dealer check the release valve
after every filling to assure that it remains free of
defects.

Always keep cylinder in an upright position.
Always close the cylinder valve when the grill is
not in use.

Do not subject LP gas cylinder to excessive
heat.

Never store your LP gas cylinder indoors. if you
store your grill indoors, always disconnect LP
gas cylinder FIRST, and store LP gas cylinder
safely outside.

When the appliance is not use, the gas must be

2

Storage of an appliance indoors is permissible
only if the cylinder is disconnected and removed
from the appliance.

Cylinders must be stored outdoors in a
well-ventilated area out of the reach of children.
Disconnected cylinder must not be stored in a
building, garage or any other enclosed area.

HOSE ASSEMBLY SAFETY

The hose assembly must be inspected before
each use of the appliance . If it is evident there is
excessive abrasion or wear, or the hose is cut, it
must be replaced prior to the appliance being put
into operation.

TO CONNECT THE LP GAS SUPPLY
CYLINDER,J PLEASE FOLLOW THE
FOLLOWING STEPS:

1. Make sure tank valve is in its full off position
(Turn clockwise to stop)

2. Check tank valve to assure it has proper
external male threads. (Type 1 connection
per ANSIZ21.81)

3. Make sure all burner valves are in their off
position.

4. Inspect valve connections port and regulator
assembly. Look for any damage or debris.
Remove any debris. Inspect hose for damage.
Never attempt to use damaged or plugged
equipment. See your local LP gas dealer for
repair.

5. When connecting regulator assembly to the
tank valve, hand tighten nut clockwise to a
positive stop. Do not use a wrench to tighten.
Use of a wrench may damage quick
condition.

6. Open tank valve fully (counter-clockwise).
Use a soapy water solution to check all
connections for leaks before attempting to
light grill. If a leak is found, turn tank valve off
and do not use grill until a local LP gas dealer
can make repairs.

To disconnect LP gas cylinder:

a) Turn the burner valve off.
b) Turn the tank valve off fully. (Turn

clockwise to stop.)

c) Detach the regulator assembly from tank

valve by turning the quick coupling nut
counter clockwise.

Safety Instructions

B

R

SSAAFFEETTYY!!

BEWARE

NATURAL GAS SAFETY(FOR natural
gas model)

Your natural gas grill is designed to operate on 7’’
water column residential (1/4 psi or 1.75 kpa)
regulate at the residential meter, Check with your
gas utility for local gas pressure and with your
local municipality for building code requirements.
If your residential gas utility line pressure has not
been regulated to 7’’ W. C. contact your local gas
utility or gas grill dealer for professional
assistance.

Check with your gas utility or with local building
codes for instructions to install gas supply line, or
call a licensed and knowledgeable installer.

It is recommended that an “ON-OFF” shut off
valve be installed at the gas supply source;
outdoors after gas line piping exits outside wall
and before quick-disconnect or before gas line
piping enters ground indoors in the branch fuel
line in an accessible location near the supply line.

OF

SPIDERS

CAUTION:BURNER TUBES MUST
INSPECTED AND CLEANED BEFO
FIRST USE

spiders and small insects Occasionally spin
webs or make nests in the burner tubes
during warehousing and transit. These
webs can lead to a gas flow obstruction,
which could result in a fire in and around
the burner tubes. This type of fire is known
as “FLASH-BACK” and can cause serious
damage to your grill and create an unsafe
operating condition for the use. Although
an obstructed burner tube is not the only
cause of “FLASH-BACK” it is the most
common cause and frequent inspection and
cleaning of the burner tubes in necessary.

Pipe sealing compound or pipe thread tape of the
type resistant to the action of natural gas must be
used on all male pipe threads when making the
connection.

Disconnect your gas grill from fuel source when
the gas supply is being tested at high pressures.
This appliance and its individual shut off valve
must be disconnected from the gas supply piping
system during any pressure testing of that
system at pressure in excess of 1/2 psi(3.5kpa)

Turn off your gas grill when the gas supply is
being tested at low pressure. This appliance
must be isolated from the gas supply piping
system by closing its individual manual shut off
valve during any pressure testing of the gas
supply piping system at pressures equal or less
than1/2 psi(3.5kpa)

WARNING: Gas valves are preset at factory to
operate on LP or nature gas. If you wish to
convert, be sure to contact your grill dealer
FIRST!

3

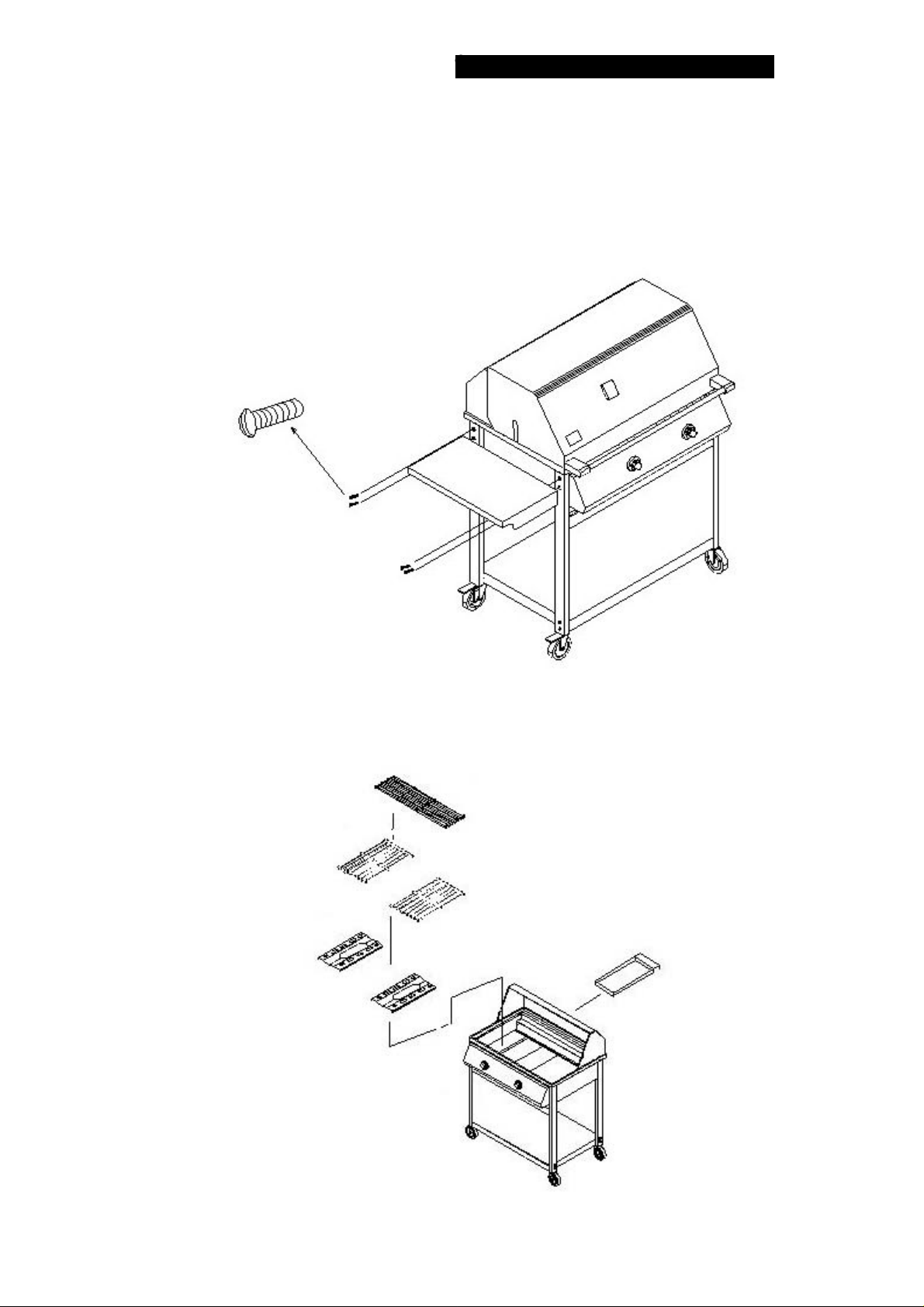

Assembly Instruction

PLEASE READ THE INSTRUCTIONS CAREFULLY AND FOLLOW STEP BY STEP

Tools required:

Philips Head Screwdriver(not provided),Wrench(provided).
The following hardware is provided

ITEM DESCRIPTION SPECIFITION QUANTITY

1 TRUSS HEAD SCREW 1/4-20*1-1/4 INCH 8 PIECES
2 TRUSS HEAD SCREW 1/4-20*1/2 INCH 26 PIECES

Step 1:

Remove side panels and casters from the carton. Secure two casters to side panel marked

“L”

and secure two Casters with brake to side panel marked “R” together with provided

wrench.

Step 2:

Assemble bottom panel to side panels with 8 pieces of Truss Head 1/4

“L”

screws .Follow the mark

and “R” accordingly

Truss Head 1/4”-20×1 1/4

”

-20×1 1/4”

”

4

Assembly Instructions

Step 3:

Assemble the front panel accordingly with 4 pieces of Truss Head 1/4

”

-20*1/2” Screw.

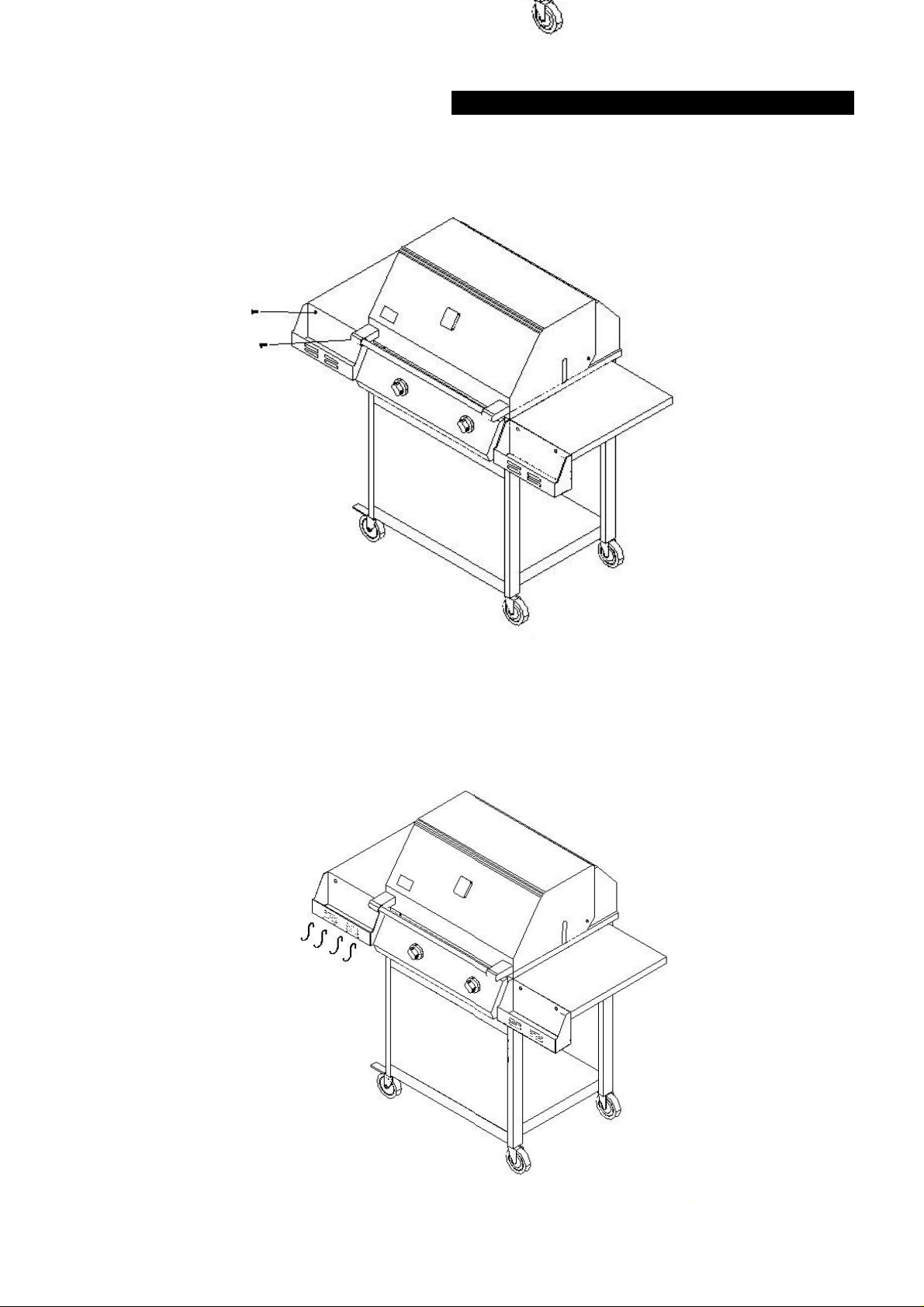

Step 4:

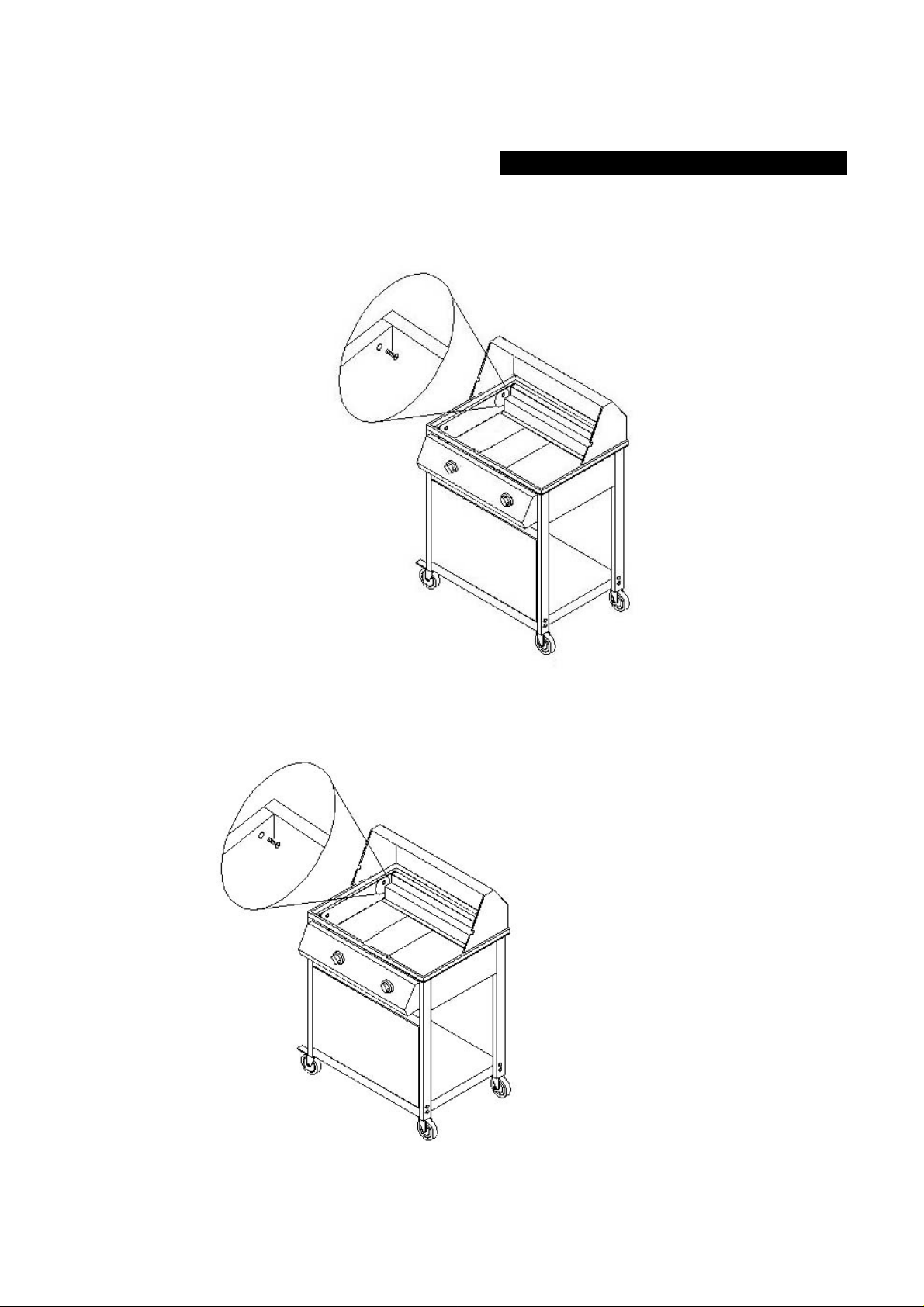

Remove the upper portion of grill from carton . Slide- in the upper portion of grill
to the cart.

5
