1. FEATURES:
◎ Sony 1/3” Color Exview™ CCD 700TVL Effio-E 960H.
◎ High Sensitivity、True Color reproduced in Day time
◎ Built in 14 Super Bright Large LEDs and 21 wide spread LEDs
Automatically Switch to ON/OFF
◎ IR Range: More than 150 Meters/ 492Ft.
◎ Mechanical IR Cut Filter Buit in for longer IR range.
◎ Lens External Adjustment through Trap Door
◎ Cable Management
◎ Multi-Language OSD setup menu
◎ ATR(Dgital Wide Dynamic Range), Motion Detection,
2D Noise Reduction, High Light Compensation, Privacy
◎ Multiple PCBs Design, Reliable Circuitry & Safety
◎ Weather Proof IP-65 Rated
When connectting the power on IR-illuminator it will
turn on to detect for a few seconds and then turn off
automatically.
P8 P.1

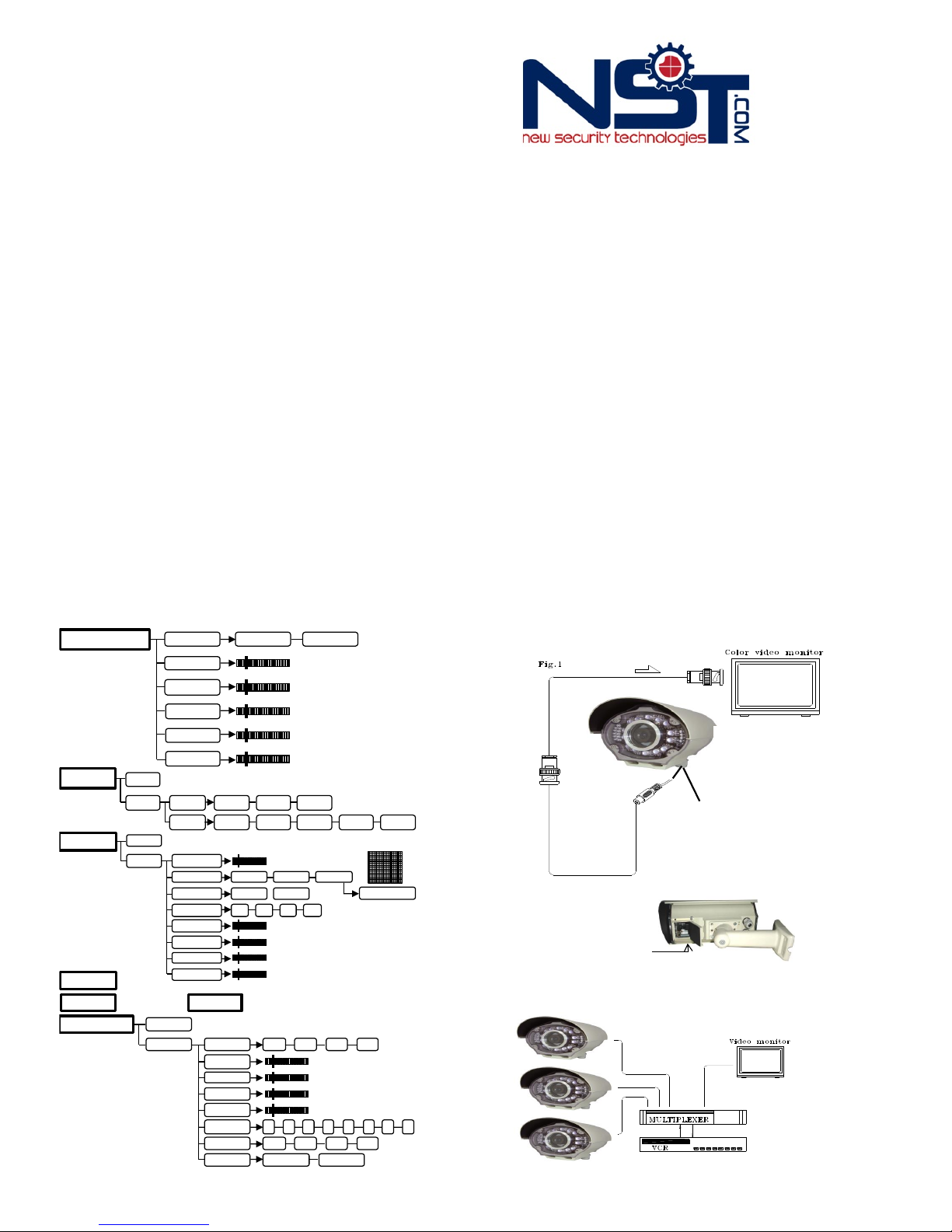

4. OPERATION GUIDE:
Zoom / Focus / OSD adjustment
5. SYSTEM CONNECTION
P.6 P.3

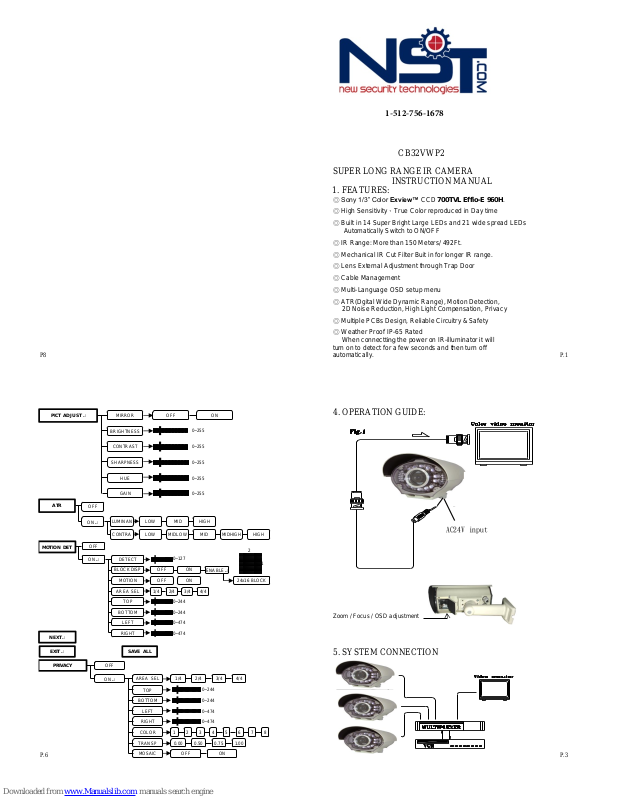

CB32VWP2
SUPER LONG RANGE IR CAMERA
INSTRUCTION MANUAL
PICT ADJUST
OFF
MIRROR
ON
BRIGHTNESS
0~255
CONTRAST
0~255
SHARPNESS
0~255
HUE
0~255
GAIN
0~255
ATR
ON
OFF
LUMINAN
CONTRA
LOW
MID
HIGH
MIDLOW
MID
LOW
MIDHIGH
HIGH
MOTION DET
ON
OFF
DETECT
BLOCK DISP
OFF
ON
MOTION
AREA SEL
TOP
BOTTOM
LEFT
RIGHT
ENABLE
OFF
ON
1/4
2/4
3/4
4/4
0~127
0~244
0~244
0~474
0~474
2
1
24x16 BLOCK
NEXT
EXIT
SAVE ALL
PRIVACY
OFF
ON
AREA SEL
TOP
BOTTOM
LEFT
RIGHT
COLOR
TRANSP
MOSAIC
1/4
0~244
0~244
0~474
0~474
2/4
3/4
4/4
1 2 3
4 5 6
7
8
0.00
0.50
0.75
1.00
OFF
ON
AC24V input
1-512-756-1678
Page 2
2.CAUTIONS:
1、Before attempting to connect this product,please read this
manual completely.
2、Ensure the supply voltage is correct as specified for the
particular variant of the camera before operation.
3、Never face the camera toward the sun directly.
4、Do not attempt to service this unit yourself unless you are
authorized to do so.Opening or removing cover may expose
you to dangerous or other hazardous materials .Refer all servicing to
qualified personnel only.
5、Keep a suitable clearance between the unit
and the place where the unit mounted.
6、Do not dissamble the camera.
7、Strongly suggest the current of power source
adapter
(24V AC) using 1.5 ampere or above.
3. SYSTEM COMPONENTS:
Camera ……………...……………….…..…1
Instruction manual……...……………….….…1
Bracket……….………….………….….……1
coaxial--cable BNC & POWER connector----1
Hexagonal wrench………..………………….1
P.2 P.7

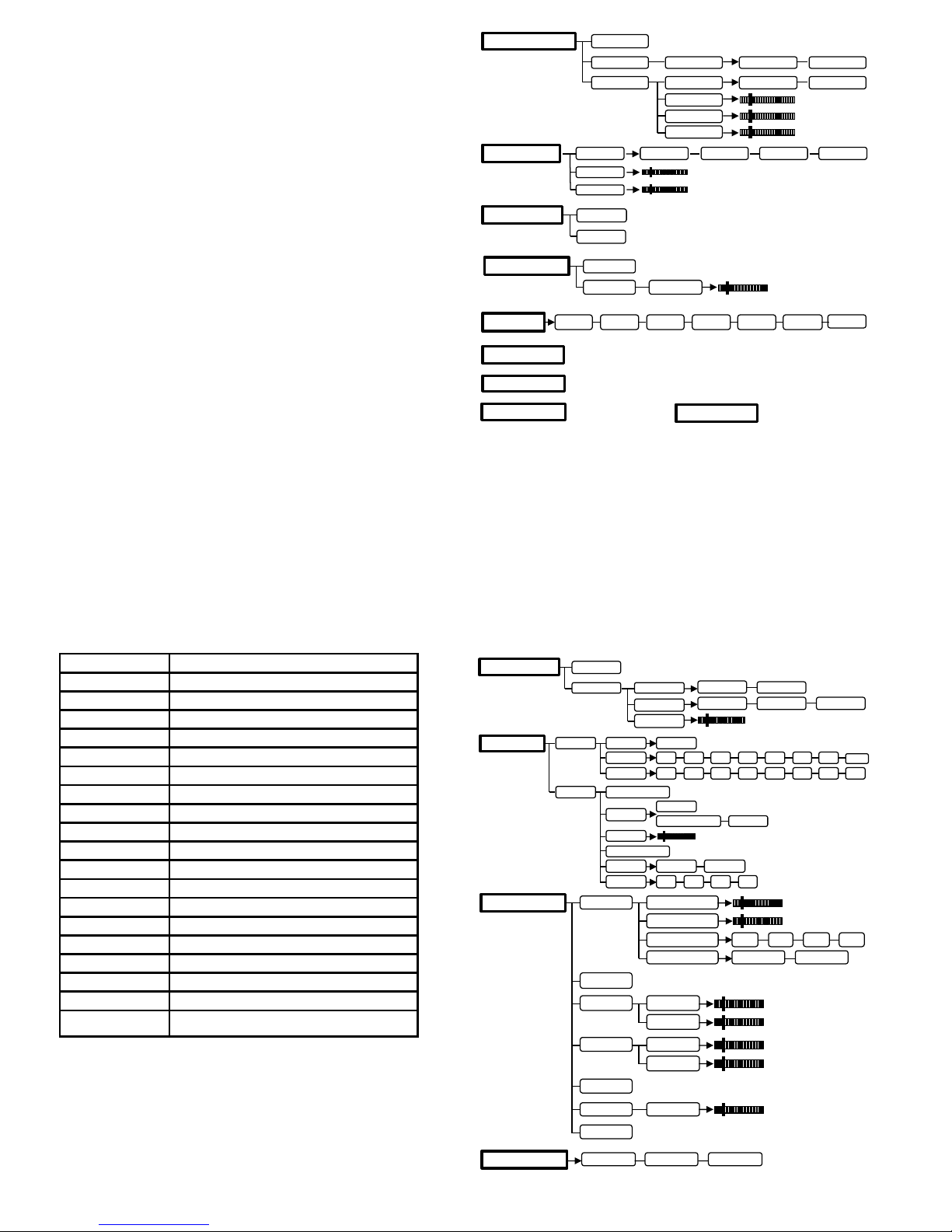

6. SPECIFICATION: 8. ADJUSTMENT: (Through OSD menu)
Total Pixels PAL: 1024 * 596 / NTSC: 1028 * 508
Effective Pixels PAL: 976 * 582 / NTSC: 976 * 494
Sync System Internal Sync
Video Output 1Vpp Composite, 75 ohm BNC Connector
Lens Lens Varifocal 5 ~ 60mm Auto IRIS, F1.6
Resolution
More than 700 TV Lines ( Horizontal )
Gamma Correction
0.45
Minimum Illumination 0 Lux (IR LEDs Activated)
S/N Ratio More than 68dB (AGC Off)
Power Source 24V AC
Power Consumption 2W (IR LEDs Activated : 13W Max)
Ambient -10 ～ 50℃ (14~122F) /30 ～ 90 ﹪RH
Dimensions 127mm(H) x156 mm(W)×354mm(D)
Weight Apprx. 4400g
Backlight Compensation Setting through OSD menu
White Balance Setting through OSD menu
Gain Control Setting through OSD menu
Image Correction Image Reverse/Brightness/Contast/Sharpness/HUE/AGC
Weather proof IP-65
IR LED
14 Pieces of Big LEDs , ※ New 14 LEDs (10Φ Big LED)
+ 21 LEDs(5ΦLED)
7. INSTALLATION INSTRUCTIONS:
1、Connect the video output of the camera to a color
monitor or other video device through a 75 Ω type
coaxial cable with BNC connector at cable extension.
2、Connect the regulated power source to the
24V AC power Non-polarity
P.4 P.5
INSULATORS……………….……………..…….1 (Pack)
DAY / NIGHT
COLOR
B/W
AUTO
BRUST
OFF
ON
BRUST
DELAY CNT
DAY→NIGHT
NIGHT→DAY
OFF
ON
0~255
0~255
0~255
NR
NR MODE
Y LEVEL
C LEVEL
OFF
Y C Y/C
0~15
0~15
CAMERA ID
OFF
ON
SYNC
INT
LL
PHASE
0~524 (NTSC)
0~624 (PAL)
Spanish
English
LANGUAGE
Japanese
German
French
Russian
Portuguese
CAMERA RESET
BACK
EXIT
SAVE ALL
(LENS : MANUAL)
WHITE BAL
ATW
SPEED
0~255
DELAY CNT
0~255
ATW FRAME
x0.50
x1.00
x1.50
x2.00
R-GAIN
0~255
ENVIRONMENT
OUTDOOR
INDOOR
R-GAIN
0~255
PUSH
USER1
B-GAIN
0~255
USER2
B-GAIN
0~255
ANTI CR
MANUAL
LEVEL
0~255
PUSH LOCK
BACK LIGHT
OFF
BLC
HLC
DC
VIDEO
AUTO
OPEN
CLOSE
0~255
LENS
MANUAL
AUTO
TYPE
MODE
SPEED
SHUTTER/AGC
MANUAL
MODE
SHUT+AG
SHUTTER
1/60
1/100
1/250
1/50
1/1K
1/2K
1/4K
1/10K
AGC
6.00
12.00
18.00
24.0
30.00
36.0
42.00
44.80
SHUT
SHUT+AUTO IRIS
MODE
AUTO IRIS
BRIGHTNE
0~255
LOW LUMINANCE
MODE
AGC
OFF
BRIGHTNE
x0.25
x0.50
x0.75
x1.0
AUTO
HIGH
(LENS : AUTO)
