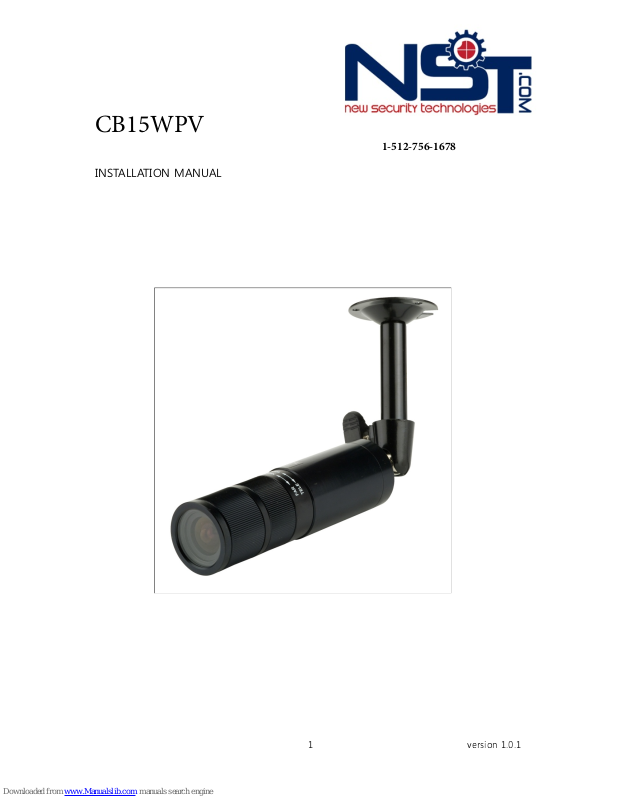

1 version 1.0.1
CB15WPV
INSTALLATION MANUAL
1-512-756-1678
2 version 1.0.1
Dear Customers!
By selecting the CB15WPV, you have decided to use a professional device that guarantees highest quality and
reliability. We would like to thank you very much for your confidence and kindly ask you to read the following
instructions carefully before installation and operation in order to take full a dvantage of all quality features
regarding this product.
The lighting flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of non-insulated
dangerous voltage within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
INFORMATION
This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at its own
expense.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the user’s authority to
o
perate the equipment.
CAUTION – To prevent electric shock and risk of the fire hazards
-Do NOT use power source other than that specified.
-Do NOT expose this appliance to rain or moisture.
This installation should be made by a qualified service person and should conform to
all local codes.
3 version 1.0.1
Table of content
Installation manual
1. Precautions -----------------------------------------------------------------------------4
2. Limitation of liability -----------------------------------------------------------------5
3. Disclaimer of warranty
--------------------------------------------------------------5
4. Package -----------------------------------------------------------------------------------6
5. Special features of the model-----------------------------------------------------7
6. Troubleshooting -----------------------------------------------------------------------8
7. Dimension (mm) -----------------------------------------------------------------------9
8. Specification-----------------------------------------------------------------------------10
OSD Manual
for functions control----------------------------------------------------------1~10
4 version 1.0.1
1. Precautions
Please read the manual carefully before the installation in order to set up the camera correctly and to
obtain the best picture quality.
Please keep the manual in good condition for your future reference and service application.
Installation and services should be only carried out by an authorized personnel according to local safety
regulations.
If any liquid or solid matter gets into the housing, immediately disconnect the camera from power supply
and have it checked by your authorized dealer before reusing..
Avoid installing the camera at extremely hot or cold places.
If you are not a certified person, never try to dismantle the camera. To avoid electric shock, never remove
the screws or covers. There are no parts inside that need maintenance by the user. All maintenance should
be carried out by qualified personnel.
Avoid installing the camera at a place of high humidity.
Avoid installing the camera at the place exposed to gas or oil.
Keep the top glass of the lens always clean in order to obtain the best picture quality all the time. Be
careful not to be stained by fingerprint.
Don't face the camera directly toward sunlight or sunlight reflecting area.
CCD may go defective at this condition.
Please give a special attention to keep the unit from dangerous drop or external shock during
the process of transportation or handling.
Never try to touch the camera in wet hand. It may cause an electric shock.
Do not expose the camera to radioactivity. It causes a serious damage on the CCD.
5 version 1.0.1
2. Limitation of liability
This publication is provided “AS IS” without warranty of any kind, either express or implied, including but not
limited to, the implied warranties of merchantability, fitness for any particular purpose, or non-infringement of
the third party's right. This publication could include technical inaccuracies or typographical errors. Changes
are added to the information herein, at any time, for the improvements of this publication and/or the
corresponding product(s).
3. Disclaimer of warranty
In no event shall seller be liable to any party or any person, except for replacement or reasonable maintenance
of the product, for the cases, including but not limited to below:
(1) Any damage and loss, including without limitation, direct or indirect, special,
consequential or exemplary, arising out of or relating to the product;
(2) Personal injury or any damage caused by inappropriate use or negligent operation
of the user;
(3) Unauthorized disassemble, repair or modification of the product by the user;
(4) Inconvenience or any loss arising when images are not displayed, due to any reason
or cause including any failure or problem of the product;
(5) Any problem, consequential inconvenience, or loss or damage, arising out of the
system combined by the devices of third party.
(6) Any claim or action for damages, brought by any person or organization being
photogenic subject, due to violation of privacy with the result of that surveillance camera's picture, including saved data, for some reason, becomes public or is used
for the purpose other than surveillance.
6 version 1.0.1
4. Package
Instruction manual x 1
OSD manual x 1
Camera x 1
B
racket
x 1
Mounting screws x3
1-512-756-1678
7 version 1.0.1
5. Special features of the model
1. Higher resolution of 600TVL(D)/650TVL(N)
The
CB15WPV has come up with an innovative way of increasing cubic resolution to more than 30% higher
than that of conventional 600TVL cameras.
It upgrades horizontal resolution to 600TVL and vertical resolution to 540TVL so that the cubic
resolution becomes 324KTVL while conventional cameras provide only 240KTVL.
2. Unbeatable WDR Performance
This unit provides a very unique and far superior image scanning capability of defining the details of
differently contrasted areas compared with any other conventional WDR cameras. With current WDR
technologies, defining images in shaded areas are typically not clear enough with over-exposed
picture quality. This camera provides a special resolution to intelligently analyze the exposure ratio
and to optimize it into an unbeatably clear image quality.
3. Super Low Light sensitivity
The system specifies itself as the best resolution in the market that overcomes the limitation of
compromising light sensitivity from conventional WDR cameras.
With its special technology, it provides a remarkable low light sensitivity of 0.1Lux /F2.0 ~ 0.0001Lux w
/Sens-up 512x which is at least 3 times better than any other conventional WDR cameras.
4. 2D/3D Noise Reduction
2D/3D DNR achievement is another reference in new WDR technology.
It reproduces noiseless images with 2D/3D filtering Noise Reduction Technology so that users can
save the volume of storage media and HDD capacity in DVR.
2D DNR helps preserved edged in the picture, while 3D DNR realizes clear images with no ghost effect.
5. DIS (Digital Image Stabilizer)
This technology reduces blurring associated with the motion of the subject by using pixels outside the
border of the visible frame to provide a buffer for the motion.
Increasing the exposure time without blurring the image makes the moving subject stabilized digitally.
6. Anti-Color Rolling
With an operation of a wide dynamic range camera in an environment with a fluorescent lighting, an
effect that is called “color rolling” usually happens due to the lack of the synchronization between the
camera and the neon light.
New WDR technology tracks the light changes relative to the camera and adapts its own timing to the
periodicity of fluorescent illumination to the sample light at a constant phase, virtually elimination
the color rolling effect.
8 version 1.0.1
6. Troubleshooting
If there are problems in operating, please refer to the checklist below. If the problem persists, please contact
the agent where this product is purchased.
Problems
Trouble
shooting
Nothing appears on the screen. Please check that the power cord and line connection
between the camera and monitor are fixed properly.
Please check that you have properly connected VIDEO
cable to the camera VIDEO output jack.
The image on the screen is dim. Is lens stained with dirt? Clean your lens with soft,
clean cloth.
Set the monitor to proper condition.
If the camera is exposed to too strong light, change
the camera position.
The image on the screen is dark. Adjust the contrast feature of the monitor.
If you have an intermediate device, set the 75Ω / Hi-Z properly
(Please check the impedance)
The camera is not working
properly, and the surface
of the camera is hot.
Please check that you have properly connected the camera
to an appropriate power source.
The DAY/NIGHT menu
does not work.
Please check if DAY NIGHT menu is set to ‘AUTO1’.
The SENS-UP function
does not work.
Please check that AGC of EXPOSURE SETUP menu is set to ‘OFF’.
Please check that SHUTTER of EXPOSURE SETUP menu is set to
‘A.FLK’ or ‘FIXED’.
The MOTION DETECTION
function is not working.
Please check if MOTION DETECTION function is turned on.
Please check if MD LEVEL is too low.
Please check the setting of the MD area.
Color is not correct. Please check the setting of WHITE BAL SETUP menu .
The screen flickers continually.
Please check that direction of camera turns toward the Sun.
9 version 1.0.1
Problems
Trouble
shooting
RS-485
communication fails.
Please check the polarity between RS-485 Control Port
and RS-485 cable.
485 Control Board Connection Port RS-485 Control Port
(+)CONNECTION TERMINAL(TRX+) 485+
(-)CONNECTION TERMINAL(TRX-) 485-
Please check if the initial value of the RS-485 Communication
setup matches between camera and OSD Controller or DVR.
*RS-485 Communication establishment initial value
Item Camera ID BAUD RATE UART MODE RET PKT
Initial value 1 9600 8-NONE-1 ENABLE
We recommend that you make ground connection
between camera and controller for safe communication control.
When RS-485 cable is not properly connected,
A warning message ‘ERROR RS-485 Connection. Please reconnect and
Reboot’ is displayed.
Then please turn off the power and connect the cable again.
9. Dimension(mm)
10 version 1.0.1
7. Specification
MODEL
CB15WPV
Image sensor
1/3” Sony Super HAD CCD II
Effective
p
ixels NTSC : 768(H) X 494(V)
PAL : 752(H) X 582(V)
H.Resolution
600TV Lines
(Day)
/
650TV Lines
(Night)
Synchronizing
system
Internal
Scanning system
NTSC : 525 Lines PAL : 625 Lines 2:1 Interlaced
Video output
1.0Vp
-
p Composite 75
Ohms
S/N ratio
More than 52dB
(AGC O
ff)
Min.Illumination
0.1
Lux at F1.2
(Sens
-
up Off)
, 0.0001Lux at F1.2
(Sens
-
up, x512)
Shutter
s
peed
NTSC : 1/60
~
90,000sec. PAL : 1/50~90,000sec.
Gamma
c
ontrol
Standard γ=0.45
White Balance
1500°K ~ 11,000°K Auto.
ATW/Cor-Roll/PUSH/MANUAL
Gain
c
ontrol
Standard :
-
6dB ~ 34dB Auto / Maximum
by
OSD
Smear
e
ffect 0.005%
Power source
12VDC
Operating
current
120mA
Lens 3.5~16mm Varifocal Lens
Iris control
Auto
Operating temp
-10°C ~ 50°C
Humidity
0%RH ~ 90%RH
Measurement(mm)
30(Ø) x 105.5(L)
Weight(Approx.g)
250 Function
WDR
Off/On
(User selectable by OSD)
2D/3DNR
Off/On
(User selectable by
OSD)
Sens-up Off/x2 ~ x512 Motion
d
etection
Off/On
(8 Zone setting available)
Digital
z
oom Off/x1 ~ x6 White
b
alance
ATW/Cor_Roll/PUSH/MANUAL
Privacy
m
ask Off/On(8 Zone setting available)
Page 1 / 10
OSD Manual
for WIDELUX Cameras
Version 1.0.2
Released on Oct.1, 2011
Page 2 / 10
WIDELUX Series OSD Manual for function control
Use the function setup switch (OSD switch) for function setup. OSD switch is
different from model to model. Please refer to hardware installation guide of
each model.
1. On Screen Display (OSD) Menu Configuration
2. Setting up the menu
1. Press the Tact SW to enter <MAIN MENU>.
2. Move the arrow to a specific menu by pushing the Tact SW up or down.
3. Adjust the selected feature by pushing the Tact SW left or right
4. When completed, move the arrow indicator to ‘EXIT’ and press the Tact SW to finish all settings.
Page 3 / 10
☞
Note
· If ‘ ‘ ‘
indication appears on a selected s b
menu.
· If ‘ ---
‘ indication appears on any s b
(Ex : When SENS-
UP is OFF, 3
3. LENS
Select the lens and adjust the SETUP s itable to the type of lens.
◆
When DC lens is used. (※
Defa lt)
1. Please select the lens mode to DC IRIS.
2. Press the Tact SW to enter the <DC IRIS MENU>.
-
BRIGHTNESS: adjust the brightness of screen when the environment is
extremely bright or dark.
- REACTION:
Reaction speed of the sh tter is adj stable. It i
the light condition
of the environment
3. Save
Press SAVE to finish all settings and ret rn to <MAIN MENU>
◆
When MANUAL lens is used.
1. Please select the lens mode to MANUAL.
2. Press the Tact SW to enter the <MANUAL IRIS MENU>.
-
BRIGHTNESS: same as above
-
REACTION: same as above
4. EXPOSURE
(1) AGC (Auto Gain Control)
-
OFF: Deactivates the AGC f nction.
-
LOW: Allows automatic gain control from 0 to 20dB. (
-
MIDDLE: Allows automatic gain control from 0 to 30dB.
-
HIGH: Allows automatic gain control from 0 to 42dB.
※
The
higher the gain level, the brighter the screen becomes while the higher the noise as well.
-
menu, press the Tact SW to get into a following
-
menu, it means the function with this mark is deactivated.
-DNR becomes deactivated ‘---‘ )
s useful when
keeps changing quickly.
※
Default)
Page 4 / 10
(2) SHUTTER
A. AUTO : The shutter speed is controlled automatically.
(※ Default)
B. FLK : Please select FLK mode when flickering occurs on the screen,
due to an imbalance between illumination and frequency.
C. FIXED : The shutter speed is controlled manually.
- You can select the speed from ‘1/60’ to ‘1/90,000 sec. (NTSC), ‘1/50’ to ‘1/90,000 sec. (PAL).
- You can select Digital Slow Shutter. (DSS) between x2 ~ x512.
※
Please use FIXED mode only when the light level of the surveillance area is fixed all the time.
(3) SENS-UP
- Low light sensitivity is greatly improved with the use of this function.
- Low light sensitivity level is adjustable from 2 to 512 times.
- When SEN-UP level is higher, the picture becomes brighter while noise
is increased at the same rate of SENS-UP.
ON : Adjustable SENS-UP level between x2 ~ x512.
OFF: SENS-UP is disabled.
※
Default setting is <x8>
☞
Note
· When the SHUTTER is set to MANUAL mode, SENS-UP does not operate.
· When the AGC is set to OFF, SENS-UP does not operate.
(4) INITIAL SET
Initialize all settings of EXPOSURE menu.
(5) SAVE
Save the settings
5. DAY / NIGHT
It is used to improve the sensitivity and clarity of picture quality at low light
- DAY : The image is always displayed in color.
- NIGHT : The image is always displayed in black and white.
- AUTO1 : The image is automatically converted to B/W from Color at 3 lux.
● IR WDR LEVEL: Select Anti - IR saturation level among
OFF/LOW/MIDDLE/HIGH
● IR WDR ADJUST: Adjust the value in each of selected level - 0 ~ 6
- AUTO2: The image is automatically converted to B/W from Color at 3 lux.
● D/N LEVEL: LOW/MIDDLE/HIGH
● FILTER DLY: Select the duration time about changing the Day/Night
mode. (1 SEC, 3 SEC, 5 SEC, 10 SEC, 15 SEC, 30 SEC, 60 SEC)
● NIGHT BURST: Burst ON/OFF selectable.
● INITIAL SET: Initialize all settings of AUTO2 menu.
Page 5 / 10
※
Default setting
- Infrared camera: AUTO1
- Non-Infrared camera: AUTO2
6. WDR/BLC/ECLPS
The image quality is greatly improved with the use of this mode when there is
a strong backlight behind the object.
- OFF : De-activates the WDR function.
- WDR: Camera scans both of bright lit background and shaded area
distinctively under an extremely contrasted light situation.
(LOW/MIDDEL/HIGH)
- BLC: Enables a user to directly select a desired area from a picture and to
view the area more clearly.(LOW/MIDDEL/HIGH)
-ECLIPSE:
Can mask the head lights to view car license number plate more
clearly.
Can select masking color.
Adjust the ECLIPS level at the GAIN CONTROL as OFF mode.
Page 6 / 10
7. White Balance (WHITE BAL, WB)
This is useful to optimize the white balalnce control under a certain artificial lighting area where a
standard white balance condition is not suitable.
- ATW (Auto Tracking White Balance)
This mode can be used within the color temperature range of
1,500˚K~11,000˚K. (※ Default)
- COL-ROLL
Anti color rolling mode.
Use it only when the rolling is severely shown.
- MANUAL
Recommanded to use it when the light temperature is fixed all the
time Select INDOOR or OUTDOOR mode.
- PUSH (Push lock)
Use this when the White Balance is deviated.
Face the camera toward the white wall or white paper and press the
Tact SW
☞
Note
White Balance may not work properly under the following condition
- When the color temperature of the environment surrounding the subject is out of the control
range.(e.g. clear sky or sunset)
- When the ambient illumination of the subject is dim.
- If the camera is directed towards a fluorescent light or is installed in a place where illumination
changes dramatically, the White Balance operation may become unstable.
8. 2D-DNR (2D Noise Reduction)
This function reduces the background noise in a low luminance
environments.
- LOW
-
MIDDLE
- HIGH
- DISABLED: Deactivates 2DNR. Noise is not reduced.
- OFF : Activates 2DNR(Level : 0). Noise is not reduced.
☞
Note
<Bad pixel detection> function is operated only when <2D-DNR DISABLED> is selected.
9. 3D-DNR (3D Noise Reduction)
The background noise in the low light level decreases automatically
as the level of gain changes.
- DNR LEVEL
Adjust the noise reduction level.
- DESTINATION
Adjust the 3DNR gain.
- GLOBAL MOVEMENT
Control ghost phenomenon
Page 7 / 10
10. EFFECTS
- D-ZOOM : You can use a digital zoom.
· ZOOM : x1 ~ x8.30
· DZOOM PAN : -100 ~ 100
· DZOOM TILT : -100 ~ 100
- IMAGE FREEZE : You can view still or live image.
- D-EFFECT
· V-FLIP : You can flip the picture vertically on the screen.
· MIRROR : You can flip the picture horizontally on the screen.
· ROTATE : You can flip the picture rotatively on the screen.
- CONTRAST : 0 ~ 100
- SHARPNESS : 0 ~ 100
- COLOR ADJUST
· COLOR : ON/OFF
· COLOR LEVEL : 0 ~ 200
. COLOR HUE : -180 ~ 180
. RED GAIN : -100 ~ 100
. BLUE GAIN : -100 ~ 100
- TARGET CROSS : Display ‘
╇
’ on the screen
· COLOR : BALCK,GRAY,WHITE,RED,GREEN,YELLOW
· MOVE X : -100 ~ 100
. MOVE Y: -100 ~ 100
. INITIAL SET
. SAVE
☞
Note
At TARGET CROSS function is in operation, ‘╇’ display shall disappear if MOTION DET function is
‘ON’
- BAD PIXEL: BAD PIXEL compensation
· BP DETECTION: Make the screen completely black by covering
the camera.
· SEARCH AREA: X START/Y START/WIDTH/HEIGHT
. THRESHOLD: 40 ~ 1024
. SAVE
(
※
Users may simply activate BP DETECTION and go directly to SAVE. Then Bad pixels in full
screen are compensated automatically)
- INITIAL SET : Initialize all settings of EFFECTS menu.
(※ TARGET CROSS and BAD PIXEL modes are not initialized)
- SAVE
11. SPECIAL MENU
CAM NAME
- Please position the arrow to point to ’CAM NAME’ by using the
UP or DOWN selection.
- Please select ‘ON’ by using the LEFT and RIGHT selection.
Please press the button to complete ‘ON’.
☞
Note
If ‘OFF’ is selected, the CAM NAME does not appear on the monitor
even if it has been input.
Page 8 / 10
- Up to 15 letters are offered for the CAM NAME. If you enter a title, the
title will appear on the monitor.
①
Please move the cursor to the letter to choose by using the UP and
DOWN selections.
②
Set an ID from A~Z /a~z /0~9 by using the UP, DOWN, LEFT and
RIGHT Selections.
③
Lock in the letters by using the button.
· When the letter is locked in, the cursor moves to the next space.
④
Please repeat the above to input CAM NAME.
☞
Note
When a wrong name has been input,
- If you press the button after moving the cursor to CLR, all
letters will be erased.
- If you want to correct a letter, please move the cursor to the arrow at the bottom left of the
screen and press the button.
- Please position the cursor on the letter you wish to correct, and then move the cursor onto
the letter you wish to choose and press the button.
- When a name has been chosen, please select a position for the name to display.
①
Please move the cursor onto ’POS’ and then press the button.
②
The name will appear at the top left hand corner.
③
Please find the position you wish to display the name by using the 4 directional selections,
and then press the Button.
- Please select ‘END’ and then press the Button to complete CAM NAME input.
MOTION (Motion Detection: MD)
This product has a feature that allows you to observe movement of objects in
8 different areas on the screen, and the words 'MOTION' appear on the
screen when movement is detected. You can monitor activity more effi ciently.
- ZONE NUMBER : You can select up to 8 MD areas.
- ZONE STATE : Determines whether to use the MD area selected in ZONE
NUMBER.
- WIDTH : Determines the coordinate of the horizontal size.
- HEIGHT : Determines the coordinate of the vertical size.
- MOVE X : Determines the coordinate of the horizontal axis.
- MOVE Y : Determines the coordinate of the vertical axis.
- SENSITIVITY : Determines the coordinate of the sensitivity.
- INITIAL SET : Initialize all setting of MOTION DET menu.
- SAVE : Select this to save the MOTION menu setting and return to the
SPECIAL menu.
Page 9 / 10
PRIVACY (Privacy Masking)
This function helps you mask an area you want to hide on the screen.
- MASK NUMBER : You can select up to 8 PRIVACY areas.
- MAKS STATE : Determines whether to use the selected in
AREA SELECT.
- SENSITIVITY : Determines area color. You can select GRAY,
WHITE, RED, GREEN, BLUE, YELLOW, BLACK.
- WIDTH : Determines the coordinate of the horizontal size.
- HEIGHT : Determines the coordinate of the vertical size.
- MOVE X : Determines the coordinate of the horizontal axis.
- MOVE Y : Determines the coordinate of the vertical axis.
- INITIAL SET : Initialize all setting of PRIVACY menu.
- SAVE : Select this to save the PRIVACY menu setting and return
to the SPECIAL menu.
LANGUAGE
You can select the menu language according to your requirements.
- English, Korean, Russian, Spanish, French are available
STABILIZER (DIS)
This function mitigates any picture movement due to external factors
such as wind.
☞
Note
· The camera’s resolution decreasesbecause STABILIZER
function uses the digital zoom.
· STABILIZER doesn’t operate when background illumination is too low.
· STABILIZER doesn’t operate when object pattern is monotonic like sky or white wall.
MONITOR TYPE
Please change the settings value of video appropriate to your monitor.
- CRT : GAMMA 0.45
- LCD : GAMMA 1.0
FACE REC (Face Recognition)
A special area where the internal illumination is dark while strong back light exists behind the object,
normally human face becomes unrecognizable. This mode is suited for this particular situation.
- FR BRIGHTNESS : 0 ~ 40
- FR CONTRAST : 0 ~ 40
- COLOR SAT : 0 ~ 200
- CONTRAST : 0 ~ 100
- OUTPUT LEVEL : -64 ~ 64
- SHARPNESS : 0 ~ 100
Page 10 / 10
COMM SET (Communication seting)
This function sets up the camera communication status when controlling
the camera through an external control device.
- CAMERA ID
· CAMERA ID : Determines the camera’s identification
number (between 0 and 255).
· ID POSITION: Displays camera title on top left & right side of
the screen.
· BAUD RATE : You can select 4800/9600/19200/38400/57600 bps .
· SAVE/REBOOT: Select this to save the COMM SET menu setting and
return to the main screen.
· PREVIOUS: Return to COMM SET menu.
☞
Note
- RS-485 cable : Please connect (-) firstly and then (+).
- IF there happens RS-485 cable conection error or any other problems, a message
‘ERROR RS-485 Connection. Please Reconnect and Reboot’ is displayed.
Please reset the power or OSD.
FACTORY RESET
Resets the camera setting to the factory defaults.
But <COMM SET> menu is not initialized.
12. EXIT
Save all setting menus by pressing the Tact SW and then exit by pressing EXIT menu.
Loading...
