Page 1
MX100-TG U
SER MANUAL
Release 3.0
Page 2
2
Software License Agreement
Any software product, including any documentation relating to or describing such
software (hereafter collectively called “Software”), provided by New Rock is furnished to
you for installation and use on a single computer. The Software may not be copied, in
whole or in part, except for archival purposes, to replace a defective copy, or for program
error verification.
You may not reverse engineer, decompile, or disassemble the Software, except to the
extent such foregoing restriction is expressly prohibited by applicable law.
Unless earlier terminated by New Rock as herein provided, the term of each paid-up
license shall expire at such time as you discontinue use of the applicable Software on the
single processor specified above but otherwise shall be without restriction as to time.
The Software (including any images, applets, photographs, animations, video, audio,
music, and text incorporated into the Software) is owned by New Rock.
Therefore, you must treat the Software like any other copyrighted material (for example, a
book or musical recording) except that you may either (a) make one copy of the Software
solely for backup or archival purposes, or (b) transfer the Software to a single hard disk
provided you keep the original solely for backup or archival purposes. You may not copy
the printed materials accompanying the Software.
You may not rent or lease the Software, but you may transfer the Software and
accompanying written materials on a permanent basis provided you retain no copies and
the recipient agrees to the terms of this Agreement. If the Software is an upgrade, any
transfer must include the most recent upgrade and all prior versions.
Page 3
3
TABLE OF CONTENTS
ABOUT THIS BOOK ...................................................................................... .......................... ................... 6
WHO SHOULD USE THIS BOOK ..................................................................................................... 6
CONVENTIONS USED IN THIS BOOK ........................................................................................... 6
Notes, cautions, and Warnings .................................................................................................. 6
How Numbers Are Used .......................................................................................... ................... 8
Replaceable Input Values ........................................................................................................... 8
GETTING HELP ................................................................................................................................... 9
Checklist ...................................................................................................................................... 10
Contacts .................................................................................... .................................................. 10
INTRODUCTION ........................................................................ .......................... ............................ ......... 12
Overview ..................................................................................... ........................................................ 12
Features .................................. .............................................................................. .............................. 12
One to Four T1/E1 Span Capacity ....................................................................................... 12
Scalability ....................................................................................... ........................................... 13
Processing Power............................................................................................ ........................ 13
Quick and Easy Installation ....................................................... ........................................... 13
Simple Configuration .............................................................................................................. 13
Redundant and Hot Swappable Power Supply Modules ............................................... 13
CHASSIS AND COMPONENTS .................................................................................................. ........... 14
Chassis ................................................................................................................................................ 14
Dimensions .................................................................................... .......................... ................ . 14
Weight ......................................................................................................................................... 14
Front View ........................................................................................................................................... 15
Control Module ......................................................................................................................... 15
T1/E1 Module .......... ...................................... .............................................. .............................. 17
Rear View ............................................................................................................................................ 17
Power Supplies .................................................................................................................... .... 17
Fans ............................................................................................................................................. 18
INSTALLING THE MX100-TG ...................................................................... ........................................... 19
Site Preparation ......................................................................................................... ..................... ... 19
Installing the Chassis ....................................................................................................... ................. 20
Connecting Main Power .................................................................................................................... 21
Configuration .............................................. .......................................................... .............................. 21
GETTING STARTED ................................................................................................................................. 22
Starting the MX100-TG .................................................................................................... ................. 22

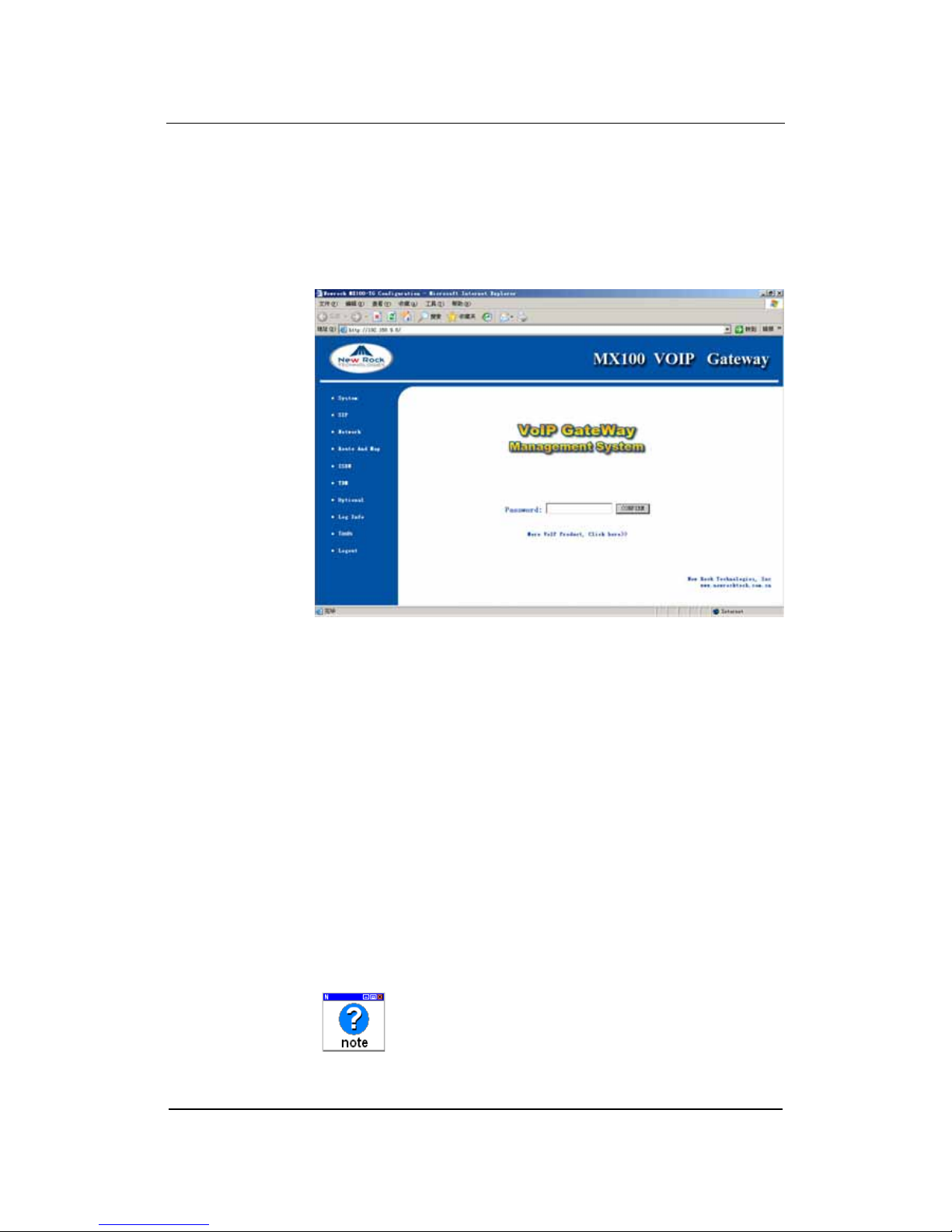

Understanding the MX100-TG Web-GUI ....................................................................................... 24
Introduction ............................................................................................................................... 24
CONFIGURING THE MX100-TG .................................................................................... ........................ 26

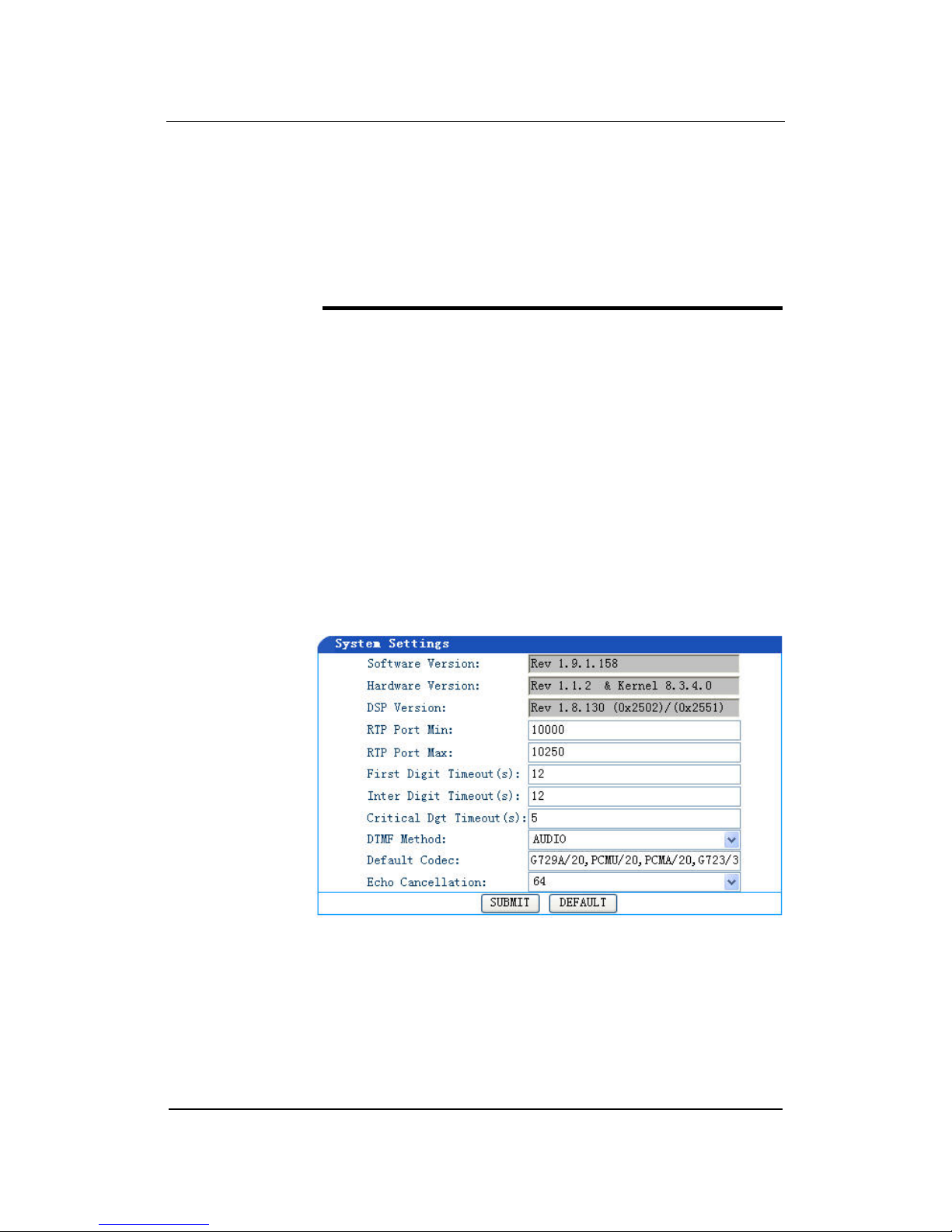

System Configuration .......................................................................................... .............................. 26
Software Version ..................................................................................................................... 26
Hardware Version ............................................................................................ ........................ 27
DSP Version ................................................................................... ........................................... 27
RTP Port Min and Max .................................................................................... ........................ 27
First Digit Timeout(s) ............................................................................................. ................. 27
Inter Digit Timeout(s) ............................................................................................. ................. 27
Critical Digit Timeout(s) ........................................................................................ ................. 27
DTMF Method ............................................................................................................................ 28
Default Codec ................................................................................ ........................................... 28
Echo Cancellation .................................................................................................................... 28
Page 4
4

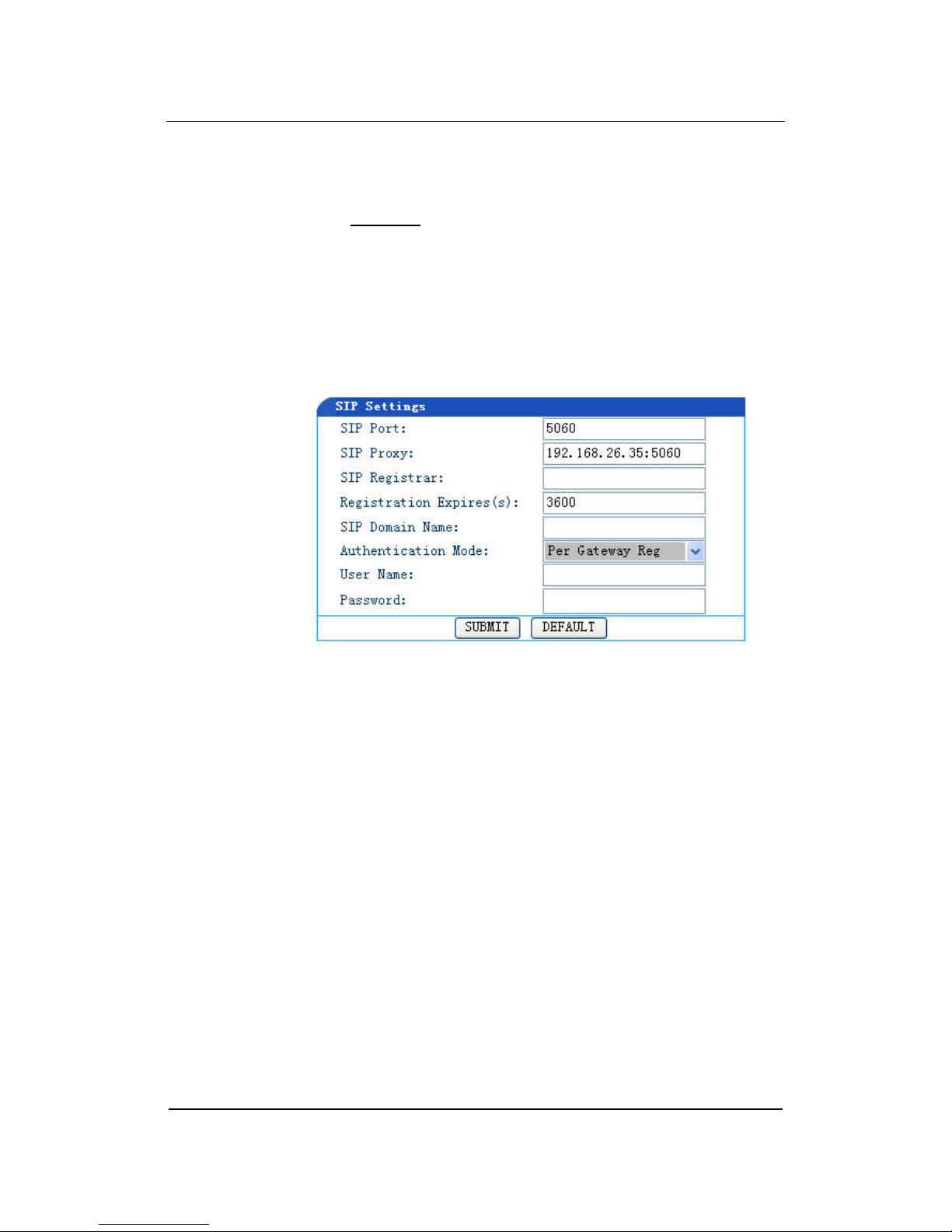

SIP Configuration ............................................................................................................................... 29
SIP Port .................................................................................... ............. ............. ...... .......... ........ 29
Proxy ........................................................................................................................................... 29
Registrar .................................................................................. ....... ........................................... 30
Registration Exp i r e s ... ............................................. .................................................... ........... 30
SIP Domain Name ............................................................................... ..................................... 30
Authentication Mode ............................................................................................................... 30
User Name ............................................................................... .................................................. 31
Password ................................................................................. .................................................. 31
Network Configuration ....................................................................................................................... 31
Host Name ............................................................................... .................................................. 31
Local IP Address ...................................................................................................................... 31
Default Gateway ............................................................... ........................................................ 31
Ethernet Configuration ........................................................................................................... 31
DNS .............................................................................................................................................. 32
PPPoE .......................................................................... ............................................................... 32
NTP ......................................................................... ..................................................................... 32
Routing and Dialing Rule ....................................................................... ........................................... 33

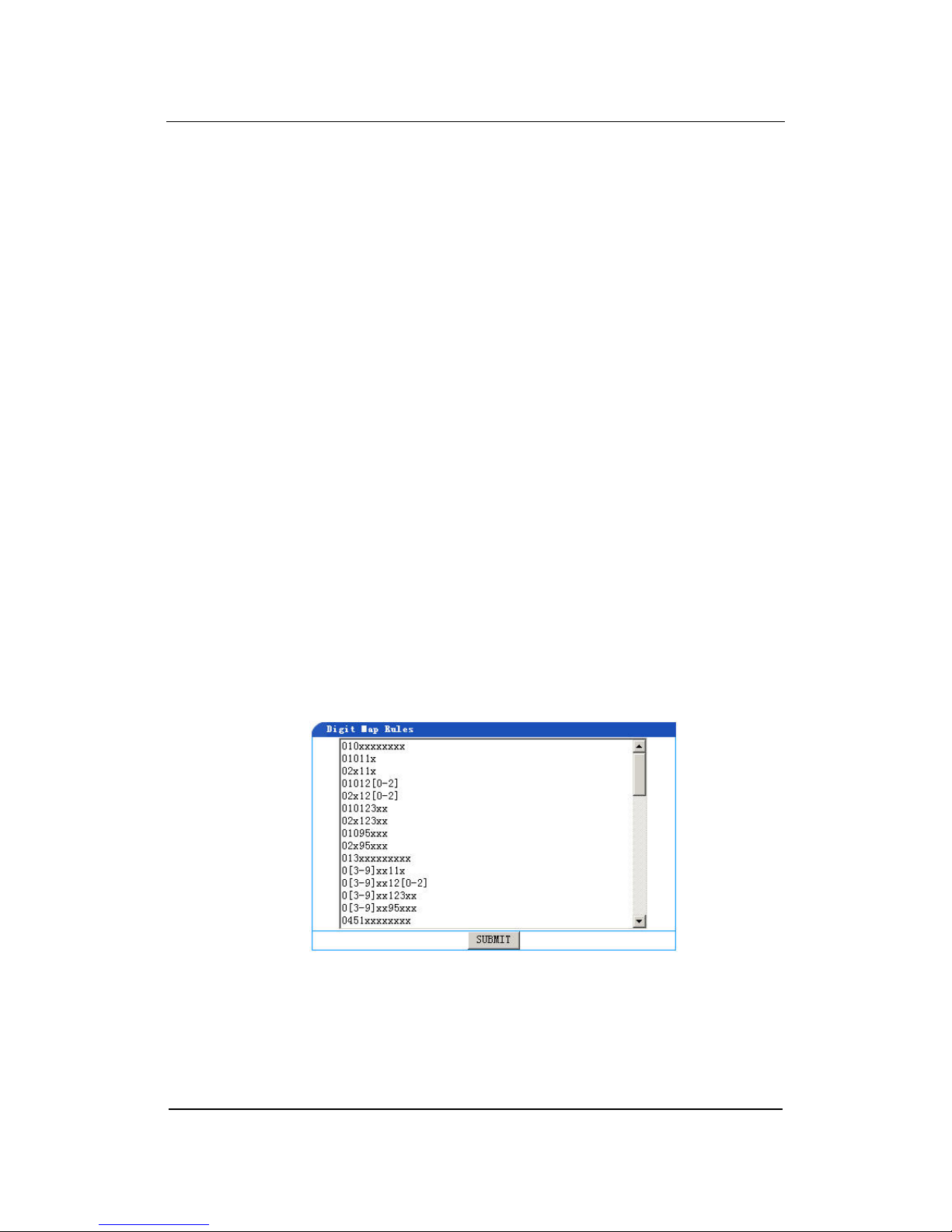

Dialing rules ............................................................................ .................................................. 33

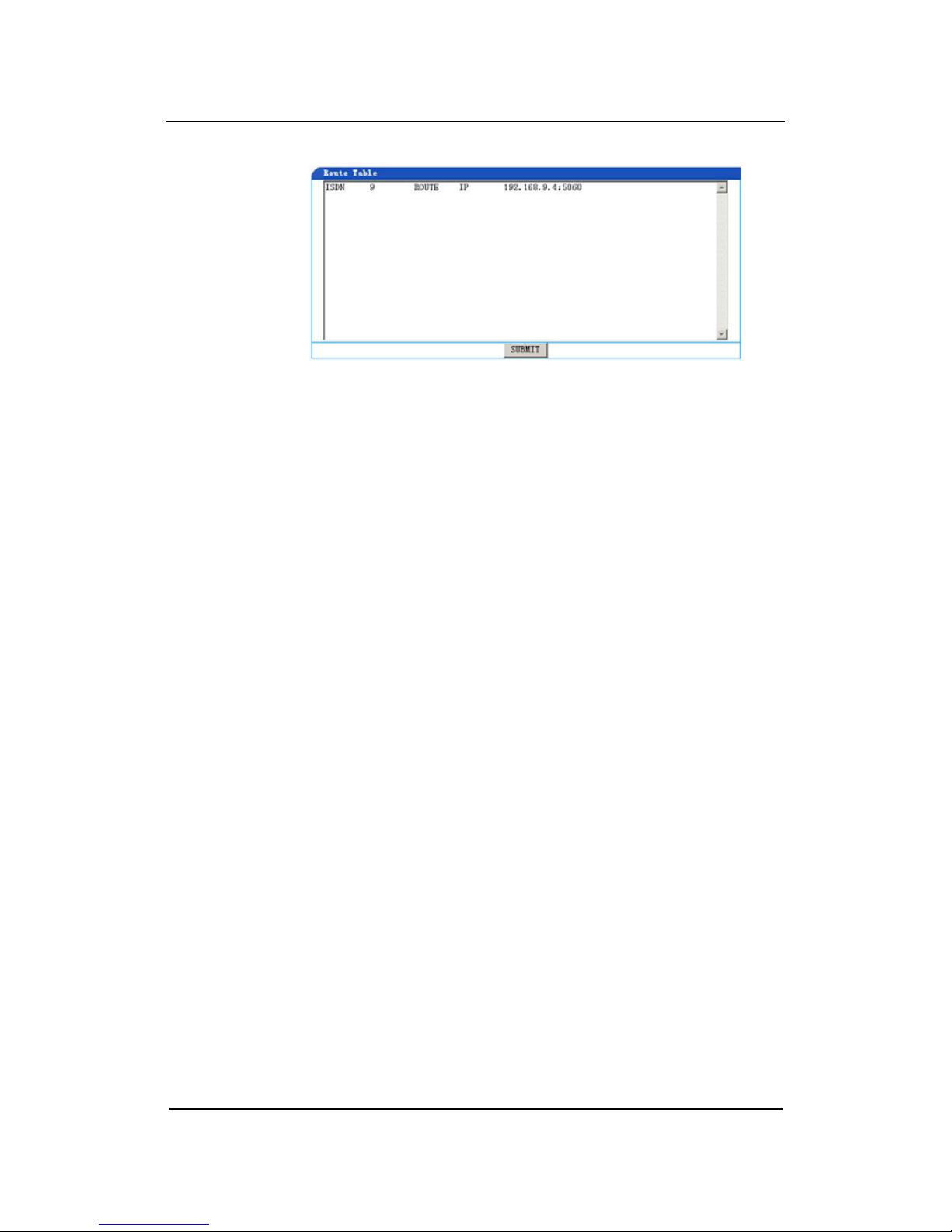

Routing Table ................................................................................ ............. ...... ............. ........... 3 4
IP Screening Table ....................................................................... .......................... ................. 39
ISDN Settings .......................................................................................... ........................................... 39
Flag ................................................................................................................................... ........... 39
Group ID .......................................................................................... ........................................... 41
D Channel ................................................................................ .................................................. 41
Switch Side ................................................................................................................................ 41
Hunting ........................................................................ ............................................................... 42
Echo Cancellation .................................................................................................................... 42
TDM Settings ...................................................................................................................................... 42
DS1 Type .................................................................................................................................... 42
DS0 Type .................................................................................................................................... 42
Line Framing ................. ............................................................................................................ 43
Line Code ................................................................................................................................... 43
Timing Source .. ................................ ...................................... ................................. ................. 43
Cable Matching ......................................................................................................................... 43
Digit Adjust ................................................................................................................................ 43
Advanced Setting ............................................................................................................................... 43
Advanced System Settings ................................................................................................... 44
IP Config..................................................................................................................................... 46
SIP Settings ............................................................................................................................... 49
Border Proxy ............................................................................................................................. 51
EMS Config ................................................................................................................................ 53
lOG INFO .................................................................. .................................................................................. 55

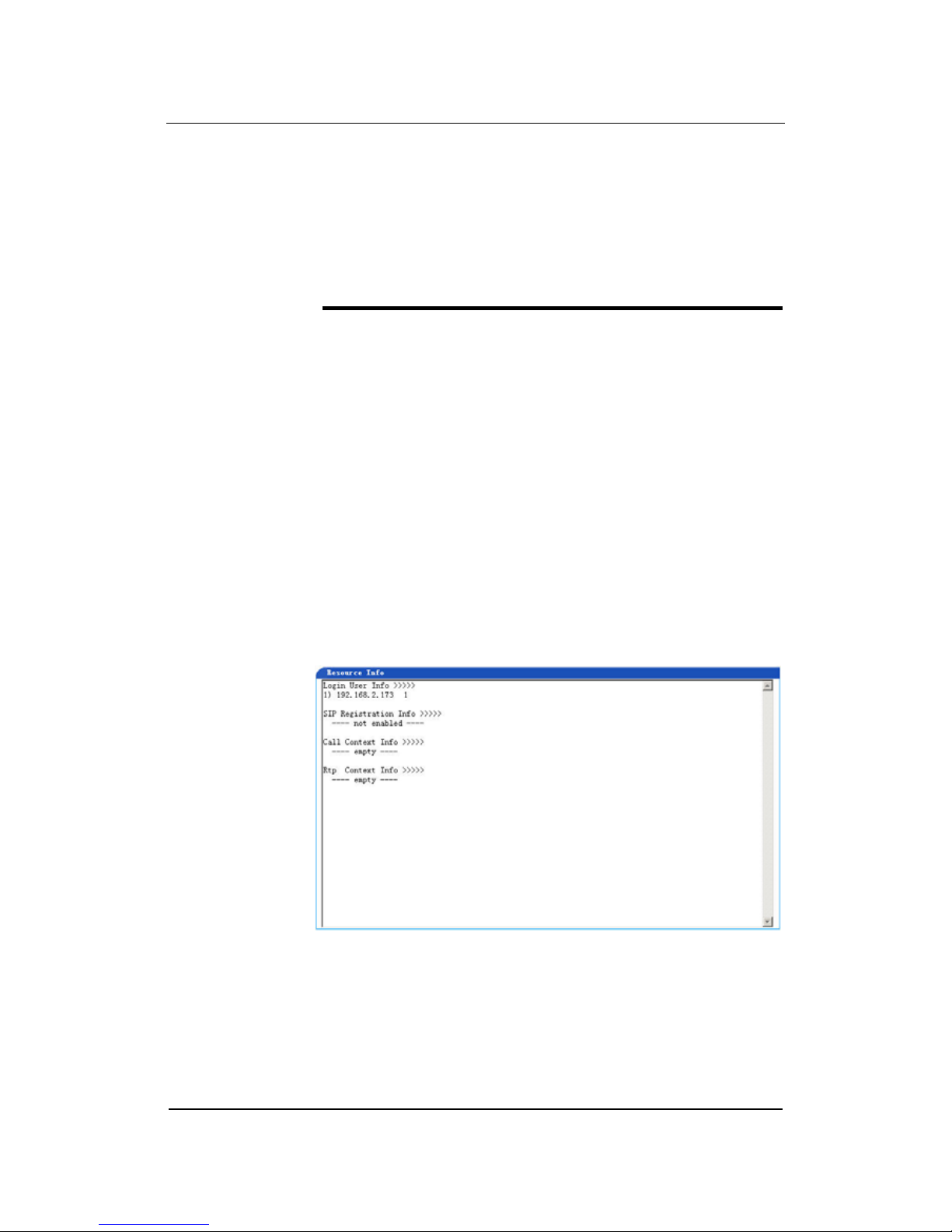

Resource ............................................................................................................................................. 55
Login User Info ......................................................................................................................... 55
SIP Registration Info ....................................................................................... ........................ 56
Call Context Info .............................................................. ................................ ........................ 56
RTP Context Info ...................................................................................................................... 56

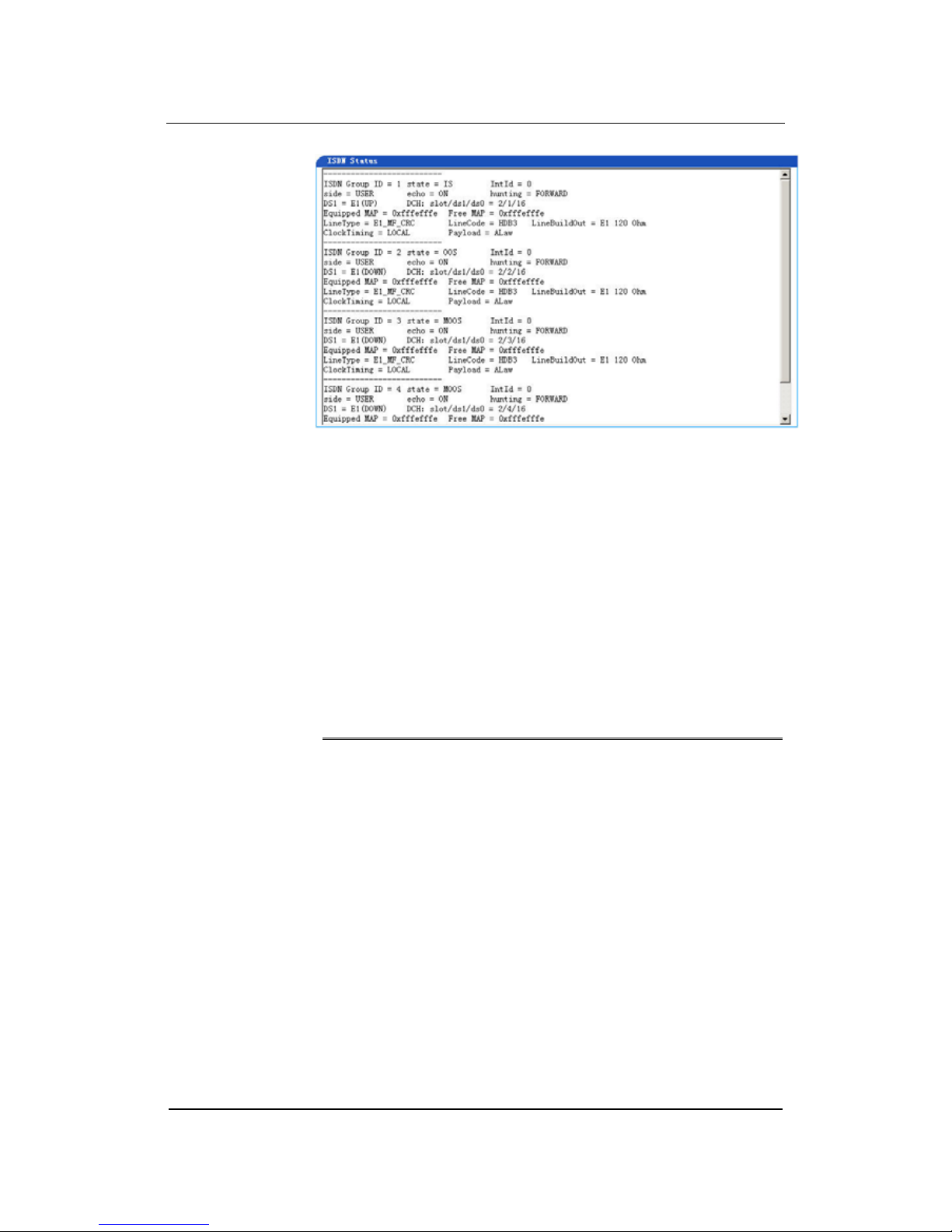

ISDN Status ............... ......................................................................................................................... 56
ISDN Group ID ............................................................................................ .............................. 57
State ........................................................................................... ................................................. 57
Int ID .................................................................................... ........................................................ 57
Side .............................................................................................................................................. 57
Echo .............................................................................. .............................................................. 5 8
Hunting ........................................................................ ............................................................... 58
DS1 ............................................................................... ............................................................... 58
Page 5
5
Slot / ds1 / ds0 ............................................................................... ........................................... 58
Equipped MAP ..................................................................................... ..................................... 58
LineType ............................... ................................................................................... .................. 58
LineCode .................................................................................................................................... 58
LineBuildOut .... ......................................................................................................................... 59
Clock Timing ........................................................................................ ..................................... 59
Payload ....................................................................................................................................... 59

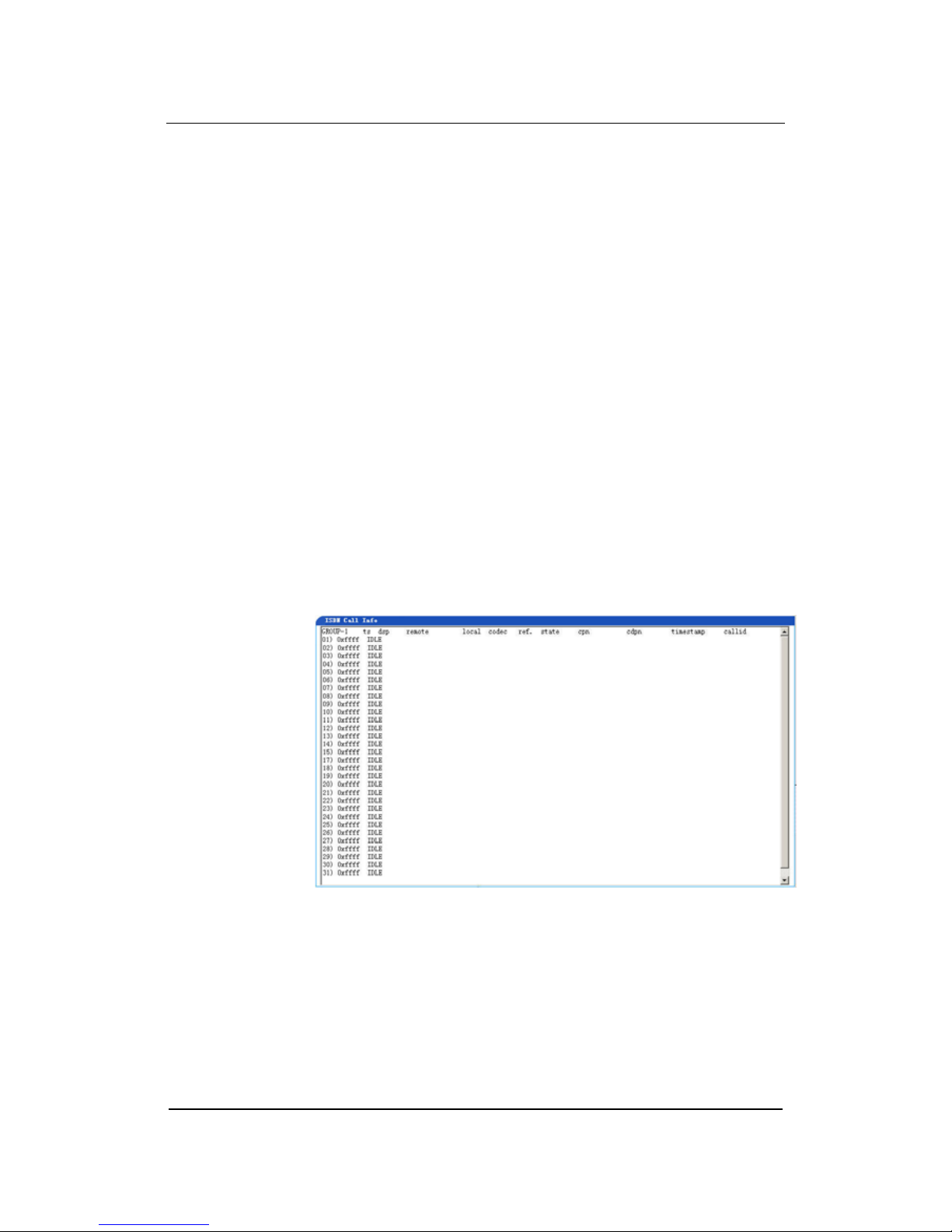

ISDN Call .............................................................................. ................... ................... .......... .............. 59
Group ID .......................................................................................... ........................................... 59
TS (Time-Slot) ......... .................................................................................................................. 59
DSP .............................................................................................................................................. 60
Remote ............................................................................... ....................................... ................. 60
Local ............................................................................................................................................ 60
Codec .......................................................................................................................................... 60
Ref (Call Reference) ........................................................................... ..................................... 60
State ........................................................................................... ................................................. 60
CPN .............................................................................................................................................. 65
CDPN ........................................................................................................................................... 65
Timestamp ...................................................................................... ........................................... 65
CallID ........................................................................................................................................... 6 5

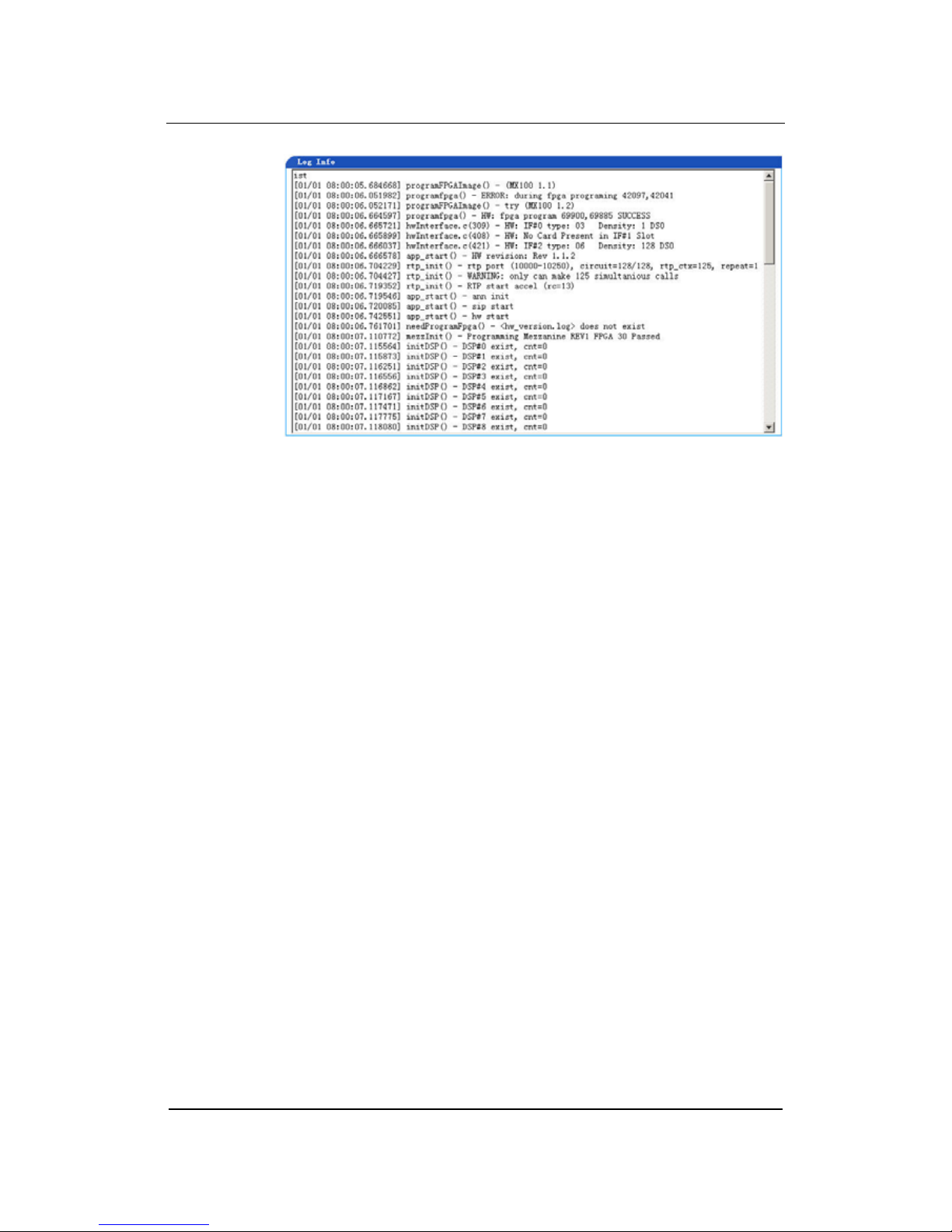

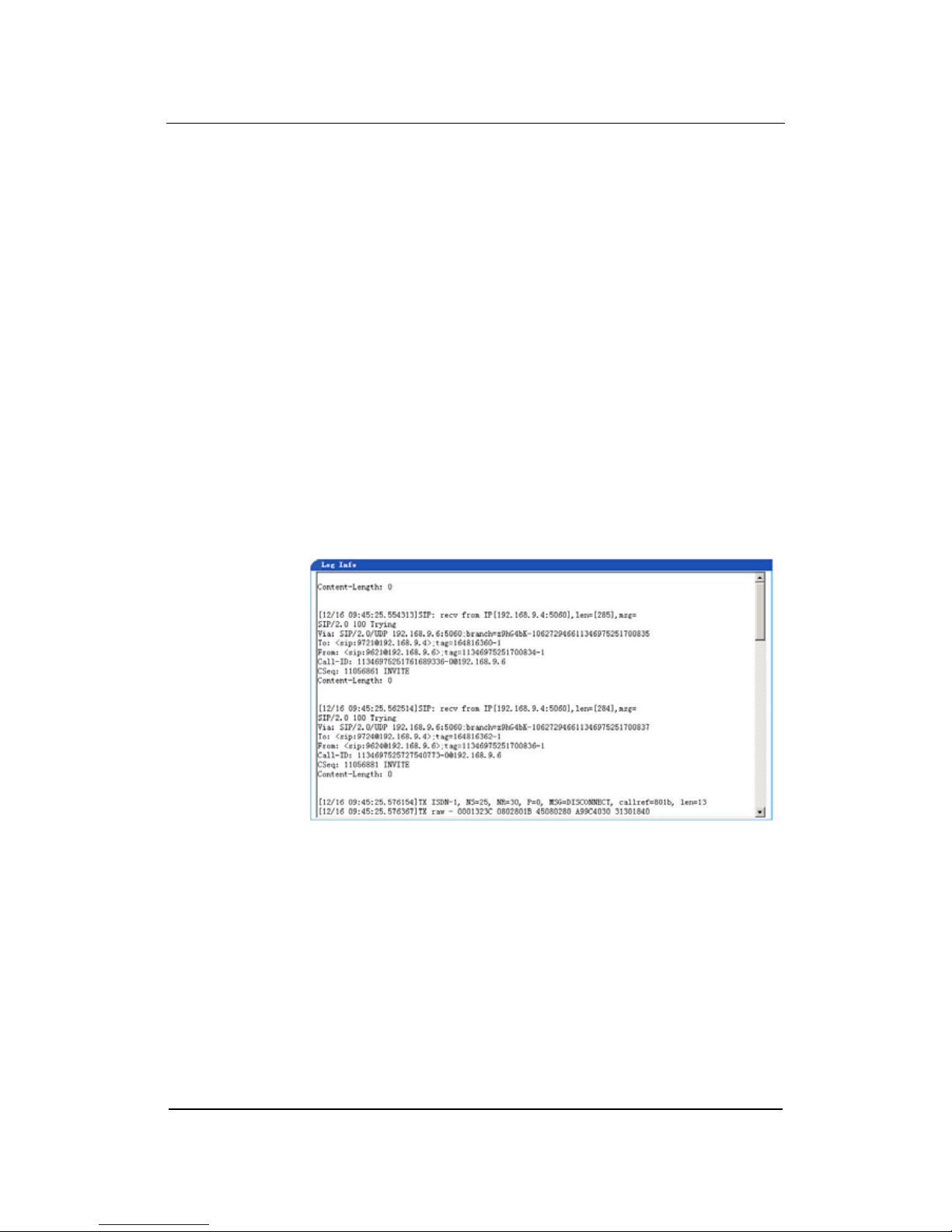

Message Log .................................................................................... .................................................. 66
Boot Log ......................................................................... ..................................................................... 66
TOOLS ............................................................................ .............................................. .............................. 68

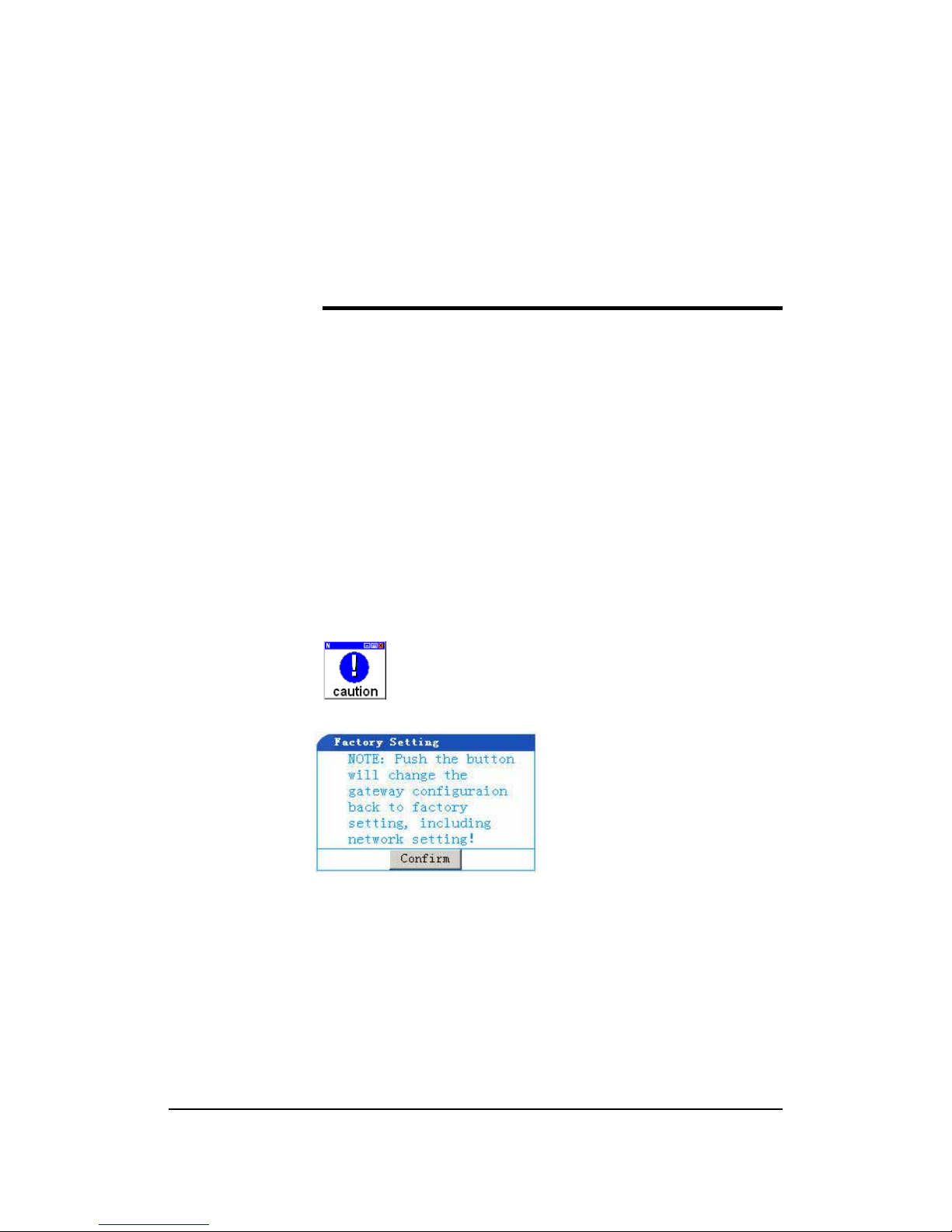

Factory Config .................................................................................. .................................................. 68

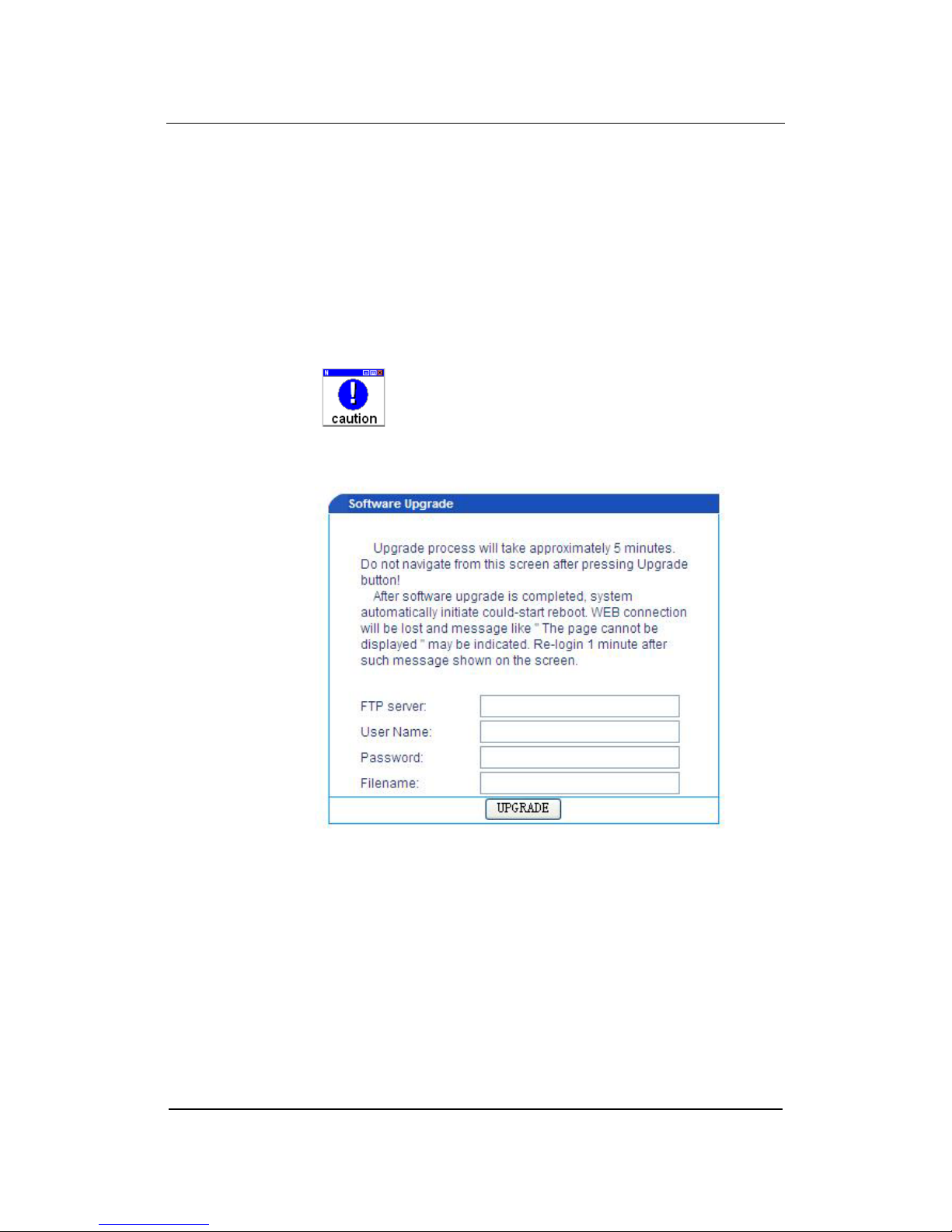

Upgrade ............................................................................................................................................... 69
FTP Server ...................................................................................... ........................................... 69
User Name ............................................................................... .................................................. 70
Password ................................................................................. .................................................. 70
Filename ..................................................................................................................................... 70

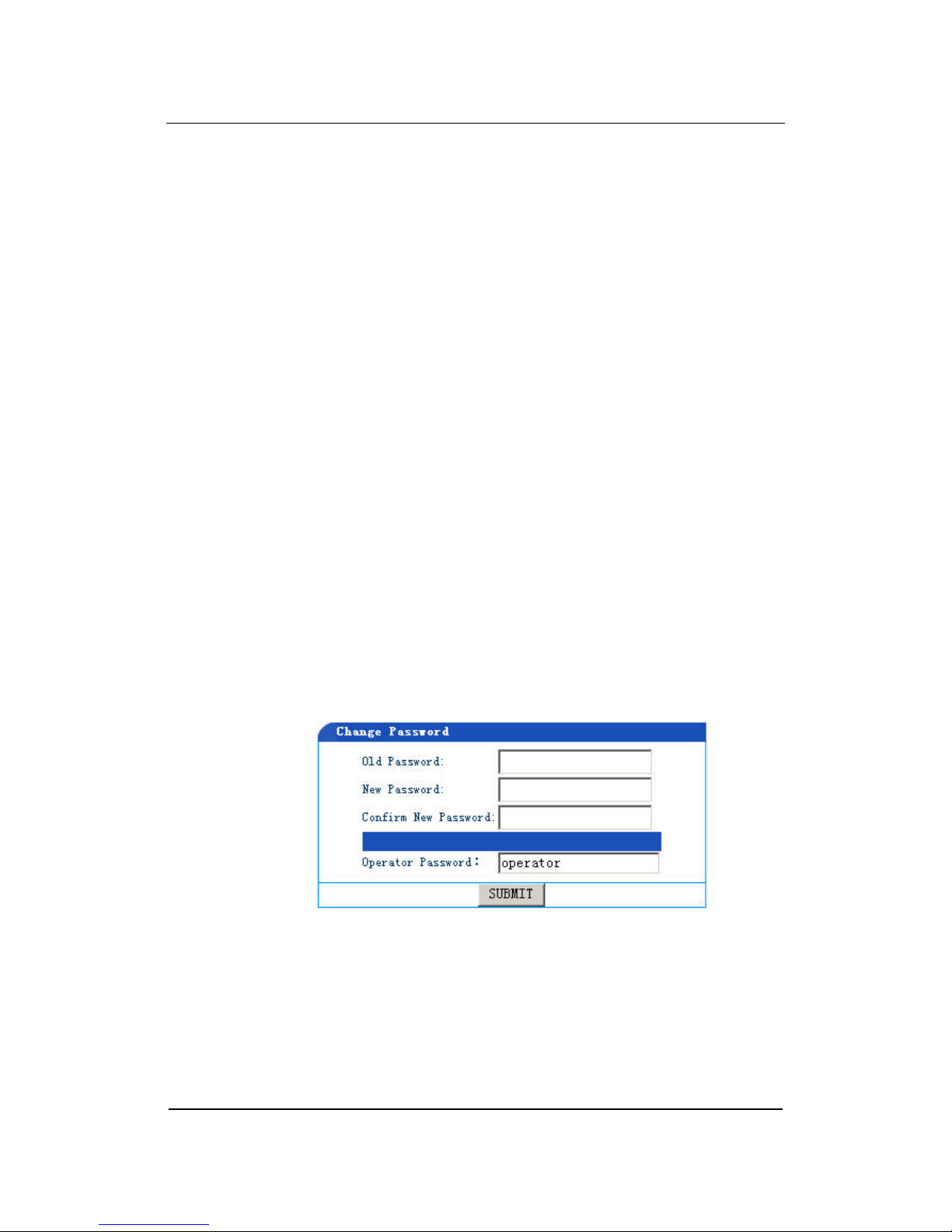

Change Password ............................................................................................................ ............ ..... 70

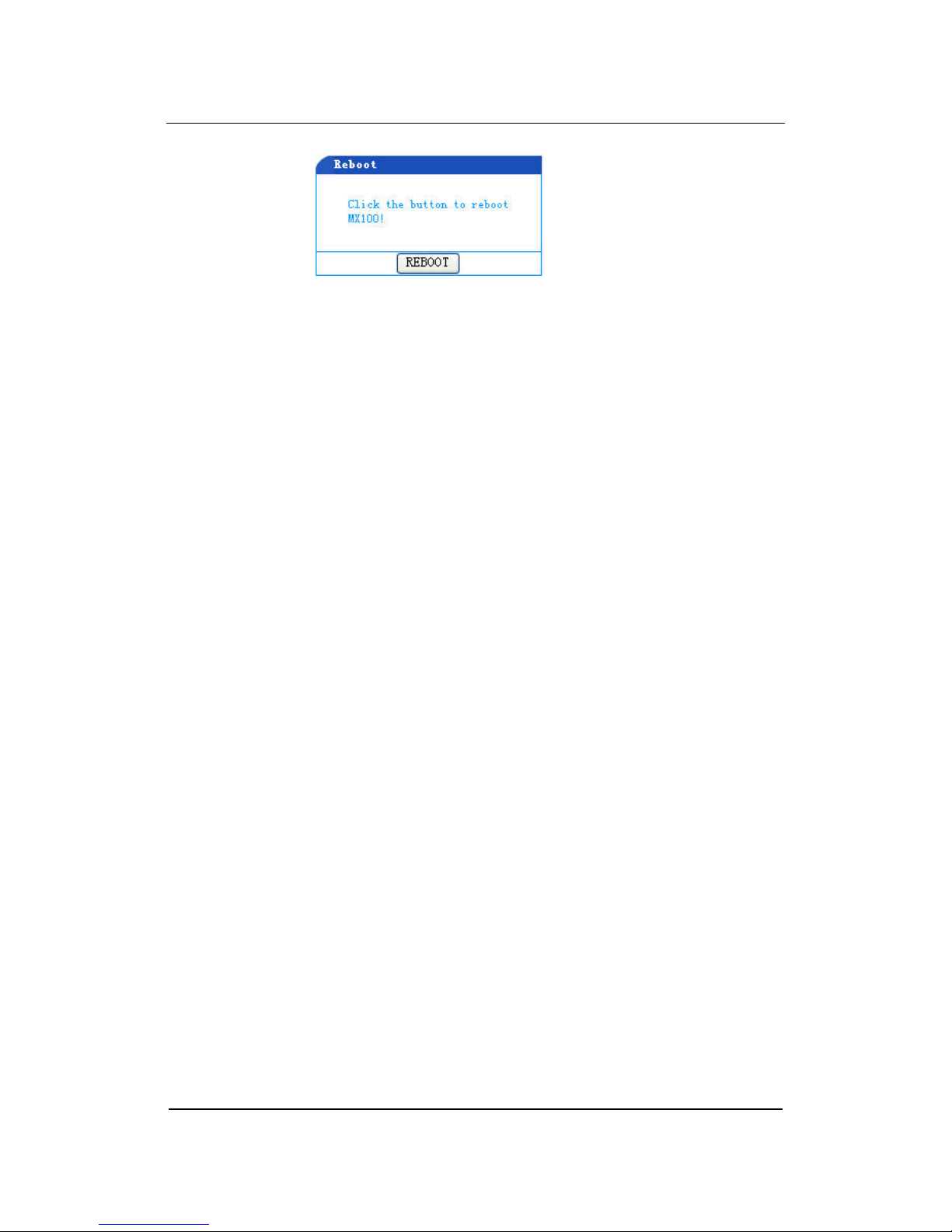

Reboot .................................................................................. ............................................................... 70
TROUBLESHOOTING .............................................................................................................................. 72
GETTING HELP ................................................................................................................................. 72
Checklist ..................................... ................................................................. .............................. 73
Contacts ................................................................................... .................................................. 73
PARTS AND ACCESSORIES ...................................................................................................... ........... 74
MX100-TG Cables ........................................................................................ ..................................... 74
Spares .................................................................................. .............................................. ...... ........... 74
Page 6
MX100-TG User Manual 6
ABOUT THIS BOOK
This book presents information on the system design and operation
of the New Rock MX100-TG media gateway. The purpose of this
information is to h elp you install, use, and maintain the MX100-TG
gateway.
WHO SHOULD USE THIS BOOK
This book is for product distributors, systems integrators, systems
analysts, and network administrators who design, install, configure,
and maintain wide area networks (WANs) and large-scale
communications applications. It contains conceptual and practical
information about how to use the MX100-TG gateway within your
network.
CONVENTIONS USED IN THIS BOOK
This book uses specific conventions to show the following types of
information:
• Number usage
• Replaceable input values
• Messages
Read the following sections to learn more about how this
information is shown in the rest of the book.
Notes, cautions, and Warnings
Notes show useful information and/or contain
information requiring attention.
Page 7
MX100-TG User Manual 7
Cautions show information requiring extra attention
Page 8
ABOUT THIS BOOK
MX100-TG User Manual 8
Warnings are information that, if not followed, could
result in injury or equipment damage.
How Numbers Are Used
When numbers are shown in this book, they can appear as
descriptive values or as data to be manipulated internally. Decimal
values are used frequently; however, alternate number bases are
useful when internal data is shown.
Large Decimal Numbers
Numbers greater than 9999 display in SI metric style, where whole
numbers that contain more than four digits are broken into groups of
three digits that are separated by spaces. For example, the number
sixteen thousand three hundred eighty three is shown as 16 383.
This avoids confusion between American and European
punctuation conventions. However, a number that is internally
manipulated by a computer is shown without punctuation or spaces.
For example, notice how the value 65 535 appears in the following
instruction without a space or a thousands separator within the
number:
Specify 65535 as a maximum value
Numbers with Different Bases
All numbers shown in this book are decimal values unless the
number base is binary or hexadecimal. In these cases, an identifier
precedes a binary or hexadecimal number. For example:
y the value of binary 1010
y the value of hex 4F
Replaceable Input Values
In some cases, you can insert user-defined values into commands
or you can specify local paths and filenames. These variable values
are shown in italic typeface.
Page 9
ABOUT THIS BOOK
MX100-TG User Manual 9
For example, you might be asked to specify the name of your server
in this path:
A:\LOGIN\LOGIN servername
The italic typeface shows that you need to replace servername with
your local server name.
When prompted for variable input represented by lower-case letters,
follow these conventions:
When You See This Substitute This Value
b Any binary digit
h Any hexadecimal digit
n Any decimal digit
x Any alphabetic value, such as:
x:\DOS
where you substitute the correct drive letter
for x
Multiple letters A series of digits, such as:
FIRST 2 HEX BYTES: hhhh
where you substitute four hexadecimal
digits for hhhh
When prompted for variable input with embedded decimal points,
replace the variable digits and let the decimal points remain to
separate32-bit dotted-decimal address segments. For example, you
might be prompted to supply a 32-bit, dotted-decimal address in this
format:
nnn.nnn.nnn.nnn
where nnn is a decimal value from 0 through 255. Leading zeros
are not required.
GETTING HELP
Page 10
ABOUT THIS BOOK
MX100-TG User Manual 10
If, after installing and configuring your New Rock equipment, you
cannot establish Technologies to or from the unit, carefully review
the information in this book prior to calling Customer Support (CS).
Before going any further, ensure that you have checked the
following:
• Console Port configuration. Verify that the baud rate of your
terminal is set to 115200 bps, data bits: 8, parity: none, stop bit:
1, flow control: none.
• Power reset. When cycling power, be sure t o le ave the power
off for a minimum of 30 seconds before reapplying power to
the unit.
Checklist
If, after carefully reviewing the information in this book and the New
Rock website knowledge base, your problem persists, contact your
product representative or a service representative at New Rock’s
Customer Support (CS). So we can serve you better, make a list of
the following items before calling:
• A detailed description of your problem.
• A complete listing of your system components and
configuration, including the serial number of your unit and the
current software version number.
• A narrative of the actions you performed prior to the problem.
• A list of all system messages posted by your unit.
Contacts
New Rock Technologies, Inc..
Corporate Headquarters(U.S.A)
Address：10 Merrymount Road, Quincy, MA 02169, USA
Office Phone：1-781-354-2790 (U.S.A)
Corporate Headquarters(China)
Address：Unit C604,No.666 East Beijing Road, Shanghai, China
Zipcode：200001
Office Phone：+86 21-61202700
Page 11
ABOUT THIS BOOK
MX100-TG User Manual 11
Fax：+86 21-61202704
Page 12
MX100-TG User Manual 12
1
INTRODUCTION
This chapter presents a high-level introduction to the MX100-TG
gateway. The MX100-TG gateway provides voice transmission that
enables high-quality, cost-efficient Technologies VoIP service.
Overview
New Rock's MX100-TG product is designed to bridge the gap
between traditional, circuit-based Public Switched Telephone
Networks (PSTNs) and the emerging packet-switched networks.
The MX100-TG provides an excellent solution for merging digital
broadband access networks with the legacy telephone network in a
seamless, reliable manner.
Features
This section presents high-level information about the features of
the MX100-TG platform. It has been designed to serve smaller, cost
efficient deployment environments that require a rich feature set.
One to Four T1/E1 Span Capacity
The MX100-TG’s platform provides one to four T1/E1 spans of
capacity (up to 240 voice channels). This allows carriers to identify
the ideal size of their deployment and roll out appropriate levels of
service.
Page 13
Introduction
MX100-TG User Manual 13
Scalability
The MX100-TG supports 1, 2 or 4 T1/E1 per chassis. This enables
carriers to size the gateway to fit their specific need。
Processing Power
The MX100-TG possesses 4800 MIPS processing power and
supports multiple voice codec (G.711, G.729A, G.723, iLBC, GSM)
as well as echo cancellation (G.168), DTMF relay (RFC2833), and
fax relay (T.30, T.38).
Quick and Easy Installation
The MX100-TG is packaged in a 1U chassis and can be quickly and
easily installed using standard tools. It has been designed using
industry standards and interoperates with major vendor’s
soft-switches.
Simple Configuration
The MX100-TG is configured and monitored via an intuitive built-in
web GUI. The GUI provides password protected access from
anywhere on the network.
Redundant and Hot Swappable Power Supply
Modules
The MX100-TG power supply modules are hot-swappable in the
event of a physical failure. These modules require no special tools
or training to perform a field replacement.
Page 14
MX100-TG User Manual 14
2
CHASSIS AND
COMPONENTS
This chapter presents the functional architecture of the MX100-TG
gateway. It introduces the major gateway components, their
functions, and inter-activities.
As shown in Figure 1 and Figure 4, the MX100-TG chassis consists
of a control module, T1/E1 module, power supply modules, and two
fans. Interconnection is performed via a mid-plane which is
functionally equivalent to a backplane. The following sections cover
each component in more detail.
Chassis
Dimensions
The MX100-TG chassis is one rack unit (1RU) high, or 1.75 inches
(4.4 cm) high x 17.25 inches (43.82 cm) wide x 17.00 inches (43.18
cm) deep. It can be mounted on an Electronics Industry Association
(EIA) standard 19inch relay rack or optionally, on a rack shelf or
table.
Weight
The MX100-TG chassis weighs ~ 15 lbs. (7 kg).
Page 15
Chassis and Components
MX100-TG User Manual 15
Front View

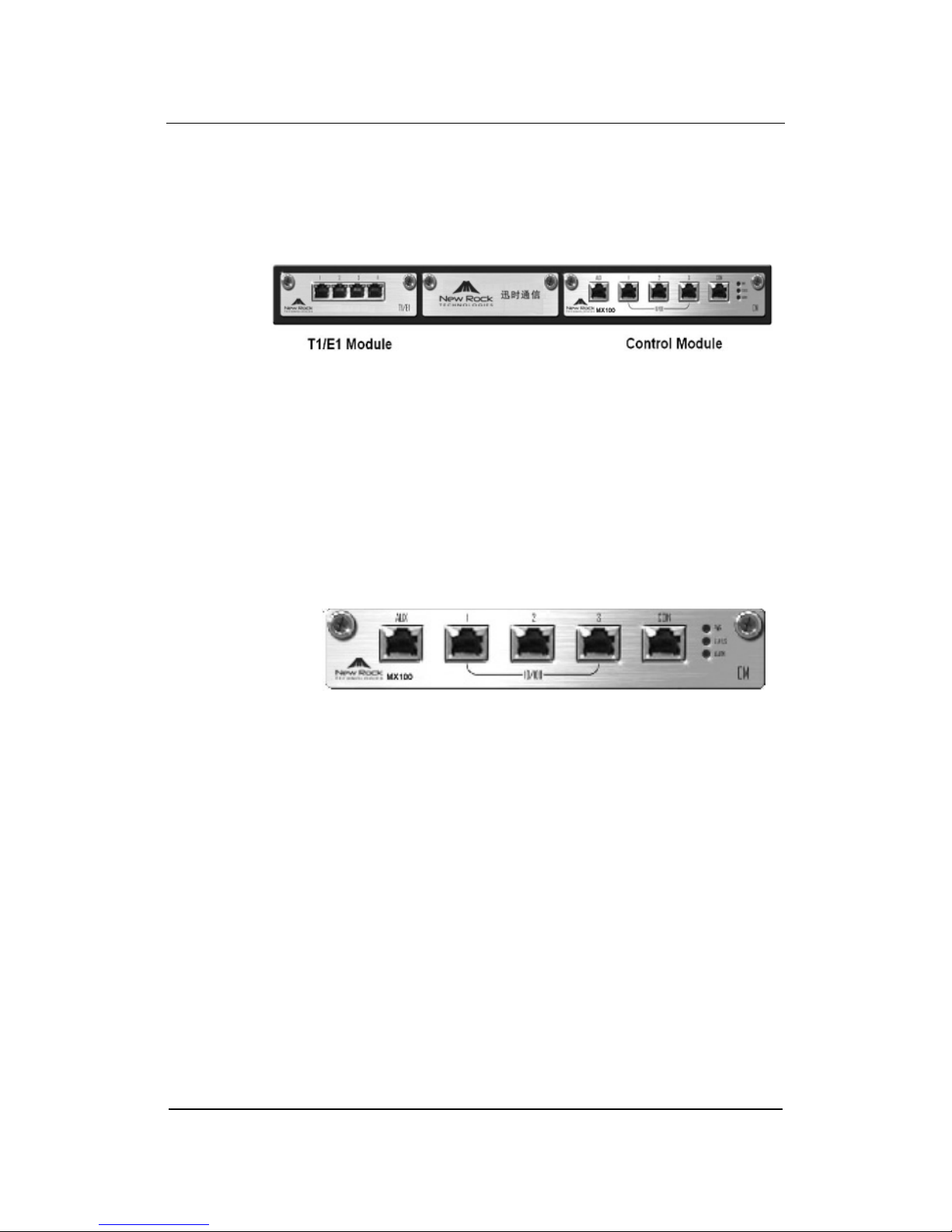

Figure 1 shows the front view of an MX100-TG chassis gateway:
Figure 1. MX100-TG Gateway, front View
Control Module
The MX100-TG Control Module (shown in Figure 2) contains the
control and processing circuitry and interfaces. The mainboard
module includes a daughtercard that provides additional
processing power. Voice capacity is controlled via the processing
power in the mainboard.
Figure 2. Control Module
AUX Port
The AUX (auxillary) port is not currently supported.
Port 1
Port 1 is used for local management access.
Port 2
Port 2 is not currently supported and will not be displayed in the
GUI.
Port 3
Port 3 is an auto-negotiating 10/100Base-T Ethernet port. It is the IP
port carrying the VoIP traffic, including SIP protocol and RTP
Page 16
Chassis and Components
MX100-TG User Manual 16
packets. It may also be used to provide remote access for control,
management, and maintenance. Pin-outs are shown as follows:
RJ45 Pin-out LED Status
1 2 3 6 Orange Green
TX+ TX- RX+ RX- Activity Link
CON (Console) Port
The Console port is used to provide console access to the
MX100-TG during manufacturing and test and is not intended for
use in the field.
RJ45 Pin 1 2 3 4 5 6 7 8
Description NC NC TxD GND GND RxD NC NC
DB9 Pin 2 5 3
DB25 Pin 3 7 2
Indicators
The mainboard indicators have the following meanings:
Table 1: MX100-TG Indicators
Indicator Color Description
PWR
(Power)
Green Power is on
Off Power is off
Status Green
(flashing)
Normal operation
Red (flashing) System is in a diagnostic mode
with limited functionality
Red (on) System is in a start-up mode, not
ready for operation
Off System is locked in a
non-functional state
Alarm Green Normal operation (no alarms)
Red (flashing) Alarm condition from an unknown
source
Page 17
Chassis and Components
MX100-TG User Manual 17
Red (on) Alarm condition with a known
source

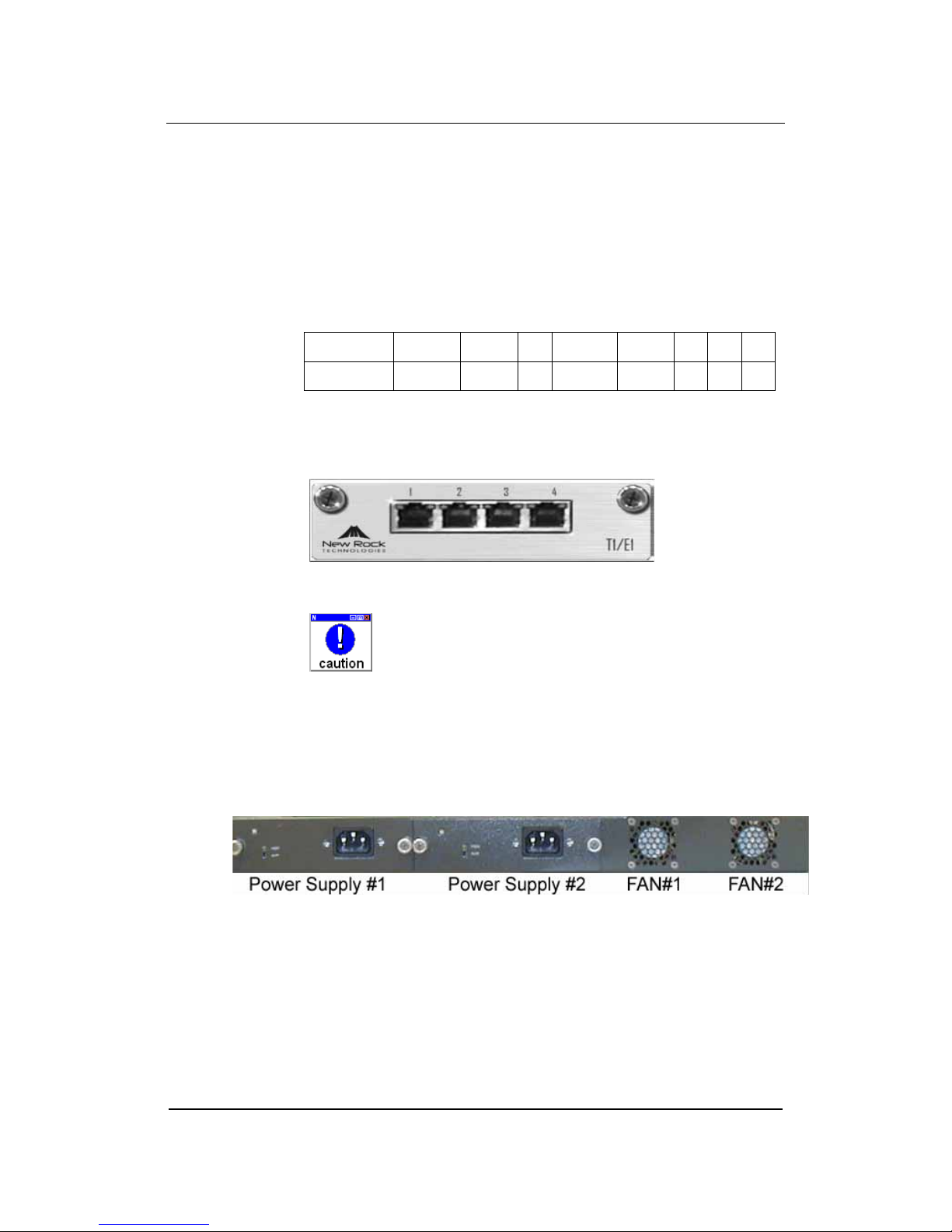

T1/E1 Module
The T1/E1 Module (shown in figure 3) always has four active RJ-45
connections. Pinouts are shown as follows:
RJ45 Pin-out 1 2 3 4 5 6 7 8
Description RX_Ring RX_Tip NC TX_Ring TX_Tip NC NC NC
Since the Control Module controls the capacity of the system, only
the supported number of T1/E1 lines should be connected.
Figure 3. T1/E1 Module
Do not connect T1/E1 lines in excess of the system’s
capacity.
To determine the capacity of the MX100-TG see the
product label.
Rear View
Figure 4 shows the rear view of an MX100-TG chassis.
Figure 4. MX100-TG Gateway, Rear View
Power Supplies
The MX100-TG contains two auto-ranging power supplies. They are
capable of 100-240 VAC, 47-63 Hz. The supplies are redundant and
hot-swappable. While both supplies are installed, both are running
and sharing the power load of the MX100-TG. The power light
Page 18
Chassis and Components
MX100-TG User Manual 18
indicates that the supply is on and in use. The alarm light indicates
that the indicated power supply is not functioning properly.
Fans
The MX100-TG chassis contains two fans that provide cooling for
the system. Both fans are required to be operational for the system
to operate correctly in its specified ambient temperature.
Page 19
MX100-TG User Manual 19
3
INSTALLING THE MX100-TG
The installation of the MX100-TG gateway requires a few simple
tasks.
Site Preparation
Power Input
The MX100-TG requires 100-240 VAC, 47-63Hz. Maximum current
consumption is 1A.
Redundant Power Feeds
New Rock recommends redundant power feeds from separate
power sources or UPS power backup to ensure the continuous
operation of the gateway. This ensures proper operation of the
gateway in the event of a power loss from one of the sources.
Airflow and Thermal Cooling Requirements
The MX100-TG gateway is equipped with two fans for cooling the
system modules. The air intake is located on the right and left sides
with the exhaust vents being located on the rear of the chassis. To
prevent overheating, the air intake and exhaust must not be
obstructed. After installing the gateway avoid installing other
equipment that exhausts hot air directly into the MX100-TG air
intake.
The gateway produces heat at a maximum of 256 BTU/hr. The
facility air conditioning system must be capable of handling the heat
Page 20
Installing the MX100-TG
MX100-TG User Manual 20
load to reduce the ambient air temperature to an acceptable level
for proper operation.
Space Allocation Guidelines
The gateway can be installed in a 19 inch EIA standard open relay
rack. An enclosed cabinet is not recommended unless it can provide
sufficient cooling capacity for the gateway.
Chassis Mounting Guidelines
The chassis can be flush or mid-mounted. A single gateway
requires 1.75 inches (1RU or 4.4cm) of vertical rack space, 17
inches (43cm) of rack depth and weighs approximately 15 lbs (7
kg).
Installing the Chassis
The MX100-TG is shipped in a protective carton to prevent damage
during shipping. The shipping carton contains the following items:
y MX100-TG gateway chassis (with modules installed)
y Power cable assemblies
y MX100-TG gateway documentation and software on CD
Standard configuration accessories can be added or removed
based on customers’ demands.
To install the chassis:
1. Remove the MX100-TG chassis from its shipping carton.
2. The MX100-TG chassis is shipped with its rack mount ears
positioned for front (flush) mounting. To change the mount
position of the chassis, use a #2 Phillips screwdriver to remove
the three #8-32 screws affixing each rack mount ear.
Reposition the rack mount ears to the desired mount position.
3. Lift the chassis into the rack so that the chassis mounting ears
are aligned with the rack holes. Partially install one rack screw
in the bottom corner of each side for the keyhole cutouts. Set
the chassis over the partially installed rack screws, then install
the remaining rack screws (rack screws not provided).
Page 21
Installing the MX100-TG
MX100-TG User Manual 21
4. For racks with equipment shelves installed, lift the MX100-TG
chassis and position it on the shelf.
Connecting Main Power
The MX100-TG gateway is configured for AC power. New Rock
recommends two independent AC power feeds.
Installation must be performed by a qualified professional
who is skilled in the installation and connection of power
distribution systems, and is knowledgeable of applicable
municipal electrical code requirements.
Applying Power:
1. Connect the supplied power cords to the inlets on the power
supplies.
2. The MX100-TG does not have an on/off switch. Plug the
MX100-TG. power cord into an outlet. Connect the other end
of the power cord to the back of the MX100-TG. The
MX100-TG fans will start and the LED indicators will light.
3. To ensure power is not accidentally removed, make sure all
plugs are securely connected to the chassis and outlets and
that power cables are secured.
Configuration
A brief introduction to using the MX100-TG GUI can be found in
Chapter 4 “Getting Started”. Detailed information on configuring the
MX100-TG is contained in Chapter 5, “Configuring the MX100-TG”.
Page 22
MX100-TG User Manual 22
4
GETTING STARTED
This chapter explains the steps required to “get started”. It also
explains the MX100-TG user interface, a web-enabled management
tool, which consists of a set of user-friendly menus and screens.
Using these menus, the MX100-TG can be configured, monitored,
and managed during its deployment.
Starting the MX100-TG
The following procedure explains how to access the MX100-TG:
1. Unpack the MX100-TG (note: keep the packing material so it
can easily be shipped again).
2. Power-up the MX100-TG. Before doing so, observe the
following precautions:
Always ground the MX100-TG through the protective
earth lead of the power cable. Before applying AC power
to the MX100-TG, verify that the main plug is inserted into
a socket outlet provided with a protective earth contact
only. The protective action must not be negated by using
an extension cord (power cable) without a protective
conductor (grounding). Interrupting the protective
(grounding) conductor (inside or outside the unit), or
disconnecting the protective earth terminal, can make
operation dangerous.
Installation must be performed by a qualified professional
who is skilled in the installation and connection of power
distribution systems, and is knowledgeable of applicable
municipal electrical code requirements.
Page 23
Getting Started
MX100-TG User Manual 23
3. The MX100-TG does not have an on/off switch. Plug the
MX100-TG power cord into an outlet. Connect the other end of
the power cord to the back of the MX100-TG. The MX100-TG
fans will start and the LED indicators will light.
4. Wait until the MX100-TG completes its diagnostics and
boot-up sequence (about 2 minutes).
5. Es tablish a data connection to the MX100-TG. When the
MX100-TG is first shipped, only Ethernet port #3 is configured.
Connect an Ethernet cable from your PC to Ethernet port 3 on
the front panel of the MX100-TG.
6. Open the Mi c rosoft Internet Explorer web browser (version 5.x
or later) and type the address: http://192.168.2.240.
7. Continue reading section “Understanding the MX100-TG WebGUI” on page 23 for login instructions and information about
the using the GUI.
Page 24
Getting Started
MX100-TG User Manual 24
Understanding the MX100-TG Web-GUI
The MX100-TG is configured, managed, and monitored using a
built-in Web-GUI. A screenshot is shown in Figure 3.
Figure 3. Web-GUI Main Screen
The Web-GUI has been designed to be simple and intuitive. The
Web-GUI automatically detects the hardware capability of the SGX-
100. For example, if the MX100-TG has capacity for two spans of
T1/ E1, the Web-GUI will only show two T1/E1 interfaces (1 and 2)
in the appropriate configuration screens. The following sections
provide a brief tutorial on the MX100-TG’s Web-GUI.
Introduction
After the MX100-TG powers up, the GUI may be accessed by
opening a standard web browser and entering the default address:
http://192.168.2.240.
There are two user-levels available with the MX100-TG.
Administrator and Operator. The respective default passwords for
each are New Rock and operator.
The MX100-TG passwords are case sensitive.
Page 25
Getting Started
MX100-TG User Manual 25
The administrator account has full permissions while the operator
can not change network configurations, perform password
management, or restore factory default settings. The MX100-TG
allows multiple users to log on at the same time. The user with the
highest privilege level is able to make changes and perform actions.
In the event of two like-privilege users, the first to log-in has control.
The remaining users, regardless of their user privileges, will only be
able to view configurations and status. For information on your
current privilege level see "Login User Info" on page 60.
New Rock highly recommends changing the passwords
to prevent unauthorized access to the system.
The WebGUI will automatically logoff a user after 10
minutes of inactivity. Because of this, it is important to
logout using the menu and therefore not to prevent
access to the system by others (for 10 minutes).
To refresh your permissions, you must logout and
re-login.
Page 26
Configuring the MX100-TG
MX100-TG User Manual 26
5
CONFIGURING THE
MX100-TG
This chapter describes the configuration and management of the
MX100-TG gateway.
System Configuration
By selecting system configuration from the main screen, the
system configuration screen is shown in Figure 5.
Figure 5. System Settings
Software Version
Page 27
Configuring the MX100-TG
MX100-TG User Manual 27
The software version is a read-only field that is automatically
updated to show the current version of software running on the
system.
Hardware Version
The hardware version is a read-only field that is automatically
updated to show the current version of hardware. This field is used
by New Rock support person to aid in troubleshooting.
DSP Version
The DSP version field is read-only and is updated automatically to
show the current version of DSP software.
RTP Port Min and Max
The RTP Port Min and RTP Port Max settings define a range of
available RTP ports to be used for voice traffic. The default settings
are 10000 (min) and 10250.
Since a VoIP call uses two RTP ports (one for RTP and the other for
RTCP), one T1/E1 supports 23/30 simultaneous voice calls, and up
to four T1/E1 ports are supported, the MX100-TG requires 184/240
RTP ports.
First Digit Timeout(s)
The First Digit Timeout value defines how long after SETUP event
the MX100-TG will wait before treating the call as abandoned and
RELEASE the call. The default value is 12 seconds. This is only
applicable for second stage dialing.
Inter Digit Timeout(s)
The Inter Digit Timeout value defines how long after a digit has
been dialed to wait to send the dialed number out. The default value
is 12 seconds.
Critical Digit Timeout(s)
Page 28
Configuring the MX100-TG
MX100-TG User Manual 28
This parameter is used in conjunction with the configured x.T dialing
rules. After a specified head of the number (“x”) has been dialed, the
MX100-TG will wait the Critical Digit Timeout time period prior t o
sending the dialed number. For example, assuming that dialing rule
021.T has been configured. After the user has dialed 021 and the
Critical Digit Timeout period has passed, the MX100-TG will send
the dialed 021 out. The default value is 5 seconds.
DTMF Method
This parameter is used to set the DTMF signal transmit mode.
Available settings are: Audio mode, INFO mode, and 2833 mode.
Audio mode is a transparent transmit mode, Info mode is an
information transmit mode, and 2833 mode is a RTP event packet
transmit mode.
Default Codec
The MX100-TG can support multiple codec simultaneously.
Supported codec are shown in Table 2. Enter the value shown in
Table 2 to configure the MX100-TG to use a particular codec for
calls. To configure the support of multiple codec, enter them on one
line separated by a comma (no spaces). The MX100-TG will select
the first codec (left-to-right) supported by both sides. The default
configuration of codec is: G729a/20, PCMU/20, PCMA/20, G723/30,
GSM/20, iLBC/20.
Table 2: Supported Voice Codec
Available
Codec
Interval of RTP packet
transmission (ms)
MX100-TG
Value
G.729A 20,30,40 G729A/20
G.723/30 30,60 G723/30
G.711 mu-law 20 PCMU/20
G.711 a-law 20 PCMA/20
GSM 20 GSM/20
iLBC 20 iLBC/20
Echo Cancellation
Page 29
Configuring the MX100-TG
MX100-TG User Manual 29
The Echo Cancellation may be Enabled or Disabled. Echo
cancellation must also be turned on or off on a per-ISDN basis in
the ISDN configuration window (see ”Echo Cancellation” on page
43 ). Disabling
Echo Cancellation overrides the settin g of the
same name found in the ISDN configuration window. (See “Echo
Cancellation” on page 43.)
SIP Configuration
By selecting SIP from t he navigation menu the SIP configuration
screen will appear. (See Figure 6.)
Figure 6. SIP Settings
SIP Port
The SIP Port parameter is used to set the SIP local port. The
default value is 5060. The value can be any setting so long as it isn’t
used elsewhere.
Proxy
Proxy allows a SIP Proxy to be designated for the MX100-TG. The
format of the Proxy is the address or domain name separated from
the port number by a colon. Two examples of valid settings are:
y 202.202.2.202:5060
y softswitch.com:5060
Page 30
Configuring the MX100-TG
MX100-TG User Manual 30
When using the domain name format of an
address, you must configure and activate the DNS
service in the “Network Setting” screen.
Registrar
Registrar allows SIP registrar server to be identified. The format of
the Registrar is the address or domain name separated from the
port number by a colon. Two examples of valid settings are:
y 202.202.2.202:5060
y softswitch.com:5060
When using the domain name format of an address,
you must configure and activate the DNS service in the
“Network Setting” screen.
Registration Expires
The Registration Expires parameter defines how often the
MX100-TG re-registers with the SIP server. The default value is
3600
seconds.
SIP Domain Name
SIP Domain Nam e defines the domain name. If the SIP Domain
Name is not configured, the MX100-TG will use the address of the
SIP Proxy.
The format of the SIP Registr ar is the address or domain name
separated from the port number by a colon. Two examples of valid
settings are:
y 202.202.2.202:5060
y softswitch.com:5060
When using the domain name format of an address,
you must configure and activate the DNS service in the
“Network Setting” screen..
Authentication Mode
Page 31
Configuring the MX100-TG
MX100-TG User Manual 31
The Authentication Mode parameter defines how the gateway will
register with the proxy/server. It may be configured to Per Gatewa
y
Registration, Per Endpoint, or Per Gateway Authorization.
User Name
The User Name parameter is the user name that will be used to
register with the proxy.
Password
The Password parameter is the password that will be used to login
to the proxy.
Network Configuration
By selecting Network from the main screen, the Network
configuration screen is shown.
Host Name
The Host Name parameter allows giving the MX100-TG a name.
For example, it could be set to “MX100-TG-3rdSt-NYNY”. Valid
domain name characters and symbols are allowed.
Local IP Address
The Local IP Address parameter reports the address that is
currently being used. This value is useful to make sure
management connectivity with the system is not lost when making
configuration changes.
Default Gateway
The Default Gateway parameter allows configuring the default IP
route for the MX100-TG.
Ethernet Configuration
While there are thr ee Ethernet ports on th e MX100-TG only
Ethernet ports one and three may be configured.
Page 32
Configuring the MX100-TG
MX100-TG User Manual 32
IP Address
The IP Address parameter configures the IP address of the
Ethernet port. The standard IP address format is accepted:
aaa.bbb.ccc.ddd. The default setting is: 192.168.2.240
.
Make sure this address is valid and accessible
from where you are. An invalid setting will require a
site-visit to recover remote access to the
MX100-TG.
Subnet Mask
This configures the subnet mask of the Ethernet port. The format of
the mask is: aaa.bbb.ccc.ddd. The default setting is:
255.255.255.0
.
MAC Address
The MAC Address is the hard-coded read-only hardware address
of the Ethernet port. This value can be used for detailed debugging
and troubleshooting.
DNS
The DNS parameter configures the DNS functionality Enable or
Disable. When DNS is Enabled, up to two DNS servers may be
entered. The first server is the primary and the second is used as a
backup. The standard IP address format is accepted:
aaa.bbb.ccc.ddd.
PPPoE
PPPoE
In the PPPoE field select On or Off to indicate to use PPPoE
service or not.
• If you selected on, you need to enter your user name and
password in the PPPoE Username field.
NTP
Page 33
Configuring the MX100-TG
MX100-TG User Manual 33
The MX100-TG allows the entry of up to two NTP servers. The first
entry will be used as the primary server and the second entry as the
backup.
Time Zone
In Time Zone field select a proper time zone for the MX100 based
on the region where it is installed.
Here are the regions available for the time zone: Midway, Honolulu,
Anchorage, Tijuana, Denver, Mexico, Indianapolis, Glace Bay,
Buenos Aires, South Georgia, Cape Verde, London, Amsterdam,
Cairo, Moscow, Muscat, Karachi, Almaty, Bangkok, Beijing, Tokyo,
Canberra, Magadan, Auckland, Newfoundland, Tehran, Kabul,
Calcutta, and Adelaide.
Routing and Dialing Rule
The following section details the Digit Map, Route Table, and IP
Table capabilities of the MX100-TG.
Dialing rules
As shown in Figure 8, the digit map may optionally be configured
with various dialing rules to determine if the dialed number
sequence is correct or not.
Figure 8. Dialing rules (Digit Map) Table
Usage
The following table shows generic examples for the usage of the
Digit Map feature.
Page 34
Configuring the MX100-TG
MX100-TG User Manual 34
Table 3: Digit Map Usage
Setting
Description
x Any number ranged from 0- 9
“.” Represents any multidigit number ranged from
0- 9
x.T The MX100-TG allow a phone number of
random length comprised of digits 0-9. If within
the time specified (see "Critical Digit Timeout"
on page 27) no new digit has been received,
the gateway will send out the dialed number
x.# If after the entry of a phone number of random
length comprised of digits 0-9 the ”#” key is
pressed, the number will be sent.
[2-8]xxxxxx A seven digit number starting with any number
2-8 will be sent
Table 3: Digit Map Usage
Setting
Description
91x A three digit number starting with 91 which
is used to finish an emergency call
911 Send the number 911 immediately after
being received.
Routing Table
The Routing Table (shown in Figure 9) has two functions in the
MX100-TG, digit translation and routing. Digit translation and
routing can be applied to both directions of a call, either from IP or
from the PSTN. If the Route Table is empty:
y Calls from IP addresses will select the first available (nonfull)
T1/E1. (1, 2, 3, then 4)
y Calls from the PSTN will be sent to the IP address configured
in “SIP Proxy” on page 29.
Page 35
Configuring the MX100-TG
MX100-TG User Manual 35
Figure 9. Routing Table
Routing Table Syntax
Routing Table statements use the following syntax:
Format: Source Number Handle [Parameter]
or,
Format: Source Number ROUTE Destination [Parameter]
Source
Source can be ISDN or IP. When source is IP, an address can
optionally be specified, e.g., [xxx.xxx.xxx.xxx] or
[xxx.xxx.xxx.xxx:port]
Number
The default number is called party number. If the calling party
number is being used, add CPN in front of the number. The
Number can be:
y A specific number like (114, 61202700)
y A number prefix like (61., 61x5 or 61)
y A number range like (268[0-1,3-9])
Handle
The Handle parameter can be:
y KEEP digits from left or right
y REMOVE digits from the left or right
Page 36
Configuring the MX100-TG
MX100-TG User Manual 36
y ADD prefix or suffix number
y REPLACE pr ef ix o r the whol e num ber
y END digit manipulation
y SEND180 force send 180 on ring back
y SEND183 force send 183 on ring back
y HIDE calling party number presentation
y CODEC for the call
y RELAY - First connect to a configured number, then, after
connected, out pulse the real number.
Destination
The Destination parameter can be:
y NONE (call restricted)
y IP - The address and optional port number are specified.
To specify local IP, the following entries are valid:
“localhost: 5060” or “127.0.0.1:5060”
y ISDN - ISDN span number can be specified.
Route and Map Examples
The following examples are designed to show how route and digit
mappings can be used effectively.
Examples - Digit Maps
IP 02161202700 KEEP -8; 61202700
IP 021 REMOVE 3; Any number start with 021, the 021 prefix is
removed
IP CPN6120 ADD 021; CPN number start with 6120, prefix 021 is
added
IP CPN6120 ADD -8888; CPN number start with 6120, 8888 is
appended
ISDN CPN88 REPLACE 2682000; CPN number started with 88,
the prefix “88” is replaced with 2682000
ISDN CPN88. REPLACE 2682000; CPN number started with 88,
the whole number is replaced with 2682000
Page 37
Configuring the MX100-TG
MX100-TG User Manual 37
IP CPN2 SEND180; CPN number start with 2, always send 180 on
ring back
IP CPN3 SEND183; CPN number start with 3, always send 183 on
ring back (voice cut through)
IP[61.2.44.53:5060] CPNX. HIDE ; Any call from 61.2.44.53:5060,
calling party number presentation restriction is applied
IP 6120 CODEC PCMU/20/64; Any number start with 6120, use
20ms pTime PCMU codec with 64ms echo cancellation
IP 010 RELAY 17909; Calls to 010x, first connect to 17909, after
the call connected, then pulse out the called party number
Examples - Digit Map - End Handle
The END handle is used to terminate digit manipulation for certain
condition. After the END statement, no digit manipulation will be
applied on further matches. Refer to the example below:
IP 12345 ADD -8001; add suffix 8001
IP 12345 REMOVE 4; then remove first 4 digits
IP 12345 END; stop digit manipulation, no change on later matching
condition
IP 12345 REPLACE 777; won't take effect for 12345x
IP 12 KEEP -3; won't take effect, but any number start with 12 other
than 12345 will take effect
IP 123456 ADD -8002; won't take effect, if this rule is needed it
should be moved before the 12345 rule and put an END statement
after it
Examples - Route Functionality
The following examples cover the ROUTE functionality:
IP 8621 ROUTE ISDN 1; call has 8621 prefix, route to ISDN span 1
IP CPN8620 ROUTE ISDN 2; calling party number started with
8620, route to ISDN span 2
ISDN 021 ROUTE IP 228.167.22.34:5060; call has 021 prefix, route
to 228.167.22.34:5060
Page 38
Configuring the MX100-TG
MX100-TG User Manual 38
ISDN 020 ROUTE IP 61.234.67.89:5060; call has 020 prefix, route
to 61.234.67.89:5060
IP CPN[1,3-5] ROUTE NONE ;calls from CPN starting with 1, 3, 4
and 5 will be rejected
Example - Using Route Instead of End
The following example shows how the ROUTE statement can be
used instead of the END statement to stop digit manipulation. In this
case, further matching on the same condition won't take place.
IP 12345 ADD -8001; number started with 12345 add suffix 8001
IP 12345 REMOVE 4; then remove first 4 digits
IP 12345 ROUTE ISDN 2; then stop further matching digit
manipulation and route to ISND span 2
IP[222.34.55.1] CPNX. REPLACE 2680000; Calls from 222.34.55.1,
Calling party number is replaced with 2680000
IP[222.34.55.1] CPNX. HIDE; then calling party number
presentation restriction is applied
IP[222.34.55.1] CPNX. ROUTE ISDN 2; then route to ISDN span 2.
Example - Relay Traffic to Another VoIP Platform
In the following example, traffic will be moved to another VoIP
platform that has a common access number (e.g. 17909).
IP[222.34.55.1] CPNX. REPLACE 2680000
IP[222.34.55.1] CPNX. RELAY 17909
All calls from 222.34.55.1 will have their calling party number
replaced with 2680000. Next, after 17909 cut-through, the
MX100-TG will pulse out the CDPN (in-band DTMF) and let the
17909 platform make the final connection.
Example - Traffic Redirection
Sometimes the IP traffic to the MX100-TG has a CDPN prefix that
tells us where to relay the traffic.
IP 17909 REMOVE 5
Page 39
Configuring the MX100-TG
MX100-TG User Manual 39
IP 17909 RELAY 17909
IP 17909 ROUTE ISDN 2,3
First the MX100-TG removes the CDPN prefix that is used for
routing (17909 is removed). Next the MX100-TG calls the 17909
access number.
After connecting to the 17909 platform, the rest of the CDPN is
pulsed out (in-band DTMF) and the connection is made by the
17909 platform.
IP Screening Table
The IP Table (shown in figure) is used to identify which SIP Server
IP address(es) may use the MX100-TG. Addresses appearing in the
table are allowed to use the MX100-TG. If the table is left empty
then all addresses are allowed.
Figure 10. IP Screening Table
ISDN Settings
The MX100-TG always has four T1/E1 interfaces. Capacity is
determined by the processing power purchased and supplied by the
control module. A specific T1/E1 interface is selected by choosing
ISDN Settings from the left menu pane on the main screen. The
specific ISDN span can then be selected and configured.
Do not connect T1/E1 lines in excess of the system’s
capacity. To determine the capacity of the MX100-TG
see the product label.
Flag
The Flag parameter is used to enable multiple special handling
functions on a particular ISDN. ISDN flag is bit oriented. Each bit
Page 40
Configuring the MX100-TG
MX100-TG User Manual 40
may be set to 1 to enable special handling. Multiple bits can be set
to enable multiple functions on particular ISDN. The default setting
of the Flag parameter is 0x0000. Various settings and their
behavior are explained in the following table.
Table4: ISDN Flag Settings
Setting
Behavior
0x0000 Default
0x0001 The MX10 0-TG will send SERVICE message
when ISDN layer 2 is up, and before layer 3 is
ready. Some PBXs require this message in
order to function properly。
0x0002
Allow cut-through without called party number
(CDPN). (Normally ISDN call without a CDPN
will be rejected.)
A typical application is for large company
PBX expansion: PBX1 => MX100-TG1 => IP
=> MX100-TG1002 => PBX2.
0x0004
Enable second stage dialing. When an ISDN
call comes in, the MX100-TG will cut-through
and play dial tone while collecting digits for
further routing.
This is used in calling card or PSTN-VoIP
number bonding applications.
0x0008 This setting is used in conjunction with
second stage dialing (0x0004) and plays an
announcement instead of dial-tone for digit
collection. The MX100-TG has *.pcm files
(audio format) that can be customized and
loaded for this application. Contact Newrock
support for more details.
0x0010 This setting is used in conjunction with
second stage dialing (0x0004). If configured,
after digit collection, the MX100-TG will use
the original CPN for the CPN of the second
stage dialing of the call. (Otherwise the
original CDPN will be used as the CPN of the
second stage.)
Page 41
Configuring the MX100-TG
MX100-TG User Manual 41
Setting
Behavior
0x0020 This setting is used in conjunction with
second stage dialing (0x0004). If configured,
after digit collection the collected digits are
attached to the original CPN and sent
to the
softswitch as the CDPN for further routing.
(Otherwise the collected digits are sent
to the
softswitch as the CDPN for further routing.)
0x0100 Any CPN not starting with 0 will be set to
type: SUBSCRIBER. (Otherwise, type will
be unknown.)
0x0200 Any CPN starting with 0 will be set to type:
NATIONAL. (Otherwise, type will be
unknown.)
0x0400 Any CPN starting with 00 will be set to type:
INTERNATIONAL. (Otherwise, type will be
unknown.)
0x0800 Rest rict CPN presentation for the entire
ISDN.
Group ID
The Group ID parameter defines the group ID of the selected ISDN
line. It is not recommended to change the value. T1/E1 interface to
group mapping is interface#: group #. For example, T1/E1 interface
#3 is assigned ISDN group #3.
D Channel
The D Channel parameter defines the signaling channel. Typically
the signaling channel for a T1 interface is 24, and 16 for an E1
interface.
Switch Side
Page 42
Configuring the MX100-TG
MX100-TG User Manual 42
Switch Side defines the ISDN behavior. The setting of Switch Side
for the other side of the T1/E1 line must be opposite that of the
MX100-TG. The settings for Switch Side are User and Network.
Hunting
The Hunting parameter is used to set how the MX100-TG searches
an idle time-slot. Hunting can be set to Forward
or Backward.
Echo Cancellation
Using the Echo Cancellation drop-down menu, echo cancellation
can be turned Enable or Disable for an individual ISDN line.
Setting the system parameter Echo Cancellation (see
“Echo Cancellation Length” on page 13) to Disable will
turn off Echo Cancellation at the system level.
TDM Settings
The MX100-TG always has four T1/E1 interfaces. Capacity is
determined by the processing power purchased and supplied by the
main board. A specific T1/E1 interface is selected by choosing TDM
Settings from the left menu pane on the main screen.
Do not connect T1/E1 lines in excess of the
system’s capacity. To determine the capacity of
the MX100-TG see the product label.
DS1 Type
DS1 Type configures if the T1/E1 interface operates as a T1 or E1
interface. Select the desired setting from the DS1 Type dropdown
box.
DS0 Type
The DS0 Type allows configuring the PCM encoding type. Allowed
settings are ULaw and ALaw.
Page 43
Configuring the MX100-TG
MX100-TG User Manual 43
Line Framing
If the MX100-TG DS1 Type is set to T1 then Line Framing can be
set to D4, SF (Superframe), ESF (Extended Superframe) mode.
If the MX100-TG DS1 Type is set to E1 then Line Framing can be
set to E1_MF_CRC mode.
Line Code
If the MX100-TG DS1 Type is set to T1 then Line Code can be set
to B8ZS or AMI.
If the MX100-TG DS1 Type is set to E1 then Line Code can be set
to HDB3 .
Timing Source
The Timing Source parameter can be configured as Local (use
local clock)or SPAN (use recovered clock from the interface).
Note: If one interface is configured to use SPAN clock, all other
interfaces will use the same recovered clock. When more than one
interface is configured to use SPAN clock, TG will adopt the
recovered clock from the first upped interface.
Cable Matching
The Cable Matching setting configures the line build out (LBO) of
the T1/E1 line. The default setting for T1 is Shorthaul / 110 FT. The
default for E1 is 120 Ohm.
Digit Adjust
This parameter is not currently supported.
Advanced Setting
The Advanced Setting screens can be accessed by selecting
Advanced from the navigation area on the left side of the Web GUI
screen.
Page 44
Configuring the MX100-TG
MX100-TG User Manual 44
Advanced System Settings
SysLog Server
This is the IP address of the System Log Server. It is used for
remote debugging. You do not need to set it under normal
circumstance.
Debug Log Server
This is the IP address of the Debug Log Server. It is used for remote
debugging. You do not need to set it under normal circumstance.
Event Log Level
Select any number from 1 to 5. The higher the level, the more
detailed the log. Default is set to 3. Higher level may slow down
system performance.
Country ID
Select the country in which the gateway is operate. This determines
the signaling standard. Signaling includes dialing tone, ring back
tone, busy tone, and ring tone. There are three options: China
(Chinese standard), US (American Standard), and Hongkong (Hong
Kong Standard).
Forwarding Number Mode
When call forwarding is used, this parameter defines which number
is indicated as the originating telephone number. Calling Party
Number designates that the calling party number is indicated while
Forwarding Number indicates the number responsible for
forwarding the call.
NAT
IP Address
The IP Address field configures the IP address of the TG’s public IP
address and port number. The format of the entry is
aaa.bbb.ccc.ddd:eeee .
Refresh Timer
The Refresh Timer configures the frequency with which NAT
information is refreshed. The default is 60 seconds.
Page 45
Configuring the MX100-TG
MX100-TG User Manual 45
Enable Keep Alive
Enabled or Disabled.
RADIUS
The MX100-TG supports RADIUS for accounting purposes.
RADIUS parameters are covered in the following sections.
Client Accounting
The Client Accounting parameter (PSTN to IP) defines whether or
not the charging function of client accounting is used. Client
Accounting can be set to Enable or Disable
.
Server Accounting
The Server Accounting parameter (IP to PSTN) defines whether
or not the charging function of the server accounting is used. Server
Accounting can be set to Enable or Disable.
ISDN Accounting
The ISDN Accounting parameter defines whether or not the
charging function of the accounting based on ISDN is used. It can
be set to Enable or Disable
.
Start Message
If Start Message is set to Enable, the MX100-TG will transmit the
RADIUS record of the call start and end. If it is set to Disable
, the
MX100-TG will not transmit the RADIUS record of the call start or
end.
Unsuccessful Stop
The Unsuccessful Stop parameter defines whether the
MX100-TG transmits a RADIUS record of an abandoned call when
the charging function of the RADIUS client or server is turned on.
This feature may be configured to Enable or Disable
.
Primary and Secondary Server
The MX100-TG allows the configuration of up to two RADIUS
servers.
To configure a RADIUS server, its IP address and port must be
entered. If the port number is left off, the default port of 1813 will be
used. The format of the entry is aaa.bbb.ccc.ddd:nnnn.
Key
Page 46
Configuring the MX100-TG
MX100-TG User Manual 46
A key must also be entered to protect communication between the
RADIUS client and server. The settings of the key between the
client and server must match.
Timeout(s)
The Timeout parameter defines the timeout period for the RADIUS
functionality of the MX100-TG. Th e defa ul t is 3 seconds.
Retries
The Retries parameter designates the number of times information
will be retransmitted when an acknowledgement is not received.
The default setting is 3 times.
IP Config
RTP Jitter Param
The RTP Jitter Param 1 and RTP Jitter Param 2 parameters
define the maximum and minimum number of frames in the jitter
buffer. The RTP Jitter Parameter 1 has a default of 50 and RTP
Jitter Parameter 2 has a default of 3. Under normal situations, New
Rock recommends these settings not be modified.
2833 Payload Type
The 2833 Payload Type parameter sets the payload type used for
transmitting 2833 packets. The allowable range is 97 - 127
.
iLBC Codec Payload Type
Enter a value from 97 to 127. This is the RTP load type when usin g
the iLBC codec. Default is 97.
RTP Drop SID
The RTP Drop SID parameter may be set to Enable or Disable
.
This entry is used to specify if received RTP silent packet will be
dropped. If Enabled, MX100-TG will drop RTP silent packet (for
CODEC G.729, G.723).
RTP Proxy
The RTP Proxy parameter may be set to Enable
or Disable. This
Function is used to support IAD under NAT without soft switch or
Media Server assistance. When an IAD under NAT uses MX100-TG
as its proxy, enable RTP Media Function will allow MX100-TG to
Page 47
Configuring the MX100-TG
MX100-TG User Manual 47
cross NAT to setup media path. We suggest you enable this
function in MX100-TG.
SDP
1
Global Connection
Setup whether to obtain far end IP address from SDP global
connection. Default value is No.
z Yes: Get far end IP address from SDP Global Connection
Information.
z No: Get far end IP address from Connection Information after
SDP Media Description.
SDP Using NAT
This parameter may be set to Enable or Disable
.
Enable VAD
This parameter may be set to yes or no. When set to yes, the
MX100-TG will not send speech packets of silence and instead
begin CNG (comfort noise generation) to substitute for the unsent
speech packets.
G.723.1 Rate
The G.723.1 codec can be set to two encoding rates: 5300 and
6300
bps.
IP TOS
The IP TOS parameter is used to set the TOS value on packets.
This parameter is set using HEX settings. The default value is 0x0c
.
The following table represents other settings.
Table 5: IP TOS HEX Settings
HEX Description
0x00 Normal service (default)
0x02 Minimize cost
0x04 Maximize reliability
1
SDP( Session Description Protocol)
SDP describes multimedia sessions for the purpose of session announcement, session invitation and other
forms of multimedia session initiation.
Page 48
Configuring the MX100-TG
MX100-TG User Manual 48
0x08 Maximize throughput
0x10 Minimize delay
It is also possible to set multiple bits. For example a setting of 0x18
would set IP TOS to maximize throughput and minimize delay.
T.38
Enable T.38
Enables or Disables the T.38 fax function. If T.38 is enabled it is
necessary to configure the following T.38 parameters.
Packet Time (ms)
This parameter is used to set the packing interval of the T.38 data
frame. The value can be set to 10, 20, 30, 40, 50, or 60 ms.
Redundancy
This parameter configures the number of T.38 data frames in each
T.38 data packet. T.38 Redundancy may be set from 1 - 6. The
default setting is 4.
Change Port
When configured to Enable, the MX100-TG will change the UDP
port when switching to T.38 mode. If T.38 Change Port is set to
Disable the MX100-TG will reuse the RTP port number that was
used in the creation of the connection.
T.38 ECM Mode
The T.38 ECM Mode may be set to Enable or Disable.
V.21 Detect
Enable or Disable V.21 signal detection.
Jitter Size
The jitter size range is from 0 to 1000ms. The default setting is 250.
Receive Gain
The receive gain set between 1 and 4, while set to 1 will adjust
signal to one half of its original amplitude, set to 2 will keep the
original signal amplitude, set to 3 will adjust signal to 2 times of its
Page 49
Configuring the MX100-TG
MX100-TG User Manual 49
original amplitude, set to 4 will adjust signal to 4 times of its original
amplitude. The default setting is 1
.
Send Gain
The send gain set between 1 and 4, while set to 1 will adjust signal
to one half of its original amplitude, set to 2 will keep the original
signal amplitude, set to 3 will adjust signal to 2 times of its original
amplitude, set to 4 will adjust signal to 4 times of its original
amplitude . The default setting is 2
.
SIP Setting s
Response Using Received Port
This parameter is used to set whether the MX100-TG uses the
receive port as the reply port. If Response Using Received Port is
set to Enable this feature is enabled. The default setting is Disable
and the MX100-TG will use the default port 5060.
Response Using Proxy Port
This parameter is used to set whether the MX100-TG uses the
proxy port as the reply port. If Use Proxy Port as Reply Port is set
to Enable this feature is enabled. The default setting is Disable and
the MX100-TG will use the default port 5060.
Always Send 180
If this parameter is set to Enable , the MX100-TG will map all
alerting messages (ALERTING with and without in-band indicator)
to 180. An example of when this parameter would be Enabled is
when an IAD does not support a 183 message.
If Always Send 180 is Disabled, no mapping will occur and the 18x
message will be sent.
Always Send 183
If this parameter is set to Enable , the MX100-TG will map all
alerting messages (ALERTING with and without in-band indicator)
to 183. An example of when this parameter would be Enabled is
when an ISDN switch is configured to handle the MX100-TG as an
end-user, and always provide ring-back or announcement but still
uses the regular ALERTING message. In this case, a 180 message
Page 50
Configuring the MX100-TG
MX100-TG User Manual 50
will cause the other side to hear ring-back, but the ISDN switch may
announce “Destination Busy”.
If Always Send 183 is Disabled, no mapping will occur and the 18x
message will be sent.
180 with SDP
When this parameter is set to Enable, 180 messages are sent with
SDP. With a Disable setting the MX100-TG will send 180
messages without SDP.
CODEC Using Local Config List
If this parameter is set to Enable , the MX100-TG will use its local
CODEC preference order. By default, MX100-TG will choose
CODEC based on IAD’s preference order. Enable this flag in
applications that require MX100-TG to choose CODEC based on its
local preference order.
CPN From Request Line
When this flag is set to Enable, the MX100-TG will obtain CPN
(Called Party Number) from SIP <Request Line>. By default this flag
is set to Disable, and TG gets CPN from SIP <To> field.
Do Not Validate Via
This parameter defines if the via field in the SIP response is
neglected (Enable) or not (Disable
).
Registration Keep Domain
When this parameter is set to Enable the full domain name
information is used to register (ex: 8801@_registrar.New
Rock.com). When set to Disable
only the common part is used to
register (e.g.: 8801@_New Rock.com).
Registration Keep Contact
This parameter is used when the MX100-TG is registering across a
private network. If set to Enable the MX100-TG will register with the
original contact information. A Disable
setting allows the contact
information to change.
Page 51
Configuring the MX100-TG
MX100-TG User Manual 51
SIP VIA Using NAT
This parameter controls whether the SIP <VIA>will use the public
network address information supplied by NAT or the private network
address information. If this parameter is set to Enable then the SIP
<VIA> will use the public network information supplied by NAT. A
Disable
setting will cause the SIP <VIA> to use the private network
address information.
SIP TO Using Domain Name
This parameter controls whether the proxy information or domain
name information (set in SIP Setting section) will be used by SIP
<To>. If set to Enable, the MX100-TG will use the domain name
information. If set to Disable
, the MX100-TG will use the proxy
information.
SIP CallID Using Hostname
This parameter controls whether the proxy information or hostname
(set in SIP Setting section) will be used by SIP <Call-ID>. If set to
Enable, and the MX100-TG will use the hostname information. If set
to Disable
, the MX100-TG will use the proxy information.
Border Proxy2
Signal Encrypt
RTP Encrypt
T38 Encrypt
Set whether signaling, RTP and T38 are using a border agent or not.
Default value is None. Possible settings are: None, Signaling,
Signaling and RTP.
• None: Do not use border agent.
• Signaling: Only Signaling is going to use border agent.
• Signaling and RTP: Both Signaling and RTP stream are using
border agent.
• T38: T38 is going to use border agent.
2
Border Agent: Also known as Border Controller, which normally includes Sign Proxy and Media
Proxy function modules.
Page 52
Configuring the MX100-TG
MX100-TG User Manual 52
Border Proxy Server
Set IP address and port number for border agent. No default value.
Separate IP address and port number with a “:”.
Local Port
Local port number for border agent. Default value is: 4660. Local
port number can be anything, as long as it does not conflict with port
numbers for other equipments.
Encrypt type
Set encryption method. Default value is: None.
Note: Encryption setting must be the same with what the border
agent is using. Possible options are:
• None: TCP encryption, HTTPU mode. No encryption algorithm
is used.
• Encrypted: TCP encryption, HTTPU mode. Encryption
algorithm is used.
• TCP Encrypted: Encrypt signaling and RTP over TCP. Also
use encryption algorithm.
• TCP Not Encrypted: Encrypt signaling and RTP over TCP, but
no encryption algorithm is used.
• UDP Not Encrypted: Encrypt signaling and RTP over UDP,
but no encryption algorithm is used.
• UDP Encrypted: UDP encryption. Also use encryption
algorithm.
• Using Keyword: UDP encryption using backward keyword
encryption algorithm
• Using Keyword2: UDP encryption using forward keyword
encryption algorithm.
• RC4
3
: Using RC4 encryption algorithm.
Encrypt Keyword
3
RC4
The RC4 encryption algorithm is stream cipher, which can use variable length keys. The algorithm was
developed by Ron Rivest, for RSA Data security. Analysis shows that the period of the cipher is
overwhelmingly likely to be greater than 10
100
. Eight to sixteen machine operations are required per output
byte, and the cipher can be expected to run very quickly in software. Independent analysts have scrutinized
the algorithm and it is considered secure.
Page 53
Configuring the MX100-TG
MX100-TG User Manual 53
Set encryption keyword when setting encryption method to “UDP
Encrypted”. Default value is: None.
• Yes: SIP Call ID will use server host name.
• No: SIP Call ID will use server IP address.
EMS Config
After log in, click EMS Config from the left pane. The following
displays:

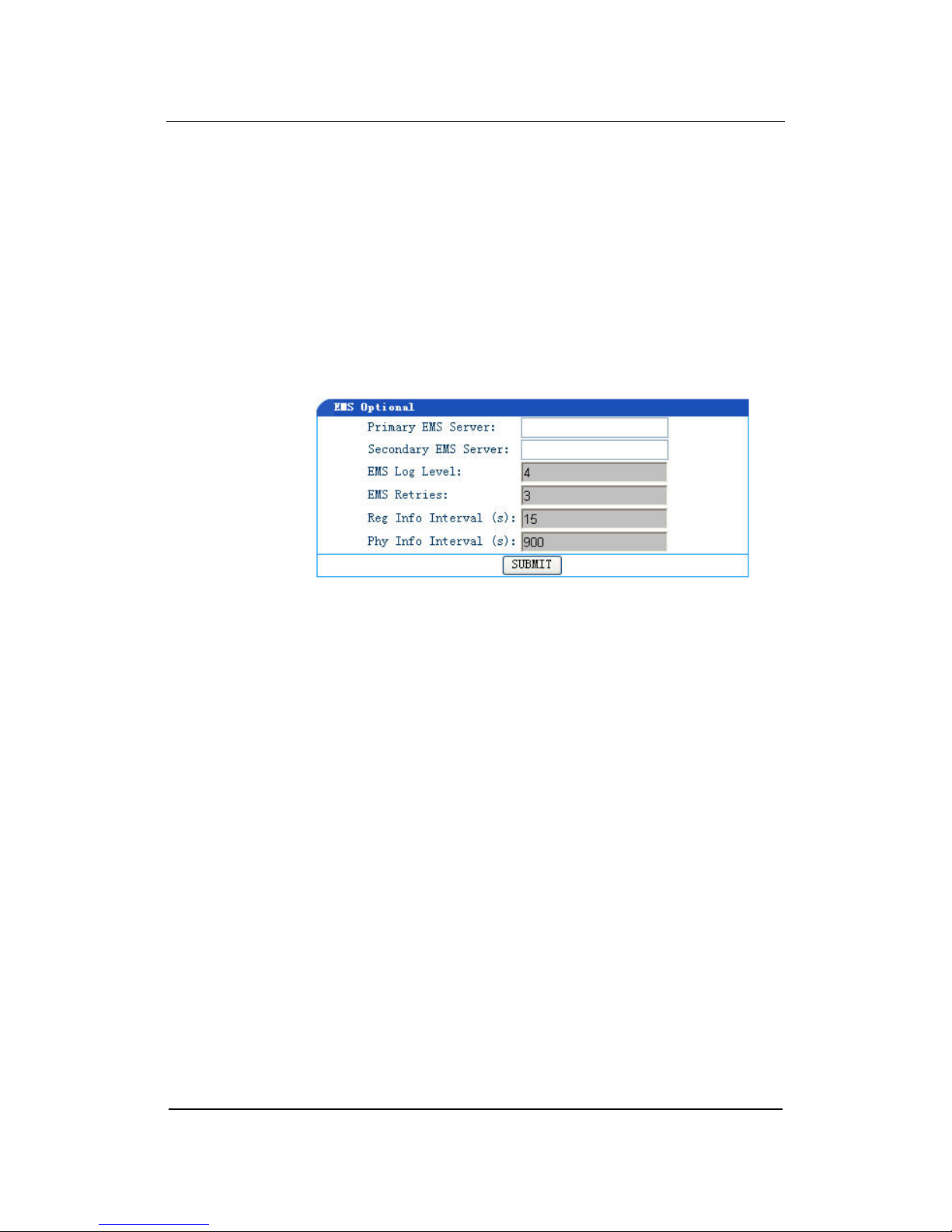

Primary EMS Server
Enter primary EMS Server IP address if you want to use EMS
service.
Secondary EMS Server
Enter secondary EMS server IP address.
EMS Log Level
This field value is automatically detected. You do not need to
change this field.
EMS Retries
This field value is automatically detected. You do not need to
change this field.
Register Interval
Page 54
Configuring the MX100-TG
MX100-TG User Manual 54
This field value is automatically detected. You do not need to
change this field.
Report Interval
This field value is automatically detected. You do not need to
change this field.
Page 55
Monitoring
MX100-TG User Manual 55
6
lOG INFO
This chapter discusses the monitoring screens and features of the
MX100-TG Web-GUI. Monitoring information is available on the
Web-GUI by selecting Logs from the left navigation pane.
Resource
The Resource Info screen is shown in Figure 17. This screen
shows the IP address and level of all Web-GUI users, SIP register
information, and relevant information for telephone and RTP.
Figure 17. Resource Information Screen
Login User Info
Page 56
Monitoring
MX100-TG User Manual 56
The Login User Info reports the address from which you are
managing the MX100-TG. The single digit to the right of the IP
address indicates your current permission level:
y 1 = Read only
y 2 = Read/Write
SIP Registrati on Info
Messages under this title show TG registration information. If TG is
not required to register, message “not enabled” will be shown. If
registration is enabled, it will show <Contact> info of the registration
message from TG and the response from the registration server.
Call Context Info
Messages under this title are listed for all calls in TG. Each
message contains the fields in the following order:
1) internal call context index;
2) internal call ID for the call;
3) internal RTP context index for the call;
4) call originating side -> call terminating side;
5) remote SIP IAD’s IP address and port;
6) local RTP port for the call;
7) selected CODEC for the call;
8) ISDN circuit selected for the call: slot number / span number /
circuit number;
9) ISDN call state;
10) CPN -> CDPN for the call.
RTP Context Info
Messages under this title are listed for all active RTP channels.
Each message contains two parts: the first part is the internal RTP
context index created, and the second part is the internal call ID
corresponding to this RTP channel.
ISDN Status
The ISDN Status Information screen is shown in Figure 18. The
following sections provide additional details on the ISDN Status
Information screen.
Page 57
Monitoring
MX100-TG User Manual 57
Figure 18 . ISDN Status Information Screen
ISDN Group ID
This field reflects the current setting of the ISDN Group setting.
State
There are three possible values for state:
Table 4: ISDN States
State
Definition Description
IS In Service In service / currently used
OOS Out of Service Not currently used
MOOS Manual Out of Service Continuously not invoked
and backup signaling
channel is not invoked (can’t
be used)
Int ID
This field reflects the current setting of the Group ID parameter.
Side
Page 58
Monitoring
MX100-TG User Manual 58
This field reflects the current setting of the Switch Side parameter.
Echo
This field reflects the current setting of the Echo Cancellation
Hunting
This field reflects the current setting of the Hunting parameter.
DS1
This field reflects the current setting of the DS1 Type parameter.
Slot / ds1 / ds0
This parameter identifies the hardware identification of the T1/E1
port in the system. Slot is the location of the T1/E1 Interface card
and is always 1. ds1 is the T1/E1 port number on the T1/E1
Interface card. ds0 denotes the channel which is configured as the
D Channel.
Equipped MAP
This field shows the available states of the 30 time-slots in the E1
card (except the 0 and 16th slot, which are reserved).
See ISDN Circuit configurable for more information. 0xfffeffe is
expressed in the binary system. If a certain number is 1, it indicates
the corresponding time-slot is available.
LineType
This field reflects the current setting of the LineFraming parameter.
LineCode
This field reflects the current setting of the L ine Code parameter.
Page 59
Monitoring
MX100-TG User Manual 59
LineBuildOut
This field reflects the current setting of the Cable Matching
parameter.
Clock Timing
This field reflects the current setting of the Timing Source
parameter.
Payload
This field reflects the current setting of the DS0 Type parameter.
ISDN Call
The ISDN Call Information screen is shown in Figure 19. The
following sections provide additional details on the ISDN Call
Information screen.
Figure 19. ISDN Call Information Screen
Group ID
This field reflects the current setting of the ISDN Group setting.
TS (Time-Slot)
Page 60
Monitoring
MX100-TG User Manual 60
This field denotes the internal TDM time-slot being used by the
ISDN time-slot. The internal TDM time-slot is 8M, and is distributed
to four E1 interfaces (2M each). Each E1 has 32 time-slots, as a
result the internal TDM time-slot has a total of 128 (4 x 32)
timeslots.
DSP
The MX100-TG Control Module has up to eighteen DSP chips
which are identified from DSP0 to DSP18. The DSP field indicates
which DSP chip is being used by the indicated time-slot of the
T1/E1.
Remote
This parameter reports the current remote IP address which could
be the address of the RTP Media Server or access gateway, which
comes before the RTP port number.
Local
The local parameter shows the locally used RTP port number.
Codec
The codec value reports the currently used codec.
Ref (Call Reference)
This parameter is the call reference which is used to recognize the
information involved with call or equipment book/cancel requests on
local user and network interfaces. The call reference doesn’t include
the end-to-end fu nction of ISDN. In other words, this parameter is
valid only in current segment (user and network side) and in the
next segment the same call reference value can also be used.
State
This is the call state which denotes the current state of a call. See
the following table for detailed definitions for various call states.
Table 5: Call States
Page 61
Monitoring
MX100-TG User Manual 61
Serial
Number
State
User Side Call
Status
Network Side
Call Status
U0 / N0 Null No Call Present No Call Present
U1 / N1 Call
Initiation
This state exists
when a number is
being called out, at
the same time the
user send call setup
request to the
network
This state exists
when a number
is being called
out, at the same
time the network
has received the
call set-up
request, but no
response has
been received.
U2 / N2 Overlap
Sending
This state exists
when a number is
being called out; at
the same time the
user has received
the confirmation
information of call
set-up request,
which denotes that
the user is allowed
to send call
information to the
network with
overlap mode.
This state exists
when a number
is being called
out, at the same
time the network
has confirmed
the call setup
request, and
prepare to
receive call
information with
overlap mode.
U3 / N3 Out Pro-
cess(OUT
-PROC)
This state exists
when a number is
being called out at
the same time the
user has received
the confirmation
information of call
set-up request,
which denotes that
the network has
received all the call
information which
This state exists
when a number
is being called
out at the same
time the network
has sent forth the
confirmation
information of
call set-up
request, which
denotes that the
network has
Page 62
Monitoring
MX100-TG User Manual 62
Serial
Number
State
User Side Call
Status
Network Side
Call Status
would be used to
set up a call.
received all the
call information
which would be
used to set up a
call.
U4 / N4 Call
Delivered
This state exists
when a number is
being called out, at
the same time the
network has
received the remote
indication for
beginning to send
forth reminder
signal.
This state exists
when a number
is being called
out, at the same
time the network
has instructed
the remote user
beginning to
send forth
reminder signal.
U6 / N6 Call
Present
This state exists
when a number is
being called in at
the same time the
network has
received the call
set-up request, but
no response to it.
This state exists
when a number
is being called in,
at the same time
the network has
sent forth the call
setup request,
but no satisfied
response
received.
U7 / N7 Call
Received
This state exists
when a number is
being called in, at
the same time the
user has send forth
reminder indication,
but no response is
received.
This state exists
when a number
is being called in,
at the same time
the user has
received the
reminding
indication, but no
response is
received.
U8 / N8 Connect This state exists
when a number is
This state exists
when a number
Page 63
Monitoring
MX100-TG User Manual 63
Serial
Number
State
User Side Call
Status
Network Side
Call Status
Request being called in at
the same time the
user has answered
the call and is
waiting for the
response of the
call.
is being called in,
at the same time
the network has
received
response, but no
call has been
sent forth.
U10
/N10
Active When a number is
being called in, this
state denotes that
the user has
received the
confirmation from
the network user
that has received
the call. When a
number is being
called in, this state
denotes that the
user has received
the indication from
the remote user’s
response to the
call.
When a number
is being called in,
this state
denotes that the
network has
given the call to
the called-user.
When a number
is being called
out, this state
denotes that the
network has sent
forth the user an
indication from
the remote user’s
response to the
call
U11/
N11
Disconnec
t Request
This state denotes
that the user has
sent forth a request
to the network for
disconnecting the
end-to-end
connection, and is
waiting for
response.
This state
denotes that the
network has
received the
request from the
user for
disconnecting
the end-toned
connection.
U12 /
N12
Disconnec
t
Indication
This state denotes
that the user has
received the
disconnect request,
This state
denotes that the
network has
disconnected the
Page 64
Monitoring
MX100-TG User Manual 64
Serial
Number
State
User Side Call
Status
Network Side
Call Status
because the
network has
disconnected the
end-toned
connection.
end-to-end
connection, and
has sent forth a
request for
disconnecting
the user to
network
connection.
U15 /
N15
Pause
Request
This state denotes
that the user has
requested the
network to suspend
the call and is
waiting for
response.
This state
denotes that the
network has
received the
pause request,
but no response
is received.
U17 /
N17
Resume
Request
This state denotes
that the user has
requested the
network to resume
the suspended call
and is waiting for
response.
This state
denotes that the
network has
received the
request to
resume the
suspended call,
but no response
is received.
U19
/N19
Release
Request
This state denotes
that the user has
requested the
network to release
the call and is
waiting for
response.
This state
denotes that the
user has
requested the
user to release
the call and is
waiting for
response.
N22 Call
Terminate
This state exists
when the call is
point-to-multipoin
t connection,
before any user
Page 65
Monitoring
MX100-TG User Manual 65
Serial
Number
State
User Side Call
Status
Network Side
Call Status
can get the call,
the call is
disconnecting.
U25 /
N25
Overlap
Reception
This state exists
when a number is
being called in, at
the same time the
user has confirmed
the call setup
request, and
prepare to receive
the call information
with overlap
mode(if any).
This state exists
when a number
is being called in
at the same time
the user has
received the
confirmation
information of
call set-up
request, which
denotes that the
network is
allowed to send
forth call
information to the
user with overlap
mode.
CPN
This is the calling party number.
CDPN
This is the called party number.
Timestamp
The timestamp value reports the setup time (which is always 0)
and the connection time. As shown on the screen, the format is
setup time / connection time. Timestamp values are measured in
seconds.
CallID
Page 66
Monitoring
MX100-TG User Manual 66
The CallID is a number that is used to identify a call when SIP is
switching information. The length and value of the CallID are
randomly generated.
Message Log
The Message Log is shown in Figure 20.
This page shows most recent SIP and ISDN messages received or
sent out in TG. The size of this page is approximately 100-150 lines
depending on the content in each message. This page is useful to
debug problems related to SIP or ISDN signaling.
If you need longer history of the messages, the complete message
log can be viewed at </var/tmp/message.log>. The size of the log
file is 500KB. You may see three message log files in </var/tmp>:
“message.log”, “message.log.1” and “message.log.2” with total
1500KB size limitation. “message.log” always contains most recent
messages. When “message.log” is full, “message.log.1” will be
copied to “message.log.2”, “message.log” will be copied to
“message.log.1”, and “message.log” will be emptied to store new
messages.
Figure 20. Call Information Log
Boot Log
The Boot Log is shown in Figure 21. This log is used by New Rock
to aid in troubleshooting the MX100-TG hardware and software.
Page 67
Monitoring
MX100-TG User Manual 67
Figure 21. Startup Information Log
Page 68
MX100-TG User Manual 68
7
TOOLS
This chapter discusses the system tools available on the
MX100-TG.
The information is available on the Web-GUI by selecting Tools
from the left navigation pane.
Factory Config
As shown in Figure 22, the Factory Config selection will ask for
confirmation to restore the system to its factory defaults.
Restoring factory settings to a remote MX100-TG will
cause the IP Address used to access the system to
revert to its default. This will likely cause remote access
to be lost.
Figure 22. Factory Settings
Page 69
System Tool
MX100-TG User Manual 69
Upgrade
The Upgrade screen is shown in Figure 23. After entering the
required information and selecting Upgrade, the MX100-TG will
download the software. After the download is complete, the
MX100-TG will prompt you to restart the gateway to implement the
new software.
After selecting Upgrade do not perform any operations
on the MX100-TG. Allow the software update process
to proceed in the background.
The following sections provide additional details on the Upgrade
screen.
Figure 23. Upgrade Screen
FTP Server
The FTP Server input box identifies the IP address
(aaa.bbb.ccc.ddd) or domain name (example: ftp.New Rock.com)
of the ftp server.
Example
http://220.248.100.68 /Autoprovision/
http://www.newrocktech.com/ Autoprovision/
ftp://220.248.100.68 /Autoprovision/
Page 70
System Tool
MX100-TG User Manual 70
ftp://www.newrocktech.com/ Autoprovision/
ftp://username:[email protected] /Autoprovision/
ftp://username:[email protected]/Autoprovision/
User Name
Input the user name of log in ftp server.
Password
Input the password of log in ftp server.
Filename
Input the software version to be downloaded. If left blank the
software will be updated to the latest version.
Change Password
The Change Password screen is shown in Figure 24. Only the
administrator account has the permissions to change passwords.
The current operator password is displayed in plain text and can be
changed independently of the administrator password.
Figure 24. Change Password Screen
Reboot
The Reboot screen is shown in Figure 25.
Page 71
System Tool
MX100-TG User Manual 71
Figure 25. Gateway Restart Screen
Page 72
MX100-TG User Manual 72
8
TROUBLESHOOTING
This chapter contains information to help you solve problems that
may occur while installing and using the MX100-TG gateway.
GETTING HELP
If, after installing and configuring your New Rock equipment, you
cannot establish Technologies to or from the unit, carefully review
the information in this book and in the other books prior to calling
Customer Support (CS).
Before going any further, ensure that you have checked the
following:
y Console Port configuration. Verify that the baud rate of your
terminal is set to 9600 bps.
y Power reset. When cycling power, be sure to leave the power
off for a minimum of 30 seconds before reapplying power to
the unit.
y Command review. Review the MX100-TG gateway commands
in the Configuration chapter.
y Software version. To ensure that you have the latest
enhancements and product features, New Rock ships every
unit with the latest software version. Therefore, when you are
installing or reinstalling units into your system, you need to
verify that each unit is equipped with identical software
versions.
Page 73
Troubleshooting
MX100-TG User Manual 73
Checklist
If, after carefully reviewing the information in this manual, your
problem persists, contact your product representative or a service
representative at New Rock’s Customer Support (CS). So we can
serve you better, make a list of the following items before calling:
y A detailed description of your problem.
y A complete listing of your system components and
configuration, including the serial number of your unit and the
software version number it is running.
y A narrative of the actions you performed prior to the problem.
y A list of all system messages posted by your unit.
Contacts
New Rock Technologies, Inc.
Corporate Headquarters(U.S.A)
Address：10 Merrymount Road, Quincy, MA 02169, USA
Office Phone：1-781-354-2790 (U.S.A)
Corporate Headquarters(China)
Address：Unit C604, No.666 East Beijing Road, Shanghai, China
200001
Office Phone：+86 21-61202700
Fax：+86 21-61202704
Page 74
MX100-TG User Manual 74
A
PARTS AND
ACCESSORIES
MX100-TG gateway parts and accessories can be purchased from
your New Rock authorized service provider. The tables in this
appendix list the part numbers for field-replaceable items. For the
latest information (including prices) on the parts described in this
appendix, consult your New Rock representative.
MX100-TG Cables
Cable Description
T1/E1 120 Ohm Balance Cable RJ48 (P) to RJ48 (P)
T1/E1 75 ohm BNC Cable
75 / 120 ohm Impedance Converter
Spares
Description
Chassis (includes 2 P/S, T1/E1 module)
P/S module
T1/E1 module (4 ports)
CM module (1-span capacity)
CM module (1-span capacity)
CM module (2-span capacity)
CM module (3-span capacity)
Page 75
