New Rock Technologies MX User Manual

Download

New Rock Technologies,Inc.

MX Voice-Fax Gateway Series

User Manual

http://www.newrocktech.com

Tel: 021-61202700 Fax: 021-61202704

Document Version: MC0-E001-N

Contents

1 Overview ..................................................................................................................................................... 1-1

1.1 Product Introduction ........................................................................................................................................... 1-1

1.2 Functions and Features ..................................................................................................................................... 1-2

1.3 Equipment Structure .......................................................................................................................................... 1-3

1.3.1 MX8 ........................................................................................................................................................ 1-3

1.3.2 MX60 ...................................................................................................................................................... 1-4

1.3.3 MX100-AG .............................................................................................................................................. 1-7

1.3.4 MX120 1U ............................................................................................................................................... 1-8

1.3.5 MX120 2U ............................................................................................................................................. 1-11

2 Parameter Setting ...................................................................................................................................... 2-1

2.1 Login .................................................................................................................................................................. 2-1

2.1.1 Obtaining Gateway IP Address ............................................................................................................... 2-1

2.1.2 Logging On ............................................................................................................................................. 2-2

2.1.3 Permission of Gateway Administrator ..................................................................................................... 2-2

2.2 Buttons Used on Gateway Management Interface ............................................................................................ 2-3

2.3 Basic Configuration ............................................................................................................................................ 2-3

2.3.1 Network .................................................................................................................................................. 2-3

2.3.2 System Configuration ............................................................................................................................. 2-5

2.3.3 SIP Configuration ................................................................................................................................... 2-7

2.3.4 MGCP Configuration .............................................................................................................................. 2-8

2.3.5 FoIP ...................................................................................................................................................... 2-10

2.4 Routing ............................................................................................................................................................ 2-11

2.4.1 Digit Map .............................................................................................................................................. 2-11

2.4.2 Routing Table ....................................................................................................................................... 2-13

2.4.3 Application Examples of Routing Table ................................................................................................ 2-17

2.4.4 IP Table ................................................................................................................................................ 2-18

2.5 Line Configuration ............................................................................................................................................ 2-18

2.5.1 FXS Phone Number ............................................................................................................................. 2-18

2.5.2 FXO Phone Number ............................................................................................................................. 2-19

2.5.3 Subscriber Line Features ...................................................................................................................... 2-19

2.5.4 Trunk Line Features ............................................................................................................................. 2-21

2.5.5 Feature Batch ....................................................................................................................................... 2-22

2.5.6 Trunk Batch .......................................................................................................................................... 2-23

2.6 Advanced Configuration ................................................................................................................................... 2-24

2.6.1 System .................................................................................................................................................. 2-24

2.6.2 Media Stream ....................................................................................................................................... 2-25

2.6.3 SIP related configuration ...................................................................................................................... 2-26

2.6.4 Characteristics of subscriber line .......................................................................................................... 2-28

2.6.5 Characteristics of trunk line .................................................................................................................. 2-30

2.6.6 Radius call logs .................................................................................................................................... 2-31

2.6.7 Encryption ............................................................................................................................................. 2-32

2.6.8 Call progress tone plan ......................................................................................................................... 2-34

2.6.9 Feature codes ....................................................................................................................................... 2-35

2.7 Status ............................................................................................................................................................... 2-37

2.7.1 Call status ............................................................................................................................................. 2-37

2.7.2 Call history on FXS ............................................................................................................................... 2-37

2.7.3 Call history on FXO .............................................................................................................................. 2-38

2.7.4 SIP message count .............................................................................................................................. 2-38

2.8 Logs ................................................................................................................................................................. 2-39

2.8.1 System Status ...................................................................................................................................... 2-39

2.8.2 Call Message ........................................................................................................................................ 2-40

2.8.3 System Starup ...................................................................................................................................... 2-41

2.8.4 Manage Log .......................................................................................................................................... 2-41

2.9 Tools ................................................................................................................................................................ 2-42

2.9.1 Change password ................................................................................................................................. 2-42

2.9.2 Export data ........................................................................................................................................... 2-42

2.9.3 Import data ........................................................................................................................................... 2-43

2.9.4 Upgrade ................................................................................................................................................ 2-43

2.9.5 Restore factory settings ........................................................................................................................ 2-46

2.9.6 Software restart .................................................................................................................................... 2-46

2.9.7 System reboot ...................................................................................................................................... 2-47

2.9.8 TDM capture ......................................................................................................................................... 2-47

2.9.9 Ethereal capture ................................................................................................................................... 2-47

2.10 Version information ........................................................................................................................................ 2-48

2.11 Logout ............................................................................................................................................................ 2-48

3 Appendix .................................................................................................................................................... 3-1

3.1 MX120 system operation state .......................................................................................................................... 3-1

Contents of Figure

Figure 1-1 MX8 Front Panel ..................................................................................................................................... 1-3

Figure 1-2 MX8 Back Panel ..................................................................................................................................... 1-4

Figure 1-3 MX60 Front Panel ................................................................................................................................... 1-5

Figure 1-4 Schematic Diagram of MX60 Subscriber Line Connection ..................................................................... 1-6

Figure 1-5 MX60 Back Panel ................................................................................................................................... 1-6

Figure 1-6 MX100-AG Front Panel .......................................................................................................................... 1-7

Figure 1-7 MX100-AG Back Panel ........................................................................................................................... 1-8

Figure 1-8 MX120 Front Panel ................................................................................................................................. 1-9

Figure 1-9 Schematic Diagram of MX120 Subscriber Line Connection ................................................................. 1-10

Figure 1-10 MX120 Back Panel ............................................................................................................................. 1-11

Figure 1-11 MX120 2U Front Panel ....................................................................................................................... 1-12

Figure 1-12 Schematic Diagram of MX120 Subscriber Line Connection ............................................................... 1-13

Figure 1-13 MX120 2U Back Panel ....................................................................................................................... 1-14

Figure 2-1 Login Interface for MX Gateway Configuration ....................................................................................... 2-2

Figure 2-2 Network Configuration Interface ............................................................................................................. 2-4

Figure 2-3 System Configuration Interface .............................................................................................................. 2-6

Figure 2-4 SIP Configuration Interace...................................................................................................................... 2-7

Figure 2-5 MGCP Configuration Interface ................................................................................................................ 2-9

Figure 2-6 Fax configuration interface ................................................................................................................... 2-10

Figure 2-7 Configuration Interface for Dailing ........................................................................................................ 2-11

Figure 2-8 Configuration Interface for Routing Table ............................................................................................. 2-13

Figure 2-9 Configuration Interface for IP Table ...................................................................................................... 2-18

Figure 2-10 Configuration Interface for FXS phone number .................................................................................. 2-19

Figure 2-11 Configuration Interface for FXO phone number .................................................................................. 2-19

Figure 2-12 Configuration Interface for Subscriber Line Features ......................................................................... 2-20

Figure 2-13 Configuration Interface for Trunk Line Features ................................................................................. 2-22

Figure 2-14 Feature batch configuration interface ................................................................................................. 2-23

Figure 2-15 Trunk Batch configuration interface .................................................................................................... 2-23

Figure 2-16 Inferface of system advanced configuraiton ....................................................................................... 2-24

Figure 2-17 Media stream configuration interface .................................................................................................. 2-25

Figure 2-18 SIP related configuration interface ...................................................................................................... 2-27

Figure 2-19 Subscriber-line characteristics configuration interface ........................................................................ 2-28

Figure 2-20 Trunk line characteristics configuraiton interface ................................................................................ 2-30

Figure 2-21 Configuration interface of Radius call logs.......................................................................................... 2-32

Figure 2-22 Encryption configuration interface ...................................................................................................... 2-33

Figure 2-23 Call progress tone configuration interface .......................................................................................... 2-34

Figure 2-24 Feature codes configuration interface ................................................................................................ 2-35

Figure 2-25 Interface of call status ......................................................................................................................... 2-37

Figure 2-26 Interface of call on FXS ...................................................................................................................... 2-38

Figure 2-27 Interface of call on FX0 ....................................................................................................................... 2-38

Figure 2-28 Interface of SIP message count .......................................................................................................... 2-38

Figure 2-29 Interface of System Status .................................................................................................................. 2-39

Figure 2-30 Call Message interface ....................................................................................................................... 2-40

Figure 2-31 Interface of System Starup ................................................................................................................. 2-41

Figure 2-32 Interface of Manage Log ..................................................................................................................... 2-41

Figure 2-33 Interface for password changing ......................................................................................................... 2-42

Figure 2-34 Interface of export data ....................................................................................................................... 2-43

Figure 2-35 Interface of import data ....................................................................................................................... 2-43

Figure 2-36 Interface of upgrade ........................................................................................................................... 2-44

Figure 2-37 Interface of file upload ........................................................................................................................ 2-44

Figure 2-38 Upgrade interface ............................................................................................................................... 2-45

Figure 2-39 Screen of upgrade process ................................................................................................................. 2-45

Figure 2-40 Interface of successful upgrade .......................................................................................................... 2-46

Figure 2-41 Interface of TDM capture .................................................................................................................... 2-47

Figure 2-42 Interface of Ethereal capture .............................................................................................................. 2-48

Figure 2-43 Interface of Version info ...................................................................................................................... 2-48

Contents of Table

Table 1-1 Differences Between MX Gateway Series ............................................................................................... 1-1

Table 1-2 Common Configuration Combination of MX8........................................................................................... 1-3

Table 1-3 Description of MX8 Front Panel ............................................................................................................... 1-3

Table 1-4 Description of MX8 Back Panel ............................................................................................................... 1-4

Table 1-5 Configuration Description of Analog Line Interfaces for All MX8 Models ................................................. 1-4

Table 1-6 Configuration combination of MX60 ......................................................................................................... 1-5

Table 1-7 Description of MX60 Front Panel ............................................................................................................. 1-5

Table 1-8 Pin Specifications for MX60 RJ45 Socket Port ........................................................................................ 1-5

Table 1-9 Description of MX60 Back Panel ............................................................................................................. 1-6

Table 1-10 Meanings of MX60 Indicators ................................................................................................................ 1-7

Table 1-11 Configuration Combination of MX100-AG .............................................................................................. 1-7

Table 1-12 Description of MX100-AG Front Panel ................................................................................................... 1-7

Table 1-13 Indicators of MX100-AG ........................................................................................................................ 1-8

Table 1-14 Description of MX100-AG Back Panel ................................................................................................... 1-8

Table 1-15 Configuration Combination of MX120 .................................................................................................... 1-8

Table 1-16 Description of MX120 Front Panel ......................................................................................................... 1-9

Table 1-17 Pin Specifications for MX120 RJ45 Socket Port .................................................................................... 1-9

Table 1-18 Corresponding Relation Between MX120 RJ45 Socket and Line Number .......................................... 1-10

Table 1-19 MX120 Back Panel .............................................................................................................................. 1-11

Table 1-20 Meanings of MX120 Indicators ............................................................................................................ 1-11

Table 1-21 Configuration Combination of MX120 2U ............................................................................................ 1-11

Table 1-22 Description of MX120 Front Panel ....................................................................................................... 1-12

Table 1-23 Pin Specifications for MX120 RJ45 Socket Port .................................................................................. 1-13

Table 1-24 Corresponding Relation Between MX120 RJ45 Socket and Line Number .......................................... 1-13

Table 1-25 MX120 Back Panel .............................................................................................................................. 1-14

Table 1-26 Meanings of MX120 Indicators ............................................................................................................ 1-15

Table 2-1 Default IP Address of Gateway ................................................................................................................ 2-1

Table 2-2 Default Passwords of Gateway ................................................................................................................ 2-2

Table 2-3 Network Configuration Parameters .......................................................................................................... 2-4

Table 2-4 System Configuration Parameters ........................................................................................................... 2-6

Table 2-5 Codec Methods Supported by Gateways ................................................................................................ 2-7

Table 2-6 SIP Configuration Parameters ................................................................................................................. 2-7

Table 2-7 MGCP Configuration Parameters ............................................................................................................ 2-9

Table 2-8 Fax configuration parameters ................................................................................................................ 2-10

Table 2-9 Description of Dialing ............................................................................................................................. 2-12

Table 2-10 Routing Table Format .......................................................................................................................... 2-14

Table 2-11 Number Transformations ..................................................................................................................... 2-15

Table 2-12 Routing Destination ............................................................................................................................. 2-16

Table 2-13 Configuration Parameters of FXS phone number ................................................................................ 2-19

Table 2-14 Configuration Parameters of FXO phone number ................................................................................ 2-19

Table 2-15 Configuration Parameters of Phone Features ...................................................................................... 2-20

Table 2-16 Configuration Parameters of Trunk Line Features ............................................................................... 2-22

Table 2-17 Parameters of system advanced configuration .................................................................................... 2-24

Table 2-18 Media stream configuration parameter ................................................................................................ 2-25

Table 2-19 SIP related configuration parameter .................................................................................................... 2-27

Table 2-20 Subscriber-line characteristics configuration parameter ...................................................................... 2-28

Table 2-21 Trunk line characteristics configuration parameter .............................................................................. 2-30

Table 2-22 Configuration parameter of Radius call logs ........................................................................................ 2-32

Table 2-23 Encryption configuration parameters ................................................................................................... 2-33

Table 2-24 Call progress tone configuration parameters ....................................................................................... 2-34

Table 2-25 Feature codes configuration parameter ............................................................................................... 2-35

Table 2-26 Parameters of call state ....................................................................................................................... 2-37

Table 2-27 Parameters of System Status .............................................................................................................. 2-39

Table 2-28 Configuration parameters of Manage Log ........................................................................................... 2-41

Table 3-1 MX120 system operation state ................................................................................................................ 3-1

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 1-1

1 Overview

1.1 Product Introduction

MX Series intelligent VoIP Gateways (hereinafter called MX Gateways or simply Gateways) are

designed for bridging the traditional telecom terminal devics into IP networks through SIP or MGCP protocols. The main applications include:



For carriers and value-added service providers to provide telephone, fax and voice-band data services to subscribers using IP access methods such as FTTB, HFC, and ADSL;



Used to bridge the traditional telecom terminal equipments, such as PBXs, to the IP core networks of carriers;



Connected with PBX of enterprises to provide IP-based voice private network solutions for institutions, enterprises and schools;



Used as remote acces equipments for IP-PBXs in call center deployment.

MX Gateways are suitable for placement on office desktops or installation on walls in the corridor and racks in the equipment room.

MX Series includes MX8, MX60, MX100 and MX120 subseries. Their features are similar with the main differences as follows:

Table 1-1 Differences Between MX Gateway Series

Capacity Chassis

Subscriber Line Board Card

Installation Power

MX8

2-8 FXS/FXO Ports

Plastic Casing Built-in Desktop 5-9 VDC

MX60

16-48 FXS/FXO Ports

19’’ wide and 1U High

Built-in Rack 100-240 VAC

MX100

24-48 FXS/FXO Ports

19” Wide and 1U High

Pluggable Rack

100-240 VAC, -48 VDC (Optional)

MX1201U

24-48 FXS/FXO Ports

19” Wide and 1U High

Pluggable Rack

100-240 VAC, -48 VDC (Optional)

MX1202U

48-96 FXS/FXO Ports

19” Wide and 2U High

Pluggable Rack

100-240 VAC, -48 VDC (Optional)

MX Gateways use Freescale® PowerQUICC communications processors as main control processors (including 50MHz MPC852T, 200MHz MPC8250 and 300MHz MPC8247) and TI’s TMS320VC5509A high-performance digital signal processing chips as processors for voice and fax processing (equipped with 1-12 DSP chips based on the need of concurrent call capacity), and are integrated with 32MB-64MB SDRAM as system memory, 4MB-16MB FLASH as permanent file system. The powerful processing capability and sufficient hardware configuration ensure that all products of MX Series can provide concurrent calls of full capacity and maintain good call quality.

All MX Gateways run on stable and reliable embedded Linux operating system. On top of Linux OS, the driver layer handles hardware specific control in different product platforms. This makes single source

User Manual MX Voice-Fax Gateway Series

1-2 New Rock Technologies, Inc.

application software running cross the full range of MX product series, and ensures the consisten functions and stable performance in different MX product lines.

MX Gateways support SIP and MCGP protocols. They can provide



PBX functions such as hunting group, second stage dialing, internal communications, caller ID (FSK/DTMF), call transfer, call waiting, call hold, call barring, caller ID restriction, hotline, corporate CRBT, three-way calling, ring group, fax and etc;



FXO related functions such as PSTN failover, gain control, busy tone detection, voice prompt in inbound calls, polarity reversal detection;



Media stream processing functions such as RTP redundancy, packet loss compensation, G.711/G.729A/G.723.1/iLBC/GSM voice codec, echo cancellation, and etc.

MX Gateways support local and remote, distributed and centralized management modes, including Web access management, command line configuration based on Linux OS, auto-provision for firmware upgrade and configuration management based on TFTP/FTP/HTTP, SNMPv2, TR069 based ACS.

1.2 Functions and Features



Connect analog telephone, PBX, facsimile machine and POS machine to the IP core network, or PSTN;



Work with service platform to provide various telephone supplementary services;



Support protocols: SIP, MGCP;



Flexible configuration of Phone/Line interfaces;



Support static IP address configuration or dynamically obtain an IP address through DHCP and PPPoE;



Support G.711, G.729A, G.723.1, GSM, iLBC;



Support echo cancellation;



Up to 500 routing rules can be stored in gateways;



Intercom;



Support digitmap;



Support call progress tones for various countries and regions;



Support Line second stage dialing or voice prompt;



Support PSTN failover through Line ports;



Support High Capacity SD Card (optional, only for MX60)



Security strategy: IP filter, encryption



Support routing table;



Support T.30/T.38 fax mode;



Support polarity inverse detection and busy tone detection;



Support three-way calling;



Compatible with unified communication solutions, such as CallManager, OCS and Asterisk;



Support multiple local and remote maintenance & management modes such as Web, Telnet, auto-provision, and TR069/TR104/TR106 clinet.

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 1-3

1.3 Equipment Structure

1.3.1 MX8

MX8 is the product with smallest capacity in MX Gateway Series. Designed with small plastic

structure for desktop placement, MX8 can provide up to 8 analog line interfaces. MX8 supports the

following types of configuration:

Table 1-2 Common Configuration Combination of MX8

Models Number of FXS Ports Number of FXO Ports

MX8-2S/2 2 2

MX8-6S/2 6 2

MX8-4S 4 0

MX8-8S 8 0

MX8-4FXO 0 4

MX8-8FXO 0 8

MX8-4S/4 4 4

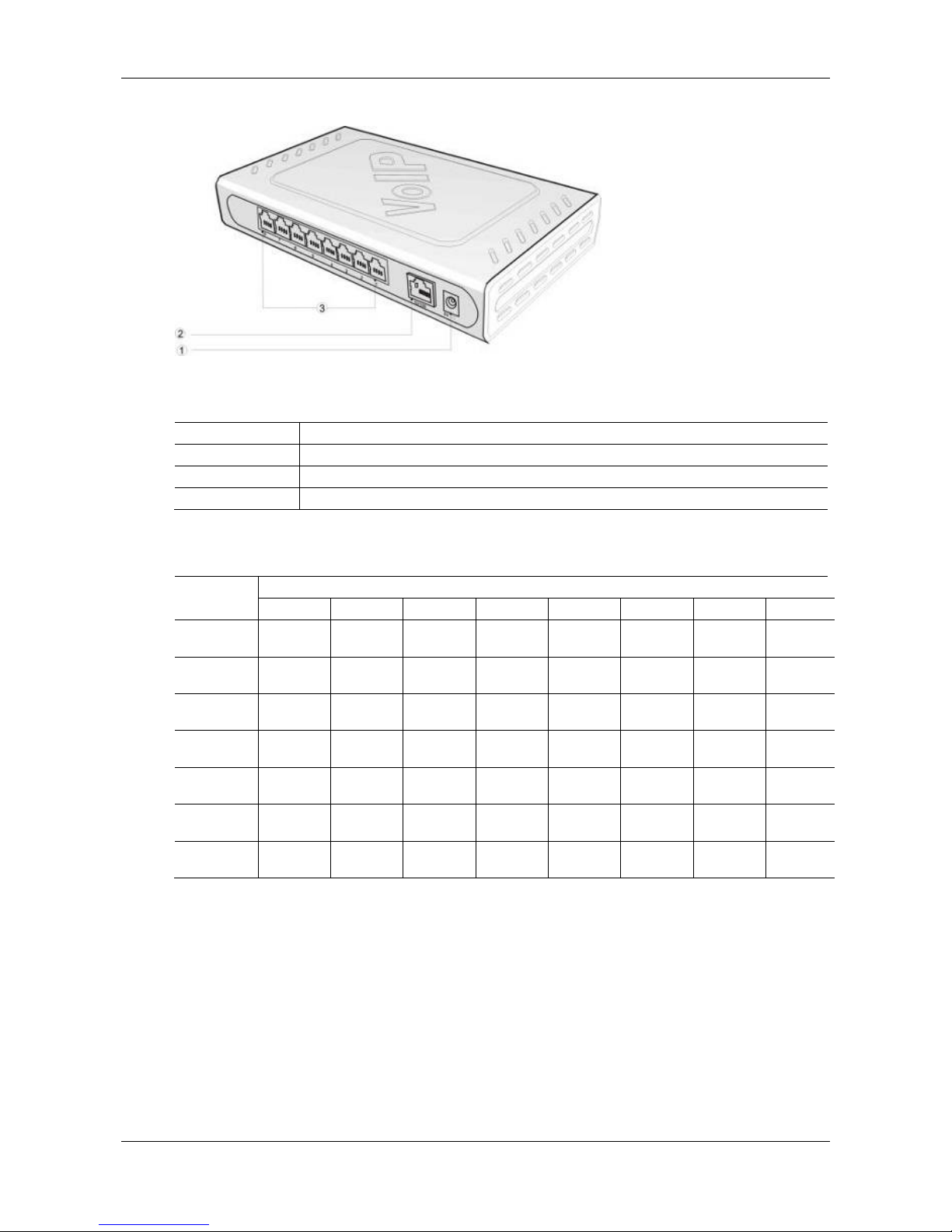

Figure 1-1 MX8 Front Panel

Table 1-3 Description of MX8 Front Panel

# Description

① Power indicator (PWR), Light-on indicates that it has been powered.

②

Steady on indicates valid Ethernet link, flashing indicates Ethernet activities (receiving and/or transmitting)

③

Analog subscriber line (FXS) or analog trunk (FXO) interface indicator, Light-on indicates that it is in use.

User Manual MX Voice-Fax Gateway Series

1-4 New Rock Technologies, Inc.

Figure 1-2 MX8 Back Panel

Table 1-4 Description of MX8 Back Panel

# Description

① Power interface, 5-9 VDC input

② 10/100 M Ethernet Interface, RJ45

③ Analog subscriber line (FXS) or analog trunk (FXO) interface

Table 1-5 Configuration Description of Analog Line Interfaces for All MX8 Models

MX8 Models

RJ11 Interface Configuration

1 2 3 4 5 6 7 8

MX8-2S/2

Trunk Line 1

Trunk Line 2

Subscriber Line 1

Subscriber Line 2

NA NA NA NA

MX8-6S/2

Trunk Line 1

Trunk Line 2

Subscriber Line 1

Subscriber Line 2

Subscriber Line 3

Subscriber Line 4

Subscriber Line 5

Subscribe r Line 6

MX8-4S

Subscriber Line 1

Subscriber Line 2

Subscriber Line 3

Subscriber Line 4

NA NA NA NA

MX8-8S

Subscriber Line 1

Subscriber Line 2

Subscriber Line 3

Subscriber Line 4

Subscriber Line 5

Subscriber Line 6

Subscriber Line 7

Subscribe r Line 8

MX8-4FXO

Trunk Line 1

Trunk Line 2

Trunk Line 3

Trunk Line 4

NA NA NA NA

MX8-8FXO

Trunk Line 1

Trunk Line 2

Trunk Line 3

Trunk Line 4

Trunk Line 5

Trunk Line 6

Trunk Line 7

Trunk Line 8

MX8-4S/4

Subscriber Line 1

Subscriber Line 2

Subscriber Line 3

Subscriber Line 4

Trunk Line 1

Trunk Line 2

Trunk Line 3

Trunk Line 4

1.3.2 MX60

Designed with a 1U high and 19’’ wide compact chassis, MX60 is suitable for installation in a standard

cabinet. The interface card of MX60 uses a RJ-45 socket and is connected to the distribution panel in

equipment room using CAT-5 cables supplied with the unit. It has a built-in 110-220V power module.

MX60 offers up to 48 interfaces of FXS/FXO. MX60 supports the following types of configuration.

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 1-5

Table 1-6 Configuration combination of MX60

Models Number of FXS Ports Number of FXO Ports

MX60-16S 16 0

MX60-32S 32 0

MX60-48S 48 0

MX60-8S/8 8 8

MX60-24S/8 24 8

MX60-40S/8 40 8

MX60-16S/16 16 16

MX60-32S/16 32 16

MX60-24S/24 24 24

Figure 1-3 MX60 Front Panel

Table 1-7 Description of MX60 Front Panel

# Description

①③⑤

Three interface slots; each can correspond with four RJ45 sockets; each RJ45socket can correspond with four pairs of analog lines. Note: numbers of interface slots vary from different configuration.

②④⑥

Matrix of 4 x 4 LED status indicator on interface cardl.

Each RJ45 socket has 8 pins leading out 4 pairs of analog telephone or trunk lines in agreement with the pair specifications for Ethernet interfaces, whose corresponding relations can be seen in the table below. CAT-5 cables are used to connect the interface card and distribution panel in equipment installation. Standard RJ11 telephone lines can be used to plug in a RJ45 socket. The telephone/trunk lines are connected to the 3

pair of pins for simple call test.

Table 1-8 Pin Specifications for MX60 RJ45 Socket Port

RJ45 Pin Number 1 2 3 4 5 6 7 8

Analog line pair

Pair 2nd Pair 3rd Pair 2nd Pair 4th Pair

TIP1 RING1 TIP2 TIP3 RING3 RING2 TIP4 RING4

Reference color

Orange

white

Orange

Green

white

Blue

white

Green

Brown

white

Brown

User Manual MX Voice-Fax Gateway Series

1-6 New Rock Technologies, Inc.

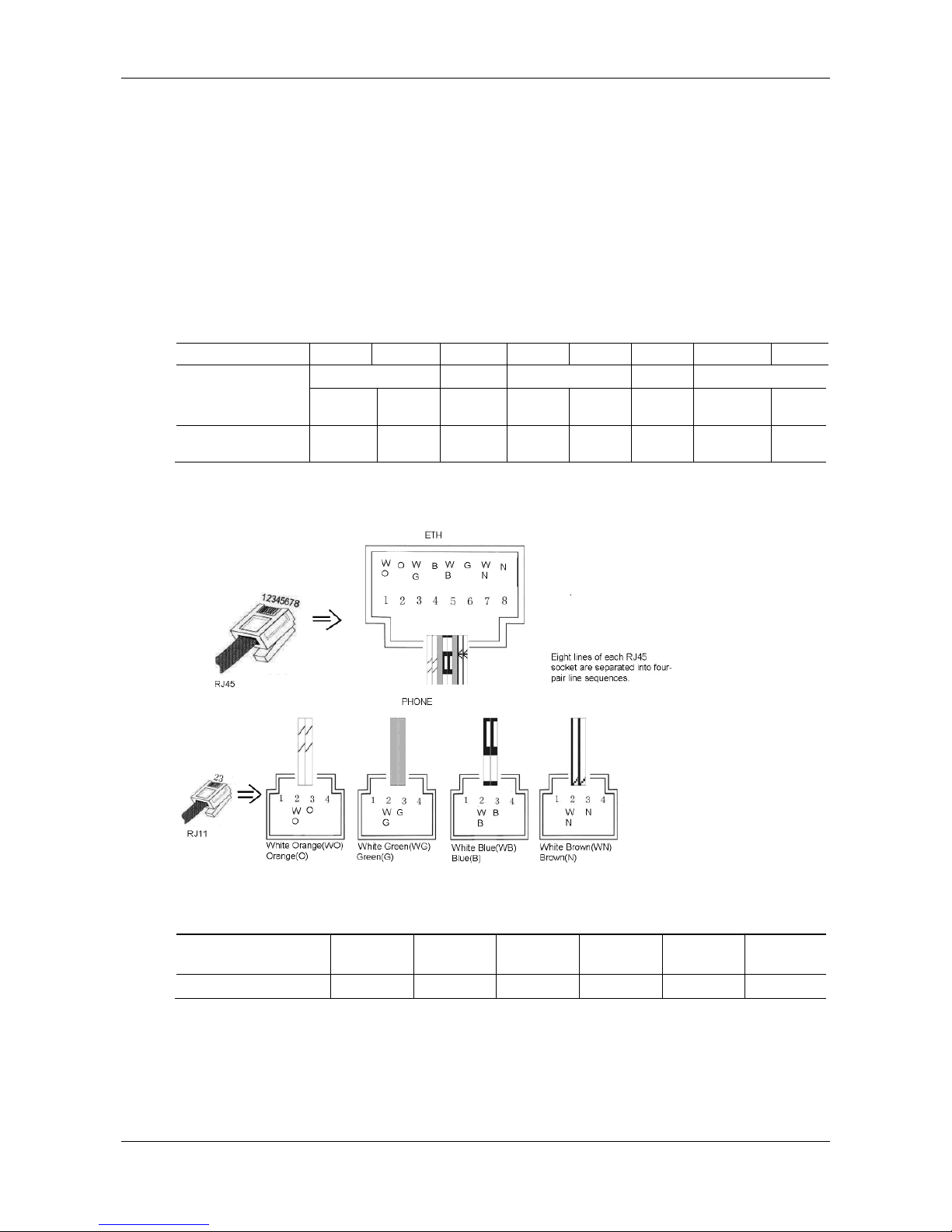

Figure 1-4 Schematic Diagram of MX60 Subscriber Line Connection

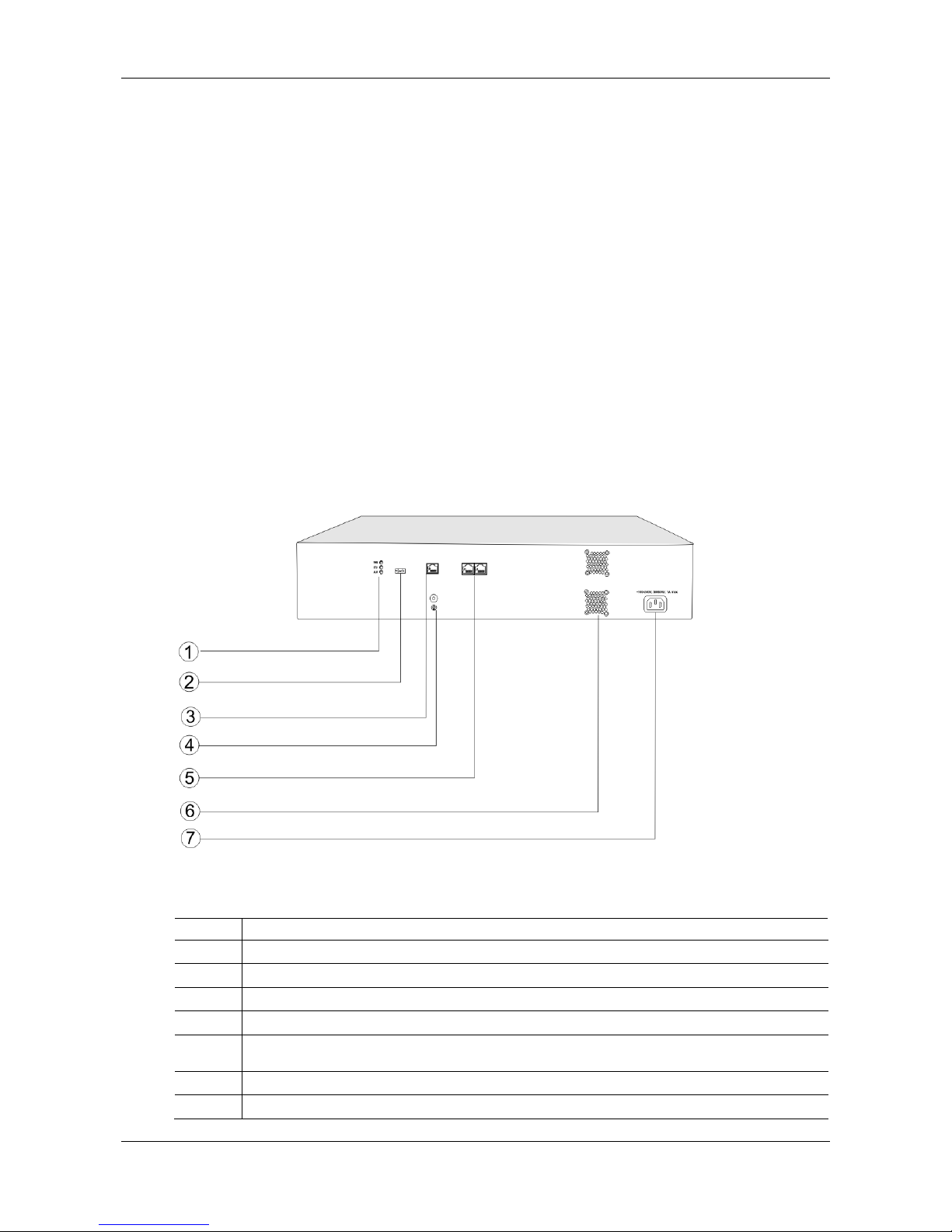

Figure 1-5 MX60 Back Panel

Table 1-9 Description of MX60 Back Panel

# Description

①

Ground Pole

②

Indicator, see Table 1-17 for description

③

USB Interface, reserved for future use

④

Configuration interface (CON), Ethnet lines used for local management and debugging

⑤

Two Ethernet interfaces: one IP address

⑥

Cooling fan

⑦

AC power socket, 100-240 VAC voltage input

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 1-7

Table 1-10 Meanings of MX60 Indicators

Mark Function Status Description

PWR

Power Indication

Green Power on

Off Power off

STU

Status Indication

Off System locked and inactive

Green Flash Normal operation

ALM

Alarm Indication

Off No alarms

Red Flash New alarms occurred but not confirmed.

Red Constant System in the process of powerup and not in the normal operation mode

Red Alarms existed and all alarm information confirmed.

1.3.3 MX100-AG

Designed with a 1U high and 19” wide compact chassis and a swappable modular structure,

MX100-AG can offer flexible on-site configuration and replacement. The interface card of MX100-AG

uses a Champ50-type socket and is connected to the distribution panel in equipment room using a

25-pair cable supplied with the unit. MX100-AG supports the following types of configuration:

Table 1-11 Configuration Combination of MX100-AG

Models Number of FXS Ports Number of FXO Ports

MX100-AG-48S 48 0

MX100-AG-32FXO 0 32

MX100-AG-16S/16 16 16

MX100-AG-32S/4 32 4

MX100-AG-32S/8 32 8

Figure 1-6 MX100-AG Front Panel

Table 1-12 Description of MX100-AG Front Panel

# Description

①

Main control module. It offers one 10/100M Ethernet port and one configuration interface (CON).

② and ③ Two interface slots and each can contain one desired type interface card.

DO NOT plug or remove the main control module and interface cards of MX100 when equipment is powered on.

User Manual MX Voice-Fax Gateway Series

1-8 New Rock Technologies, Inc.

Table 1-13 Indicators of MX100-AG

Mark Function Status Description

PWR

Power Indication

Green Power on

Off Power off

STU

Status Indication

Off System locked and inactive

Green Constant

Normal operation

Red Flash System in a diagnostic mode and able to execute limited operation

ALM

Alarm Indication

Green No alarms

Red Flash New alarms occurred but not confirmed

Red Constant

System in the process of powerup and not in the normal normal operation mode

Red Alarms existed and all alarm information confirmed

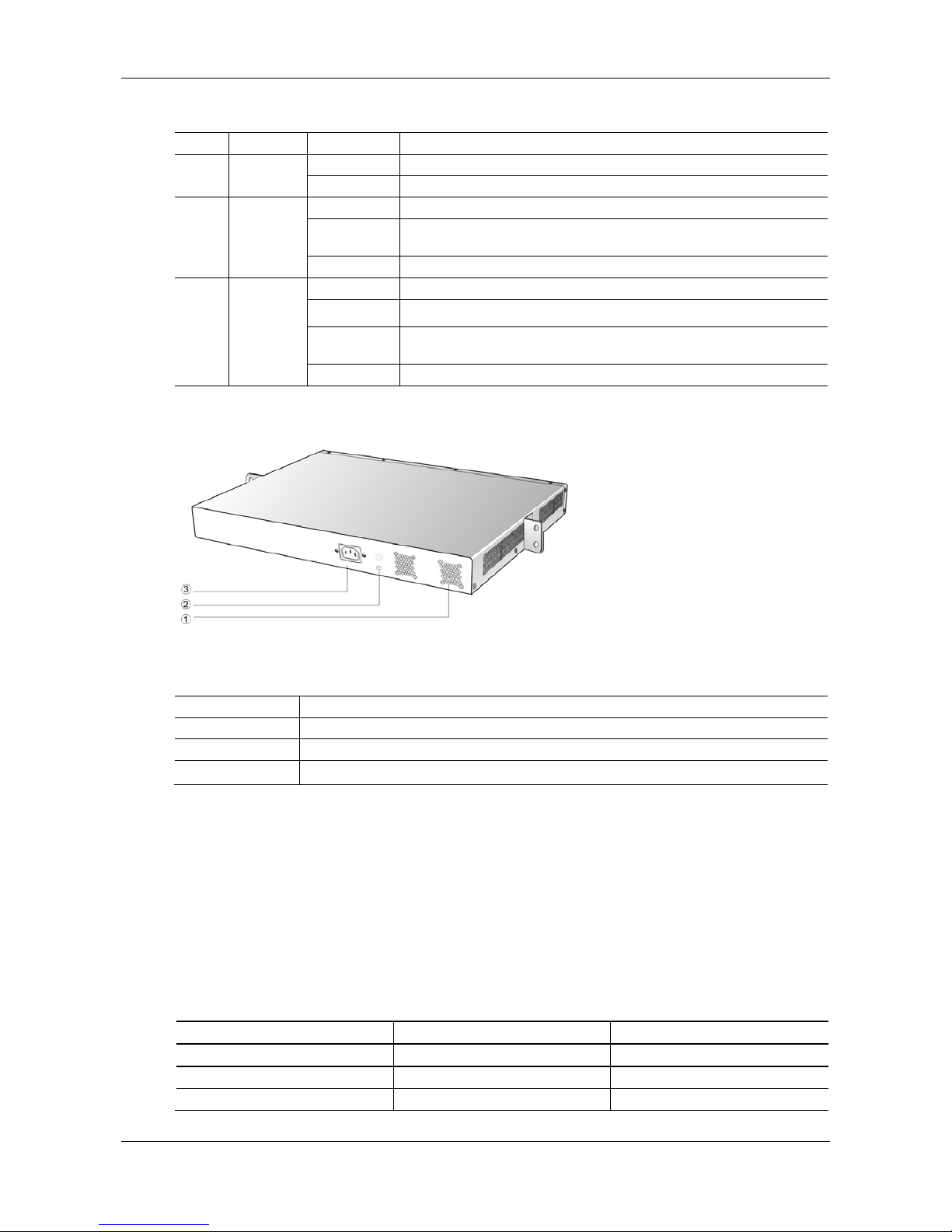

Figure 1-7 MX100-AG Back Panel

Table 1-14 Description of MX100-AG Back Panel

# Description

① Two cooling fans.

② Ground pole.

③

AC power socket, 100-240 VAC voltage input.

1.3.4 MX120 1U

Designed with 1U high and 19’’ wide compact chassis and a swappable modular structure, MX120 can

offer up to 48 analog lines. The interface card of MX120 uses a RJ45 socket and is connected to the

distribution panel in equipment room using CAT-5 cables supplied with the unit.

The device of MX120 1U can hold two interface cards which enable to flexibly configure FXS and

FXO ports. And each card equips up to 24 ports. It supports the following configurations:

Table 1-15 Configuration Combination of MX120

Models Number of FXS Ports Number of FXO Ports

MX120-24FXO 0 24

MX120-48FXO 0 48

MX120-40S/8 40 8

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 1-9

Models Number of FXS Ports Number of FXO Ports

MX120-36S/12 36 12

MX120-32S/16 32 16

MX120-28S/20 28 20

MX120-24S/24 24 24

Figure 1-8 MX120 Front Panel

Table 1-16 Description of MX120 Front Panel

# Description

① and ② Two interface slots; each can contain one 24-port interface card.

③ Matrix of 6×4 LED status indicator on interface card

Do not plug and remove the interface cards of MX120 when equipment is powered on.

Numbering definition of system interface slots: On the left side of main chassis is #1 slot (marked with

No.1 to 24), on the right side of main chassis is #2 slot (marked with No.25 to 48).

Each RJ45 socket has 8 pins leading out 4 pairs of analog telephone or trunk lines in agreement with

the pair specifications for Ethernet interfaces, whose corresponding relations can be seen in the table

below. CAT-5 cables are used to connect the interface card and distribution panel in equipment

installation. Standard RJ11 telephone lines can be used to plug in a RJ45 socket. The telephone/trunk

lines are connected to the 3rd pair of pins for simple call test.

Table 1-17 Pin Specifications for MX120 RJ45 Socket Port

RJ45 Pin Number 1 2 3 4 5 6 7 8

Analog line pair

Pair

Pair 3rd Pair 2nd Pair 4th Pair

TIP1 RING1 TIP2 TIP3 RING3 RING2 TIP4

RING

Reference color

Orange

white

Orange

Green

white

Blue

white

Green

Brown

white

Brown

User Manual MX Voice-Fax Gateway Series

1-10 New Rock Technologies, Inc.

Figure 1-9 Schematic Diagram of MX120 Subscriber Line Connection

Table 1-18 Corresponding Relation Between MX120 RJ45 Socket and Line Number

RJ45 Socket No. (From Left to Right)

1 2 3 4 5 6

Line No. of This Card

1  4 5  8 9  12 13  16 17  20 21  24

There is a 6 × 4 LED indicator matrixes on the left side of interface board. Each row of LED indicator

matrixes matches four telephone lines on a RJ45. The first row on the left matches Line 1-4

respectively from top to bottom, the first row on the right matches Line 21-24 respectively from top to

bottom, and the middle rows in the same manner.

LED indicators are used for multiple purposes as follows



Line status indication: This is the most common mode during normal use of equipment. In this mode,

if a line is idle, the indicator corresponding to it goes off; if a line is in call or in use status (such as

ringing, offhook and caller ID transmission of FXS interface, ringing, offhook and caller ID detection

of FXO interface) the indicator corresponding to it goes on.



Line type indication: This is the mode for cable wiring check when installing the equipment. This mode can be entered by disconnecting Ethernet cables (Both WAN and LAN ports must be disconnected) at installation stage. After entering this mode, steady on LED indicates that the corresponding line is equipped as analog subscriber line type, flashing LED indicates that the corresponding line is equipped as analog foreigh exchange line type, off LED indicates that the corresponding line is not equipped or not ready for use.



System operation status indication: This is the mode for displaying information on system operation of equipment in specific conditions. Usually, this mode is entered when some prompts are required to give operator during equipment startup, diagnosis or operation. In this mode, LED flashes to display numbers, letters or other patterns in matrix. Please refer to the Appendix: Check List for Operation Status Indication of MX120 System.

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 1-11

Figure 1-10 MX120 Back Panel

Table 1-19 MX120 Back Panel

# Description

① Ground Pole

② Indicator, see Table 1-20 for description.

③ USB interface, reserved for future use.

④

Configuration interface (CON), used for local management and debugging.

⑤

Two Ethernet interfaces: ETH1 and ETH2, only ETH1 has been set when the equipment is delivered from factory, default IP address: 192.168.2.240

⑥

Cooling fan

⑦

AC power socket, 100-240 VAC voltage input.

Table 1-20 Meanings of MX120 Indicators

Mark Function Status Description

PWR

Power Indication

Green Power on

Off Power off

STU

Status Indication

Off System locked and inactive

Green Flash Normal operation

ALM

Alarm Indication

Green No alarms

Red Flash New alarms occurred but not confirmed

Red Alarms existed and all alarm information confirmed

1.3.5 MX120 2U

The device of MX120 2U can hold four interface cards which enable to flexibly configure FXS and

FXO ports. And each card equips up to 24 prots. MX120 2U can provide up to 96 ports. It supports the

following configurations:

Table 1-21 Configuration Combination of MX120 2U

Models Number of FXS Ports Number of FXO Ports

MX120-72S 72 0

MX120-96S 96 0

User Manual MX Voice-Fax Gateway Series

1-12 New Rock Technologies, Inc.

Models Number of FXS Ports Number of FXO Ports

MX120-72FXO 0 72

MX120-96FXO 0 96

MX120-64S/8 64 8

MX120-88S/8 88 8

MX120-60S/12 60 12

MX120-84S/12 84 12

MX120-56S/16 56 16

MX120-80S/16 80 16

MX120-52S/20 52 20

MX120-76S/20 76 20

MX120-48S/24 48 24

MX120-72S/24 72 24

MX120-44S/28 44 28

MX120-68S/28 68 28

MX120-40S/32 40 32

MX120-64S/32 64 32

MX120-36S/36 36 36

MX120-60S/36 60 36

Figure 1-11 MX120 2U Front Panel

Table 1-22 Description of MX120 Front Panel

# Description

①

Matrix of 6×4 LED status indicator on interface card

②③④⑤

Four interface slots; each can contain one 24-port interface card.

Do not plug and remove the interface cards of MX120 when equipment is powered on.

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 1-13

Numbering definition of system interface slots: On the low-left side of chassis is #1 slot (marked with

No.1 to 24), on the low-right side of chassis is #2 slot (marked with No.25 to 48), on the up-left side of

chassis is #3 slot (marked with No.49 to 72), and on the up-right side of chassis is #4 slot (marked with

No.73 to 96).

pair of pins for simple call test.

Table 1-23 Pin Specifications for MX120 RJ45 Socket Port

RJ45 Pin Number 1 2 3 4 5 6 7 8

Analog line pair

1st Pair 2nd Pair 3rd Pair 2nd Pair 4th Pair

TIP1 RING1 TIP2 TIP3 RING3 RING2 TIP4

RING

Reference color

Orange

white

Orange

Green

white

Blue

white

Green

Brown

white

Brown

Figure 1-12 Schematic Diagram of MX120 Subscriber Line Connection

Table 1-24 Corresponding Relation Between MX120 RJ45 Socket and Line Number

RJ45 Socket No. (From Left to Right)

1 2 3 4 5 6

Line No. of This Card

1  4 5  8 9  12 13  16 17  20 21  24

There is a 6 × 4 LED indicator matrixes on the left side of interface board. Each row of LED indicator

matrixes matches four telephone lines on a RJ45. The first row on the left matches Line 1-4

respectively from top to bottom, the first row on the right matches Line 21-24 respectively from top to

bottom, and the middle rows in the same manner.

User Manual MX Voice-Fax Gateway Series

1-14 New Rock Technologies, Inc.

LED indicators are used for multiple purposes as follows



Line status indication: This is the most common mode during normal use of equipment. In this mode, if a line is idle, the indicator corresponding to it goes off; if a line is in call or in use status (such as ringing, offhook and caller ID transmission of FXS interface, ringing, offhook and caller ID detection of FXO interface) the indicator corresponding to it goes on.



Figure 1-13 MX120 2U Back Panel

Table 1-25 MX120 Back Panel

# Description

①

Indicator, see Table 1-28 for description.

②

USB interface, reserved for future use.

③

Configuration interface (CON), used for local management and debugging.

④

Ground Pole

⑤

Two Ethernet interfaces: ETH1 and ETH2, only ETH1 has been set when the equipment is delivered from factory, default IP address: 192.168.2.240

⑥

Cooling fan

⑦

AC power socket, 100-240 VAC voltage input.

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 1-15

Table 1-26 Meanings of MX120 Indicators

Mark Function Status Description

PWR

Power Indication

Green Power on

Off Power off

STU

Status Indication

Off System locked and inactive

Green Flash Normal operation

ALM

Alarm Indication

Green No alarms

Red Flash New alarms occurred but not confirmed

Red Alarms existed and all alarm information confirmed

User Manual MX Voice-Fax Gateway Series

1-16 New Rock Technologies, Inc.

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-1

2 Parameter Setting

2.1 Login

2.1.1 Obtaining Gateway IP Address

MX8 Gateways start DHCP service by default, and automatically obtain an IP address on the LAN;

users can use the factory-default gateway IP address if it is unable to be obtained (e.g. when connected

directly with a computer).

MX60, MX100 and MX120 Gateways use a static IP address by default.

Table 2-1 Default IP Address of Gateway

Type Default DHCP Service Default IP Address Default Subnet Mask

MX8 Enabled 192.168.2.218 255.255.0.0

MX60 Disabled 192.168.2.240 255.255.0.0

MX100 Disabled 192.168.2.240 255.255.0.0

MX120 Diasabled 192.168.2.240 255.255.0.0

DHCP Used in Network

Users can dial ## to obtain the current gateway IP address and version information of firmware using

the telephone connected to the subscriber line (Phone interface) after the equipment is powered on.

If the gateways are only configured with FXO ports for analog trunks without FXS ports for subscriber

lines (e.g. MX8-4FXO), users can dial into the gateway by connecting a PBX extension line or PSTN

POTS line to a FXO port, and press ## to obtain the current gateway IP address and version

information of firmware after receiving the second dial tone.

Fixed IP Address Used



If the DHCP service on the network is not available or the gateway is directly connected with a computer, the gateways will use the factory-default IP address.



A user could fail to log in with the default IP address if the IP address of user’s computer and the default gateway IP address are not at the same network segment. It is recommended that the IP address of user's computer is changed to be identical with the same network segment of the gateway. For example, if the gateway IP address is 192.168.2.218, it is recommended to set the computer’s IP address to any address at the network segment of 192.168.2.XXX).

PPPoE Used

In Basic > Network, the gateways will automatically obtain the WAN address returned by the access

network after the PPPoE service is started and the user name and password are set. Users can dial ## on

the gateways to receive the IP address and version of the firmware.

User Manual MX Voice-Fax Gateway Series

2-2 New Rock Technologies, Inc.

2.1.2 Logging On

Double-click the icon (or whatever browser you use) to open IE browser, and enter the gateway IP

address in the browser address bar (eg. 192.168.2.218); you can enter the login interface for gateway

configuration by entering a password on the login interface.

Figure 2-1 Login Interface for MX Gateway Configuration

Both Chinese and English Languages are provided for the Web interface.

2.1.3 Permission of Gateway Administrator

Logon users are classified into administrator and operator. The default password is shown in Table

2-22. The password is shown in a cipher for safety.

Table 2-2 Default Passwords of Gateway

Type Default Administrator Passwords

(lowercase letters required)

Default Operator Password

MX8 mx8 operator

MX60 mx60 operator

MX100 mx100 operator

MX120 mx120 operator

The administrator can browse and modify all configuration parameters, and modify login passwords.

The operator can browse and modify a subset of the configuration parameters.

The gateways allow multiple users to log in:



If both an administrator and operator have logged in, the administrator may modify the configuration, while the operator is limited to browsing;



When multiple users with the same level of permission log in, the first may modify, while the others may only browse.

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-3

 The system will confirm timeout if users do not conduct any operation within 10 minutes after login.

They are required to log in again for continuing operations.

 Upo n completion of configuration, click the Logout button to return to the login page, so as not to

affect the login permission of other users.

2.2 Buttons Used on Gateway Management Interface

Submit buttons are at the bottom of the configuration screens.



Submit Button: Submit configuration information. Users click Submit button after completion of

parameter configuration on a page. A success prompt will appear if configuration information is accepted by the system; if a The configuration takes effect after the system is restarted dialog box appears, it means that the parameters are valid only after a system restart; it is recommended that users press the Restart button on the Tool page to enable the configuration after changing all parameters to be modified.



Default Button: Click this button to use default configuration of gateway. A success prompt will

appear on the interface after the system restores parameters on the configuration page to default configuration. For part of parameters, it is required to restart the software to validate the default

configuration, and in this case The configuration takes effect after the system is restarted will appear on the interface. Subscribers can click Restart on the Tool page to restart.

2.3 Basic Configuration

2.3.1 Network

After login, click Basic > Network tab to open the configuration interface.

User Manual MX Voice-Fax Gateway Series

2-4 New Rock Technologies, Inc.

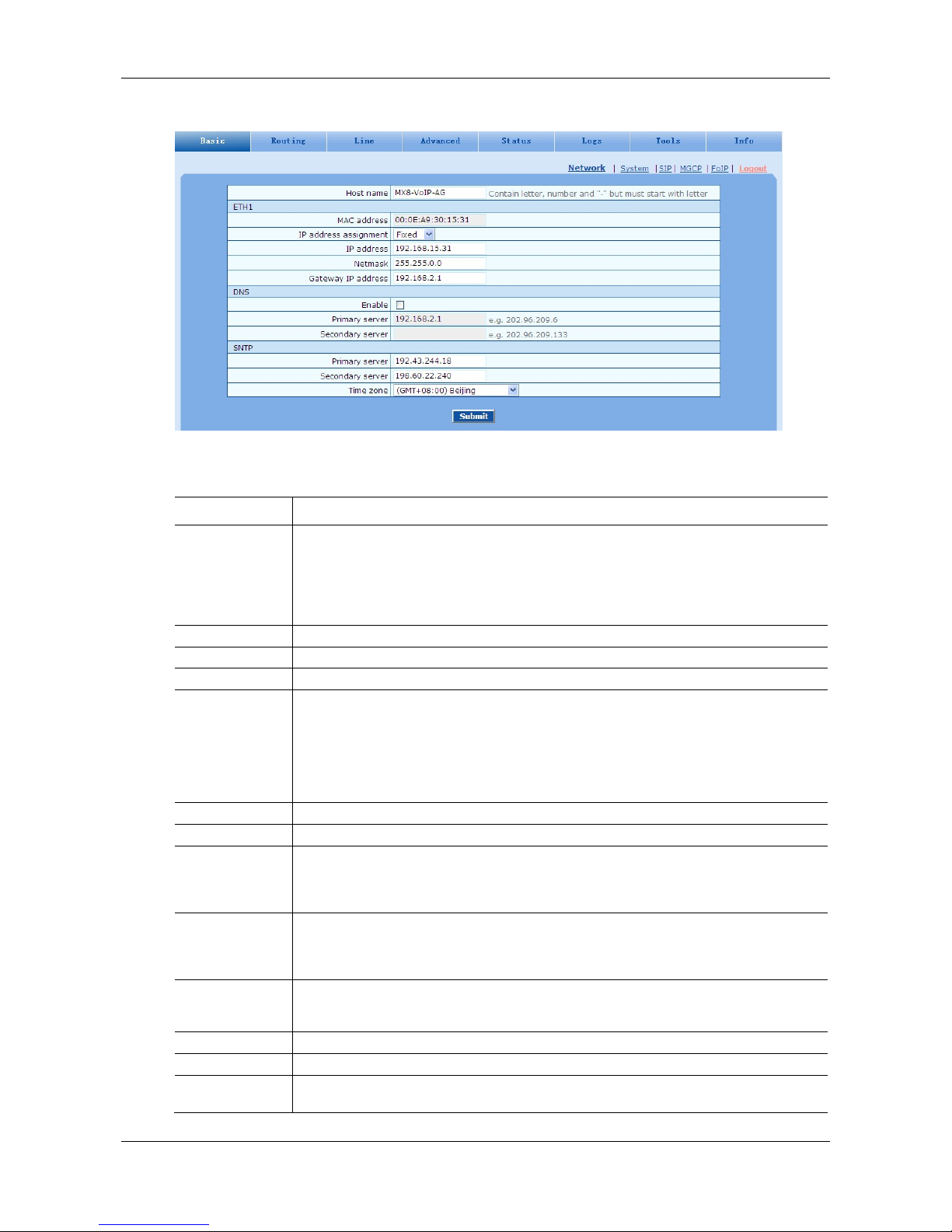

Figure 2-2 Network Configuration Interface

Table 2-3 Network Configuration Parameters

Name Description

Host name

This is the equipment name of the gateway. The default values of MX8, MX60, MX100 and MX120 are MX8-VoIP-AG, MX60-VoIP-AG, MX100-VoIP-AG and MX120-VoIP-AG respectively. Users can set a different name for each gateway when multiple gateways are on the same subnet.

A host name can be a maximum of 48 characters, either letters (A-Z or a-z), numbers (0-9) and minus sign (-). It may not include a null or space, and it must start with a letter.

Logical IP address This parameter only exists in MX100, used to display the actual gateway IP address in use.

ETH1

MAC address Display the MAC address of the gateway.

IP address assignment

Methods for obtaining an IP address

 Fixed: Static IP address is used;

 DHCP: Use the dynamic host configuration protocol (DHCP) to allocate IP addresses and other

network parameters;

 PPPoE: PPPoE service is used.

User name Enter an authentication user name if PPPoE service is selected, and there is no default value.

Password Enter an authentication password if PPPoE service is selected, and there is no default value.

IP address

If “Fixed” or “DHCP” is selected for the network type but an address fails to be obtained, the gateways will use the IP address filled in here. If the gateways obtain an IP address through DHCP, the system will display the current IP address automatically obtained from DHCP. This parameter must be set due to no default value.

Netmask

The subnet mask is used with an IP address. When the gateways uses a static IP address, this parameter must be entered; when an IP address is automatically obtained through DHCP, the system will display the subnet mask automatically obtained by DHCP. This parameter must be set due to no default value.

Gateway IP address

The IP address of LAN gateway. When the gateways obtain an IP address through DHCP, the system will display the LAN gateway address automatically obtained through DHCP. This parameter must be set due to no default value.

DNS

Enable Activate DNS service.

Primary Server

If DNS service is activated, the network IP address of the preferred DNS server must be entered, and there is no default value.

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-5

Name Description

Secondary Server

If DNS service is activated, the network IP address of a standby DNS server can be entered here. It is optional and there is no default value.

SNTP

Primary Server

Enter the IP address of preferred time server here. This parameter must be set due to no default value.

Secondary Server

Enter the IP address of standby time server here. This parameter must be set due to no default value.

Time Zone

Select a time zone, and the parameter values include:

 (GMT-11:00) Midway Island

 (GMT-10:00) Honolulu. Hawaii

 (GMT-09:00) Anchorage, Alaska

 (GMT-08:00) Tijuana

 (GMT-06:00) Denver

 (GMT-06:00) Mexico City

 (GMT-05:00) Indianapolis

 (GMT-04:00) Glace_Bay

 (GMT-04:00) South Georgia

 (GMT-03:30) Newfoundland

 (GMT-03:00) Buenos Aires

 (GMT-02:00) Cape_Verde

 (GMT) London

 (GMT+01:00) Amsterdam

 (GMT+02:00) Cairo

 (GMT+03:00) Moscow

 (GMT+03:30) Teheran

 (GMT+04:00) Muscat

 (GMT+04:30) Kabul

 (GMT+05:30) Calcutta

 (GMT+05:00) Karachi

 (GMT+06:00) Almaty

 (GMT+07:00) Bangkok

 (GMT+08:00) Beijing

 (GMT+09:00) Tokyo

 (GMT+10:00) Canberra

 (GMT+10:00) Adelaide

 (GMT+11:00) Magadan

 (GMT+12:00) Auckland

2.3.2 System Configuration

After login, click Basic > System tab to open the configuration interface.

User Manual MX Voice-Fax Gateway Series

2-6 New Rock Technologies, Inc.

Figure 2-3 System Configuration Interface

Table 2-4 System Configuration Parameters

Name Description

First digit timer

If a subscriber hasn’t dialed any number within a specified time by this parameter after offhook, the gateways will consider that the subscriber has given up the call and prompt to hang up in busy tone. Unit: second; Default value: 12 seconds.

Inter-digit timer

If a subscriber hasn’t dialed the next number key from the time of dialing the last number key to the set time by this parameter, the gateways will consider that the subscriber has ended dial-up and call out the dialed number. Unit: second; Default value: 12 seconds.

Critical digit timer

This parameter is used with the "x.T" rule set in dialing rules. For example, there is "021.T" in the dialing rules table. When a subscriber has dialed 021 and hasn’t dialed the next number within a set time by this parameter (eg. 5 seconds), the gateways will consider that the subscriber has ended dial-up and call out the dialed number 021.

Input intergers, not decimal fractions Unit: second; Default value: 5 seconds.

Codec

Codecs supported by MX include G729A/20, G723/30, PCMU/20, PCMA/20, iLBC/30 and GSM/20. This parameter must be set due to no default value.

Several encoding methods can be configured in this item at the same time, separated with “,” in the middle; the gateways will negotiate with the platform in the order from front to back when configuring the codec methods.

Hook-flash handle

The gateways provide the following processing modes after detecting hook flash from subscriber terminals:

 Internal: the hook flash event will be handled internally;

 Server(RFC 2833): transmitting the hook flash to platform with RFC 2833;

 Server (SIP INFO): transmitting the flash-off to platform with SIP INFO.

DTMF method

Transmission modes of DTMF signal supported by the gateways include RFC 2833, Audio and SIP INFO. The default value is Audio.

 RFC 2833: Separate DTMF signal from sessions and transmit it to the platform through RTP

data package in the format of RFC2833;

 Audio: DTMF signal is transmitted to the platform with sessions;

 SIP INFO: Separate DTMF signal from sessions and transmit it to the platform in the form of

SIP INFO messages.

2833 payload type

Used with “RFC 2833” in the DTMF transmission modes. The default value of 2833 payload type is 100. The effective range available: 96 ~ 127. This parameter should match the setting of far-end device (eg. platform).

DTMF on-time

This parameter sets the on time (in ms) of DTMF signal sent from Line port. The default value is 100 ms. The duration time range is 80 ~ 150 ms.

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-7

Name Description

DTMF off-time

This parameter sets the off time (ms) of DTMF signal sent from Line port. The default value is 100 ms. The interval time range is 80 ~ 150 ms.

DTMF detection threshold

Minimum duration time of effective DTMF signal. Its effective range is 32-96 ms. The default value is 48 ms .The greater the value is set, the more stringent the detection is.

DTMF detection adjust

Increase the value can prevent false detection of DTMF signal. The valid values are 16, 32, and 48 in million seconds.

Table 2-5 Codec Methods Supported by Gateways

Codec Supported by MX Bit Rate (Kbit/s) Time Intervals of RTP Package Sending (ms)

iLBC 13.3/15.2 20/30

GSM 13 20

G729A 8 10/20/30/40

G723 5.3/6.3 30/60

PCMU/PCMA 64 10/20/30/40

2.3.3 SIP Configuration

After login, click Basic > SIP tab to open the SIP configuration interface.

Figure 2-4 SIP Configuration Interace

Table 2-6 SIP Configuration Parameters

Name Description

Signaling port

Configure the UDP port for transmitting and receiving SIP messages, with its default value

5060. Note: The signaling port number can be set in the range of 1-9999, but cannot conflict with

the other port numbers used by the equipment.

Auto SIP port selection

If “n”(ranked from 1-10) is chosen, after the failure registration of signaling port’s original configuration, the range of signaling port’s change varies from “original signaling port, original signaling port +n”. Register with the new signaling port value (signaling port +1) until it succeeds.

Configure the address and port number of the SIP registration server.The address and port number are separated by “:”. It has no default value.

The register server address can be an IP address or a domain name. When a domain name is used, you must activate DNS service and configure DNS server parameters on the network-configuration page.

User Manual MX Voice-Fax Gateway Series

2-8 New Rock Technologies, Inc.

Name Description

Proxy server

Configure the IP address and port number of the SIP proxy server. The address and port number are separated by “:”. There is no default value.

The proxy server address can be set to an IP address or a domain name. When a domain name is used, you must activate DNS service and configure DNS server parameters on the network-configuration page. For example: 168.33.134.50:5060 or www.sip.com: 5060.

Backup proxy server

By specifying the corresponding IP addresses, the gateway can be configured to have multiple soft switches as backup proxy servers. Make sure that the IP addresses are in their full format.

E.g. 168.33.134.53:5060. The proxy and register severs must be identical.

Conditions for failing over to the backup proxy server (any):

 Gateway register is timedout

 No response to master server calls timedout

User agent domain name

This domain name will be used in INVITE messages. If it is not set here, the gateways will use the IP address or domain name of the proxy server as the user-agent domain name. It has

no default value.

It is recommended that subscribers not use LAN IP address to set the domain name parameter.

Authentication mode

The gateway supports three registration schemes: register per line, register per gateway and Line Reg/GW Auth. The default value is register by line.

 Register by line: authentication and register per line;

 Register by gateway: authentication and register per gateway;

 Line Reg/GW Auth: register per line, but authentication per gateway.

User name Configure the user name as part of the account for registration, and it has no default value.

Note: If “Register by gateway” or “Line Reg/GW Auth”, is selected, the user name must be entered here. If “register by line” is selected the user name should be set on “Line > Feature” page (Refer to “Feature”).

Password

Password as part of account information is used for authentication by platform. It has no default value. It is formed with either numbers or characters, and case sensitive.

Note: If “Register by gateway” or “Line Reg/GW Auth”, is selected, the password must be entered here. If “register by line” is selected the password should be set on “Line > Feature” page (Refer to “Feature”).

Registration period Valid time of SIP re-registration in seconds. Its default value 3600.

2.3.4 MGCP Configuration

The gateways use SIP protocol by default. When the gateways need to interface with MGCP protocol

-based softswitch platform, set the relevant parameters here.

After login, click Basic > MGCP tab to open the configuration interface.

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-9

Figure 2-5 MGCP Configuration Interface

Table 2-7 MGCP Configuration Parameters

Name Description

Signaling port

Configure the UDP port for transmitting and receiving MGCP messages, and the default value is

2427. Note: The signaling port number can be set in the range of 1-9999, but cannot conflict with the

other port numbers used by the equipment.

Proxy server

Configure the IP address and port number of MGCP proxy server, separated by “:”, and it has no default value.

The address can be set to an IP address or a domain name according to the subscribers’ requirements. When a domain name is used, it is required to activate DNS service and configure DNS server on the page of configuring network parameters. Examples of complete and effective configuration: 46.33.136.50:2727 or www.proxy.com: 2727.

User agent domain name

The domain name associated with the call agent, and it has no default value. Example: www.gatewaymgcp.com.

Default event package

List all the types of default event packages supported by the HX4. Multiple package names are separated by“,”.

The default value is L, D, G

 L: Line Package

 D: DTMF Package

 G: Generic Media Package

Persistent line event

List the event types that the gateway can report, with multiple types separated by “,”. When

gateways process the events listed here, they will report to the call agent.

Note: This parameter must be set since there is no default value. The factory setting is L/HD, L/HU:

 L/HD: Offhook

 L/HU: Onhook

Fxo event package

 Handset Package

 Line Package

Wildcard

Select whether a wildcard with prefix is allowed when a gateway registers to the proxy server. The default value is not allowed.

 Partially allowed: Gateways will use a wildcard with fixed prefix (e.g. aaln / *) when

registering. For example, when configuring telephone numbers, if line 1 is set to

aaln/1, line 2 is set to aaln/2 and line 3 is set to aaln/3, the gateways will register to the call agent in aaln/* without the need of registering the lines individually.

 Allowed: the gateways will use a wildcard in registering without prefix.

User Manual MX Voice-Fax Gateway Series

2-10 New Rock Technologies, Inc.

Name Description

Compatibility Configuration

CR for End-of-Line Select whether CR is used as the end of line in the MGCP messages. Default not selected.

Quarantine default to loop

Select the Quarantine handle of gateways making a request to the outside, and default not selected.

 Selected: Quarantine using loop mode, the gateways will continually notify all

events as requested after receiving a request.

Enable first digit timer

Select the processing mode when there is no timeout parameter in the outside request received by the gateways, and default not selected.

 Selected: the gateways will report timeout in terms of its own timeout setting (the

time interval set in non-dial timeout of configuration system parameters) when subscribers hasn’t dialed up in time after offhook.

Using configured digit map

Select whether to activate the digit map configured by local gateway, and default value is not selected.

Using notify instead of 401/402

Set whether the gateways report “offhook events” to replace 401 messages in NTFY or report “onhook events” to replace 402 messages in NTFY when responding to messages sent by the proxy server. Default: not selected.

 Selected: The gateways will use NTFY message to replace 401 and 402 messages.

No name in default package

Select if a package name is included when the gateways reply to the default package, and default not selected.

Keep connection when on-hook

Select if the gateways actively cancel connection disconnect when subscribers hook on, and default not selected.

2.3.5 FoIP

After login, click the label of Basic > FoIP to open this interface.

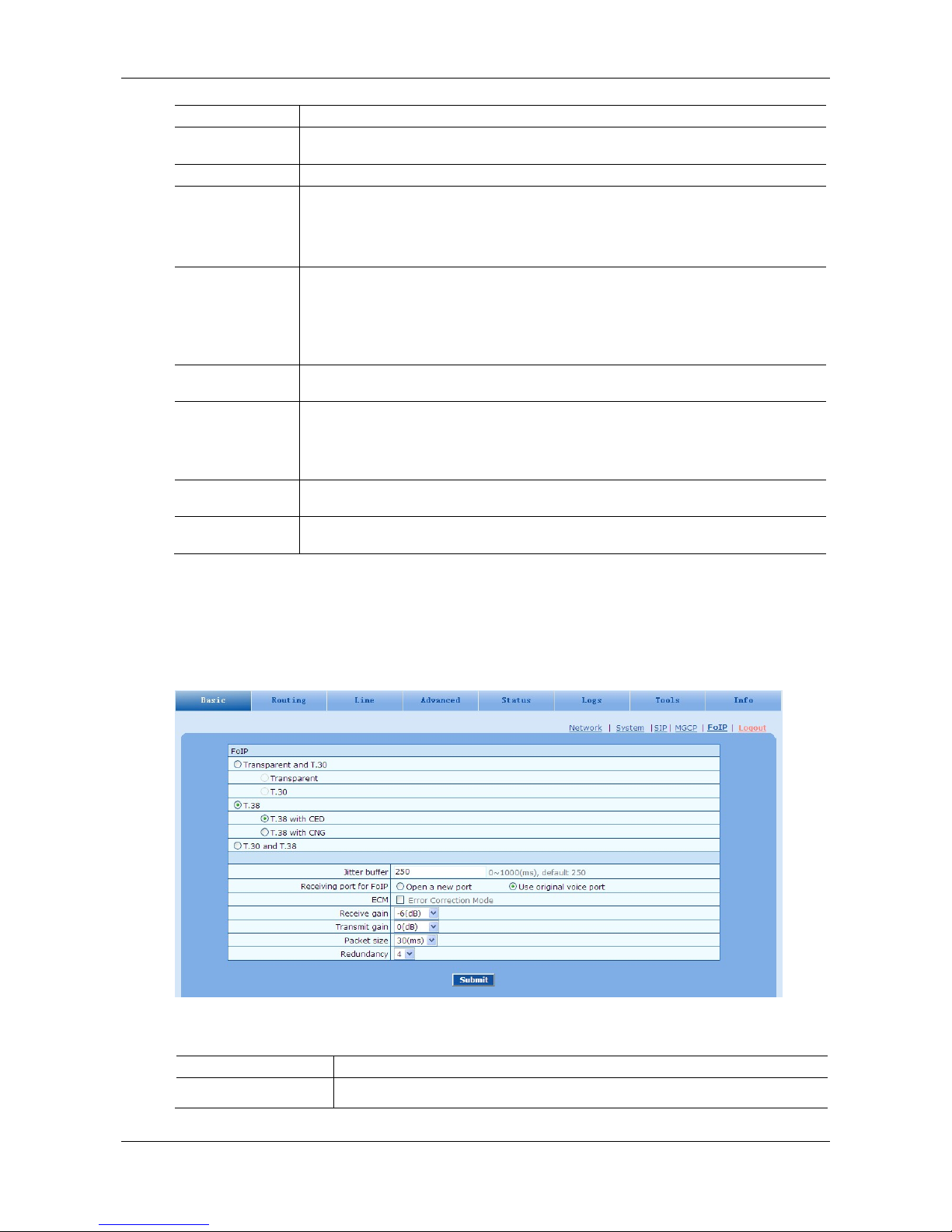

Figure 2-6 Fax configuration interface

Table 2-8 Fax configuration parameters

Name Description

Transparent and T.30

 Transparent

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-11

 T.30

T.38

 T.38 with CED

 T.38 with CNG

T.30 and T.38 Both T.30 and T.38

Jitter buffer

Set the extent of T.38 jitter buffer, and the default is 250. The valid range is 0~1000 in milliseconds.

Receiving port for FoIP

Set whether to open a new port when the gateway is switching to T.38 mode, and by default, original voice port will be usd.

Open a new port: use the new RTP port. Use the port of the original voice call: use the original RTP port that created on call set.

ECM Determine whether to use corrective mode of fax. By default, it is not selected.

Receive gain Set the receiving gain of T.38 fax, with the default of 6dB.

Transmit gain Set the transmission gain of T.38 fax, with the default of 0dB.

Packet size Set the packet size of T.38. 30 miliseconds is the default value.

Redundancy Set the number of the redundant frames in T.38 date package, default is 4.

2.4 Routing

2.4.1 Digit Map

After login, click Routing > Digit Map tab to open the dialing rules interface.

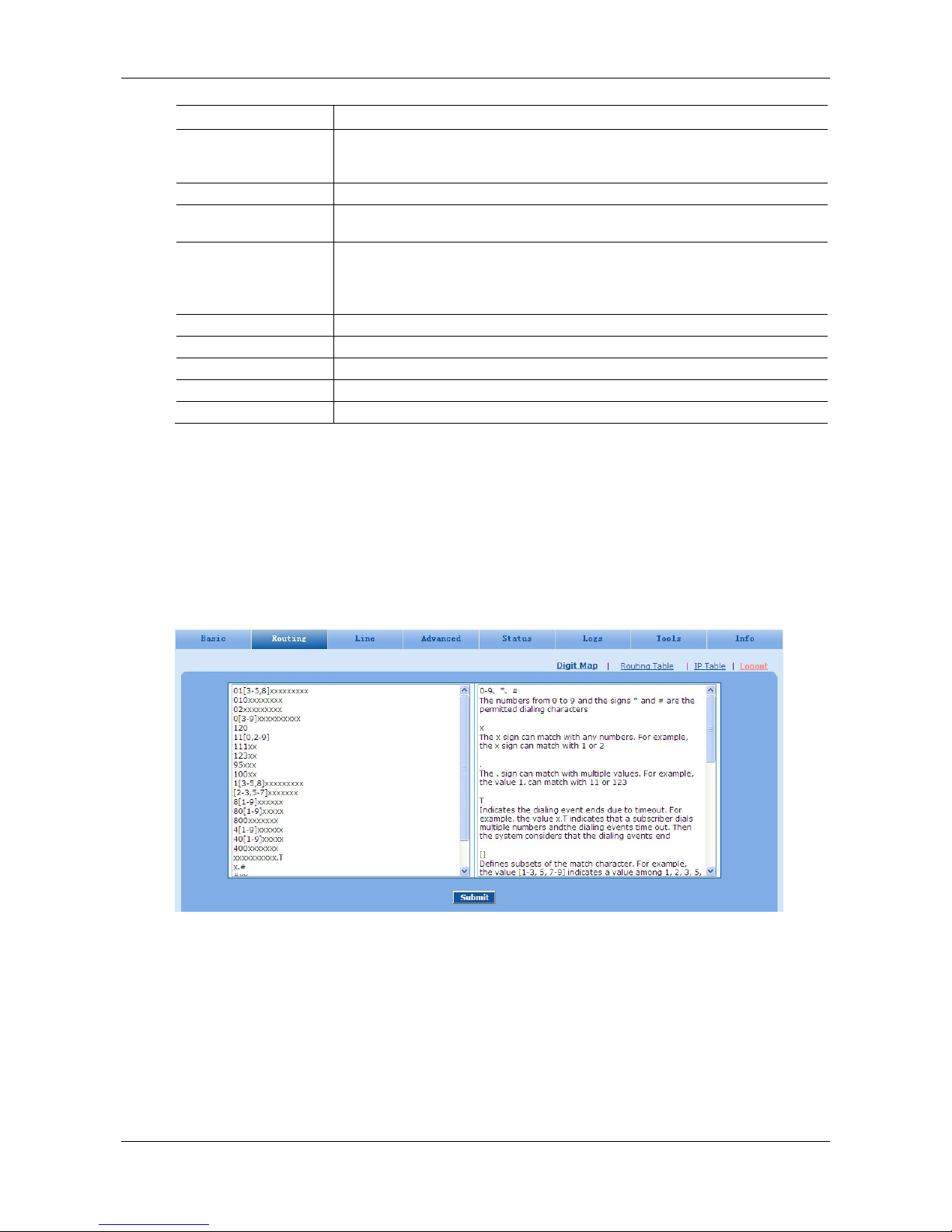

Figure 2-7 Configuration Interface for Dailing

Dialing rules are used to effectively judge if the received number sequence is completed, for the

purpose of terminating receiving numbers and sending received numbers. The proper use of dialing

rules can help to reduce the connection time of telephone calls.

The maximum number of rules that can be stored in gateways is 250. Each rule can hold up to 32

numbers and 38 characters. The total length of dialing rules table (the total length of all dialing rules)

can be up to 2280 bytes.

The following provides descriptions of typical rules:

User Manual MX Voice-Fax Gateway Series

2-12 New Rock Technologies, Inc.

Table 2-9 Description of Dialing

Digit map Description

x Represents any number between 0-9.

. Represents more than one digit between 0-9.

## is a special dialstring for users to receive gateway IP address and version number of firmware by default.

x.T

The gateways will detect any length of telephone number starting with any number between 0-9. The gateways will send the detected number when it has exceeded the dialing-end time set in system parameter configuration and hasn’t received a new number.

x.#

Any length of telephone number starting with any number between 0-9. If subscribers press # key after dial-up, the gateways will immediately terminate receiving digits and send all the numbers before # key.

*xx

Terminate after receiving * and any two-digit number. *xx is primarily used to activate function keys for supplementary services, such as CRBT, Call Transfer, Do not Disturb, etc.

#xx

Terminate after receiving # and any two-digit number. #xx is primarily used to stop function keys for supplementary services, such as CRBT, Call Transfer, Do not Disturb, etc.

[2-8]xxxxxx A 7-digit number starting with of any number between 2- 8, used to terminate the dialing.

02xxxxxxxxx

An 11-digit number starting with 02, used to terminate the long-distance dialstring starting with 02.

013xxxxxxxxx A 12-digit number starting with 013, used to terminate long-distance dialstrings

13xxxxxxxxx An 11-digit number starting with 13, used to terminate long-distance dialstrings.

11x A 3-digit number starting with 11, used to terminate the dialstrng of emergency calls.

9xxxx

A 5-digit number starting with 9, used to end special

service calls.

17911 (e.g.) Send away when the set number, like 17911, is received.

Dial rules by default as follows:

01[3-5, 8] xxxxxxxxx

010xxxxxxxx

02xxxxxxxxx

0[3-9] xxxxxxxxxx

120

11[0, 2-9]

111xx

123xx

95xxx

100xx

1[3-5, 8] xxxxxxxxx

[2-3, 5-7] xxxxxxx

8[1-9] xxxxxx

80[1-9] xxxxx

800xxxxxxx

4[1-9] xxxxxx

40[1-9] xxxxx

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-13

400xxxxxxx

x.T

x.#

#xx

*xx

2.4.2 Routing Table

After login, click Routing > Routing Table tab to open the configuration interface.

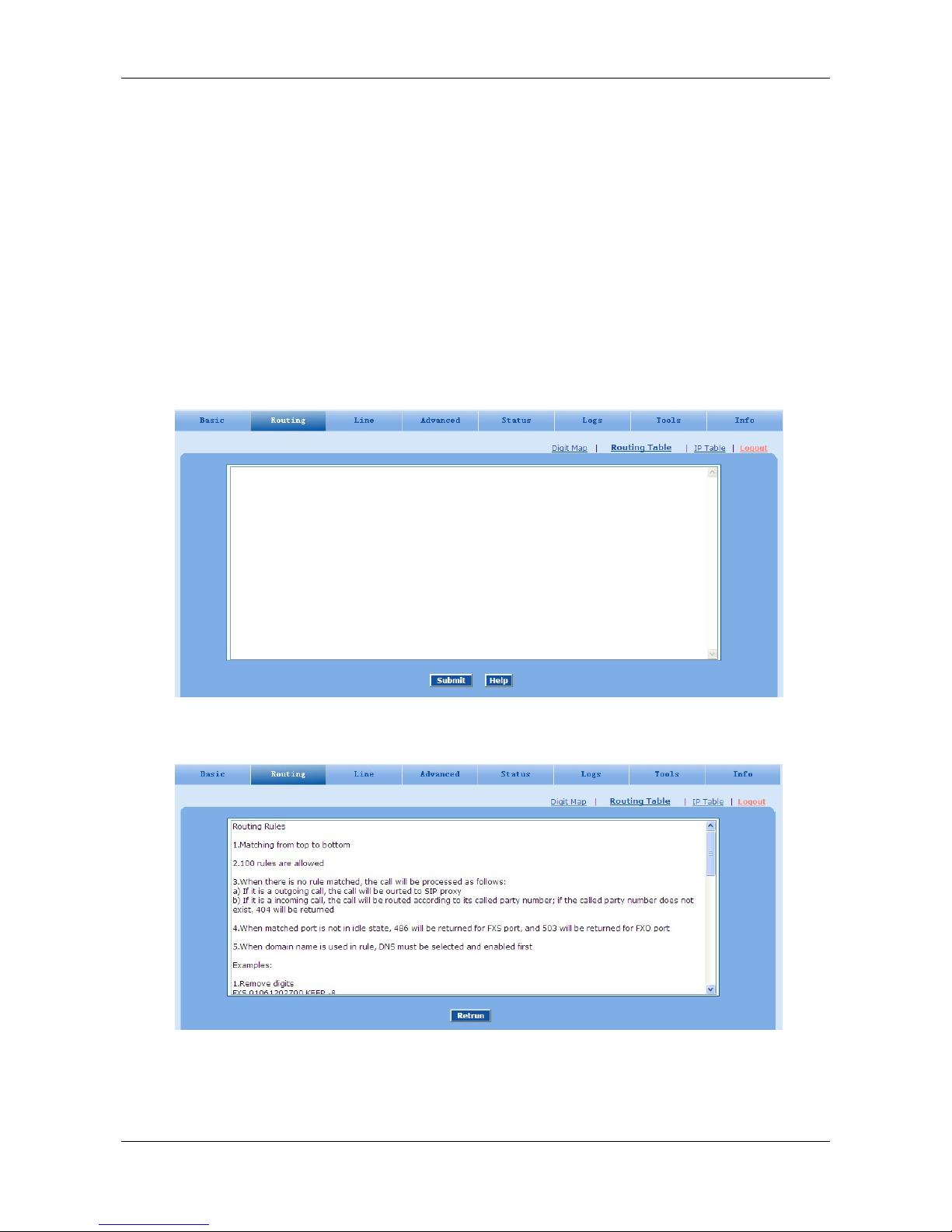

Figure 2-8 Configuration Interface for Routing Table

Click Help to open the illustrative interface for routing configuration.

The routing table with 500 rules in capacity provides two functions including digit transformation and

call routing assignment. Here are the general rules applied by gateways when executing the routing

User Manual MX Voice-Fax Gateway Series

2-14 New Rock Technologies, Inc.

table.

 Rules must be filled out without any blank at the beginning of each line; otherwise the data can’t be

validated even if the system prompts successful submittal.

 T he routing table is empty by default. The gateways will point a call to the SIP proxy server when

there is no matched rule for the call.

The format of number transformation is

Source Number Replacement Method

For example: FXS 021 REMOVE 3 means remove the prefix 021 of the called number for calls from the FXS (Phone)port, where FXS is source, 021 is number, and REMOVE 3 indicates the method of

number transformation.

The format of routing rules is

Source Number ROUTE Routing Destination

For example: IP 800[0-1] ROUTE FXO 1-2 means route calls from IP with called number between 8000~8001 to FXO(Line) port in a sequential selecting order of 1、2. Namely, Line Port 2 is selected

when Line Port 1 is busy and so on.

Detailed definitions of source and number, number transformation methods and routing destination are shown below.

Table 2-10 Routing Table Format

Name Description

Source There are three types of source: IP, FXS (Phone/fax) and FXO (Line).

Among them, IP source can be any IP address and is denoted by IP; IP [xxx.xxx.xxx.xxx] is used to denote a specific IP address; IP [xxx.xxx.xxx.xxx: port] is used to denote specific IP address with port number.

FXS(Phone) and FXO(Line) ports can be any port, represented with FXS or FXO; special lines can be represented with FXS or FXO plus the port number, e.g. FXS1, FXO2 or FXS [1-2], etc.

Number

It could be a calling party number with the form of CPN + number，such as CPN6034340633 or a called party number with the form of number. The number may be denoted with digit 0-9,"*",".","#"," x ", etc., and uses the same regular expression as that of dialing rules. Here are examples of the form of number:

 Designate a specific number: eg.114，61202700  Designate a number matching a prefix: such as 61xxxxxx. Note: the matching effect

of 61xxxxxx is different from that of 61x or 61. Number matching follows the

principle of minimum priority matching

 Specify a number scope. For example, 268[0-1，3-9] specifies any 4-digit number

starting with 268 and followed by a digit between 0-1or 3-9

Note: Number matching follows the principle of minimum matching. For example: x matches any number with at least one digit; xx matches any number with at least two-digit; 12x matches any number with at least 3-digit starting with 12.

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-15

Table 2-11 Number Transformations

Processing Mode Description and Example

KEEP

Keep number. A positive number behind KEEP means to keep several digits in front of the number; a negative number means to keep several digits at the end of the number.

Example: FXS 02161202700 KEEP -8 Keep the last 8 digits of the called number 02161202700 for calls from FXS (Phone). The

transformed called number is 61202700.

REMOVE

Remove number. A positive number following REMOVE means to remove the first several digits of the number; a negative number means to remove the latter several digits of the number.

For example: FXS 021 REMOVE 3 Remove 021 of the called number beginning with 021 for calls from FXS (Phone).

ADD

Add prefix or suffix to number. A positive number behind ADD is the prefix; a negative number is suffix.

Example 1: FXS1 CPNX ADD 021 FXS2 CPNX ADD 010 Add 021 in front of calling numbers for calls from FXS (Phone) port 1; add 010 in front of

calling numbers for calls from FXS (Phone) port 2. Note: CPNX denotes to any calling party number. Example 2: FXS CPN6120 ADD -8888 Add 8888 at the end of the calling number starting with 6120 for calls from an FXS

(Phone/fax) port.

REPLACE Number replacement. The replaced number follows REPLACE.

Example: FXS CPN88 REPLACE 2682000 Replace the calling number beginning with 88 for calls from FXS (Phone) port with 2682000.

REPLACE

Another use of REPLACE is to replace the specific number based on another number associated with the call. For example, replace the calling number according to the called number.

Examples: FXS 12345 REPLACE CPN-1/8621 FXS CPN13 REPLACE CDPN0/0 For calls from FXS (Phone) ports with called party number of 1234, remove one digit at the

end of the calling number and add 8621; for calls from FXS (Phone) ports with calling party number starting with 13, add 0 at the beginning of the called number.

END or ROUTE

End-of-number transformation. From top to bottom, number transformation will be stopped when END or ROUTE is encountered; the gateways will route the call to the default routing upon detecting END, or route the call to the designed routing after detecting ROUTE.

Example 1: FXS 12345 ADD -8001 FXS 12345 REMOVE 4 FXS 12345 END Add suffix 8001 to the called number starting with 12345 for calls from FXS (Phone) ports,

then remove four digits in front of the number to end number transformation yielding 58001. Example 2: IP [222.34.55.1] CPNX. REPLACE 2680000 IP [222.34.55.1] CPNX. ROUTE FXS 2 For calls from IP address 222.34.55.1, calling party number is replaced by 2680000, and then

the call is routed to FXS (Phone) port 2 with the new calling party number.

User Manual MX Voice-Fax Gateway Series

2-16 New Rock Technologies, Inc.

Processing Mode Description and Example

CODEC

Designate the use of a codec, such as PCMU/20/16, where PCMU denotes G.711, /20 denotes RTP packet interval of 20 milliseconds, and /16 denotes echo cancellation with 16 milliseconds window. PCMU/20/0 should be used if echo cancellation is not required to activate.

Example: IP 6120 CODEC PCMU/20/16 PCMU/20/16 codec will be applied to calls from IP with called party number starting with

6120.

RELAY

Insert prefix of called party number when calling out. The inserted prefix number follows behind RELAY.

Example: IP 010 RELAY 17909 For calls from IP with called party number starting with 010, digit stream 17909 will be

outpulsed before the original called party number is sent out.

Table 2-12 Routing Destination

Destination Description and Example

ROUTE NONE Calling barring (also known as “blacklist”) .

Example: IP CPN[1,3-5] ROUTE NONE Bar all calls from IP, of which the calling numbers start with 1, 3, 4, and 5.

ROUTE FXS

Route a call to FXS (Phone) ports. Example 1: IP 800[0-3] ROUTE FXS 1-2 Select a port in sequential order. Note: 800[0-3] denotes to the UDP ports ranging from 8000 to 8003.

Example 2: IP 800[0-3] ROUTE FXS 1 Point this call to FXS (Phone) port 1.

Example 3: IP 800[0-3] ROUTE FXS 1-2/R Select a port in round robin order

Example 4: IP 800[0-3] ROUTE FXS 1-2/G Select all idle ports and provide ringing.

ROUTE FXO

Route a call to FXO (Line) port. Example 1: IP x ROUTE FXO 1-2

Select a port in sequential order.

Example 2: IP 800[0-1] ROUTE FXO 1-2/R

Select a port in round robin order.

ROUTE IP Route a call to the SIP proxy server

Example: FXS 021 ROUTE IP 228.167.22.34:5060

228.167.22.34:5060 is the IP address of the platform.

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-17

2.4.3 Application Examples of Routing Table

Some typical functions that can be realized by the routing table are provided in this section (Take

MX8-4S/4 gateway as an example):

1) One Phone with Two Numbers

2) Hunt Group

3) Outbound Call Barring

4) FXO (Line) Port Hunting for Outbound Call

One Phone with Double Numbers

A hand set connected to the HX4 can be configured with two numbers through One Phone with Double

Numbers. For example, port Phone1 is set with PSTN number 61202701 and extension number 1001

for internal calling

Routing Setting

FXS 1001 ROUTE IP 127.0.0.1:5060

IP 1001 ROUTE FXS 1

Description:

1) Send a call with a called number starting with 1001 from FXS (Phone) port to port 5060 of

gateway’s local IP;

2) Send a call with a called number starting with 1001 and from any IP to the FXS (Phone) port 1.

Configuration number of Phone1 itself is 61202701, so the call of this number is not required to write

specialized routing.

Hunt Group

A hunt group can be associated with a set of FXO (Line) ports, and an inbound call from IP or FXS

(Phone) ports can be routed to a hunt group.

Routing Setting:

Send an inbound call from the IP trunk or an FXO line in a sequential way to the phone set on the 1st or 2nd FXS (Phone) port.

FXO x ROUTE IP 127.0.0.1:5060

IP x ROUTE FXS 1-2

Description:

1) Send all calls from the FXO (Line) port to port 5060 of gateway’s local IP;

2) Send all inbound calls from any IP (inside and outside) to the 1st or 2nd FXS (Phone) port in

sequence. Namely, the first FXS (Phone) port is selected firstly when it is available, otherwise the 2nd port is selected.

Outbound Call Barring

Restrict users to from dialing certain telephone numbers, such as an international call. Examples are as

follows:

User Manual MX Voice-Fax Gateway Series

2-18 New Rock Technologies, Inc.

Routing Setting Description

FXS[1] 0 ROUTE NONE

A calling starting with 0 is barred from dialing using the phone set at Phone1 port.

FXS[1-2] 00 ROUTE NONE A calling starting with 00 is barred from dialing at 1-2 Phone ports.

FXS CPN2 ROUTE NONE

The telephone whose calling number starts with 2 at a Phone port is barred to call out.

Line-Port Hunting for Outbound Calls

Routing Setting:

FXS x ROUTE IP 127.0.0.1:5060

IP x ROUTE FXO 1-2

Description:

1) Send all calls from FXS (Phone) ports to UDP 5060 of the gateway (this port must be consistent with

the local port in Configuring SIP);

2) Send calls from IP to FXO (Line) ports in sequential order.

2.4.4 IP Table

After login, click Routing > IP Table tab to open the configuration interface.

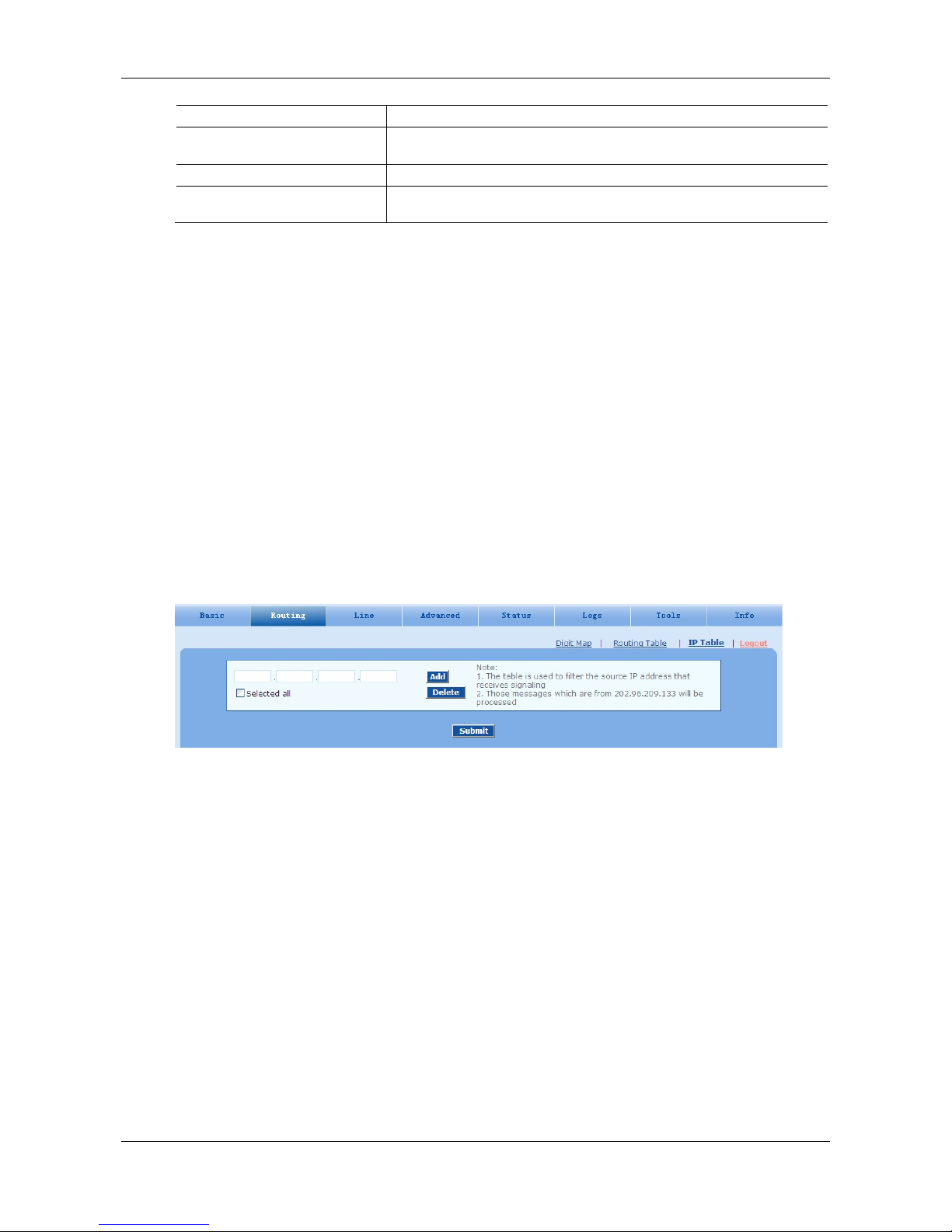

Figure 2-9 Configuration Interface for IP Table

This table is designed to ensure the safe use of gateways. Administrators can add the authorized IP

addresses to this table, and the gateways will only process the information from authorized IP addresses.

If the IP table is empty, the gateways will not perform IP address-based message filtering.

For example: The gateway will only process the messages from 202.96.209.133 after adding

202.96.209.133 to its IP table.

2.5 Line Configuration

2.5.1 FXS Phone Number

After login, click Line > FXS phone number tab to open the configuration interface.

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-19

Figure 2-10 Configuration Interface for FXS phone number

Table 2-13 Configuration Parameters of FXS phone number

Name Description

FXS 1st line No.

This number is used for the batch setup of consecutive number of subscriber line. Click Batch after filling in initial number, the number of Line 1 adopts initial number; that of Line 2 increases 1 progressively based on that of Line 1, and so on. You needn’t fill in if you do not use batch configuration or the number is not consecutive.

ID n

Fill in the telephone number associated with the subscriber line n (FXS port). This should be manually performed if Batch mode is not used.

2.5.2 FXO Phone Number

After login, click Line > FXO phone number tab to open the configuration interface.

Figure 2-11 Configuration Interface for FXO phone number

Table 2-14 Configuration Parameters of FXO phone number

Name Description

FXO 1st line No.

This number is used for the fast setup of consecutive number of trunk line. Click Batch after filling in initial number, the number of Line 1 adopts initial number; that of Line 2 increases 1 progressively based on that of Line 1, and so on. You needn’t fill in if you do not use batch configuration or the number is not consecutive.

ID n

Fill in the telephone number associated with the trunk n (FXO port). This should be manually performed if Batch mode is not used.

2.5.3 Subscriber Line Features

This page is only used for configuring gateways with subscriber lines (FXS port).

After login, click Line > Feature tab to open the configuration interface.

User Manual MX Voice-Fax Gateway Series

2-20 New Rock Technologies, Inc.

Figure 2-12 Configuration Interface for Subscriber Line Features

Table 2-15 Configuration Parameters of Phone Features

Name Description

Phone number Fill in the phone number associated with this port.

Display name Fill in the name associated with this port.

Registration Select if this line is required to register with a softswitch. This is selected as default.

Password

If Registration is selected, users must enter the authentication password for registerion of this line here.

Note: The following features are valid only in SIP protocol. When the gateways use MGCP protocol, features are controled by the proxy server without the need for setting on the gateway.

Hot line

Select if the gateway is required to automatically dial out the hotline number after offhook. By default, hot line is disabled.

 Disable hot line: Close this feature.  Hot line : Automatically dial out the hotline number after offhook.  Delay mode: Automatically dial out the hotline number when the offhook is timeout

with a time delay of 5 seconds.

Hot line number After the hotline function is activated on this line, the hotline number must be entered here.

CRBT(Color ring back tone)

CRBT stands for Color Ring Back Tone. Set if CRBT is activated, that is, provide prepared audio package as ring back tone. Note: it is required to set the CRBT file download platform. This is not selected by default.

MX supports two CRBT storage modes: on-system (stored in the flash memory) and run-time download (from FTP server). The length of tone in both modes are described as follows:

On sytem:

 MX8: No more than 20 seconds in G.729 format (fring1.dat)

 MX100: Up to 20 tone files, a maximum of 400 seconds in G.729 format or 50 seconds in G.711

format.

Run-time download:

 MX8/MX100: Up to 20 tone files, a maximum of 10000 seconds in G.729 format or 1250

seconds in G.711 format.

Note:Tone files are stored in the flash memory and the gateway automatically download the tone files from FTP server after power on.

Speed dials Select if the Speed dials is activated on this line. By default, this is not selected.

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-21

Name Description

Call forwarding Select if Call forwarding is activated on this line. By default, it is not selected.

Forking

Select to activate Forking. Forking allows the gateway to initiate a call to another telephone terminal while ringing on this line terminal. Either terminal may answer, terminating ringing on the other terminal.

Release control by caller

Select if the call release is controlled by the caller. By default, this is not selected. Note: Also see Caller release on page Advanced > Line.

 Selected: The gateway will immediately release the call upon caller hanging up; the

gateway will not release the call after the called party hanging up as long as the caller is still off-hook until timeout (60 seconds by default);

 Unselected: The gateway will immediately release the call upon either party hanging up

the call.

Call waiting Select if Call waiting is activated on this line. By default this is not selected.

Call hold Select if Call Hold is activated on this line. By default this is not selected.

Note: If this function is activated, the gateways will automatically activate Call Transfer (Either party may transfer the current call to a third party).

Caller transfer

Select if Caller Transfer is activated on this line. By default, this is not selected. When A calls B, B picks up the call and transfers the call to C.

Note: The call hold must be activated before caller transfer.

Caller ID display

Set whether the number of this telephone is sent to the called party. This feature requires the support of softswtich. By default this is not selected.

Caller ID restriction

Set whether the number of this telephone is sent to the called party with support from platform. By default this is not selected.

Outgoing call barring

Select if outgoing calls are barred on this line. By default, this is not selected.

DND(Do not disturb)

Select if Do Not Disturb is enabled on this line. By default, this is not selected.

DDI (Direct Dialing in)

Set whether DDI (Direct Dialing In) is activated, By default this is not selected. Different from FXS, DDI is only used for incoming calls, and the gateways will not send dial tone after off-hook (calling in) on user side.

Note: Reverse polarity signal must be activated on the gateways when DDI is used.

Polarity reversal Select if reverse polarity signal is activated on this line. By default, this is not selected.

Note: The gateways will provide reverse polarity signal when the phone is connected after this feature is activated.

Maintenance

Select if the line is set to maintenance status, in which the FXS port not longer supplies current to the phone. By default, this is not selected.

Subscribe MWI

Select if voice mail service is activated, and by default this is not selected. (Also see MWI Re-subscription timer on page Advanced > SIP.)

3-way Select if 3-way service is activated, and by default this is not selected.

2.5.4 Trunk Line Features

This page is only used for configuring gateways with trunks (FXO port).

After login, click Line > Trunk tab to open the configuration interface..

User Manual MX Voice-Fax Gateway Series

2-22 New Rock Technologies, Inc.

Figure 2-13 Configuration Interface for Trunk Line Features

Table 2-16 Configuration Parameters of Trunk Line Features

Name Description

Trunk ID

Select a trunk line required to configure. “FXO-n” corresponds to the “Line > FXO phone Number ID n”. Copy the configuration of “FXO-n” for selected line to “FXO-n+1”~“FXO- m” by clicking “Batch”, where n indicates the current selected trunk number and m indicates the total number of trunks.

Phone number Display phone number associated with the trunk set in Line > FXO phone Number

Registration Select if this trunk registers with the SIP registration server. By default, this is selected.

Password

If Registration is selected, the authentication password for register of this line must be entered here.

Note: The following features are valid only in SIP protocol. When the gateways use MGCP protocol, the control of all call services is provided by the proxy server without the need of these setting.

Inbound handle

The gateways provide three scenarios for handling incoming calls on the FXO turnk Line ports (Line Port):

 Binding: When a telephone call comes to the Line port, the gateways will route the

call to a Phone port according to the DID number bound with the port. Note: Setting a number to be bound is required or this setting is invalid.

 Second-stage dialing: When a telephone call comes to the Line port, the gateways

will provide the second dial tone and route the call according to the extension number entered. Note: dialing tone or voice prompt file can be changed by user.

 Direct:The gateways will route the incoming call on FXO port n to FXS port n.

Polarity reversal detection

If a PSTN line supports reverse polarity, make the selection here. By default, this is not selected.

Caller ID detection

Select if the detection function of caller ID for this Line port is enabled. By default, this is selected.

Outbound blocking Select if this Line port bars outgoing call service to the PSTN. By default, this is not selected.

Echo cancellation Select if echo cancellation is enabled for this FXO (Line).By default, this is selected.

Connect signal delay

After making an outgoing call from a Line port, the gateway will send a 200 OK message to the platform with a delay if this parameter is selected. If unselected, the system sends a 200 OK message to the platform after off hook on the Line port. Also see Answer delay on page Advanced > Trunk.

2.5.5 Feature Batch

After login, click Line > Feature Batch to open this interface.

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-23

Figure 2-14 Feature batch configuration interface

Click

, the following interface is shown. Choose batch configured features and click “ok”.

Click

to choose whether to activate this function to configurate this parameter. Seen in Subscriber

Line Features.

2.5.6 Trunk Batch

After login, click Line > Trunk Batch to open this interface.

Figure 2-15 Trunk Batch configuration interface

User Manual MX Voice-Fax Gateway Series

2-24 New Rock Technologies, Inc.

Click , the following interface is shown. Choose batch configured trunks and click OK.

Click

to choose whether to activate this function to configurate this parameter. Seen in Trunk

Line Features.

2.6 Advanced Configuration

2.6.1 System

After login, click the label of Advanced > System to open this interface.

Figure 2-16 Inferface of system advanced configuraiton

Table 2-17 Parameters of system advanced configuration

Title Explanation NAT

NAT traversal

Gateways support several mechanisms for NAT traversal. Usually, static NAT is used when a fixed public IP address is available. It’s necessary to perform port mapping or DMZ function on router when choosing dynamic or static NAT.

Refresh period

The refresh time must be filled in here when choosing dynamic NAT or STUN traversal. Refresh time interval shall be determined by giving consideration to the NAT refresh time of the LAN router where the gateway is located. Gateway’s NAT holding function and STUN function will carry out periodic operation according to this parameter. With seconds as its unit, default value of 60 seconds.

SDP Address

This parameter determines the IP address used in transmitted SDP.

 NAT IP Addr ess: Apply NAT address into the transmitted SDP;  Loc al IP Address: Apply the gateway’s IP address into the transmitted SDP.

Note: The parameter should come into effect only on condition that gateway successfully obtained NAT address.

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-25

Title Explanation Remote

management

Remote management

 TRO69

 Enable

The gateways support EMS which is a centralized gateway management server provided by New Rock, and Auto-provision.

Server

Gateways may download software upgrade packages and configuration files automatically through auto-provision server. Once the auto provision is selected, you must enter the IP address of ACS here.

2.6.2 Media Stream

After login, click the label of Advanced > Media Stream to open this interface.

Figure 2-17 Media stream configuration interface

Table 2-18 Media stream configuration parameter

Title Explanation

Min. RTP port

The lowest port number of UDP ports for RTP transmission and receiving.The parameter must be greater than or equal to 3000. This ia a required field.

Note: each phone call will occupy RTP and RTCP ports. If the gateway is equipped with 4 subscriber lines (or trunk line), then at least 8 UDP ports are needed.

Max. RTP port The highest port number of UDP ports for RTP’s transmission and receiving.

This is a required field. The value must be greater than or equal to “2× number of lines＋min. RPT port”.

iLBC payload type

Set the RTP payload type of iLBC，and the default value is 97. Accepted value is 97 ~ 127. The parameter shall be configured in conformity to that of platform.

G.723.1 rate

Set G.723.1 coding rate，the default value is 6300(bit/s). The optional parameters are followings:

 5300(bit/s): the Bit rate is 5.3k per second;

 6300(bit/s): the Bit rate is 6.3k per second

TOS bits

This parameter specifies the quality assurance of services with different priorities. The default value is 0x0C. E.g: TOS=0xB8 indicates level 5 that has no reliability requirement.

Min. Jitter buffer

RTP Jitter Buffer is constructed to reduce the influence brought by network jitter. This default value is 3.

User Manual MX Voice-Fax Gateway Series

2-26 New Rock Technologies, Inc.

Title Explanation

Max. Jitter buffer

RTP Jitter Buffer helps to reduce the influence brought by network jitter. The default value is

50.

RTP drop SID

Determine whether to discard received RTP SID voice packets. By default, SID voice packets will not be dropped.

Note: RTP SID packets should be dropped only when they are in nonconformity to the specifications. Nonstandard RTP SID data could generate noise for calls.

Enable VAD

Only applicable to G.723, GSM, iLBC. In case of selecting this parameter, it will not send any voice packet during mute period. By default, this is selected.

RTP destination address

This parameter determines where to obtain the IP address of the receiving side for RTP packets. By default, the IP address is obtained From SDP global connection.

 From SDP global connection: Obtain the IP address from SDP global connection;  From SDP media connection: Obtain the IP address from SDP Media Description.

2.6.3 SIP related configuration

SIP messages consist of request message and response message. Both include a SIP message-header

field and SIP message-body field. The SIP message header mainly describes the message sender and

receiver; SIP message body mainly describes the specific implementation method of the dialog.

Message of request: The SIP message sent by a client to the server, for the purpose of activating the

given operation, including INVITE, ACK, BYE, CANCEL, OPTION and UPDATE etc.

Message of response: The SIP message sent by a server to the client as response to the request, including

1xx, 2xx, 3xx, 4xx, 5xx, and 6xx responses.

Message header: Call-ID. Parameter line: Via, From, To, Contact, Csq, Content-length, Max-forward, Content-type, White Space,

and SDP etc.

MX gateways provide good flexibility in content setting in order to improve compatibility with the SIP register server.

After login, click the label of Advanced > SIP to open this interface.

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-27

Figure 2-18 SIP related configuration interface

Table 2-19 SIP related configuration parameter

Title Explanation SIP related

configuration

MWI

Re-subscription

timer

The default is 86400 seconds. The gateway will send the platform a message to confirm that it has subscribed to MWI service at intervals of the time period set here. This parameter should be used in conjunction with voice mail subscription on the page of the subject subscriber line.

PRACK Determine whether to activate Reliable Provisional Responses. (RFC 3262)

Session timer Choose to activate session refresh (RFC 4028). By default, session timer is not activated.

Session interval

Set the session refresh interval, the gateway will enclose the value of Session-Expires into INVITE or UPDATE messages. Default value is 1800 seconds.

Minimum timer Set the minimum value of session refresh interval.

Request/Response configure(SIP header)

Contact field in REGISTER

Choose the registration mode of gateway under LAN traversal circumstance, the default is NAT IP Address.

 NAT IP address: Use the NAT information returned by registration server.  LAN IP address: Keep original content of Contact when register;

Domain name in REGISTER

The default is Domain name.

 Domain name: Complete domain name used for registration (for example:

8801@registrar.newrock.com

);

 Sub domain name: Only use the common part of the name of domain (for example:

8801@newrock.com

Via field

Choose whether to use NAT IP address or LAN IP address for Via header field value, the default is NAT IP address.

To field

Choose whether to apply Sub domain name or Outbound proxy to To header field, the default is Sub domain name.

Address in Call ID field

Choose whether to fill Call ID field with Host name or Local IP address, the default is Local IP address.

User Manual MX Voice-Fax Gateway Series

2-28 New Rock Technologies, Inc.

Title Explanation

Called party number

Choose whether the gateway acquires the called number from Request Line header field or To header field. The default is From Request line field.

Calling party number in call transfer

Under call forwarding, the calling party number sent can be chosen from Originating number or Forwarding number being set for sending, the default is Forwarding number.

For example: the subscriber line 2551111 on the gateway activates call forwarding feature and set the destination to 3224422. When caller with 13055553333 calls 2551111, the call will be forwarded to 3224422:

 if Originating number is chosen，the number 13055553333 will be sent to 3224422

as calling party number；

 if Forwarding number is chosen，the number 2551111 will be sent to 3224422 as

calling party number.

Do not validate Via Set whether to ignore Via field, By default, Via is ignored.

Set whether to activate registration when SIP message of INVITE is failed or time expired, and by default, re-registration is not selected.

Selecting the receiving port for response

Use the receiving port of proxy or use the sending port of proxy.

2.6.4 Characteristics of subscriber line

After login, click the label of Advanced > Line to open this interface.

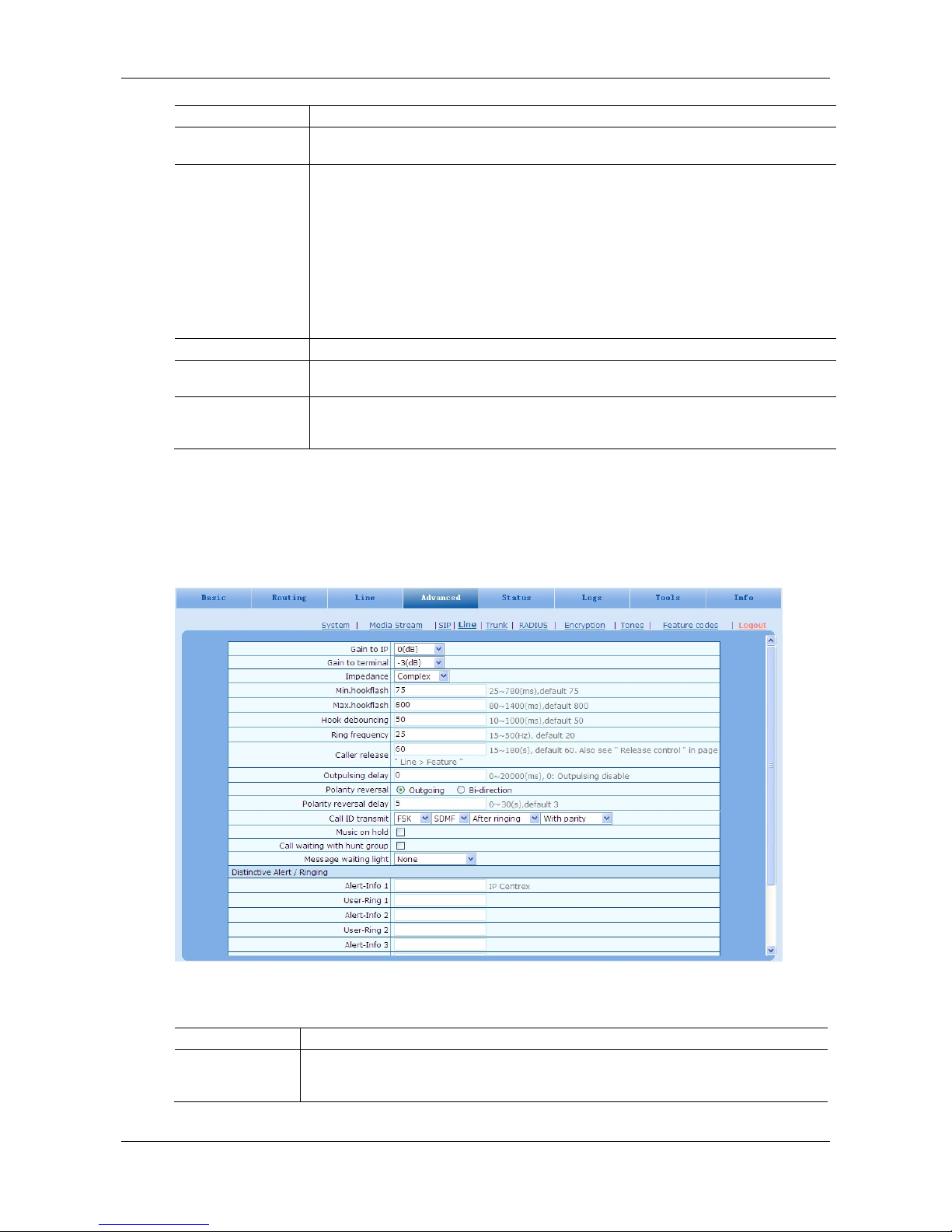

Figure 2-19 Subscriber-line characteristics configuration interface

Table 2-20 Subscriber-line characteristics configuration parameter

Title Explanation

Gain to IP

Set the voice volume gain toward the IP side, the default is 0. Taking decibel as the unit, setting range is -3 ~ +3 decibels. -3 means declining of 3 decibels; +3 denotes the amplification of 3 decibels.

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-29

Title Explanation

Gain to terminal

Set the voice volume gain toward Phone port side, the default is -3. Taking decibel as the unit, setting range is -6 ~ +3 decibels. -3 means declining of 3 decibels; +3 denotes the amplification of 3 decibels.

Impedance

Select the parameter of FXS (Phone) port line impedance and the default value is 600 ohm. The optional values as below:

 Complex  600（ohm）

 900（ohm）

Min.hookflash

Used by the gateway to detect Hook Flash event, the default is 75 milliseconds. The gateway will ignore any flash that fall short of the shortest flash time. Generally, this value should not be less than 75 milliseconds.

Max.hookflash Used by gateway to detect hook flash, the default is 800 milliseconds.

The gateway will regard the flash duration between Min.hookflash and Max.hookflash as effective flash. Any flash lasting over the longest time will be considered by gateway as hang up. Generally, this value should not be less than 800 milliseconds.

Hook debouncing Used by gateway to avoid a glitch of the phone status, with default of 50 milliseconds.

When the duration from hang-up to off-hook falls short of this value, the gateway will ignore the status variation, and consider that the phone remains in hang-up status. In opposite case, the gateway will ignore the status variation, and consider the phone remains in off-hook status. Effective range of setting is 10~1000 milliseconds.

Ring frequency

Set the ringing frequency to be transmitted by gateway to the phone, ranging from 15 to 50 Hz, with default of 20 Hz.

Caller release

Set the delay release time of line as caller control method, with default of 60 seconds. Effective range of setting is 15~180 seconds.

Outpulsing delay

Used when gateways’ FXS (Phone) port is connected with the trunk interface of PBXs. For calls from gateway to PBX, gateways will relay the extensions to PBX after the delay set here. Setting of 0 means no extension number relay. The default is 0 milliseconds.

Polarity reversal Set the trigger for polarity reversal the default is Outgoing.

 Outgoing: Transmit reverse polarity signal only when the outbound is connected;  Bi-direction: Transmit reverse polarity signal for the connection of both inbound

and out bound calls.

Polarity reversal delay

The delay time from a call being answered to the transmission of

reverse polarity signal. The

default value is 3 in seconds. Effective range of setting is 0 ~ 30 seconds.

Call ID transmit Select transmission mode of Caller ID signal from the FXS (Phone) port to the phone.

 FSK or DTMF

 SDMF or MDMF

 Sending Caller ID data before or after ringing

 Sending Caller ID data with or without parity

Music on hold Choose whether to play the background music while call waiting, and the default is not to play.

Call waiting with hunt group

Choose whether to activate hunt group feature for call waiting, Default not selected.

Message waiting light

Choose the lighting method of message waiting indicator of voice mail here: None,

Polarity reversed, FSK. Message waiting indicator refers to the special LED on a phone, working with voice mail function. When user receives a voice message. The gateway will light this lamp upon receiving the notice from platform; the light goes off when there’s no unheard mail. It’s essential to understand whether the phone supports the indicators and lighting method when selecting the lighting method.

User Manual MX Voice-Fax Gateway Series

2-30 New Rock Technologies, Inc.

Distinctive Alert/Ringing

Alert-Info 1

To match with User-Ring 1. Four patterns of user ring are offered. When the Alert-info value of INVITE message matches with this parameter, User-Ring 1 is activated.

User-Ring 1 Configure user ring 1.

E.g 1: if the user ring is set 2, 500, 500, 1000, 3000, the ringing cadence is 0.5s on, 0.5s off; 1s on, 3s off.

E.g 2: if the user ring is set 2000, 4000, the ringing cadence will be 2s on, 4s off.

Alert-Info 2 To match with User-Ring 2

User-Ring 2 Configure user ring 2 Alert-Info 3 To match with User-Ring3

User-Ring 3 Configure user ring 3 Alert-Info 4 To match with User-Ring 4

User-Ring 4 Configure user ring 4

2.6.5 Characteristics of trunk line

After login, click the label of Advanced > Trunk to open this interface.

Figure 2-20 Trunk line characteristics configuraiton interface

Table 2-21 Trunk line characteristics configuration parameter

Title Explanation

Gain to IP

Set the voice volume gain toward IP side, the default is 0. Taking decibel as the unit, setting range is -3 ~ +9 decibels. -3 means declining of 3 decibels; +3 denotes the amplification of 3 decibels.

Gain to PSTN

Set the voice volume gain toward PSTN side, the default is -3. Taking decibel as the unit, setting range is -6 ~ +9 decibels.

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-31

Title Explanation

Impedance

Set the parameter of FXO (Line) impedance, with the default of 600 ohm. The optional settings are below:

 Complex  600（ohm）

 900（ohm）

Outplusing delay

Set the time interval between the FXO (Line) going off-hook and starting outpulsing of the first digit to the PSTN. The default is 600 in milliseconds.

Ring relay

Whether to relay the ring of inbound call to the FXS (Phone) port when applying to DID. The default is Phone ring independently.

Busy line handle

Either a voice prompt or hanging up can be applied to FXO (Line) port when an incoming call goes to the FXS (Phone) port which is in busy. This only applies to DID feature.

PSTN failover

Whether to route a call to the PSTN through an FXO (Line) port when the IP network faults or no response to the call request. Default selected.

Caller ID detection mode.

 Before ringing

 After ringing

Inbound first digit timeout

Set the timeout of calling DTMF on FXO (Line) port for inbound calls, ranging from 10-60 seconds, with default of 24 seconds.

Answer delay

Set the delay time of outbound connection ranging from 10-60 seconds, with default of 12 seconds. Also see Delay sending 200OK on page Phone/Line > Line.

Off-hook for rejection

Used for binding an FXO (Line) port with an FXS (Phone) port. For inbound calls to an FXO (Line) port, if the associated FXS (Phone) port is busy, the gateway will hang up after off hook according to the time set by the parameter, so as to refuse the upcoming call. The duration of the off hook is 500~5000 milliseconds, with a default of 600 milliseconds.

On-hook protection time

Protection period following hang up of FXO (Line) port. During this period, gateway ignores any voltage variation of line. Value range is 100~5000 milliseconds, the default is 400 in milliseconds.

Polarity detection.

Choose whether to activate the detection of

reverse polarity signal of FXO (Line) port.

Note the detection will work only when the trunk supports polarity reversal.

Busy detection

Repeat

Gateways will regard the busy tone signal with the repeat times specified here as a hang-up signal. Default is 2, effective range is 2 ~ 5(cycle).

On-time

Set duration of

busy tone signal, the default is 350 in milliseconds.

Off-time Set the interval time of busy tone, the default is 350 in milliseconds.

Detect dual-frequency busy tones

Default is -23(dB), effective range is -15 ~ -29 (dB).

2.6.6 Radius call logs

After login, click the label of Advanced > RADIUS to open this interface.

User Manual MX Voice-Fax Gateway Series

2-32 New Rock Technologies, Inc.

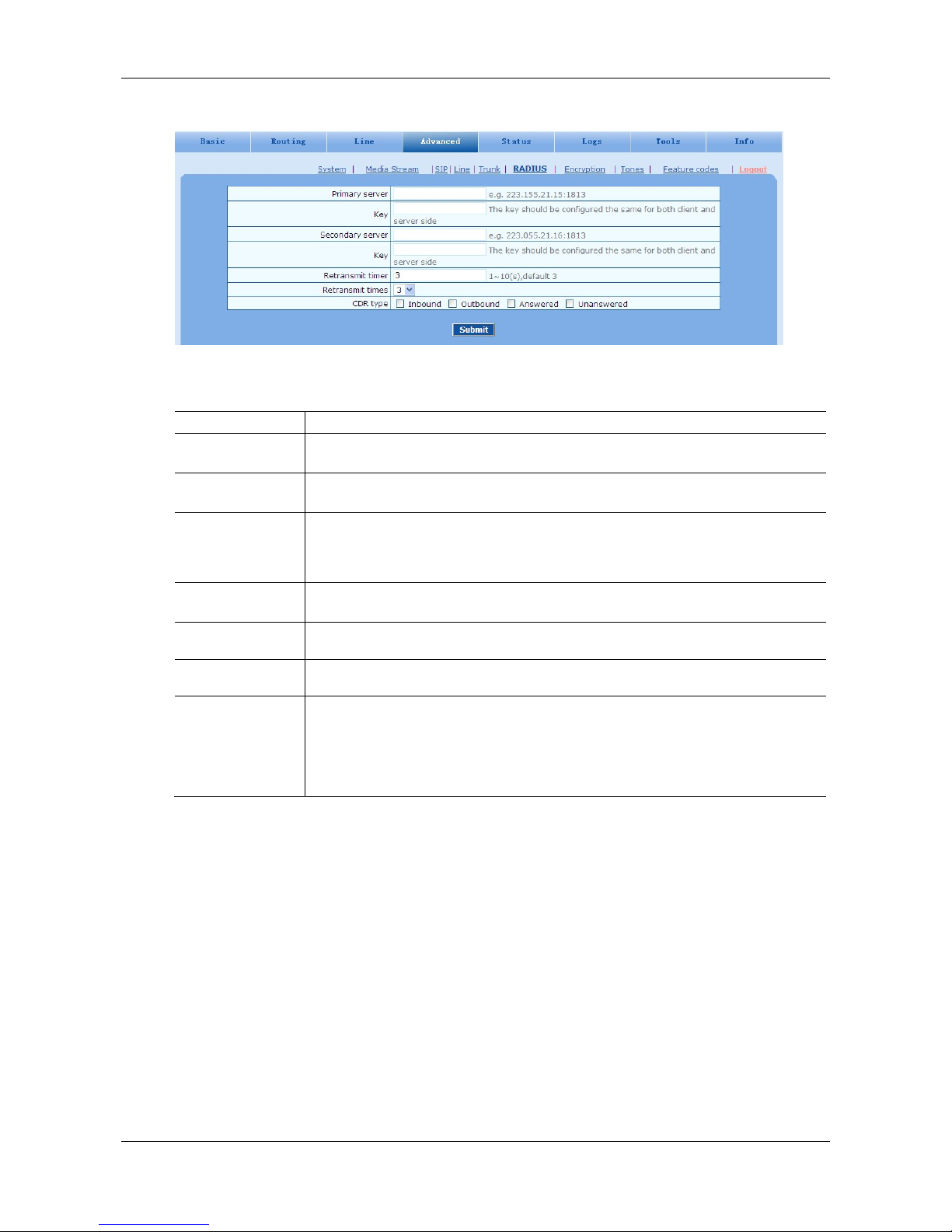

Figure 2-21 Configuration interface of Radius call logs

Table 2-22 Configuration parameter of Radius call logs

Title Explanation

Primary server Set IP address and port number of preferred Radius server.

Note: if the port number is not configured yet, please use Radius default port number of 1813.

Key Set the share key to be used for encrypted communications between Radius client and server.

Note: the share key should be configured the same for both client and server side

Secondary server

Set the IP address and port number of standby Radius server. When the fault appears in communications between gateway and preferred Radius server, the gateway will automatically activate standby Radius server.

Note: in case of no configuration of port number, use default port number of 1813.

Key The share key for communications between Radius client and standby Radius server.

Note: the key should be configured the same for both client and server side

Retransmit timer

Set the amount of overtime on response after transmission of Radius message, the default is 3 seconds. The retransmission will be performed If no response is given after the timeout.

Retransmit times

Set the times of retransmission of Radius message when no response is received default is 3 times.

CDR type

 Inbound: Set whether to send RADIUS charge message for inbound calls;

 Outbound: Set whether to send RADIUS charge message for outbound calls;

 Answered: Set whether to send RADIUS charge message when calls are connected;

 Unanswered: Set whether to send RADIUS charge message for unanswered calls.

2.6.7 Encryption

After login, click the label of Advanced > Encryption to open this interface.

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-33

Figure 2-22 Encryption configuration interface

Table 2-23 Encryption configuration parameters

Title Explanation

T.38 encrypt Choose whether to encrypt T38 data. By default, this is not selected. RTP encrypt Choose whether to encrypt RTP voice pack, the default is 0.

 0: No encryption

 1: Entire message

 2: Header only

 3: The data body only

Signal encrypt Choose whether to encrypt signaling. By default, this is not selected.

Encryption method Set the gateway encryption method, default is 7. The optional parameters as below:

 2:TCP not encrypted

 3: TCP encrypted

 6: UDP not encrypted

 7: UDP not encrypted

 8: Using keyword

 10: RC4

 13: Encrypt13

 14: Encrypt14

 16: Word reverse(263)

 17: Word exchange(263)

 18: Byte reverse(263)

 19: Byte exchange(263)

 20:VOS

Encryption key You may obtain it from service provider

Session Border Proxy

Server

Set the IP address and port number of session border proxy server. The character of “:” must be used between IP address and port number. Server address could be set into IP address or domain name. When domain name is used, DNS service must be activated as shown in the page of Network, and DNS server must be configured.

Example: 201.30.170.38:1020 or sbc.com:1020.

Signaling port

Signaling port assighment of the gateway, the default value is 4660. Signaling port number may be set at will, but can not conflict with other ports of equipment.

User Manual MX Voice-Fax Gateway Series

2-34 New Rock Technologies, Inc.

2.6.8 Call progress tone plan

After login, click the label of Advanced > Tones to open this interface.

Figure 2-23 Call progress tone configuration interface

Table 2-24 Call progress tone configuration parameters

Title Explanation

Country/Region

There are progress tone plans for several countries and regions which are pre-programmed in gateways. Users may also specify the tone plan according to the national standard. Gateways provide tone plans for the following countries and regions:

China; the United States; France; Italy; Germany; Mexico; Chile; Russia; Japan; South Korea; Hong Kong; Taiwan; India; Sudan; Iran; Algeria; Pakistan; Philippines; Kazakhstan.

Dial Prompt tone of off-hook dial tone.

2nd dial Used for the second stage dial tone.

Message waiting

Used for prompt of voice mail, or when the subscriber line is set with “Don’t Disturb Service and Call Transfer”.

Busy Used for busy line prompt.

Congestion Used for notification of call set up failure due to resource limit.

Ring back The tone sent to caller when ringing is on.

Disconnect Used for reminding the subscriber of off-hook and no dialup status of the phone.

Call waiting Used for notification in call waiting.

Confirmation Used for confirming function keys being entered.

Here are examples that illustrate the various call-progress tones



350+440 (dial tone)

Indicates the dual–frequency tone consisting of 350 and 440 Hz



480+620/500,0/500 (busy)

Indicates the dual–frequency tone consisting of 480 and 620 Hz, repeated playing with 500 milliseconds on and 500 milliseconds off.

Note: 0/500 indicates 500 milliseconds mute.



440/300,0/10000,440/300,0/10000

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-35

Indicates 440 Hz single frequency tone, repeated twice in terms of 300 milliseconds on and 10 seconds off.



950/333,1400/333,1800/333,0/1000

Indicates repeated playing 333 milliseconds of 950 Hz, 333 milliseconds of 1400 Hz, 333 milliseconds of 1800 Hz, and mute of 1 second.

2.6.9 Feature codes

The feature codes consist of system feature codes and service feature codes. The system feature codes

are used for acquiring gateway information, and the lattser is used for users to activate and inactivate

supplementary services.

After login, click the label of Advanced > Feature codes to open this interface.

The following are the examples of the dialing rule for the feature codes:



Using *xx (dial * and 2 digits number) to activate a service



Using #xx (dial # and 2 digits number) to cancel a service

This is illustrated with the following defaults for various parameters, which may be modified according

to requirements.

Figure 2-24 Feature codes configuration interface

Table 2-25 Feature codes configuration parameter

Title Explanation

System feature codes

Query IP address

The function key for determining the IP address of gateway, with a default of ##. Dialing this key, users can hear the gateway voice the IP address and system-software version number.

Narrative: if the gateway is only equipped with FXO (Line) port, connect FXO(Line) port through the PBX extension line or PSTN direct line, and dial the number of this line accordingly, press ## immediately after hearing the second dial tone, users may thus hear the IP address and system software version number of the gateway.

Query phone number

The function key for determining the phone number of this subscriber line, with default of #00. By dialing this key, your will hear the phone number of the subscriber line voiceed by the gateway.

User Manual MX Voice-Fax Gateway Series

2-36 New Rock Technologies, Inc.

Title Explanation

Service feature codes

Activate CFU

The function key for activating unconditional call forwarding

, with a default of *60. Dialing

this key will activate unconditional call forward of the line and set the destination number

for call forwarding. User operation: Off hook

→ press *60 →enter the destination number.

Users can determine the latest destination number set by dialing *60*.

Note: it’s required to enable call forwarding service before using this function (

please see the

instructions on the relevant configuration of subscriber line).

Deactivate CFU

The function key for deactivating unconditional call forwarding

, with default of #60.

User operation: Off hook → press #60 → hang up.

Activate CFB

The function key for activating call forwarding on busy，with default of *61. Dialing this key may activate CFB, and specify the destination number.

Note: it’s required to enable call forwarding on busy service before using this function (

please

see the instructions on relevant configuration of subscriber line).

Deactivate CFB The function key for deactivating call forwarding on busy, with default of #61.

User operation: Off hook → press #61 → hang up.

Activate CFNR

The function key for activating call forwarding on no answer, with default of *62. Dialing the function key may activate call forwarding on no answer and specify destination number.

Note: it’s required to enable call forwarding on no answer service before using this function (

please see the instructions on relevant configuration of subscriber line).

Deactivate CFNR The function key for deactivating call forwarding on no answer, with default of #62.

Activate CRBT

The function key for activating color ringback tone, with default of *80. Subscribers may select their favorite color RB tone by using this key.

Note: it’s required to start color ring service before using this function (

please see Phone for

how to assign the feature to the phone).

User operation: Upon off hook, the subscriber may press the function key (e.g. *80), then, input the two-digit index numbers of color ring;

*80* is used for hearing and inquiring the color ring that has been previously set.

Deactivate CRBT

The function key for deactivating the color ring, with default of #80. The subscriber may use such key to recover the normal ring of phone.

User operation: Off hook → press #80 → hang up.

Activate forking The function key for activating the double-ring/forking feature, with default of *75.

Deactivate forking The function key for deactivating the feature, with default of #75.

Activate DND

Activate “Don't Disturb

”, with default of *72. With DND selected, the gateway will reject all

coming calls by sending busy tone to the caller.

Note: It’s required to start “Don't Disturb

” prior to using this function (please see the

instructions on relevant configuration of subscriber line).

Deactivate DND

The function key to cancel “Don't Disturb

”, with default of #72. Dialing the function key may

recover normal ringing upon the arrival of incoming calls.

Enable speed dials

Define the function key of dial, with default of *74. This key allows the user to build a table of 2-digits（20~49）speed-dial numbers.

Note: It’s necessary to get the dial-up service under way before applying this function (please see Phone for hwo to assign the feature to the phone).

User operation: Upon dialing the function key (*74), dial the two-digit speed dial followed by the expanded number terminated with #.

Speed dial prefix

The prefix number for applying abbreviated dialing

, with default of **. The said prefix should

be added ahead of abbreviated dialing numbers when using abbreviated dialing.

User operation: off hook → dial the prefix number of abbreviated dialing(**)and dial abbreviated dialing number (20).

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-37

Title Explanation

Suspend call waiting

The function key for cancelling the call waiting feature for next call, with default of *64. Dialing this function key will temporarily shield the user from a call-waiting distraction for next call, avoiding the possible intervention.

Note: the function key works only for single cancel, if to cancel the call waiting completely, please refer to the instructions on relevant configuration of subscriber line.

Blind call transfer

Function key of blind call transfer，with default of *38.

User operation: During the call, tap the phone hook switch or press R button→ dial *38→ dial the called number and then hang up.

Audit CRBT

The function key for hearing the color ring，with default of *88.

User operation: Off hook → press *88 → input color ring number.

3-way *1

2.7 Status

2.7.1 Call status

After login, click Status > Call Status to open this interface.

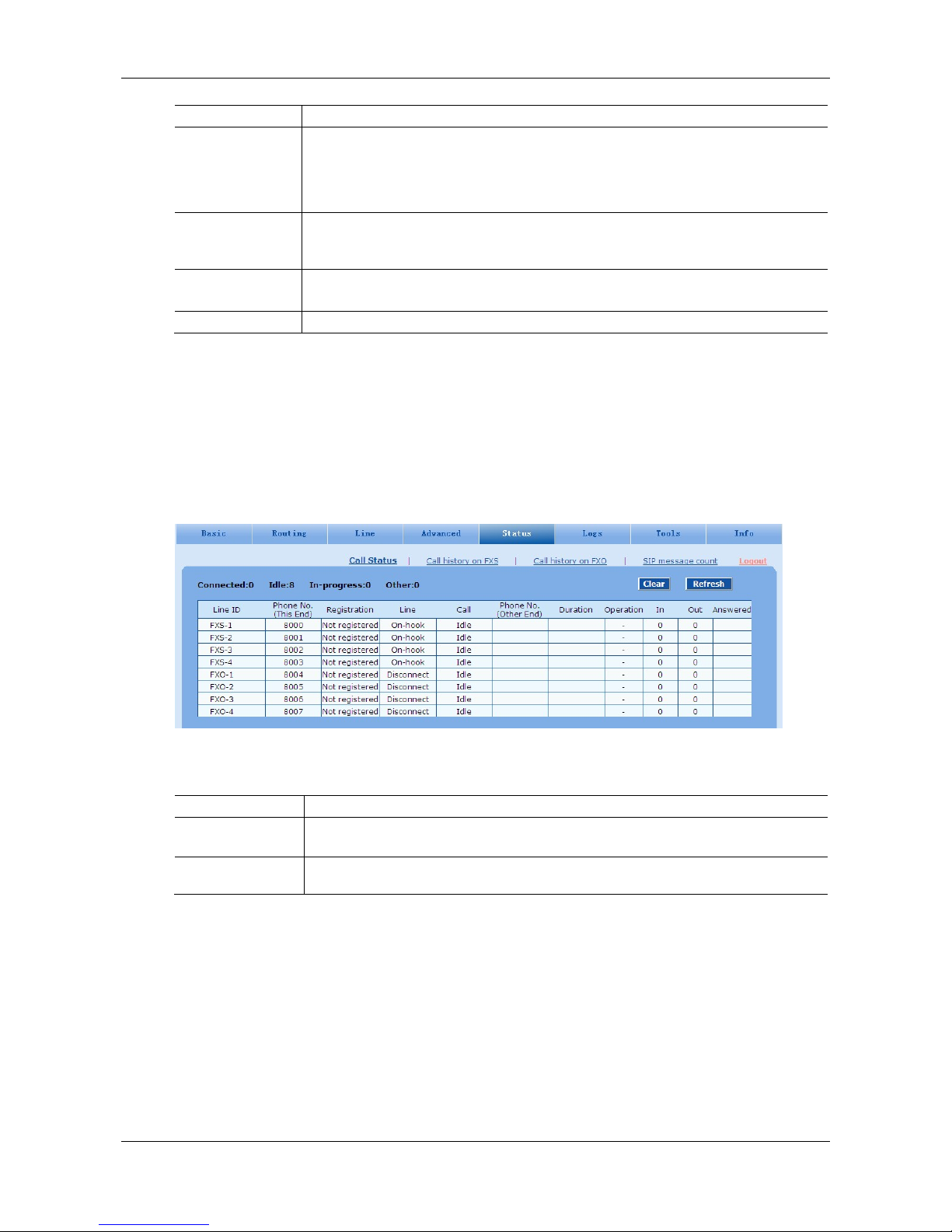

Figure 2-25 Interface of call status

Table 2-26 Parameters of call state

Title Explanation

Line

There are six types of line status,

On-hook, Off-hook, Ringing, Maintenance, Disconnect,

Parallel line in-use

Call

The call state includes Idle, Ooutpusling, Ring, Entering number, In progress, Ring back, Talk, Near end hung up, Far end hung up, and Timeout.

2.7.2 Call history on FXS

After login, click Status > Call history on FXS to open this interface.

User Manual MX Voice-Fax Gateway Series

2-38 New Rock Technologies, Inc.

Figure 2-26 Interface of call on FXS

2.7.3 Call history on FXO

After login, click the label of Status > Call history on FXO to open this interface.

Figure 2-27 Interface of call on FX0

2.7.4 SIP message count

After login, click Status > SIP message count to open this interface.

Figure 2-28 Interface of SIP message count

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-39

2.8 Logs

2.8.1 System Status

Critical runtime information of gateways can be obtained in this interface, including:



The information about login interface (including IP address and permissions of the user)



SIP registration status



Call-related signaling and media (RTP) information

After login, click the label of Logs > System Status to open this interface.

Figure 2-29 Interface of System Status

Table 2-27 Parameters of System Status

Title Explanation

Show the IP address and permissions of the login user. The numbers following the IP address show the online permission level of the user: 1- administrator; 2 - operator; 3 – viewer. The viewer can only read the configuration.

When more than one administrator logs in at the same time, the first login’s permission level is 1; others are 3; also, when more than one operator logs in at the same time, the first one’s permission is 2, others are 3.

For example: Login User Info >>>>> 1） 192.168.2.247 1

User Manual MX Voice-Fax Gateway Series

2-40 New Rock Technologies, Inc.

Title Explanation

SIP Registration Info

Show registration status:

 Not enabled: The registration server’s address is not entered yet;

 Latest response: The latest response message for the registration. 200 means

registered successfully；

 No response: No response from registration server. The cause may contribute to 1）

incorrect address for the registration server; 2) IP network fault; or, 3) the registration server is not reachable.

For example: SIP Registration Info >>>>>

---- Not enabled ---SIP Registration Info >>>>> Contact: <sip:2681403@220.248.27.70:1003；user=phone>

latest response: 200 （timeout-555） Contact: <sip:2681402@220.248.27.70:1003；user=phone> latest response: 200 （timeout-555）

Latest Call Info Show the latest call.

Call Context Info Show the call status.

Rtp Context Info

Show the voice channel related to the calls. For example: Rtp Context Info >>>>> 3） created， call =e011

2.8.2 Call Message

After login, click Logs > Call Message to open this interface.

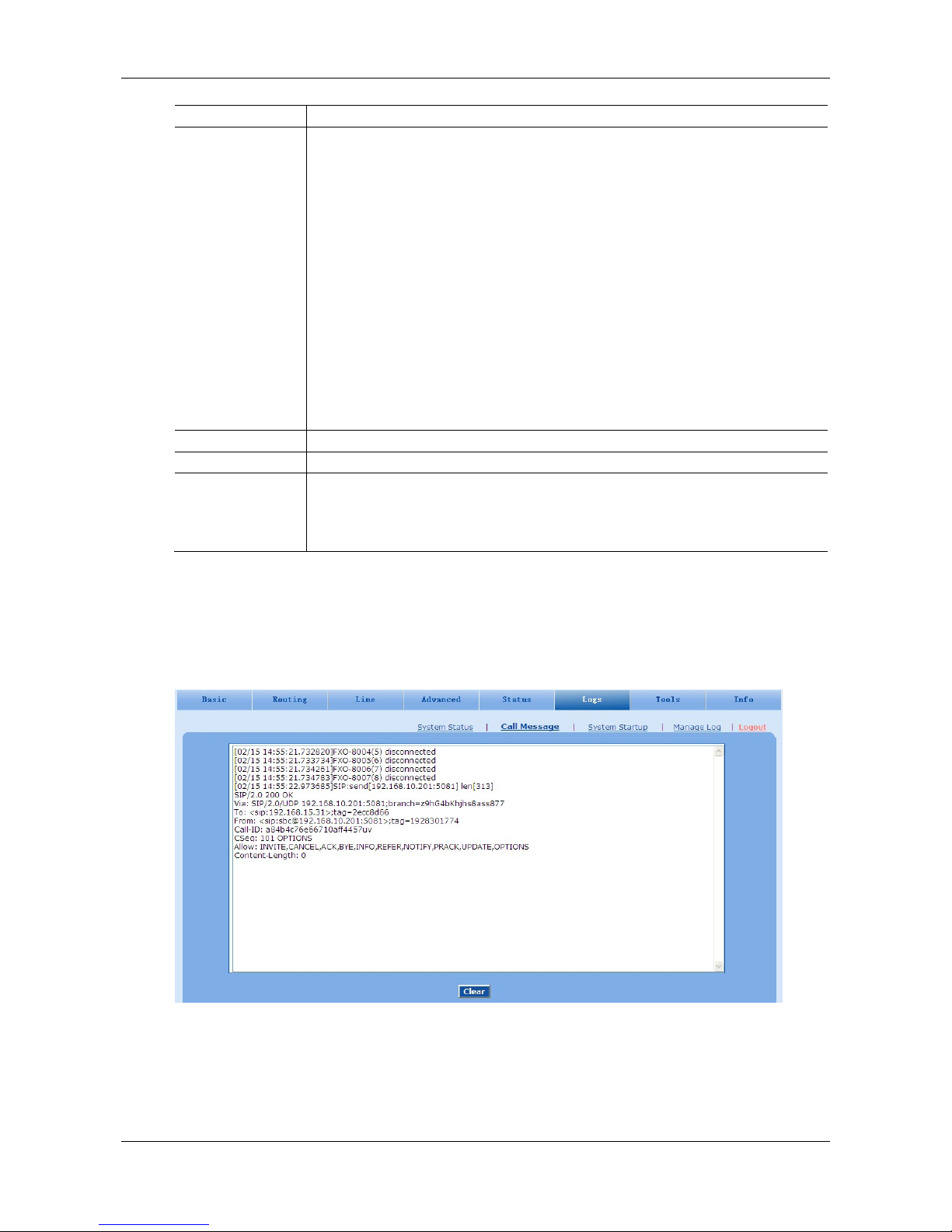

Figure 2-30 Call Message interface

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-41

2.8.3 System Starup

After login, click Logs > System Starup to open this interface. Log files can be downloaded through

this interface.

Figure 2-31 Interface of System Starup

2.8.4 Manage Log

After login, click Logs > Manage Log to open this interface. Log files can be downloaded through this

interface.

Figure 2-32 Interface of Manage Log

Table 2-28 Configuration parameters of Manage Log

Title Explanation

Log level

Select the log file level of gateway, default is 4. The higher the level the more details the log file will be.

Note: Log level should be set to 4 or lower when gateway is used in normal operation, avoiding reducing the system performance.

System log server Set the IP address of the system log server.

Local log port The port used to send logs.

Log server IP address of debugging log server.

User Manual MX Voice-Fax Gateway Series

2-42 New Rock Technologies, Inc.

Procedure for downloading the log:

Step1 Click Download, the gateway begins to assemble the logs. Step2 After a few seconds, the interface of log saving will appear. Step3 Click Save, and select path to save. Step4 The user may review the log from the server.

The procedure of downloading log files described hereof is only applicable to release 1.9.x.238 of MX series or updated version of software.

2.9 Tools

2.9.1 Change password

After login, click Tools to open this interface. Only administrator is entitled to change the password of

For changing administrator password, it’s required to enter new password into New password field and Confirm new password field, then click Submit.

The password being used by the operator will be displayed as hidden codes, which could be changed by

the administrator at any time. The administrator is allowed to change the operator’s password by

entering the new password into Operator password > password.

Figure 2-33 Interface for password changing

2.9.2 Export data

After login, click Tools > Export data to open this interface. The download procedure is similar to the

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-43

download procedure of log files.

Figure 2-34 Interface of export data

2.9.3 Import data

After login, click Tools>Import data to open this interface. Operating procedure is the same as that of

software upgrade.

Figure 2-35 Interface of import data

2.9.4 Upgrade

After login, click Tools > Upgrade to open this interface. The software upgrad procedure is presented

as below:

User Manual MX Voice-Fax Gateway Series

2-44 New Rock Technologies, Inc.

Step1 Obtain the upgrade files (tar.gz file), and save the file onto a local computer. Step2 Click Tools > Upgrade to access to the page of software upgrade.

Figure 2-36 Interface of upgrade

Step3 Click Browse to select the upgrade files.

Figure 2-37 Interface of file upload

Step4 Click Upload. Step5 Uploading will be completed in about 30 seconds, then click Next.

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-45

Figure 2-38 Upgrade interface

Step6 The following prompt appears during the upgrade.

Figure 2-39 Screen of upgrade process

A few minutes are needed to upgrade the gateway. Don’t operate the gateway during this period.

Step7 After success in upgrade, the following dialog will appear, click Confirm.

User Manual MX Voice-Fax Gateway Series

2-46 New Rock Technologies, Inc.

Figure 2-40 Interface of successful upgrade

Step8 The gateway is on the progress of reboot when the interface cannot be displayed. Step9 Wait for about two minutes, and access the interface of gateway management system, click

Version info and check the software version.

For MX100 and MX120 gateways, the software upgrade operation must be conducted on an 100M Ethernet port.

2.9.5 Restore factory settings

After login, click Tools > Restore factory settings to restore the factory settings.

The factory settings are designed based on common applications, and therefore, no need to modify them in many deployment situations.

2.9.6 Software restart

After login, click Tools > Restart to restart the gateway, making modified configuration come into

effect.

 In most cases, there is no n eed to reset the gateway, and the modified parameters will come into

effect upon confirming the Submit.

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 2-47

2.9.7 System reboot

After login, click Tools > Reboot to restart the gateway. As this is a system wide reset, it takes longer

time.

Generally, it’s sufficient to restart software when the gateway confirms to reset; the system reboot will be required only when network settings of the gateway are changed.

2.9.8 TDM capture

After login, click Tools > TDM capture to open this interface. This tool can be used to capture the

voice stream from the Phone or Line interface. The capture starts from the off-hook if it is a Phone interface or from the ringing if it is a Line interface，and is ended on on-hook or call release. When the

call lasts longer than 200 seconds, only the first 200 seconds of voice stream will be captured. The

voice file is stored on the gateway in PCMU format.

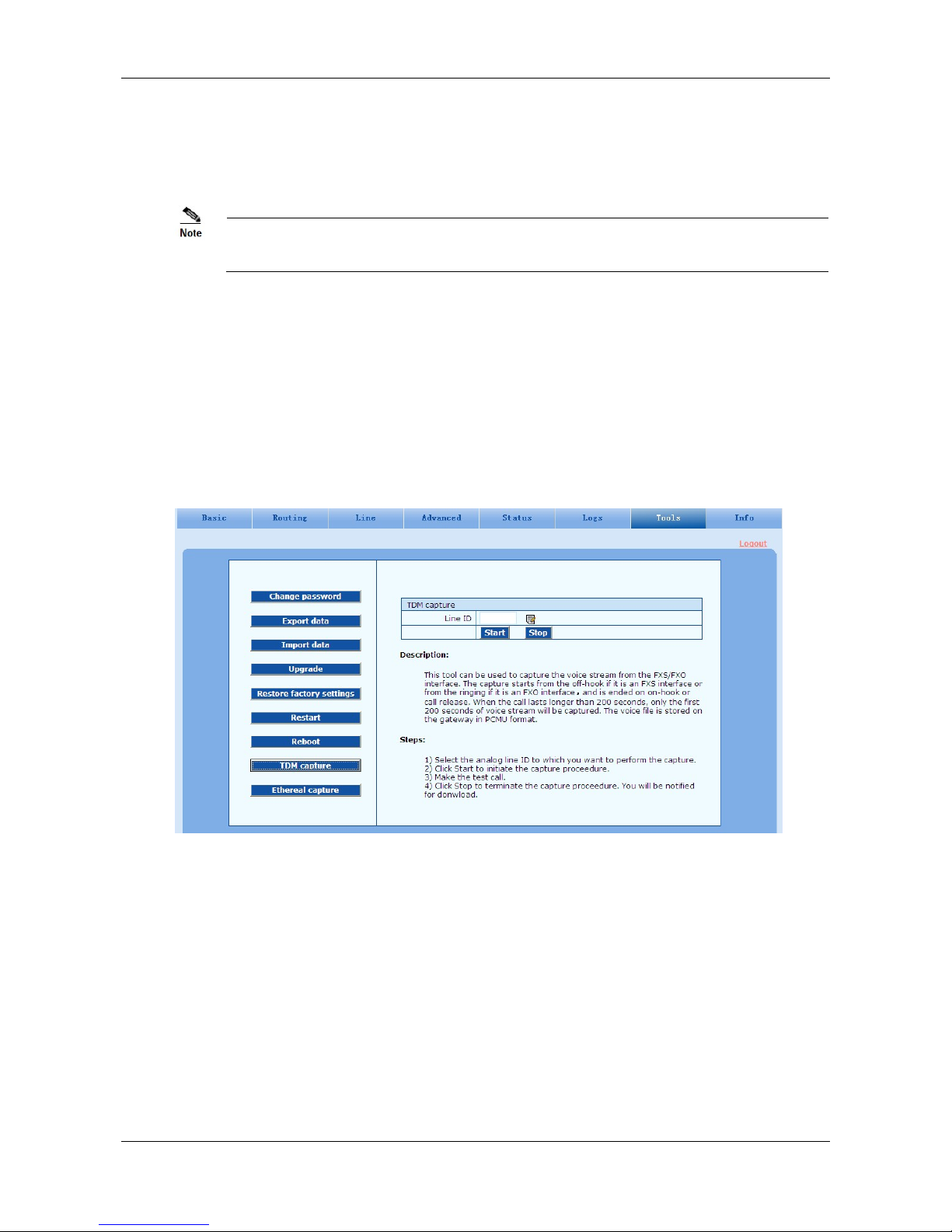

Figure 2-41 Interface of TDM capture

Step1 Select the analog line ID to which you want to perform the capture. Step2 Click Start to initiate the capture procedure. Step3 Make the test call. Step4 Click Stop to terminate the capture procedure. You will be notified for donwload.

2.9.9 Ethereal capture

After login, click Tools > Ethereal capture to open this interface. You are allowed to capture up to

three IP voice data files, each with up to 2M bytes. The data files are stored on the gateway in

dump.cap format under catalog /var/log.

User Manual MX Voice-Fax Gateway Series

2-48 New Rock Technologies, Inc.

Figure 2-42 Interface of Ethereal capture

Step1 Click Start to initiate the capture procedure. Step2 Click Stop to terminate the capture procedure. You will be notified for download.

2.10 Version information

After login, click Version info to view the gateway hardware and software version information.

Figure 2-43 Interface of Version info

2.11 Logout

After login, click the Logout at top right to exit the gateway management system and return to the

MX Voice-Fax Gateway Series User Manual

New Rock Technologies, Inc. 3-1

3 Appendix

3.1

MX120 system operation state

Table 3-1 MX120 system operation state

Glittery letter Status meaning

The IP address of gateway conflicts with that of other equipment in LAN. Please settle this problem before the gateway can be operated normally.

Internal failures have been entountered during gateway start up procedure. Please contact your local distributor for further diagnosis.

The gateway is in progress of system software upgrade. Please guarantee stable power supply and do not conduct other operations during this period.

The application software of gateway has been exited. If it can not be restored by rebooting the system, please contact your local distributor for further diagnosis.
