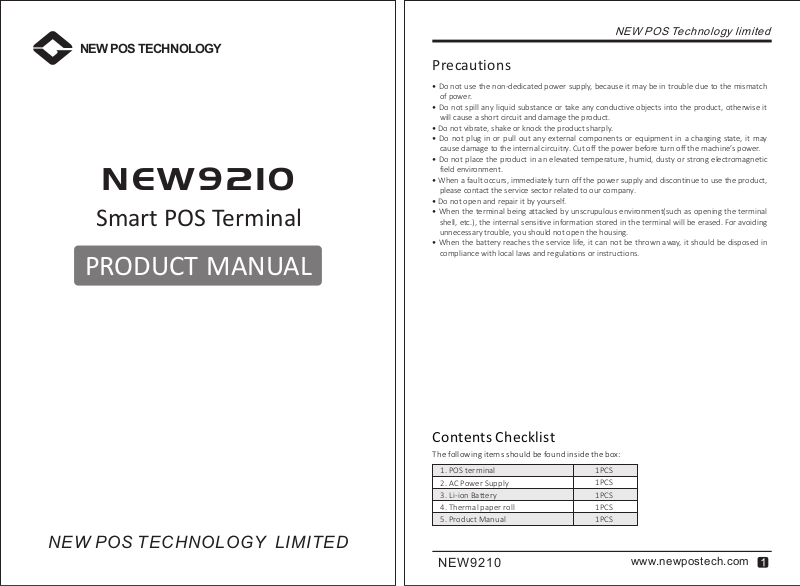

NEW POS Technology 9210 Users Manual

NEW POS TECHNOLOGY

N E W 9 2 1 0

Smart POS Terminal

PRODUCT MANUAL

NEW POS Tec hnology l im ited

Precautions

 Do not use the non-dedicated power supply, because it may be in trouble due to the mismatch

of power.

 Do not spill any liquid substance or take any conductive objects into the product, otherwise it

will cause a short circuit and damage the product.

 Do not vibrate, shake or knock the product sharply.
 Do not plug in or pull out any external components or equipment in a charging state, it may

cause damage to the internal circuitry. Cut off the power before turn off the machine’s power.

 Do not place the product in an elevated temperature, humid, dusty or strong electromagnetic

field environment.

 When a fault occurs, immediately turn off the power supply and discontinue to use the product,

please contact the service sector related to our company.

 Do not open and repair it by yourself.
 When the terminal being attacked by unscrupulous environment(such as opening the terminal

shell, etc.), the internal sensitive information stored in the terminal will be erased. For avoiding
unnecessary trouble, you should not open the housing.

 When the battery reaches the service life, it can not be thrown away, it should be disposed in

compliance with local laws and regulations or instructions.

Contents Checklist

The follo wing items sho uld be found in side the box:

1. POS ter minal

2. AC Power S upply

3. Li-i on Battery

4. Ther mal paper rol l

5. Produc t Manual

1PCS
1PCS
1PCS
1PCS
1PCS

NEW POS T ECH NOL OGY LIMITED

NEW9210

www.newpostech.com

NEW9210 Figure

Paper

1

holder Lid

Handle

Tear-off knife

Front camera

Charge
indicator

LCD

Antenna
inductive zone

Programable
Leds

Magnetic
stripe card

Tag label

Lanyard hole

Rear camera

Battery cover

Speaker

NEW POS Tec hnology l im itedNEW POS Tec hnology l im ited

Rubber pad

Flash

17

Base contacts

Volume key

ON/OFF key

Micro USB port

User smart
card slot

NEW9210

www.newpostech.com www.newpostech.com

NEW9210

www.newpostech.com

NEW POS Tec hnology l im ited

NEW POS Tec hnology l im ited

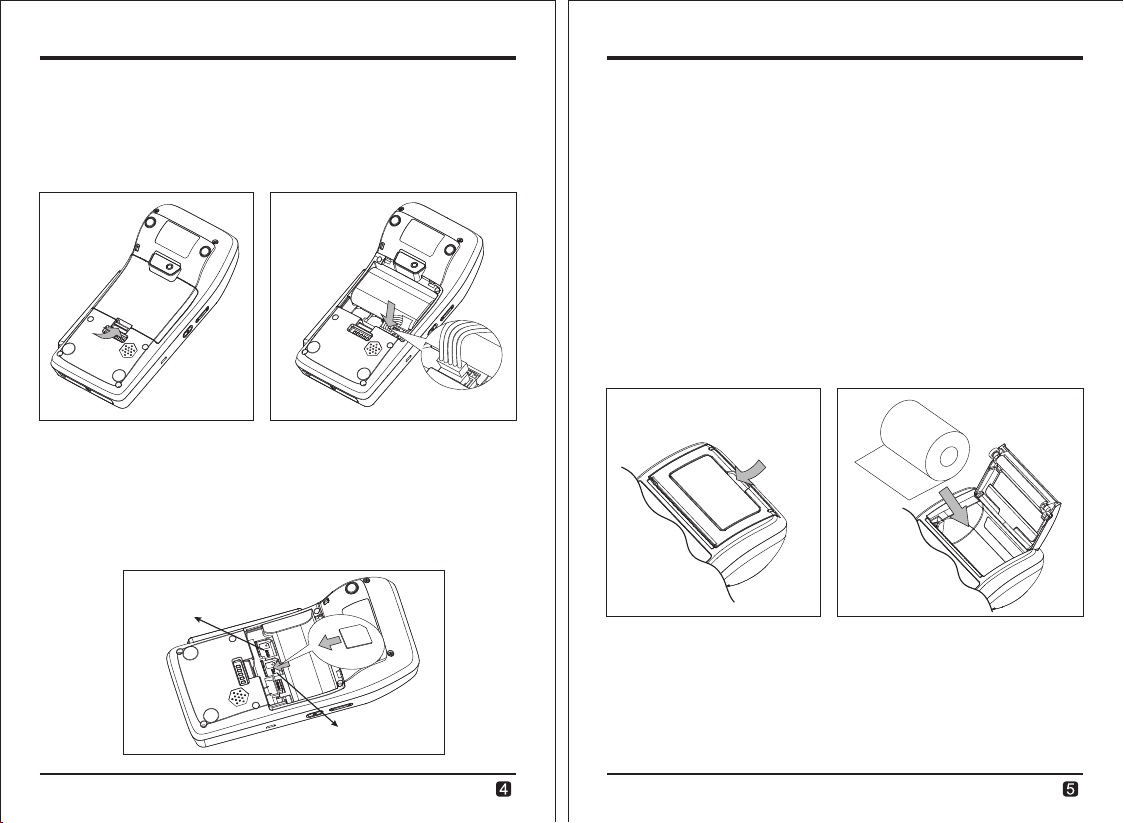

Installation Guidance

1. Install the batte ry

 Open th e battery cove r of the device.
 Conne ct the cable o f the battery to t he right side batt ery connector o n the machine an d

put the ba ttery to its plac e. (Tag label on th e battery upwa rds)

 Close t he battery cov er.

Ope n the batt ery
cove r

NOTE: Wh en removin g the battery, plea se pick up the batt ery, then gently for ced to unplug it to
avoid da mage to cables .

2. Install SIM/SA M card

 Open th e battery cove r and remove the batt ery.
 Keep the c hip side on the SI M/SAM card dow nward and unfil led corner o utward, insert t he

card to the b ottom.

 Install t he battery and th en close the batte ry cover.

Install SIM/SAM /TF card

SAM

Ins tall the b attery

SIM

NOTE: 1. Confirm the m achine is turn ed off when you in stall or uninsta ll the SIM/UIM c ard, or
your car d will be damage d.

2. Do not p aste any label o n the SIM/SAM ca rd to influence y our card thick ness, or it
may resu lt in loading or r emoving the ca rd can not be carri ed out smoothl y.

3. Power on/off the device

Power on: p ress and hold the p ower key until the LC D display, then th e machine wi ll be

turne d on.

Power off: p ress and hold the p ower key more than 2 se conds, then the s creen will give y ou

a tips, yo u just choose the s hutdown key.

Force shu t down: Press the p ower key more than 8 se conds.

4. Install the printer paper

 Pull up th e handle and ope n the paper hold er Lid.
 Put the pr inter paper into p aper holder Li d according to the d irection of the g raphic.
 Close t he paper cove r.

Ope n the Pap er hol der Lid

NOTE: 1. W hen instal l thermal pa per, we ne ed the side co ated with the rmal media f acing the
printe r heating plate, or you can not prin t out the cha racters corr ectly.

2. Do not kee p the printer pap erless for long t ime, or it may cau se the roller pa sting with

the pla te.

3. The tem perature is hi gh on the heatin g plate, please d o not touch it wit hout cooling.

4. Tear-off k nife edge is shar p, please be car eful. Do not touc h it for avoiding d anger.

Install t he printer pape r

NEW9210

www.newpostech.com

NEW9210

www.newpostech.com

NEW POS Tec hnology l im ited NEW POS Tec hnology l im ited

NEW POS Tec hnology l im ited

Technical Specifications

Pro ject

CPU
Memory
System
Display
MS Card Reader
Smart Card Reader
Contactless
Card Reader
Security
Communications
Satellite Positioning
Camera

Multimedia
Printer
Ports
Buttons
Card Slots
Battery
Power
Dimensions
Working
Environment
Storage
Environment
Certifications

Optional

High Performance 4 Core Processor+Special secure CPU
DRAM:1G, FLASH:8G; Supports Micro SD/TF Card, up to 32G
Android 5.X

5.0 inch 720*1280 pixels capacitive touch screen with e-signature functionality
Track 1/2/3,bi-directioanl,compliant with ISO7811,7812
Supports Memory Card, CPU Card, EMV4.3, PBOC3.0, ISO7816 Standard

13.56MHz. Supports Mifare Card,SONY Felica.
Compliant with ISO/IEC14443 Type A&B
MK/SK, DUKPT, FIXED.3DES, RSA, AES, SHA-256, SM2, SM3, Sm4.
4G/3G/2G, WiFi, Bluetooth.
GPS, BEIDOU, GLONASS
Front Camera:300 thousand pixel;
Rear Cemara:5-mega pixel, with auto flash and focus
720P video recording, 1080P video broadcast
High-speed thermal printer, Paper roll width and diameter: 58mm/40mm
1*Micro USB OTG
1*Power switch, 2*Volume keys
1*SIM, 1*SAM, 1*TF Card

7.2V/2600mAh
Input:100-240V AC, 50/60Hz; Output:5.0V DC, 2.0A
184mm*84mm*58mm(L*W*H)
Temperature:0℃ ~ 50 (32℉~ 122℉).
Humidity:10% ~ 90% (non-condense).
Temperature: -20℃ ~ 60℃(-4℉~140℉).
Humidity: 5% ~ 95% (non-condense).
PCI PTS 5.X, EMV LEVEL 1&2, EMVContactless, CE, RoHS
CUP, PBOC3.0, QPBOC3.0
Docking Station

Note:

Techn ical

℃

1. Warrant y valid for 12 mon ths after purcha sing date.

2. This wa rranty will be voi ded if the produc t is damaged due to n atural disaste r, fire,
unauth orized alterati on or improper us age.

3. Free Warra nty covers origi nal parts only

4. Warrant y service w ill not be prov ided if no the dea ler's stamp or thi s card is missing .

The SAR limit of Europe is 2.0 W/kg. Device types Smart POS Terminal has also been tested against
this SAR limit. The highest SAR value reported under this standard during product certification for
use worn on the body is 1.003 W/kg. This device was tested for typical body-worn operations with
the back of the handset kept 0cm from the body. To maintain compliance with RF exposure
requirements, use accessories that maintain a 0cm separation distance between the user's body
and the back of the handset. The use of belt clips, holsters and similar accessories should not
contain metallic components in its assembly. The use of accessories that do not satisfy these
requirements may not comply with RF exposure requirements, and should be avoided.
CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED
BATTERIES ACCORDING TO THE INSTRUCTIONS.

Hereby, NEW POS TECHNOLOGY LIMITED declares that the radio equipment type (Smart POS
Terminal, NEW9210) is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity
is available at the following internet address:
http://www.newpostech.com/

Notice: This device may be used in each member state in EU

The device is restricted to indoor use when operated in
Be lgi um (BE ), Bul gar ia( BG) , C zec h Re pub lic (C Z),
Denmar k(DK), Ger many(DE), E stonia(EE ), Ireland( IE),
Greece(EL), Spain(ES), France(FR), Croatia(HR), Italy(IT),
Cyprus(CY), Latvia(LV), Lithuani a(LT), Luxembourg(LU) ,
Hungary(HU), Malta(MT), Netherlands(NL), Austria(AT),
Polan d(PL), Portu gal(PT), Ro mania(RO ), Sloveni a(SI),
Sl ov ak ia (SK ), Fi nl an d( FI) , S we de n( SE) , U ni te d
Kingdom(UK), Turkey(TR), Norway(NO), Switzerland(CH),
Iceland (IS) and Liechtenstein(LI) using frequency in
5150MHz~5350.

NEW9210

www.newpostech.com

NEW9210

www.newpostech.com

7

NEW POS Tec hnology l im ited NEW POS Tec hnology l im ited

NEW POS Tec hnology l im ited

FCC Statement

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.

Note: The grantee is not responsible for any changes or modifications not expressly approved by
the party responsible for compliance. Such modifications could void the user’s authority to operate
the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in acc ordance w ith the i nstructi ons, may cause harmful inter ference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

- Consult the dealer or an experienced radio/TV technician for help

The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types Portable
Smart POS Terminal (FCC ID: WAL9210) has also been tested against this SAR limit. The highest SAR
value reported under this standard during product certification when properly worn on the body is

1.089W/kg. This device was tested for typical body-worn operations with the back of the handset
kept 0cm from the body. To maintain compliance with FCC RF exposure requirements, use
accessories that maintain a 0cm separation distance between the user's body and the back of the
handset. The use of belt clips, holsters and similar accessories should not contain metallic
components in its assembly. The use of accessories that do not satisfy these requirements may not
comply with FCC RF exposure requirements, and should be avoided.

NEW9210

www.newpostech.com

NEW POS TECH NOLO GY LIMIT ED

Address: 14 /A, Fi nancia l Technology Building, Finan cial & Technology
B uilding, No.11, Ke yuan Rd, Nansha n Distri ct, Shen Zhen, China
Tel: [phone] Fax: [phone] Postalcode: 518057
E-mail: [e-mail] WebS ite: www.n ewpost ech.co m
