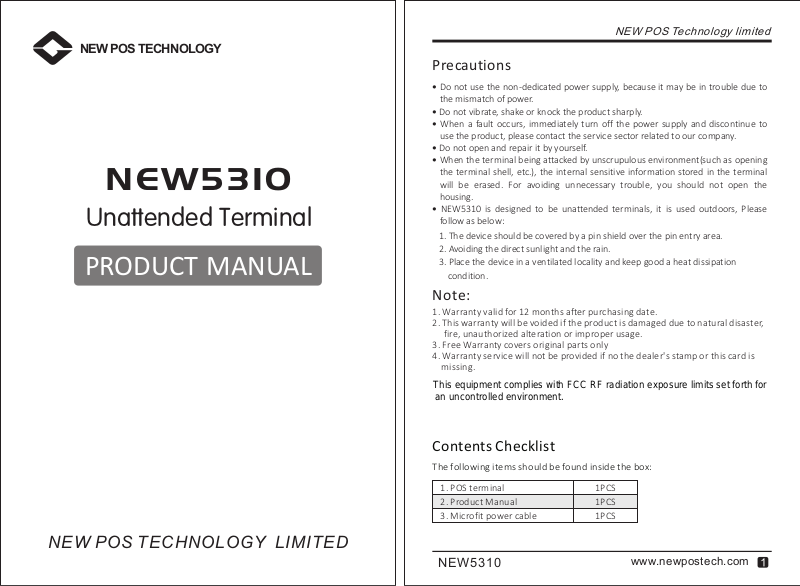

NEW POS TECHNOLOGY
N E W 5 3 1 0
Unattended Terminal
PRODUCT MANUAL
NEW POS Tec hn ology lim it ed
Precautions
Do not use the non-dedicated power supply, because it may be in trouble due to
the mismatch of power.
Do not vibrate, shake or knock the product sharply.
When a fault occurs, immediately turn off the power supply and discontinue to
use the product, please contact the service sector related to our company.
Do not open and repair it by yourself.
When the terminal being attacked by unscrupulous environment(such as opening
the terminal shell, etc.), the internal sensitive information stored in the terminal
will be erased. For avoiding unnecessary trouble, you should not open the
housing.
NEW5310 is designed to be unattended terminals, it is used outdoors, Please
follow as below:
1. The device should be covered by a pin shield over the pin entry area.
2. Avoiding the direct sunlight and the rain.
3. Place the device in a ventilated locality and keep good a heat dissipation
condition.
Note:
1. Warrant y valid for 12 months after purchasing date.
2. This warranty will be voided if the product is dama ged due to natural disa ster,
fire, unauthorized alteration or imp roper usage.
3. Free Warranty covers o riginal parts onl y
4. Warrant y servic e will not be provided i f no the dealer's stam p or this card is
missi ng.
This equipment complies with FCC RF radiation exposure limits set forth for
an uncontrolled environment.
NEW POS T ECH NOL OGY LIMITED
Contents Checklist
The following items should be found inside the box:
1. POS terminal
2. Product Manual
3. Micro fit power cable
NEW5310
1PCS
1PCS
1PCS
www.newpostech.com
NEW5310 Figure
NEW POS Tec hn ology lim it edNEW POS Tec hn ology lim it ed
1
4
Infrared
LED
LCD
Antenna
inductive
zone
Waterproof
ring
NFC leds
User smart
card slot
Camera
Infrared
sensor
Magnetic
stripe card
Port cover
Menu for
setup
Reset
Tag label
SIM/SAM
card cover
NEW5310
www.newpostech.com www.newpostech.com
NEW5310
www.newpostech.com
NEW POS Tec hn ology lim it ed
NEW POS Tec hn ology lim it ed

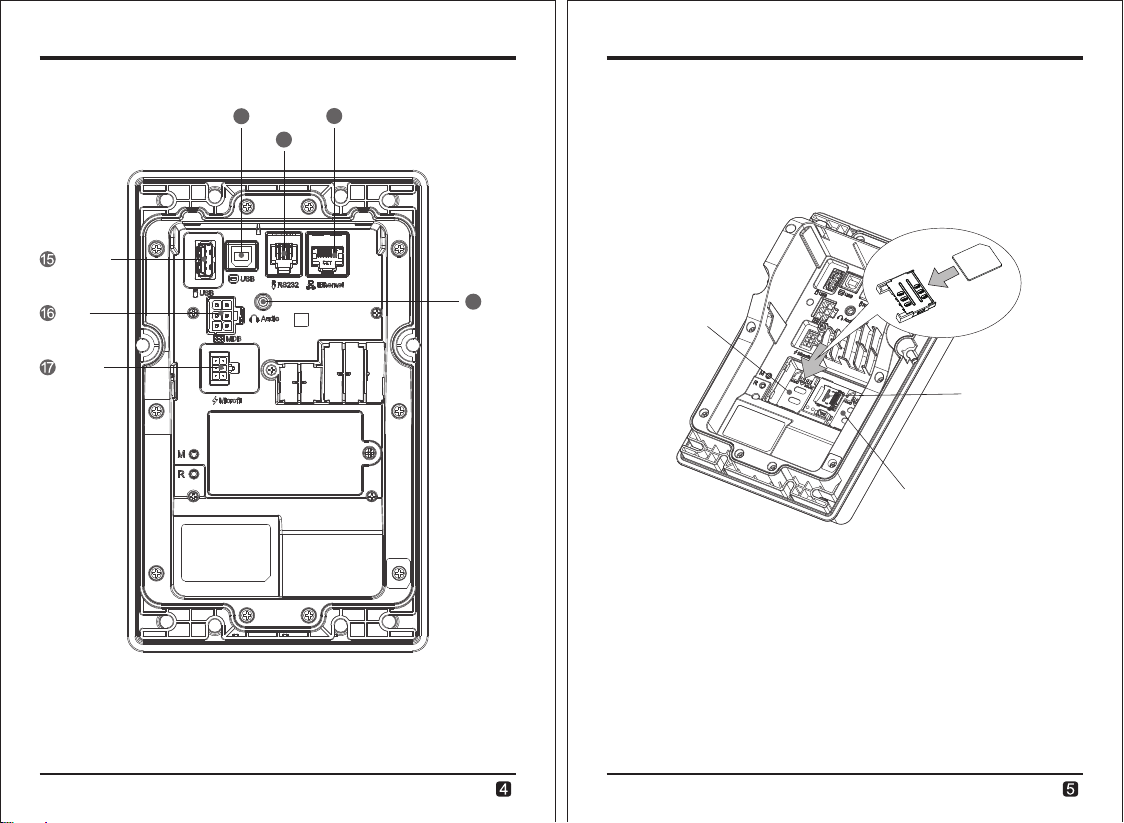

Port
USB-host
MDB
Microfit
18
USB-device
19
RS232
20
Ethernet
Installation Guidance
1. Install SIM/SA M/TF card
Open th e battery cove r and remove the batt ery.
Keep the c hip side on the SI M/SAM/TF ca rd downward and un filled corner o utward, inser t
the card to t he bottom.
Audio
21
SAM
TF
SIM
NOTE: 1. Confirm the m achine is turn ed off when you in stall or uninsta ll the SIM/UIM c ard, or
your car d will be damage d.
2. Do not p aste any label o n the SIM/SAM ca rd to influence y our card thick ness, or it
may resu lt in loading or r emoving the ca rd can not be carri ed out smoothl y.
2. Power on/off the device
Power on: P lug the Mircrofi t jack or the MDB ja ck into the socket, t he device can tu rn on the
power au tomatically.
Power off: P ull the Mircrofi t jack and the MDB j ack away from the soc ket, the device ca n turn
off the po wer.
Reset: Pre ss the “R” button w hich is on the bac k of the device.
Settin g: Press the ”M ” button which is o n the back of the dev ice.
NEW5310
NEW5310
www.newpostech.com
www.newpostech.comwww.newpostech.com
NEW POS Tec hn ology lim it edNEW POS Tec hn ology lim it ed
Technical Specifications
Pro jec t
Processor
Memory
System
Display
Magnetic Card Reader
IC Card Reader
Contactless Card Reader
PSAM
TF Card
Internal PED
Communications
Interfaces
Button
Audio
Proximity detector
Power Supply
Power adapter
Flammability rating
Dust/waterproof rating
Protection classification
Working
Environment
Storage
Environment
Size
Weight
Certification
High Performance 4 Core Processor + Secure CPU
1GB RAM, 8GB Flash memory, Support Micro TF Card, up to 32GB
Android 5.X
5”, 720x1280 pixels, support capacitate touch screen
Track 1/2/3, bi-directioanl, compliant with ISO7811,7812
1 user card (EMV4.3), Support Memory Card, CPU Card, EMV4.3,
PBOC3.0, ISO7816 Standard.
13.56MHz. Support Mifare Card, Compliant with ISO/IEC14443 Type A&B
1 PSAM slot
1 TF Card slot
Support PIN Entry from touch screen
RS-232, Ethernet 10/100M, MDB
Ethernet (8P8C), RS232 (6P6C, with power output 12V/0.5A)
Micro fit 43045, power input socket, MDB (24~45 VDC)
USB Host, USB Device
1 key for reset, 1 key for volume+
1 Built-in speaker
Infrared sensor, the distance of reaction is about 20CM~50CM
12V DC, 2A (when using Micro fit), 24 ~ 45V DC (when using MDB)
Input 100~240 VAC, 50 ~ 60 Hz; output 12V DC 2A
ANSI/UL 94 V-0
IP65
IK08
Temperature: -20℃ ~ 45℃(-4℉~ 113℉)
Humidity: 10% ~ 90% (non-condense)
Temperature: -25℃ ~ 75℃(-13℉~167℉)
Humidity: 0% ~ 95% (non-condense)
195*122*94mm
Undetermined
PCI PTS 5.X, EMV LEVEL 1&2, EMV Contactless, CE, FCC, Pay Pass
RF exposure information: The EIRP power of the device at maximal case is below
the exemt condition, 20mW specified in EN62479: 2010.
RF exposure assessment has been performed to prove that this unit will not generate
the harmful EM emission above the reference level as specified in EC Council
Recommendation(1999/519/EC).
only NFC 13.56MHz in this sample
NEW5310
Techn ica l
www.newpostech.com
Hereby, NEW POS TECHNOLOGY LIMITED declares that the radio equipment
type (Unattended Terminal, NEW5310) is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet
address:www.newpostech.com
Notic e: This device may be us ed in each member state i n EU
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that
may cause undesired operation.
The grantee is not responsible for any changes or modifications not expressly
approved by the party responsible for compliance. Such modifications could void
the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
NEW POS TECH NOLO GY LIMIT ED
Address: 14/A, Financial Techn ology B uildin g, Fina ncial & Tech nology
Build ing, No. 11, Keyuan R d, Nansh an Distr ict, She nZhen, C hina
Tel: +86-755-86938425 Fax: + 86-755 -82790 632
E-mail: Sa les@ne wposte ch.com P ostalc ode: 5 18057
WebSi te: www.ne wposte ch.com
