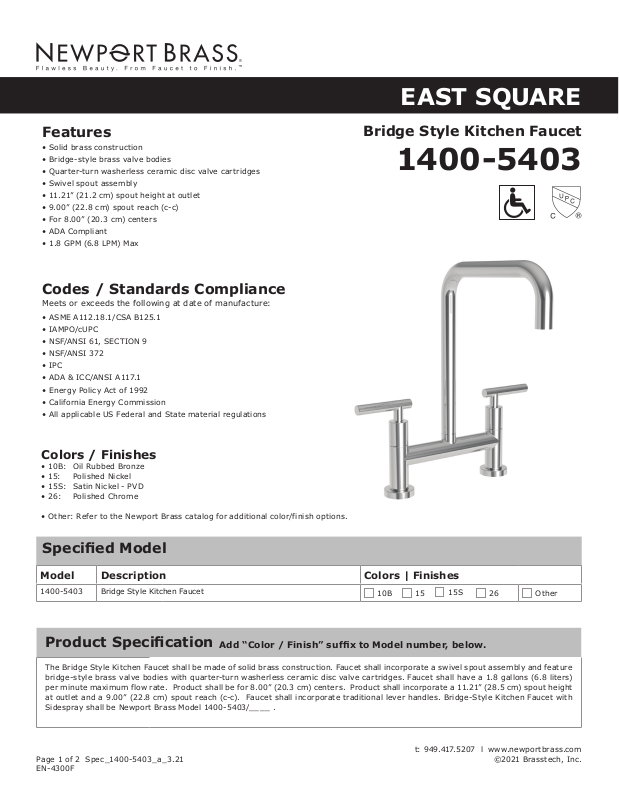

Page 1

EAST SQUARE

Features

• Solid brass construction

• Bridge-style brass valve bodies

• Quarter-turn washerless ceramic disc valve cartridges

• Swivel spout assembly

• 11.21” (21.2 cm) spout height at outlet

• 9.00” (22.8 cm) spout reach (c-c)

• For 8.00” (20.3 cm) centers

• ADA Compliant

• 1.8 GPM (6.8 LPM) Max

Bridge Style Kitchen Faucet

1400-5403

Codes / Standards Compliance

Meets or exceeds the following at date of manufacture:

• ASME A112.18.1/CSA B125.1

• IAMPO/cUPC

• NSF/ANSI 61, SECTION 9

• NSF/ANSI 372

• IPC

• ADA & ICC/ANSI A117.1

• Energy Policy Act of 1992

• California Energy Commission

• All applicable US Federal and State material regulations

Colors / Finishes

• 10B: Oil Rubbed Bronze

• 15: Polished Nickel

• 15S: Satin Nickel - PVD

• 26: Polished Chrome

• Other: Refer to the Newport Brass catalog for additional color/finish options.

Specied Model

Model Description Colors | Finishes

1400-5403 Bridge Style Kitchen Faucet

Product Specication

The Bridge Style Kitchen Faucet shall be made of solid brass construction. Faucet shall incorporate a swivel spout assembly and feature bridge-style brass valve bodies with quarter-turn washerless ceramic disc valve cartridges. Faucet shall have a 1.8 gallons (6.8 liters) per minute maximum flow rate. Product shall be for 8.00” (20.3 cm) centers. Product shall incorporate a 11.21” (28.5 cm) spout height at outlet and a 9.00” (22.8 cm) spout reach (c-c). Faucet shall incorporate traditional lever handles. Bridge-Style Kitchen Faucet with Sidespray shall be Newport Brass Model 1400-5403/__ __ .

Add “Color / Finish” sufx to Model number, below.

10B 26 Other15

15S

Page 1 of 2 Spec_1400-5403_a_3.21 EN-4300F

Page 2

1400-5403

PRODUCT DIMENSIONS (Units are in inches)

East Square Bridge Style Kitchen Faucet

1400-5403

Page 2 of 2 Spec_1400-5403_a_3.21 EN-4300F
