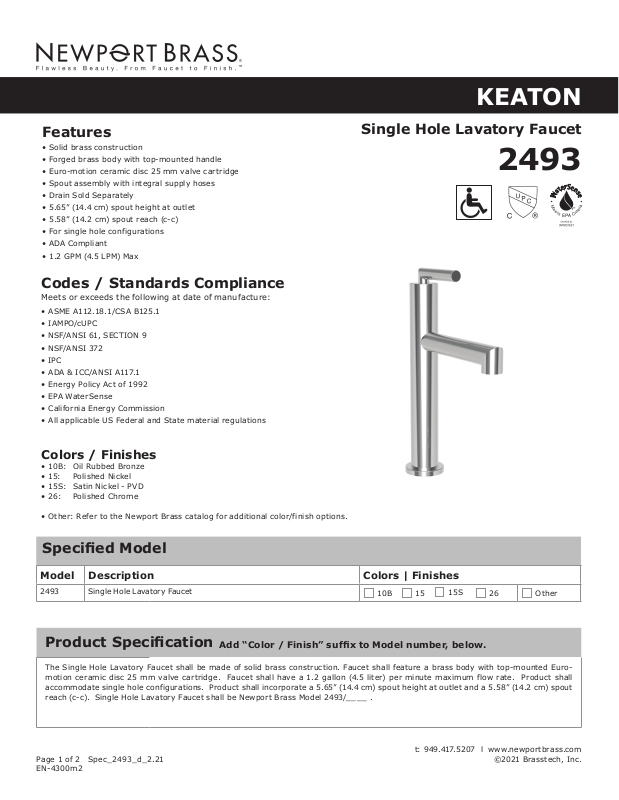

Page 1

KEATON

Features

• Solid brass construction

• Forged brass body with top-mounted handle

• Euro-motion ceramic disc 25 mm valve cartridge

• Spout assembly with integral supply hoses

• Drain Sold Separately

• 5.65” (14.4 cm) spout height at outlet

• 5.58” (14.2 cm) spout reach (c-c)

• For single hole configurations

• ADA Compliant

• 1.2 GPM (4.5 LPM) Max

Single Hole Lavatory Faucet

Codes / Standards Compliance

Meets or exceeds the following at date of manufacture:

• ASME A112.18.1/CSA B125.1

• IAMPO/cUPC

• NSF/ANSI 61, SECTION 9

• NSF/ANSI 372

• IPC

• ADA & ICC/ANSI A117.1

• Energy Policy Act of 1992

• EPA WaterSense

• California Energy Commission

• All applicable US Federal and State material regulations

Colors / Finishes

• 10B: Oil Rubbed Bronze

• 15: Polished Nickel

• 15S: Satin Nickel - PVD

• 26: Polished Chrome

2493

• Other: Refer to the Newport Brass catalog for additional color/finish options.

Specied Model

Model Description Colors | Finishes

2493 Single Hole Lavatory Faucet

Product Specication

The Single Hole Lavatory Faucet shall be made of solid brass construction. Faucet shall feature a brass body with top-mounted Euromotion ceramic disc 25 mm valve cartridge. Faucet shall have a 1.2 gallon (4.5 liter) per minute maximum flow rate. Product shall accommodate single hole configurations. Product shall incorporate a 5.65” (14.4 cm) spout height at outlet and a 5.58” (14.2 cm) spout reach (c-c). Single Hole Lavator y Faucet shall be Newport Brass Model 2493/__ __ .

Page 1 of 2 Spec_ 2493_d_2.21 EN-4300m2

Add “Color / Finish” sufx to Model number, below.

10B 26 Other15

15S

Page 2

2493

PRODUCT DIMENSIONS (Units are in inches)

Keaton Single Hole Lavatory Faucet

2493

Page 2 of 2 Spec_ 2473_d_ 2.21 EN-4300m22
