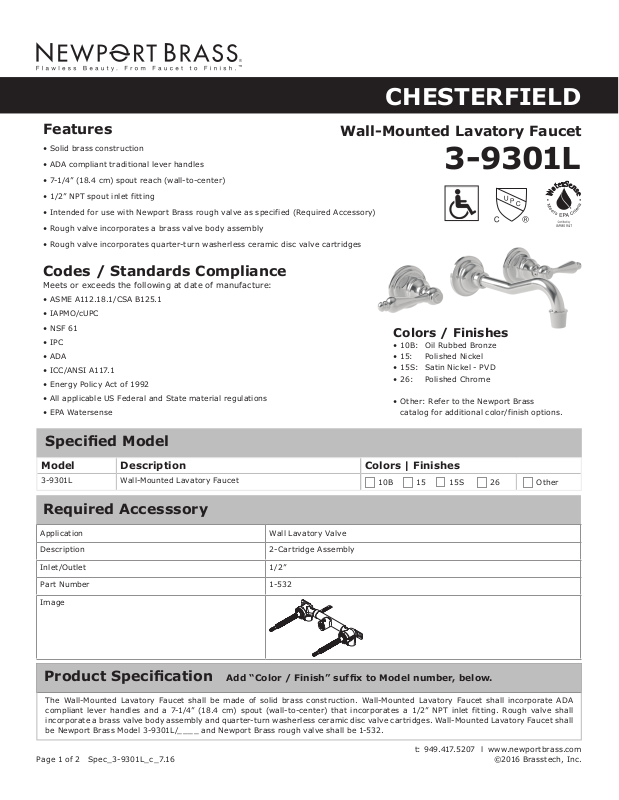

Page 1

CHESTERFIELD

920

ASTOR

Features

• Solid brass construction

• ADA compliant traditional lever handles

• 7-1/4” (18.4 cm) spout reach (wall-to-center)

• 1/2” NPT spout inlet fitting

• Intended for use with Newport Brass rough valve as specified (Required Accessory)

• Rough valve incorporates a brass valve body assembly

• Rough valve incorporates quarter-turn washerless ceramic disc valve cartridges

Wall-Mounted Lavatory Faucet

Codes / Standards Compliance

Meets or exceeds the following at date of manufacture:

• ASME A112.18.1/C SA B125.1

• IAP MO/cUP C

• NSF 61

• IPC

• ADA

• ICC/ANSI A117.1

• Energy Policy Act of 1992

• All applicable US Federal and State material regulations

• EPA Watersense

3-9301L

Colors / Finishes

• 10B: Oil Rubbed Bronze

• 15: Polished Nickel

• 15S: Satin Nickel - PVD

• 26: Polished Chrome

• Other: Refer to the Newport Brass catalog for additional color/finish options.

Specied Model

Model Description Colors | Finishes

3-9301L Wall-Mounted Lavatory Faucet

10B 26 Other15

15S

Required Accesssory

Application Wall Lavatory Valve

Description 2-Cartridge Assembly

Inlet/Outlet 1/2”

Part Number 1-532


Product Specication Add “Color / Finish” sufx to Model number, below.

The Wall-Mounted Lavatory Faucet shall be made of solid brass construction. Wall-Mounted Lavatory Faucet shall incorporate ADA compliant lever handles and a 7-1/4” (18.4 cm) spout (wall-to-center) that incorporates a 1/2” NP T inlet f itting. Rough valve shall incorporate a brass valve body assembly and quarter-turn washerless ceramic disc valve car tridges. Wall-Mounted Lavator y Faucet shall be Newpor t Brass Model 3-9301L/__ __ and Newport Brass rough valve shall be 1-532.

Page 1 of 2 Spec_ 3-9301L_c _7.16

Page 2

3-9301L

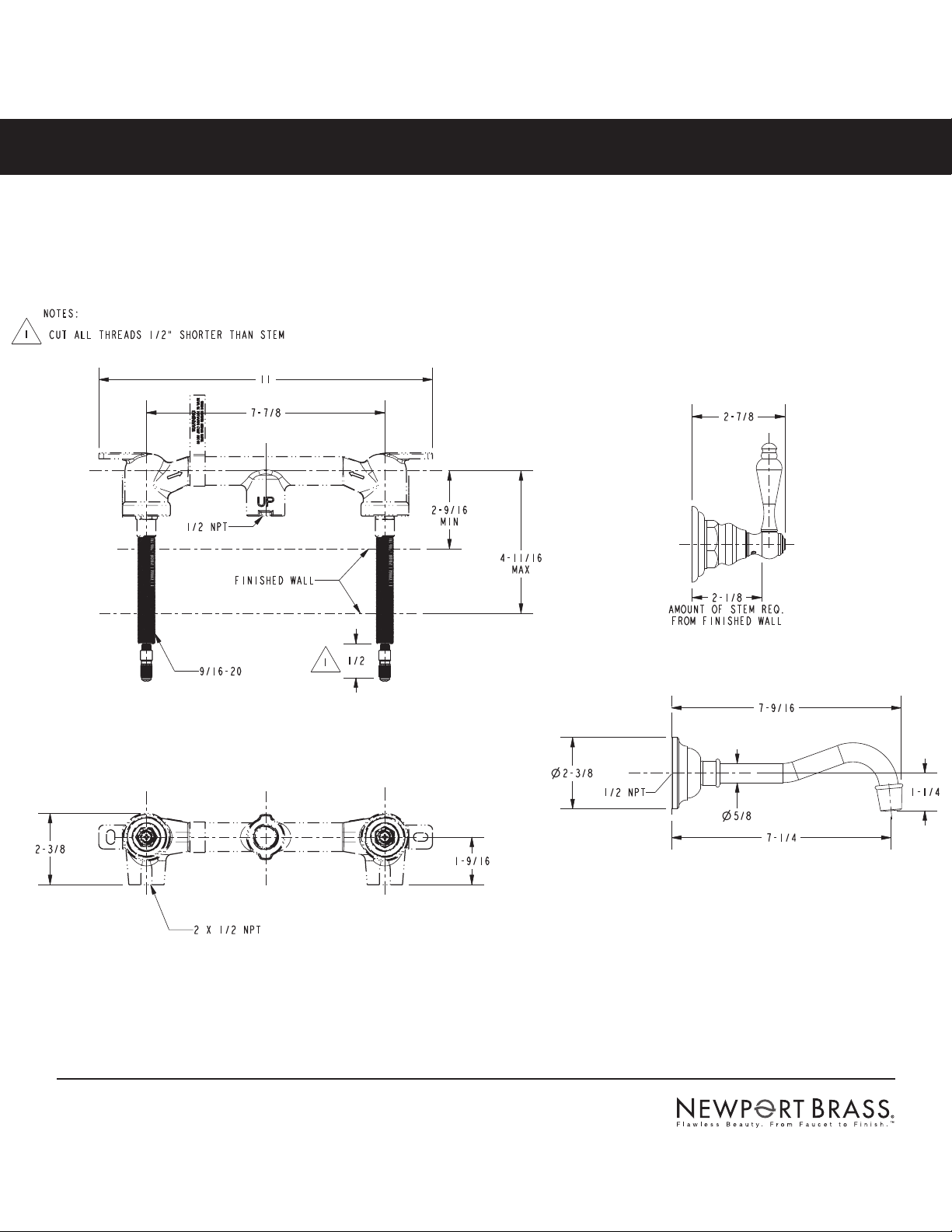

PRODUCT DIMENSIONS (Units are in inches)

Chestereld Wall-Mounted Lavatory Faucet

3-9301L

Page 2 of 2 Spec_ 3-9301L_c _7.16
