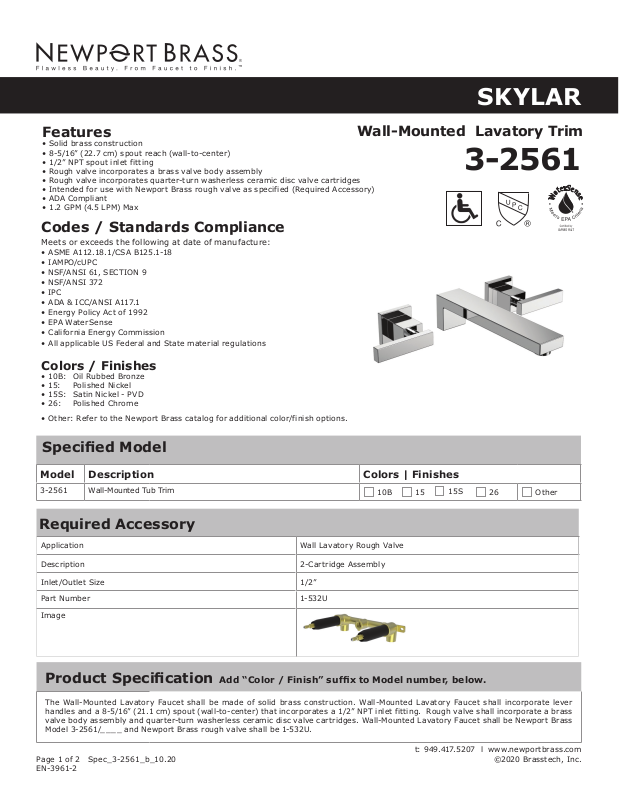

Page 1
t: 949.417.5207 l www.newportbrass.com
©2020 Brasstec h, Inc.
SKYLAR
920
ASTOR
Features
• Solid brass construction
• 8-5/16” (22.7 cm) spout reach (wall-to-center)
• 1/2” NPT spout inlet fitting
• Rough valve incorporates a brass valve body assembly
• Rough valve incorporates quarter-turn washerless ceramic disc valve cartridges
• Intended for use with Newport Brass rough valve as specified (Required Accessory)
• ADA Compliant
• 1.2 GPM (4.5 LPM) Max
Wall-Mounted Lavatory Trim
Codes / Standards Compliance
Meets or exceeds the following at date of manufacture:
• ASME A112.18.1/CSA B125.1-18
• IAMPO/cUPC
• NSF/ANSI 61, SECTION 9
• NSF/ANSI 372
• IPC
• ADA & ICC/ANSI A117.1
• Energy Policy Act of 1992
• EPA WaterSense
• California Energy Commission
• All applicable US Federal and State material regulations
Colors / Finishes
• 10B: Oil Rubbed Bronze
• 15: Polished Nickel
• 15S: Satin Nickel - PVD
• 26: Polished Chrome
• Other: Refer to the Newport Brass catalog for additional color/finish options.
3-2561
Specied Model
Model Description Colors | Finishes
3-2561 Wall-Mounted Tub Trim
10B 26 Other15
15S
Required Accessory
Application Wall Lavatory Rough Valve
Description 2-Cartridge Assembly
Inlet/Outlet Size 1/2”
Part Number 1-532 U
Product Specication
The Wall-Mounted Lavatory Faucet shall be made of solid brass construction. Wall-Mounted Lavatory Faucet shall incorporate lever
handles and a 8-5/16” (21.1 cm) spout (wall-to-center) that incorporates a 1/2” NPT inlet fitting. Rough valve shall incorporate a brass
valve body assembly and quar ter-turn washerless ceramic disc valve car tridges. Wall-Mounted Lavator y Faucet shall be Newport Brass
Model 3-2561/____ and Newport Brass rough valve shall be 1-532U.
Add “Color / Finish” sufx to Model number, below.
Page 1 of 2 Spec_ 3-2561_b_10.20
EN -39 61-2
Page 2
t: 949.417.5207 l www.newportbrass.com
©2020 Brasstec h, Inc.
3-2561

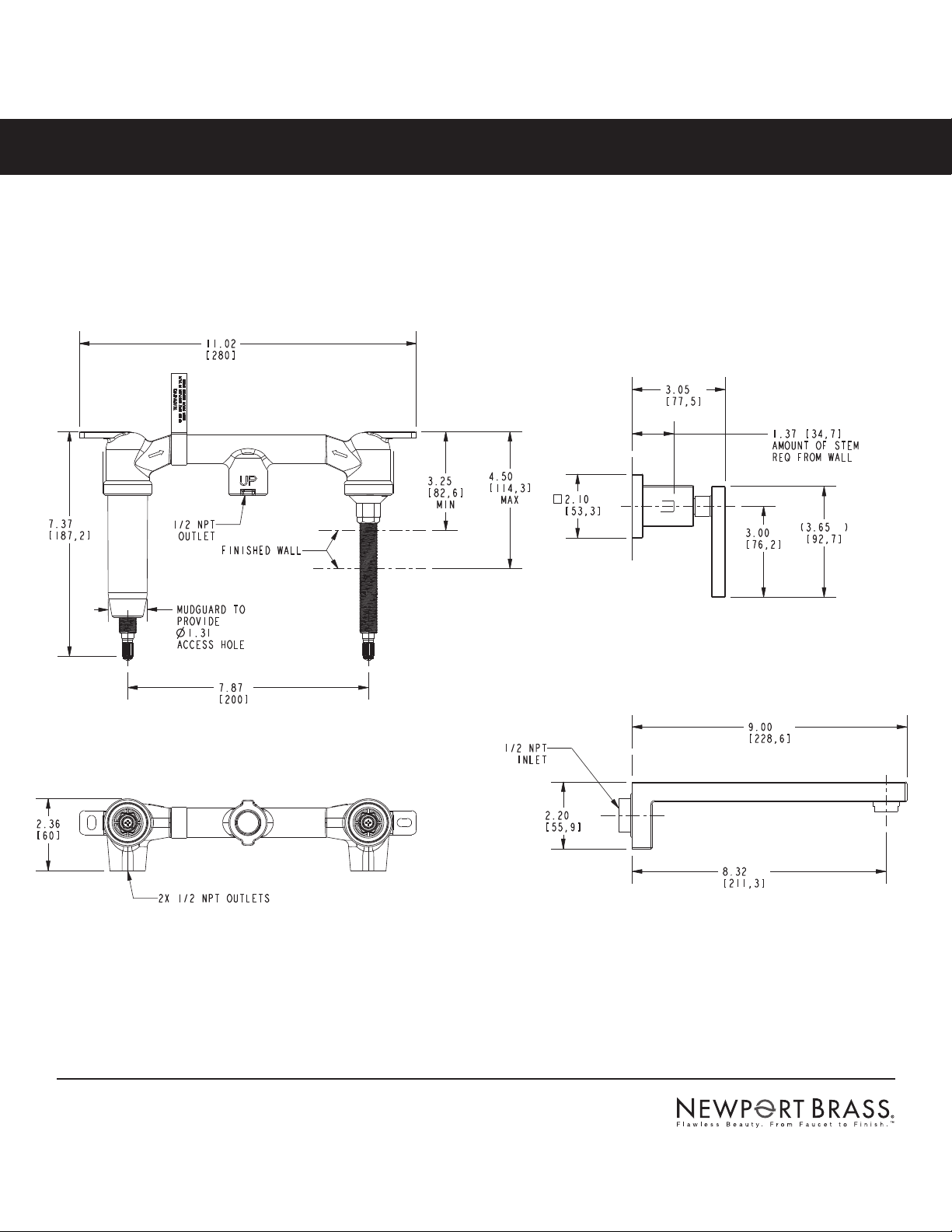

Product dimensions are provided for reference only. For specific product installation
guidelines, please reference the installation instructions of the product being installed.
Skylar Wall-Mounted Lavatory Trim
3-2561
Page 2 of 2 Spec_3-2561_b_10.20
EN-3961-2
