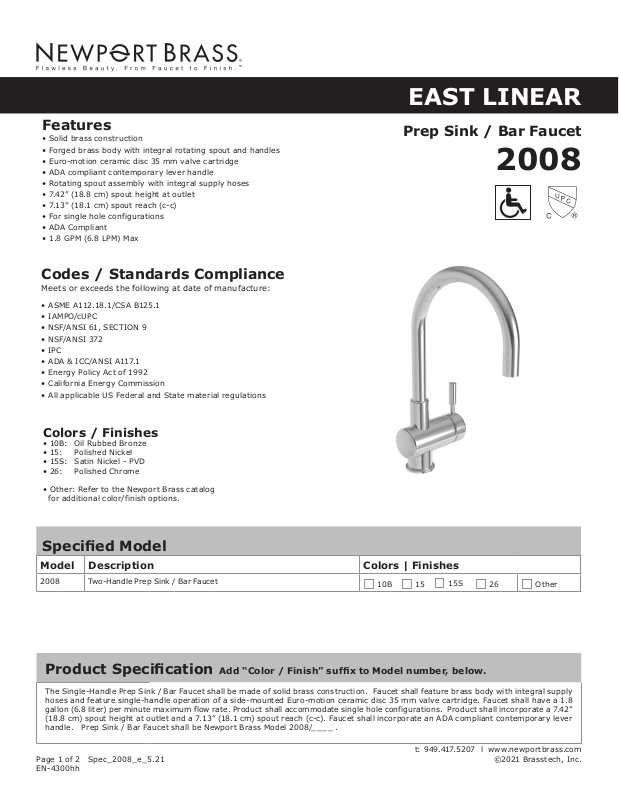

Page 1

EAST LINEAR

Features

• Solid brass construction

• Forged brass body with integral rotating spout and handles

• Euro-motion ceramic disc 35 mm valve car tridge

• ADA compliant contemporary lever handle

• Rotating spout assembly with integral supply hoses

• 7.42” (18.8 cm) spout height at outlet

• 7.13” (18.1 cm) spout reach (c-c)

• For single hole configurations

• ADA Compliant

• 1.8 GPM (6.8 LPM) Max

Codes / Standards Compliance

Meets or exceeds the following at date of manufacture:

• ASME A112.18.1/CSA B125.1

• IAMPO/cUPC

• NSF/ANSI 61, SECTION 9

• NSF/ANSI 372

• IPC

• ADA & ICC/ANSI A117.1

• Energy Policy Act of 1992

• California Energy Commission

• All applicable US Federal and State material regulations

Colors / Finishes

• 10B: Oil Rubbed Bronze

• 15: Polished Nickel

• 15S: Satin Nickel - PVD

• 26: Polished Chrome

Prep Sink / Bar Faucet

2008

• Other: Refer to the Newport Brass catalog for additional color/finish options.

Specied Model

Model Description Colors | Finishes

2008 Two-Handle Prep Sink / Bar Faucet

Product Specication

The Single-Handle Prep Sink / Bar Faucet shall be made of solid brass construction. Faucet shall feature brass body with integral supply hoses and feature single-handle operation of a side-mounted Euro-motion ceramic disc 35 mm valve cartridge. Faucet shall have a 1.8 gallon (6.8 liter) per minute maximum f low rate. Product shall accommodate single hole configurations. Product shall incorporate a 7.42” (18.8 cm) spout height at outlet and a 7.13” (18.1 cm) spout reach (c-c). Faucet shall incorporate an ADA compliant contemporar y lever handle. Prep Sink / Bar Faucet shall be Newport Brass Model 2008/____ .

Page 1 of 2 Spec_ 2008_e_5.21 EN-4300hh

Add “Color / Finish” sufx to Model number, below.

10B 26 Other15

15S

Page 2

2008

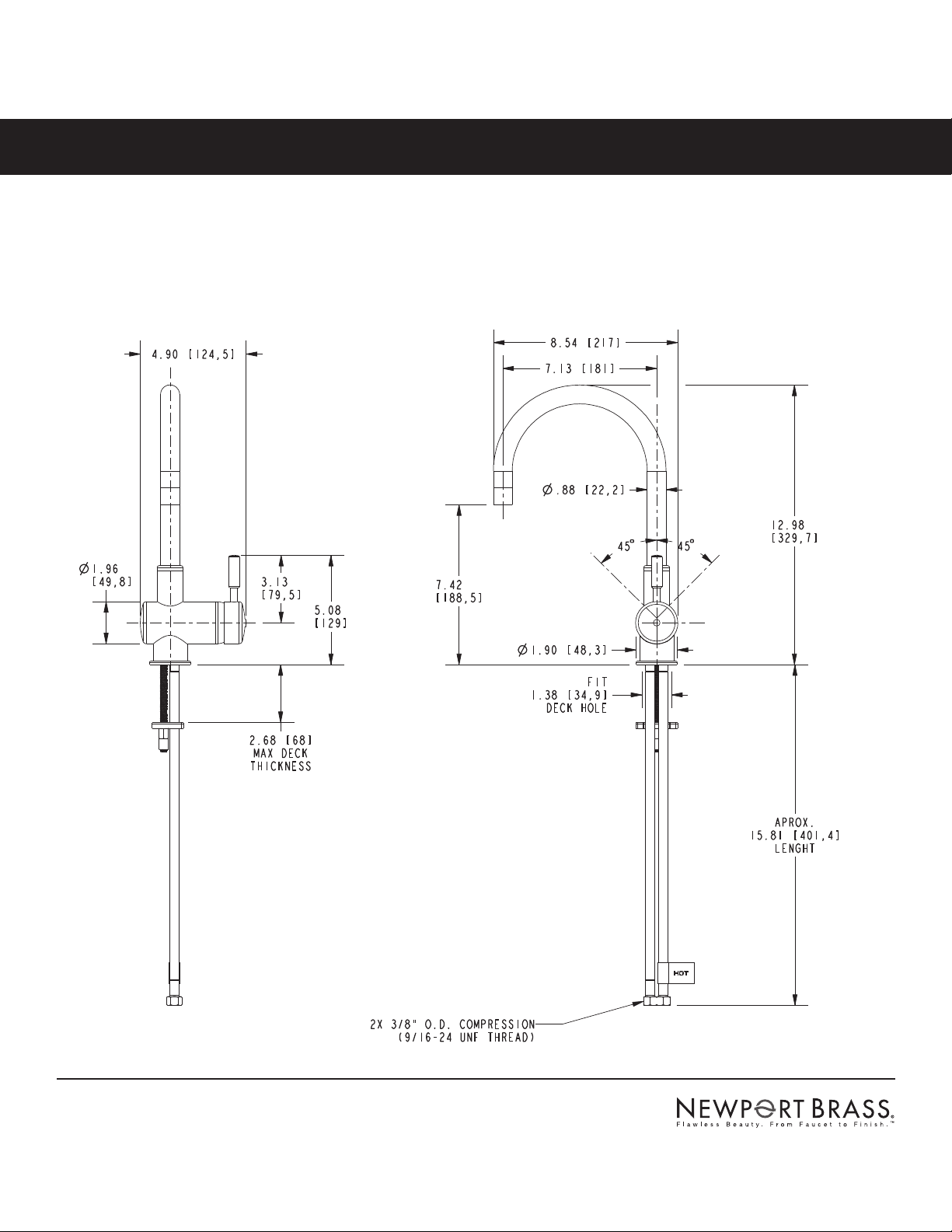

PRODUCT DIMENSIONS (Units are in inches)

East Linear Prep Sink / Bar Faucet

2008

Page 2 of 2 Spec_ 2008_e_5.21 EN-4300hh
