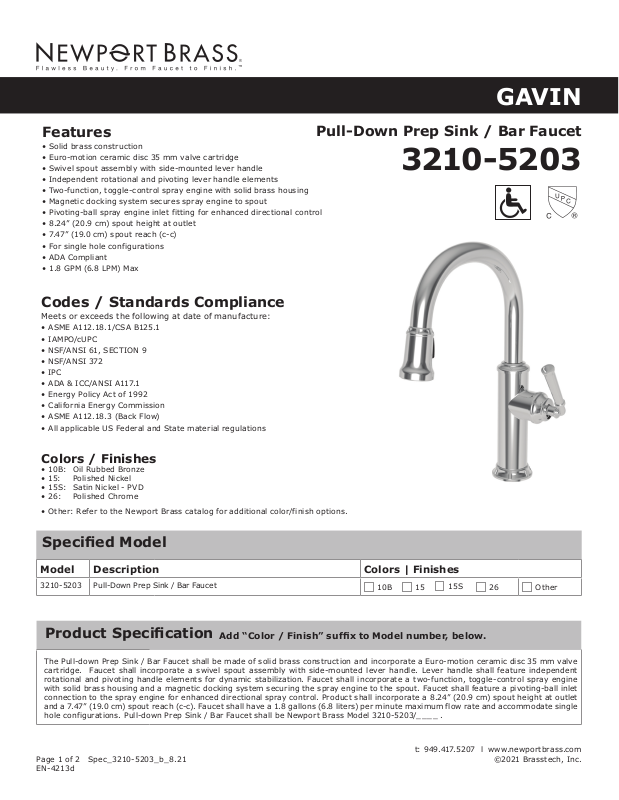

Page 1

GAVIN

Features

• Solid brass construction

• Euro-motion ceramic disc 35 mm valve car tridge

• Swivel spout assembly with side-mounted lever handle

• Independent rotational and pivoting lever handle elements

• Two-function, toggle-control spray engine with solid brass housing

• Magnetic docking system secures spray engine to spout

• Pivoting-ball spray engine inlet fitting for enhanced direc tional control

• 8.24” (20.9 cm) spout height at outlet

• 7.47” (19.0 cm) spout reach (c-c)

• For single hole configurations

• ADA Compliant

• 1.8 GPM (6.8 LPM) Max

Pull-Down Prep Sink / Bar Faucet

3210-5203

Codes / Standards Compliance

Meets or exceeds the following at date of manufacture:

• ASME A112.18.1/C SA B125.1

• IAMPO/cUPC

• NSF/ANSI 61, SECTION 9

• NSF/ANSI 372

• IPC

• ADA & ICC/ANSI A117.1

• Energy Policy Act of 1992

• California Energy Commission

• ASME A112.18.3 (Back Flow)

• All applicable US Federal and State material regulations

Colors / Finishes

• 10B: Oil Rubbed Bronze

• 15: Polished Nickel

• 15S: Satin Nickel - PVD

• 26: Polished Chrome

• Other: Refer to the Newport Brass catalog for additional color/finish options.

Specied Model

Model Description Colors | Finishes

3210-5203 Pull-Down Prep Sink / Bar Faucet

Product Specication

The Pull-down Prep Sink / Bar Faucet shall be made of solid brass construction and incorporate a Euro-motion ceramic disc 35 mm valve cartridge. Faucet shall incorporate a swivel spout assembly with side-mounted lever handle. Lever handle shall feature independent rotational and pivoting handle elements for dynamic stabilization. Faucet shall incorporate a two-function, toggle-control spray engine with solid brass housing and a magnetic docking system securing the spray engine to the spout. Faucet shall feature a pivoting-ball inlet connec tion to the spray engine for enhanced direc tional spray control. Product shall incorporate a 8.24” (20.9 cm) spout height at outlet and a 7.47” (19.0 cm) spout reach (c-c). Faucet shall have a 1.8 gallons (6.8 liters) per minute maximum flow rate and accommodate single hole configurations. Pull-down Prep Sink / Bar Faucet shall be Newport Brass Model 3210-5203/__ _ _ .

Page 1 of 2 Spec_ 3210-5203_b_8.21 EN-4213d

Add “Color / Finish” sufx to Model number, below.

10B 26 Other15

15S

Page 2

3210-5203

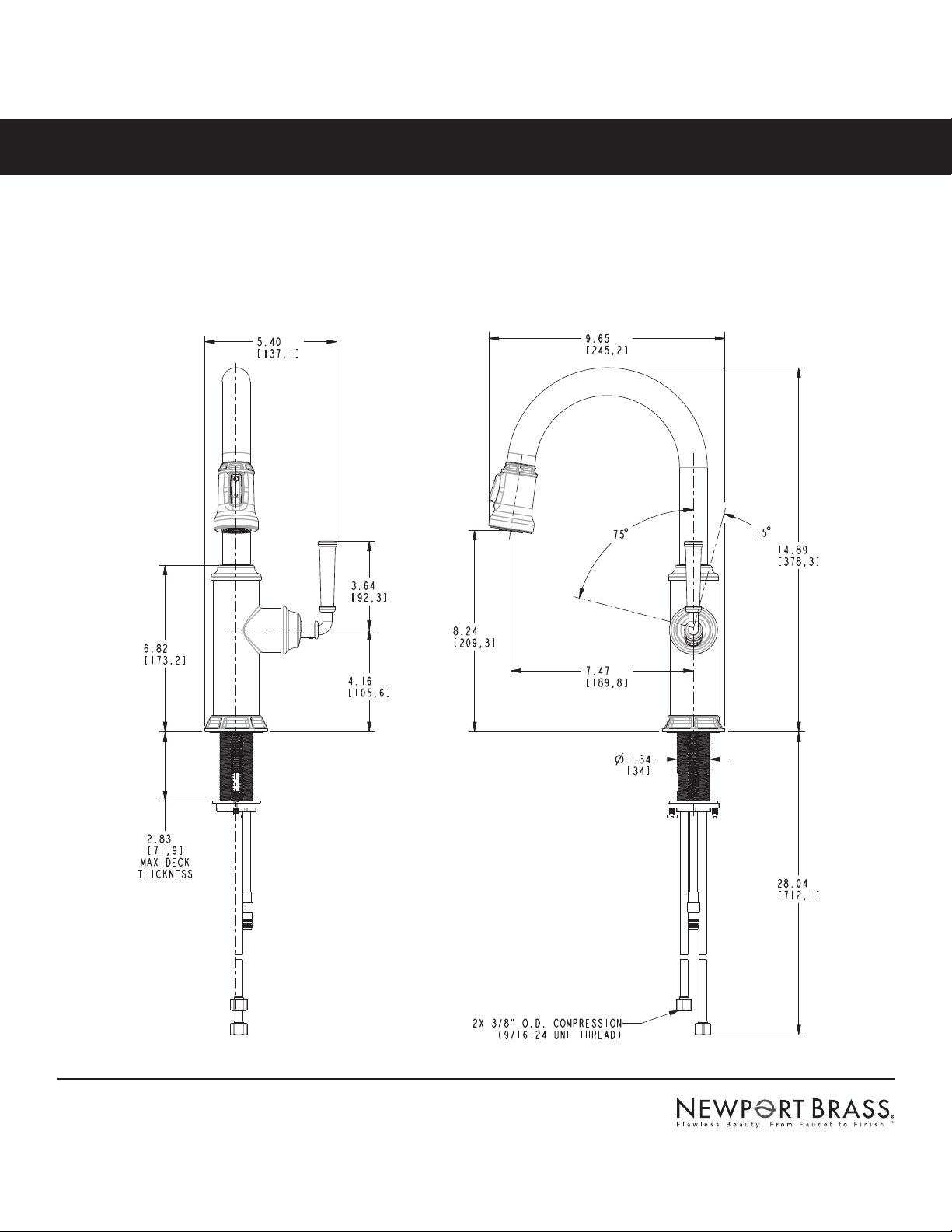

PRODUCT DIMENSIONS (Units are in inches)

Product Dimensions are provided for reference only. For specic product installation

guidelines, please reference the Installation Instructions of the product being installed.

Gavin Pull-Down Prep Sink / Bar Faucet

3210-5203

Page 2 of 2 Spec_ 3210-5203_b_8.21 EN-4213d
