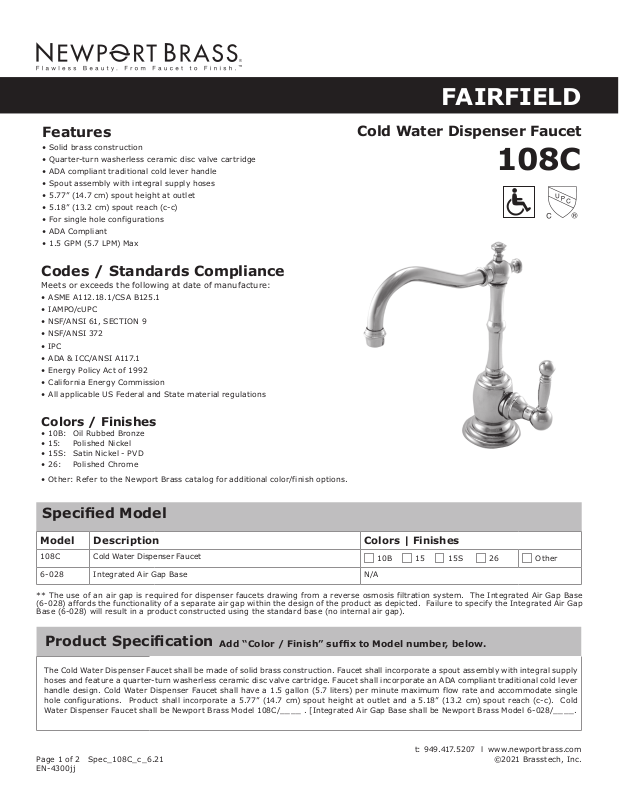

Page 1

FAIRFIELD

Features

• Solid brass construction

• Quarter-turn washerless ceramic disc valve cartridge

• ADA compliant traditional cold lever handle

• Spout assembly with integral supply hoses

• 5.77” (14.7 cm) spout height at outlet

• 5.18” (13.2 cm) spout reach (c-c)

• For single hole configurations

• ADA Compliant

• 1.5 GPM (5.7 LPM) Max

Codes / Standards Compliance

Meets or exceeds the following at date of manufacture:

• ASME A112.18.1/CSA B125.1

• IAMPO/cUPC

• NSF/ANSI 61, SECTION 9

• NSF/ANSI 372

• IPC

• ADA & ICC/ANSI A117.1

• Energy Policy Act of 1992

• California Energy Commission

• All applicable US Federal and State material regulations

Colors / Finishes

• 10B: Oil Rubbed Bronze

• 15: Polished Nickel

• 15S: Satin Nickel - PVD

• 26: Polished Chrome

• Other: Refer to the Newport Brass catalog for additional color/finish options.

Cold Water Dispenser Faucet

108C

Specied Model

Model Description Colors | Finishes

108C Cold Water Dispenser Faucet

6-028 Integrated Air Gap Base N/A

** The use of an air gap is required for dispenser faucets drawing from a reverse osmosis filtration system. The Integrated Air Gap Base (6-028) affords the functionality of a separate air gap within the design of the product as depic ted. Failure to specify the Integrated Air Gap Base (6-028) will result in a product constructed using the standard base (no internal air gap).

Product Specication

The Cold Water Dispenser Faucet shall be made of solid brass construction. Faucet shall incorporate a spout assembly with integral supply hoses and feature a quarter-turn washerless ceramic disc valve car tridge. Faucet shall incorporate an ADA compliant traditional cold lever handle design. Cold Water Dispenser Faucet shall have a 1.5 gallon (5.7 liters) per minute maximum flow rate and accommodate single hole configurations. Produc t shall incorporate a 5.77” (14.7 cm) spout height at outlet and a 5.18” (13.2 cm) spout reach (c-c). Cold Water Dispenser Faucet shall be Newpor t Brass Model 108C/__ _ _ . [Integrated Air Gap Base shall be Newport Brass Model 6-028/__ __.

Page 1 of 2 Spec_108C _c _6.21 EN-4300jj

Add “Color / Finish” sufx to Model number, below.

10B 26 Other15

15S

Page 2

108C

PRODUCT DIMENSIONS (Units are in inches)

Product Dimensions are provided for reference only. For specic product installation

guidelines, please reference the Installation Instructions of the product being installed.

Faireld Hot Water Dispenser

108C

Page 2 of 2 Spec_108C _c _6.21 EN-4300jj
