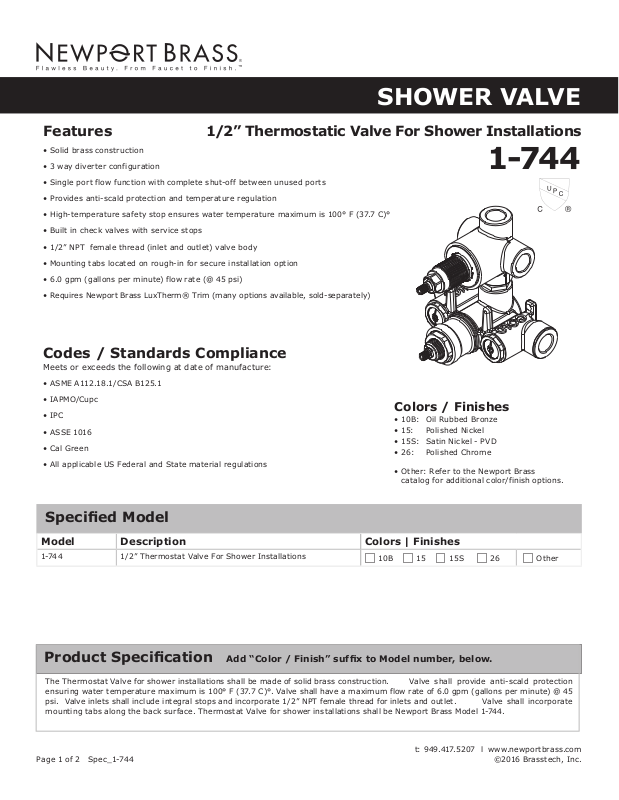

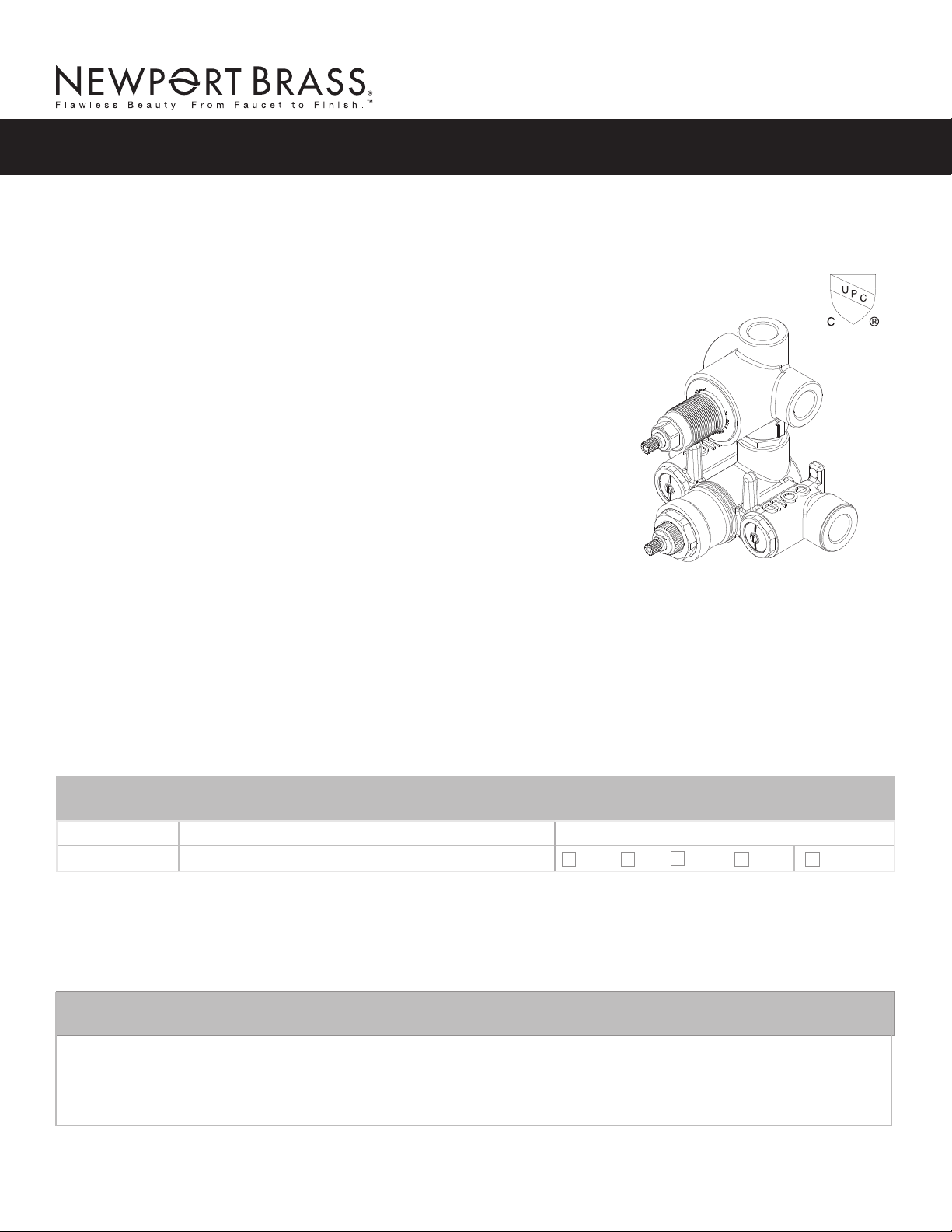

SHOWER VALVE

Features

• Solid brass construction

• 3 way diverter conf iguration

• Single por t flow function with complete shut-off between unused ports

• Provides anti-scald protection and temperature regulation

• High-temperature safety stop ensures water temperature maximum is 100° F (37.7 C)°

• Built in check valves with service stops

• 1/2” NPT female thread (inlet and outlet) valve body

• Mounting tabs located on rough-in for secure installation option

• 6.0 gpm (gallons per minute) flow rate (@ 45 psi)

•

Requires Newport Brass LuxTherm® Trim (many options available, sold-separately)

1/2” Thermostatic Valve For Shower Installations

Codes / Standards Compliance

Meets or exceeds the following at date of manufacture:

• ASME A112.18.1/CSA B125.1

• IAPMO/Cupc

• IPC

• ASSE 1016

• Cal Green

• All applicable US Federal and State material regulations

1-744

Colors / Finishes

• 10B: Oil Rubbed Bronze

• 15: Polished Nickel

• 15S: Satin Nickel - PVD

• 26: Polished Chrome

• Other: Refer to the Newport Brass catalog for additional color/finish options.

Specied Model

Model Description Colors | Finishes

1-74 4 1/2” Thermostat Valve For Shower Installations

10B 26 Other15

15S

Product Specication Add “Color / Finish” sufx to Model number, below.

The Thermostat Valve for shower installations shall be made of solid brass construc tion. Valve shall provide anti-scald protection ensuring water temperature maximum is 100° F (37.7 C)°. Valve shall have a maximum flow rate of 6.0 gpm (gallons per minute) @ 45 psi. Valve inlet s shall include integral stops and incorporate 1/2” NPT female thread for inlets and outlet. Valve shall incorporate mounting tabs along the back surface. Thermostat Valve for shower installations shall be Newport Brass Model 1-744.

Page 1 of 2 Spec_1-744

Page 2

1-744

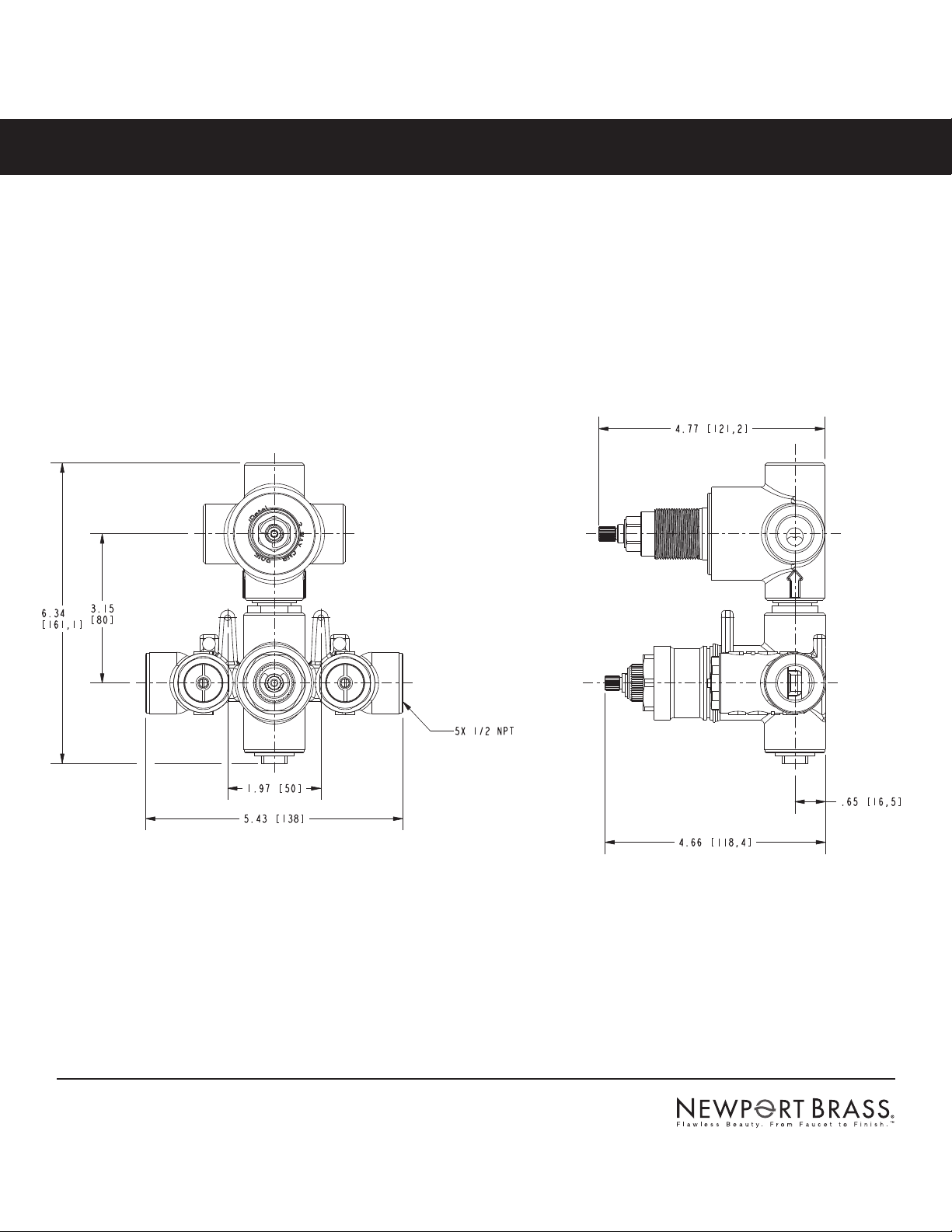

PRODUCT DIMENSIONS (Units are in inches)

Shower Valve

1-744

Page 2 of 2 Spec_1-744
