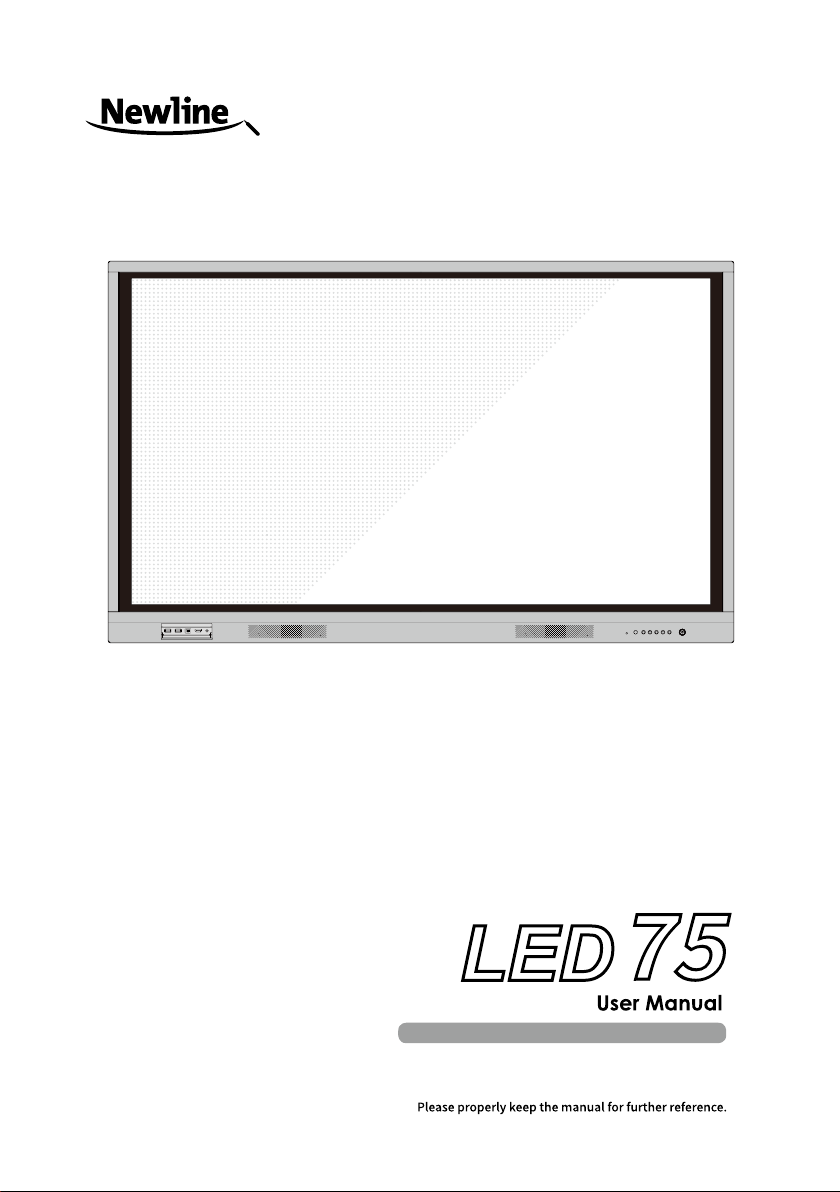

NewLine LED 75 User Manual

Collaboration Touch Screen and Interactive Dispaly
Welcome:
Thanks for purchasing this product. Please read the instructions carefully before using this
product.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
● Consult the dealer or an experienced radio/TV technician for help.
responsible for compliance could void the user’s authority to operate the equipment.
The symbol of the crossed out wheeled bin indicates this product should
not be placed in municipal waste. Instead, dispose of waste equipment
by taking it to a designated collection point for electrical and electronic
equipment recycling.
Contents
About This Document
Safety Instruction
Parts and Functions
Parts Ports Buttons Remote Controller
Installation Guide
Safety Precautions Installation Precautions Installation Installing the Internal PC (Optional)
Turning On/Off
Power On Power Off Calibration
Menu
Select Signal Source
Picture Setting
Sound Setting Option Setting Audio Only Function
Multi-Media
Multi-media File Type
Select USB Flash Enter USB Flash
ECO Mode
Serial Port Control
Specications of PC Mode (VGA Input)
Formats Supported by Multi-media
FAQ & Troubleshooting
Maintenance Tips
Clean the Infrared Tube
Technical Parameters
More Information
01
02
05
06 08
11 11
14
14 15
17 18
19
19 20 20
23
23 23
24 24 25
26
26 26
27
28
29
31
32
33
35
36
37
38
About This Document
This document describes multiple functions, instructions, and notes about the product.
Symbols are used in this document to indicate operations that need particular attention. The
symbols are dened as follows:
NOTE
TIP
CAUTION
WARNING
Provides additional information to supplement operation in the main
text.
Provides tips for operation.
Indicates a potentially hazardous situation that, if not avoided, could
result in equipment damage, data loss, performance deterioration, or
unanticipated results.
Indicates a hazard with risk that, if not avoided, could result in death or
injury.
1

Safety Instruction

For your safety, please read the following instruction before you use the product. Serious injury
or property damage may be caused by improper operations. Do not try to repair the product on
your own.

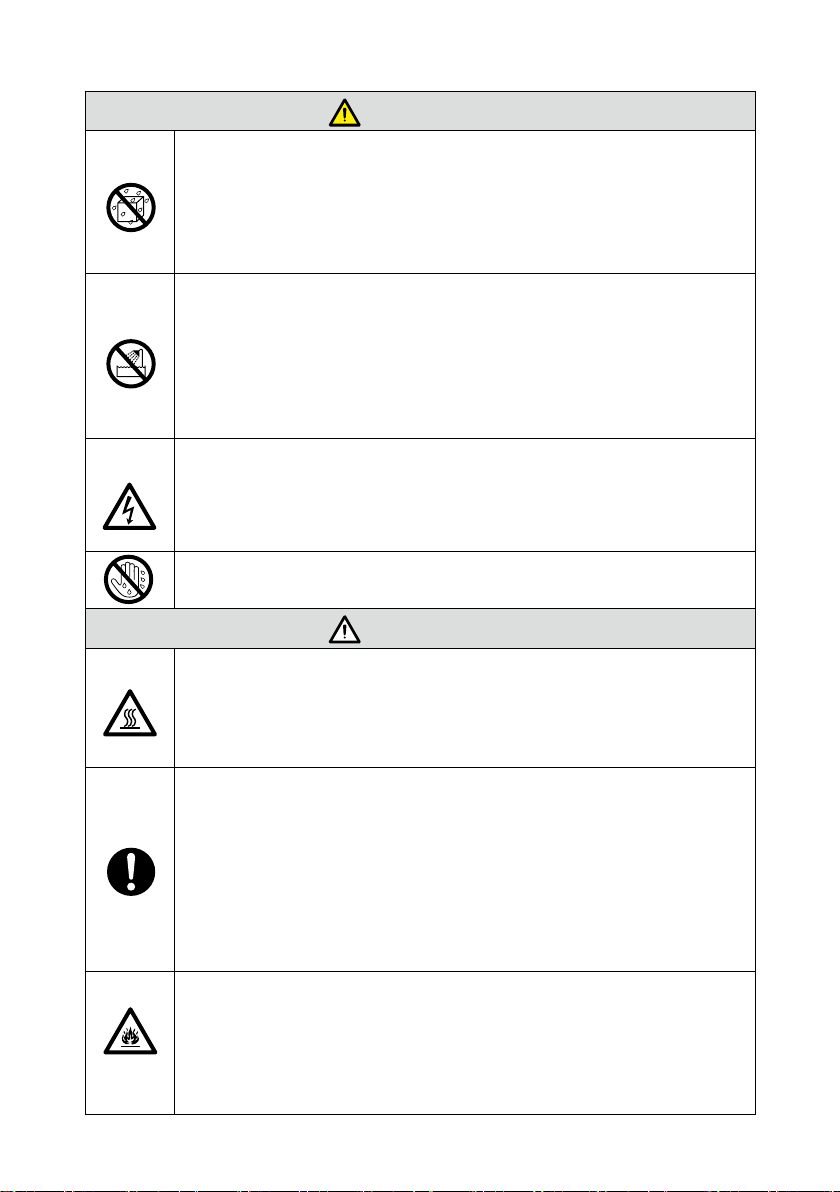

WARNING
Disconnect the product from the power supply immediately if major
failures occur.
Major failures include the following:
Smoke, peculiar smell or abnormal sound is discharged from the product.
No image or sound is displayed, or the image error occurs.
Where the mains plug or an appliance coupler is used as the disconnect
device the disconnect device shall remain readily operable. In the preceding scenarios, do not continue to use the product. Disconnect power supply immediately and contact professional staff for troubleshooting.
Do not drop any liquids, metal, or anything combustible onto the product.
If any liquids or metal are dropped onto or into the product, power off the product
and disconnect the power supply. Then contact professional staff for solutions.
Pay attention to children when they are close to the product.
Put the product on a stable surface.
An unstable surface includes, and is not limited to, an inclined plane, a shaky stand, desk or platform, that might cause the product to turnover and be damaged.
Do not open the panel or change the product on your own.
High voltage components are installed in the product. When you open the panel, high voltage, electric shock, or other dangerous situations may occur. If inspection, adjustment, or maintenance is required, contact the local distributor for help.
Use the specied power supply.
To prevent the product from being damaged, do not use any types of power cables
other than the one provided with the product.
Use a three-wire socket and ensure that it is properly grounded.
Pull out the power plug from the socket if the product is not used for a long period.
Clean the dust and metal on the power plug regularly.
Fire or electric shock may be caused if the product is powered on while you
are cleaning.
Pull out the power plug before cleaning it with a dried cloth.
2
WARNING
Do not put items on the top of the product.
Do not put items, such as a container for liquid (a vase, owerpot, cosmetics
or liquid medicine) on the top of the product.
If any water or liquid is spilled on the product, the product may short circuit
and cause re or electric shock.
Do not walk on or hang any items on the product.
Do not install the product in an improper place.
Do not install the product in humid places, such as the bathroom, the shower
room, near windows, or outdoor environments that experience rain, snow or
other harsh weather. Avoid installation near hot spring vapor. The preceding
environments may cause faults in the product or electric shock under extreme
conditions.
Do not put an exposed re source, such as a lit candle, on the product.
Pull out the power supply during thunderstorms.
Do not touch the product during a lighting storm to avoid electric shock.
Install or place components that supply high enough voltage to cause personal
injury out of the reach of children.
Do not touch the power cable with wet hands.
CAUTION
Do not install the product in high temperature environments.
Do not install the product near a heat source, such as a radiator, a heat
reservoir, a stove or other heating products.
Do not expose the product to direct sunlight, which may cause high
temperatures and subsequent faults in the product.
For transport:
Pack the product for transport or maintenance by using the cartons and
cushioning material provided with the product.
Vertically move the product during transport. The screen or other components
are easily broken if the product is moved by an improper way.
Before you move the product, disconnect all external connections and separate
all toppling preventing products. Move the product carefully to prevent it from
being hit or squeezed, especially the screen, which may cause injury if broken.
Do not cover or block up any vents on the product.
Any overheated components may cause re, damage the product, and shorten
the service life.
Do not lay the product down in a way where the venting surface will be covered.
Do not install the product on carpet or cloth.
Do not use a cloth such as table cloth to cover the product.
3
CAUTION
Keep the product away from the radio.
The product complies with the international EMI standard to prevent radio interference. However, interference may still exists and causes noise in the radio. If noise occurs in the radio, try the following solutions.
Adjust the direction of the radio antenna to avoid the interference from the product.
Keep the radio away from the product.
Use the battery correctly.
Galvanic corrosion, electric leakage, and even re may be caused by improper
battery usage.
It is recommended to use the designated type of battery and install the battery by
the correct electrodes (positive and negative).
Do not install and use a new battery with a used one.
Take out the battery if the remote control is not used for a long period.
Do not expose the battery to overheated environments, such as sunlight or heat
sources.
Dispose of the used battery based on your local regulations.
Do not damage the power cable.
Do not damage, change, twist, bend, or forcibly drag the power cable.
Do not put weights (such as the product itself) on the power cable.
Do not forcibly drag the cable when you pull out the power plug. If the power
cable is damaged, please contact the local distributor to repair or replace it.
The power cable in the accessory box is for this product only. Do not use it on
other products.
Additional advice:
U
se the product in an environment with comfortable lighting. It is harmful to your
eyes
to watch in a too bright or too dark environment.
Relax your eyes watching for a period of time.
Keep sufcient distance from the product to protect your eyes and prevent
eyestrain.
Adjust the volume to an appropriate level, especially at night.
Use amplier equipment as the audio input source with caution. If you must use amplier
equipment,
Otherwise, the speaker can become overpowered and damaged.
the input power should not exceed the maximum of speaker power.
4
Parts and Functions
Thank you for choosing interactive touch screen. As our latest independently developed and produced human-machine interactive products, Under no signal, if there is no operation, the interactive touch screen will automatically shut down. The interactive touch screen are multi-functional teaching displays for interactive teaching, digital demonstration, multi-media presentation and touch operations. They are well designed and produced to meet needs of education applications, and provide a user-friendly experience, digital intelligent control as ideal apparatus for modern education.
Features:
Specially designed for teaching systems.
Adopt advanced infrared array scanning and sensing technology, HID driver-free,
meaning the product is activated soon after it is powered on.
Multi-signal sources can be switched by touching the screen.
A special button is set to adjust the brightness with no impact on watching and save
up to 50% energy.
Support front-facing high-power ampliers.
When the screen display function is disabled, the product can still play audio to save
energy.
High brightness and contrast display to ensure clear display under straight light or in
outdoor environment.
If there is no signal and no operation is performed, the interactive touch screen will
automatically shut down.
5

Parts

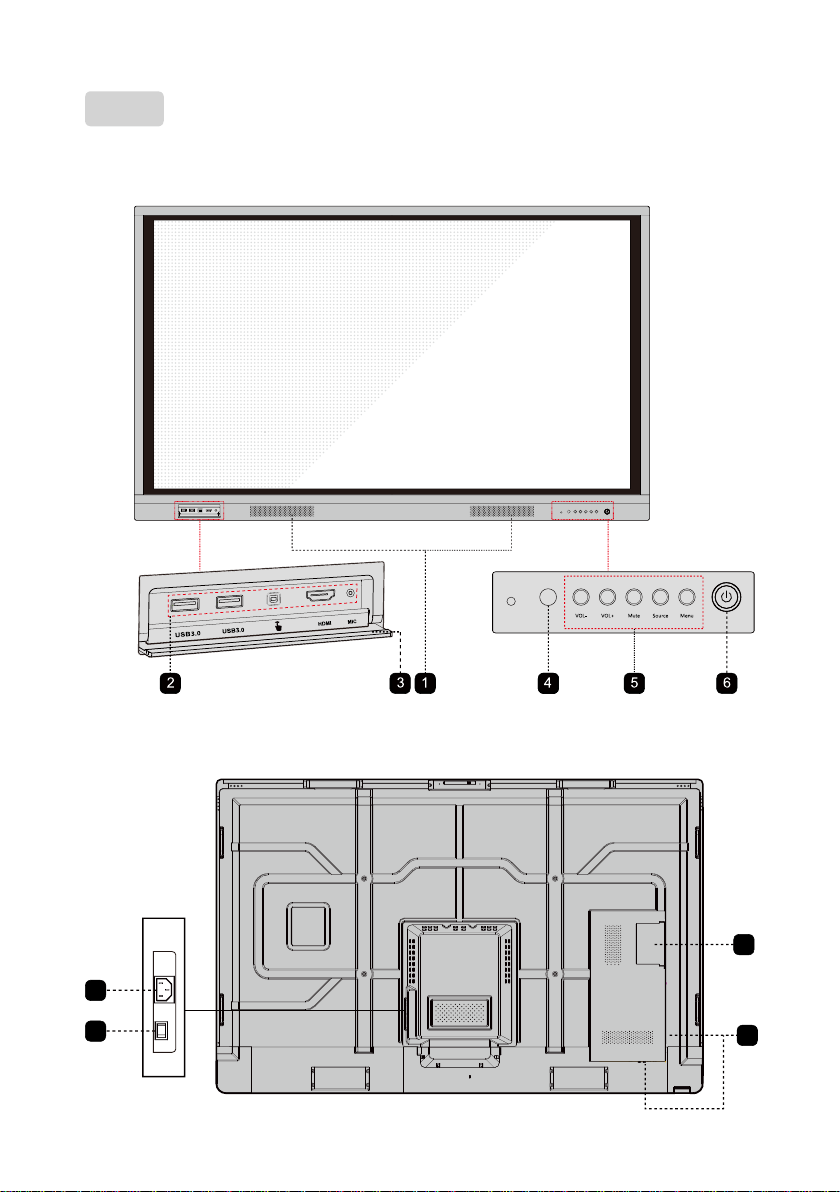

Front View
7
8
3
Rear View
3
6
6
9
10
Speakers Power On/Off
1

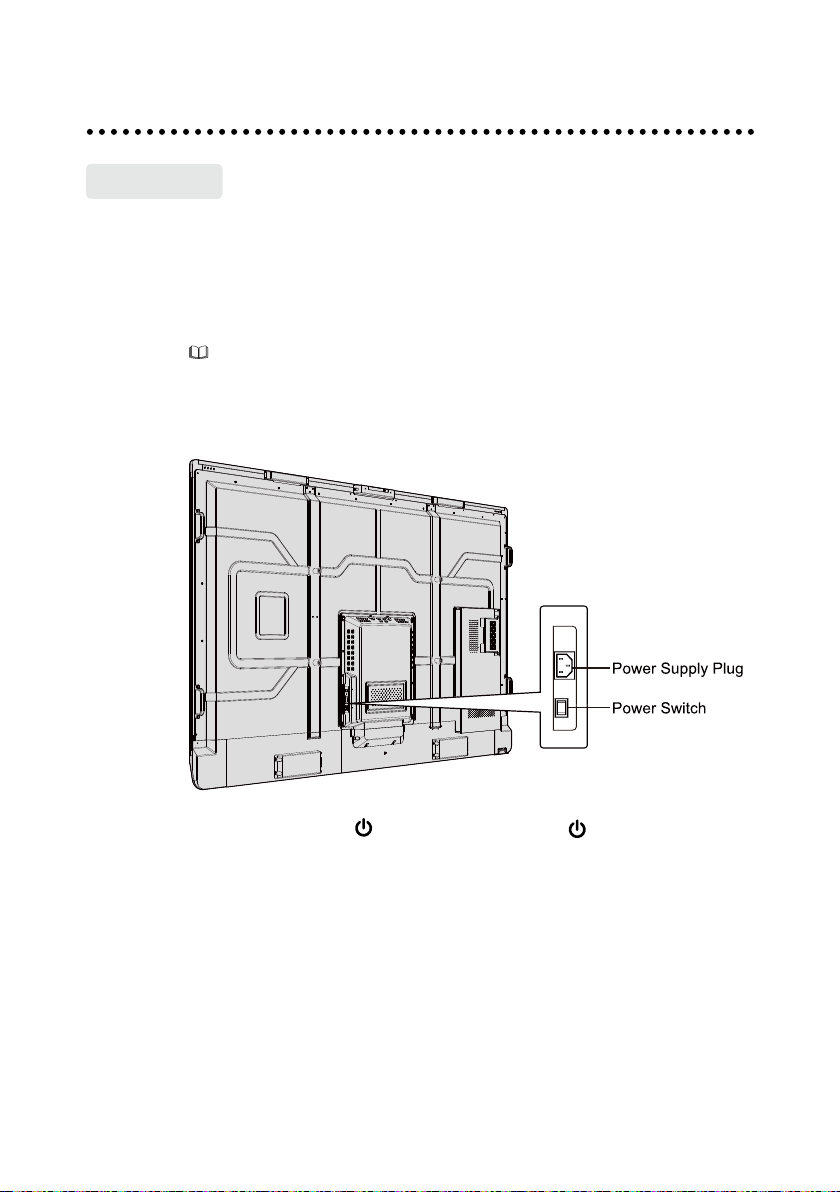

Front Ports Power Supply Plug
2
Front Ports Cover Power Switch
3
Remote control receiver Internal PC Port (OPS)
4
Front Buttons Rear Ports
5
6
7
8
9
10
7

Ports

CAUTION
Front USB ports and rear USB 3.0/USB 2.0 ports switch connections based on signal sources.
If the current signal source is reading the data from an external product connecting to the port,
please switch the signal source after the data reading is complete. Otherwise, the data or
product may be damaged.

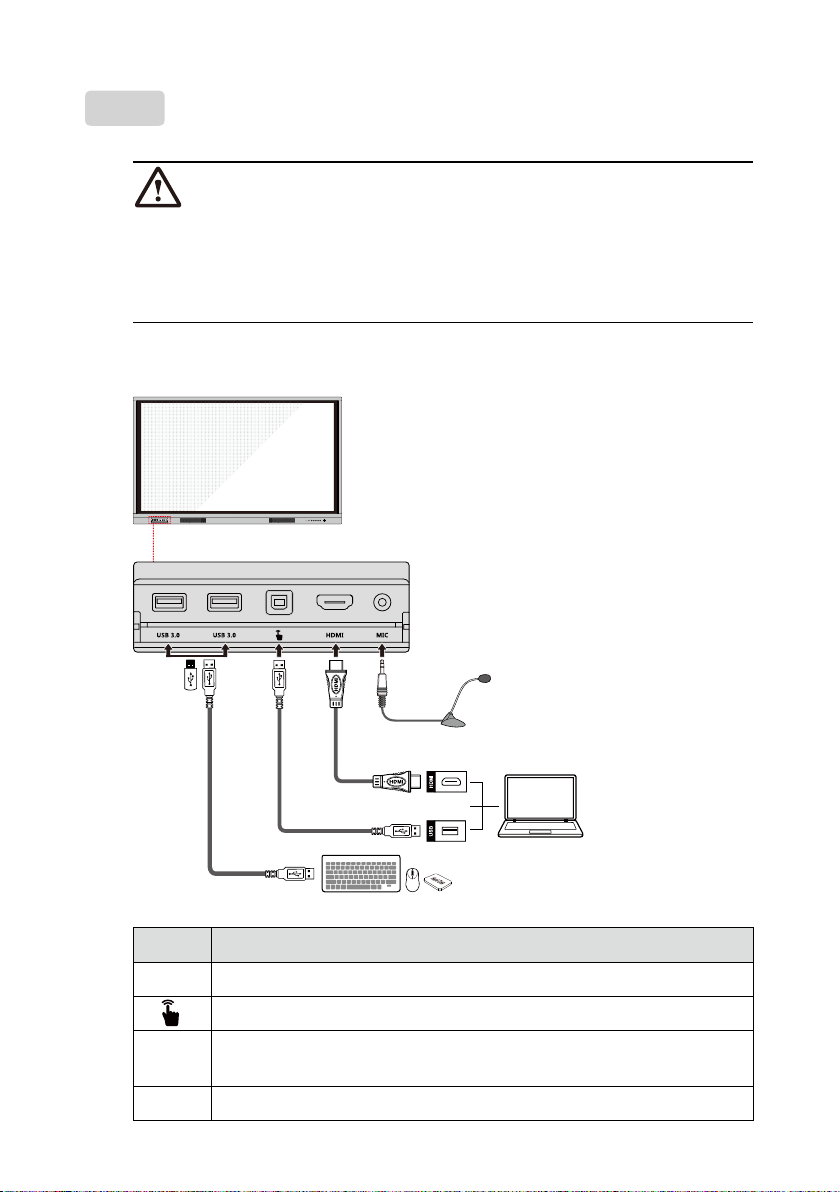

Front Ports
Name Function Description
USB 3.0
HDMI
External USB port.
The port for touch control signal.
The input port for high denition signal, which is used with the “TOUCH” to
operate a PC in the way of touch control.
MIC
The port used to connect to the speaker or ear phone.
8

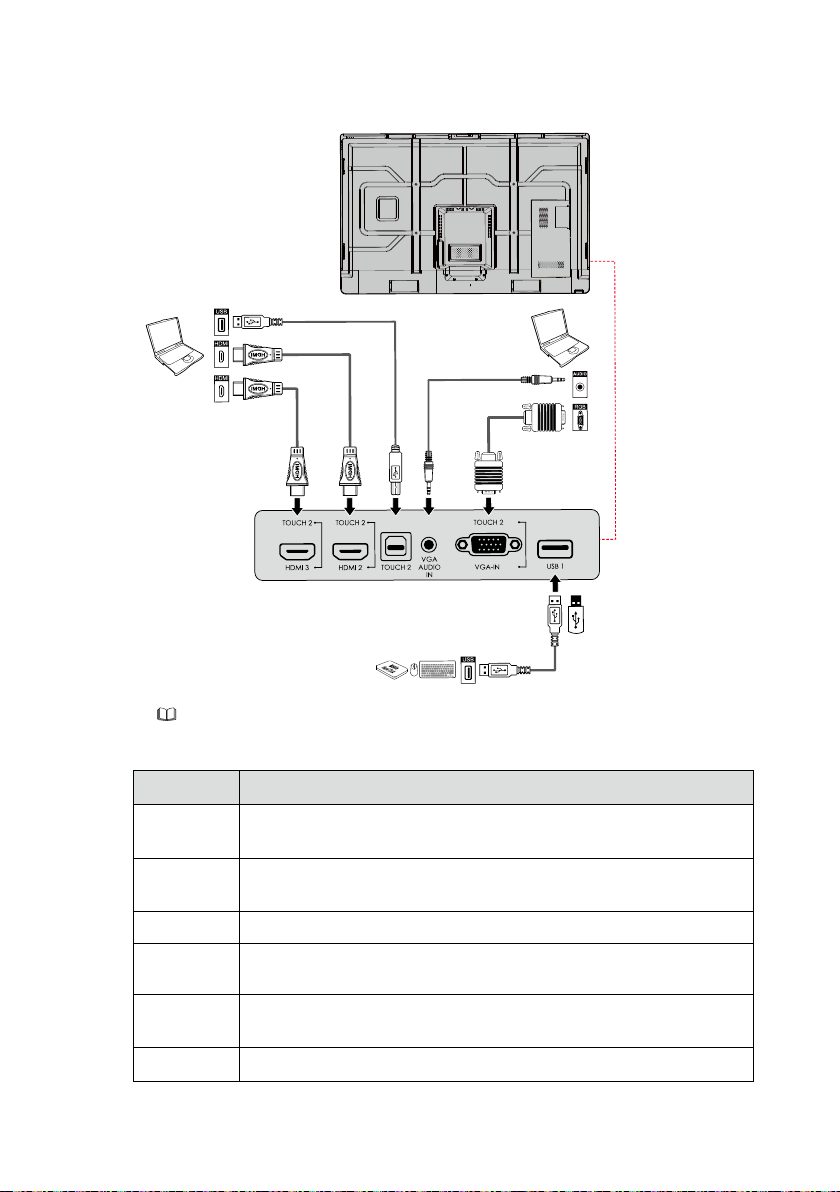

Rear Ports
Note
Touch Port 2 corresponds to VGA-IN, HDMI 2 and HDMI 3.
Name Function Description
HDMI 3
HDMI 2
TOUCH 2 The port for touch control signal.
VGA AUDIO
IN
VGA-IN
USB 1 External multimedia USB port.
The input port 3 for high definition signal, which is used with the
“TOUCH 2” to operate PC in the way of touch control.
The input port 2 for high definition signal, which is used with the
“TOUCH 2” to operate a PC in the way of touch control.
The “VGA AUDIO IN” is used with the VGA port for an external PC.
The VGA port for an external PC, which is used with the “TOUCH 2” to
operate the PC in the way of touch control.
9
AV OUT
In
AV

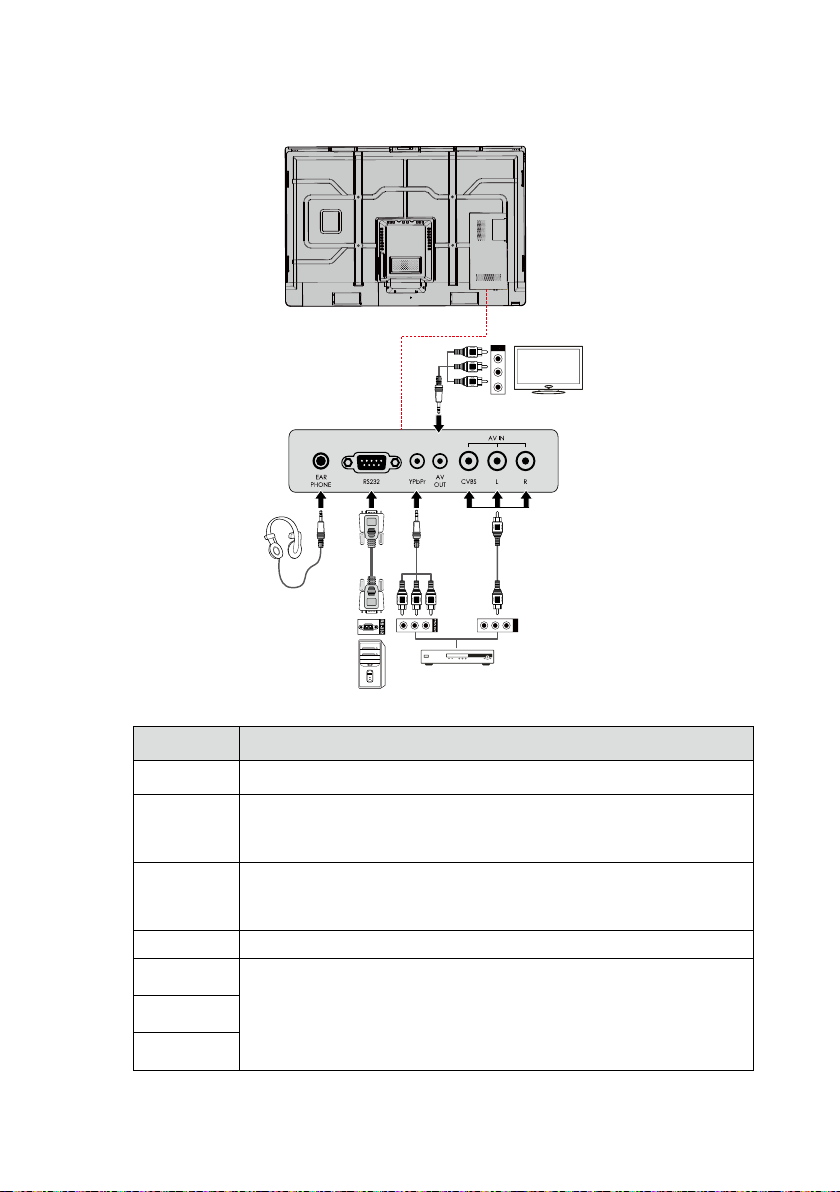

Rear Port Panel 2
Name Function Description
EAR PHONE
The port used to connect to the speaker or ear phone.
The input port for series signals, which is used by specific control
RS232
device of serial port to input serial port protocol in order to control the panel.
The component video port, which is used to connect to video devices
YPbPr
such as the HD digital signal STB, the satellite receiver, DVD players and other HD displayers or TV equipment.
AV OUT
CVBS
Audio and video output port.
An array of audio and video input ports, which are used to input audio and video signal.
L
CVBS: Video input port.
L: Left audio input port.
R
R: Right audio input port.
10

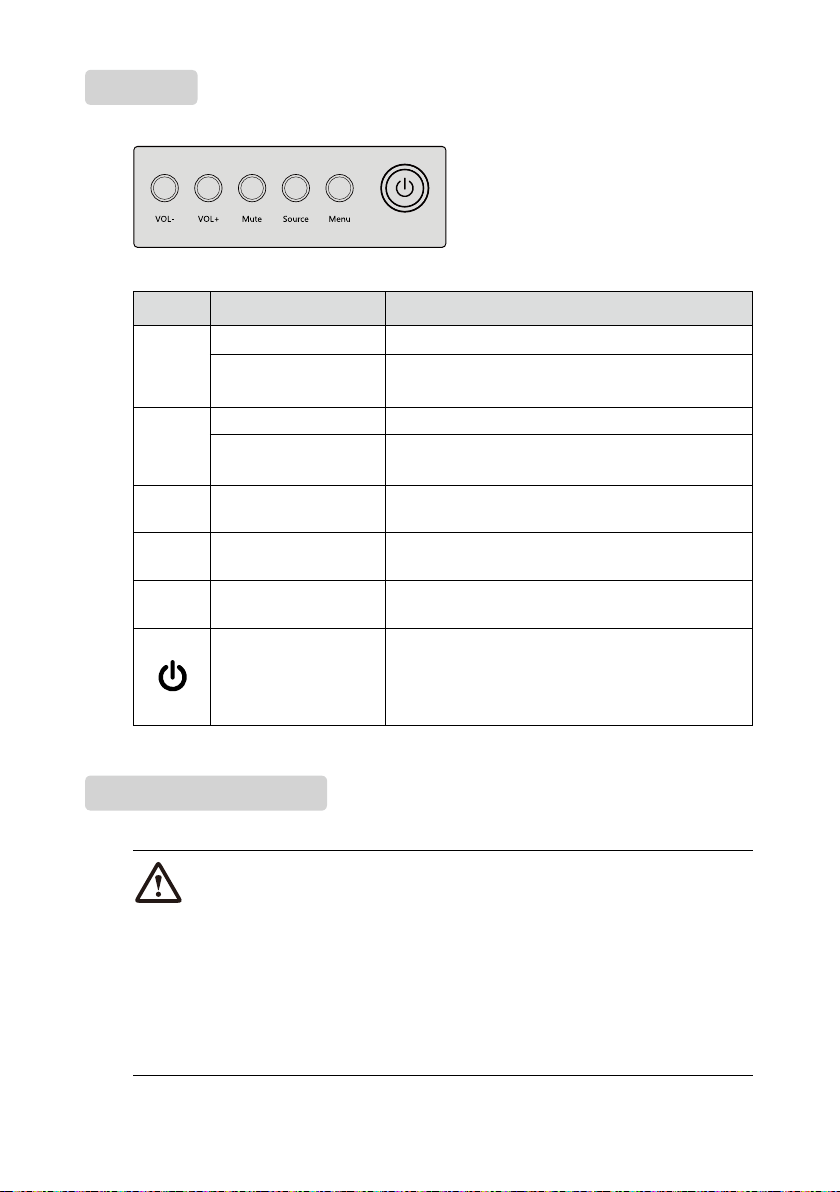

Buttons
Buttons Operations Functions
Short press Decrease the sound volume
Vol-
Long press for more
than 1 second
Short press Increase the sound volume
Vol+
Long press for more
than 1 second
Mute Short press Mute/Unmute
Source Short press Go to the Source page
Menu Short press Open the menu
Short press
Decrease the sound volume continuously
Increase the sound volume continuously
Power on/off
Steady on red: Powered on, not booted
Steady on white: working state
Remote Controller
WARNING
To avoid probable faults, please read the following instructions and use the remote controller
properly.
Do not drop or beat the remote controller.
Do not spill water or other liquid on the remote controller.
Do not put the remote controller on wet items.
Do not expose the remote controller under sunlight or put it near overheated source.
11

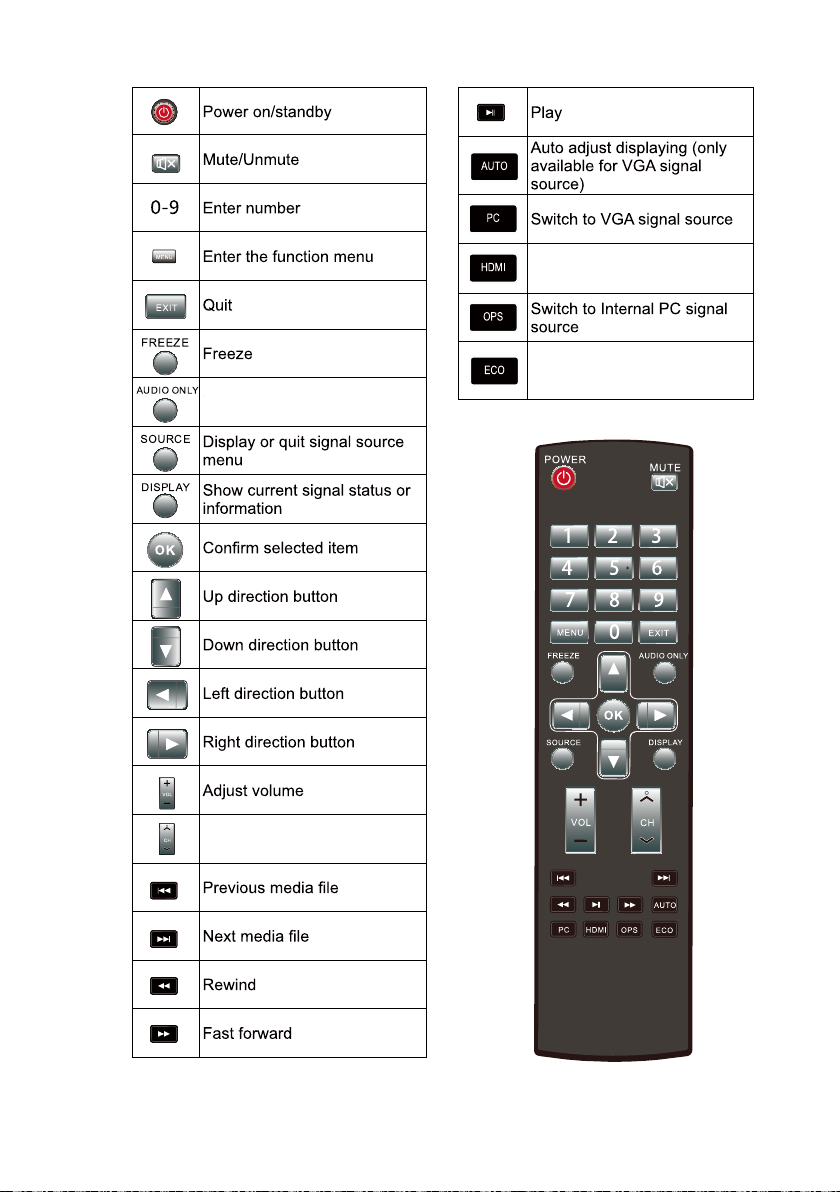

Enable Audio Only mode
Switch to HDMI 1 signal source
Switch to display mode (Standard – Energy saving)
Reserve button
12

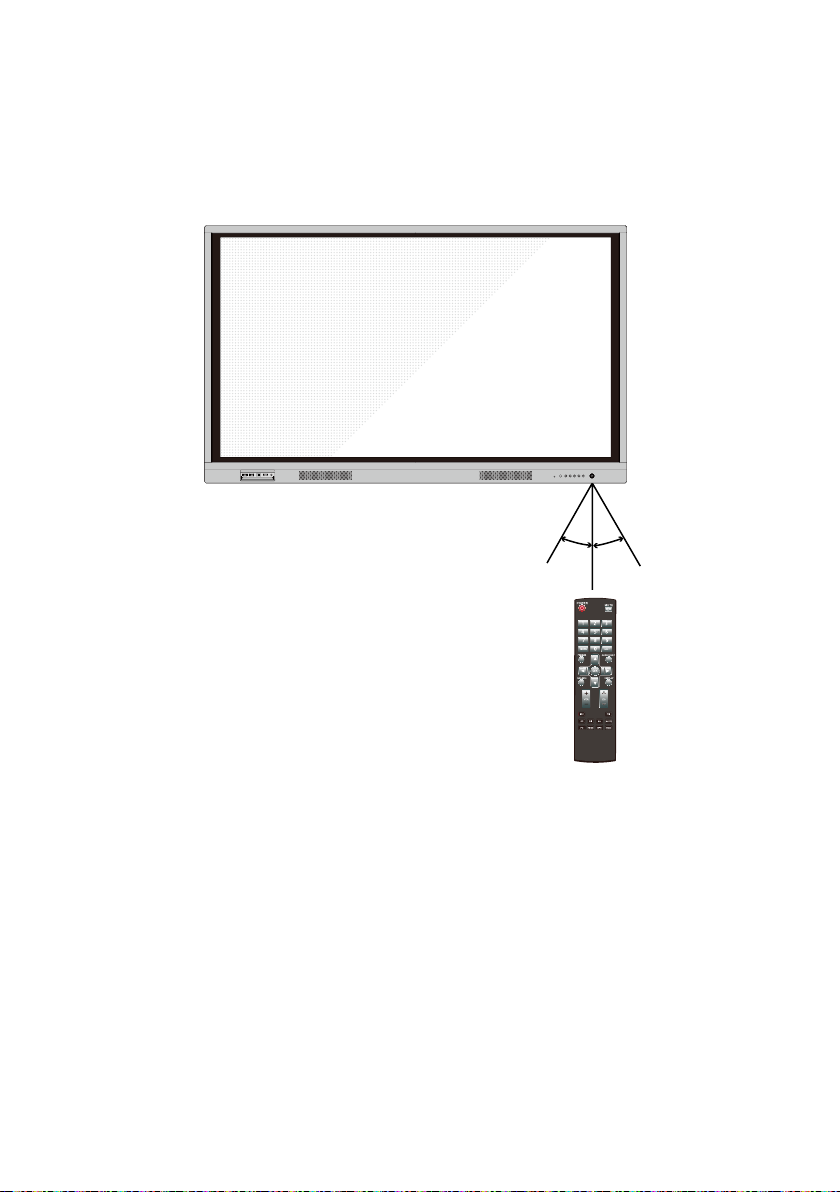

Remote Controller Instructions
The usage scope of the remote controller includes the vertical distance within ve meters in front
of the product, and the area within an angle of 30 degrees from the vertical point to the left and the right.
The effective receiving area is about 3 meters with 30° angle from vertical point to the left.
The effective receiving area is about 3 meters with 30°angle from vertical point to the right.
The effective receiving distance is about 5 meters from the front of device.
13

Safety Precautions

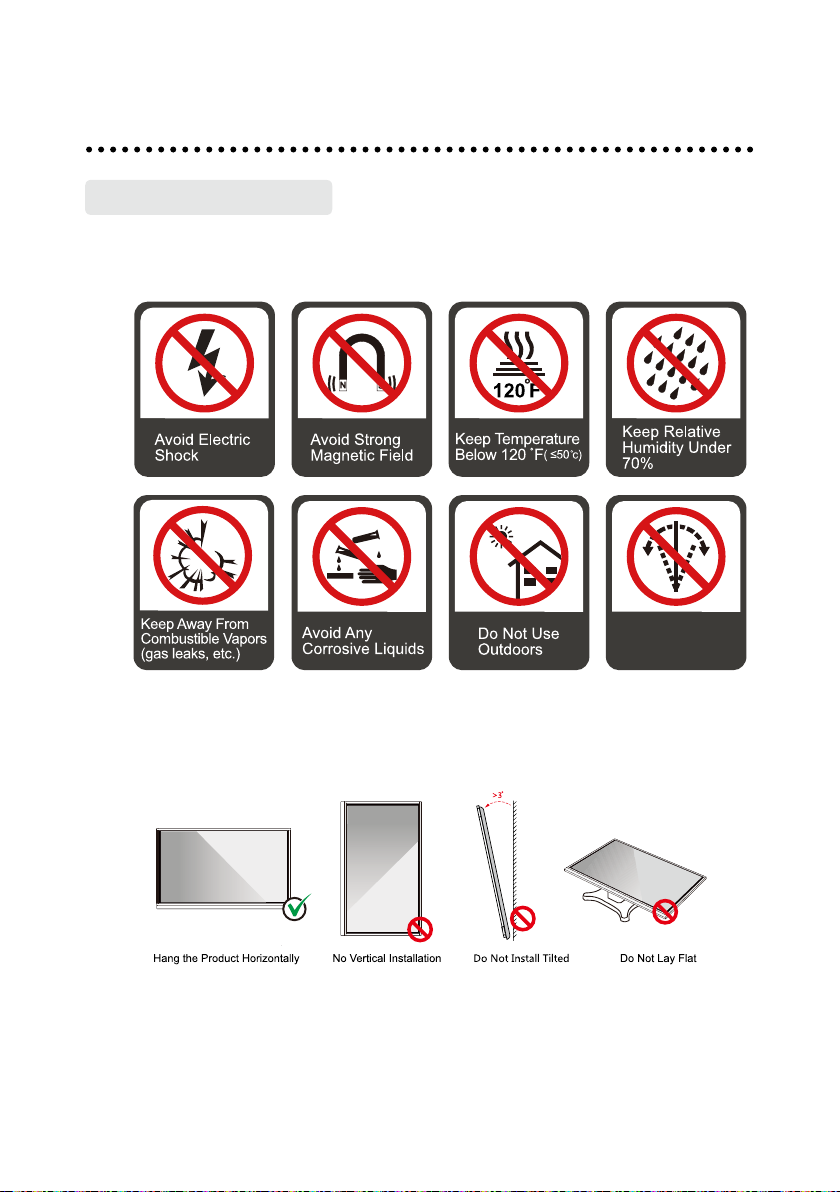

Installation Environment

Installation Guide

Do Not Install Tilted
Installation Direction
14

Installation Precautions

Weight Loading
Weight of the product: 125.7 lb/57.0 kg (75”)
When using a mobile stand, ensure that the weight of the product is less than the
loading capacity of the mobile stand.
When using the wall-mount bracket, ensure that the wall can support the weight of
the product. We recommend that the wall surface be reinforced and have a loading
capacity 4 times of the weight of the product. Consult a professional installer for
wall-mount installation.
Note
The company does not undertake relevant legal responsibility for any problems caused by
improper operation, if the third party mobile stand, or wall-mount bracket is beyond the
scope of the product.
Do not install the product where it might be hit by a door.
Vertical installation

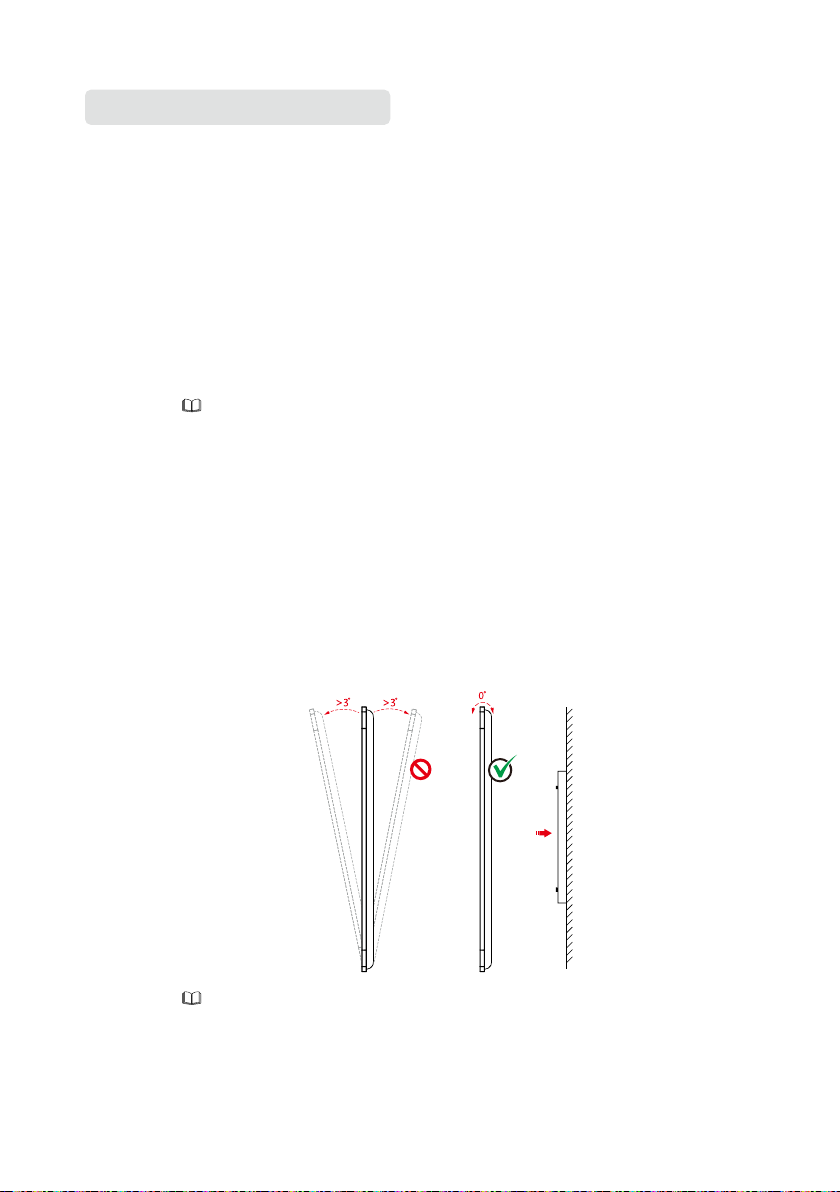

When installing, try to keep the product vertical. The vertical tilt range allowed for
wall-mount installation is ±3 degrees. Excessive tilt angle may cause the screen glass
to fall off or the product to collapse.
Note
For any problem, please contact our support desk.Our company is not responsible for any
damage or losses incurred by users if the users fails to follow the instructions.
15

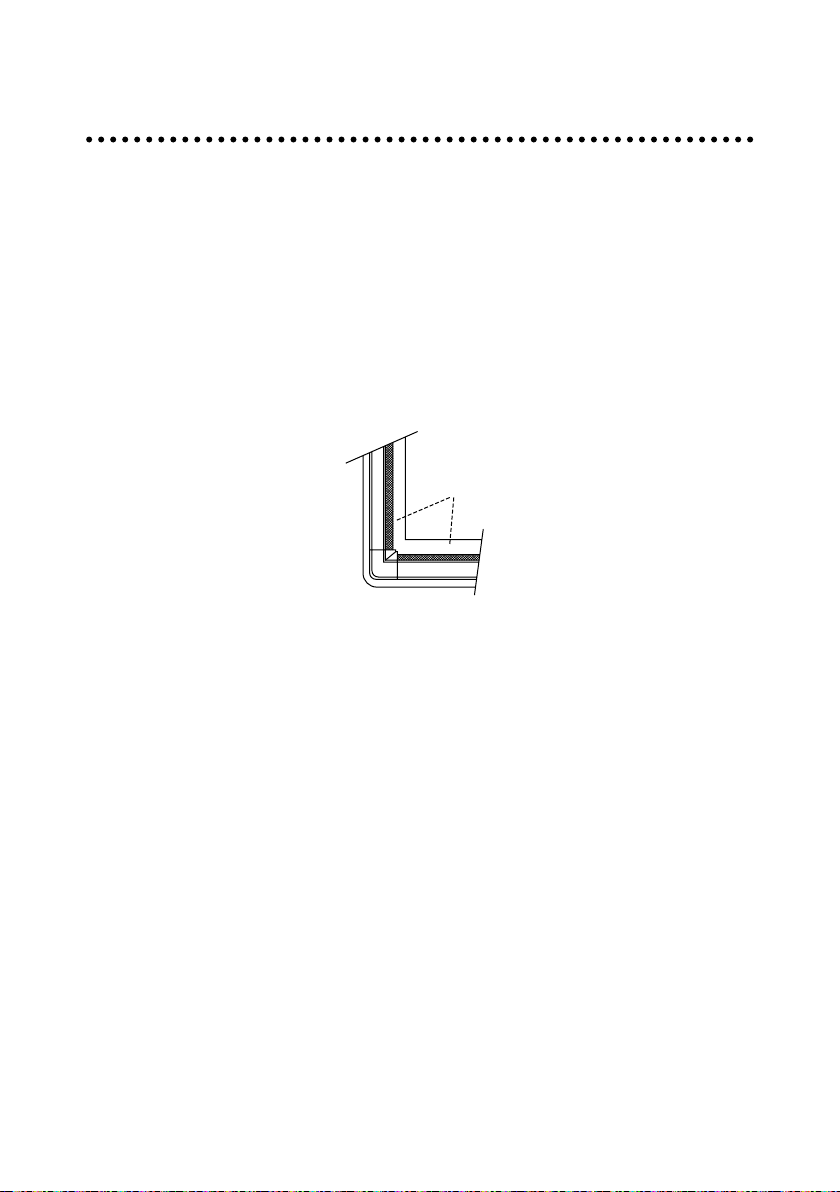

Ventilation

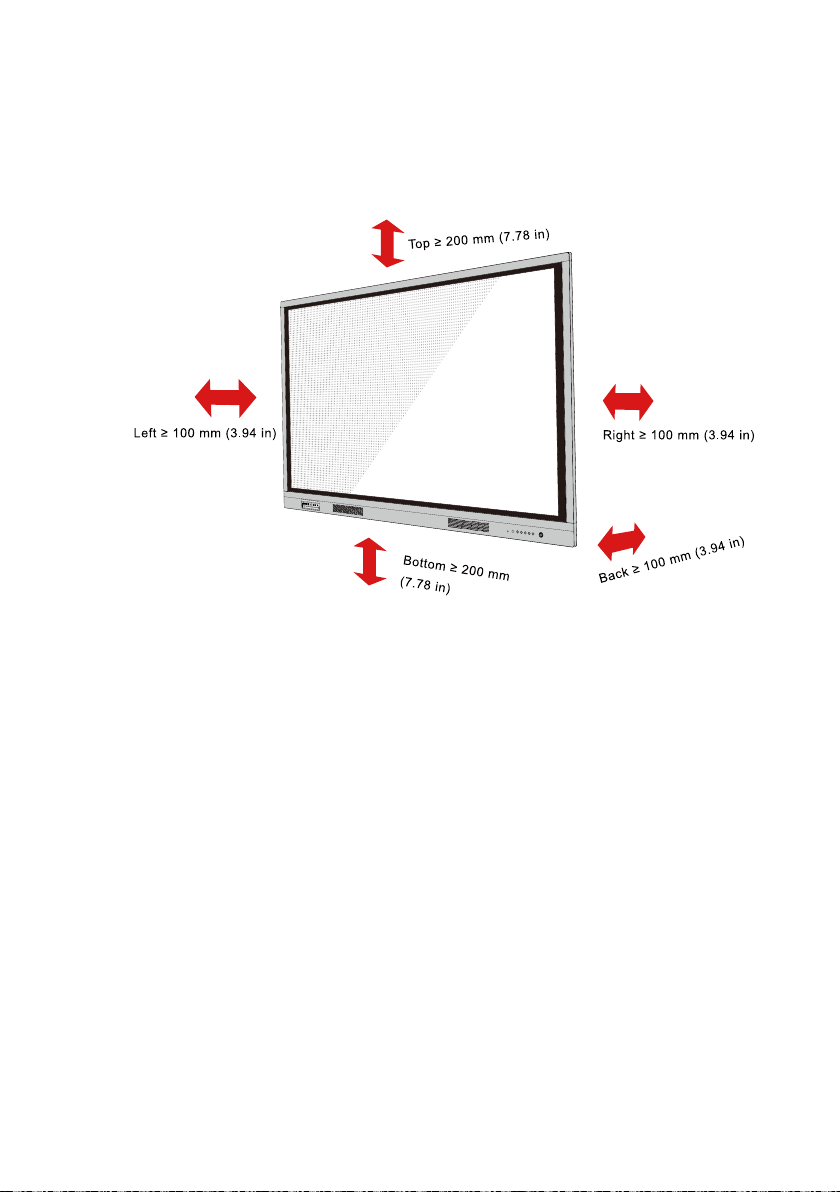

Ensure adequate ventilation and/or an air conditioned environment. We recommend
keeping certain distances from the side of the product to the wall or panels. Ventilation
requirements are shown in following gure:
16

Installation

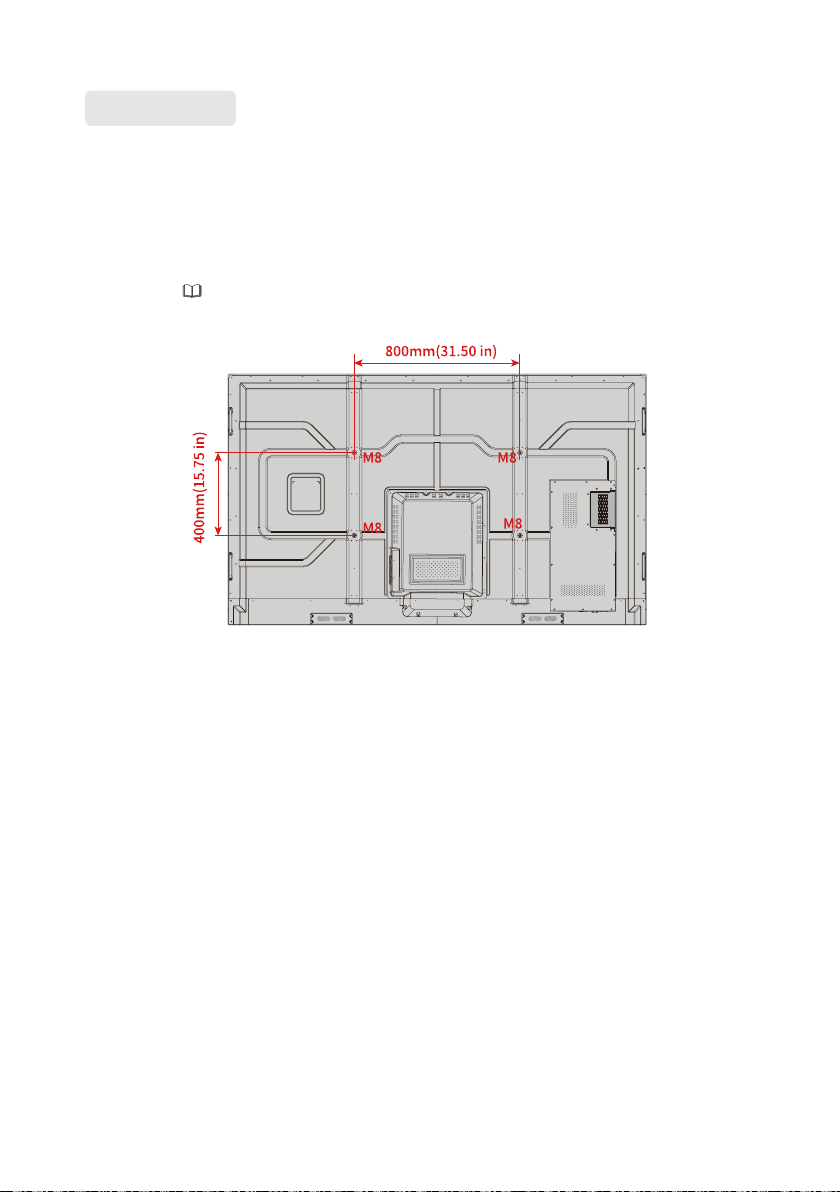

The dimensions of the four bracket mounting holes on the back panel are VESA
MIS-Fcompliant (75”: 800 x 400 mm/31.50 x 15.75 in;). Use metric M8 screws with
length of 10 mm to 15 mm (0.40 to 0.59 in) to secure the touch screen with the
mounting system. Dimensions of themounting holes on the back panel are shown
on the following gure.
Note
Consult a professional installer to install the display product.
17

Installing the Internal PC (Optional)

CAUTION
The internal PC does not support hot plugging. Therefore, you must insert or remove it when the
screen is powered is off. Otherwise, the screen or internal PC may be damaged.
You will need to purchase the internal PC separately. Perform the following steps to install the
internal PC.

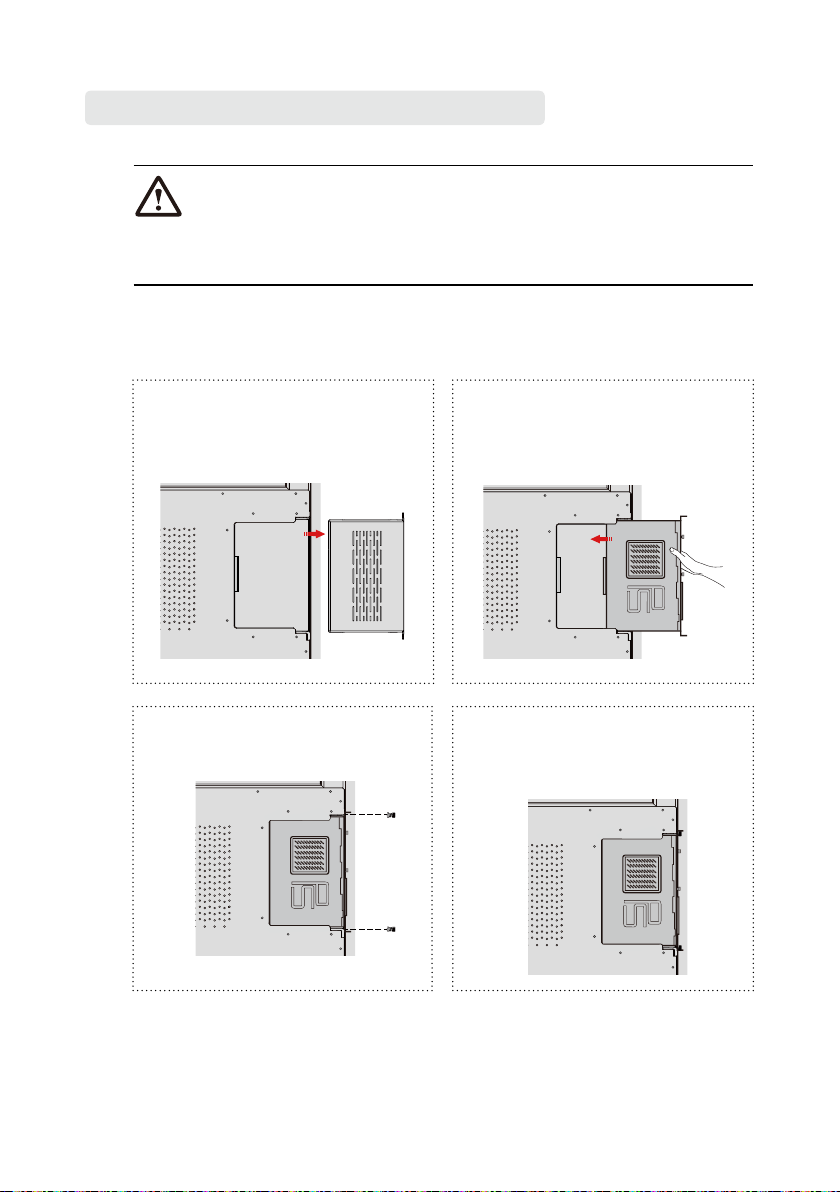

Step 1: Unscrew the M3 screws by
hand to remove the internal PC
shielding cover.
Step 3: Secure the internal PC to the
display by using the M3 screws.
M3
M3
Step 2: Push the internal into the
internal PC port at the rear of
the screen from right to left.
Step 4:
Ensure the installation is
correct before turning the
power on again.
18
Turning On/Off

Power On

Step 1: Plug the power supply into the power outlet fully and plug the power connector
into the side of the product. Ensure the power supply is in the range of 100V
to 240V with frequency at 50 Hz/60 Hz ± 5%. The power current must be
grounded.
Note
The power outlet should be installed near the equipment and should be easily accessible.
Step 2: Flip the power switch located on the side of the product to “On”.
Step 3:
Press the power button
on the front control panel or on the remote control.
19

Power Off

Step 1: Press the power button on the front panel or the power button on the remote control again. the power indicator will turn to red.
Step 2: If you are not going to use the product for an extended period of time, we
recommend you to switch the power switch to “Off”.
Note
If an internal PC is equipped, the internal PC and the screen are powered off
simultaneously when you power off the system.
Do not forcibly disconnect the power supply of the screen when the internal PC is on.
Calibration
If the cursor position has a big deviation from the actual touch point, calibration is used to
eliminate the deviation. Calibration is required in the following scenarios:
The internal PC is used.
A computer is connected through the HDMI and VGA interface.
Note
Interface operation on the Smart system does not need positioning. External products with Microsoft Windows 7 or later versions will require positioning.
If the positioning is not correct, perform the following operations to calibrate again. The following takes Windows 10 as an example:
Step 1
: Ensure that the HDMI or VGA interface and external products are connected
properly.
Step 2
: Select the corresponding Windows signal from the signal source menu. The
Windows page will be displayed.
Step 3
Tablet PC Settings
: Select
on the
20
Control Panel
page.
Step 4
: Select in the Tablet PC Settings window.
Step 5
: Select
Touch input
from the option and start calibration.
21
Step 6
: Use nger or pencil to click and hold the center of the ickering cross .
Do not release until moves to the next positioning point. Complete the
calibration process as instructed.
To provide calibration samples, tap the crosshair each time that it appears on the screem.
Right-click anywhere on the screen to return to the last calibration point. Press the Esc button to close the tool. Do not change your screen orientation until you have completed the calibration process.
Step 7
: After the calibration is complete, the
displayed. Click
Tip:
To ensure writing accuracy, use the pencil or stylus included with the product for proper positioning.
Positioning errors may cause failure of touch functions of the display. In that case, please perform
positioning again.
Step 8
Tablet PC Settings
:
The
Yes
to save calibration data.
dialog box will be displayed again. Click OK. The calibration
Digitizer Calibration Tool
dialog box will be
will be complete.
22
Menu
After the interactive touch screen is powered on, press
menu setting interface. The menu items include
SOUND
, and
OPTION
. By default, the
MENU
to enter the user
INPUT SOURCE, PICTURE
interface appears.
Use your nger to perform screen touch operation or press ◄/►/▲/▼ on the
remote controller to select a menu item and press OK to complete the menu
switching and option setting in the menu.

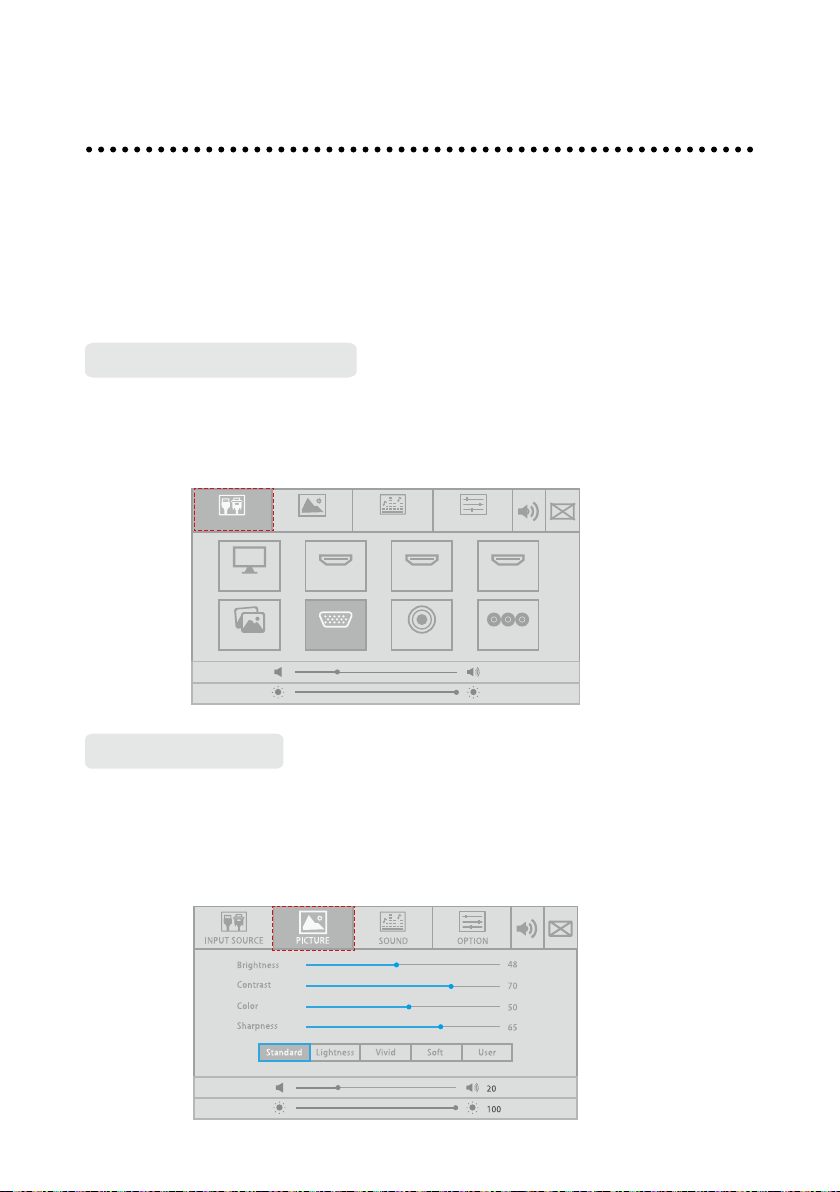

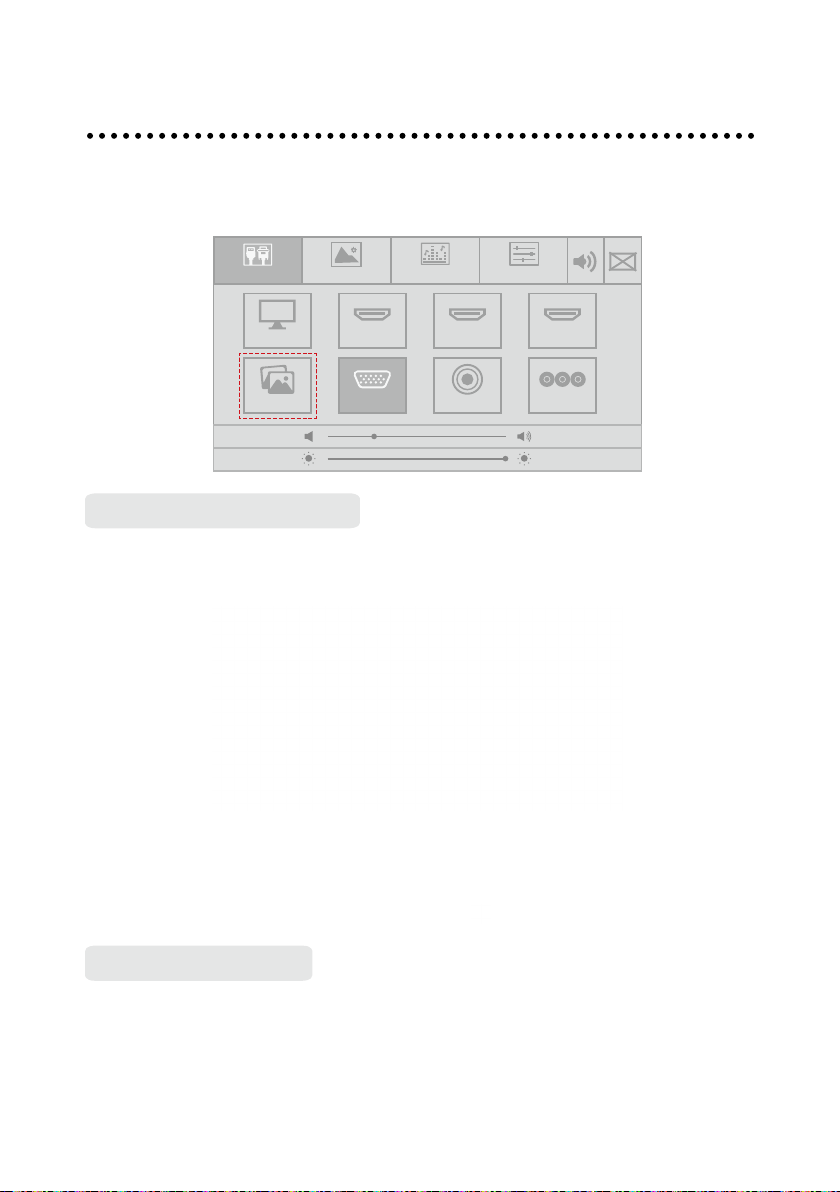

Select Signal Source
SOURCE
Press
INPUT SOURCE
In the
Composite
to enter the signal source selection menu.
interface, you can select the
YPbPr
and
INPUT SOURCE PICTURE
OPS
DMP
source via the remote controller or by touch operation.
SOUND OPTION
HDMI 2
VGA
Composite YPbPr
OPS, HDMI, DMP, VGA
HDMI 3HDMI 1
20
100
Picture Setting
,
,
In the
User
mode via the remote controller or by touch operation. Only in the
you can manually adjust the
Exit
Press
interface, you can select the
Brightness, Contrast, Color
on the remote controller to exit the setting menu.
Standard, Lightness, Vivid, Soft
, and
23
User
Sharpness
, or
mode,
values.

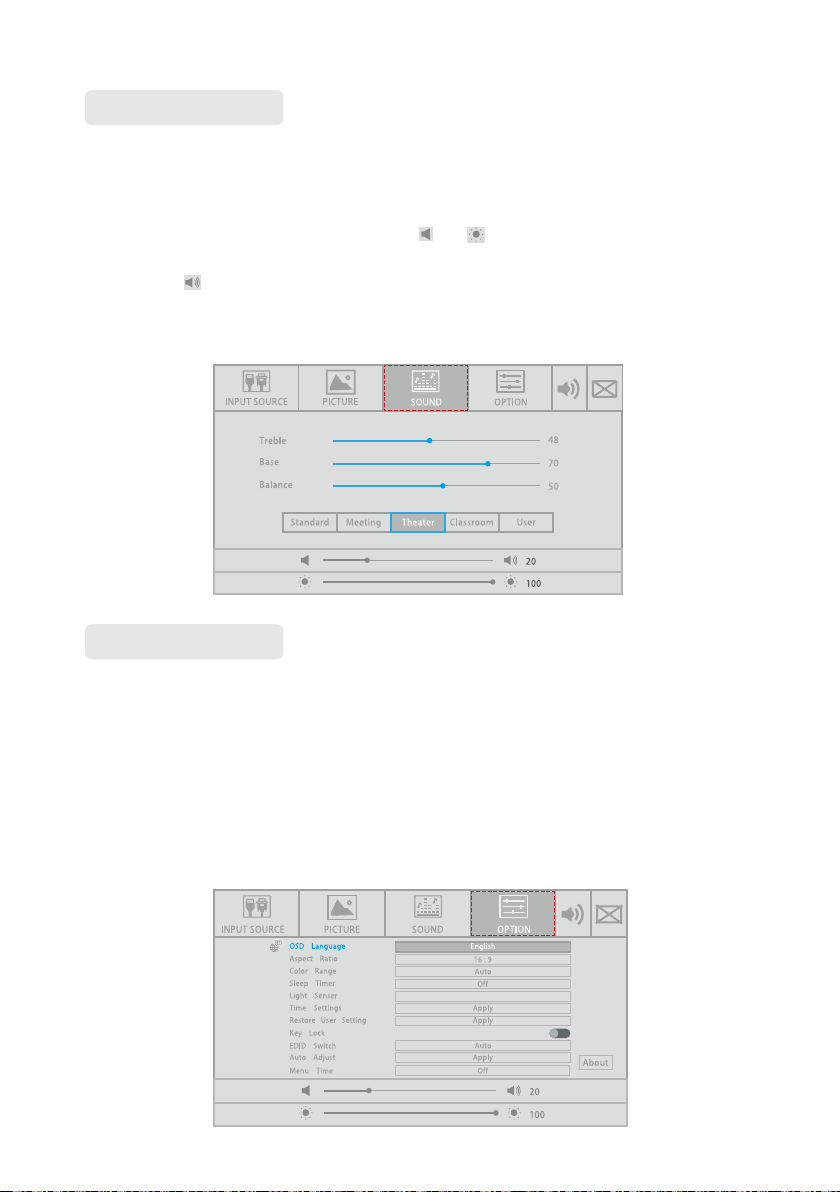

Sound Setting
SOUND
In the
User
or
Treble, Bass
Drag the sliders on the right sides of and to adjust the volume and brightness
interface, you can select the
mode for sound setting. Only in the
Balance
, and
values.
Standard, Meeting, Theater, Classroom
User
mode, you can manually adjust the
respectively.
Click in the upper right corner of the interface to mute the device. After the mute
setting, a mute icon will appear in the upper right corner of the screen.
Exit
Press
on the remote controller to exit the setting menu.

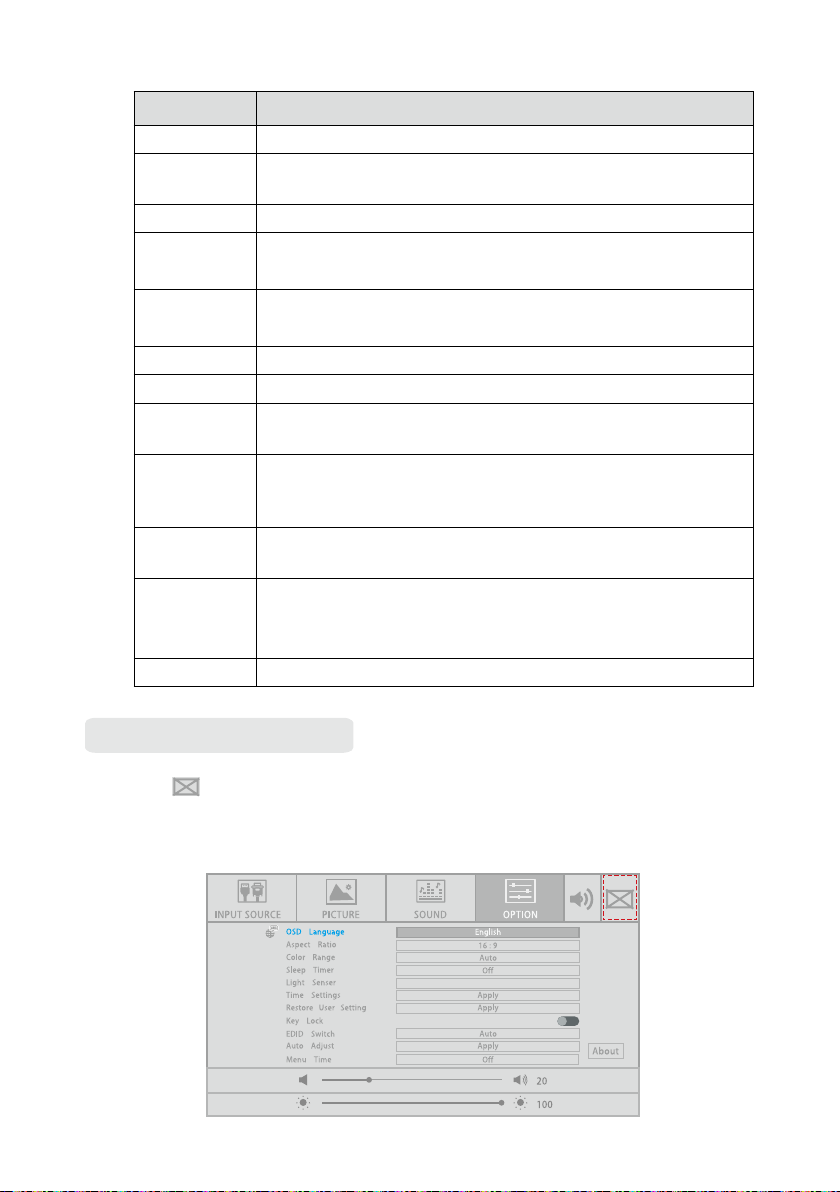

Option Setting
OPTION
In the
interface, you can set
Sleep Timer, Light Sensor, Time Settings, Restore User Setting, Key Lock, EDID
Switch, Auto Adjust
, and
Menu Time
OSD Language, Aspect Ratio, Color Range
options.
,
,
Directly click an option or press ▲/▼ on the remote controller to switch the option.
Click an option, and then click ◄/► on the sides of the option or press ◄/► on the
remote controller to set the option value.
Exit
Press
on the remote controller to exit the setting menu.
Energy saving
24
Option Description
OSD Language Sets the on-screen menu language.
Aspect Ratio
Color Range Sets color range. Options include 0-255, 16-235, and auto.
Sleep Timer
Light Sensor
Time Settings Sets the date, time, and auto power-on/power-off.
About Displays the version of the interactive touch screen rmware.
Restore
User Setting
Key Lock
EDID Switch
Auto Adjust
Menu Time Sets the menu display time. Options include Off, 5s, and 15s.
Sets the aspect ratio for the screen display. Options include 16:9, Point-
to-point, Panorama, Zoom2, Zoom1, 14:9, 4:3, Auto, and Just Scan.
Enables or disables the machine sleep function. Options include Off,
5 Mins Backlight OFF, and 240 Mins Power OFF.
Sets the light sensor mode. Options include Energy saving and
Standard.
Restores the system factory settings.
Enables or disables the key lock function by the remote controller.
After this function is enabled, keys on the interactive touch screen
cannot be used.
Sets the EDID version of the interactive touch screen. Options
include Auto, EDID 2.0, and EDID 1.4.
Sets whether to automatically adjust the image display. Options
include Auto Adjust, Horizontal Pos. 50, Vertical Pos. 50, Size 50,
and Phase 100.
Audio Only Function
Click on the menu setting interface. The screen turns black. In the audio only
mode, the power indicator blinks on red and green alternatively. Click anywhere on
the screen to return to the standard screen status (bright screen).
Energy saving
25
Multi-Media
INPUT SOURCE PICTURE
OPS
DMP
SOUND OPTION
20
100
HDMI 2
Composite YPbPr
HDMI 3HDMI 1
VGA
SOURCE
Press
DMP
to
signal source and press OK on the remote controller to enter the single source.
Multi-media File Type
After you enter the multi-media signal source, the interface shows options including
PHOTO, Music
to enter the signal source selection menu. Press ◄/►/▲/▼ to switch
Movie
and
.
selection interface.
Select USB Flash
When the interactive touch screen detects an access USB ash, a USB icon will be
displayed in the upper left corner of the screen. The number in the icon indicates the
number of USB ash connected to this device. See the icon display in the "Multi-media
File types" section.
After you click the le type, the USB setting selection interface appears.
Press ◄/► on the remote controller or screen to select the le type.
Press OK on the remote controller or directly click the icon to enter the USB ash
EXIT
Press
on the remote controller or click to return to the main menu.
26
Press ◄/► on the remote controller or screen to select the USB ash.
Press OK on the remote controller or directly click the icon to enter the corresponding
USB ash.
EXIT
Press
on the remote controller or click to return to the preview menu.
Enter USB Flash
Press OK on the remote controller or directly click the folder icon to enter the
corresponding folder.
Click
page.
Press
Prev Page
EXIT
to go to the previous page or click
on the remote controller or click to return to the preview menu.
Next Page
to go to the next
27
ECO Mode
CAUTION
Please switch off the panel when it is not used and enable the
function of Audio Only when you do not need to watch the display,
which help reduce power consumption and save energy.
On the premise of ensuring viewing effect, the energy consumption
can be reduced by lowering display brightness.
To better save energy, the automatic power-off function is congured
for the interactive touch screen and the default duration is 5 minutes.
If no operation is performed in 5 minutes, the interactive touch
screen is switched automatically to sleep mode for reducing energy
consumption.
ECO
Press
Saving
In the
In the
on the remote controller to enter the
). Hold the button to switch between the two modes.
Energy Saving
Standard
mode, the power output is reduced 50%.
mode, the screen brightness keeps the same.
ECO
Standard - Energy
mode (
28
Serial Port Control

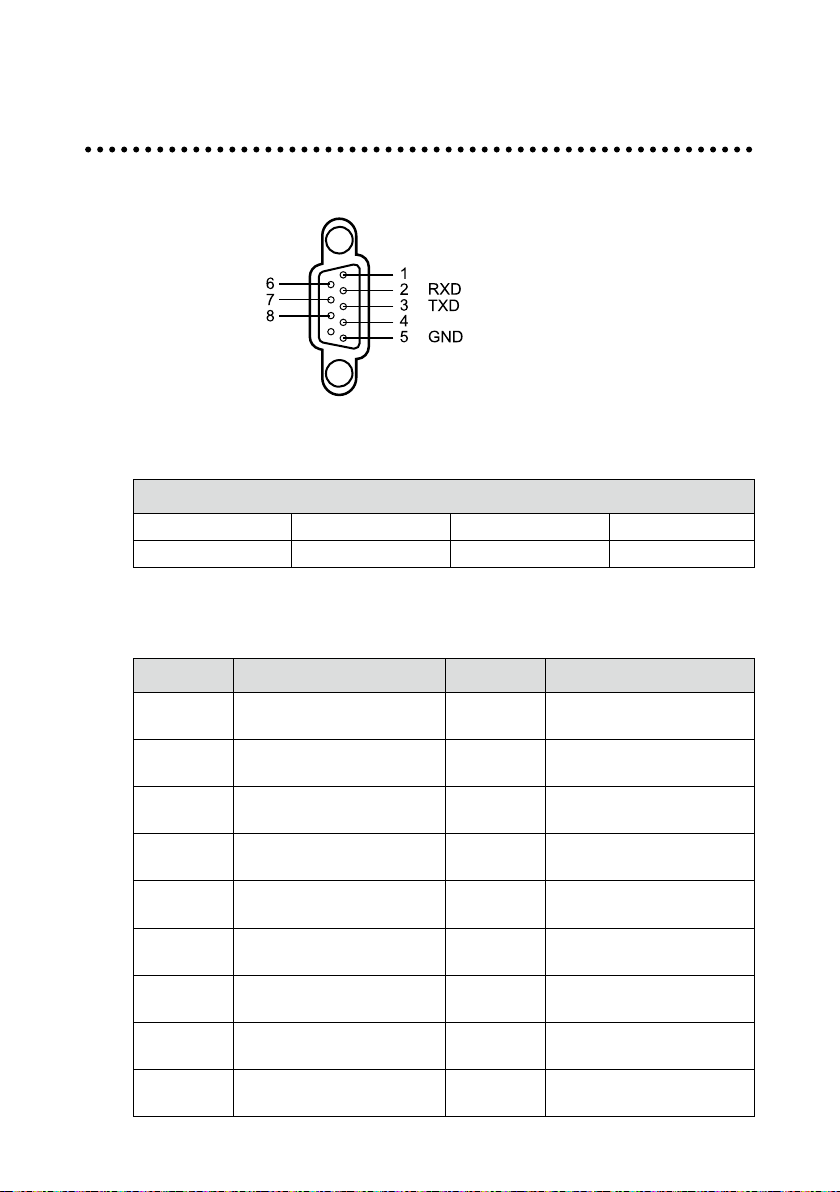

The RS-232 port of the interactive touch screen is dened as follows:
Connect RS-232 port to the PC or controlling device. Enable RS-233 serial port
connection and complete the following conguration.
Port: COM1 (Set according to PC or controlling device’s port number)
Bit rate 38400 Odd/even check None
Data bits 8 Stop bit 1
The following table lists button controlling codes. The buttons share same functions
with corresponding buttons on the remote controller:
Function Controlling Code Function Controlling Code
Power on
Mute/
Unmute
Signal
source
Display
status
HDMI 2
Internal PC
AV
Volume+
Return(quit)
7F 08 99 A2 B3 C4 02 FF 01 00 CF
7F 08 99 A2 B3 C4 02 FF 01 02 CF
7F 08 99 A2 B3 C4 02 FF 01 06 CF
7F 08 99 A2 B3 C4 02 FF 01 09 CF
7F 08 99 A2 B3 C4 02 FF 01 0B CF
7F 08 99 A2 B3 C4 02 FF 01 38 CF
7F 08 99 A2 B3 C4 02 FF 01 11 CF
7F 08 99 A2 B3 C4 02 FF 01 18 CF
7F 08 99 A2 B3 C4 02 FF 01 1D CF
Power off
Sound mode
HDMI 1
HDMI 3
VGA
YPbPr
DMP
Volume-
Menu
7F 08 99 A2 B3 C4 02 FF 01 01 CF
7F 08 99 A2 B3 C4 02 FF 01 05 CF
7F 08 99 A2 B3 C4 02 FF 01 0A CF
7F 08 99 A2 B3 C4 02 FF 01 0C CF
7F 08 99 A2 B3 C4 02 FF 01 0D CF
7F 08 99 A2 B3 C4 02 FF 01 10 CF
7F 08 99 A2 B3 C4 02 FF 01 3A CF
7F 08 99 A2 B3 C4 02 FF 01 17 CF
7F 08 99 A2 B3 C4 02 FF 01 1B CF
29
Function Controlling Code Function Controlling Code
1
3
5
7
9
OK
Freeze
7F 08 99 A2 B3 C4 02 FF 01 21 CF
7F 08 99 A2 B3 C4 02 FF 01 23 CF
7F 08 99 A2 B3 C4 02 FF 01 25 CF
7F 08 99 A2 B3 C4 02 FF 01 27 CF
7F 08 99 A2 B3 C4 02 FF 01 29 CF
7F 08 99 A2 B3 C4 02 FF 01 2B CF
7F 08 99 A2 B3 C4 02 FF 01 2D CF
7F 08 99 A2 B3 C4 02 FF 01 2F CF
7F 08 99 A2 B3 C4 02 FF 01 3B CF
Auto ADJ
2
4
6
8
0
Switch
backlight
7F 08 99 A2 B3 C4 02 FF 01 20 CF
7F 08 99 A2 B3 C4 02 FF 01 22 CF
7F 08 99 A2 B3 C4 02 FF 01 24 CF
7F 08 99 A2 B3 C4 02 FF 01 26 CF
7F 08 99 A2 B3 C4 02 FF 01 28 CF
7F 08 99 A2 B3 C4 02 FF 01 2A CF
7F 08 99 A2 B3 C4 02 FF 01 2C CF
7F 08 99 A2 B3 C4 02 FF 01 2E CF
7F 08 99 A2 B3 C4 02 FF 01 15 CF
7F 08 99 A2 B3 C4 02 FF
Increase backlight
brightness
7F 08 99 A2 B3 C4 02 FF 01 47 CF
Set display
mode
06 XX CF
Note:
XX indicates the mode. 00 and 01 indicate standard and ECO modes respectively.
7F 08 99 A2 B3 C4 02 FF 03 xx CF
Decrease
backlight
brightness
7F 08 99 A2 B3 C4 02 FF 01 48 CF
Set sound
mode
Note:
00 = Standard 01 = Meeting 02 = Theater 03 = Classroom 04 = User
30
Specications of PC Mode (VGA Input)
Pixel
SN Standard Resolution
1 VESA 1024x768 65.00 48.363 60.004 N/N
2 VESA 1080x720 74.25 45 60 N/P
3 VESA 1280x960 108 60 60 N/P
4 VESA 1280x1024 108 63.981 60.020 P/P
5 VESA 1360x768 85.50 47.712 60.015 P/P
6 VESA 1440x900 88.75 55.469 59.901 P/P
7 VESA 1600x1200 162.00 75 60 P/P
8 VESA 1680x1050 119.00 64.674 59.883 P/P
9 VESA 1920x1080 154 74 60 P/P
Clock (MHz)
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Horizontal/
Vertical Sync
Polarity (TTL)
31
Formats Supported by Multi-media
Media category Formats
Photo Progressive JPEG, Baseline JPEG, Non-Interlaced, Interlaced
Movie MPEG1, MPEG2, MPEG4, H.264, HEVC, VC1
Music WMA, MP3, AAC, M4A, AC-3
Text TXT
32
FAQ & Troubleshooting
Before you contact the technical support staff, please identify a fault according to the
following table. If the fault cannot be restored based on the solutions, contact the local
distributor for help. For your safety, please do not repair the product by your own.
Failure Possible Cause Solution
The drive program is not correctly installed.
Install the drive program correctly.
The service program fails to be connected.
Repositioning is required every time the panel is switched on.
The calibration is inaccurate.
Not sound and image.
Image is normal, but no sound.
The USB port (lead) is not connected or is faulty.
The infrared tube is blocked.
The computer is equipped with a recovery card.
The positioning is not performed properly.
Change the USB lead or check if the USB port is faulty.
Ensure that the surrounding infrared tubes are not blocked.
Disable computer protection and perform the positioning again.
AUTO
Press
on the remote controller to show the full screen, and use the pen provided with the panel to perform positioning again.
Check whether the power plug is inserted into the power
outlet and whether the panel is powered on.
Check whether the rocker switch on the interactive touch
screen is switched on.
Check whether the power button on the panel is pressed.
Check whether the video and audio input cables are
connected correctly.
Check whether the panel is switched to the right signal
source.
Check the settings on image brightness and contrast.
Check the volume.
Check the volume.
Check whether the
MUTE
button on the remote controller is
pressed.
Check whether the audio cable between the PC and
interactive touch screen is connected correctly.
No image or the image is black and white.
Modify the color settings.
Check the color system.
33
Symptom Possible Cause Solution
Find out the electric appliance that causes the interference
Image or sound is interrupted.
and move it away from the interactive touch screen.
Do not share the power socket of the panel with the electric
appliance that causes interference.
Change the batteries.
The remote controller fails.
Computer cannot be started (applicable for models with computers).
Clean the signal emitter at the top of the remote controller.
(Check whether it is blocked.)
Check contacts of the batteries.
Check whether the PC adapter is correctly connected and
whether the PC is powered on.
Check whether the PC is connected correctly to the
interactive touch screen.
The following symptoms are not faults:
A very few of constantly bright or dark pixels, such as tiny red, blue, green or dark
points, may exist on the LED. This symptom is not a fault and does not affect running
functions of the panel.
Slight sound may occur due to the backlight adjustment or ventilation. This is a
normal symptom.
The image and sound are normal. However, you can sense static electricity when
you touch the LED and metal back cover. This is a normal symptom.
34
Maintenance Tips
Do not put or install the product near a heat source or under direct sunlight, or
in dusty or humid places, or somewhere the product may be hit or damaged by
mechanical vibration. To maximize the performance, it needs to be put away from
equipment such as grid, large metal objects and radar stations as far as possible.
Do not wipe the panel with any chemical reagent. Solvents may damage the
enclosure or paint. If the panel is stained by dust, cut off the power and then clean
the panel using a dried cloth with a little of warm water. Use a clean soft cloth to
clean the LED of the panel.
Do not frequently switch on and off the product, which may shorten the product
service life. After the panel is switched off, wait for three minutes before switching
it on again. If the product is not to be used for a long period, please power off the
product and pull out the power plug.
Do not maximize the brightness and contrast of the LED for a long period of time,
which may shorten the LED service life.
Do not use a hard object to write on the interactive touch screen, which may scratch
the LED.
35
Clean the Infrared Tube
The interactive touch screen uses the horizontal and vertical infrared matrix to detect
and locate the user's touch. The screen is surrounded by an infrared tube (including
the infrared acceptor and emitter), which forms an infrared net covering on the screen
surface. When a user touches the screen, ngers or other opaque objects block the
infrared rays that cross the touch point, which helps the controller detect the coordinate
position of the touch point.
Dust is easily retained on the screen surface due to its long-term exposure in the air
and causes ineffective touch or inaccurate positioning. Therefore, you need to clean the
infrared tube around the screen regularly.
Infrared Tube
36
Technical Parameters
Specication Parameter
Backlight type LED
Size 1770mmx1071mmx109mm
Aspect ratio 16:9
Viewing angle 178°
Physical resolution 3840 × 2160 Pixel
Display color 10bit(D), 1.07Billon colors
Display contrast 4000:1
Working voltage 100 - 240V, 50/60Hz
Standby power consumption ≤ 0.5W
Rated power ≤ 300W
Energy-saving power (without internal PC)
Audio output Loudspeaker power output 15W × 2
Touch screen material Tempered glass
Sensing method Infrared
≤ 150W
Technical feature HID drive-free
Touch point 20 points
Resolution of touch screen 32768 × 32768
Communication interface USB
Storage temperature/humidity
Working temperature/humidity 0°C - 40°C, 20%RH - 80%RH (no condensation)
Installation method Wall-mounted or moveable
Net weight 57kg ± 1kg
Gross weight 74kg ± 1kg
-20°C - 60°C, 20%RH - 90%RH (no condensation)
37
More Information
For More Information
Please visit our website (www.newline-interactive.com) for detailed instruction
manual.
Our company is devoted to product innovation and technology enhancement. Therefore,
we may change product spec and information without notice. Product pictures in the
manual are for reference only, please refer to actual products.
38
Loading...
