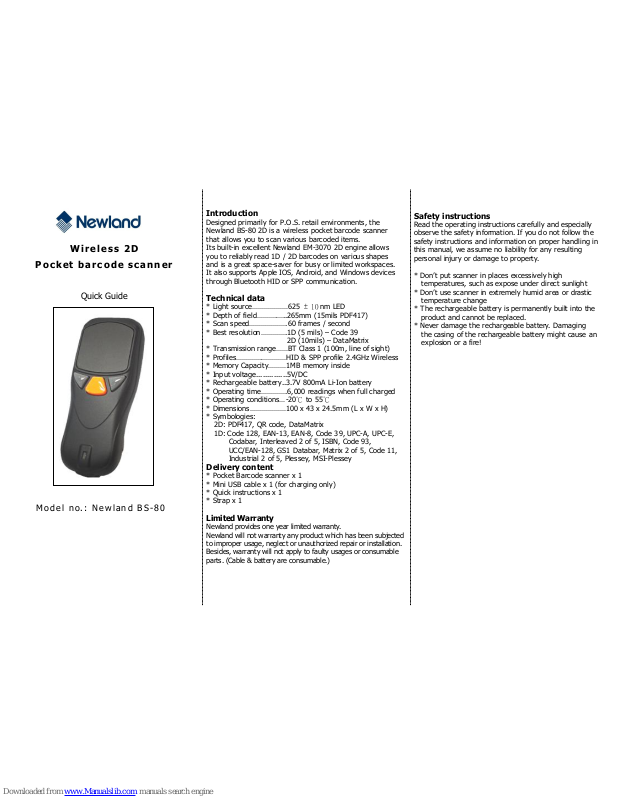

Page 1

Wi reless 2D

Po cket barcode scanner

Quick Guide

M o del no.: Newlan d BS- 80

Introduction

Designed primarily for P.O.S. retail environments, the Newland BS-80 2D is a wireless pocket barcode scanner that allows you to scan various barcoded items. Its built-in excellent Newland EM-3070 2D engine allows you to reliably read 1D / 2D barcodes on various shapes and is a great space-saver for busy or limited workspaces. It also supports Apple IOS, Android, and Windows devices through Bluetooth HID or SPP communication.

Technical data

* Light source………………625 ± 10 nm LED * Depth of field……….…..265mm (15mils PDF417) * Scan speed……………….60 frames / second * Best resolution………….1D (5 mils) – Code 39 2D (10mils) – DataMatrix * Transmission range……BT Class 1 (100m, line of sight) * Profiles………….…………HID & SPP profile 2.4GHz Wireless * Memory Capacity………1MB memory inside

* Input voltage..............5V/DC

* Rechargeable battery..3.7V 800mA Li-Ion battery

* Operating time………….6,000 readings when full charged * Operating conditions…-20℃ to 55℃ * Dimensions………………100 x 43 x 24.5mm (L x W x H)

* Symbologies: 2D: PDF417, QR code, DataMatrix

1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E,

Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Plessey, MSI-Plessey

Delivery content

* Pocket Barcode scanner x 1 * Mini USB cable x 1 (for charging only) * Quick instructions x 1 * Strap x 1

Limited Warranty

Newland provides one year limited warranty. Newland will not warranty any product which has been subjected to improper usage, neglect or unauthorized repair or installation. Besides, warranty will not apply to faulty usages or consumable parts. (Cable & battery are consumable.)

Safety instructions

Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety instructions and information on proper handling in this manual, we assume no liability for any resulting personal injury or damage to property.

* Don’t put scanner in places excessively high temperatures, such as expose under direct sunlight * Don’t use scanner in extremely humid area or drastic temperature change * The rechargeable battery is permanently built into the product and cannot be replaced. * Never damage the rechargeable battery. Damaging the casing of the rechargeable battery might cause an explosion or a fire!

Page 2

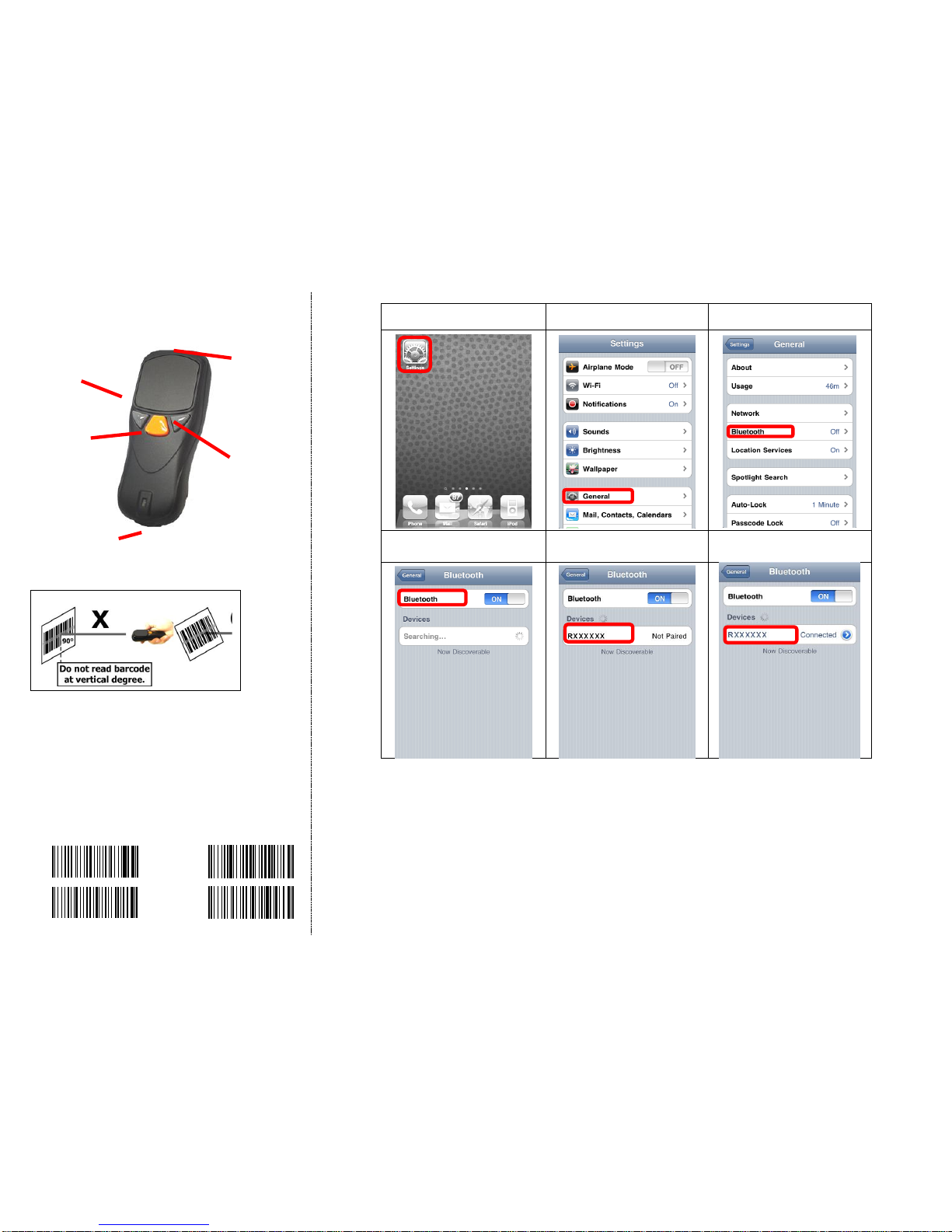

O p erating e l e m e n t s

** Please switch ON and charge scanner for 3~4 hours at first time before use.

Please remove the protective sticker from scanner window before use.

How to Connect to Smartphone or Tablet

1. Make sure your device has HID or SPP profile

2. Please turn off Power-Saving mode of your

smartphone/tablet first

3. Then, choose HID or SPP profile and scans the

following 2 setting codes before connecting to smartphone/tablet. (A1  A2 or B1  B2) If you don’t know what profile your device is, please try HID profile first, then, SPP profile.

A. HID profile

B. SPP profile

1. click the “Settings”

2. click “General”

3. click “Bluetooth”

4. Turn it ON, and search the devices

5. Select “Rxxxxxx” to connect

6. When see the “Connected”

means the connection is OK.

(example: pairing with iPhone)

4. Please complete the connection procedures as the above photos.

5. After the connection is completed, the RED light will be OFF.

6. Before using WordPad file or relative APP, please set keyboard language of device to USA language. Then, scan the barcodes and the barcode data will show on the cursor side. If the data cannot send to smartphone/tablet, please scan the “Reset Configuration to Defaults” setting codes (on page #3).

Notes: * This product complies with Bluetooth standards. This device that communicated with this product must support the same

SPP or HID. For other Bluetooth devices with other profiles we cannot guarantee a connection before the product has been tested. * The communication speed and range of the product may vary due to obstacles and radio wave condition between the product and device to which it is connected. Condition on the host device may also affect the communication speed and range of the scanner.

Demo

Power Saving

button:

Press the

button for

2~3 seconds

then enter

power saving

mode

SCAN

Button

(For IOS

Device)

Mini USB port with protective cover to charge the BS-80

Scanner

Window

Page 3

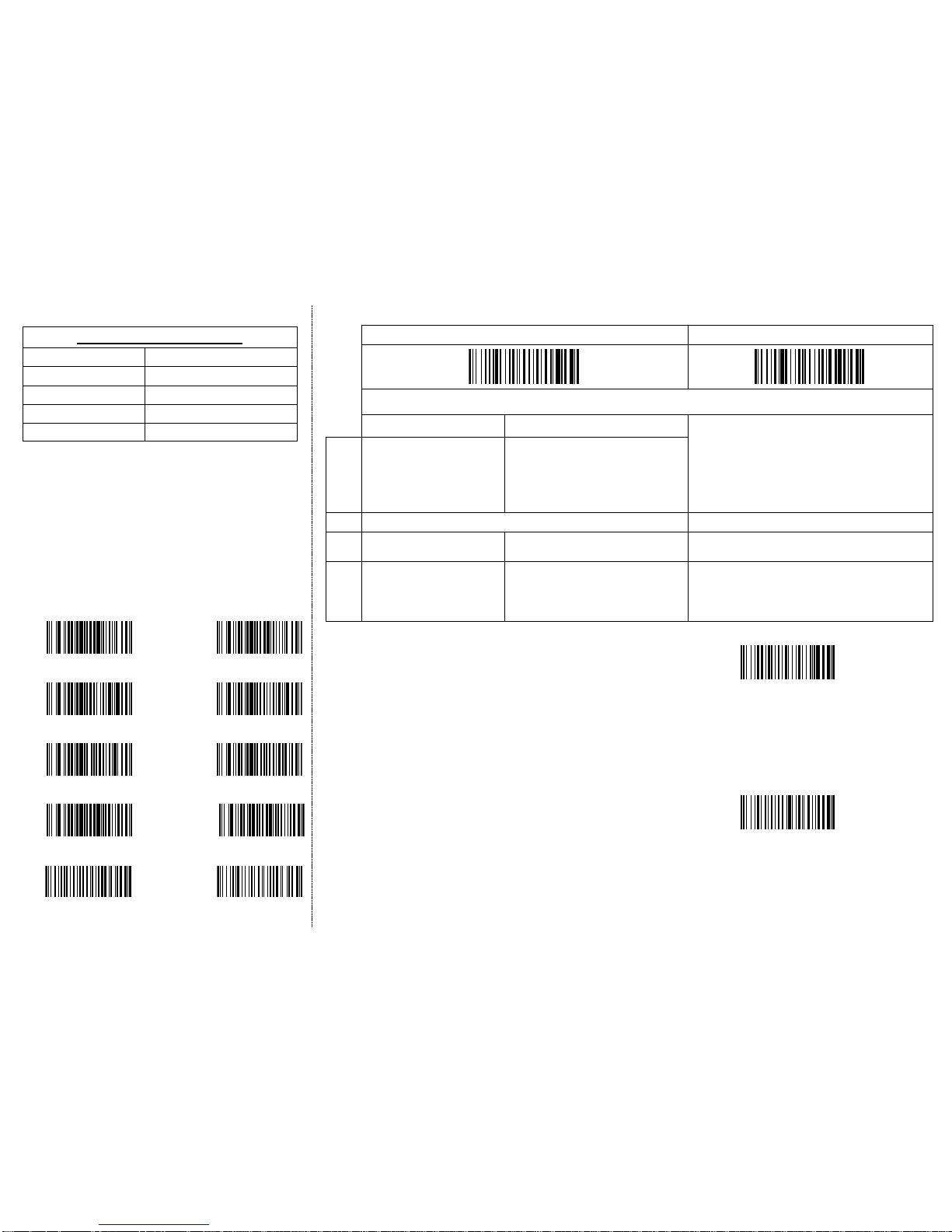

When the battery voltage is too low, the Orange LED will flash and with one beep sound. Please charge it immediately before the machine shuts down mandatorily. When it shuts down, please charge it fully, then, repower on scanner. Under power-saving mode, there will not be LED indication when in charging.

Reset Configuration to Defaults (scan from A1

to A6 for HID profile or B1 to B5 for SPP profile)

A. HID profile

B. SPP profile

LED Indicator Information

Orange continual ON

Full charged

Orange LED Flashing

Charging / Low battery

Red LED Continual

Off line / out of service

Green LED ON

Good read

Orange LED ON

Good read (Batch mode)

There are two operation modes of scanner

1.Data Transmission mode (Default)

2. Data Storage mode (Batch Mode)

It is a compulsory step to scan “clean memory data" when interchange these two modes, to avoid error.

Within 2.4GHz radio

Beyond the 2.4GHz radio range

Save data in scanner’s memory, It will transmit data to smartphone/tablet after read the Transmit memory data setting code. To delete data please read the Clean memory data setting code.

Data

read

Transmit data to smartphone/tablet directly

Save data into scanner’s memory, scanner will transmit data to smartphone/tablet automatically after getting back to

2.4GHz radio range.

Switch into Data Storage mode

Switch into Data Transmission mode

LED

Green/ Orange LED flashes, in turn ending with 3 beeps.

Green/ Orange LED flashes in turn ending with 3 beeps.

Please always Clean memory data first before interchange into Data Transmission. Otherwise Red/ Orange LED will flash with one long beep sounds and unable to switch.

Two operation modes for the scanner:

A. Data Transmission mode (Default)

1. Our Default setting is Data Transmission mode.

When you scan the barcode, the data will be sent to smartphone / tablet directly.

2. When you are out of BT service range, the data

you scan will be saved in the memory. Once you are back to service range, the data will be sent to smartphone/tablet automatically.

B. Data Storage mode (Batch mode)

1. Data Storage mode (Batch mode): When you scan the barcodes, the data will be saved in the memory. After you scan the “Transmit memory data” setting code (in right side), the data will be sent to smartphone/tablet.

2. Before you continue to scan or switch to the other mode, you must delete the data in the memory first. Please scan the “Clean memory

data” setting code. (in right side)

Transmit memory data

Green/Orange LED Flashes with 3 beep sound

The barcode data which stored in the memory will be

sent to smartphone/tablet directly after scan the

above setting code.

(under Batch mode, within Bluetooth service range)

Clean memory data

Green/Orange LED flashes, ending with 3 beeps.

The barcode data which stored in the memory will be deleted completely after scan the above setting code. Then, you can switch to the other mode.

Demo

Demo Demo

Demo

Page 4

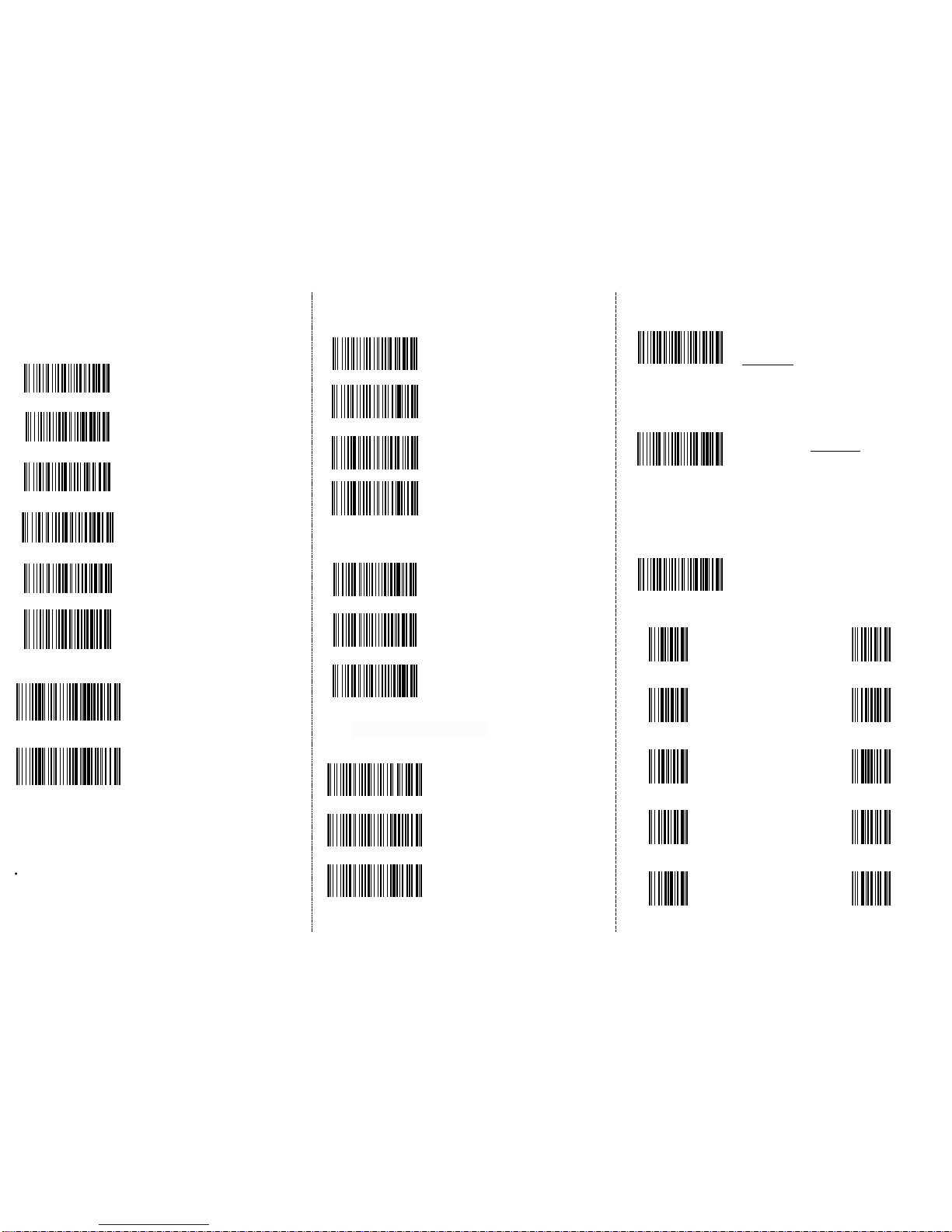

Transmission Speed

Transmission speed is depended on your device. In order not to lose data, please choose the right speed. Middle-speed is the Default.

High-speed transmission (for HID, SPP)

Middle-speed transmission (for HID only, HID Default)

Slow-speed transmission (for HID/SPP, SPP Default)

Ultra Slow-speed 1 transmission (for HID only)

Ultra Slow-speed 2 transmission (for HID only)

Ultra Slow-speed 3 transmission (for HID only)

When in charging, scanner will not enter power-

saving mode automatically.

Power-saving Mode

Power-saving mode OFF

Power-saving mode ON (Default): Enter power-saving mode after no usage for one minute. This function can extend the usage time of battery. When you press "SCAN/Power ON" button, it will wake up and begin to scan.

RTC (Real-time clock)

You must scan the below configuration barcode to set the date & time stamp on the scanner.

Date information: ENABLE

Date information: DISABLE (default)

Time information: ENABLE

Time information: DISABLE (default)

The format of Date setting

Date format 1: mm/dd/20yy (default) For example: 01/23/2011

Date format 2: dd/mm/20yy For example: 23/01/2011

Date format 3: 20yy/mm/dd For example: 2011/01/23

The punctuation marks for the intervals

among barcode data, date, time

Tab (default) For example: ABCD 01/23/2011 12:34:56

, comma

For example: ABCD,01/23/2011,12:34:56

; semicolon

For example:

ABCD;01/23/2011;12:34:56

Numeric barcode for date & time settings

Date and Time setting

SET DATE

Scan the SET DATE barcode, then, scan the six numeric digits in the format mm/dd/yy, from the numeric barcode. For example: “01/23/2011”,

SET TIME

Scan the SET TIME barcode, then, scan the six numeric digits in the format hh:mm:ss from the numeric barcode. Time format: 24hr clock For example: “PM 3:25:30”, please input “152530”

When using RTC function, the limitation of barcode is 20 digits. (default)

If barcode content is more than 20 digits, please scan the left configuration code + below numeric barcode. (max. 99 digits)

Demo

Page 5

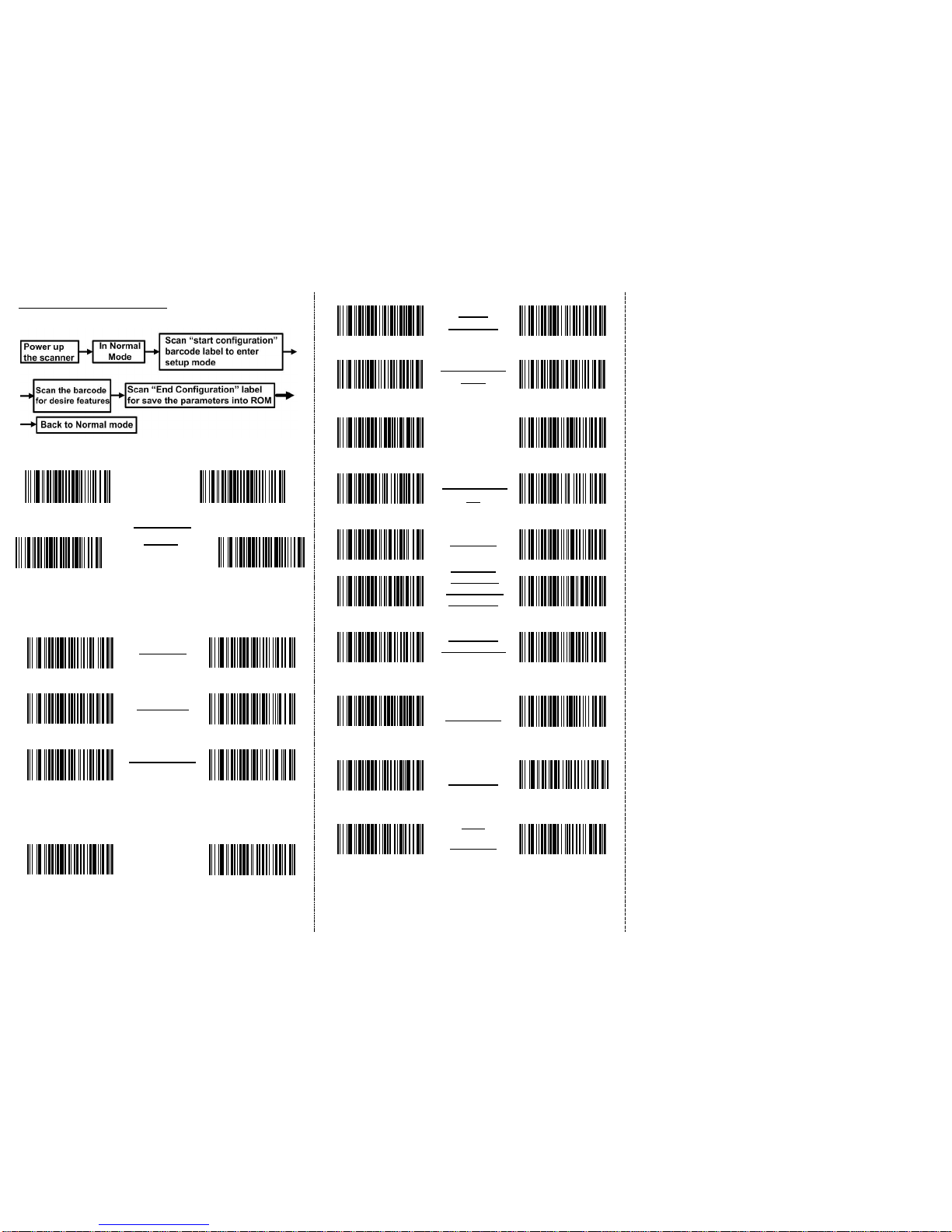

Barcode Configuration Method: (Flow chart for setup procedure :)

Start Configuration

End Configuration

SINGLE SCAN

READING

MODE

PLUSE

2D Symbologies On/OFF

ENABLE

DISABLE

PDF 417

ENABLE

DISABLE

QR CODE

ENABLE

Data Matrix

DISABLE

1D Symbologies On/OFF

ENABLE

DISABLE

CODE 128

ENABLE

DISABLE

UCC/

EAN-128

ENABLE

DISABLE

INTERLEAV

E 25

ENABLE

Matrix 25

DISABLE

ENABLE

INDUSTRIAL

DISABLE

ENABLE

DISABLE

CODE 39

ENABLE

CODE 39

Transmit

Start/Stop

Character

DISABLE

ENABLE

CODE 39

FULL ASCII

DISABLE

ENABLE

CODABAR

DISABLE

ENABLE

CODE 93

DISABLE

ENABLE

GS1

DataBar

DISABLE

If user wants to enable other Symbologies, please contact us.

Quick guide is subject to change without notice.
