Page 1
NLS-FM200
Mobile 2D Barcode Scanner
User Guide
Latest:20081015
Page 2
Page II
目录
About This Reference 1
Introduction 1 Graphic Emphasis 1 Chapter Description 1
Getting Start 2
Introduction 2 Familiar with FM200 3
Unpacking 3 Outline 3
Cable Slot 4 Specifivations 5 Connect FM200 & Host 6
Communication Ports 6
Install USB Cable 7
Install RS232 Cable 8 ON, OFF, IDLE, RESTART 9
Power On 9
Power Off 9
IDLE Mode 9
RESTART 9 Programming Outline 10
Introduction 10
Code Programming 10
Command Programming 11 Reading 12 Illumination 13 Aiming 14 Reading Mode 15
Mode Selection 15
Sensor Mode Timeout 15
Sensor Mode Sensitivity 16 Reading Stance 17 Constrain Multi-reading 18 Default 19
Factory Default 19
User Default 19 Beep 20
Beep Denotation 20
Program Beeper 20 System Information 21
The system information is provided in such format 21 Maintenance 22
Maintenance 22
Page 3
Page III
USB Interface 23
Introduction 23 USB HID-KBW 24
USB Country Keyboard Types 25 USB Country Keyboard Types 26 Unknown Characters, Beep 27 Function Key Mapping 29 ASCII Function Key Mapping Table 30 Keystroke Delay 31 CAPS Lock Override 31 Convert Case 32
Emulate Numeric Keypad 33 USB DataPipe 34 USB Visual RS232 35
RS232 Interface 36
Inteuduction 36 Baud Rate 37 Parity Check 38 Data Bits Transmitted 39 Stop Bits 40 Introduction 41 Symbologies Selections 41
Symbologies 41
General Options 42
Prohibit Reading All 42
Allow Reading All 42
Allow Reading All 1D 42
Prohibit Reading All 1D 42
Allow Reading All 2D 42
Prohibit Reading All 2D 42 Code 128 43
Load Factory Default 43
Read/Abort Code 128 43
Check Digit 43
Select Message Length 44 UCC/EAN-8 45
Load Factory Default 45
Read/Abort UCC/EAN-8 45
Check Byte 45

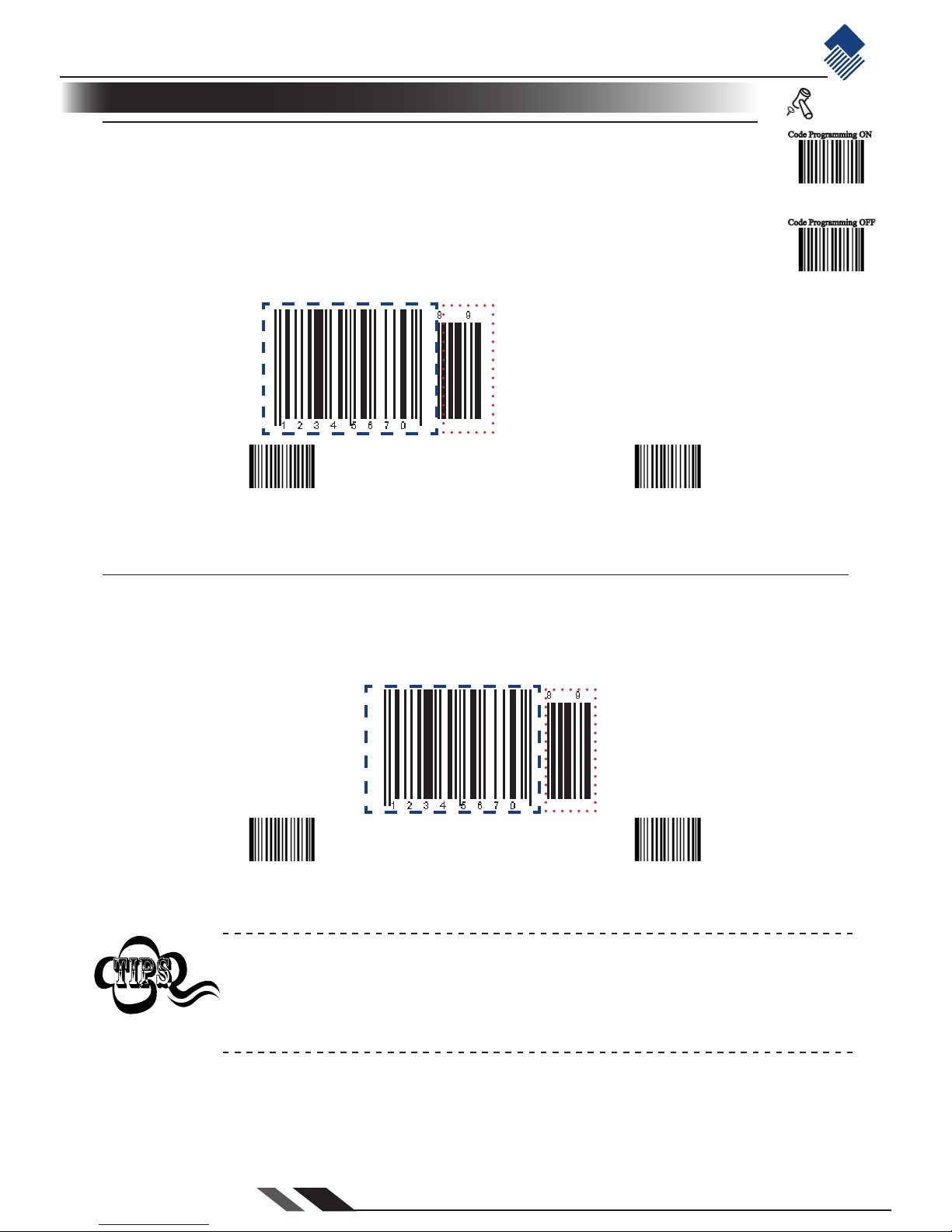

2 Digits Addenda Code 46
5 Digits Addenda Code 46
EAN-8 expand to EAN-13 47 EAN-13 48
Load Factory Default 48
Read/Abort EAN-13 48
Check Byte 48
Page 4
Page IV
2 Digits Addenda Code 49
5 Digits Addenda Code 49 UPC-E 50
Load Factory Default 50
Read/Abort UPC-E 50
Check Byte 50
Transmit First ‘0’ Selections 52
Extend To UPC-A Selections 52 UPC-A 53
Load Factory Default 53
Read/Abort UPC-A 53
Check Byte 53
2 Digits Addenda Code 54
5 Digits Addenda Code 54
Transmit
Selections 55
Interleaved 2 of 5 56
Load Factory Default 56
Read/Abort Interleaved 2 of 5 56
Select Message Length 57
Check Byte 58
Fixed Length Selection 59
ITF-14 60
ITF-6 61 China Post 25 62
Load Factory Default 62
Read/Abort China Post 25 62
Select Message Length 63
Check Byte 64 Code 39 65
Load Factory Default 65
Read/Abort Code 39 65
Transmit Start & Stop Character. 65
Select Message Length 66
Check Byte 67
Decode ASCII 68 Codabar 69
Load Factory Default 69
Read/Abort Codabar 69
Transmit Start & Stop Character 69
Select Message Length 70
Check Byte 71 Code 93 72
Load Factory Default 72
Read/Abort Code 93 72
Select Message Length 73
Check Byte 74 UCC/EAN-128 75
Load Factory Default 75
Page 5
Page V
Read/Abort UCC/EAN-128 75 PDF417 76
Load Factory Default 76
Read/Abort PDF417 76
Select Message Length 77 QR Code 78
Load Factory Default 78
Read/Abort QR Code 78
Select Message Length 79
QR Twin Code 80 Aztec Code 81
Load Factory Default 81
Read/Abort Aztec Code 81
Select Message Length 82
Multi-Barcode Processing feature 83 Data Matrix 84
Load Factory Default 84
Read/Abort Data Matrix 84
Select Message Length 85
Data Matrix Twin Code 86 Chinese-Sensible Code 87
Load Factory Default 87
Read/Abort Chinese-Sensible Code 87
Select Message Length 88
OCR Selections 89
Inrtuducation 89
Prefix/Suffix 90
Intruducation 90 General Programming 91
Prohibit or Allow Prefix/Suffix 91
Prefix Sequences 91 User Prefix 92
Prohibit or Allow User Prefix 92
Program User Prefix 92 AIM Prefix 93 Code ID Prefix 94
Code ID Prefix 94
Code ID Default 94
Modify Code ID 95
8.4 User Suffix 97
Prohibit or Allow User Suffix 97
Program User Suffix 97 Stop Prefix 98
Prohibit or Allow Stop Suffix 98
Program Stop Suffix 98
Page 6
Page VI
Message Intersect & Pack 99
Introducation 99 Message Intersect 100
introduction 100
1D, Program Intersect Option 101
How to clear a certain 1D barcode Intersection Setting? 101 Message Intersect 102
2D, Program Intersect Option 102
How to clear a certain 2D barcode Intersection Setting? 102
Symbologies ID Number： 103 Message Pack 104
Introduction 104
Normal Pack 104
ESC_Bank Pack 105
ESC_AddLen Pack 106
Batch Programming 107
Itruducation 107
Appendix 108
Digit Code 108 Save and Abort 109
Page 7
Page 1
Introduction
This product reference introduces a Newland Auto-ID Image product — NLS-
FM200 (ab. " FM200").
Graphic Emphasis
TOOL, facilitate use of the manual
ATTENTION, be aware & read through
E.g., help understand a certain operation.
TIPS, help understand better.
Chapter Description
About This Reference
Page 8
Page 2
Getting Start
Introduction
FM200 is an omnidirectional Imager to capture, decode and transfer 1D & 2D
barcode. Newland Auto-ID patented UIMG™ technology ensure its fast and accurate
performance, and thus provide the best value.
It works at hand-held and hands-free modes in a stand. The ergonomic design
allows comfort and easy use.
Chapter One presents a holistic picture of how to use and step-by-step manner
guide.
Please have a FM200 and a stand on hand.
This chapter is recommended to general users, maintenance staff and software
programmers.
Page 9
Getting Start
Page 3
Unpacking
Unpack FM200 and accessories. Check with the packing list to make sure that there is none damaged or missing.
If any, please keep the original package and contact your supplier for services.

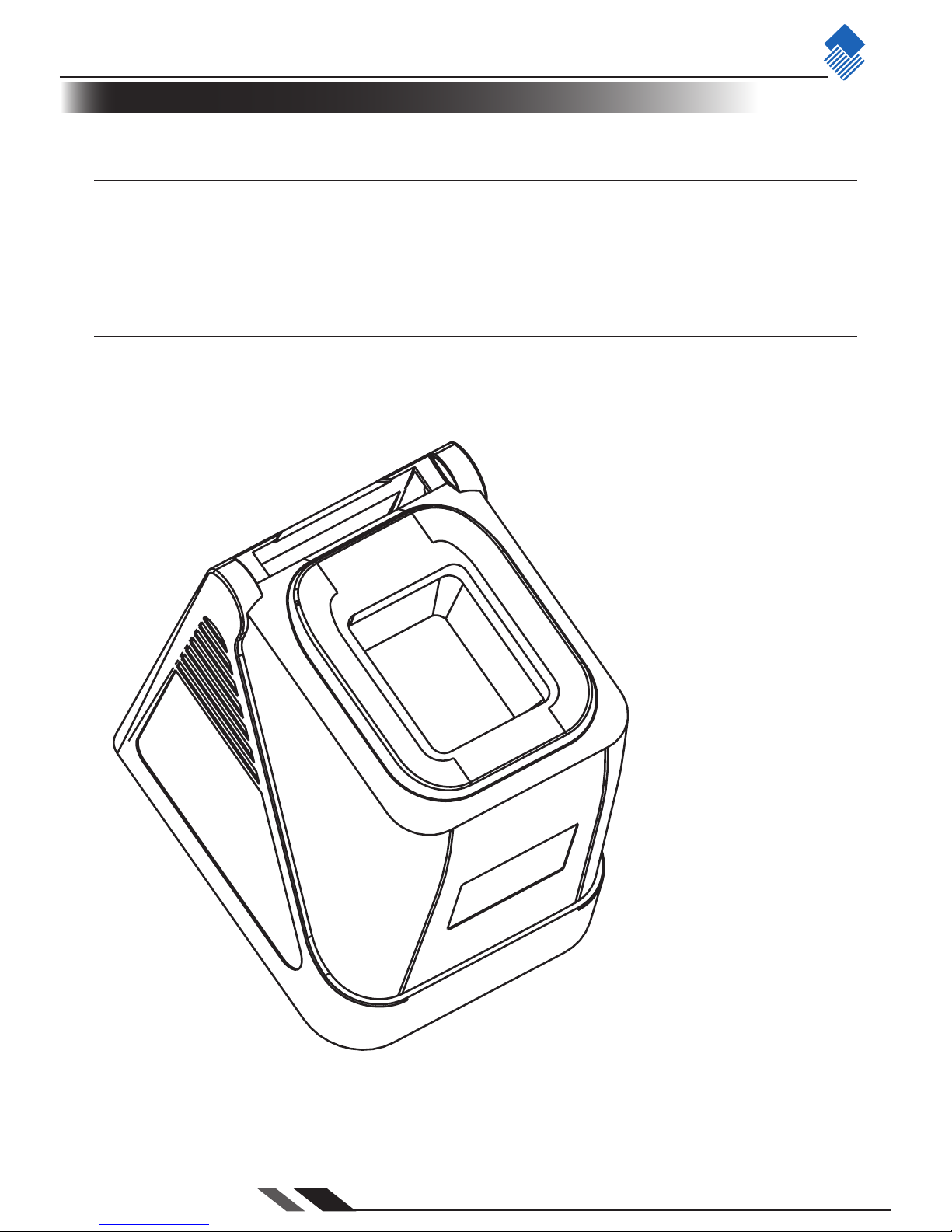

Outline
Familiar with FM200
Page 10
Page 4
Getting Start

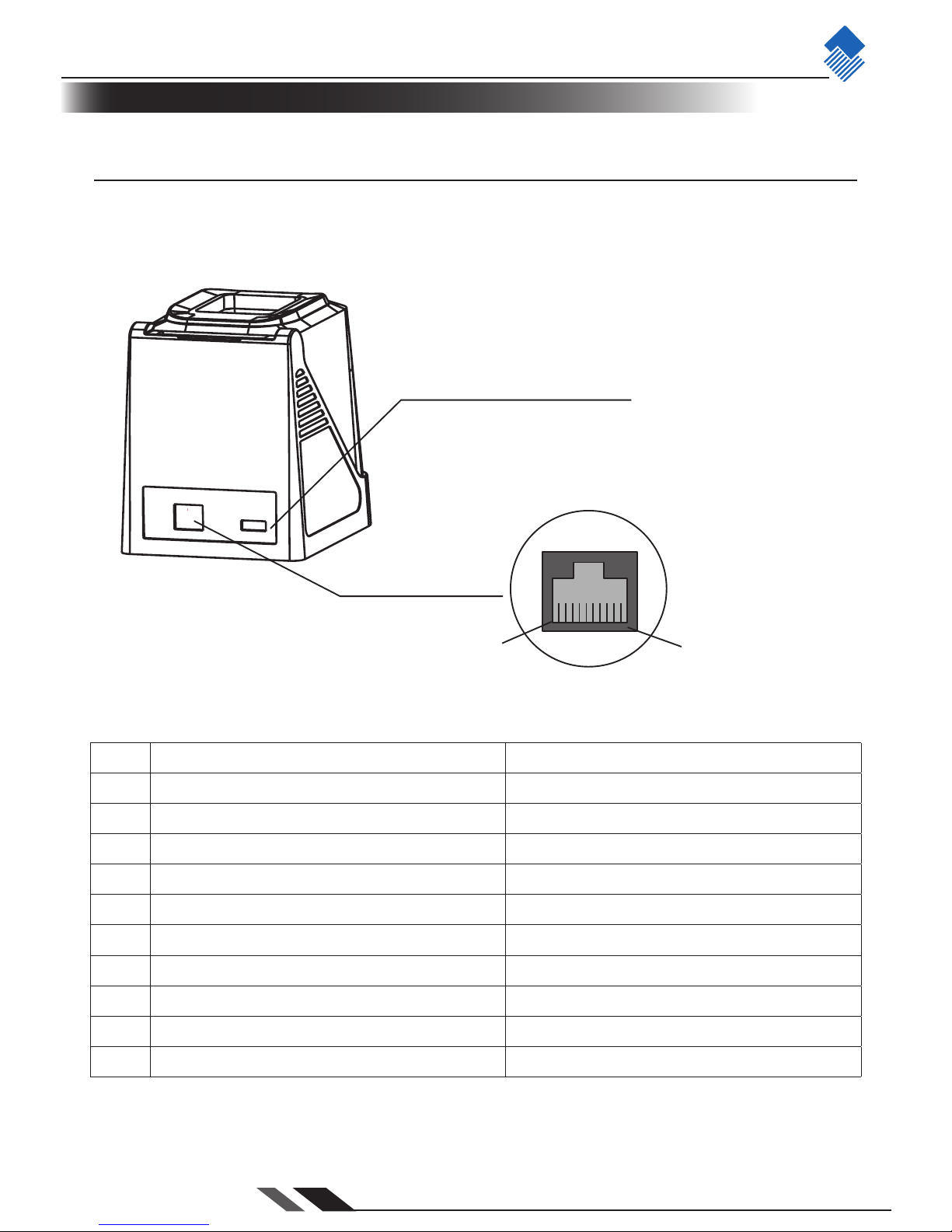

RS 232 Port
Cable Slot
PIN Functions I/O
1 GND
2 VIN
3 VIN
4 RS232 - TXD OUT
5 RS232 - RXD IN
6 RS232 - CTS IN
7 RS232 - RTS OUT
8 GND
9 USBC_D-
10 USBC_D+
PIN 1
PIN 10
Familiar with FM200
USB Port
Page 11
Getting Start
Page 5
Specifivations
Performance
Image Sensor CMOS
Resolving 640 * 480
2D
PDF417, QR Code(Model 1/2), DataMatrix(ECC200, ECC000, 050, 080, 100,140),
Aztec, Chinese Information Code, etc.
1D
Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25,
Interleaved 2 of 5, ISBN/ISSN, Code 93, etc.
Precision
≥ 3mil
Light Source
LED(622 nm - 628 nm)
Light Intensity
290 LUX (130 mm )
Depth of Scan Field
0 mm ~ 450 mm
Print Contrast Signal
≥ 25%
Roll
360°
Pitch 45°
Yaw 45°
Illumination
0 ~ 100,000 LUX
Electricals
Power Consumption
2 W
Voltage
DC 5 V
Current
Max
400 mA
Working
300 mA
Idle
1 mA
Weight
250 g
Environment
Operate Temperature
-5℃ - +45℃
Storage Temperature
-40℃ - +60℃
Humidity
5% - 95%(non-condensing)
Programming Software
QuickSet
Certification
FCC Part15 Class B, CE EMC Class B
Page 12
Page 6
Getting Start

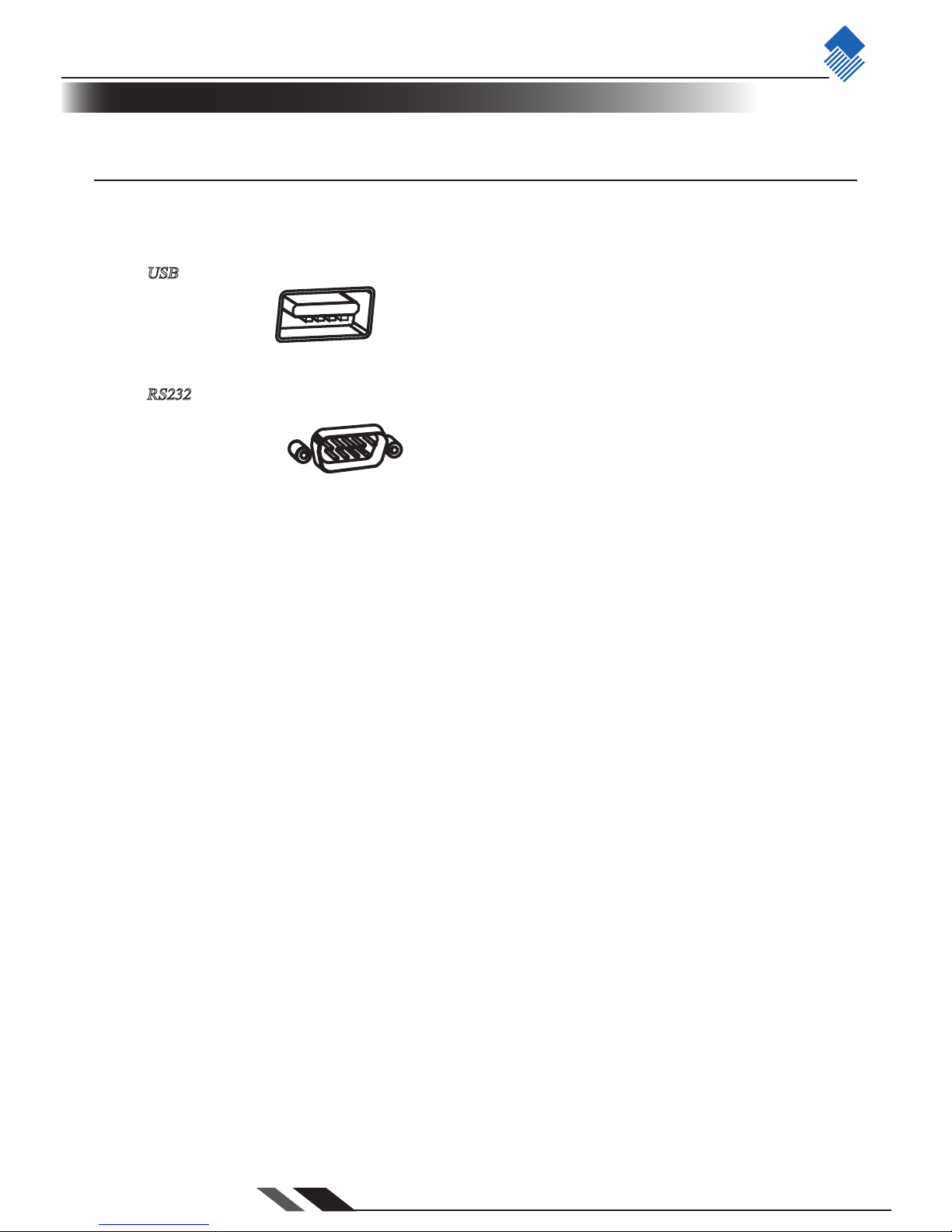

Communication Ports
FM200, An imager, Must connect with a Host to perform. A Host can be PC, POS. Or any intelligent terminal
with supported communication ports.
US
1.
B
：
USB port on host：
RS23
2.
2
：
RS232 port on host：
Please check available ports to order appropriate cable fitted.
Connect FM200 & Host
Page 13
Getting Start
Page 7

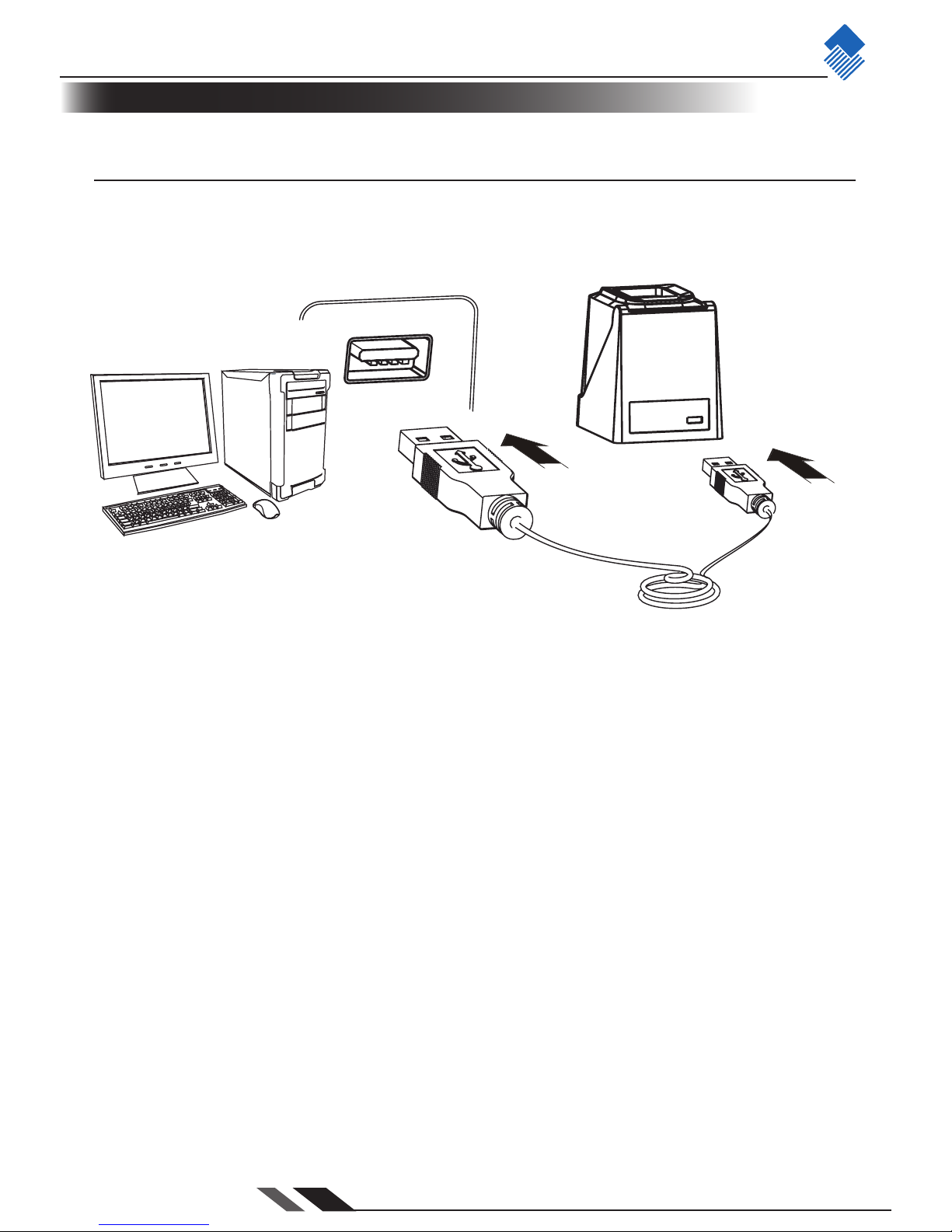

Install USB Cable
Insert USB Cable (RJ45 male head) into cable slot (HR200);1.
Insert USB Cable (USB male head) into USB slot (Host female slot);2.
Switch ON and perform;3.
You may need to install driver into the host to perform; See USB Interface 4.
Connect FM200 & Host
Page 14
Page 8
Getting Start

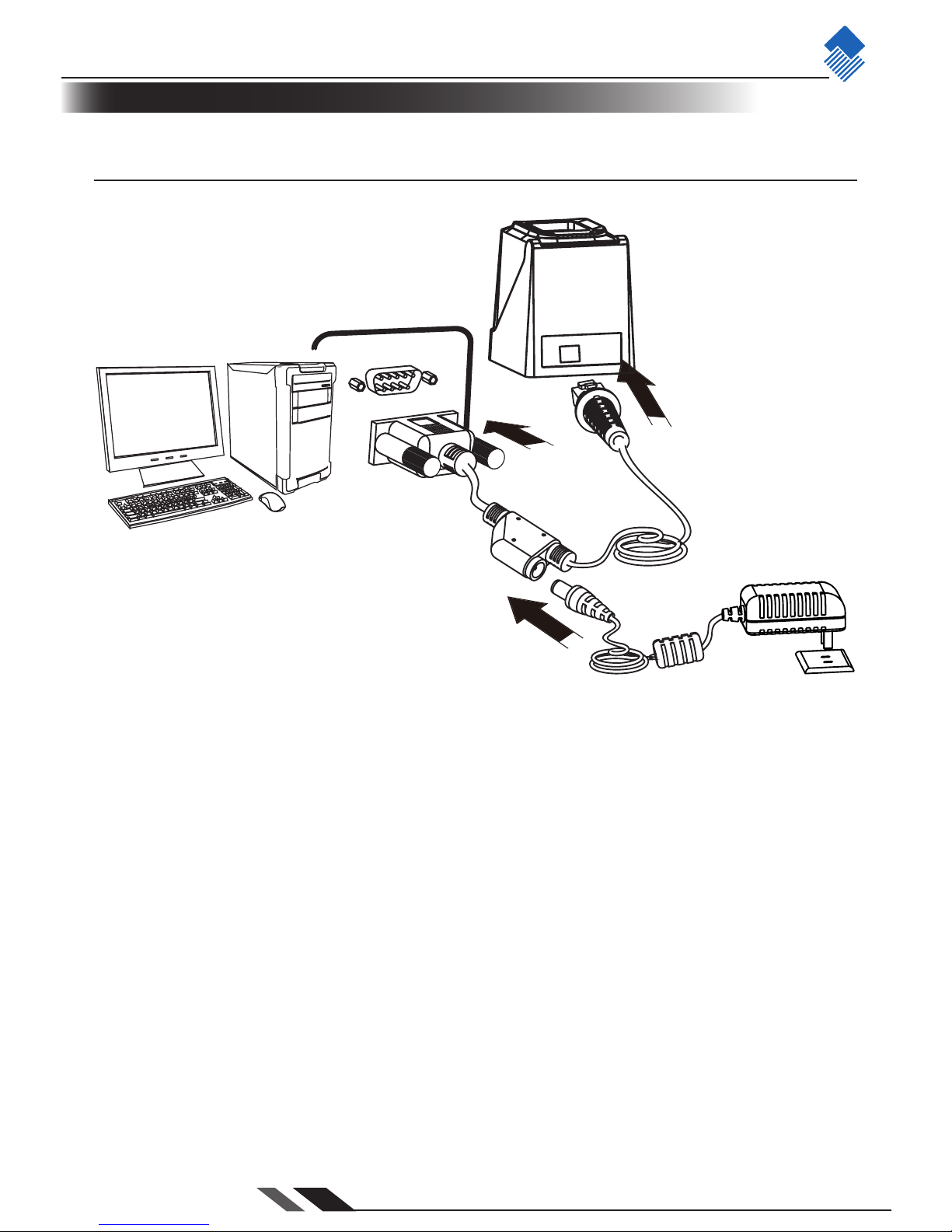

Install RS232 Cable
Connect FM200 & Host
Insert RS232 cable (RJ 45 male head) into cable slot (HR200);1.
Insert RS232 cable (RS232 male head) into RS232 slot (Host female slot);2.
Connect RS232 cable and the mains with power adapter;3.
Switch ON and perform4.
Page 15
Getting Start
Page 9
Power On
Connect FM200 and Host. FM200 will power on and in "Idle" status (factory default).
Communication Programming, Reading and User Preference Programming can be progressed when power ON.
Power Off
4 ways to "Power OFF":
Remove Cable Off HR200;
»
Remove Power Adapter Off RS232 Cable; » Remove USB Cable Off the Host; » Remove PS/2 cable off the Host »
IDLE Mode
When Imager is NOT reading, it is in "IDLE mode".
No reading attempt within a timeout, the Imager switch to IDLE mode automatically.
RESTART
If FM200 halted and does not respond to operations, please "Restart" by "Power OFF", and then "Power ON".
ON, OFF, IDLE, RESTART
Page 16
Page 10
Getting Start

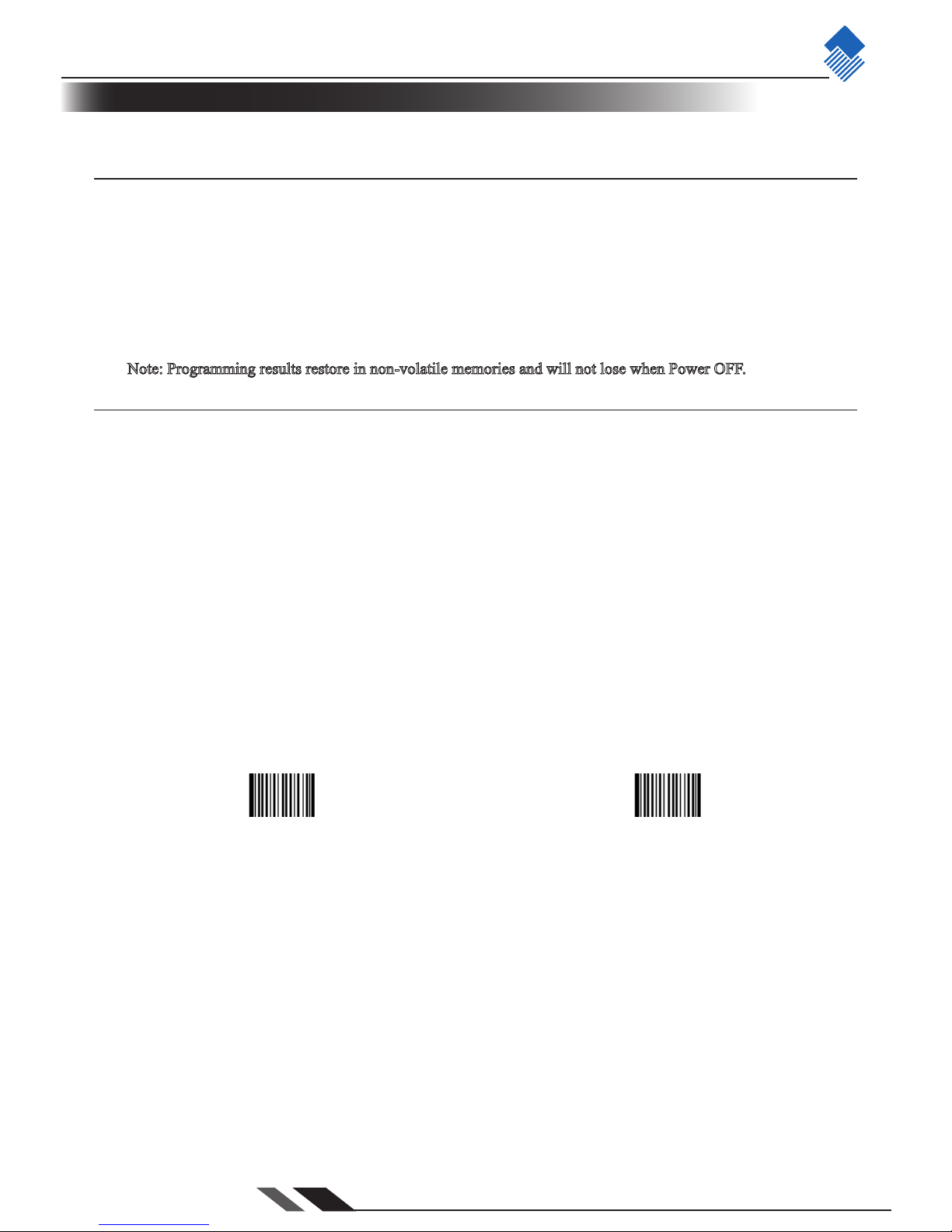

Programming Outline
Introduction
There are 3 ways to program user options:
Code Programming: special encoded barcodes to work on "read & set options" base;1.
Command Programming: a ASCII string, the Imager received from data cable as commands to set options;2.
QuickSet：a programming software exclusively use by Newland Auto-ID products. It displays decoded data 3.
and images captured. Programming work on "choose & set o
ptions" base from dialog windows.
Note: Programming results restore in non-volatile memories and will not lose when Power OFF.
Code Programming
Please read "Code Programming ON" bar to activate "Code Programming" function. More than one
programming code can be read at a time allows various programming. Terminate code programming function by
reading "Code Programming OFF", or by reading an ordinary barcode.
Some code programming may use digits. They can be "input" by reading relevant codes See Appendix for digit
codes.
** Code Programming OFF
【Pro CMD：0006000】
Code Programming ON
【Pro CMD：0006010】
Page 17
Getting Start
Page 11
Programming Outline
Command Programming
The Programming Command (Pro CMD) pairs a unique Programming Code. Sending commands to the Imager
is identical with Code Programming. A full command is formed by [Start Symbol "nls" + Pro CMD = Parameters].
There are 4 ways to program a command:
"nls" + Pro CMD1.
E.g. [nls0100060], set RS232 transmit Baud Rate to 38400bps
"nls" + Pro CMD = Decimal Parameter2.
It is used to define
parameter, such as Min Message Length.
E.g. [nls0312040=10], select Sensor Mode Sensitivity to be 10
"nls" + Pro CMD = Hex Parameter3.
It is used to program Prefix, Suffix, Stop Bits, CodeID, Message Length, and Message Intersection.
E.g. [nls0310000=0x0d0a], program Suffix to be CR/LF
"nls" + Pro CMD = "Parameter"4.
Letters, digits and characters can be embraced by quotation mark as parameter.
E.g. [n
ls0300000="AUTO-ID"], program Prefix to be AUTO-ID
Page 18
Page 12
Getting Start
Reading
The “Sensor Mode” or “Continuous Mode” should be selected. See “Reading Mode” for details.
Because FM200 does not have a manual trigger, and it is a fix mount reader.
Mobile phone screen should be facing the scan window for the optimum reading stance.

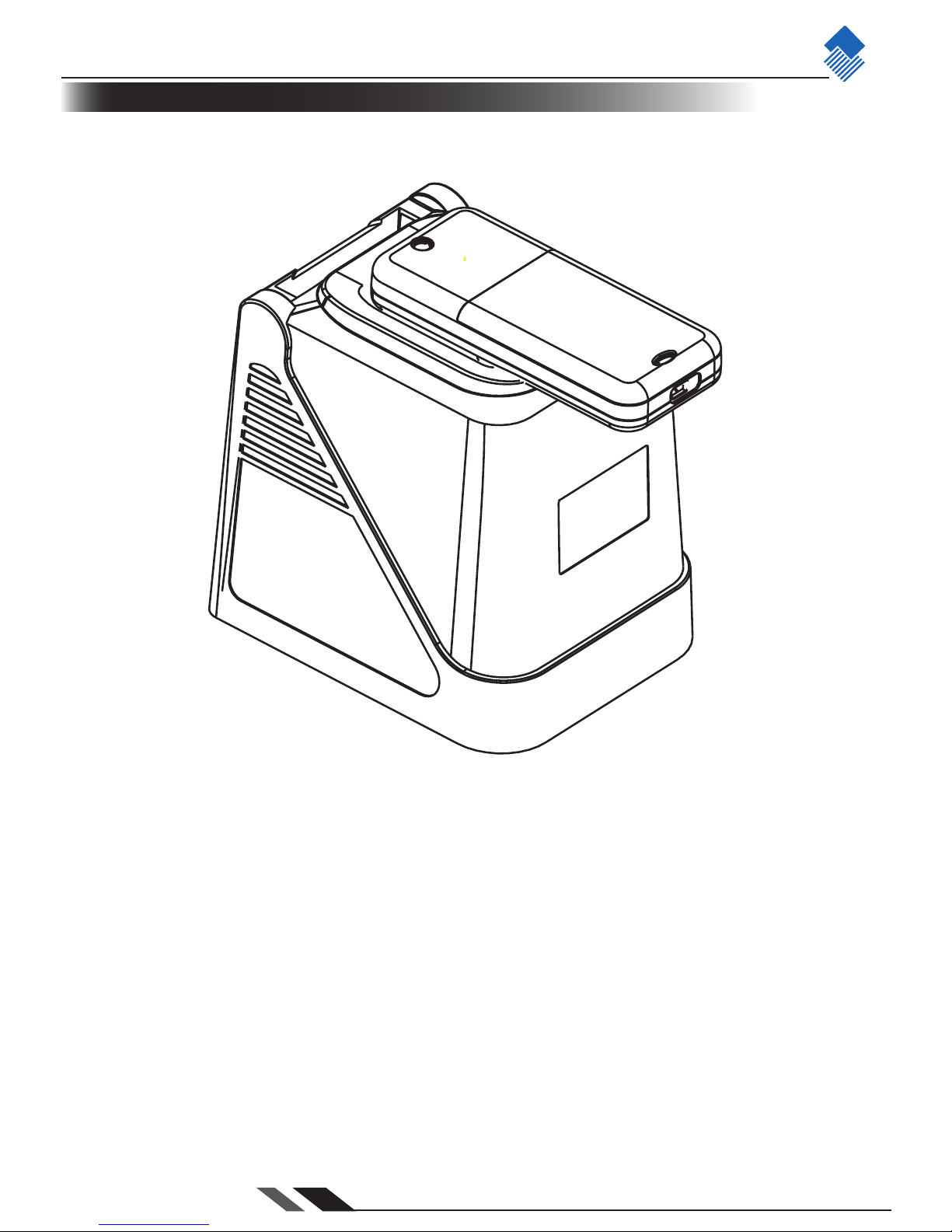

Page 19
Getting Start
Page 13
Code Programming ON
Code Programming OFF
Tools
Illumination LED lighting up barcodes is used to capture better images. There are 4
options:
“Illumination Wink”: LED keep flashing when reading
»
“Illumination Keep ON”: LED keep on when Power ON » “Illumination Read ON”: LED keep on when reading » “Illumination OFF”: LED is off all the time »
** Illumination Wink
【Pro CMD：0200000】
Illumination Read ON
【Pro CMD：0200030】
Illumination Keep ON
【Pro CMD：0200010】
Illumination OFF
【Pro CMD：0200020】
Illumination
Page 20
Page 14
Getting Start
Code Programming ON
Code Programming OFF
Tools
Aiming
** Aim Wink
【Pro CMD：0201000】
Smart Aim
【Pro CMD：0201030】
Aim Keep ON
【Pro CMD：0201010】
Aim OFF
【Pro CMD：0201020】
Aiming LED focusing with a cross is used to allocate the Optimum Reading Stance.
There are 4 options:
“Aim Wink”: LED keep flashing when reading
»
“Aim Keep ON”: LED keep on when Power ON » “Smart Aim”: LED keep on when idle, and keep on when reading. Reading Mode »
automatically switches to “Sensor Mode” when “Smart Aim” is chosen.
“Aim OFF”: LED is off all the time
»
Page 21
Getting Start
Page 15
Code Programming ON
Code Programming OFF
Tools
Reading Mode
Mode Selection
Hand-held Mode: press and keep holding the trigger to read. Complete one reading or »
release the trigger to terminate reading status.
Sensor Mode: the environmental luminance changing in front of the engine
»
automatically initiates reading status. Complete one reading to terminate reading and switch
to idle. Both luminance changing and the Trigger can initiate reading when idle.
Cont
inuous Mode: one hit the Trigger to start continuous reading, and on hit to »
terminate reading.
** Hand-held Mode
【Pro CMD：0302000】
Sensor Mode
【Pro CMD：0302010】
Continuous Mode
【Pro CMD：0302020】
Sensor Mode Timeout
When the engine reading at Sensor Mode, the period of time before automatically switch to idle is Sensor Mode
Timeout. The timeout counts from the latest environmental lamination change. Notice that a reading completed will
terminate reading status. Default timeout = 2000 ms.
Sensor Mode Timeout
【Pro CMD：0313000】
Page 22
Page 16
Getting Start
Code Programming ON
Code Programming OFF
Tools

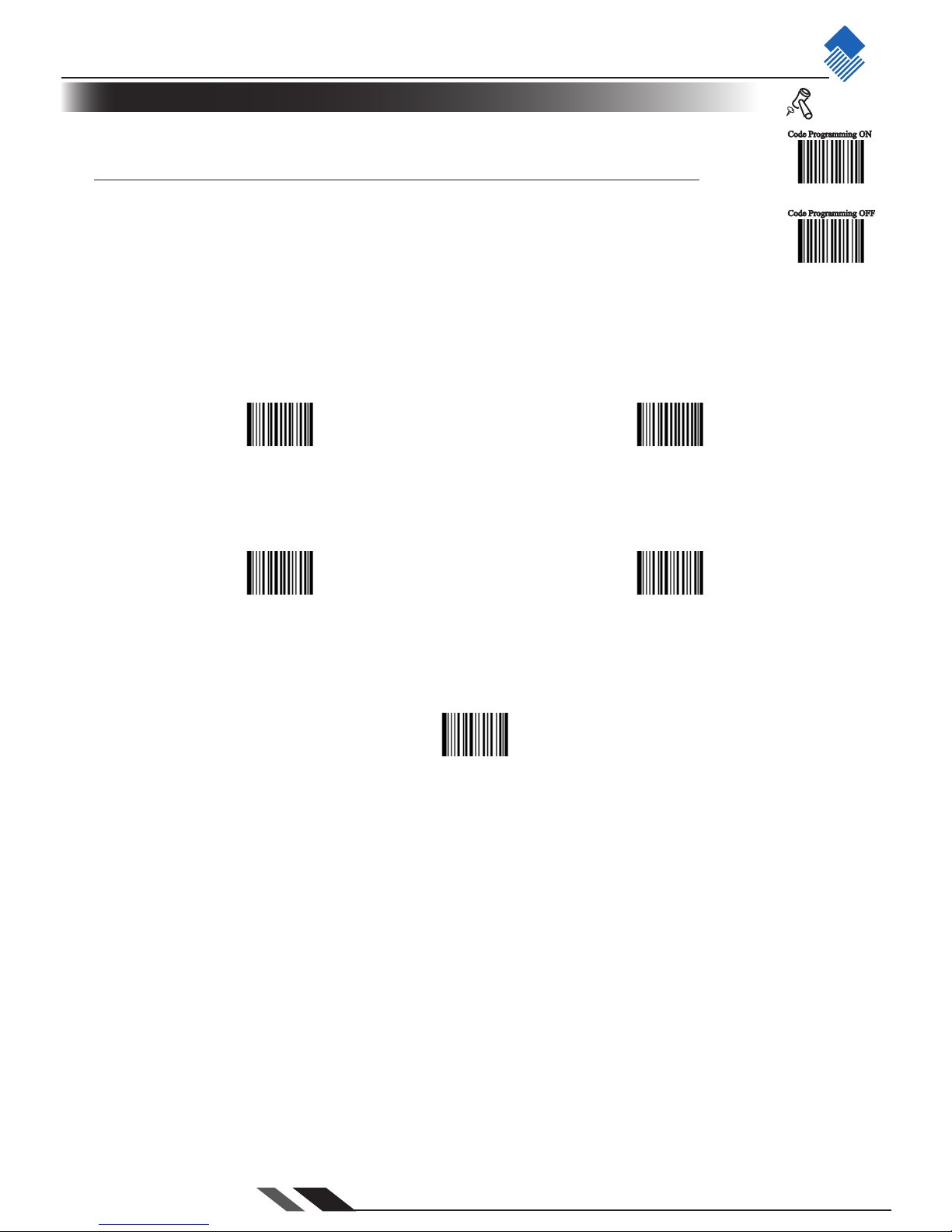

Sensor Mode Sensitivity
Sensitivity is the extent to which the engine responds environmental lamination change.
Sensitivity value is 0~20(including).
The lower the sensitivity value chosen, the higher sensitivity will be. The lower the
sensitivity value chosen, the smaller illumination change will initiate reading.
Reading Mode
** High Sensitivity (= 4)
【Pro CMD：0312020】
Low Sensitivity (= 10)
【Pro CMD：0312000】
Normal Sensitivity (= 7)
【Pro CMD：0312010】
Enhanced Sensitivity (= 1)
【Pro CMD：0312030】
Program Sensitivity
【Pro CMD：0312040】
Page 23
Getting Start
Page 17

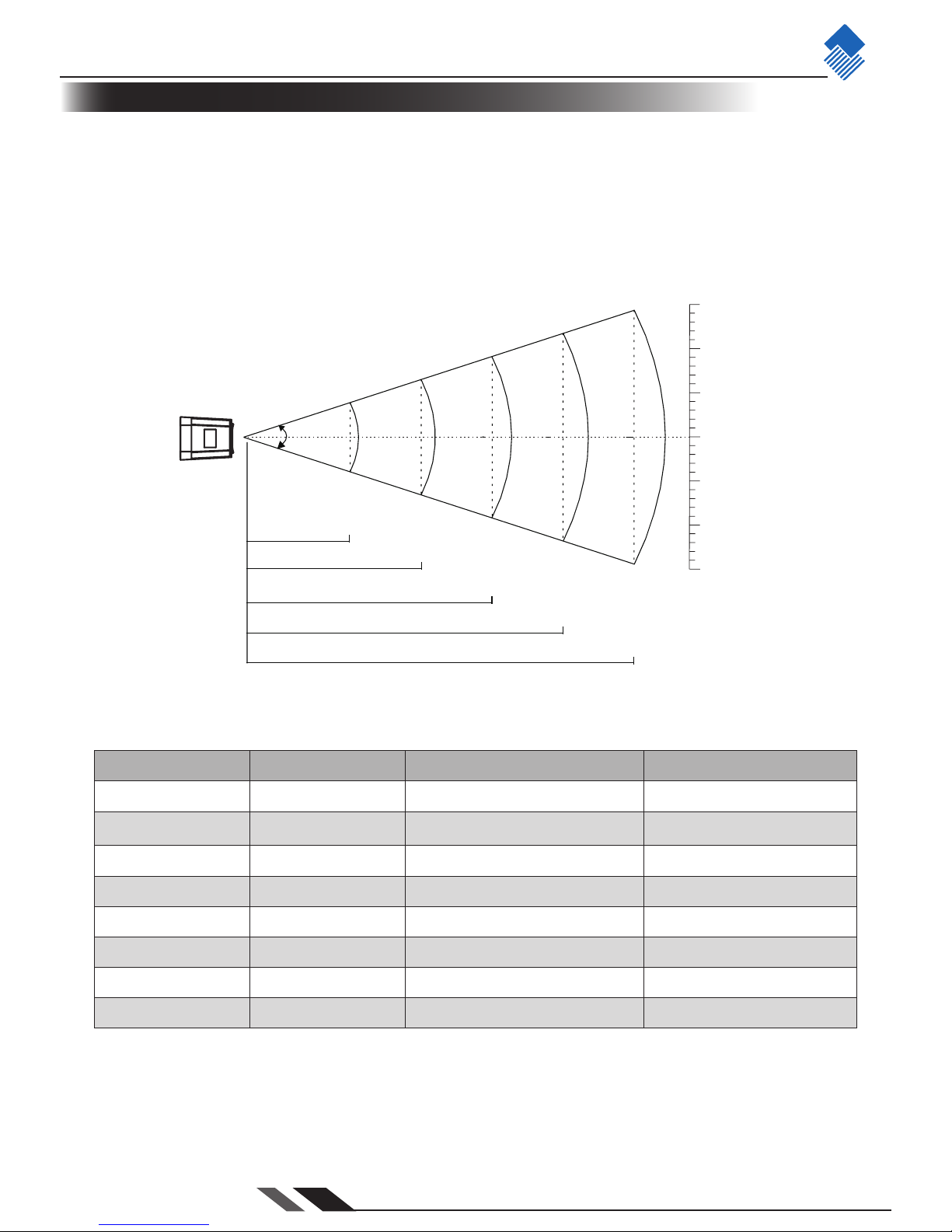

Theoretical reading stance and barcode: (measurement: mm)
mm
52.8
mm
52.8
17.6
17.6
35.2
35.2
0
60
100
140
180
220
27°
Barcode Density (mil) Near (mm) Far (mm)
Code 39 5 0 15
Code 39 10 0 25
PDF417 5 0 20
PDF417 10 0 30
QR Code 10 0 25
QR Code 15 0 36
Data Matrix 10 0 25
Data Matrix 15 0 40
Reading Stance is defined as the distance between the Imager front and an object (barcode). It affects image
capturing area and image quality, and thus affects reading performance.
Field of View & Divergence Angle
Reading Stance
Page 24
Page 18
Getting Start
Code Programming ON
Code Programming OFF
Tools
“Constrain Multi-reading” is used to avoid mis-reading on the same barcode (the same format
and message) in a multi-reading timeout.
Multi-reading Timeout
【Pro CMD：0313010】
2 constrain multi-reading options:
Multi-reading Prohibition: By all means, constrain reading on the same barcode in the timeout.
Multi-reading Semi-prohibition: Given a slight change on operation circumstances, the same barcode can be read
more than once in the timeout. For example, one read on a barcode, remove it out of reading area, and giving another
readin
g attempt within the timeout will not be constrained.
** Multi-reading Prohibitio
【Pro CMD：0313020】
Multi-reading Semi-prohibition
【Pro CMD：0313030】
Constrain Multi-reading
Page 25
Getting Start
Page 19
Code Programming ON
Code Programming OFF
Tools
Factory Default
Read “Load All Factory Default” to reset all user option to factory default.
Applicable Circumstance:
User options programming error lead to reading malfunction1.
Forgot details of previous programming and wish to decline their affection while programming 2.
commencing
Resume default if unusual, unknown, unexpected options are selected.3.
** Load All Factory Default
【Pro CMD：0001000】
User Default
All user options can be saved as User Default. It will be restored in non-volatile memory. Read “Save as User
Default” to save all the current user options to be User Default, and thus to erase the previous User Default.
Save as User Default
【Pro CMD：0001150】
Load User Default
【Pro CMD：0001160】
Default
Page 26
Page 20
Getting Start

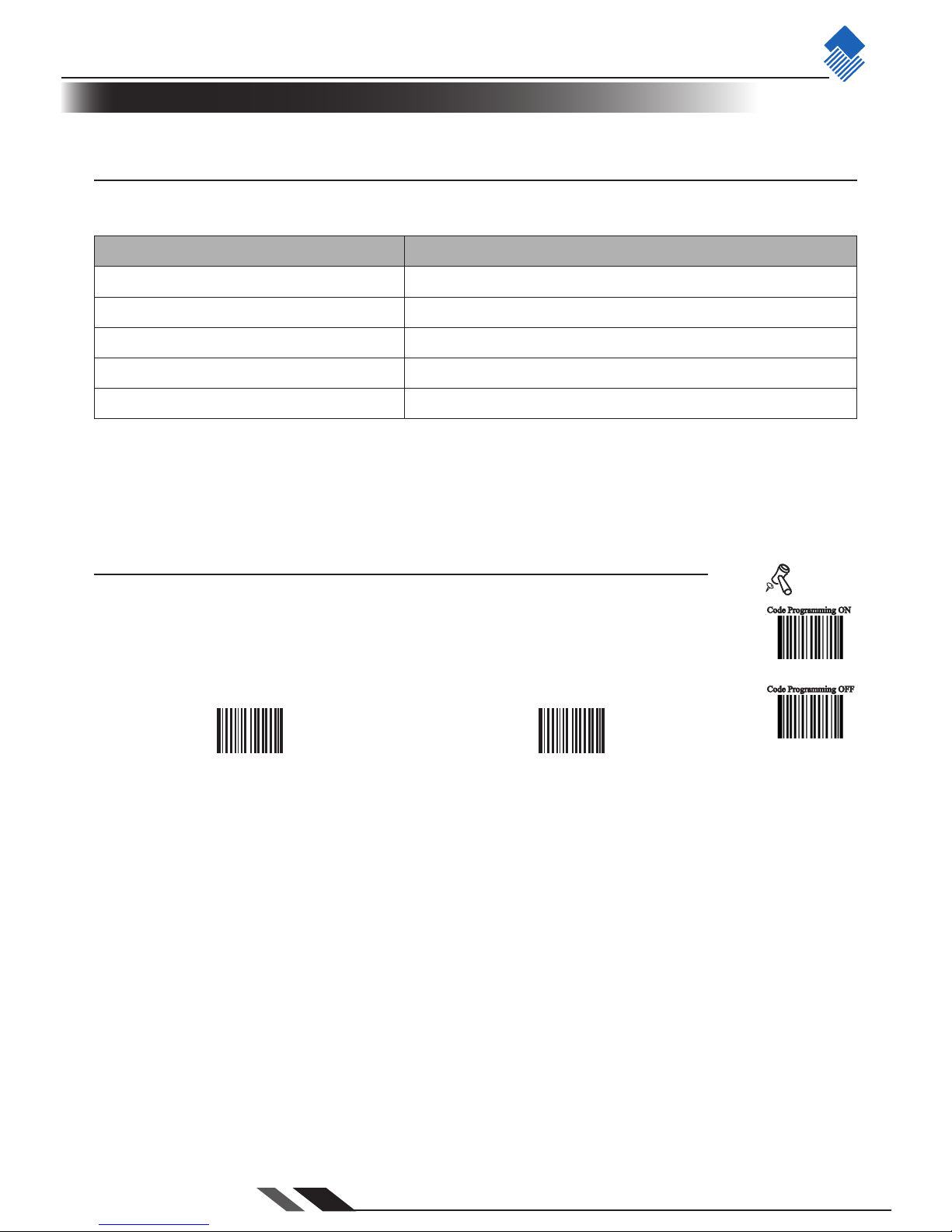

Beep Denotation
Beep Denotation
low-higher-higher-higher Power ON completed
1 beep successful read of an ordinary barcode
2 beeps successful read of an programming barcode
3 short low-2 high failure read
1 long low Unknown Character, Virtual Keypad (USB connection)
Program Beeper
Read “Beep ON” to enable all beep denotation and read “Beep OFF” to disable.
** Beep ON
【Pro CMD：0203010】
Beep OFF
【Pro CMD：0203000】
Beep
Code Programming ON
Code Programming OFF
Tools
Page 27
Getting Start
Page 21
Code Programming ON
Code Programming OFF
Tools

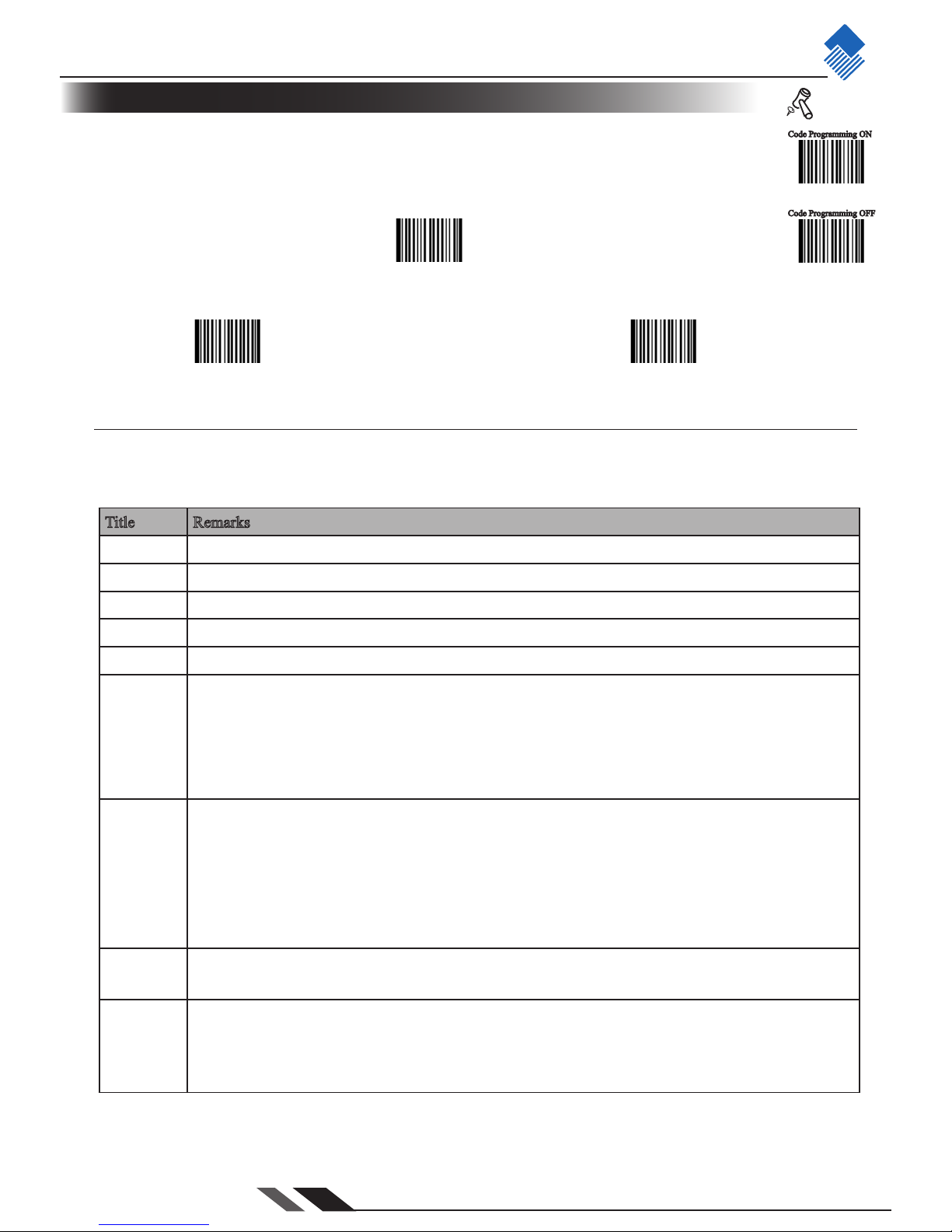

“Send Sys Info”, the engine sends system information to the Host immediately. “Power ON, Send Sys Info”, the engine sends system information to the Host right after Power
ON.
Send Sys Info【Pro CMD：0003000】
System Information
Title Remarks
Dev device type
Ver BIOS version
Date BIOS version establishing time
S/N device serial number
ESN user-defined device serial number
Interface 3 types of communication interfaces:
USB, append narration could be HID-KBW, DataPipe, Virtual RS232.1.
RS232, append narration could be baud rate, parity check byte, data bit and stop bit, in the 2.
order.
PS/2, no append narration3.
1D Indicate that reading 1D is
allowed. Symbologies are divided by comma. Appended information:
1. “+” affiliate features
2. Min Message Length -> Max Message Length
3. “No Check Digit” for do parity check，“Check Digit” for the contrary
4. “Fixed Length: 2~64 even value”. It is in this format: Fixed Length: 2 4 6 8 10 12...
2D Indicate that reading 1D is allowed. Symbologies are divided by comma. Appended information:
Min Message Le
ngth -> Max Message Length
Scan Mode 1. Manual Scan = “Hand-held Mode” in this book
2. Auto Scan = “Continuous Mode” in this book
3. Induced Scan = “Sensor Mode” in this book
The system information is provided in such format
Title: contents (append narration 1, narration 2)
Power ON, Send Sys Info 【Pro CMD：0007010】
** Power ON, Not Send Sys Info
【Pro CMD：0007000】
Page 28
Page 22
Getting Start
Maintenance
Keep the scan window clean is the only work needs to do. Improper maintenance will avoid limited warranty. » Avoid rough object damage or scratch the window. » Use brush to remove the stain. » Use soft cloth (cloth of glasses) to clean. » Prohibit spaying towards the window. » Only use clean water as cleanser. »
Maintenance
Page 29
Page 23
USB Interface
Introduction
When using a USB connection, the default protocol is USB DataPipe.
USB DataPipe is a Newland Auto-ID Co., Ltd. developed protocol. The DataPipe
driver should be installed on the Host. It supports data transmission and user preference
programming. QuickSet can perform with DataPipe.
USB DataPipe can be emulated to RS232 input into the Host. The virtual RS232
connection use DB9 DIN and per
form exactly the same as genuine RS232. USB DataPipe
driver is required.
When only data transmission is needed through USB connection, USB HID-KBW can
apply. It emulates the Imager transmission to be a USB keyboard input. It works in “Plug and
Play” base. There is no driver required.
Page 30
USB Interface
Page 24
Code Programming ON
Code Programming OFF
Tools

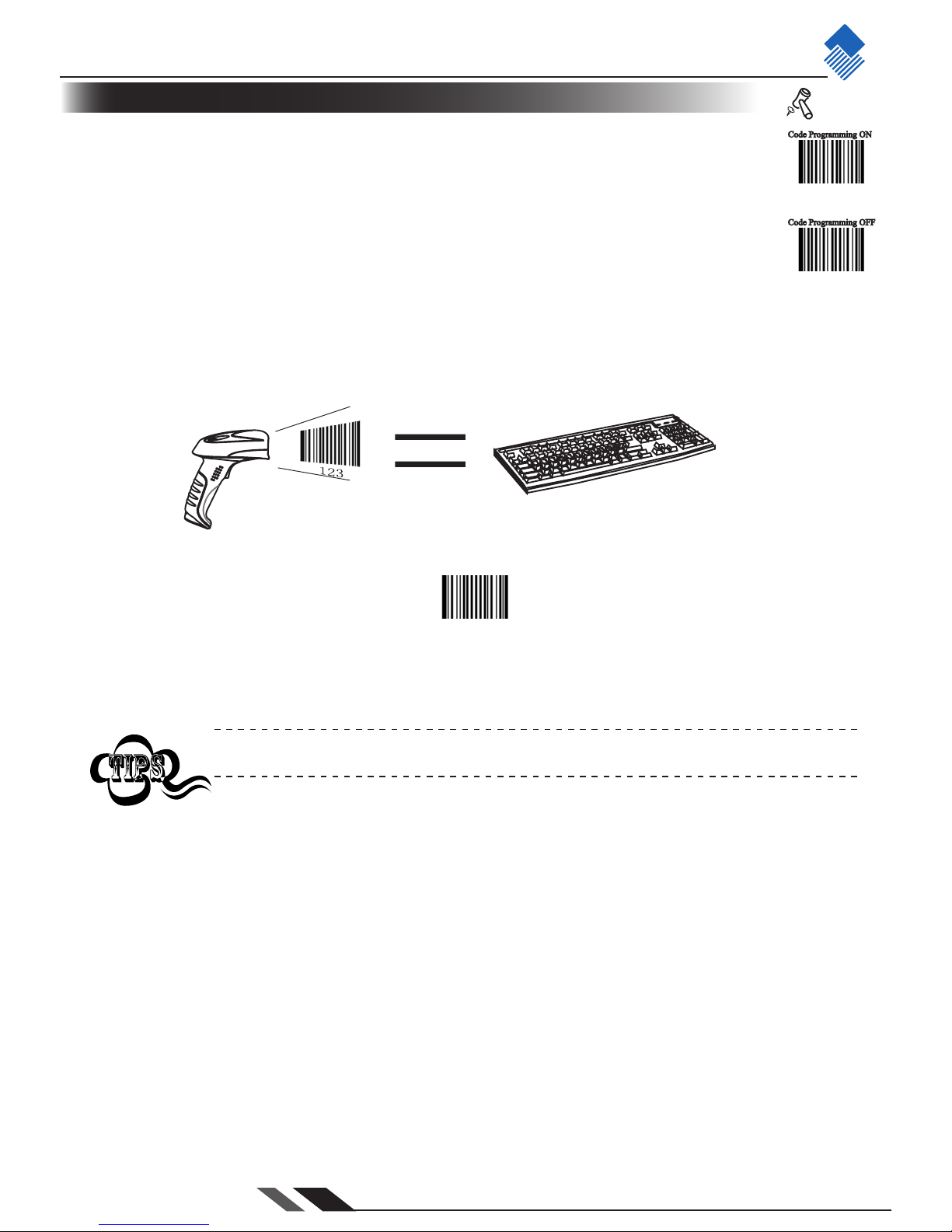

USB connection (no driver needed) supports simulating the Imager transmission to be
a USB keyboard input. The Host receives keystrokes of the virtual keyboard. It works in “Plug and Play” base. There is no driver required.
Select USB HID-KBW
【Pro CMD：1100020】
USB HID-KBW
If the input field of the Host allows keyboard input, no software needed to assist HID-KBW input.
Page 31
Page 25
USB Interface
Code Programming ON
Code Programming OFF
Tools
USB Country Keyboard Types
The keyboard arrangements and country codes vary in different countries. Refer country codes to »
the table “USB Country Keyboard Types”. Follow the steps bellow to program.
1.“Code Programming ON”
»
2.“Select Country Code” »
3.Read digit codes (according to country code) »
4.“save programming” »
5.“Code Programming OFF” »
Select Country Code
【Pro CMD：1103000】
1. "Code Programming ON"
2."Select Country Code"
3. Digit code: "1", "5"
4."Save Programming"
5."Code Programming OFF"
Emulate Norway keyboard：
USB HID-KBW
Page 32
USB Interface
Page 26
USB Country Keyboard Types
Country/Language Number Country/Language Number
U.S. 0 Netherlands(Dutch) 14
Belgium 1 Norway 15
Brazil 2 Poland 16
Canada(French) 3 Portugal 17
Czechoslovakia 4 Romania 18
Denmark 5 Russia 19
Finland(Sweden) 6 Slovakia 21
France 7 Spain 22
Germany/Austria 8 Sweden 23
Greece 9 Switzerland(German) 24
Hungary 10 Turkey F 25
Israel(Hebrew) 11 Turkey Q 26
Italy 12 U.K 27
Latin-American 13 Japan 28
USB HID-KBW
Page 33
Page 27
USB Interface
Code Programming ON
Code Programming OFF
Tools
Unknown Characters, Beep
HID-KBW deams an unknown character to be a character is not included in a country keyboard
type. It may not be able to allocate and send a keystroke, thus lead to an error beep.
** No Beep, Unkown Character
【Pro CMD：1103030】
Beep, Unkown Character
【Pro CMD：1103031】
Suppose select country keyboard types France (number 7), read a barcode "AÐF". Since the “Д(0xD0) is not included in France country code, the Imager skip “Д and transmit “AF”. For factory default, no beep produced. Read “Beep, Unkown Character”to indicate unknown
character.
USB HID-KBW
Page 34
USB Interface
Page 28
Code Programming ON
Code Programming OFF
Tools
USB HID-KBW
Emulate ALT + keypad
When enabled, all characters are sent as ASCII sequences over the numeric keypad:
“ALT Make”
→“ALT Break”
** No Emulate ALT + keypad
【Pro CMD：1103060】
Emulate ALT + keypad
【Pro CMD：1103061】
Regardless country keyboard selections, full ASCII characters (0x00～0xff) can be sent. Sending
speed is slow.
Suppose country code “7”, France is selected, and “Emulate ALT + keypad” is enabled.
Barcode message "AÐF" (65/208/70) will be sent as:
1. “ALT make”+ “0，6，5”+“ALT Break”
2. “ALT make”+ “2，0，8”+“ALT Break”
3. “ALT make”+ “0，7，0”+“ALT Break”
Page 35
Page 29
USB Interface
Code Programming ON
Code Programming OFF
Tools
Function Key Mapping
When enabled, function characters (0x00~0x1F) are sent as ASCII sequences over the numeric
keypad.
“Ctrl make”
→ Hit function key →“Ctrl Break”
** No Function Key Mapping
【Pro CMD：1103130】
Function Key Mapping
【Pro CMD：1103140】
USB HID-KBW set to be factory default. Enable “Emulate CTRL + keypad”. Read barcode “A(tab)F”(0x65/0x09/0x70). The sequence is:
1. Keystroke “A”
2. Input “Ctrl I” by “Ctrl make”, Keystroke “I”, “Ctrl break”
3. Keystroke “F” For some text editors “Ctrl I” is italic convert. So the output may be “AF”
Enable “Emulate ATL + keypad” will automatically disable “Emulate CTRL + keypad”
USB HID-KBW
Page 36
USB Interface
Page 30
ASCII Function Key Mapping Table
ASCII(HEX) Function key ASCII(HEX) Function Key
00 2 10 P
01 A 11 Q
02 B 12 R
03 C 13 S
04 D 14 T
05 E 15 U
06 F 16 V
07 G 17 W
08 H 18 X
09 I 19 Y
0A J 1A Z
0B K 1B [
0C L 1C \
0D M 1D ]
0E N 1E 6
0F O 1F .
USB HID-KBW
Page 37
Page 31
USB Interface
Code Programming ON
Code Programming OFF
Tools
Keystroke Delay
This parameter sets the delay, in milliseconds, between emulated keystrokes. Scan programming
code below to increase the delay when the Host require a slower transmission of data.
** No Delay
【Pro CMD：1103050】
Medium Delay(20ms)
【Pro CMD：1103051】
Long Delay(40ms)
【Pro CMD：1103052】
CAPS Lock Override
The case of the data is inverted regardless of the state of the Caps Lock key on the Host. Lower case and upper
case are converted correspondingly.
** No CAPS Lock Override
【Pro CMD：1103010】
CAPS Lock Override
【Pro CMD：1103020】
“Convert Case” option prevails “CAPS Lock Override”
Enable “CAPS Lock Override”, barcode message “AbC”is transmitted as “aBc”
USB HID-KBW
Page 38
USB Interface
Page 32
Code Programming ON
Code Programming OFF
Tools
USB HID-KBW
Convert Case
The Imager converts all barcode messages to the selected case.
** No Case Conversion
【Pro CMD：1103040】
Convert All to Upper Case
【Pro CMD：1103041】
Convert All to Lower Case
【Pro CMD：1103042】
Read “Convert All to Lower Case”, Barcode message “AbC” is sent as “abc”
Page 39
Page 33
USB Interface
Code Programming ON
Code Programming OFF
Tools

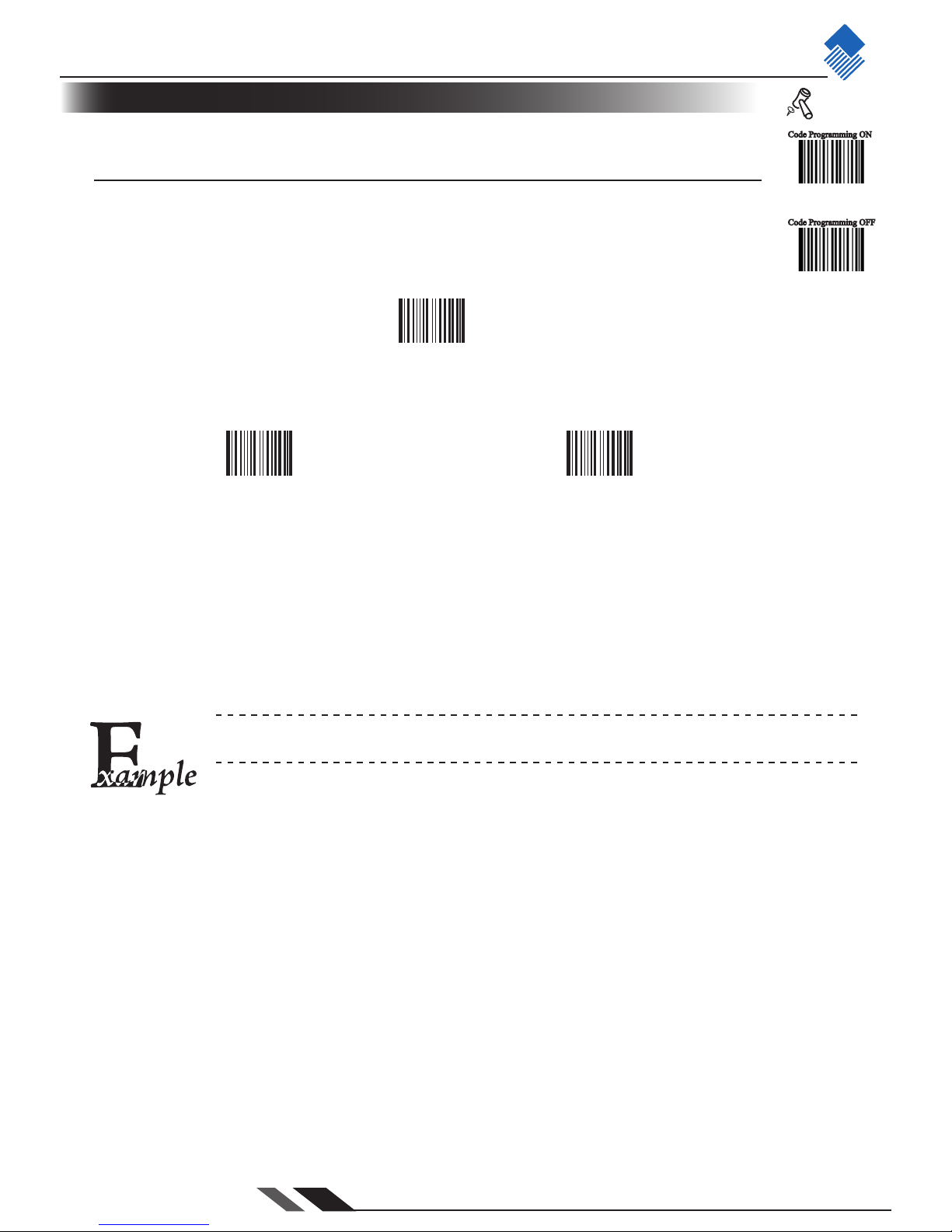

Emulate Numeric Keypad
Read “Emulate Numeric Keypad” to enable the function.“0~9./*-+”of the barcode message will be emulated
as keystrokes on numeric keypad. Otherwise “0~9./*-+” is emulated as keystrokes on main keyboard.
This function is affected by the current state of “Num Lock” of numeric keypad.
Numeric keypad is normally at the right of a standard keyboard. “Num Lock” light on, input “0~9./*-+”;
“Num Lock” light off, input their function value.
Check Num Lock light before use this function Enable “Emulate ALT + keypad” will automatically disable this function
Enable “Visual Number Keyboard” and read the “A4.5” barcode. If “Num Lock” on the host is ON, the data received will be “A4.5”. If “Num Lock” is OFF, host will receive the
data from keyboard as follow: Host receives data “A”. This character is not included in keyboard, thus the data will be sent as
normal. Next, host receives data “4” corresponding to the instruction of “Cursor move to left”. Then, host receives data “.” corresponding to the instruction of “delete the character just back of cursor”. There is no input generated by data “4” as the data “5” corresponds to NO instructions.
** Disable Emulate Numeric Keypad
【Pro CMD：1103110】
Emulate Numeric Keypad 【Pro CMD：1103120】
USB HID-KBW
Page 40
USB Interface
Page 34
Code Programming ON
Code Programming OFF
Tools

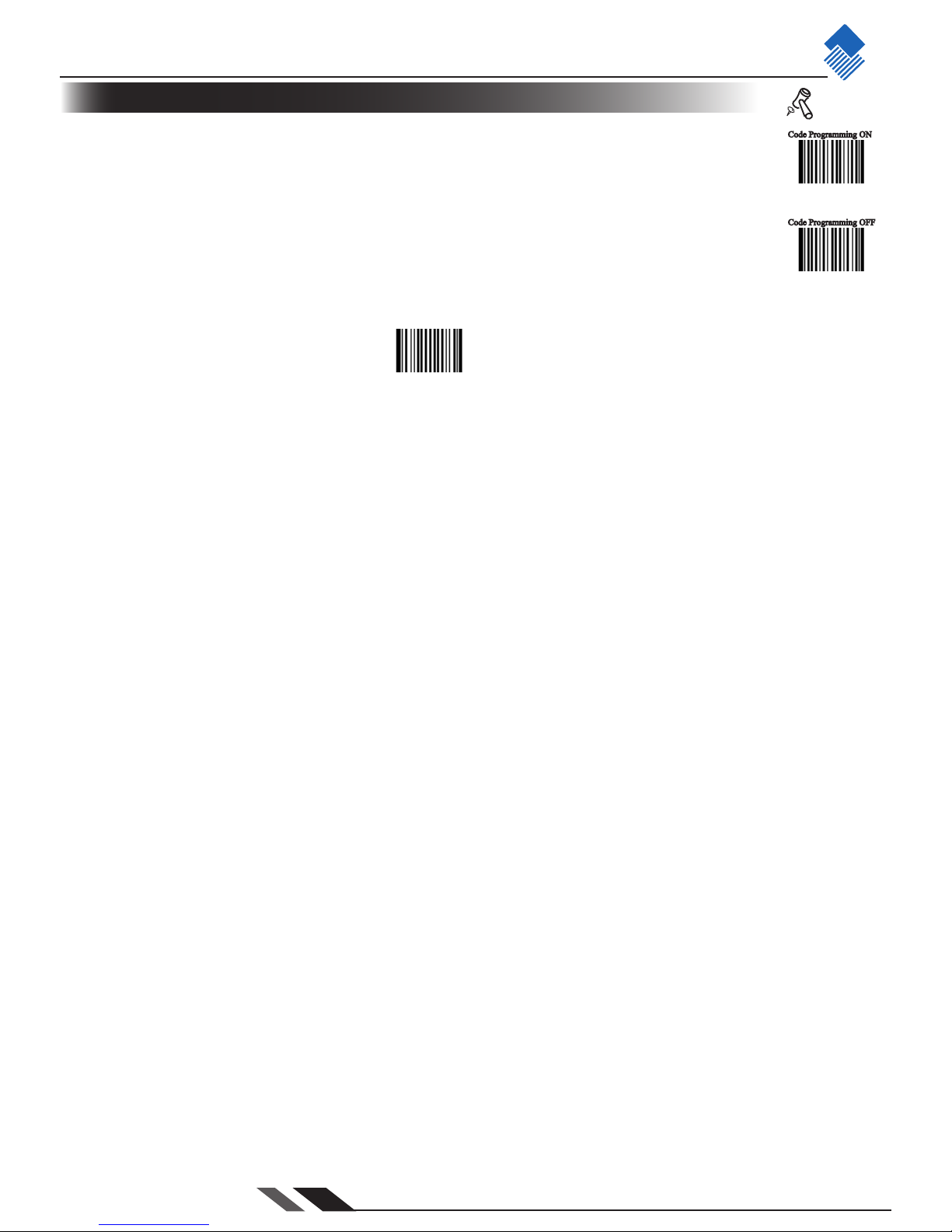

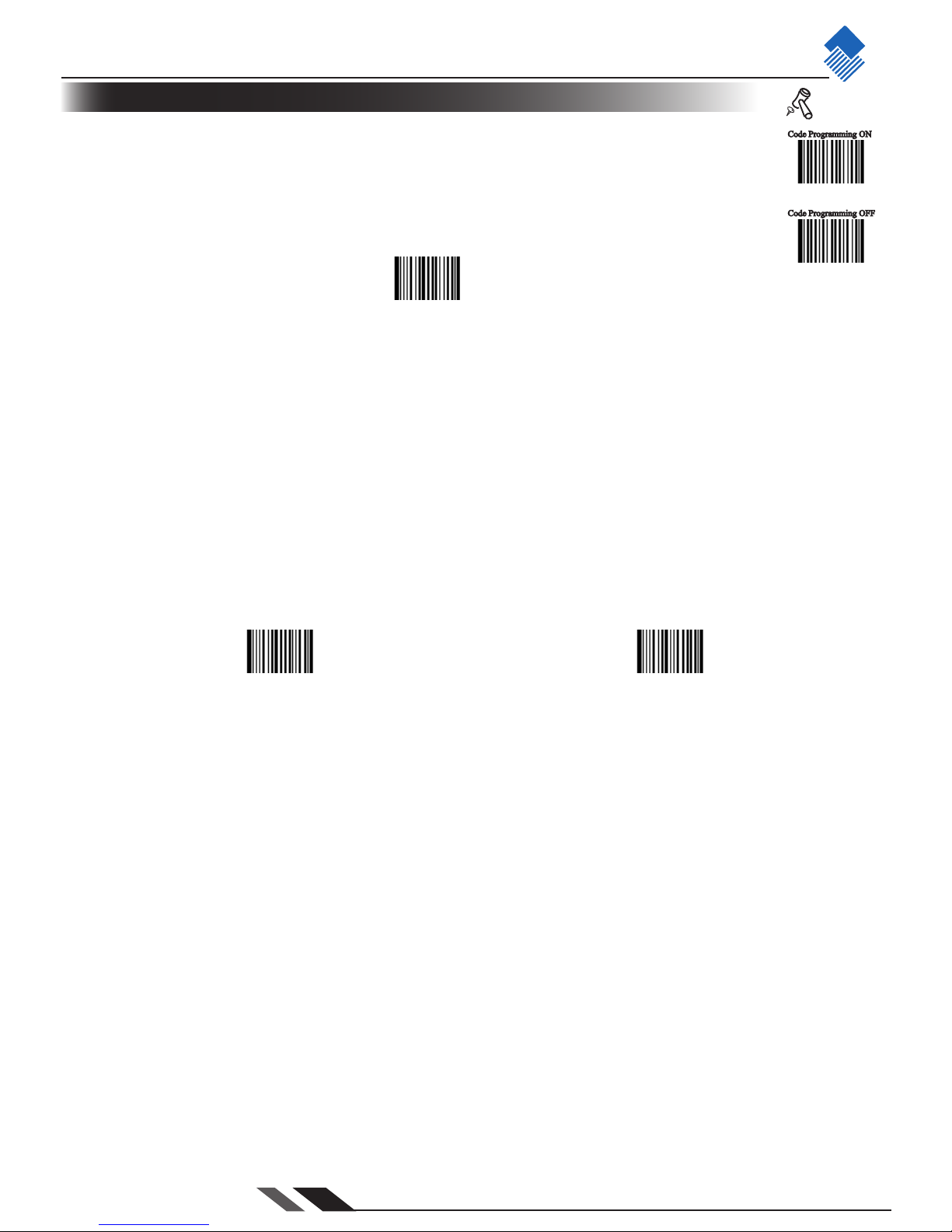

USB DataPipe
This protocol is defined by Newland Auto-ID. A driver has to be installed before using this
protocol to communicate with reader,
The advantage of using this protocol is the speedy data transmission. Meanwhile, the SDK can be
easily integrated into the application system.
USB DataPipe
【Pro CMD：1100010】
Page 41
Page 35
USB Interface
Code Programming ON
Code Programming OFF
Tools

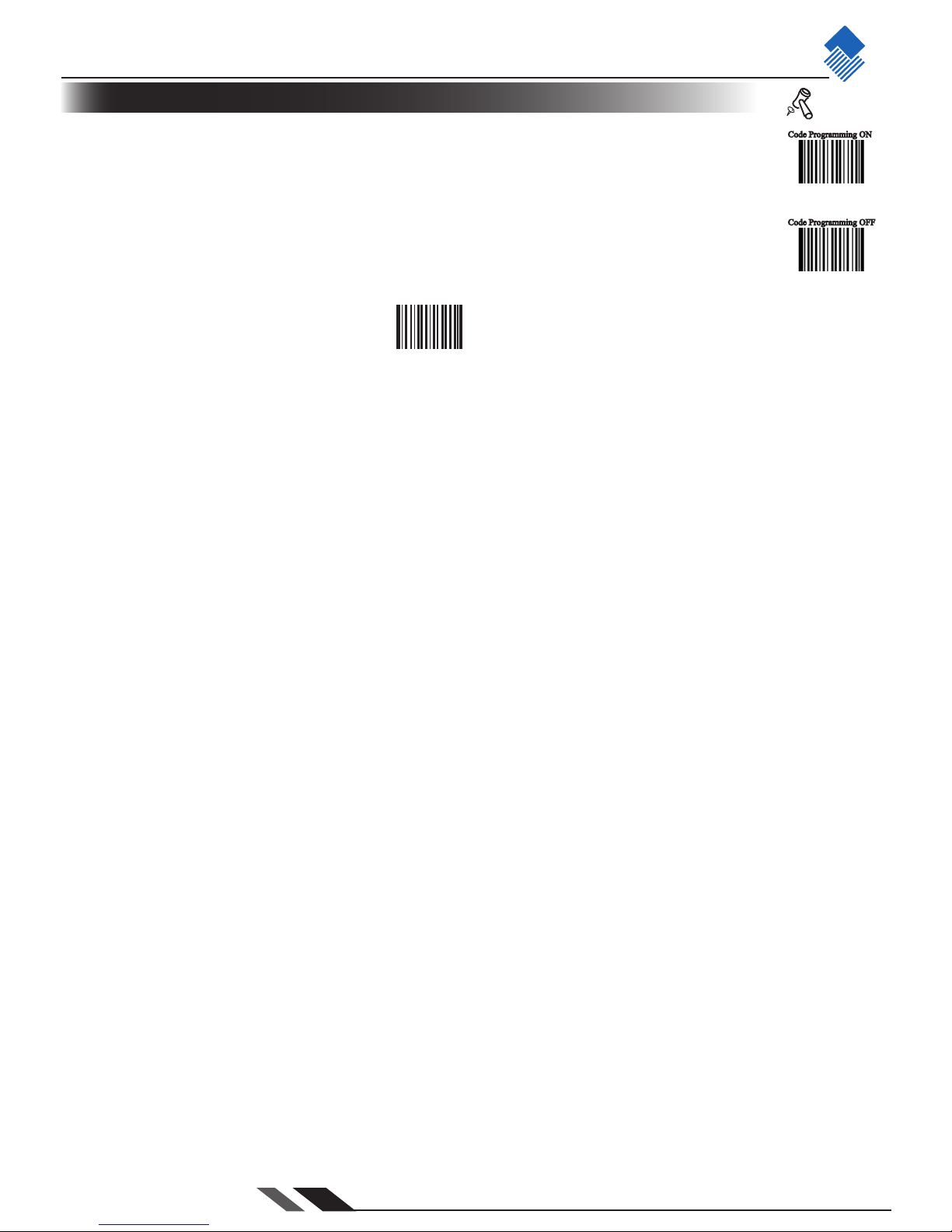

USB Visual RS232
When the USB port is connected to host RS232 port in order to receive data from scanner,
the model of imitating USB-to-RS232 has to be chosen. Hence, the engine and the host must
communicate at the same parameters and the parameters of real RS232 and visual RS232 must be
same.
USB Visual RS232
【Pro CMD：1100060】
Page 42
Page 36
RS232 Interface
Inteuduction
Under RS232 connection, the engine and the Host should use the same
communication parameters: baud rate, parity check, data bits select and stop bits select.
Page 43
RS232 Interface
Page 37
Code Programming ON
Code Programming OFF
Tools

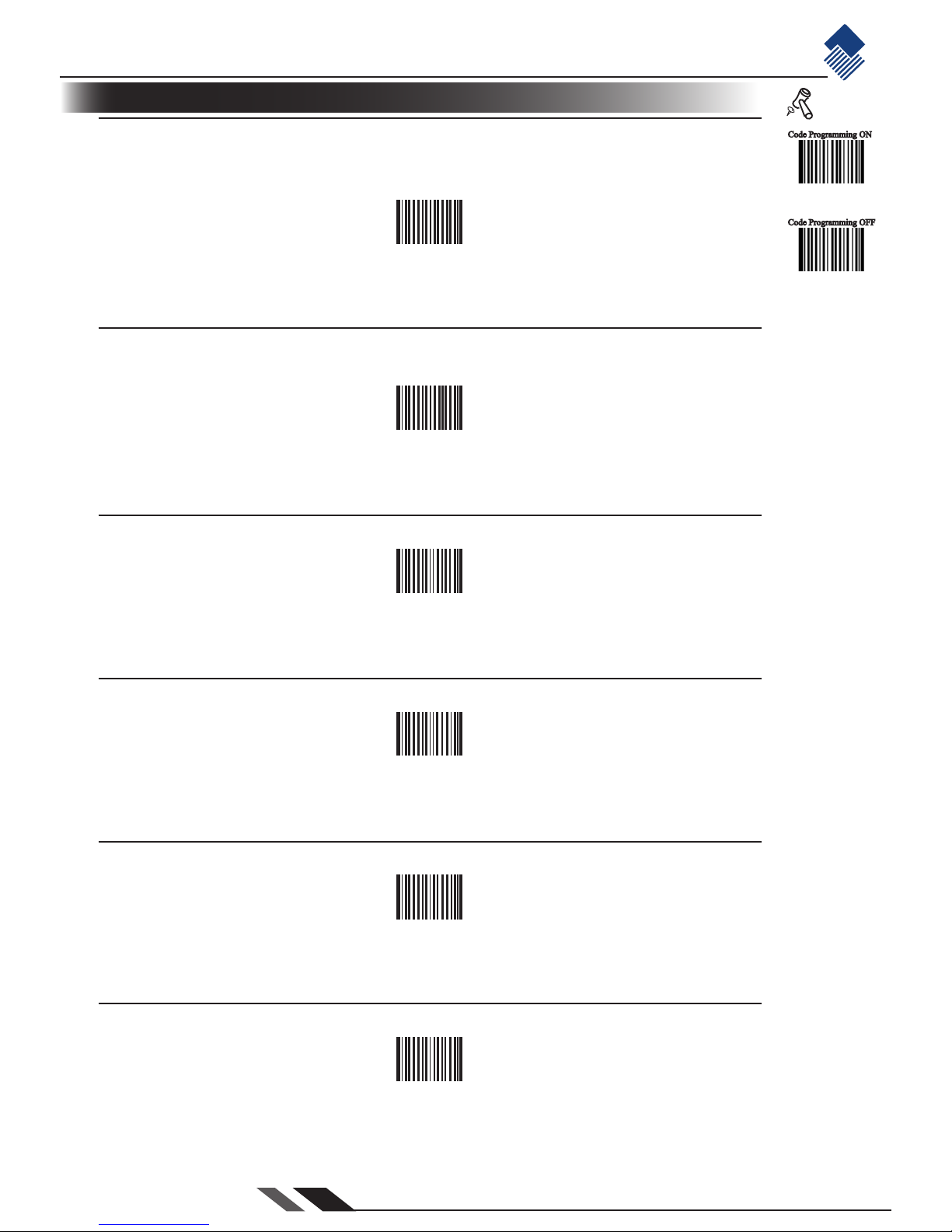

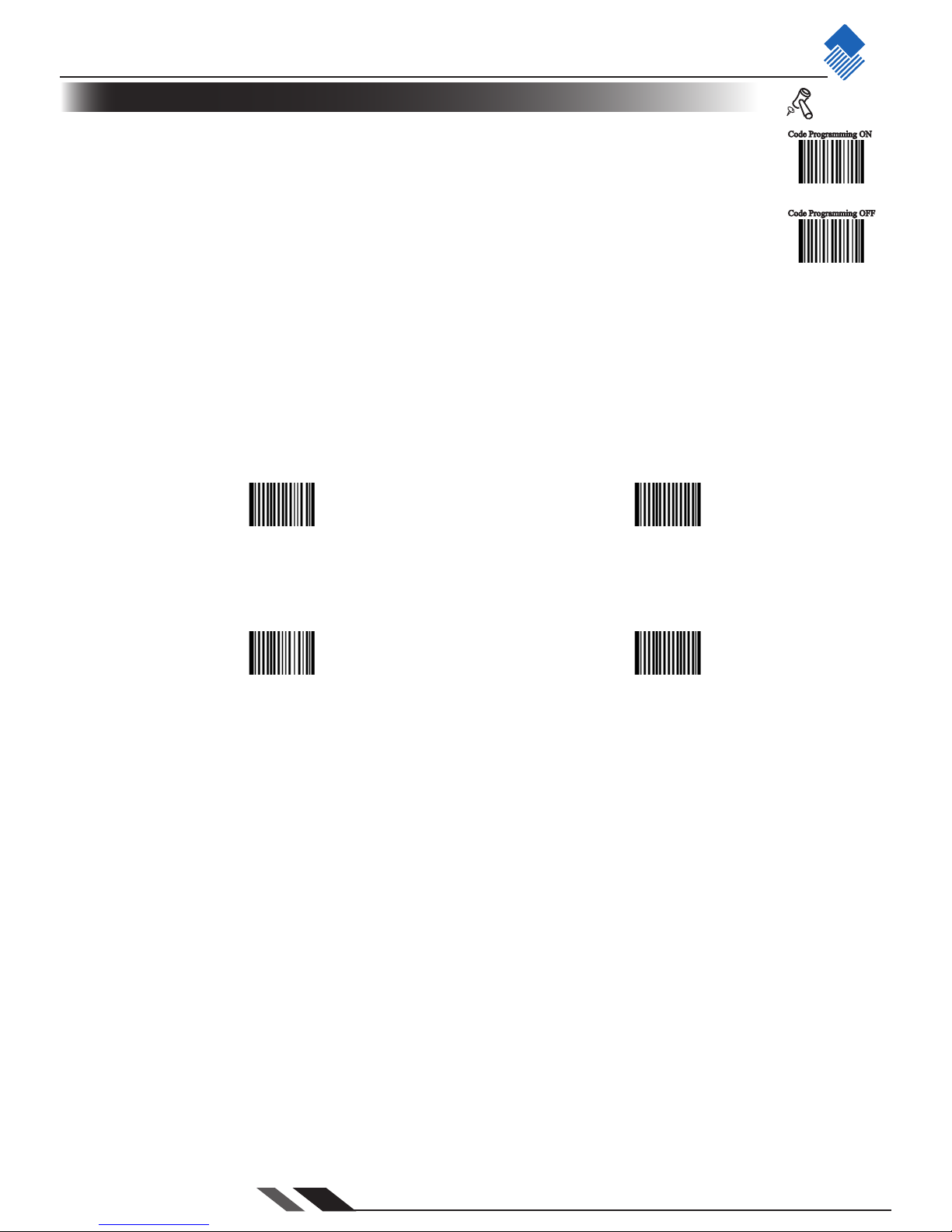

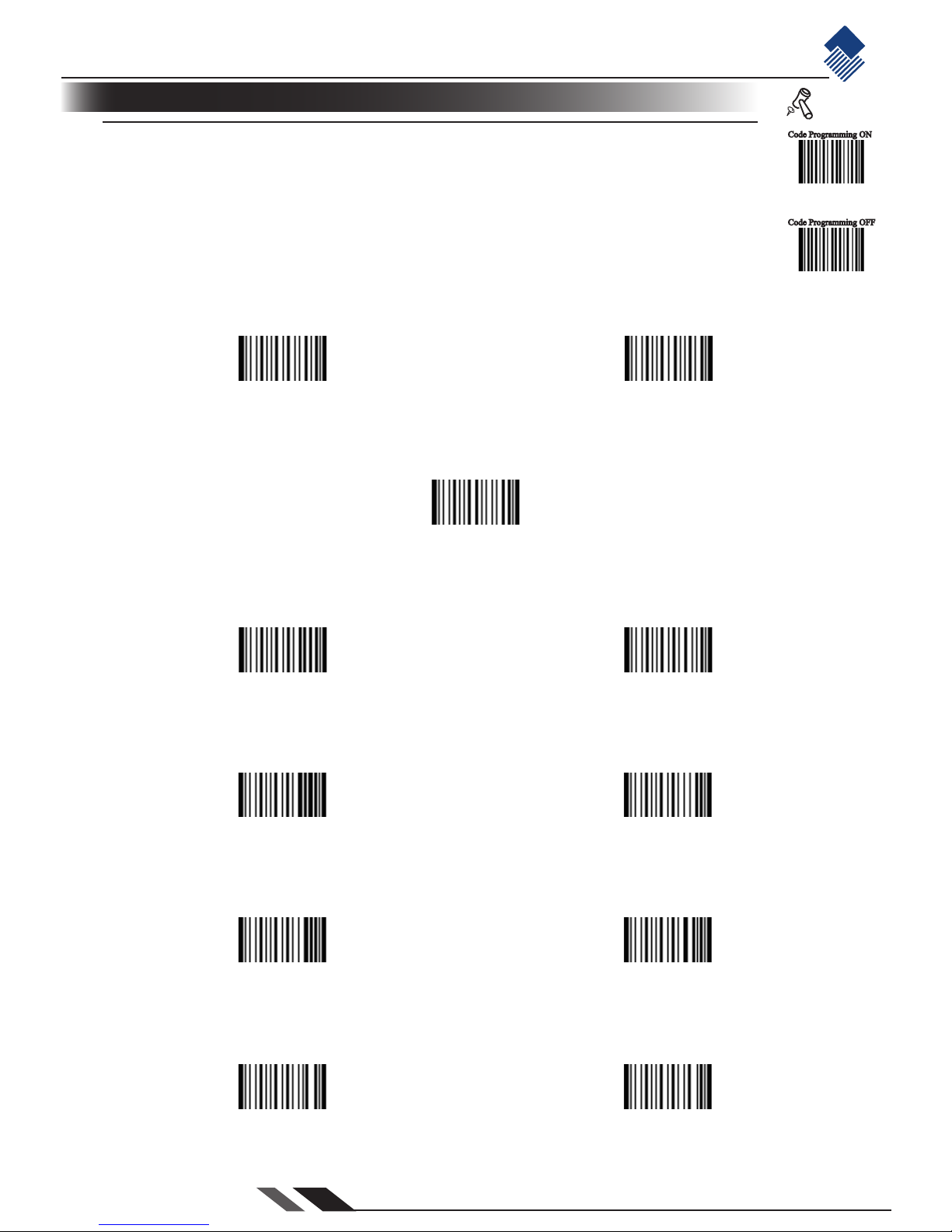

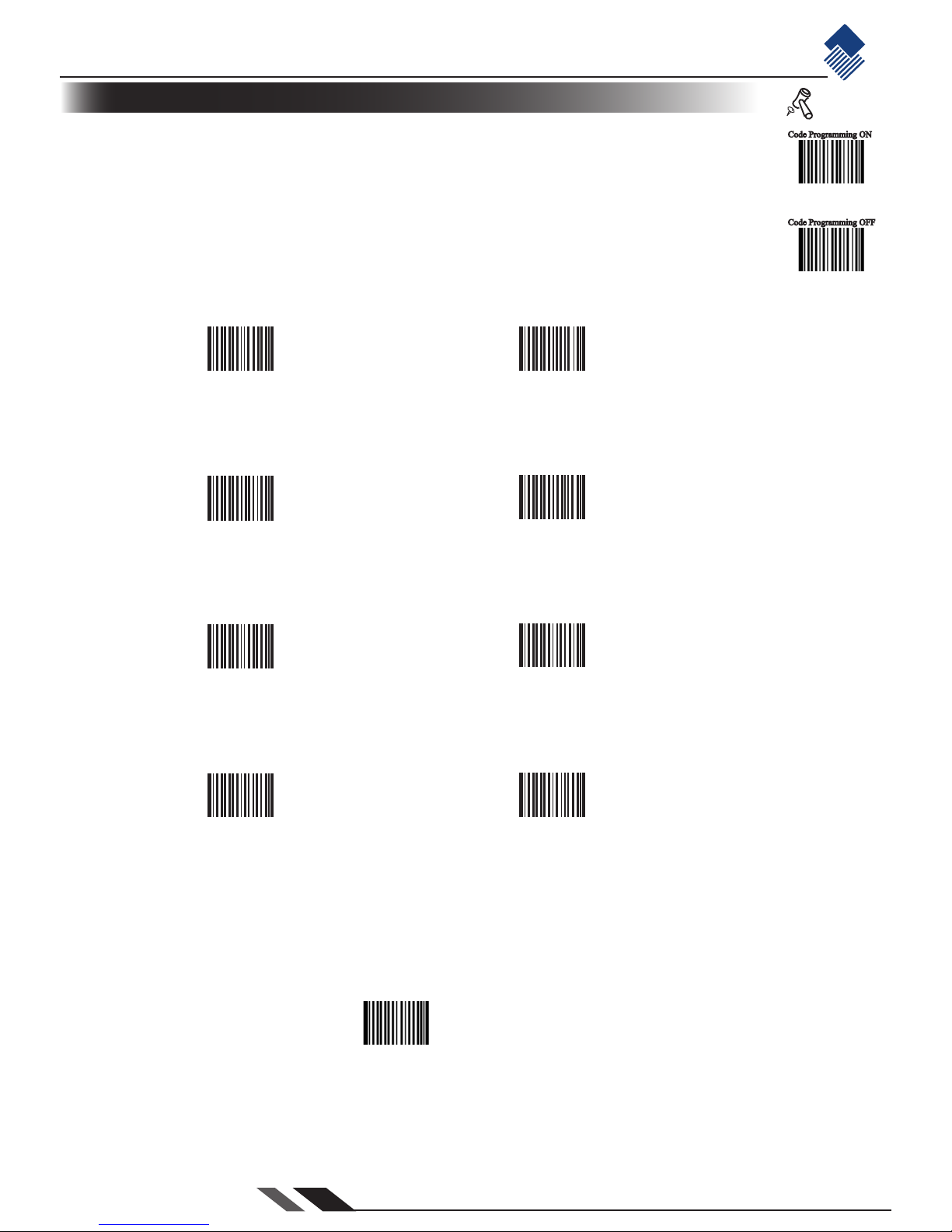

Baud Rate
Baud rate is the bits transmitted per second (8 bits per bytes). The engine and the Host
must communicate at the same baud rate.
The reader supports baud rate as following:
** 9600
【Pro CMD：0100030】
2400
【Pro CMD：0100010】
14400
【Pro CMD：0100040】
38400
【Pro CMD：0100060】
1200
【Pro CMD：0100000】
4800
【Pro CMD：0100020】
19200
【Pro CMD：0100050】
57600
【Pro CMD：0100070】
115200
【Pro CMD：0100080】
Page 44
Page 38
RS232 Interface
Code Programming ON
Code Programming OFF
Tools
Parity check options should be the same on the engine and the Host.
** NO Check
【Pro CMD：0101000】
Even Check
【Pro CMD：0101010】
Odd Check
【Pro CMD：0101020】
Parity Check
Page 45
RS232 Interface
Page 39
Code Programming ON
Code Programming OFF
Tools

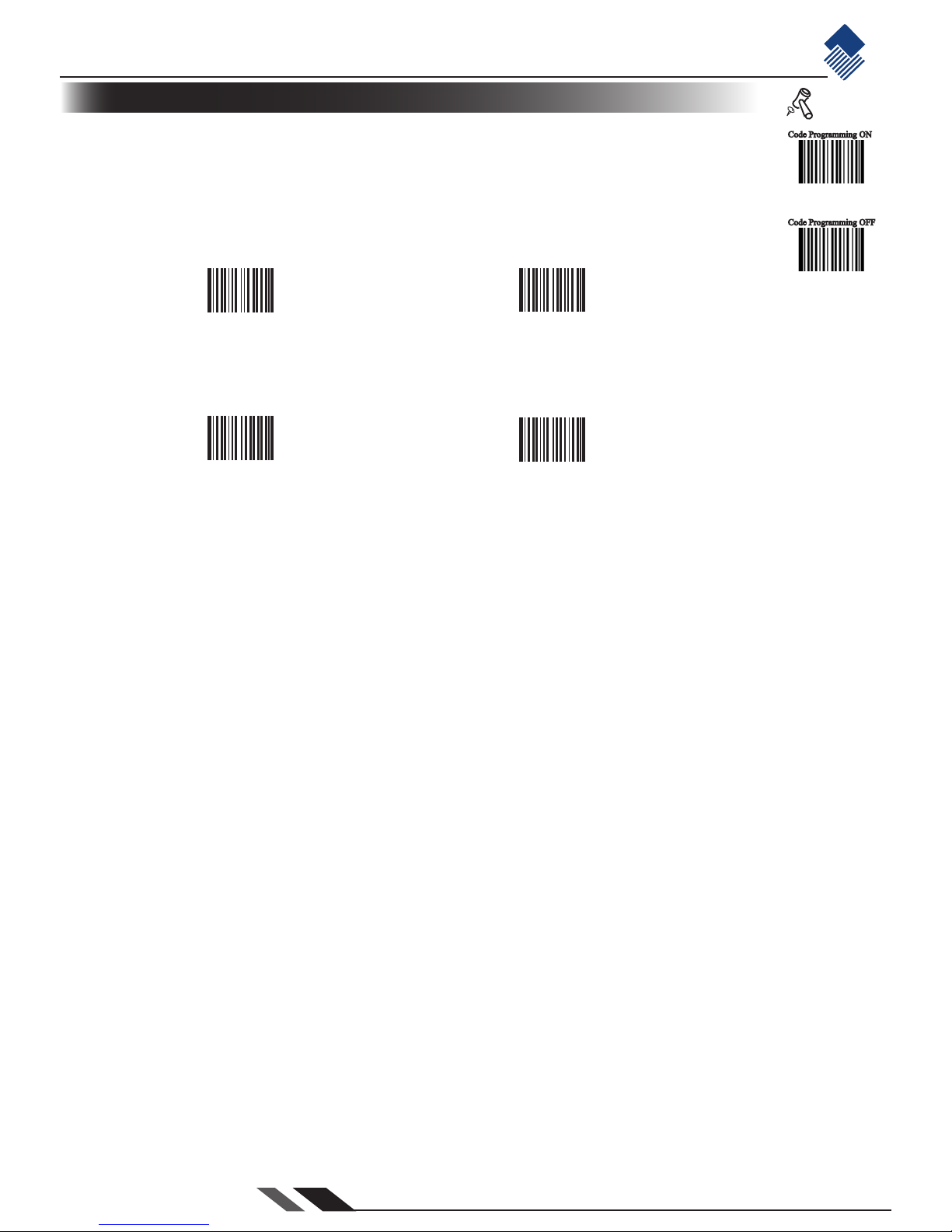

Data Bits Transmitted
Select data bits transmitted to be 5, 6, 7 and 8. Ensure the selections on the engine and
the Host are the same.
** 8 Data Bits
【Pro CMD：0103030】
7 Data Bits
【Pro CMD：0103020】
6 Data Bits
【Pro CMD：0103010】
5 Data Bits
【Pro CMD：0103000】
Page 46
Page 40
RS232 Interface
Code Programming ON
Code Programming OFF
Tools
Stop bit follows every byte to indicate the end of transmission and the start of the next
transmission.
** 1 Stop Bit
【Pro CMD：0102000】
2 Stop Bits
【Pro CMD：0102010】
Stop Bits
Page 47
Page 41
Symbologies
Introduction
This chapter describes symbology features and provides the programming barcodes for
selecting these features.
Disable reading of the symbologies which do not apply, will improve reading performance.

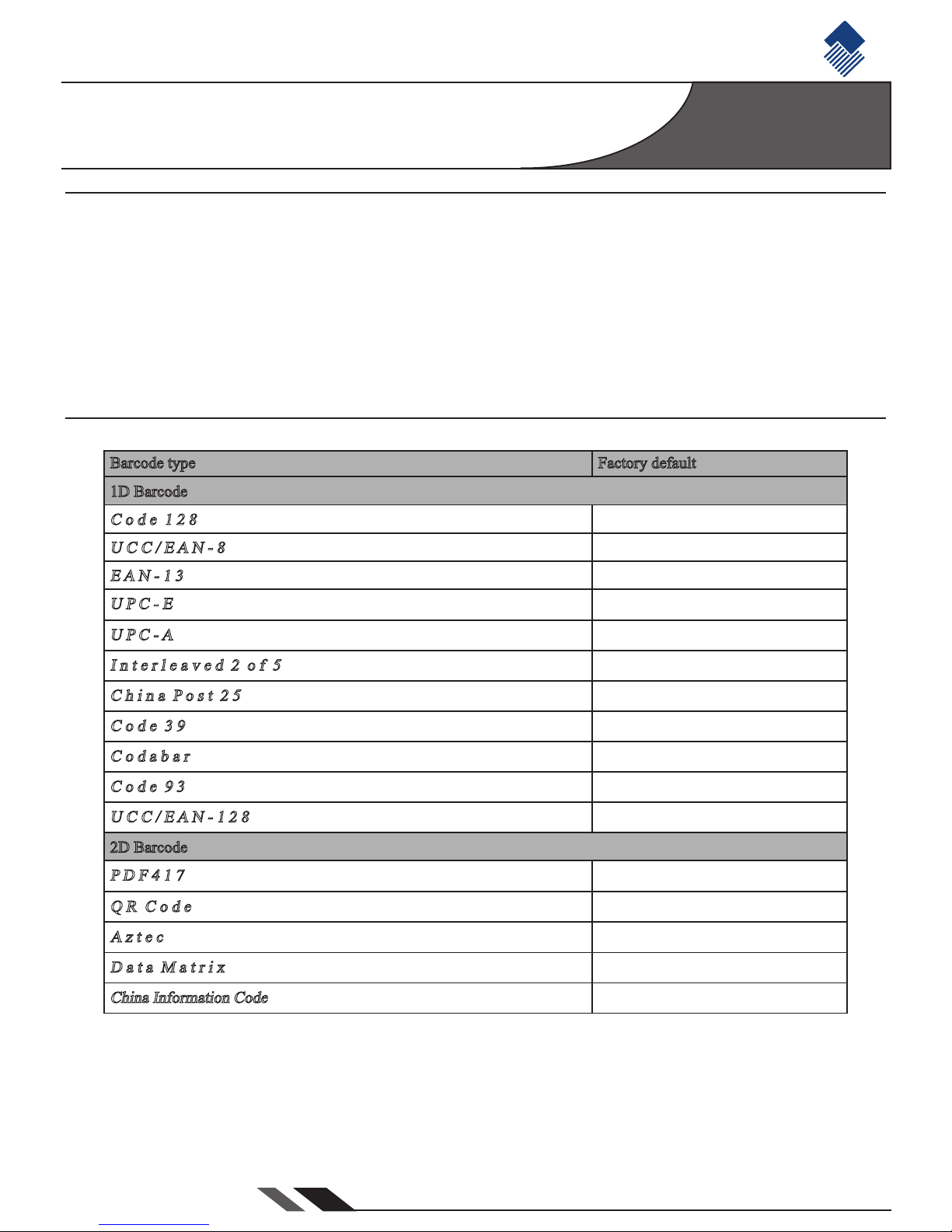

Symbologies Selections
Barcode type Factory default
1D Barcode
C o d e 1 2 8
Allow Reading
U C C / E A N - 8
Allow Reading
E A N - 1 3
Allow Reading
U P C - E
Allow Reading
U P C - A
Allow Reading
I n t e r l e a v e d 2 o f 5
Allow Reading
C h i n a P o s t 2 5
Allow Reading
C o d e 3 9
Allow Reading
C o d a b a r
Allow Reading
C o d e 9 3
Allow Reading
U C C / E A N - 1 2 8
Allow Reading
2D Barcode
P D F 4 1 7
Allow Reading
Q R C o d e
Allow Reading
A z t e c
Allow Reading
D a t a M a t r i x
Allow Reading
China Information Code
Prohibit Reading
Page 48
Symbologies
Page 42
Code Programming ON
Code Programming OFF
Tools

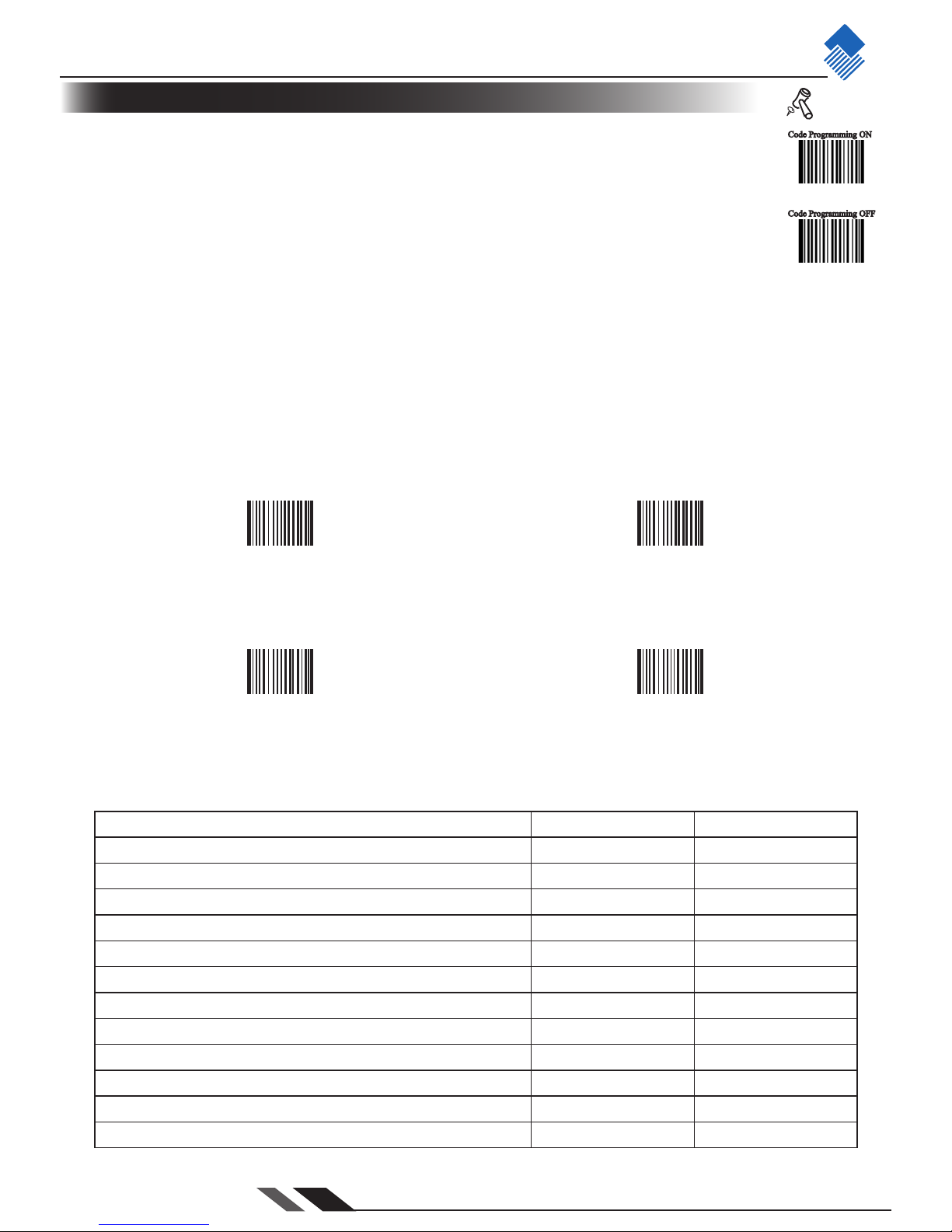

General Options
Prohibit Reading All
Prohibit Reading All = allow reading programming codes only.
Prohibit Reading All
【Pro CMD：0001010】
Allow Reading All
Allow Reading All = enable to read all symbologies and programming codes.
Allow Reading All
【Pro CMD：0001020】
Allow Reading All 1D
Allow Reading All 1D
【Pro CMD：0001040】
Prohibit Reading All 1D
Prohibit Reading All 1D
【Pro CMD：0001030】
Allow Reading All 2D
Allow Reading All 2D
【Pro CMD：0001060】
Prohibit Reading All 2D
Prohibit Reading All 2D
【Pro CMD：0001050】
Page 49
Symbologies
Page 43
Code Programming ON
Code Programming OFF
Tools

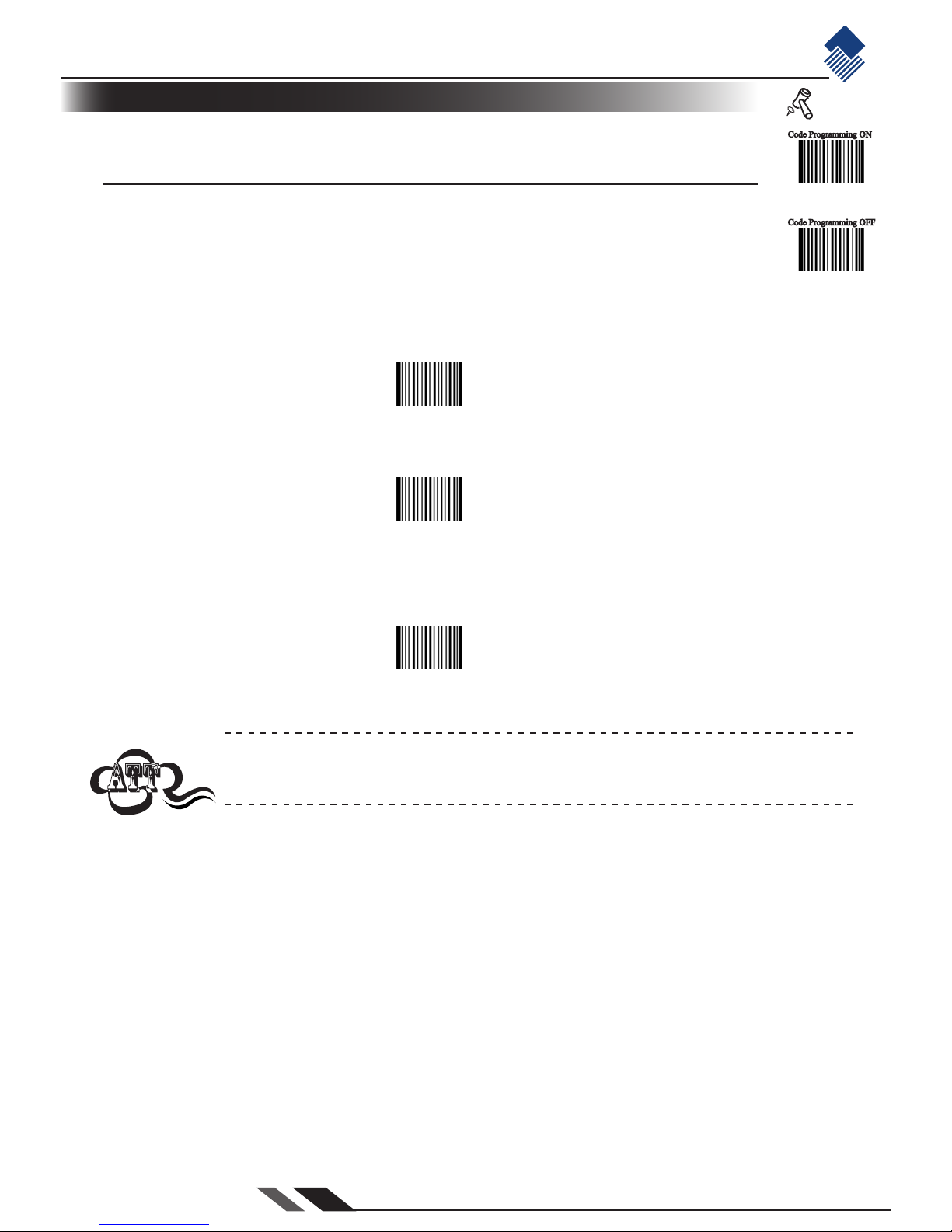

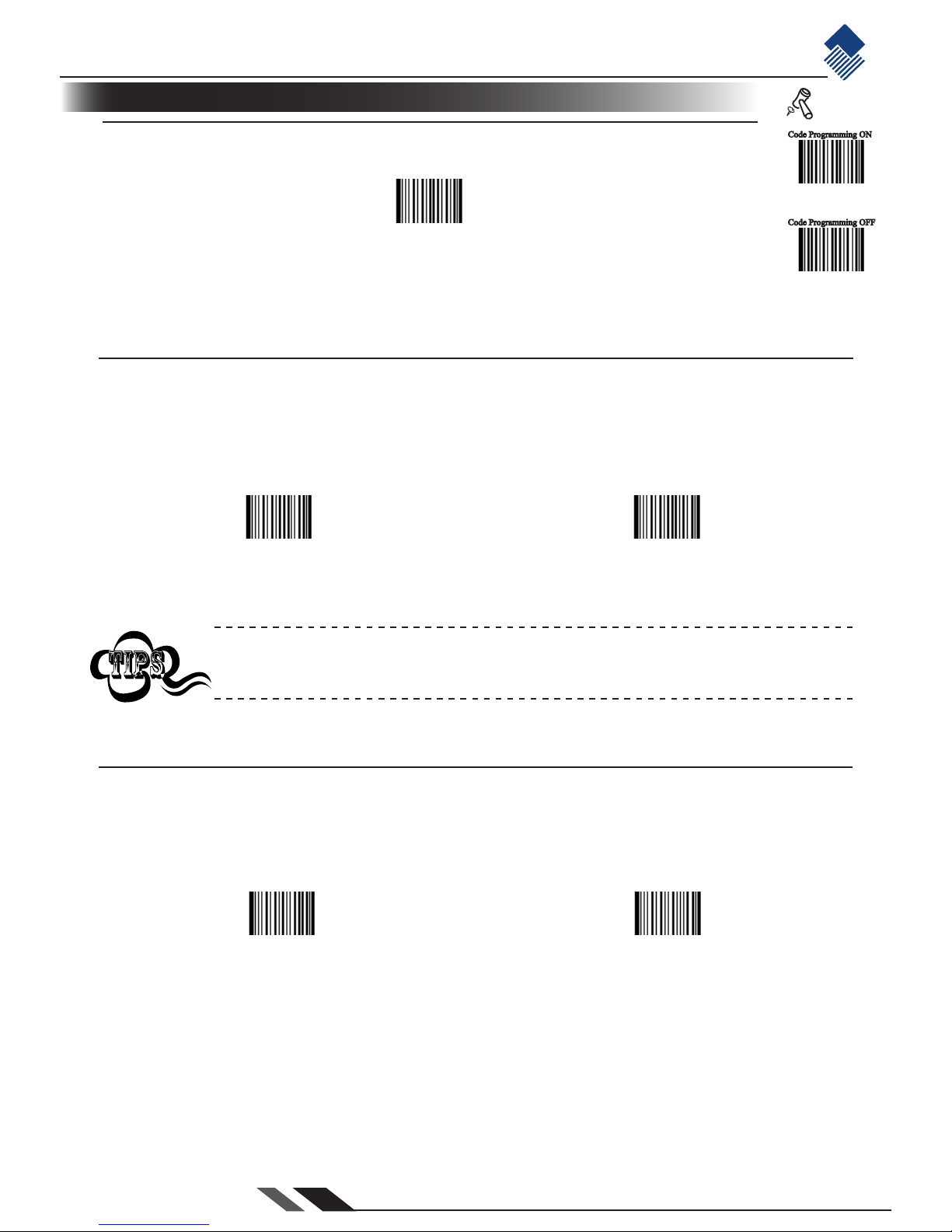

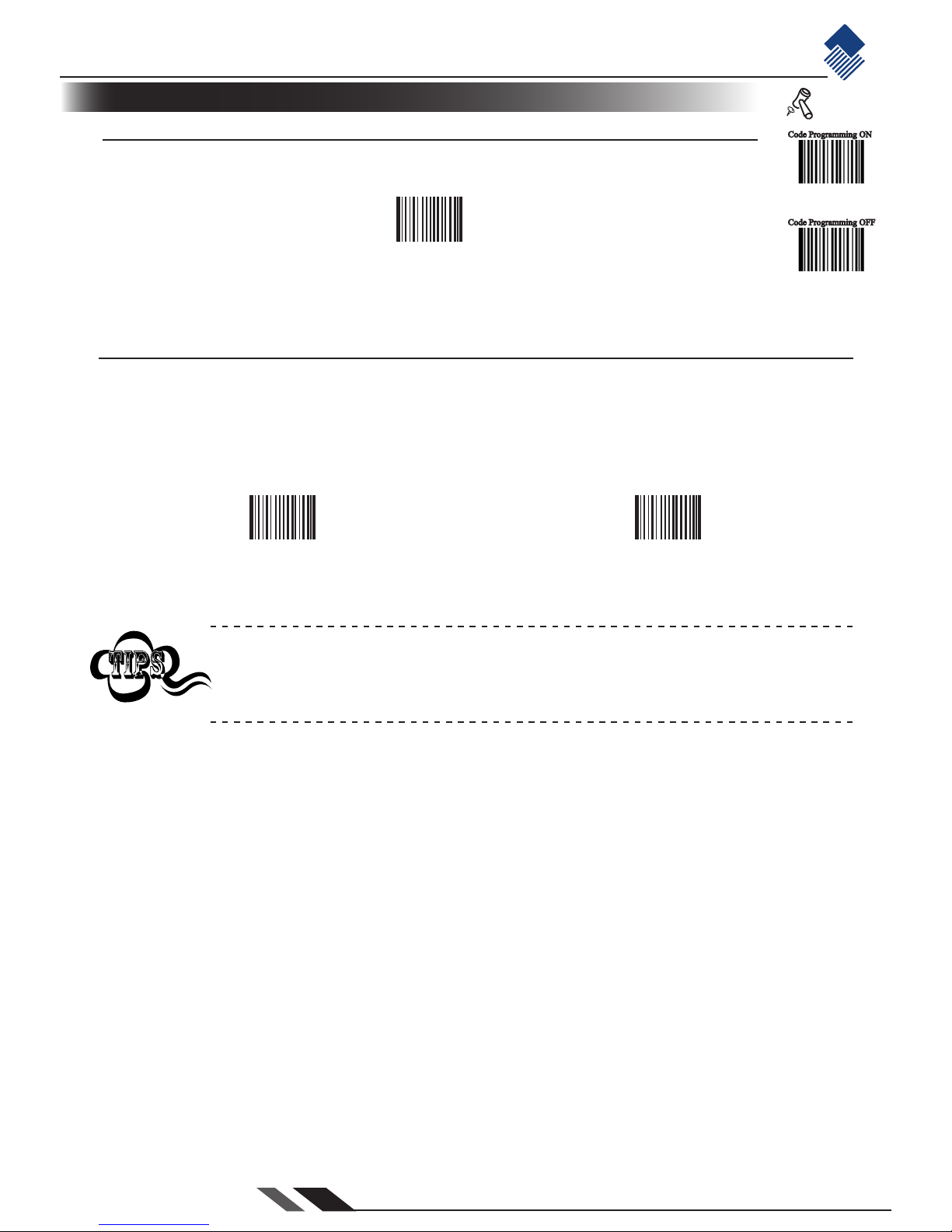

Code 128
Load Factory Default
Read to load Code 128 factory default.
** Load Code 128 Factory Default
【Pro CMD：0400000】
** Read Code 128
【Pro CMD：0400020】
Abort Code 128
【Pro CMD：0400010】
"Abort Code 128" prohibits the engine to read Code 128. Please read programming code "Read Code 128” when the engine can not read Code 128.
Read/Abort Code 128
** Check
【Pro CMD：0400150】
NO Check
【Pro CMD：0400160】
Check Digit
The last character of code 128 is the check digit. Check digit is computed from other value of characters in the
barcode. It is used to check the accuracy of the data transmission.。
Page 50
Symbologies
Page 44
Code Programming ON
Code Programming OFF
Tools

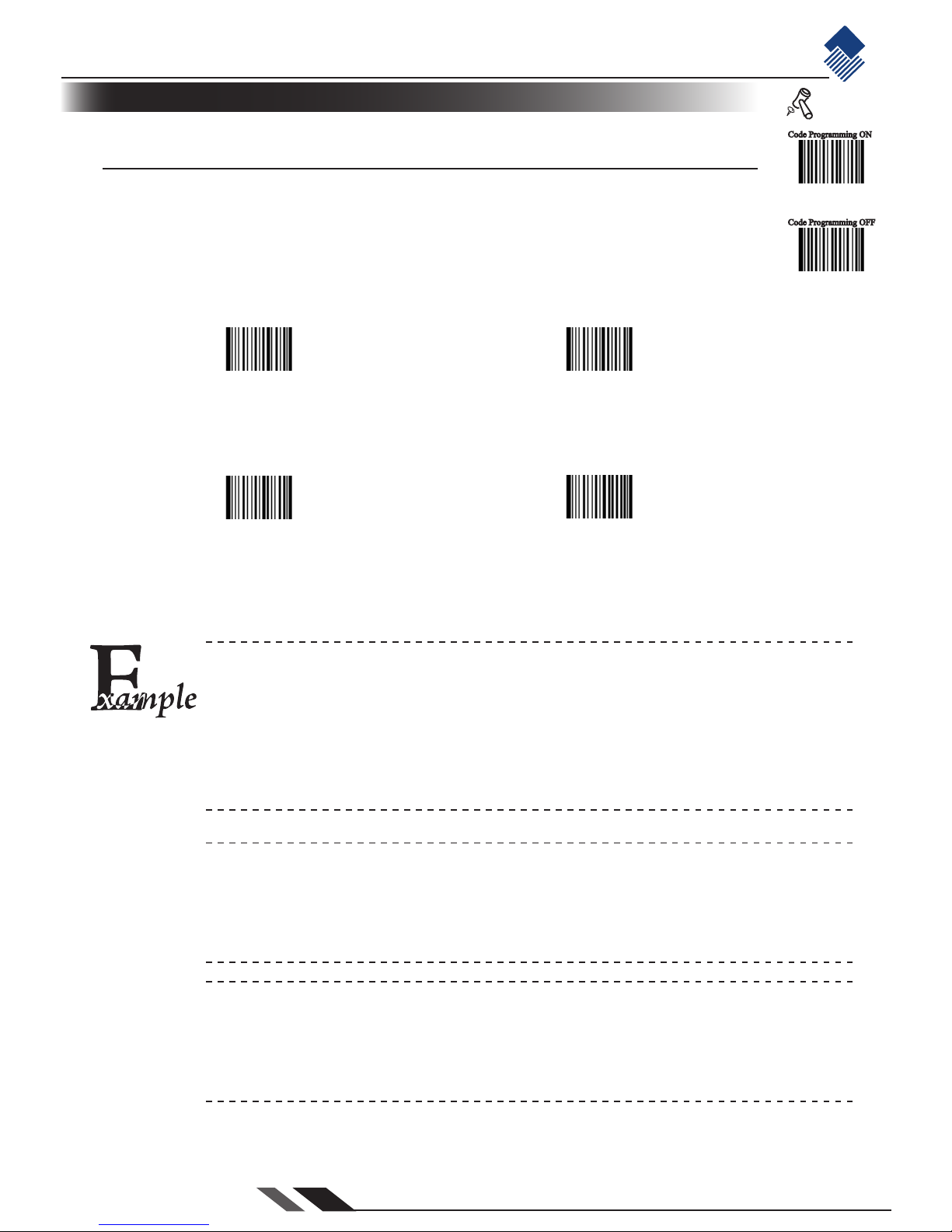

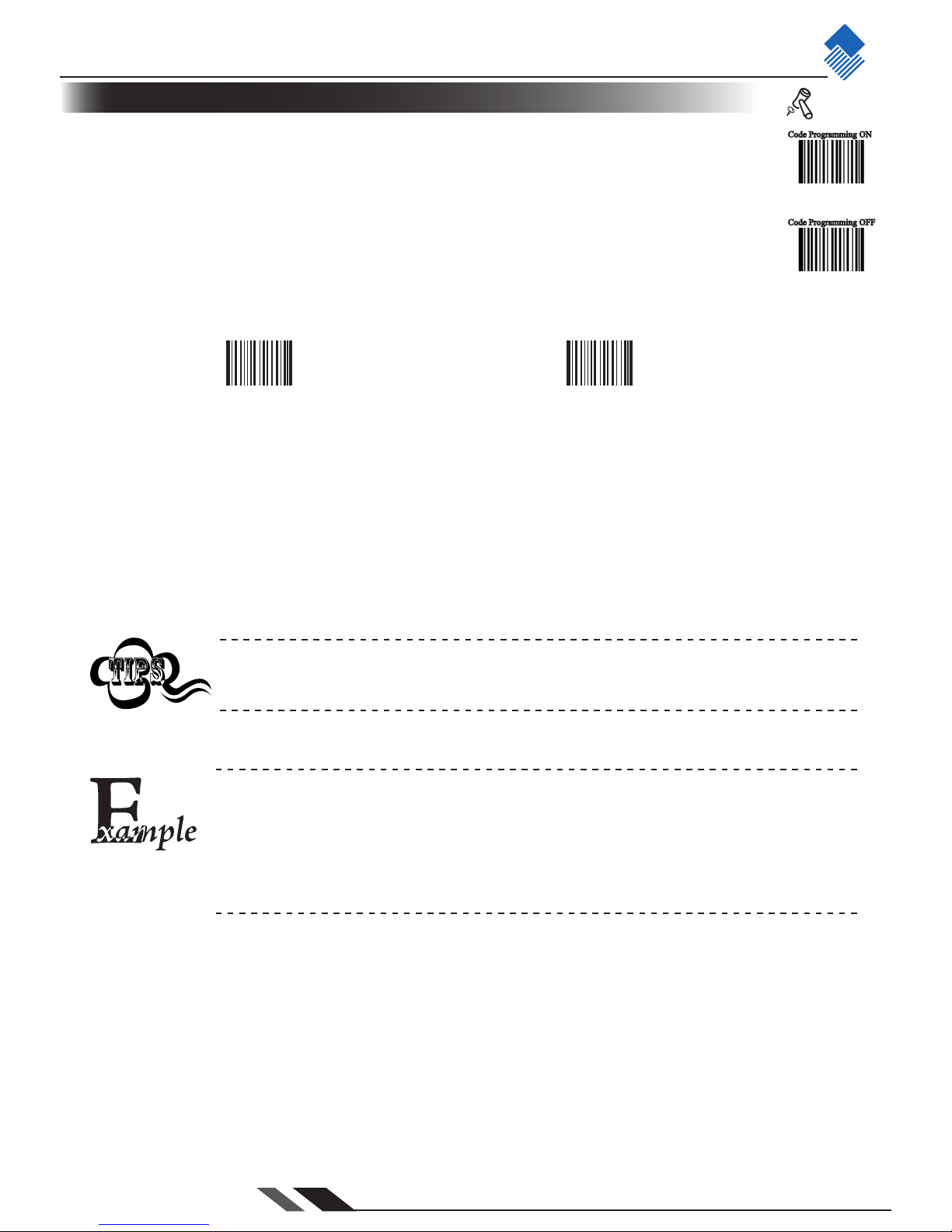

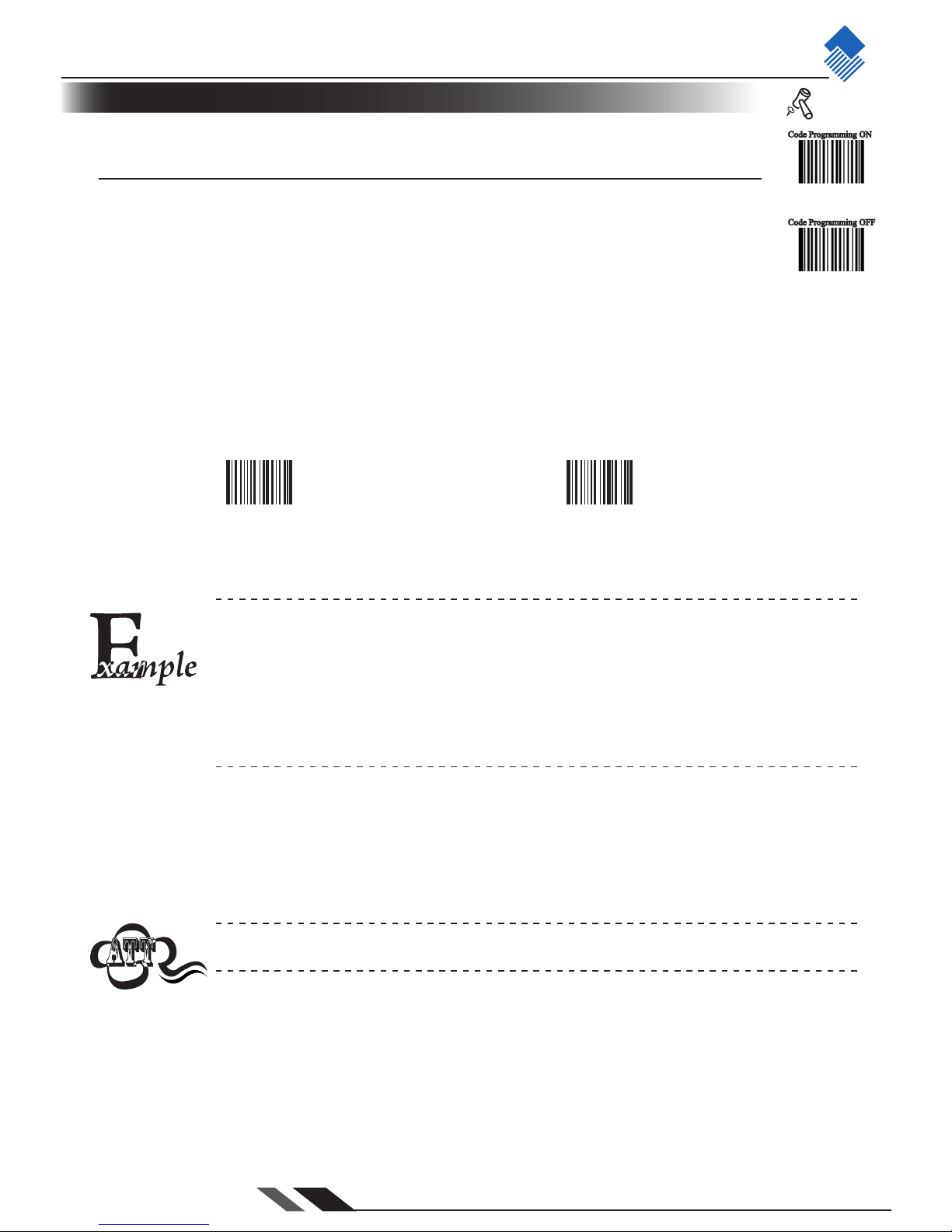

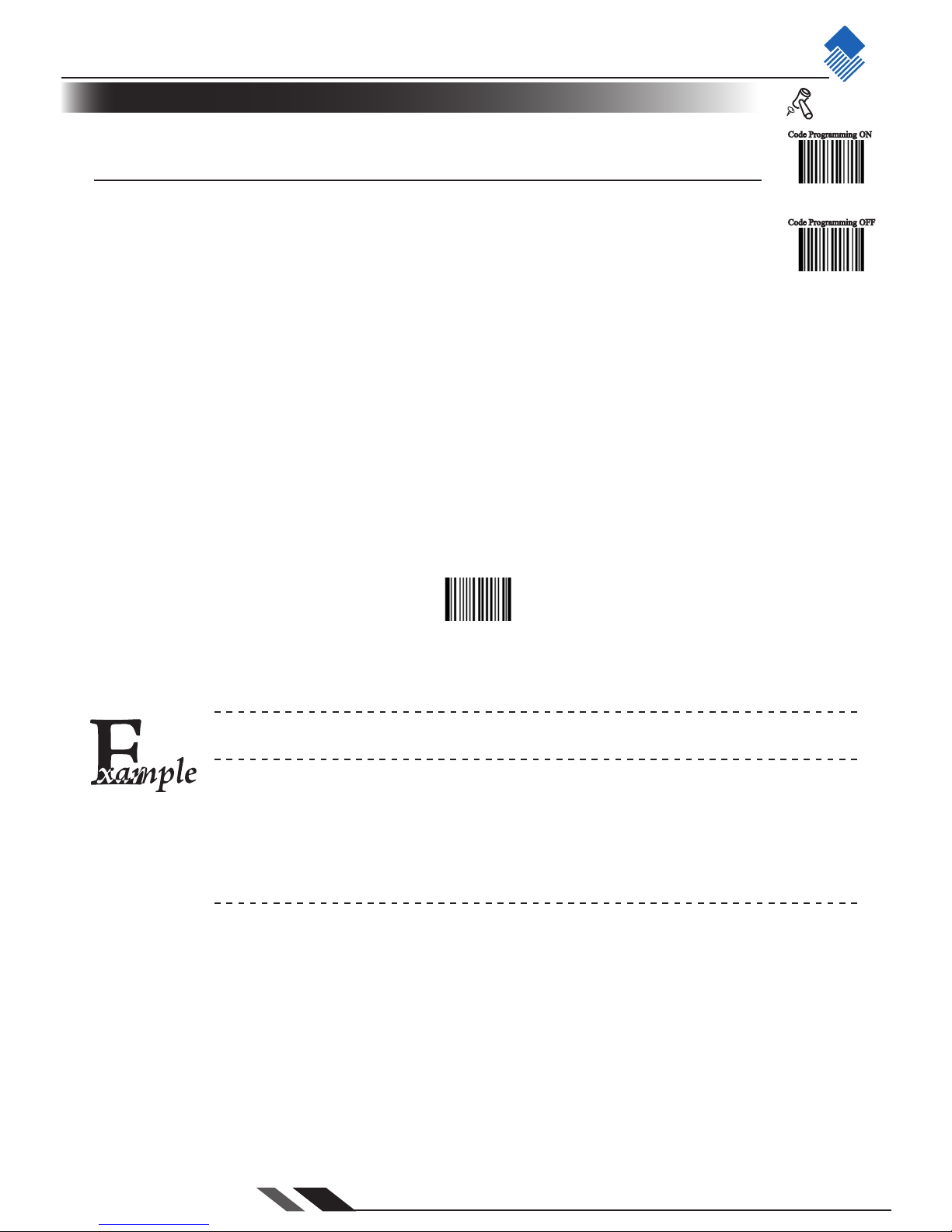

"Code Programming ON"1.
"Select Min Message Length"2.
Digit code "8", see Digit Code 3.
"Save Programming", see Digit Code 4.
"Select Max Message Length"5.
Digit code "1"6.
Digit code "2"7.
"Save Programming"8.
"Code Programming OFF"9.
Program Code 128, Min Message Length 8 bytes, Max Message Length 12 bytes.
1D bar code Message Length should not exceed 127 bytes.
Max Message Length should not be shorter than Min Message Length.
To read a fixed length Code 128, Please program Max & Min Message Length to the same value.
Min Message Length (default: 1)
【Pro CMD：0400030】
Max Message Length (default: 48)
【Pro CMD：0400040】
Select Message Length
It is used to program the valid reading length (bytes) of Code 128. The engine will produce an
error beep, if the data length captured does not match the valid reading length.
Code 128 Message Length is defined by "Min. Message Length" and "Max. Message Length".
Code 128
Page 51
Symbologies
Page 45
Code Programming ON
Code Programming OFF
Tools

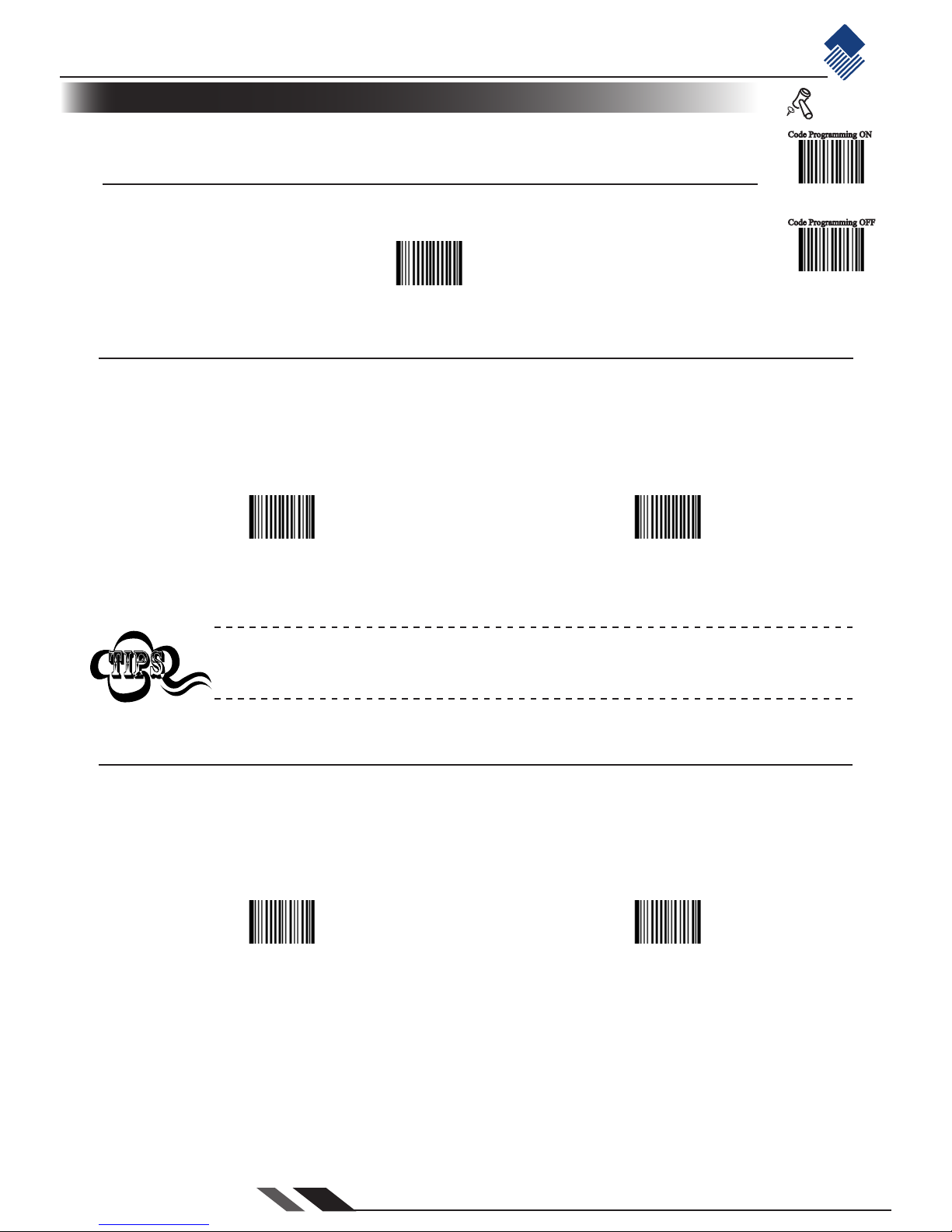

Load Factory Default
Read to load UCC/EAN-8 factory default.
** Load UCC/EAN-8Factory Default
【Pro CMD：0401000】
Read/Abort UCC/EAN-8
** Read UCC/EAN-8
【Pro CMD：0401020】
Abort UCC/EAN-8
【Pro CMD：0401010】
"Abort UCC/EAN-8" prohibits the engine to read UCC/EAN-8. Please read programming code "Read UCC/EAN-8” when the engine can not read UCC/EAN-8.
Check Byte
UCC/EAN-8 is fixed 8 characters barcode and the last character is the check digital. Check digit is computed
from other value of characters in the barcode. It is used to check the accuracy of the data transmission.
** Transmit Check
【Pro CMD：0401040】
NO Transmit Check
【Pro CMD：0401030】
UCC/EAN-8
Page 52
Symbologies
Page 46
Code Programming ON
Code Programming OFF
Tools
"Read 2 Digits Addenda" — read an ordinary code and 2 digits addenda code "Read 5 Digits Addenda" — read an ordinary code and 5 digits addenda code "Abort 2 Digits Addenda" — read an ordinary code only, and ignore 2 digits addenda code "Abort 5 Digits Addenda" — read an ordinary code only, and ignore 5 digits addenda code
** Abort 2 Digits Addenda
【Pro CMD：0401050】
Read 2 Digits Addenda
【Pro CMD：0401060】
** Abort 5 Digits Addenda
【Pro CMD：0401070】
Read 5 Digits Addenda
【Pro CMD：0401080】

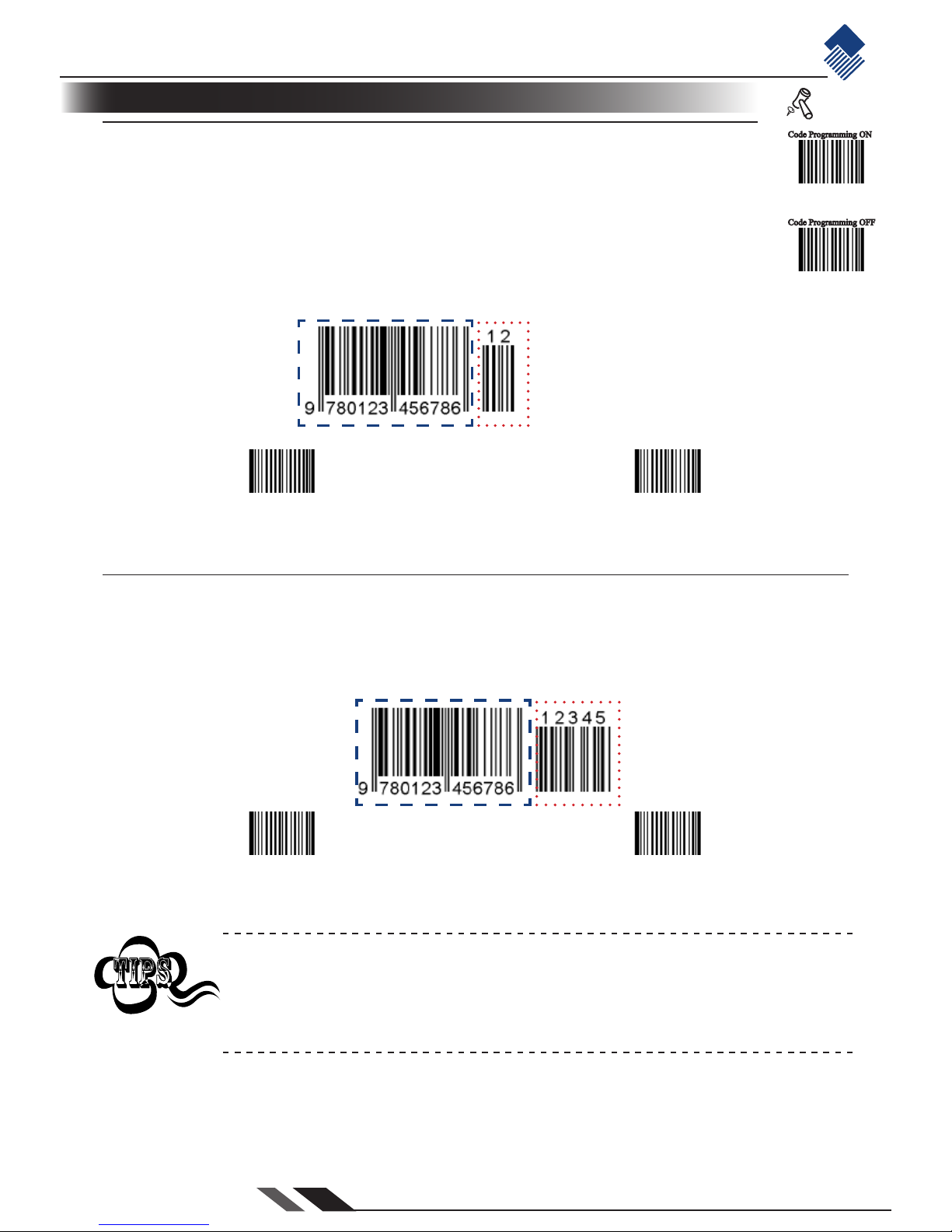

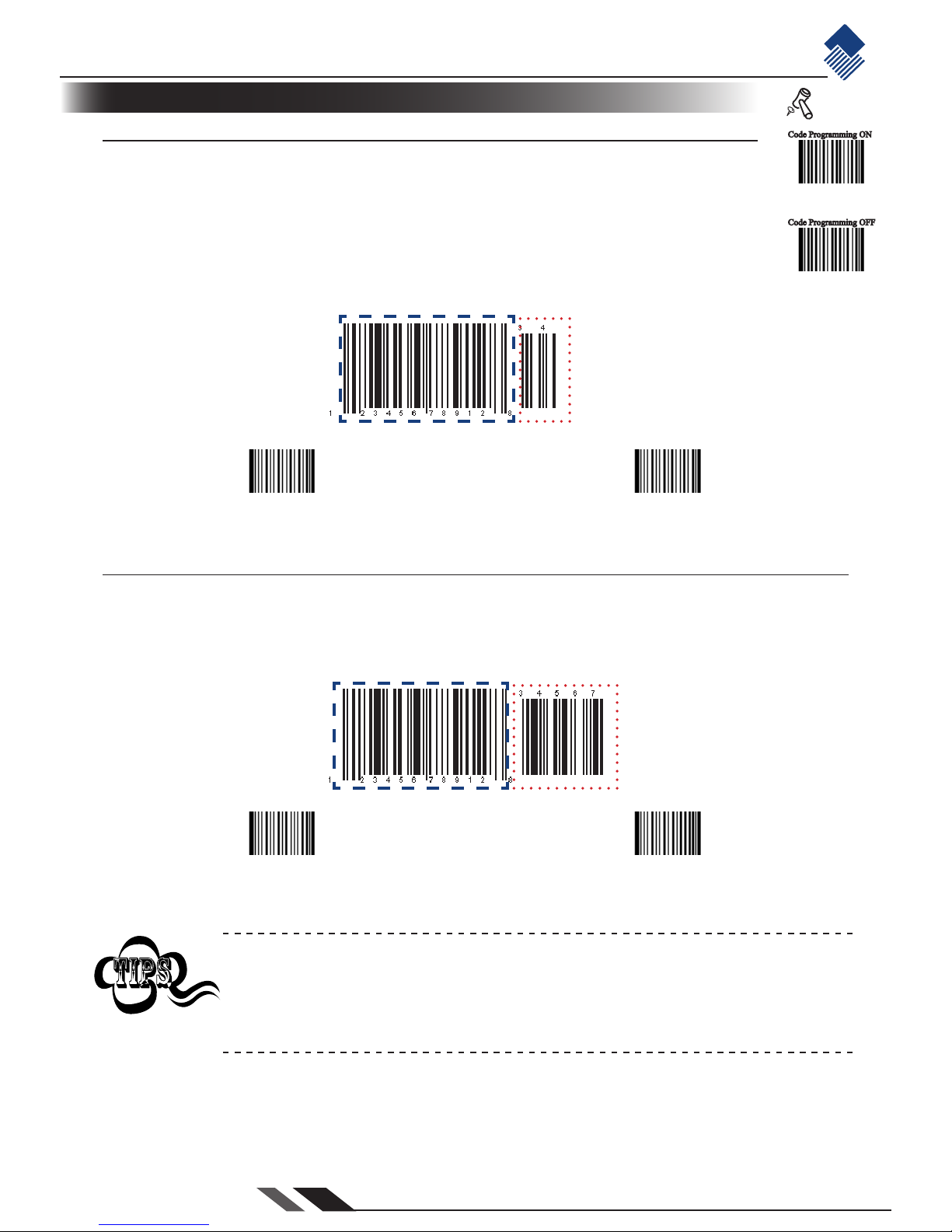

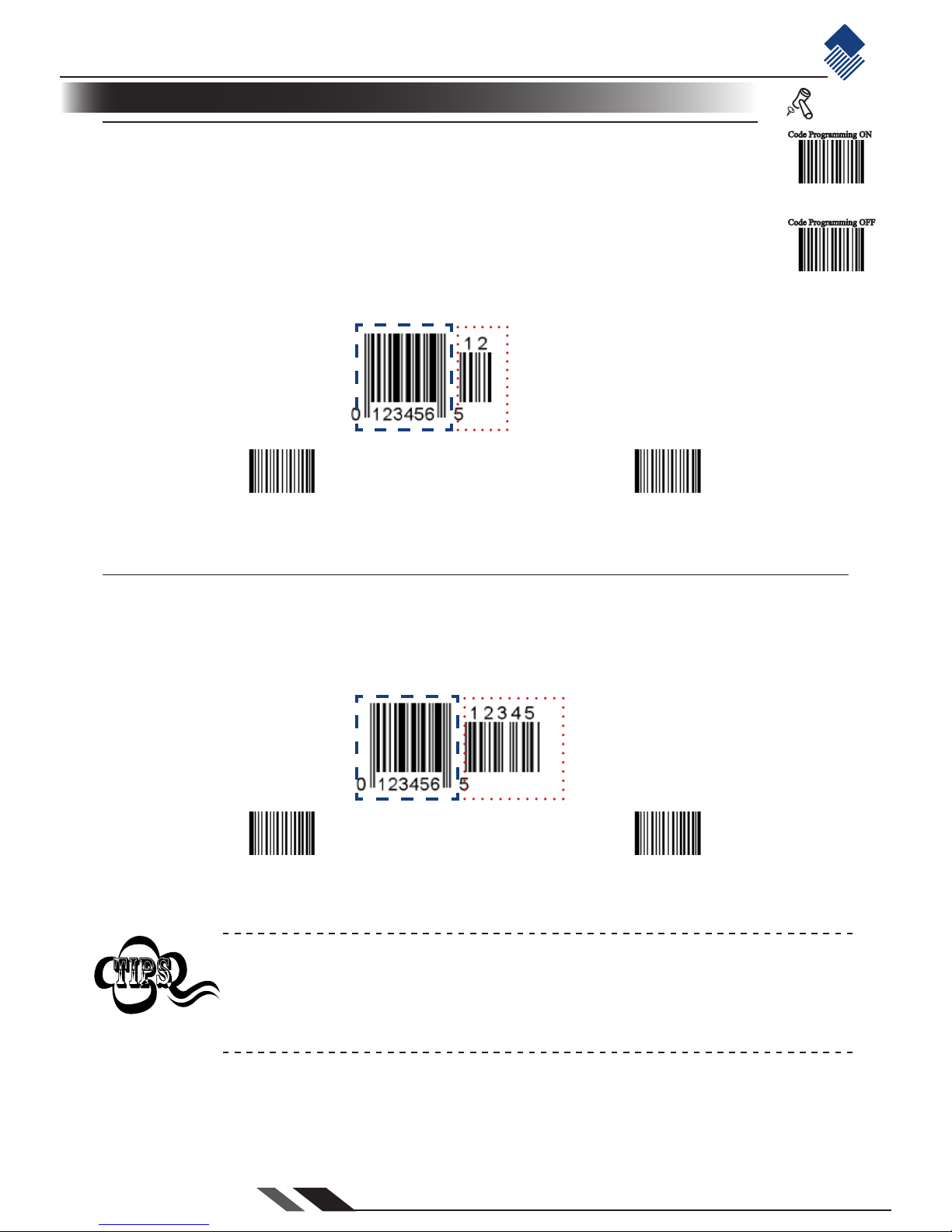

2 Digits Addenda Code
Addenda code is the one follows on the right side of an ordinary code. Picture bellow shows
an ordinary code with a 2 digits addenda code. The left one with blue circle is an ordinary code. The
right one with red circle is the 2 digits addenda code.
5 Digits Addenda Code
Picture bellow shows an ordinary code with a 5 digits addenda code. The left one with blue circle is an
ordinary code. The right one with red circle is the 5 digits addenda code.：
UCC/EAN-8
Page 53
Page 47
Symbologies
Code Programming ON
Code Programming OFF
Tools
UCC/EAN-8

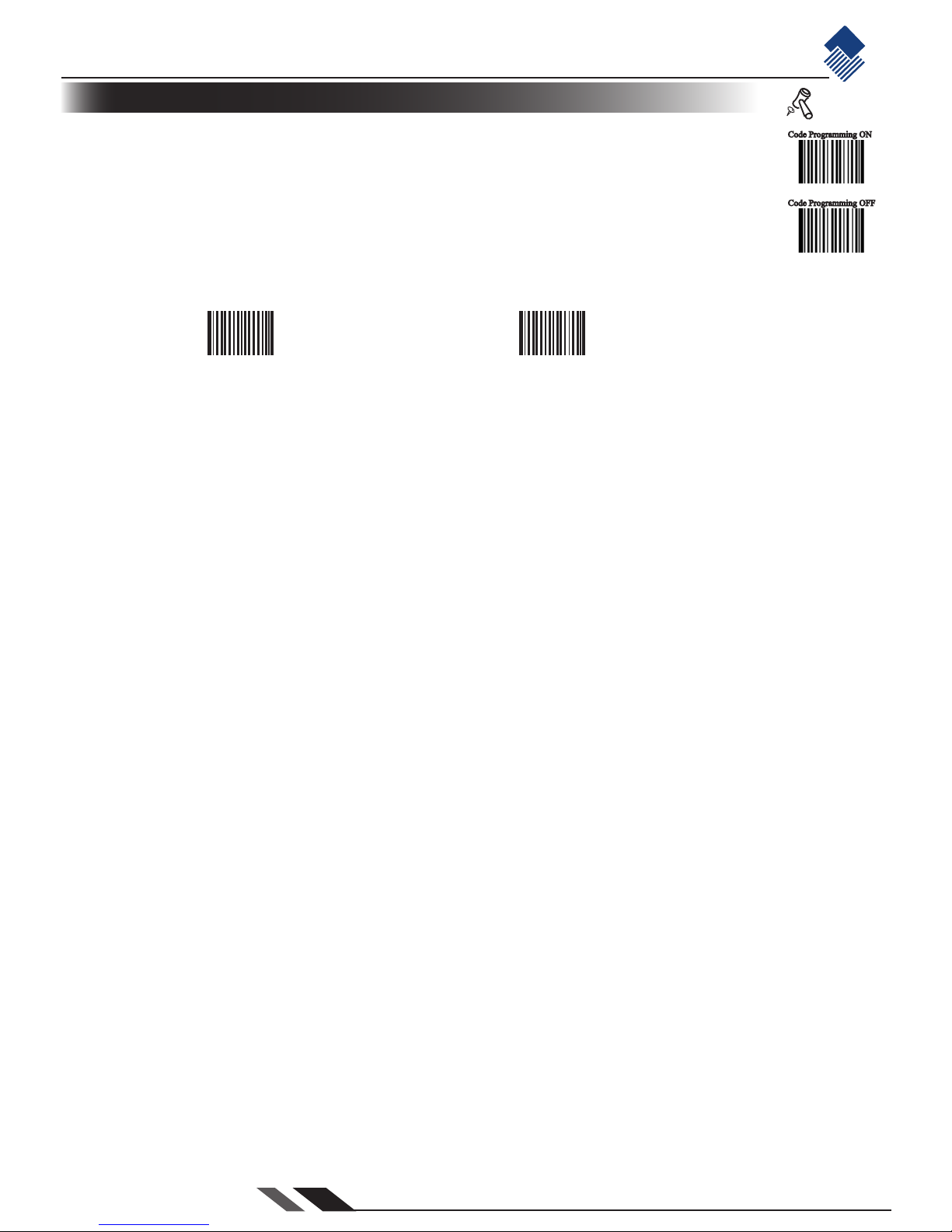

EAN-8 expand to EAN-13
Expand EAN-8 to EAN-13, by adding 5 bytes of “0” to the left, and then transmit.
** Not Expand to EAN-13
【Pro CMD：0401090】
Expand to EAN-13
【Pro CMD：0401100】
UCC/EAN-8
Page 54
Symbologies
Page 48
Code Programming ON
Code Programming OFF
Tools
Load Factory Default
Read to load EAN-13 factory default.
** Load EAN-13 Factory Default
【Pro CMD：0402000】
** Read EAN-13
【Pro CMD：0402020】
Abort EAN-13
【Pro CMD：0402010】
Read/Abort EAN-13
"Abort EAN-13" prohibits the engine to read EAN-13. Please read programming code "Read EAN-13” when the engine can not read EAN-13.
Check Byte
UCC/EAN-13 is fixed 13 bytes barcode and the last byte is parity check byte.
** Transmit Check
【Pro CMD：0402040】
NO Transmit Check
【Pro CMD：0402030】
EAN-13
Page 55
Symbologies
Page 49
Code Programming ON
Code Programming OFF
Tools
"Read 2 Digits Addenda" — read an ordinary code and 2 digits addenda code "Read 5 Digits Addenda" — read an ordinary code and 5 digits addenda code "Abort 2 Digits Addenda" — read an ordinary code only, and ignore 2 digits addenda code "Abort 5 Digits Addenda" — read an ordinary code only, and ignore 5 digits addenda code
** Abort 2 Digits Addenda
【Pro CMD：0402050】
Read 2 Digits Addenda
【Pro CMD：0402060】
** Abort 5 Digits Addenda
【Pro CMD：0402070】
Read 5 Digits Addenda
【Pro CMD：0402080】
2 Digits Addenda Code
Addenda code is the one follows on the right side of an ordinary code. Picture bellow shows
an ordinary code with a 2 digits addenda code. The left one with blue circle is an ordinary code. The
right one with red circle is the 2 digits addenda code.
5 Digits Addenda Code
Picture bellow shows an ordinary code with a 5 digits addenda code. The left one with blue circle is an
ordinary code. The right one with red circle is the 5 digits addenda code.：
EAN-13
Page 56
Symbologies
Page 50
Code Programming ON
Code Programming OFF
Tools

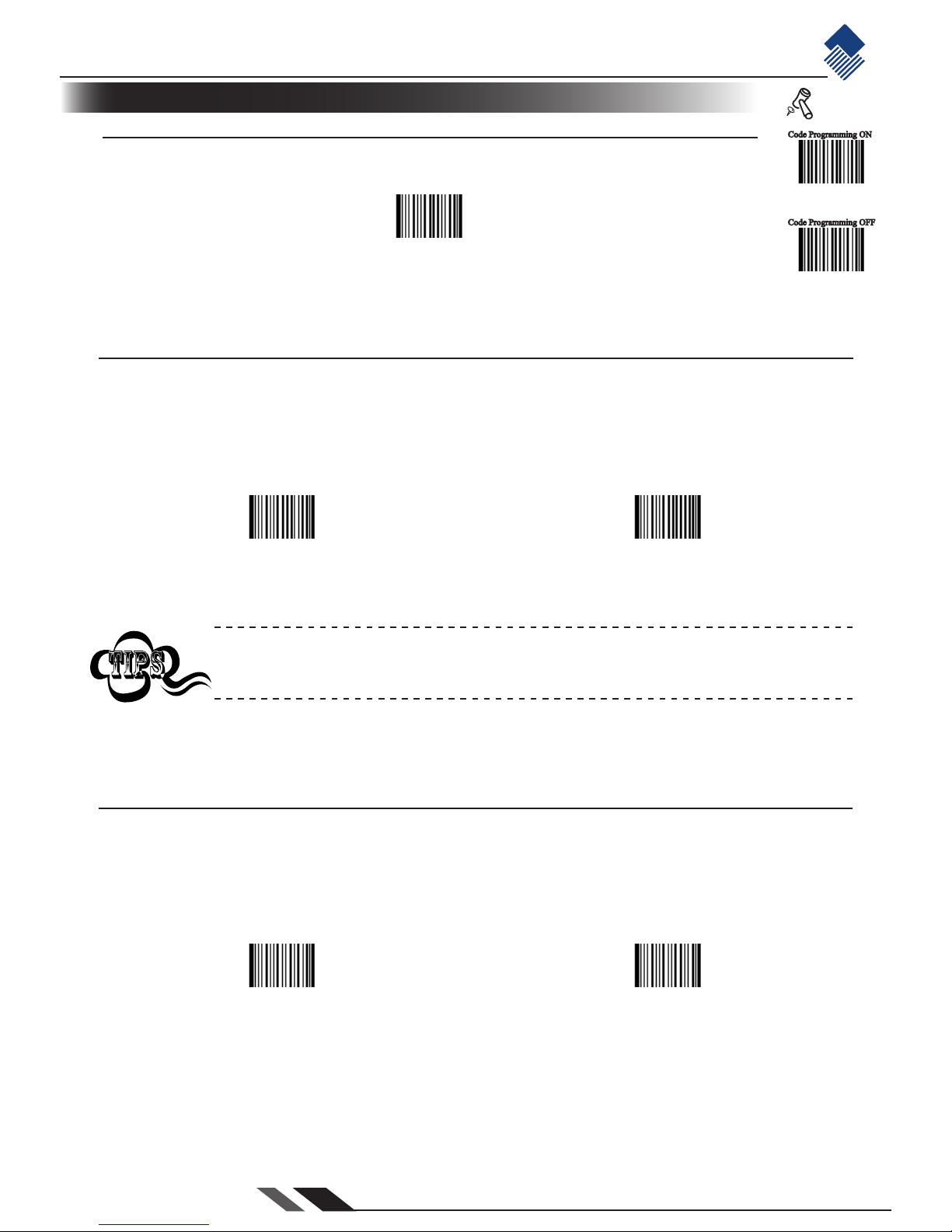

Load Factory Default
Read to load UPC-E factory default.
** UPC-E Load Code 128 Factory Default
【Pro CMD：0403000】
Read/Abort UPC-E
** Read UPC-E
【Pro CMD：0403020】
Abort UPC-E
【Pro CMD：0403010】
"Abort UPC-E” prohibits the engine to read UPC-E. Please read programming code "Read UPC-E” when the engine can not read UPC-E.
Check Byte
UPC-E is fixed 8 bytes barcode and the last byte is parity check byte.
** Transmit Check
【Pro CMD：0403040】
NO Transmit Check
【Pro CMD：0403030】
UPC-E
Page 57
Symbologies
Page 51
Code Programming ON
Code Programming OFF
Tools
5 Digits Addenda Code
Picture bellow shows an ordinary code with a 5 digits addenda code. The left one with blue circle is an
ordinary code. The right one with red circle is the 5 digits addenda code.：
2 Digits Addenda Code
Addenda code is the one follows on the right side of an ordinary code. Picture bellow shows
an ordinary code with a 2 digits addenda code. The left one with blue circle is an ordinary code. The
right one with red circle is the 2 digits addenda code.
"Read 2 Digits Addenda" — read an ordinary code and 2 digits addenda code "Read 5 Digits Addenda" — read an ordinary code and 5 digits addenda code "Abort 2 Digits Addenda" — read an ordinary code only, and ignore 2 digits addenda code "Abort 5 Digits Addenda" — read an ordinary code only, and ignore 5 digits addenda code
** Abort 2 Digits Addenda
【Pro CMD：0403050】
Read 2 Digits Addenda
【Pro CMD：0403060】
** Abort 5 Digits Addenda
【Pro CMD：0403070】
Read 5 Digits Addenda
【Pro CMD：0403080】
UPC-E
Page 58
Symbologies
Page 52
Code Programming ON
Code Programming OFF
Tools
Transmit First ‘0’ Selections
The first character of UPC-E is a system digit. The value of system digit is fixed as “0”.
** Don’t Transmit First ‘0’
【Pro CMD：0403090】
Transmit First ‘0’
【Pro CMD：0403100】
Extend To UPC-A Selections
To enable or disable UPC-A, scan the appropriate bar code below
** Not Expand to UPC-A 【Pro CMD：0403110】
Expand to UPC-A
【Pro CMD：0403120】
UPC-E
Page 59
Symbologies
Page 53
Code Programming ON
Code Programming OFF
Tools
Load Factory Default
Read to load UPC-A factory default.
**Load UPC-A Factory Default
【Pro CMD：0404000】
Read/Abort UPC-A
** Read UPC-A
【Pro CMD：0404020】
Abort UPC-A
【Pro CMD：0404010】
"Abort UPC-A " prohibits the engine to read UPC-A. Please read programming code "Read UPC-A” when the engine can not read UPC-A.
Check Byte
UPC-A is fixed 13 bytes barcode and the last byte is parity check byte.
** Transmit Check
【Pro CMD：0404040】
NO Transmit Check
【Pro CMD：0404030】
UPC-A
Page 60
Symbologies
Page 54
Code Programming ON
Code Programming OFF
Tools
"Read 2 Digits Addenda" — read an ordinary code and 2 digits addenda code "Read 5 Digits Addenda" — read an ordinary code and 5 digits addenda code "Abort 2 Digits Addenda" — read an ordinary code only, and ignore 2 digits addenda code "Abort 5 Digits Addenda" — read an ordinary code only, and ignore 5 digits addenda code
** Abort 2 Digits Addenda
【Pro CMD：0404050】
Read 2 Digits Addenda
【Pro CMD：0404060】
** Abort 5 Digits Addenda
【Pro CMD：0404070】
Read 5 Digits Addenda
【Pro CMD：0404080】
2 Digits Addenda Code
Addenda code is the one follows on the right side of an ordinary code. Picture bellow shows
an ordinary code with a 2 digits addenda code. The left one with blue circle is an ordinary code. The
right one with red circle is the 2 digits addenda code.
5 Digits Addenda Code
Picture bellow shows an ordinary code with a 5 digits addenda code. The left one with blue circle is an
ordinary code. The right one with red circle is the 5 digits addenda code.：
UPC-A

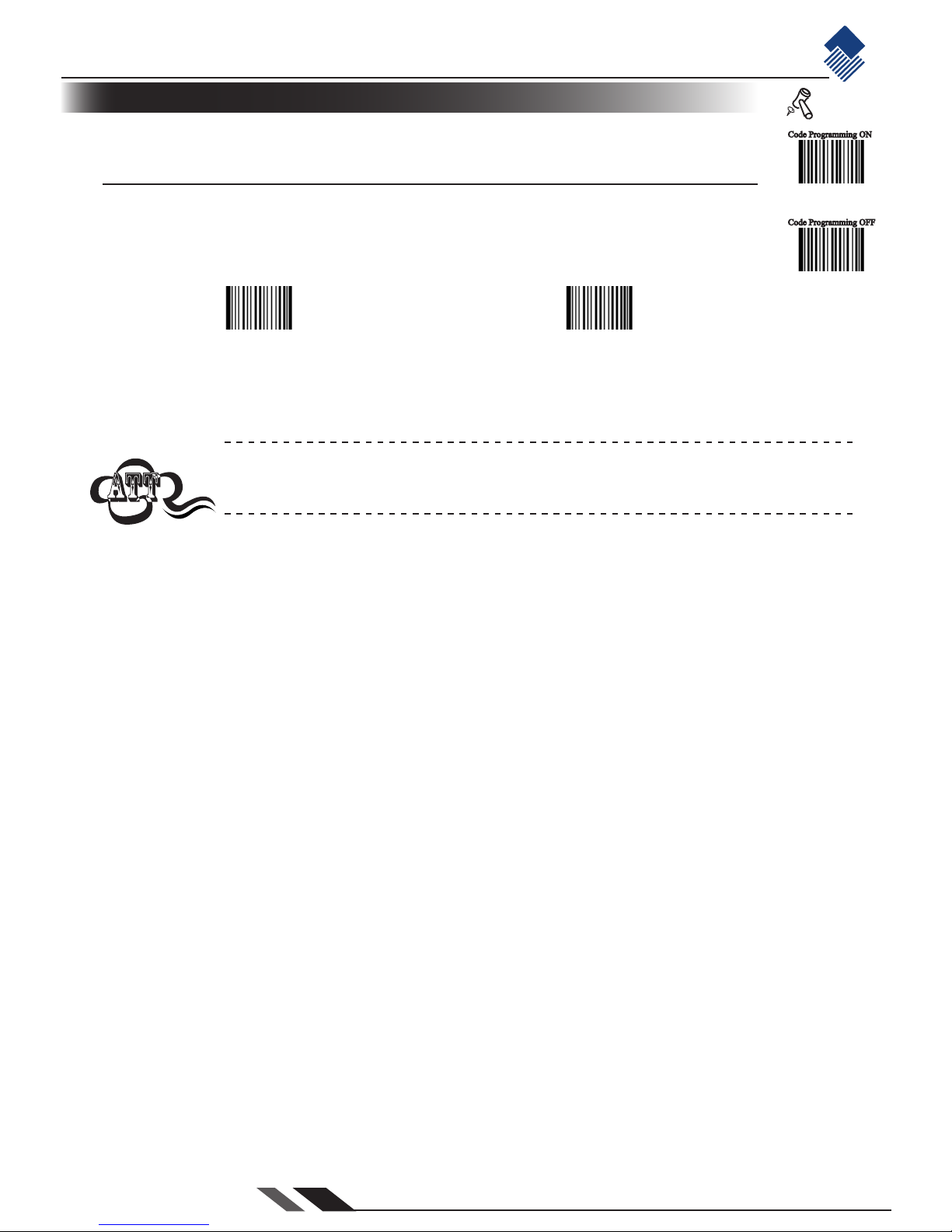

Page 61
Page 55
Symbologies
Code Programming ON
Code Programming OFF
Tools
UPC-A
Transmit Selections
UPC-A the first byte (very left one) is default “0”
** No Transmit “0”
【Pro CMD：0404090】
Transmit “0”
【Pro CMD：0404100】
UPC-A has the default “0”but it is not printed out, not like UPC-E. Read “Transmit 0” will add a “0” to transmit.
Page 62
Symbologies
Page 56
Code Programming ON
Code Programming OFF
Tools
Load Factory Default
Read to load Interleaved 2 of 5 factory default.
** Load Interleaved 2 of 5 Factory Default
【Pro CMD：0405000】
Read/Abort Interleaved 2 of 5
** Read Interleaved 2 of 5
【Pro CMD：0405020】
Abort Interleaved 2 of 5
【Pro CMD：0405010】
"Abort Interleaved 2 of 5" prohibits the engine to read Interleaved 2 of 5. Please read programming code "Read Interleaved 2 of 5” when the engine can not read Interleaved 2 of 5.
Interleaved 2 of 5
Page 63
Symbologies
Page 57
Code Programming ON
Code Programming OFF
Tools
"Code Programming ON"1.
"Select Min Message Length"2.
Digit code "8", see Digit Code 3.
"Save Programming", see Digit Code 4.
"Select Max Message Length"5.
Digit code "1"6.
Digit code "2"7.
"Save Programming"8.
"Code Programming OFF"9.
Program Interleaved 2 of 5, Min Message Length 8 bytes, Max Message Length 12 bytes.
1D bar code Message Length should not exceed 127 bytes.
Max Message Length should not be shorter than Min Message Length.
To read a fixed length Interleaved 2 of 5, Please program Max & Min Message Length to the same
value.
Min Message Length（default:4 ）
【Pro CMD：
0405030】
Max Message Length（default:80 ）
【Pro CMD：0405040】
Select Message Length
It is used to program the valid reading length (bytes) of Interleaved 2 of 5. The engine will
produce an error beep, if the data length captured does not match the valid reading length.
Interleaved 2 of 5 Message Length is defined by "Min. Message Length" and "Max. Message
Length"
Interleaved 2 of 5
Page 64
Symbologies
Page 58
Code Programming ON
Code Programming OFF
Tools
** NO Check, Transmit All
【Pro CMD：0405050】
Check, Transmit No Check
【Pro CMD：0405060】
Check, Transmit All
【Pro CMD：0405070】
Check Byte
Interleaved 2 of 5 may include Check Byte (not compulsory) following its barcode messages. It
verifies the barcode message.
"NO Check, Transmit All" enables to read without check and transmit all bytes including barcode
message and Check Byte.
"Check, Transmit No Check" enables to read and check. If verification is successful, transmit
barcode message; if not, engine produce an error beep.
"Check, Transmit All" enables to read and check. If verification is successful, transmit all
messages; if not, engine produces an error beep.
Read "Check, Transmit NO Check", only transmit barcode message. If barcode message length is
less than Min Message Length, this will lead to error beep. E.g.：Read a 4 bytes (include check bytes) Interleaved 2 of 5. Select Min Message Length to 4
bytes and transmit NO Check byte. This leads to error beep.
Interleaved 2 of 5
Page 65
Page 59
Symbologies
Code Programming ON
Code Programming OFF
Tools
Interleaved 2 of 5
Fixed Length Selection
Program the engine to read fixed length or fixed length area Interleaved 2 of 5. Command
programming use 3 decimal digits to define length value. The fixed length value MUST be 2 to 64
even value (32 even values).
When enabled, Interleaved 2 of 5 Selection prevail “Message Length Selection”
** Disable Fixed Length Selection
【Pro CMD：0405140】
Select Code Length
【Pro CMD：0405160】
Enable Fixed Length Selection
【Pro CMD：0405150】
Undo Code Length Selection
【Pro CMD：0405170】
The engine only read Interleaved 2 of 5 which are 12 and 24 bytes.
1. “Code Programming ON”, then “Select Code Length”
2. Digit Code “0”，“1”，“2”
3. “Save Programming”
4. Digit Code “0”，“2”，“4”
5. “Save Programming”, then “Code Programming OFF”
The engine only read Interleaved 2 of 5 between 12 bytes and 24 bytes.
1. “Code Programming ON”, then “Select Code Length”
2. Digit Code “0”，“1”，“2”，then read “0”，“2”，“4”
3. “Save Programming”, then “Code Programming OFF”
Undo fixed length selections between 2 bytes and 64 bytes.
1. “Code Programming ON”, then “Undo Code Length Selection”
2. Digit Code “0”，“0”，“2”, then read “0”，“6”，“4”
3. “Save Programming”, then “Code Programming OFF”
Page 66
Symbologies
Page 60
Code Programming ON
Code Programming OFF
Tools
ITF-14
ITF-14 is a fixed length 14 bytes Interleaved 2 of 5 barcode with parity check. For factory
default, the engine deems ITF-14 as ordinary Interleaved 2 of 5. And selections of Interleaved 2 of 5
will affect ITF-14.
ITF-14 Selection Prevail: the selection of ITF-14, if any, affects and prevail the selection of the
Interleaved 2 of 5 when they have the same feature as ITF-14.
** Disable ITF-14 User Selection
【Pro CMD：0405080】
ITF-14, Read, No Transmit Parity
【Pro CMD：0405090】
For instance, allow reading ITF-14 and prohibit reading Interleaved 2 of 5. The ITF-14 and 14
bytes Interleaved 2 of 5 with parity check can be read, but other Interleaved 2 of 5 are prohibited.
Interleaved 2 of 5
ITF-14, Read, Transmit Parity
【Pro CMD：0405100】
Page 67
Page 61
Symbologies
Code Programming ON
Code Programming OFF
Tools
ITF-6
ITF-6 is a fixed length 6 bytes Interleaved 2 of 5 barcode with parity check. As it to user
selections, factory default, the engine deems ITF-6 as ordinary Interleaved 2 of 5. And selections of
Interleaved 2 of 5 will affect ITF-6.
ITF-6 Selection Prevail: the selection of ITF-6, if any, affects and prevails the selection of the
Interleaved 2 of 5 when they have the same feature as ITF-6.
** Disable ITF-6 User Selection
【Pro CMD：0405110】
ITF-6, Read, No Transmit Parity
【Pro CMD：0405120】
ITF-6, Read, Transmit Parity
【Pro CMD：0405130】
For instance, allow reading ITF-6 and prohibit reading Interleaved 2 of 5. The ITF-6 and 6 bytes
Interleaved 2 of 5 with parity check can be read, but other Interleaved 2 of 5 are prohibited.
Interleaved 2 of 5
Page 68
Symbologies
Page 62
Code Programming ON
Code Programming OFF
Tools
Load Factory Default
Read to load China Post 25 factory default.
** Load China Post25 Factory Default
【Pro CMD：0406000】
Read/Abort China Post 25
** Abort China Post 25
【Pro CMD：0406010】
Read China Post 25
【Pro CMD：0406020】
"Abort China Post 25" prohibits the engine to read China Post 25. Please read programming code "Read China Post 25” when the engine can not read China Post 25.
China Post 25
Page 69
Symbologies
Page 63
Code Programming ON
Code Programming OFF
Tools
"Code Programming ON"1.
"Select Min Message Length"2.
Digit code "8", see Digit Code 3.
"Save Programming", see Digit Code 4.
"Select Max Message Length"5.
Digit code "1"6.
Digit code "2"7.
"Save Programming"8.
"Code Programming OFF"9.
China Post 25
Select Message Length
It is used to program the valid reading length (bytes) of China Post 25. The engine will produce
an error beep, if the data length captured does not match the valid reading length.
China Post 25 Message Length is defined by "Min. Message Length" and "Max. Message
Length".
Min Message Length（default:4 ）
【Pro CMD：0406030】
Max Message Length（default:80 ）
【Pro CMD：0406040】
1D bar code Message Length should not exceed 127 bytes.
Max Message Length should not be shorter than Min Message Length.
To read a fixed length China Post 25, Please program Max & Min Message Length to the same
value.
Program Code 128, Min Message Length 8 bytes, Max Message Length 12 bytes.
Page 70
Symbologies
Page 64
Code Programming ON
Code Programming OFF
Tools
China Post 25
Check Byte
CHINA POST 25 may include Check Byte (not compulsory) following its barcode message.
Check Byte verifies the barcode message.
"NO Check, Transmit All" enables to read without check and transmit all digits including barcode
message and Check Byte.
"Check, Transmit NO Check" enables to read and check. If verification is successful, transmit
barcode message; if not, Imager produce an error beep.
"Check, Transmit All" enables to read and check. If verification is successful, transmit all
message; if not, Imager produce an error beep.
Read "Check, Transmit NO Check", only transmit barcode message. If barcode message length is
less than Min Message Length, this will lead to error beep. E.g.：Read a 4 bytes (include Check bytes) CHINA POST 25. Select Min Message Length to 4
bytes and transmit NO Check byte. This leads to error beep.
** NO Check, Transmit All
【Pro CMD：0406050】
Check, Transmit NO Check
【Pro CMD：0406060】
Check, Transmit All
【Pro CMD：0406070】
Page 71
Symbologies
Page 65
Code Programming ON
Code Programming OFF
Tools
Code 39
Load Factory Default
Code 39 Read to load Code 39 factory default.
** 39 Load Code 39 Factory Default
【Pro CMD：0408000】
Read/Abort Code 39
** Read Code 39
【Pro CMD：0408020】
Abort Code 39
【Pro CMD：0408010】
"Abort Code 39" prohibits the engine to read Code 39. Please read programming code "Read Code 39” when the engine can not read Code 39.
Transmit Start & Stop Character.
Code 39 use “*” (asterisk) for the start character and the stop character. Transmission of “*” can be
selected.
**Transmit Both “*”
【Pro CMD：0408090】
Transmit Neither “*”
【Pro CMD：0408080】
Page 72
Symbologies
Page 66
Code Programming ON
Code Programming OFF
Tools
"Code Programming ON"1.
"Select Min Message Length"2.
Digit code "8", see Digit Code 3.
"Save Programming", see Digit Code 4.
"Select Max Message Length"5.
Digit code "1"6.
Digit code "2"7.
"Save Programming"8.
"Code Programming OFF"9.
Select Message Length
It is used to program the valid reading length (bytes) of Code 39. The engine will produce an
error beep, if the data length captured does not match the valid reading length.
Code 39 Message Length is defined by "Min. Message Length" and "Max. Message Length".
Min Message Length (default: 1)
【Pro CMD：0408030】
Max Message Length（default:48 ）
【Pro CMD：0408040】
1D bar code Message Length should not exceed 127 bytes.
Max Message Length should not be shorter than Min Message Length.
To read a fixed length Code 39, Please program Max & Min Message Length to the same value.
Program Code 39, Min Message Length 8 bytes, Max Message Length 12 bytes.
Code 39
Page 73
Symbologies
Page 67
Code Programming ON
Code Programming OFF
Tools
Code 39
Check Byte
Code 39 may include Check Byte (not compulsory) following its barcode message. Check Byte is
used to verify the barcode message.
"NO Check, Transmit All" enables to read without check and transmit all digits including barcode
message and Check Byte.
"Check, Transmit NO Check" enables to read and check. If verification is successful, transmit
barcode message; if not, Imager produce an error beep.
"Check, Transmit All" enables to read and check. If verification is successful, transmit all
messages; if not, Imager produces an error beep.
** NO Check, Transmit All
【Pro CMD：0408050】
Check, Transmit NO Check
【Pro CMD：0408060】
Check, Transmit All
【Pro CMD：0408070】
Read "Check, Transmit NO Check", only transmit barcode message. If barcode message length is
less than Min Message Length, this will lead to error beep. E.g.：Read a 4 bytes (include Check Byte) Code 39. Select Min Message Length to 4 bytes and
transmit NO Check byte. This leads to error beep.

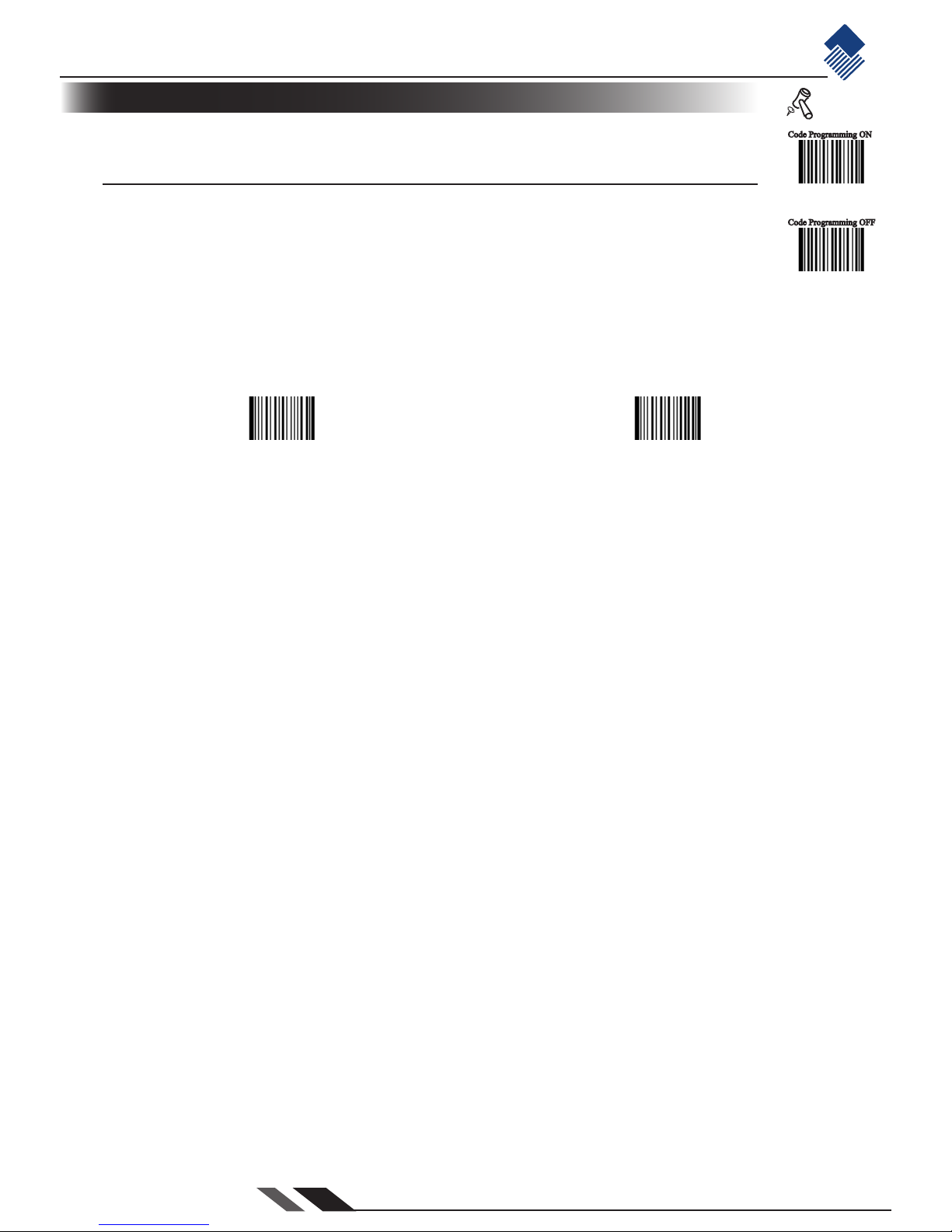

Page 74
Symbologies
Page 68
Code Programming ON
Code Programming OFF
Tools
Code 39
Decode ASCII
Code 39 can include full ASCII characters. For factory default, the engine enabled to decode
partial of them. Read “Enable Full ASCII decode” to select full ASCII functions.
** Partial ASCII Decode
【Pro CMD：0408100】
Enable Full ASCII Decode
【Pro CMD：0408110】
Page 75
Symbologies
Page 69
Code Programming ON
Code Programming OFF
Tools
Load Factory Default
Read to load Codabar factory default.
** Load Codabar Factory Default
【Pro CMD：0409000】
Read/Abort Codabar
** Read Codabar
【Pro CMD：0409020】
Abort Codabar
【Pro CMD：0409010】
"Abort Codabar” prohibits the engine to read Codabar. Please read programming code "Read Codabar” when the engine can not read Codabar.
Transmit Start & Stop Character
Codabar use either of “A”, “B”, “C” and “D” as the start character and the stop character.
Transmission of them can be selected.
** Transmit Both Start & Stop
【Pro CMD：0409090】
Transmit Neither Start & Stop
【Pro CMD：0409080】
Codabar
Page 76
Symbologies
Page 70
Code Programming ON
Code Programming OFF
Tools
"Code Programming ON"1.
"Select Min Message Length"2.
Digit code "8", see Digit Code 3.
"Save Programming", see Digit Code 4.
"Select Max Message Length"5.
Digit code "1"6.
Digit code "2"7.
"Save Programming"8.
"Code Programming OFF"9.
Select Message Length
It is used to program the valid reading length (bytes) of Codabar. The engine will produce an
error beep, if the data length captured does not match the valid reading length.
Codabar Message Length is defined by "Min. Message Length" and "Max. Message Length".
Min Message Length（default:2）
【Pro CMD：0409030】
Max Message Length（default:60 ）
【Pro CMD：0409040】
1D bar code Message Length should not exceed 127 bytes.
Max Message Length should not be shorter than Min Message Length
To read a fixed length Codabar, Please program Max & Min Message Length to the same value.
Program Codabar, Min Message Length 8 bytes, Max Message Length 12 bytes.
Codabar
Page 77
Symbologies
Page 71
Code Programming ON
Code Programming OFF
Tools
Read "Check, Transmit NO Check", only transmit barcode message. If barcode message length is
less than Min Message Length, this will lead to error beep. E.g.：Read a 4 bytes (include Check Byte) Codabar. Select Min Message Length to 4 bytes and
transmit NO Check byte. This leads to error beep.
** NO Check, Transmit All
【Pro CMD：0409050】
Check, Transmit NO Check
【Pro CMD：0409060】
Check, Transmit All
【Pro CMD：0409070】
Check Byte
Codabar may include Check Byte (not compulsory) following its barcode message. Check Byte is
used to verify the barcode message.
"NO Check, Transmit All" enables to read without check and transmit all digits including barcode
message and Check Byte.
"Check, Transmit NO Check" enables to read and check. If verification is successful, transmit
barcode message; if not, Imager produce an error beep.
"Check, Transmit All" enables to read and check. If verification is successful, transmit all
messages; if not, Imager produces an error beep.
Codabar
Page 78
Symbologies
Page 72
Code Programming ON
Code Programming OFF
Tools
Code 93
Load Factory Default
Read to load Code 93 factory default.
** Load Code 93 Factory Default
【Pro CMD：0410000】
Read/Abort Code 93
** Abort Code 93
【Pro CMD：0410010】
Read Code 93
【Pro CMD：0410020】
"Abort Code 93" prohibits the engine to read Code 93. Please read programming code "Read Code 93” when the engine can not read Code 93.
Page 79
Symbologies
Page 73
Code Programming ON
Code Programming OFF
Tools
"Code Programming ON"1.
"Select Min Message Length"2.
Digit code "8", see Digit Code 3.
"Save Programming", see Digit Code 4.
"Select Max Message Length"5.
Digit code "1"6.
Digit code "2"7.
"Save Programming"8.
"Code Programming OFF"9.
Code 93
Select Message Length
It is used to program the valid reading length (bytes) of Code 93. The engine will produce an
error beep, if the data length captured does not match the valid reading length.
Code 93 Message Length is defined by "Min. Message Length" and "Max. Message Length".
Min Message Length（default: 1）
【Pro CMD：0410030】
Max Message Length（default:48 ）
【Pro CMD：0410040】
1D bar code Message Length should not exceed 127 bytes.
Max Message Length should not be shorter than Min Message Length.
To read a fixed length Code 93, Please program Max & Min Message Length to the same value.
Program Code 93, Min Message Length 8 bytes, Max Message Length 12 bytes.
Page 80
Symbologies
Page 74
Code Programming ON
Code Programming OFF
Tools
Read “No Transmit Check”. If barcode message length is less than Min Message length, this
will lead to error beep.
E.g.: Read a 4 bytes (include Check Byte) Code 93. Select Min Message Length to 4 bytes and
No Transmit Check. This leads to error beep.
NO Check, Transmit All
【Pro CMD：0410050】
** Check, Transmit NO Check
【Pro CMD：0410060】
Check, Transmit All
【Pro CMD：0410070】
Check Byte
Codd 93 may include Check Byte (not compulsory) following its barcode message. Check Byte
is used to verify the barcode message.
"NO Check, Transmit All" enables to read without check and transmit all digits including barcode
message and Check Byte.
"Check, Transmit NO Check" enables to read and check. If verification is successful, transmit
barcode message; if not, Imager produce an error beep.
"Check, Transmit All" enables to read and check. If verification is successful, transmit all
messages; if not, Imager produces an error beep.
Code 93
Page 81
Symbologies
Page 75
Code Programming ON
Code Programming OFF
Tools
UCC/EAN-128
Load Factory Default
Read to load UCC/EAN-128 factory default.
** Load UCC/EAN-128 Factory Default
【Pro CMD：0412000】
Read/Abort UCC/EAN-128
** Read UCC/EAN-128
【Pro CMD：0412020】
Abort UCC/EAN-128
【Pro CMD：0412010】
"Abort UCC/EAN-128" prohibits the engine to read UCC/EAN-128. Please read programming code "Read UCC/EAN-128” when the engine can not read UCC/EAN-128.
Page 82
Symbologies
Page 76
Code Programming ON
Code Programming OFF
Tools
Load Factory Default
Read to load PDF417 factory default.
** Load PDF417 Factory Default
【Pro CMD：0501000】
Read/Abort PDF417
** Read PDF417
【Pro CMD：0501020】
Abort PDF417
【Pro CMD：0501010】
"Abort PDF417" prohibits the engine to read PDF417. Please read programming code "Read PDF417” when the engine can not read PDF417.
PDF417
Page 83
Symbologies
Page 77
Code Programming ON
Code Programming OFF
Tools
"Code Programming ON"1.
"Select Min Message Length"2.
Digit code "8", see Digit Code 3.
"Save Programming", see Digit Code 4.
"Select Max Message Length"5.
Digit code "1"6.
Digit code "2"7.
"Save Programming"8.
"Code Programming OFF"9.
PDF417
Min Message Length（default: 1）
【Pro CMD：0501030】
Max Message Length（default: 2710）
【Pro CMD：0501040】
Select Message Length
It is used to program the valid reading length (bytes) of PDF417. The engine will produce an
error beep, if the data length captured does not match the valid reading length.
PDF417 Message Length is defined by "Min. Message Length" and "Max. Message Length".
2D bar code Message Length should not exceed 65535 bytes.
Max Message Length should not be shorter than Min Message Length.
To read a fixed length PDF417, Please program Max & Min Message Length to the same value.
Program PDF417 Min Message Length 8 bytes, Max Message Length 12 bytes.
Page 84
Symbologies
Page 78
Code Programming ON
Code Programming OFF
Tools
Load Factory Default
Read to load QR Code factory default.
** Load QR Code Factory Default
【Pro CMD：0502000】
Read/Abort QR Code
** 允许识读 QR Code
【Pro CMD：0502020】
Abort QR Code
【Pro CMD：0502010】
"Abort QR Code” prohibits the engine to read QR Code. Please read programming code "Read QR Code” when the engine can not read QR Code.。
QR Code

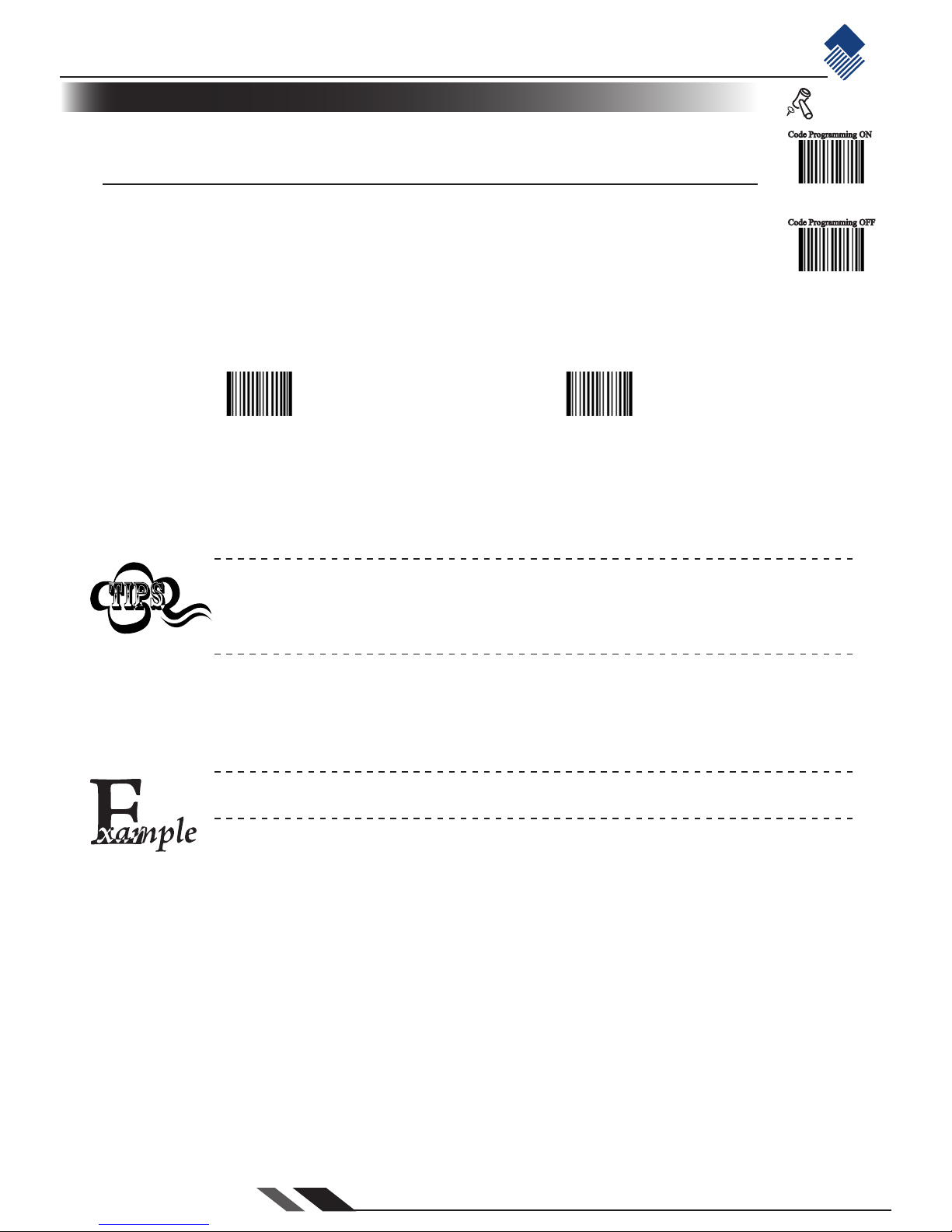

Page 85
Symbologies
Page 79
Code Programming ON
Code Programming OFF
Tools
"Code Programming ON"1.
"Select Min Message Length"2.
Digit code "8", see Digit Code 3.
"Save Programming", see Digit Code 4.
"Select Max Message Length"5.
Digit code "1"6.
Digit code "2"7.
"Save Programming"8.
"Code Programming OFF"9.
QR Code
Select Message Length
It is used to program the valid reading length (bytes) of QR Code. The engine will produce an
error beep, if the data length captured does not match the valid reading length.
QR Code Message Length is defined by "Min. Message Length" and "Max. Message Length".
Min Message Length (default: 1)
【Pro CMD：0502030】
Max Message Length（default:7098 ）
【Pro CMD：0502040】
2D bar code Message Length should not exceed 65535 bytes.
Max Message Length should not be shorter than Min Message Length.
To read a fixed length QR Code, Please program Max & Min Message Length to the same value
Program QR Code, Min Message Length 8 bytes, Max Message Length 12 bytes.

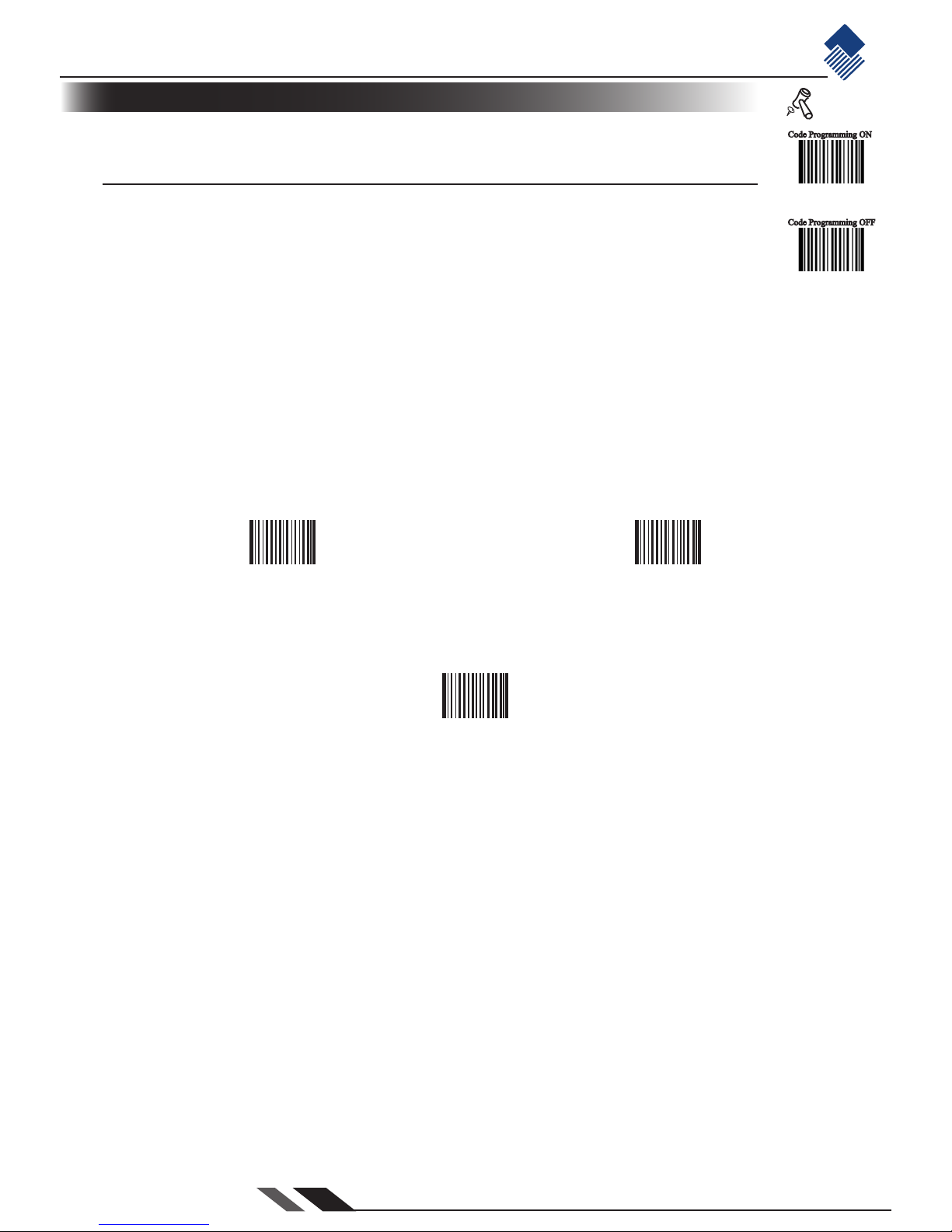

Page 86
Symbologies
Page 80
Code Programming ON
Code Programming OFF
Tools
QR Twin Code
QR twin code is 2 QR barcodes paralleled vertically or horizontally.
There are 3 options for reading QR Code:
Single QR Only: Select to read only one QR Code, and abort twin code.
Twin QR Only: Select to read only twin code, and abort single QR Code code. The working
sequence is: Detect Twin Code-Yes-Decode Twin Code-Yes-Transmit Upper (Left) QR-Yes-Transmit
Lower (Right) QR-End.
Both Single & Twin: Select to read both types of QR Code, The same working sequence or twin
code as it is in “Twin QR Only”
** Single QR Only
【Pro CMD：0502070】
Twin QR Only
【Pro CMD：0502080】
Both Single & Twin
【Pro CMD：0502090】
QR Code

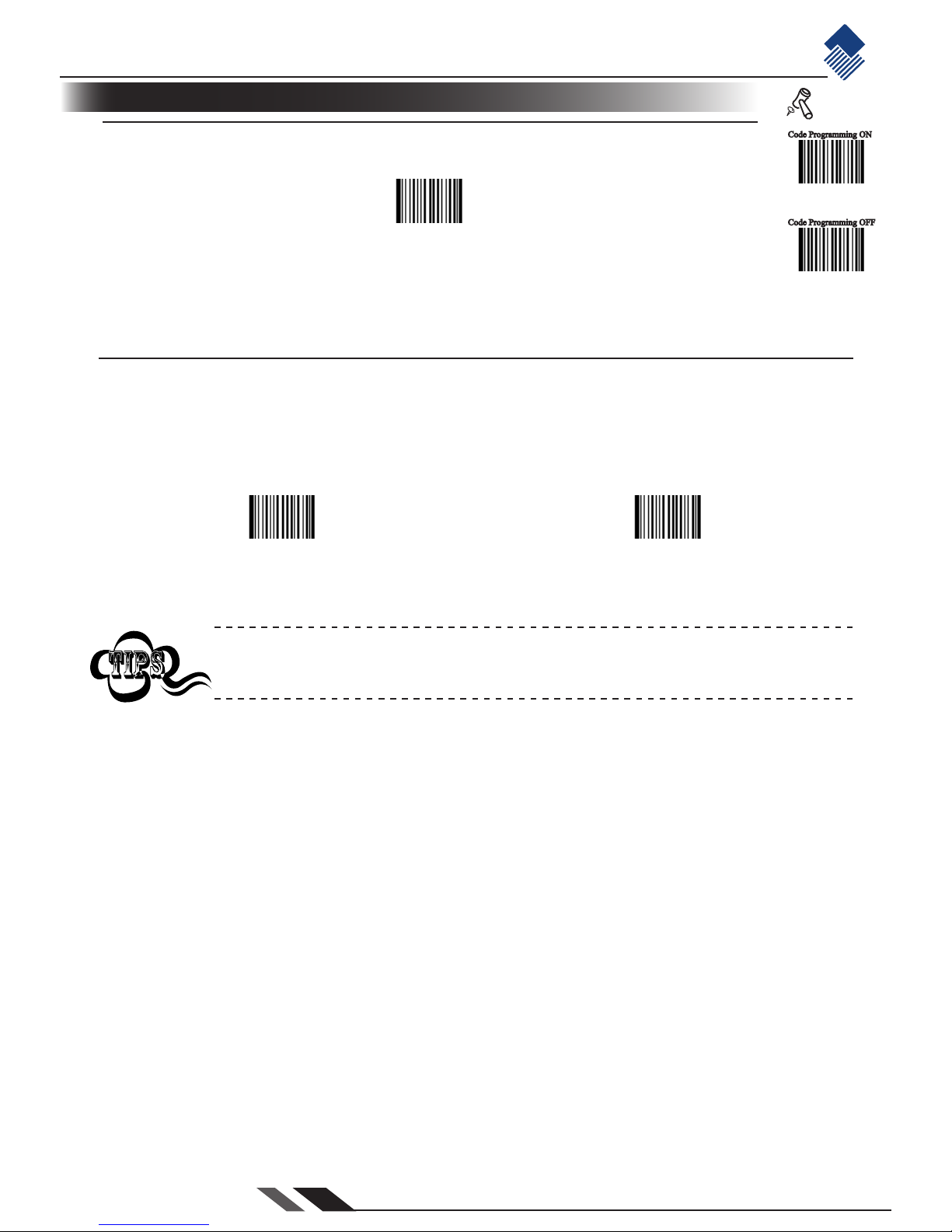

Page 87
Symbologies
Page 81
Code Programming ON
Code Programming OFF
Tools
Load Factory Default
Read to load Aztec Code factory default.
** Load Aztec Code Factory Default
【Pro CMD：0503000】
Read/Abort Aztec Code
** Read Aztec Code
【Pro CMD：0503020】
Abort Aztec Code
【Pro CMD：0503010】
"Abort Aztec Code" prohibits the engine to read Aztec. Please read programming code "Read Aztec Code” when the engine can not read Aztec.
Aztec Code
Page 88
Symbologies
Page 82
Code Programming ON
Code Programming OFF
Tools
"Code Programming ON"1.
"Select Min Message Length"2.
Digit code "8", see Digit Code 3.
"Save Programming", see Digit Code 4.
"Select Max Message Length"5.
Digit code "1"6.
Digit code "2"7.
"Save Programming"8.
"Code Programming OFF"9.
Aztec Code
Select Message Length
It is used to program the valid reading length (bytes) of Aztec. The engine will produce an error
beep, if the data length captured does not match the valid reading length.
Aztec Message Length is defined by "Min. Message Length" and "Max. Message Length".
Min Message Length（default: 1）
【Pro CMD：0503030】
Max Message Length（default:3832 ）
【Pro CMD：0503040】
2D bar code Message Length should not exceed 65535 bytes.
Max Message Length should not be shorter than Min Message Length.
To read a fixed length Aztec, Please program Max & Min Message Length to the same value.
Program Aztec, Min Message Length 8 bytes, Max Message Length 12 bytes.
Page 89
Page 83
Symbologies
Code Programming ON
Code Programming OFF
Tools
Aztec Code
Multi-Barcode Processing feature
The Aztec Codes can be lined up horizontal or vertical. The scanner processes multi-Barcodes
simultaneously.
There are 3 options can be chosen:
Model 1: Disable multi-Barcodes feature. Read the single Aztec Code only.
Model 2: Enable Multi-Barcodes feature, with the number of bar codes specified.
Model 3: Enable Multi-Barcodes feature; the system processes multi-Barc
odes simultaneously,
if failed, then process every single bar code.
** Model 1
【Pro CMD：0503070】
Model 2
【Pro CMD：0503080】
Model 3
【Pro CMD：0503090】
1
【Pro CMD：0503070】
2
【Pro CMD：0503080】
3
【Pro CMD：0503070】
4
【Pro CMD：0503080】
5
【Pro CMD：0503070】
6
【Pro CMD：0503080】
7
【Pro CMD：0503070】
8
【Pro CMD：0503080】
The number of bar codes specified
Page 90
Symbologies
Page 84
Code Programming ON
Code Programming OFF
Tools
Load Factory Default
Read to load Data Matrix factory default.
** Load Data Matrix Factory Default
【Pro CMD：0504000】
** 允许识读 Data Matrix 【Pro CMD：0504020】
Abort Data Matrix
【Pro CMD：0504010】
Read/Abort Data Matrix
"Abort Data Matrix" prohibits the engine to read Data Matrix. Please read programming code "Read Data Matrix” when the engine can not read Data Matrix.
Data Matrix
Page 91
Symbologies
Page 85
Code Programming ON
Code Programming OFF
Tools
"Code Programming ON"1.
"Select Min Message Length"2.
Digit code "8", see Digit Code 3.
"Save Programming", see Digit Code 4.
"Select Max Message Length"5.
Digit code "1"6.
Digit code "2"7.
"Save Programming"8.
"Code Programming OFF"9.
Select Message Length
It is used to program the valid reading length (bytes) of Data Matrix. The engine will produce an
error beep, if the data length captured does not match the valid reading length.
Data Matrix Message Length is defined by "Min. Message Length" and "Max. Message
Length".
Min Message Length（default: 1）
【Pro CMD：0504030】
Max Message Length（default:3116 ）
【Pro CMD：0504040】
2D bar code Message Length should not exceed 65535 bytes.
Max Message Length should not be shorter than Min Message Length.
To read a fixed length Data Matrix, Please program Max & Min Message Length to the same
value.
Program Data Matrix, Min Message Length 8 bytes, Max Message Length 12 bytes.
Data Matrix
Page 92
Symbologies
Page 86
Code Programming ON
Code Programming OFF
Tools
Data Matrix Twin Code
Data Matrix twin code is 2 Data Matrix barcodes paralleled vertically or horizontally.
There are 3 options for reading Data Matrix:
Single Data Matrix Only: select to read only one Data Matrix, and abort twin code.
Twin Data Matrix Only: select to read only twin code, and abort single Data Matrix code. The
working sequence is: Detect Twin Code-Yes-Decode Twin Code-Yes-Transmit Upper (Left) code
-Yes-Transmit Lower (Right) code -End.
** Single Data Matrix Only
【Pro CMD：0504070】
Twin Data Matrix Only
【Pro CMD：0504080】
Both Single & Twin
【Pro CMD：0504090】
Both Single & Twin: select to read both types of Data Matrix. The same working sequence for twin code as it is
in “Twin Data Matrix Only”.
Data Matrix
Page 93
Symbologies
Page 87
Code Programming ON
Code Programming OFF
Tools
Load Factory Default
Read to load Chinese-Sensible Code factory default.
** Load Chinese-Sensible Code Factory Default
【Pro CMD：0508000】
Read/Abort Chinese-Sensible Code
** Read Chinese-Sensible Code
【Pro CMD：0508020】
Abort Chinese-Sensible Code
【Pro CMD：0508010】
"Abort Chinese-Sensible Code" prohibits the engine to read Chinese-Sensible Code Please read programming code "Read Chinese-Sensible Code” when the engine can not read Chinese-
Sensible Code
Chinese-Sensible Code
Page 94
Symbologies
Page 88
Code Programming ON
Code Programming OFF
Tools
"Code Programming ON"1.
"Select Min Message Length"2.
Digit code "8", see Digit Code 3.
"Save Programming", see Digit Code 4.
"Select Max Message Length"5.
Digit code "1"6.
Digit code "2"7.
"Save Programming"8.
"Code Programming OFF"9.
Chinese-Sensible Code
Select Message Length
It is used to program the valid reading length (bytes) of Chinese-Sensible Code. The engine
will produce an error beep, if the data length captured does not match the valid reading length.
Chinese-Sensible Code Message Length is defined by "Min. Message Length" and "Max.
Message Length".
2D bar code Message Length should not exceed 65535 bytes.
Max Message Length should not be shorter than Min Message Length.
To read a fixed length China Information Code, Please program Max & Min Message Length to
the same value.
Program China Information Code, Min Message Length 8 bytes, Max Message Length 12 bytes.
Min Message Length (default: 1)
【Pro CMD：0508030】
Max Message Length（default:7827 ）
【Pro CMD：0508040】

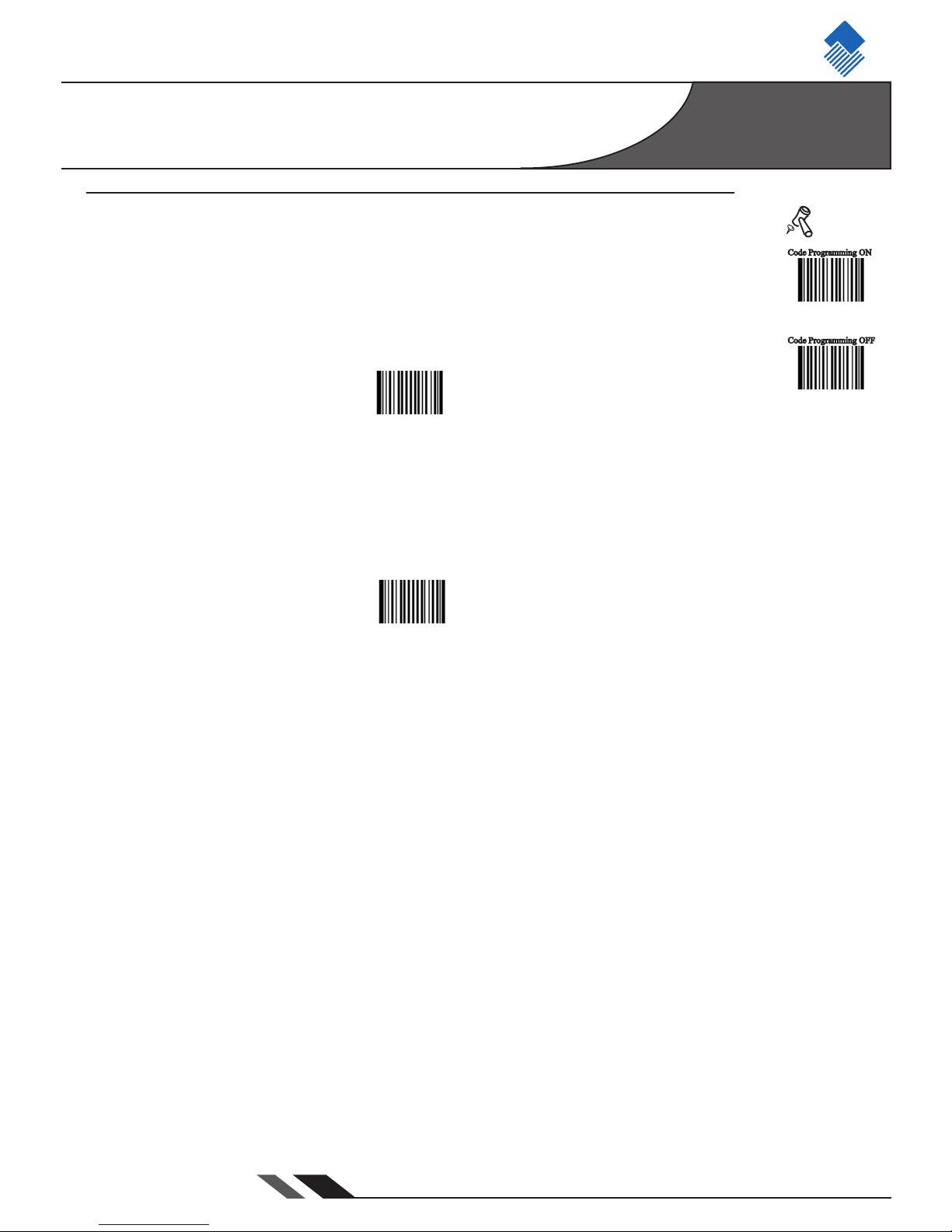

Page 95
Page 89
OCR Selections
Inrtuducation
OCR (Optical Character Recognition) is the technology that capture image of printed
information, and recognize the image to editable characters. The engine satisfy OCR B standard and
support specific typeface.
** Disable OCR
【Pro CMD：0600010】
Enable OCR
【Pro CMD：0600020】
Code Programming ON
Code Programming OFF
Tools
Page 96
Page 90
Prefix/Suffix
Intruducation
1D barcode message could contain digits, letters and symbols, etc. 2D barcode message
could contain more data such as Chinese characters and other 2 bytes characters.
Practically, barcode message is insufficient for usage. For example, the barcode format,
the date or a “new line character” can be useful. Mostly these informations are not
included in a barcode and thus to keep it short
and flexible possible.
Prefix/Suffix appended to barcode message fulfills the usage mentioned above. They
can be appended, removed and modified without changing the original barcode message.
Barcode processing sequences:
1. Intersect barcode message
2. Append Prefix/Suffix
3. Pack
4. Terminate with Stop Suffix and transmit

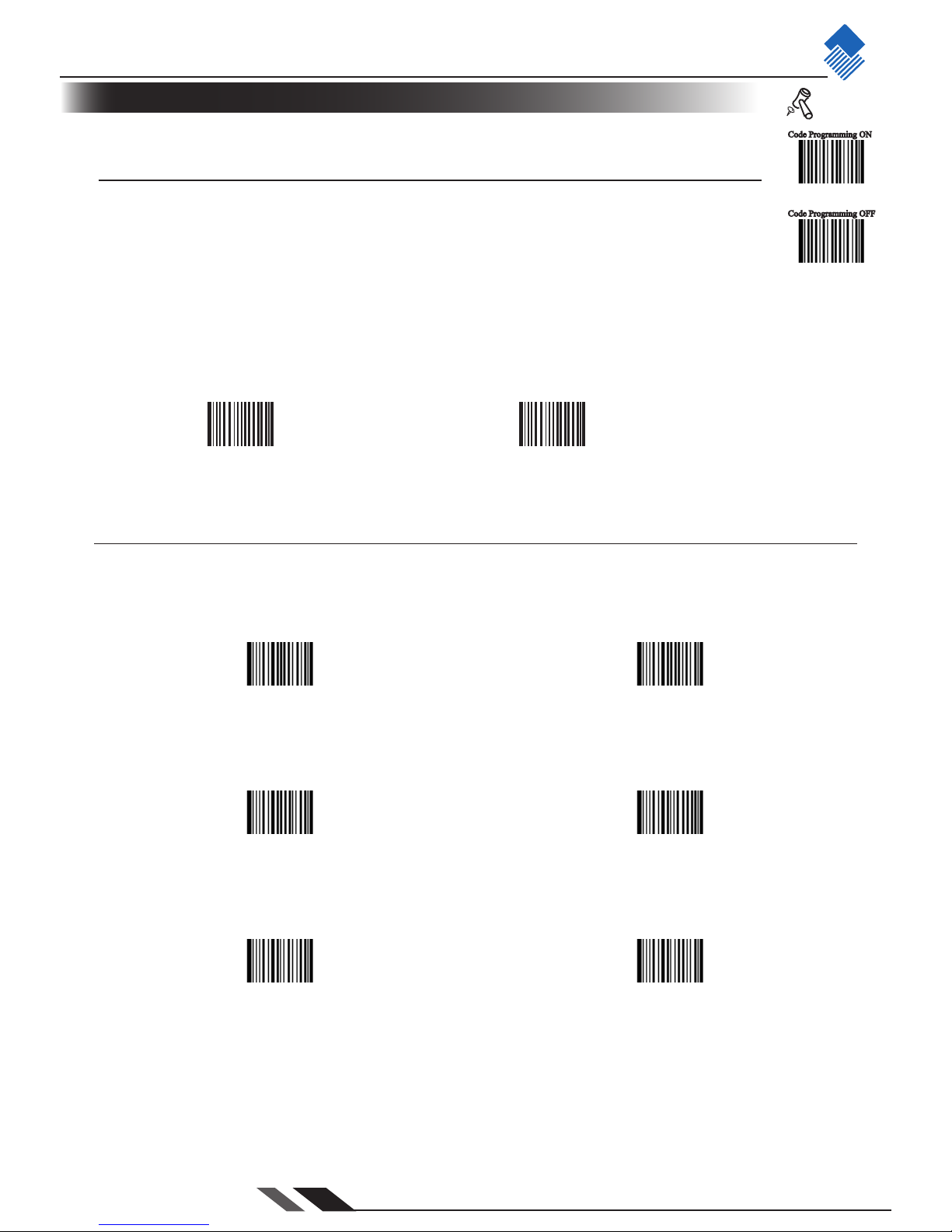

Page 97
Prefix/Suffix
Page 91
Code Programming ON
Code Programming OFF
Tools
General Programming
Prohibit or Allow Prefix/Suffix
Prohibit All Prefix/Suffix: Transmit barcode message with no Prefix/Suffix.
Allow All Prefix/Suffix: Allow appending CodeID prefix, AIM prefix, User prefix, User suffix
and Stop suffix to the barcode message.
** Prohibit All Prefix/Suffix
【Pro CMD：0311000】
Allow All Prefix/Suffix
【Pro CMD：0311010】
** CodeID+AIM+User Prefix
【Pro CMD：0317000】
AIM+CodeID+User Prefix
【Pro CMD：0317020】
User Prefix+CodeID+AIM
【Pro CMD：0317040】
CodeID+User Prefix+AIM
【Pro CMD：0317010】
AIM+User Prefix+CodeID
【Pro CMD：0317030】
User Prefix+AIM+CodeID
【Pro CMD：0317050】
Prefix Sequences
6 options of Prefix Sequences：

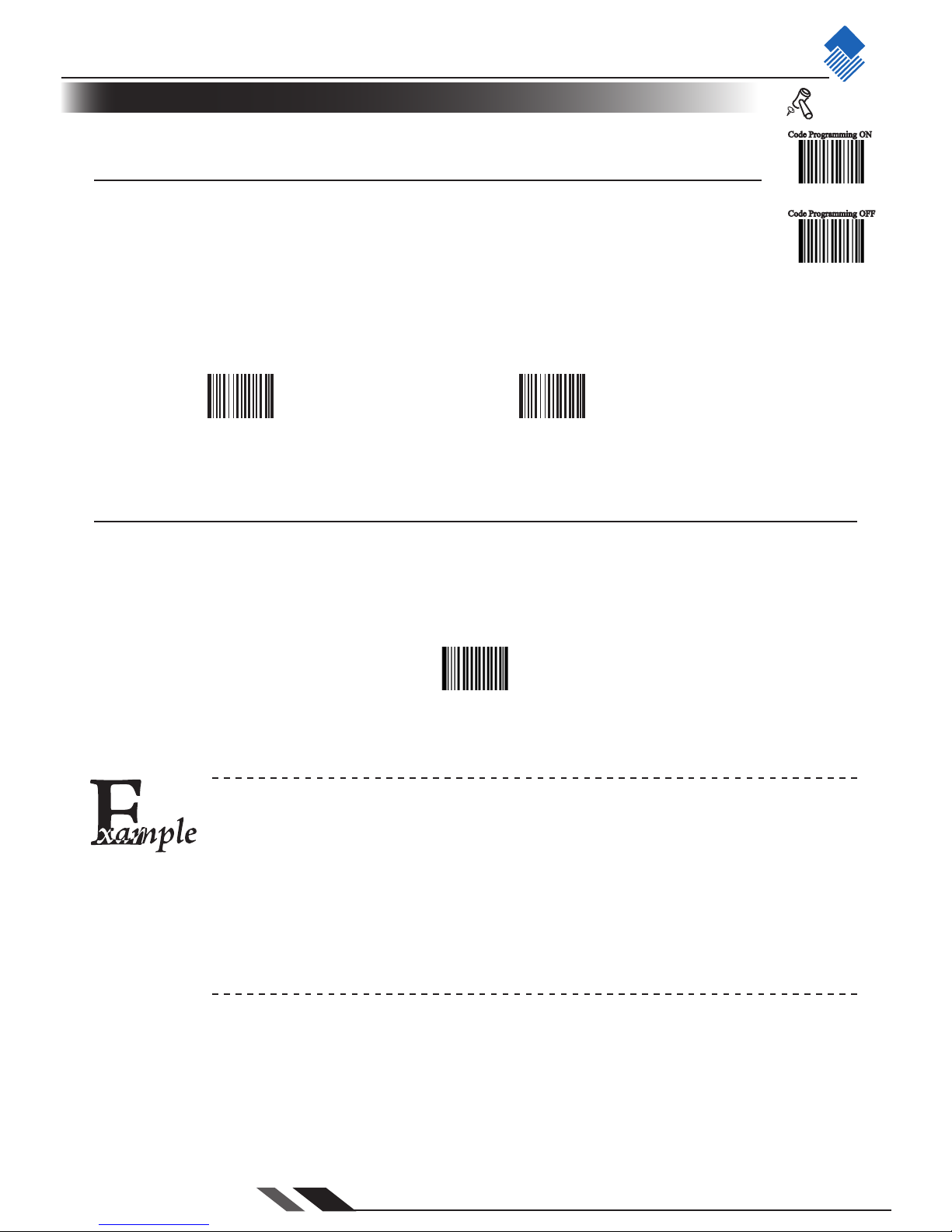

Page 98
Page 92
Prefix/Suffix
Code Programming ON
Code Programming OFF
Tools
User Prefix
Prohibit or Allow User Prefix
User Prefix append to the left of barcode message. For example, program “AB” as user prefix,
and the barcode message is “123”. The Host receives “AB123”.
** Prohibit User Prefix
【Pro CMD：0305000】
Allow User Prefix
【Pro CMD：0305010】
Program User Prefix
Read “Program User Prefix”. Then program user prefix in order by reading their hex respectively.
Note: The maximum length for user prefix is 10 bytes.
Program User Prefix
【Pro CMD：0300000】
Program “CODE” as user prefix (The hex of “CODE” are 0x43/0x4F/0x44/0x45):
1. Read “Code Programming ON”
2. Read “Program User Prefix”
3. Read “4,3,4,F,4,4,4,5” in order
4. Read “Save Programming”
5. Read “Code Programming OFF”.
6. Read “Allow User Prefix” to enable above programming. “CODE” will appear to the
left of a barcode.
Page 99
Prefix/Suffix
Page 93
Code Programming ON
Code Programming OFF
Tools
AIM Prefix
AIM (Automatic Identification Manufactures) defines AIM prefix for many standard barcode
formats.
There are 3 types of AIM prefix.
Character Mode: Append AIM prefix. For example, append “C” for Code128.1.
Characters Mode: Append AIM prefix + “0”2.
Full Characters Mode: Append “]” + AIM prefix + “0”3.
** No AIM Prefix
【Pro CMD：0308000】
2 Characters Mode
【Pro CMD：0308020】
1 Character Mode
【Pro CMD：0308010】
Full Characters Mode
【Pro CMD：0308030】
Symbologies AIM ID Hex
Code128 / UCC/EAN-128 C 43
UPC-E / UPC-A / EAN-8 / EAN-13 E 45
Interleaved 2 OF 5 / China Post25 I 49
Code39 A 41
Codabar F 46
Code93 G 47
PDF417 L 4C
QR Code Q 51
Aztec z 7A
DataMatrix d 6D
Chinese-Sensible Code X 58
User-Define X 58
Page 100
Page 94
Prefix/Suffix
Code Programming ON
Code Programming OFF
Tools
Code ID Prefix
Apart from AIM prefix, Code ID prefix can be used to denote barcode format and can be
customized.
The Code ID prefix MUST be 1 visible English letter, only.
** No CodeID Prefix
【Pro CMD：0307000】
Allow CodeID Prefix
【Pro CMD：0307010】
Symbologies CodeID Default Hex
Code128 / UCC/EAN-128 j 6A
UPC-E / UPC-A c 63
EAN-8 / EAN-13 d 64
Interleaved 2 OF 5 / China Post25 e 65
Code39 b 62
Codabar a 61
Code93 i 69
PDF417 r 72
QR Code s 73
Aztec z 7A
DataMatrix u 75
Chinese-Sensible Code h 68
User-Define X 58
Code ID Default
1D, Load CodeID Factory Default
【Pro CMD：0307020】
2D, Load CodeID Factory Default
【Pro CMD：0307020】
Code ID Prefix
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
