Page 1
NLS-PT30 Series
Mobile Computer
User Guide
Page 2
© 2012 by Newland Auto-ID Tech. Co., Ltd. All rights reserved.
Please carefully read the manual before use the product, and effectively to protect the safety of products operation. Please
keep this manual after reading properly and save for the next reading.
Do not disassemble the terminal or tearing the seal label on the terminal. Otherwise, FuJian Newland Auto-ID Tech. Co., Ltd.
does not assume responsibility for the warranty or replacement.
The pictures in this manual are for reference only. If the individual picture from the actual product was different with this manual,
please refer to actual product. Regarding to the product modification and update, Newland Auto-ID Tech. Co., Ltd. reserves the
right to make changes to any software or product to improve reliability, function, or design at any time without notice.
This manual contains all the information is protected by copyright. Any Company and individuals should not in any way or
reason for any form of extract, copy, sell all or part of this document without written permission.
Newland Auto-ID Tech. Co., Ltd.
3F, Building A, No.1, Rujiang Xi Rd., Mawei, Fuzhou, Fujian, P.R. China. 350015.
Web :http://www.nlscan.com
Revision History
Changes to the original manual are listed below:
Revision
Description
Changed Date
Ver 1.0
Initial release.
2012-04-12
Ver 1.1
Corrected improper descriptions.
2012-05-16
Ver 1.2
Updated the figures in Chapter 6.
2012-09-24
Page 3
Table of Contents
Chapter 1 About This Guide............................................................................................................................................................................ 1
Introduction .................................................................................................................................................................................. 1
Documentation Set ..................................................................................................................................................................... 1
Specification ................................................................................................................................................................................ 1
Software Version ......................................................................................................................................................................... 2
Chapter Descriptions .................................................................................................................................................................. 3
More Information ......................................................................................................................................................................... 3
Service Information .................................................................................................................................................................... 3
Chapter 2 Getting Started ............................................................................................................................................................................... 4
Introduction .................................................................................................................................................................................. 4
Unpacking .................................................................................................................................................................................... 4
Accessories ................................................................................................................................................................................. 4
Getting Started ............................................................................................................................................................................ 4
Installing the Main Battery ................................................................................................................................................ 4
Charging the Battery ......................................................................................................................................................... 5

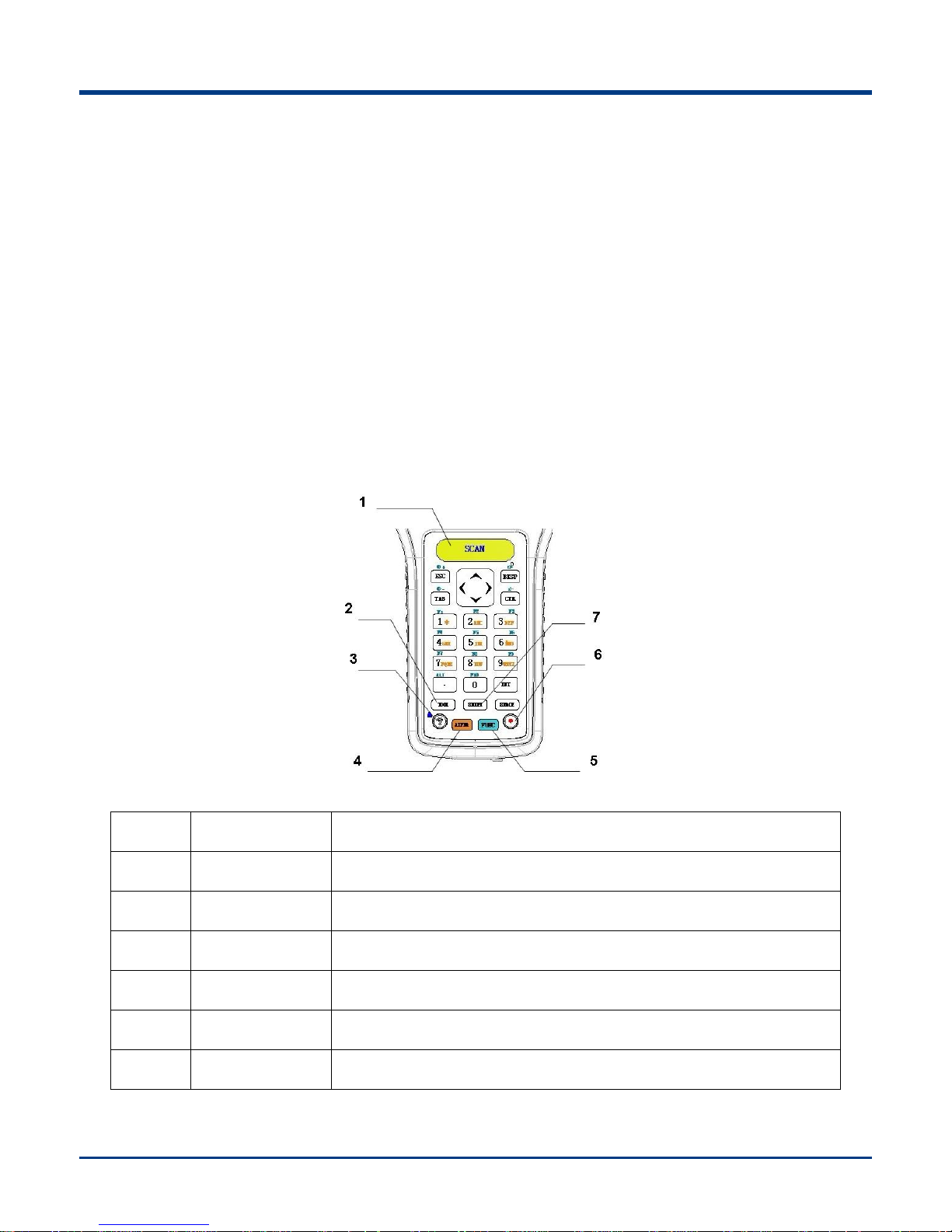

Keypads .............................................................................................................................................................................. 5
Power On, Suspend and Wake Up ................................................................................................................................. 6

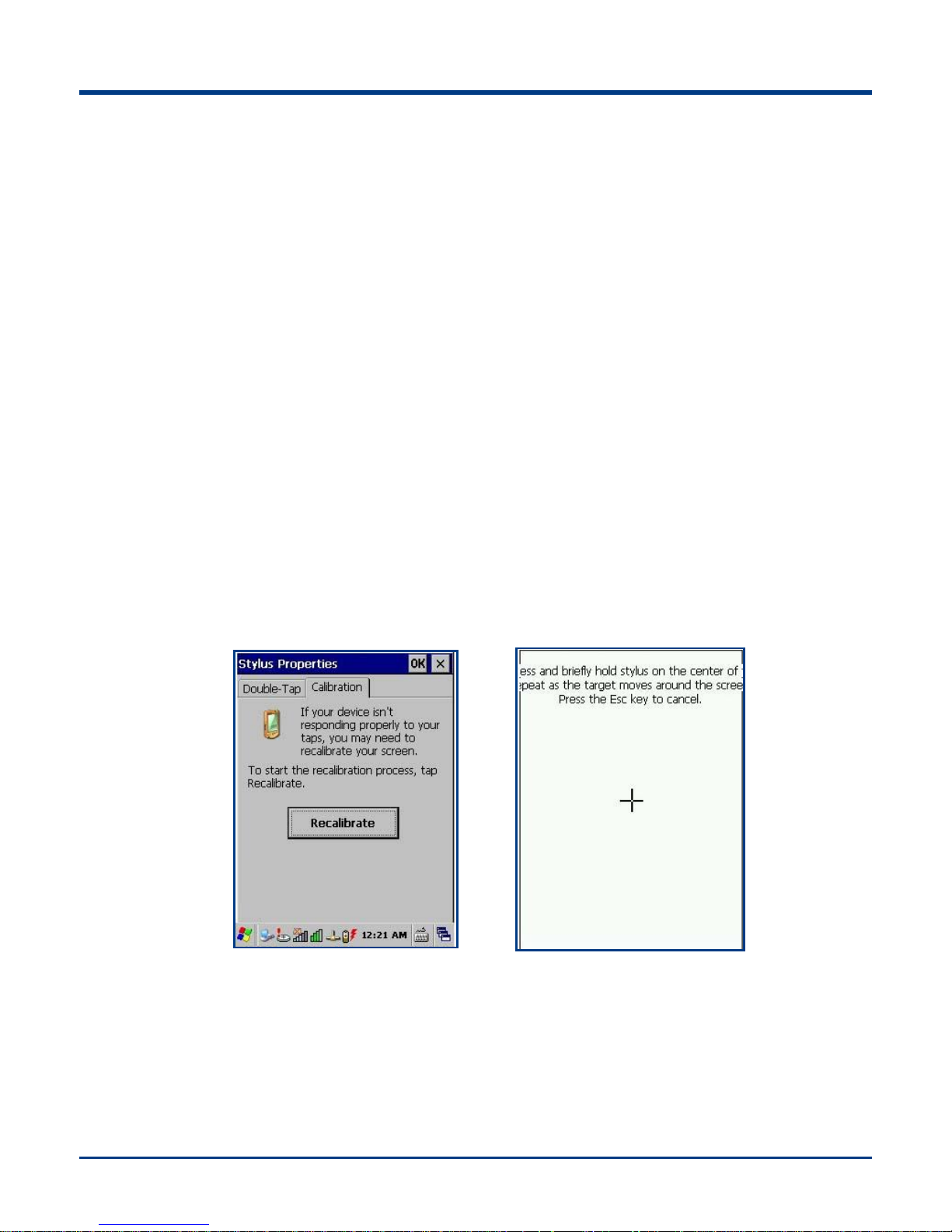

Calibrating the Screen ................................................................................................................................ ...................... 6

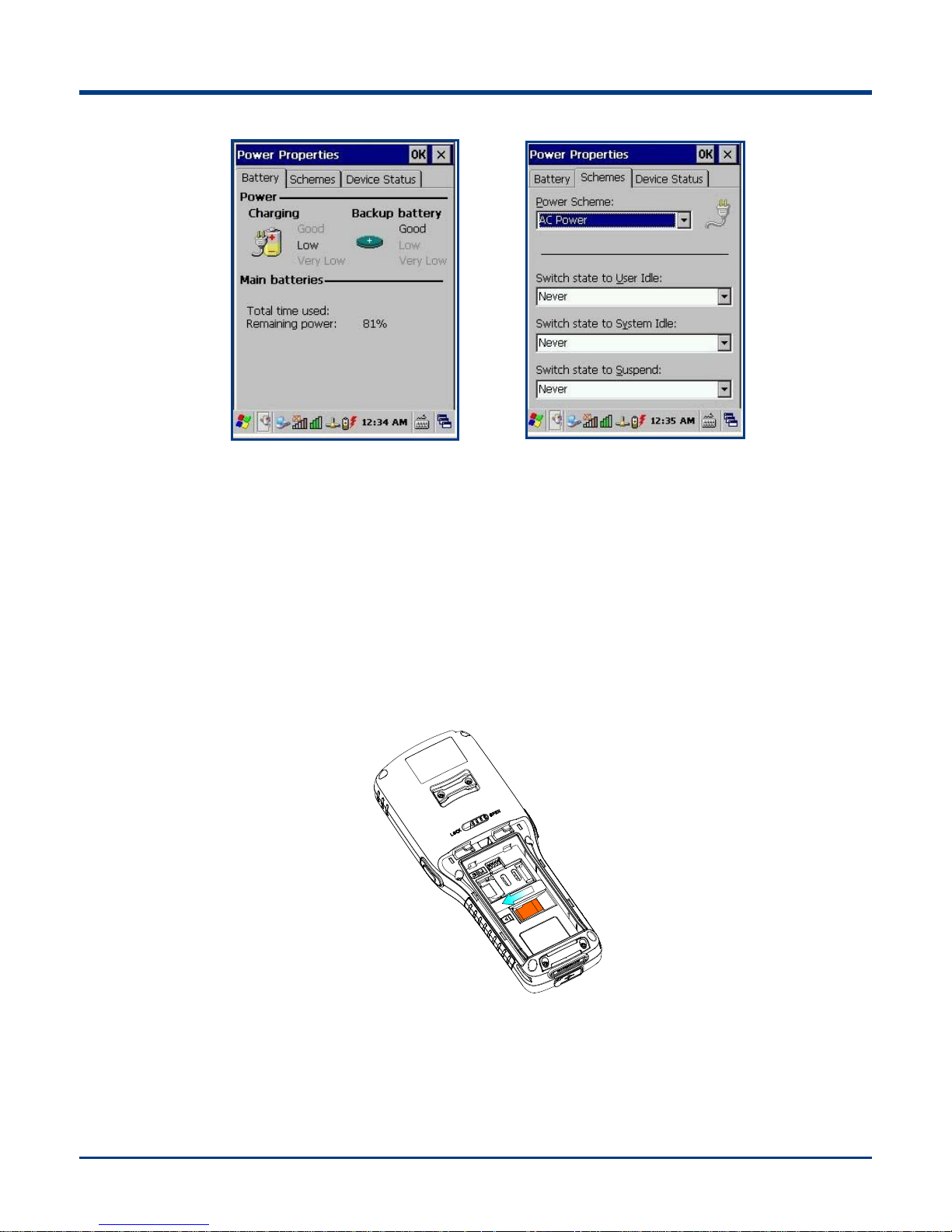

Checking Battery Statues ................................................................................................................................................. 6
Installing MicroSD Card .................................................................................................................................................... 7
Installing SIM Card ............................................................................................................................................................ 8
Adjusting the Hand Strip ............................................................................................................................................................ 8
Chapter 3 Using the PT-30 Series ................................................................................................................................................................. 9
Introduction .................................................................................................................................................................................. 9

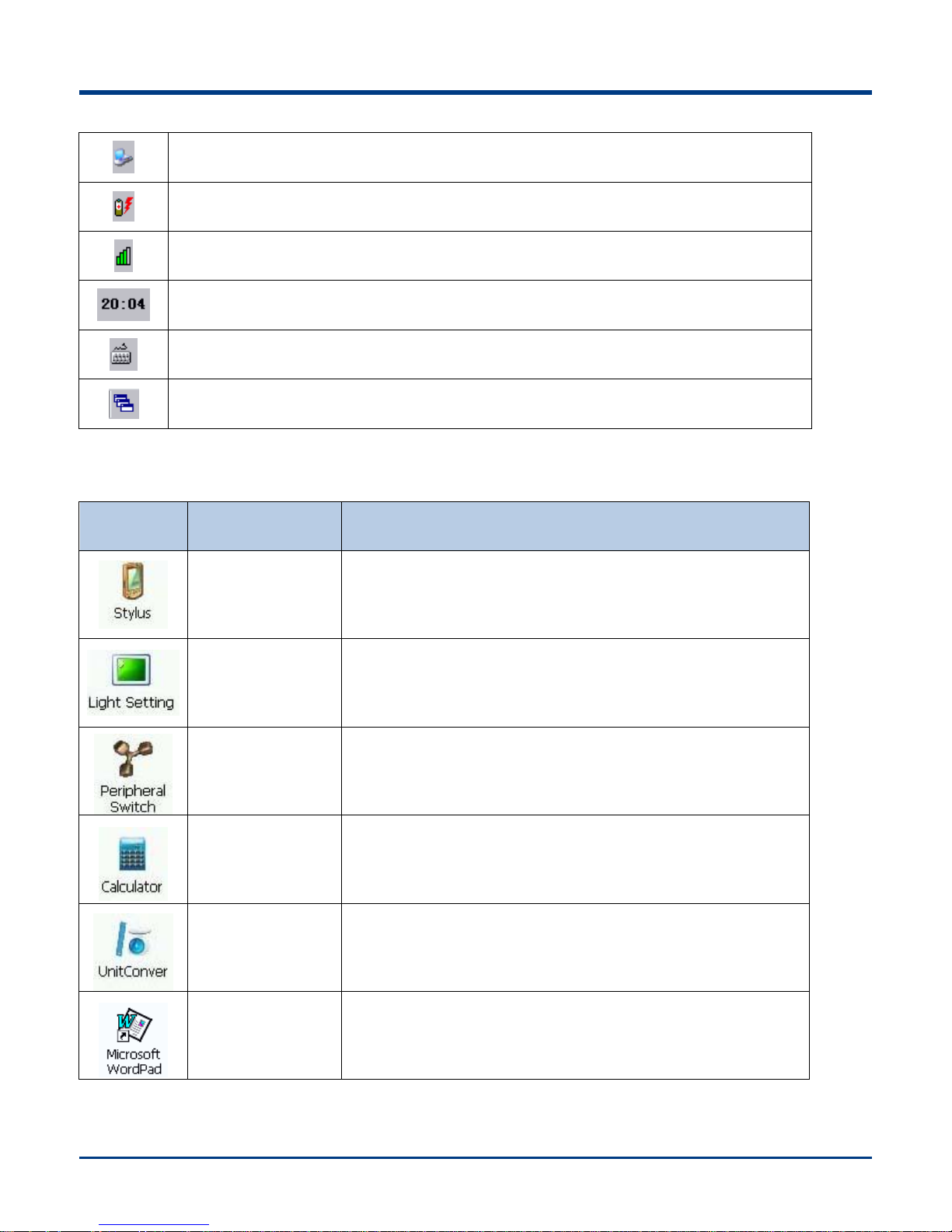

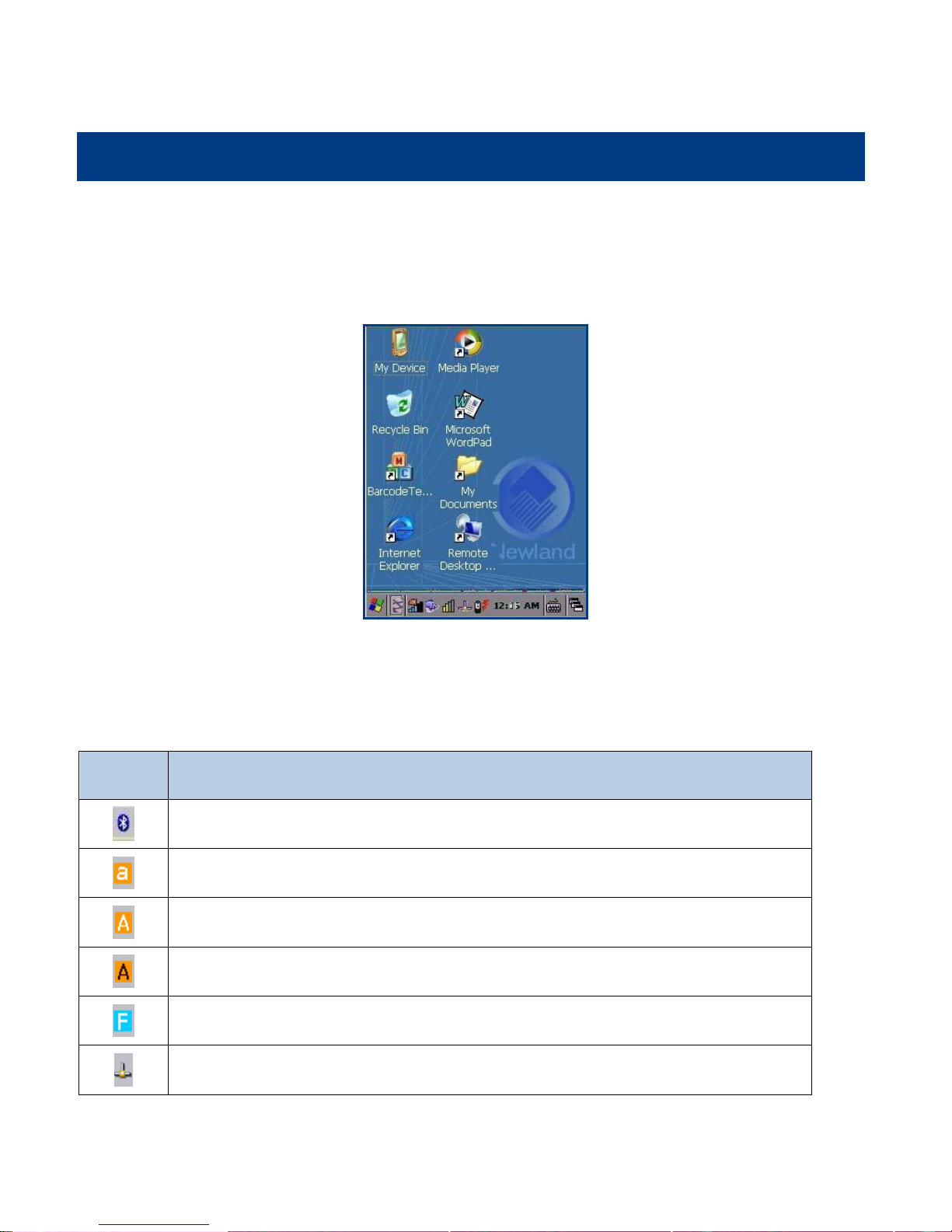

Status Icons ................................................................................................................................................................................. 9

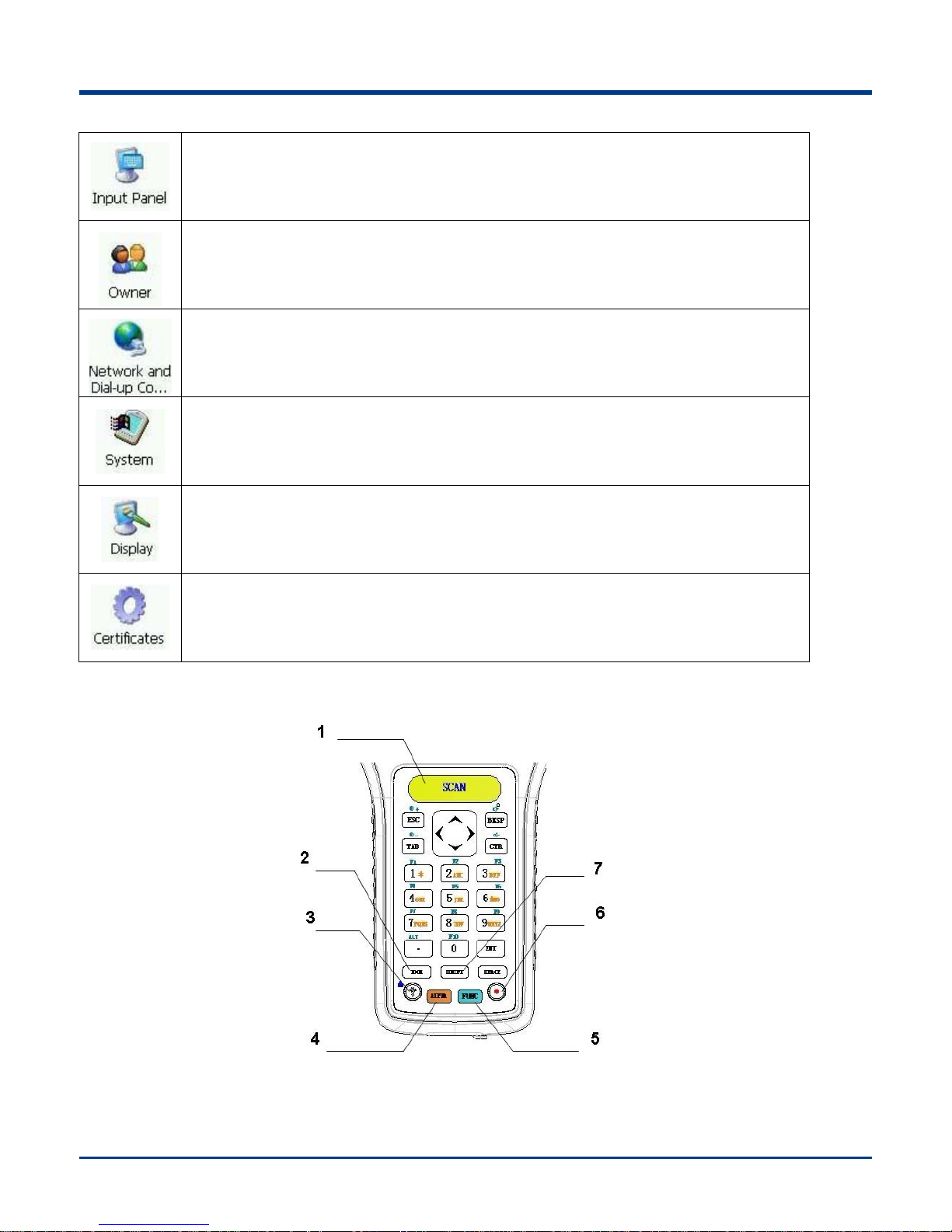

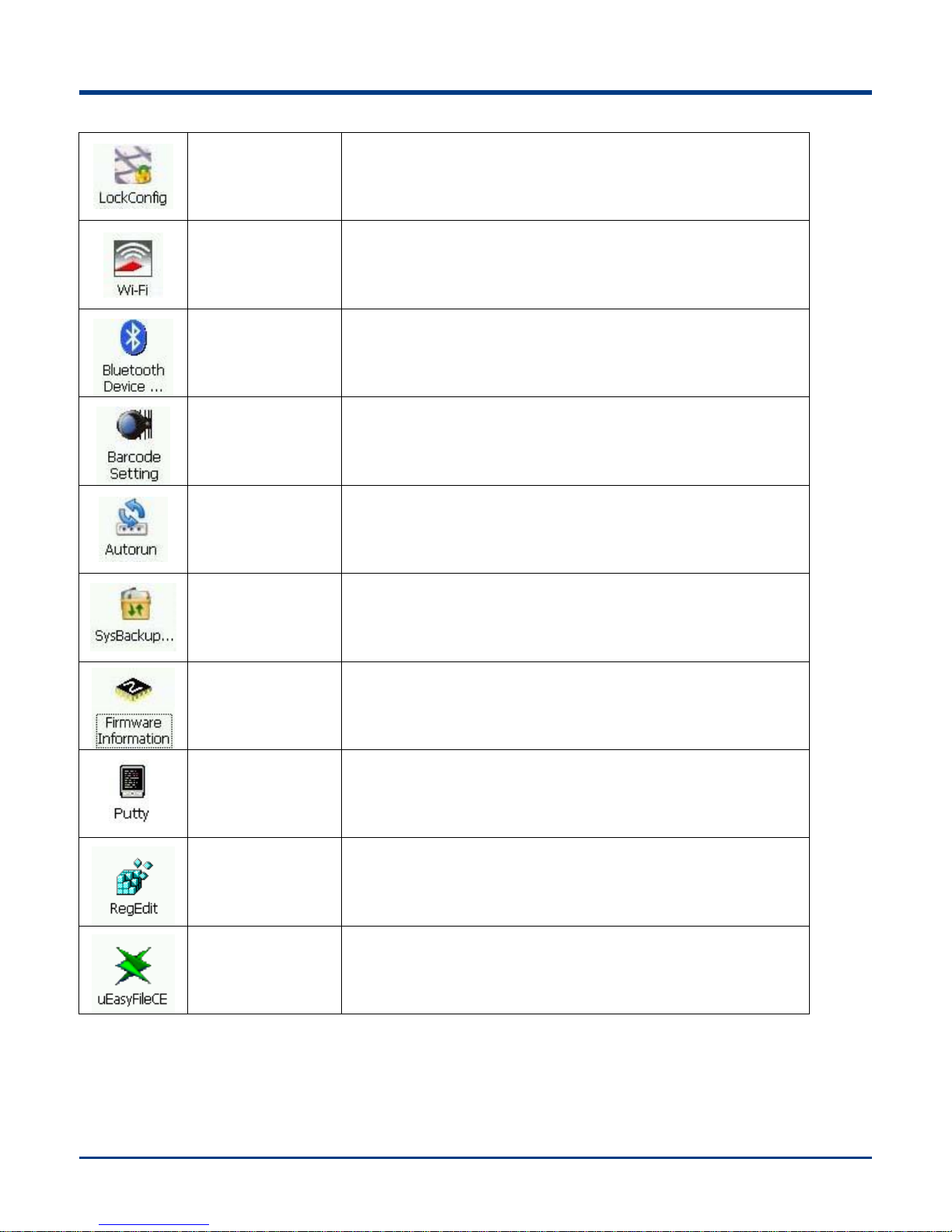

Programs Icon ........................................................................................................................................................................... 10
Setting Programs Icon ............................................................................................................................................................. 12
Keypads ................................................................................................................................................................ ..................... 13
Numeric Keypad input mode ......................................................................................................................................... 14
Function Keys Introduction ............................................................................................................................................ 14
Stylus .......................................................................................................................................................................................... 15
Adjust Volume ........................................................................................................................................................................... 15
Peripheral modules power control ................................................................................................ .......................................... 15

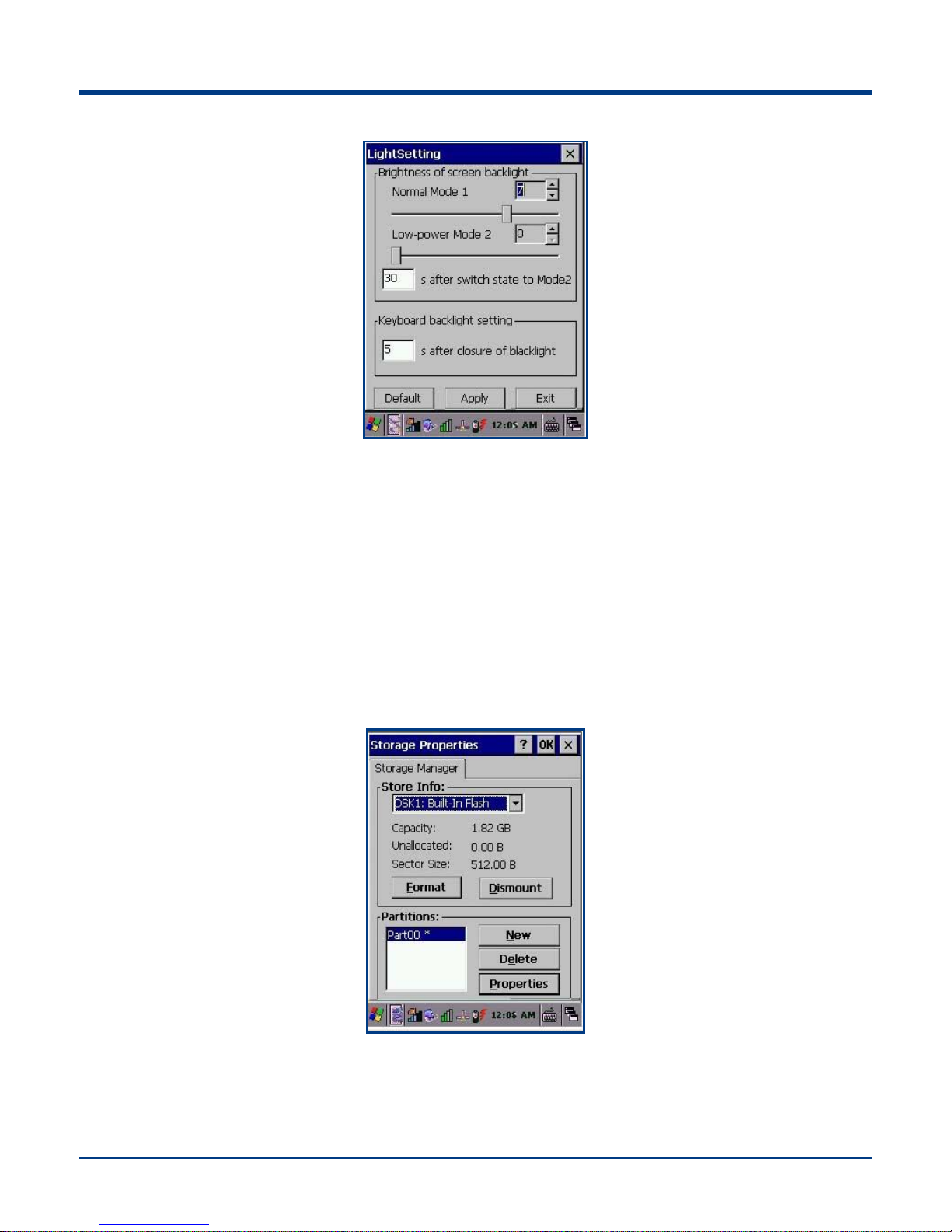

Change Backlight Settings ...................................................................................................................................................... 16
Memory storage management ................................................................................................................................................ 17
Resetting the PT30 ................................................................................................................................ ................................... 18
Warm reset: ...................................................................................................................................................................... 18
Cold reset: ........................................................................................................................................................................ 18
Page 4

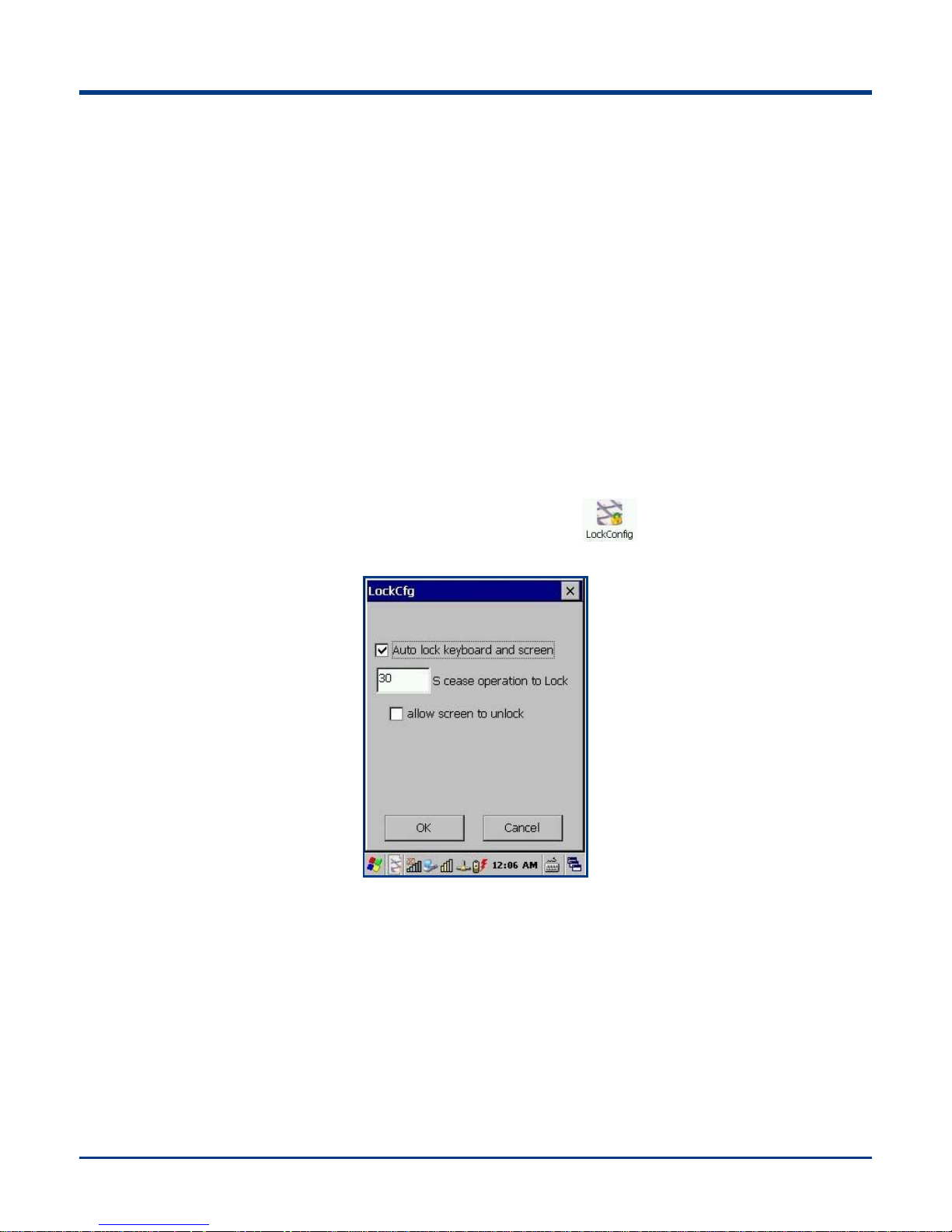

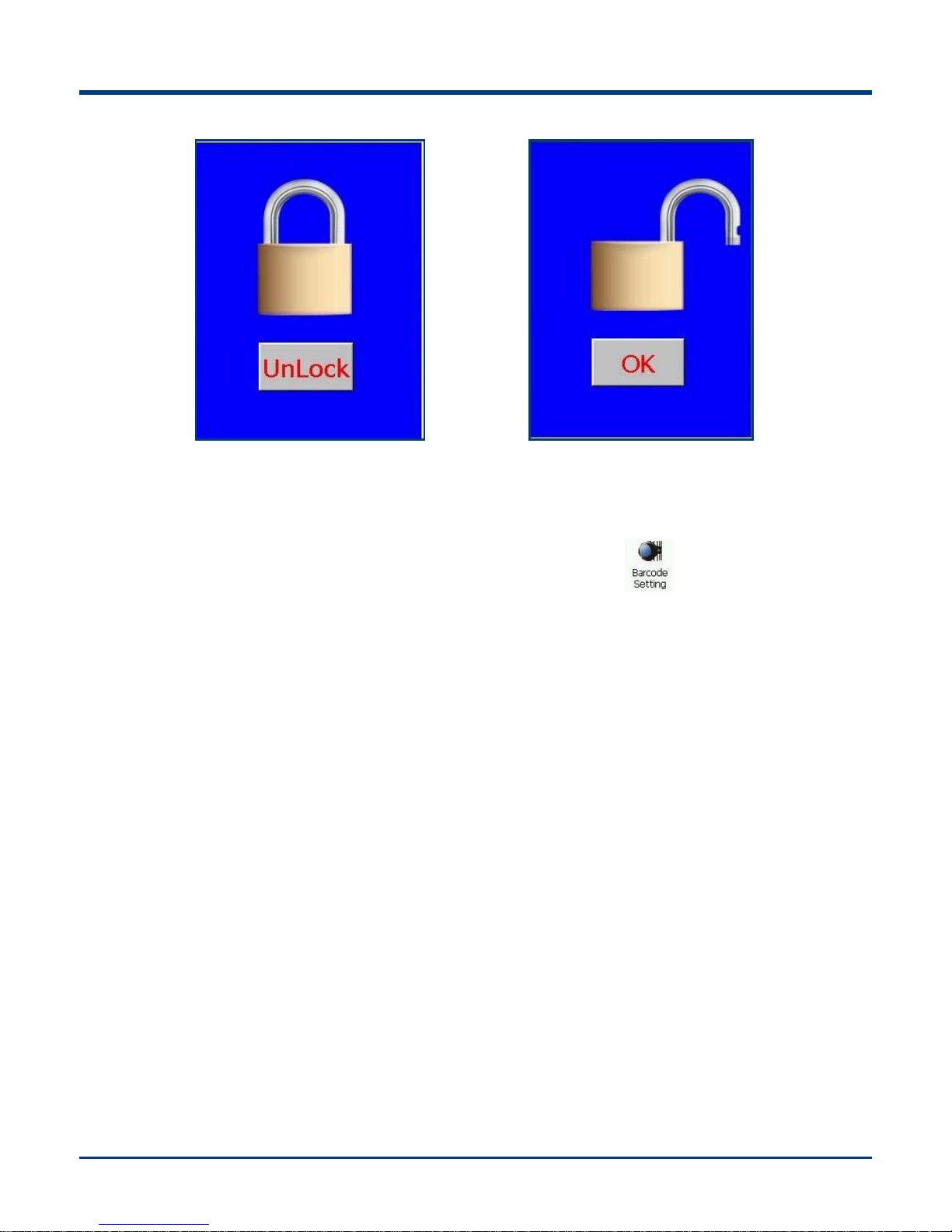

Locking the PT30 ...................................................................................................................................................................... 18

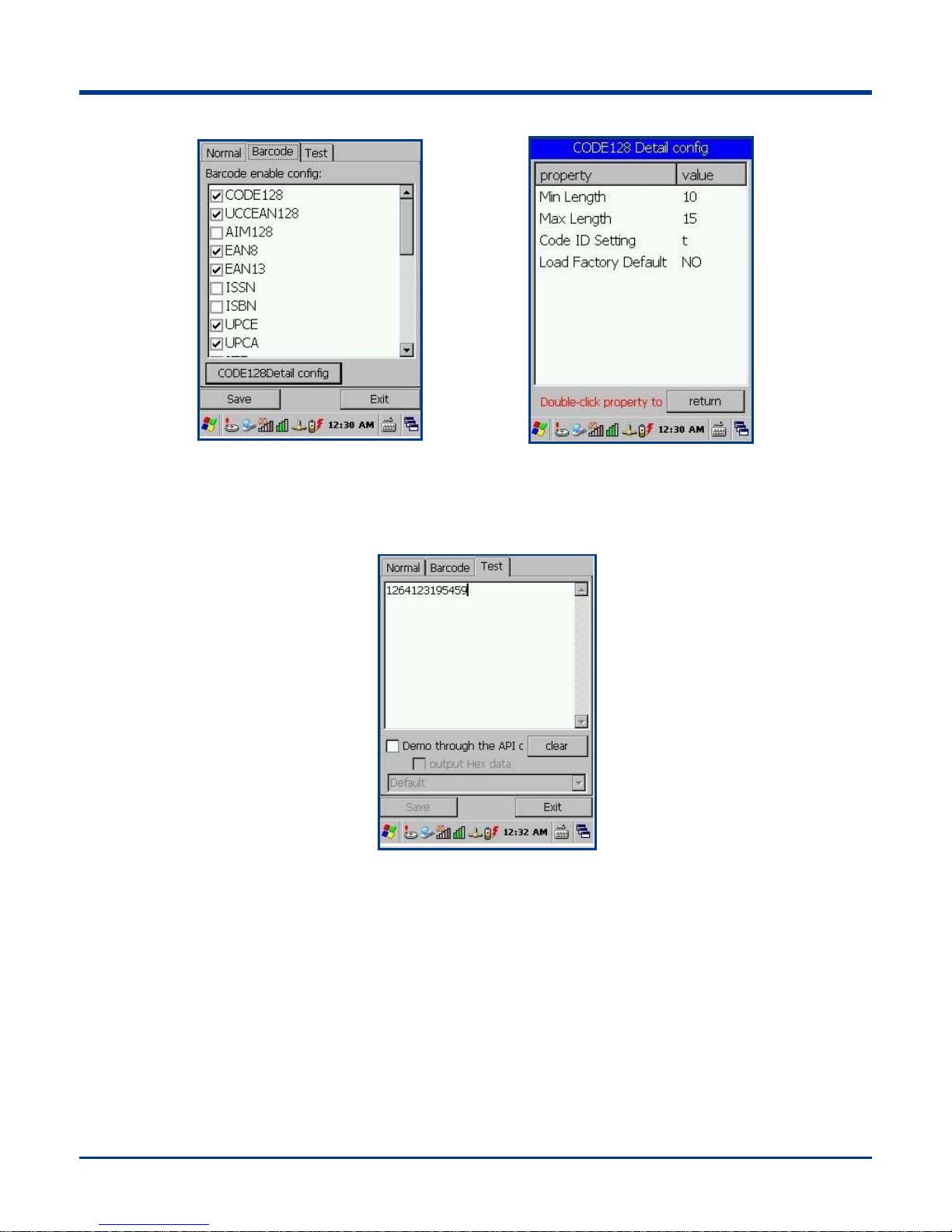

Barcode Settings ...................................................................................................................................................................... 19

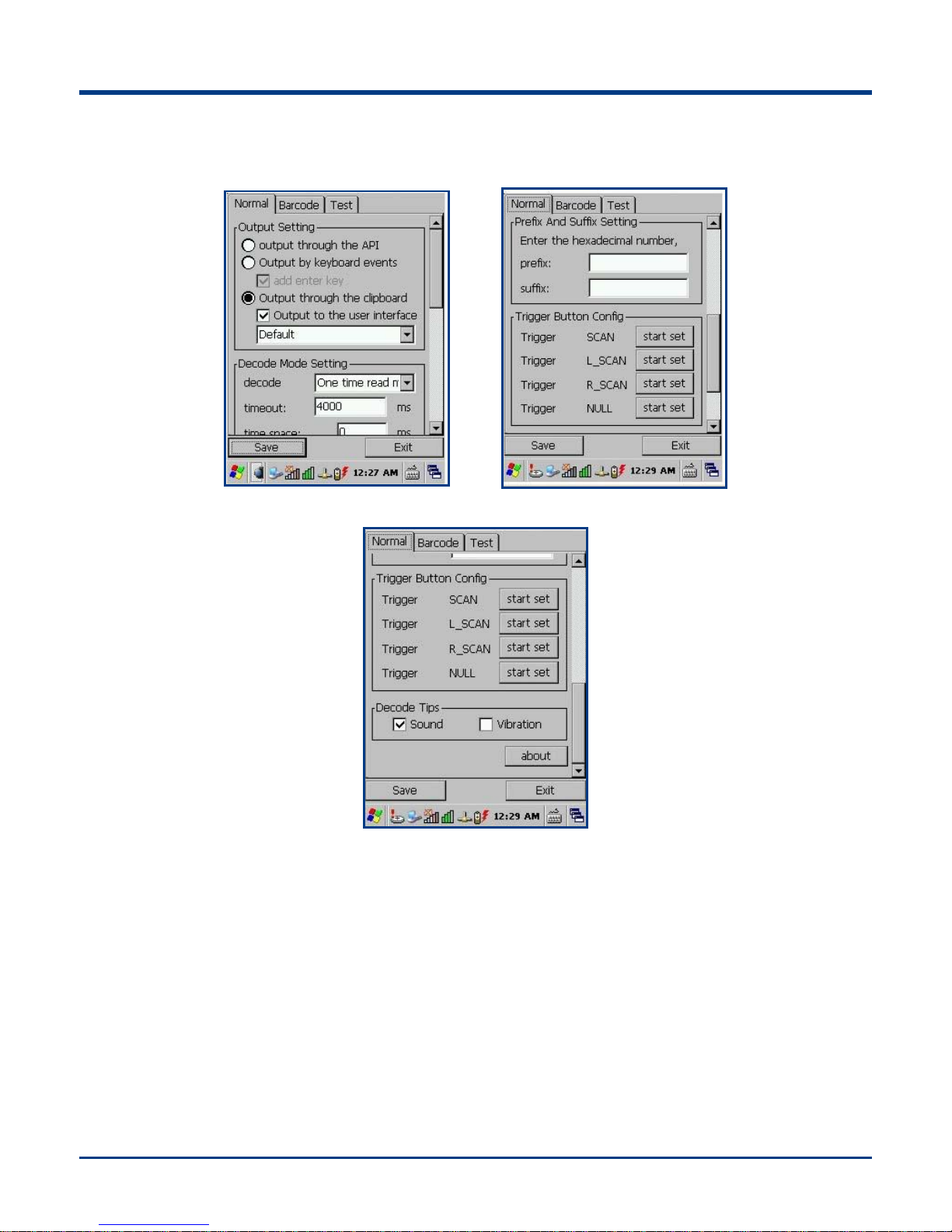

Barcode engine parameter configuration ..................................................................................................................... 19

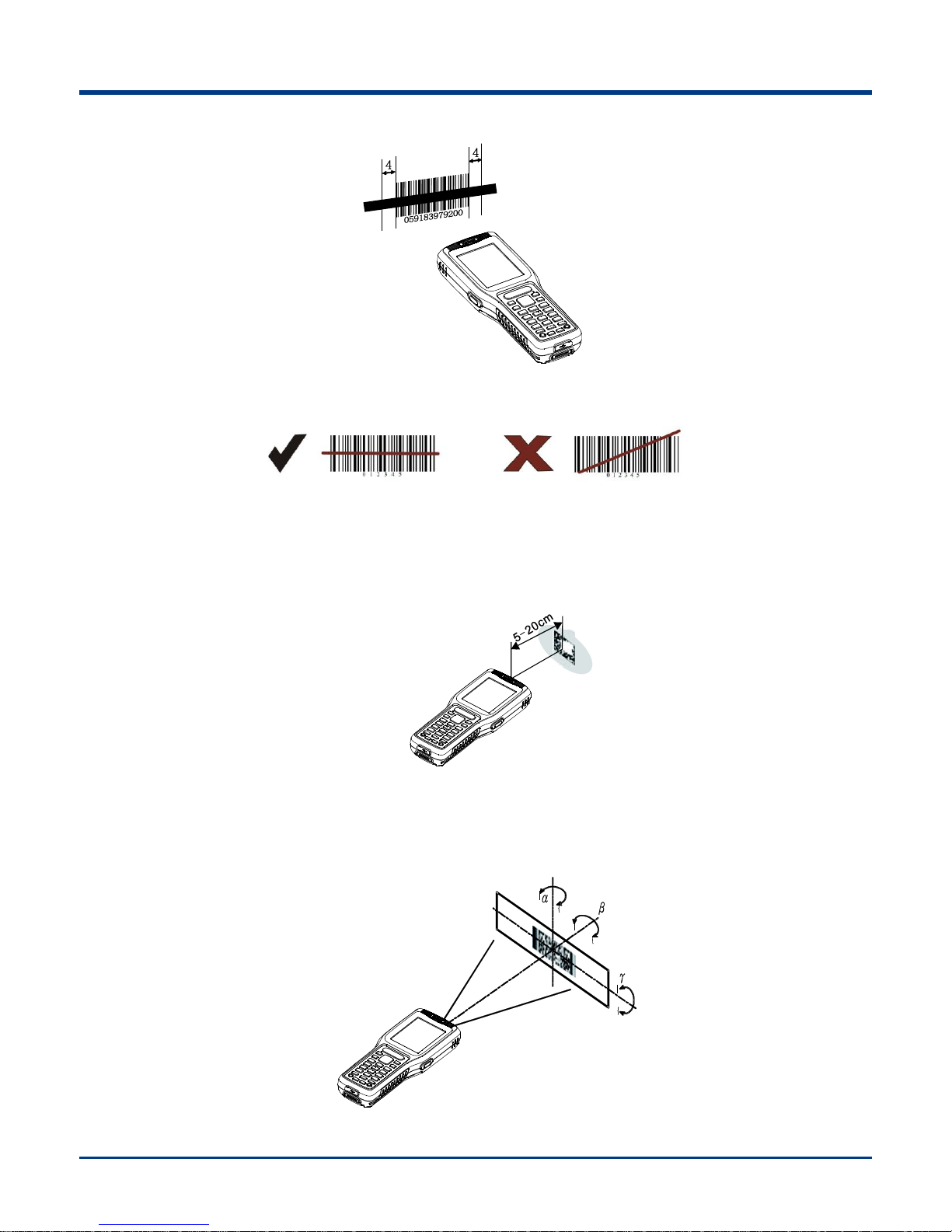

Reading 1D barcode ....................................................................................................................................................... 21
Reading 2D barcode ....................................................................................................................................................... 22

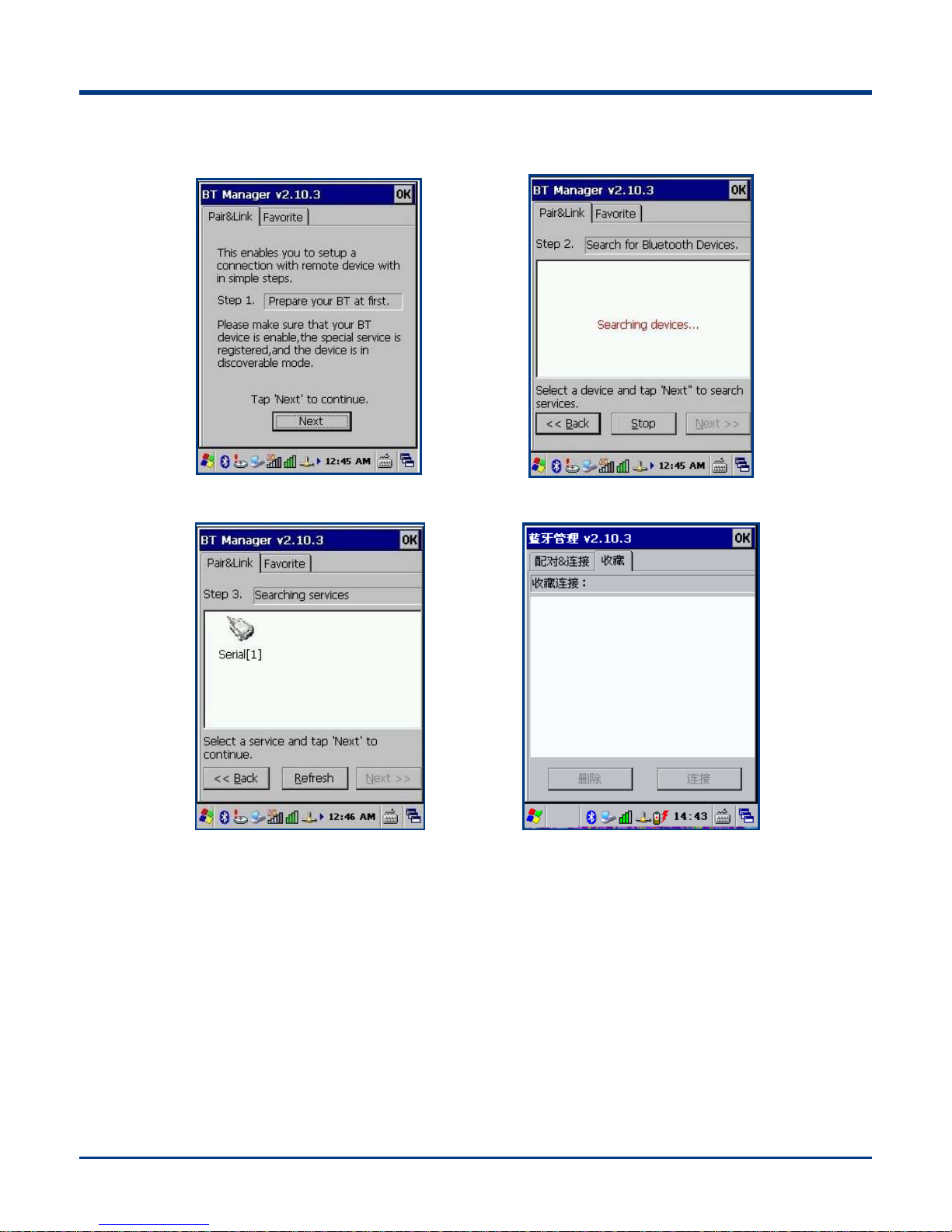

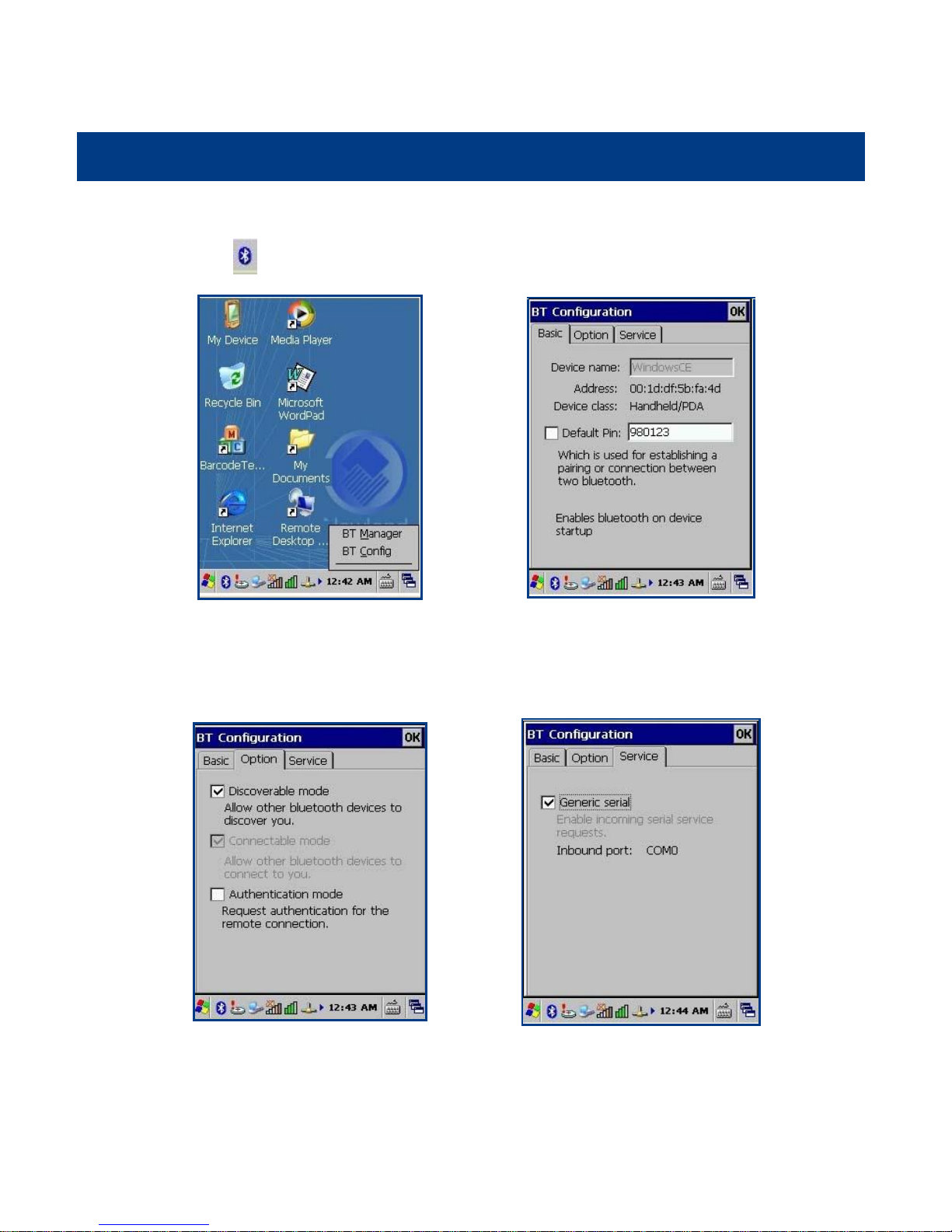

Chapter 4 Using Bluetooth Communication ............................................................................................................................................... 23

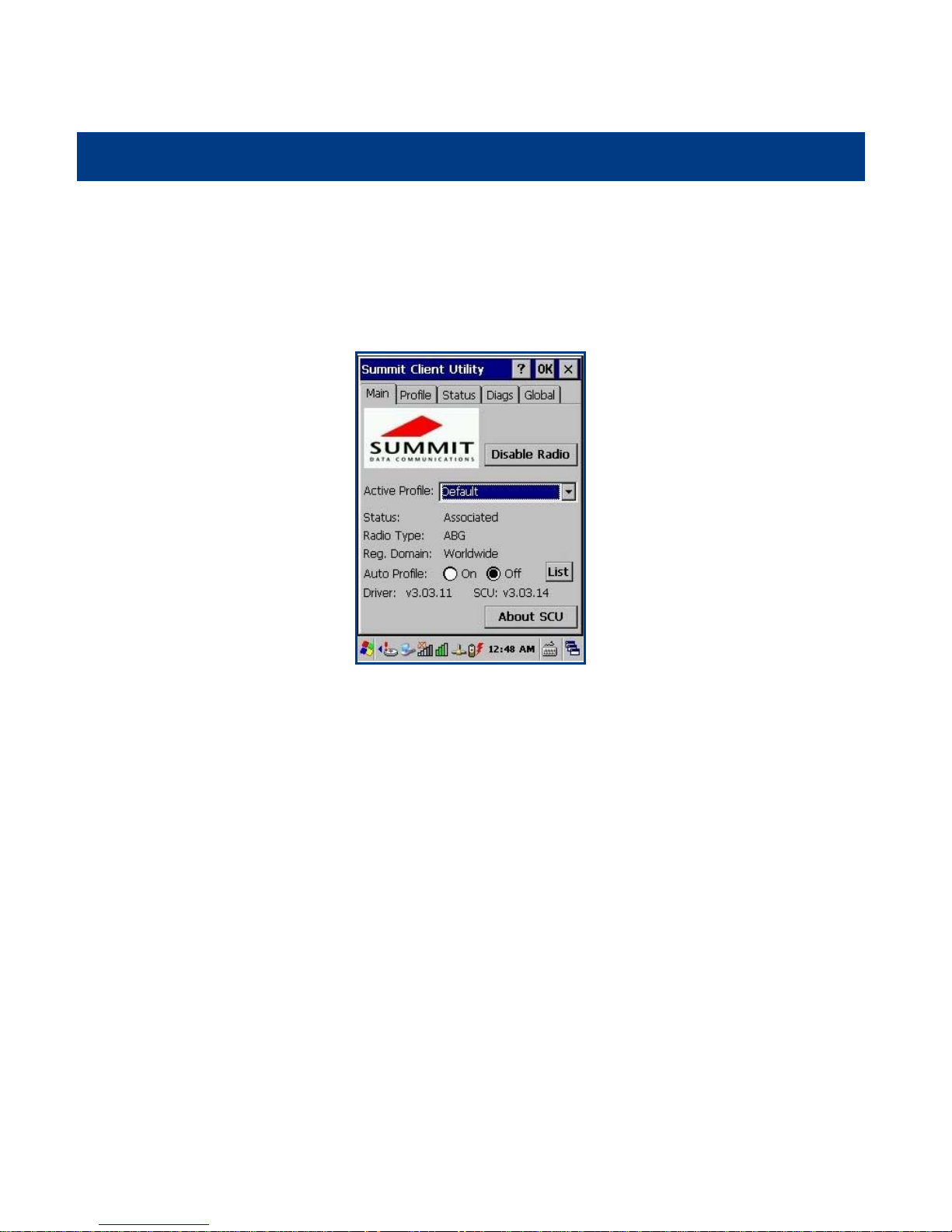

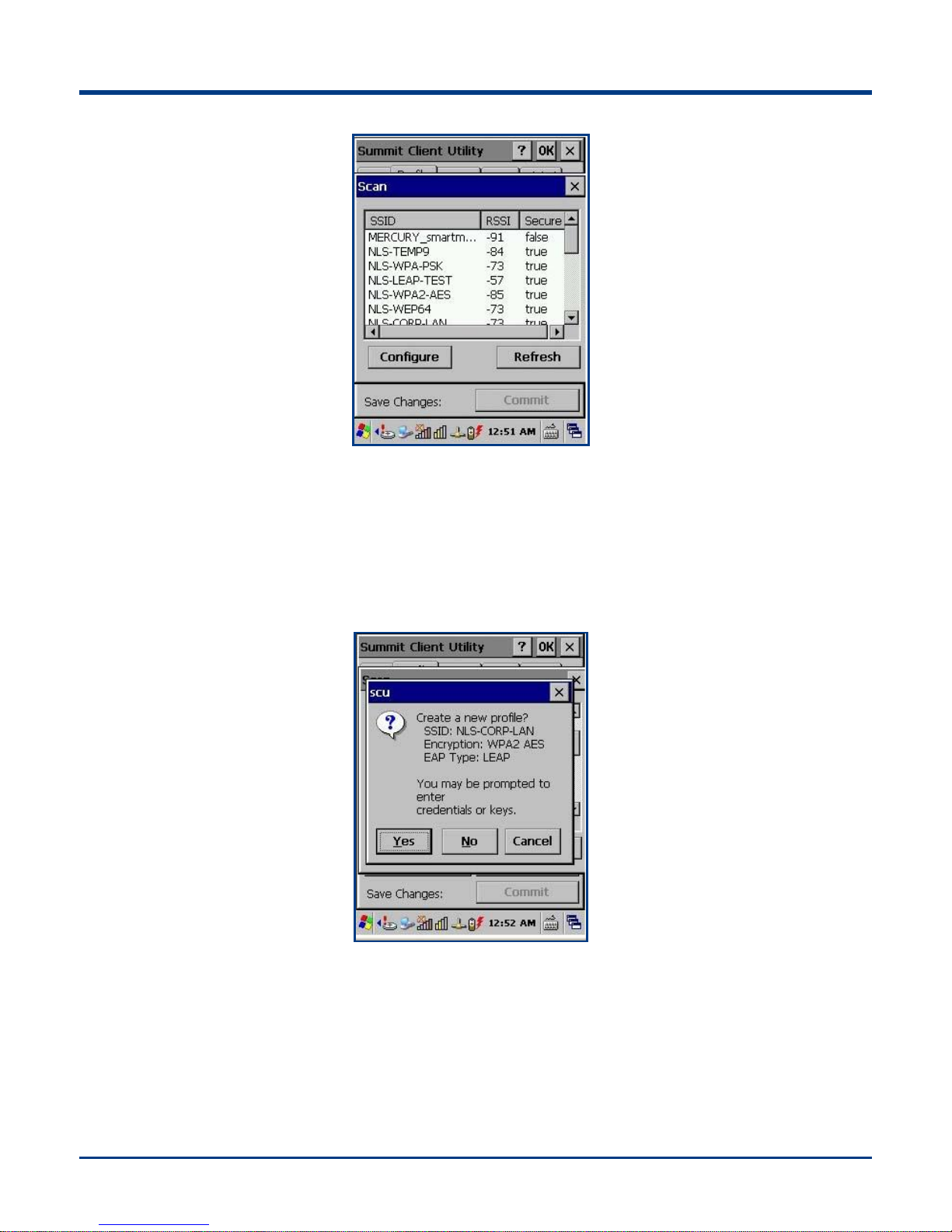

Chapter 5 Using WiFi Communication ........................................................................................................................................................ 25
Chapter 6 Using GPRS Communication ..................................................................................................................................................... 30

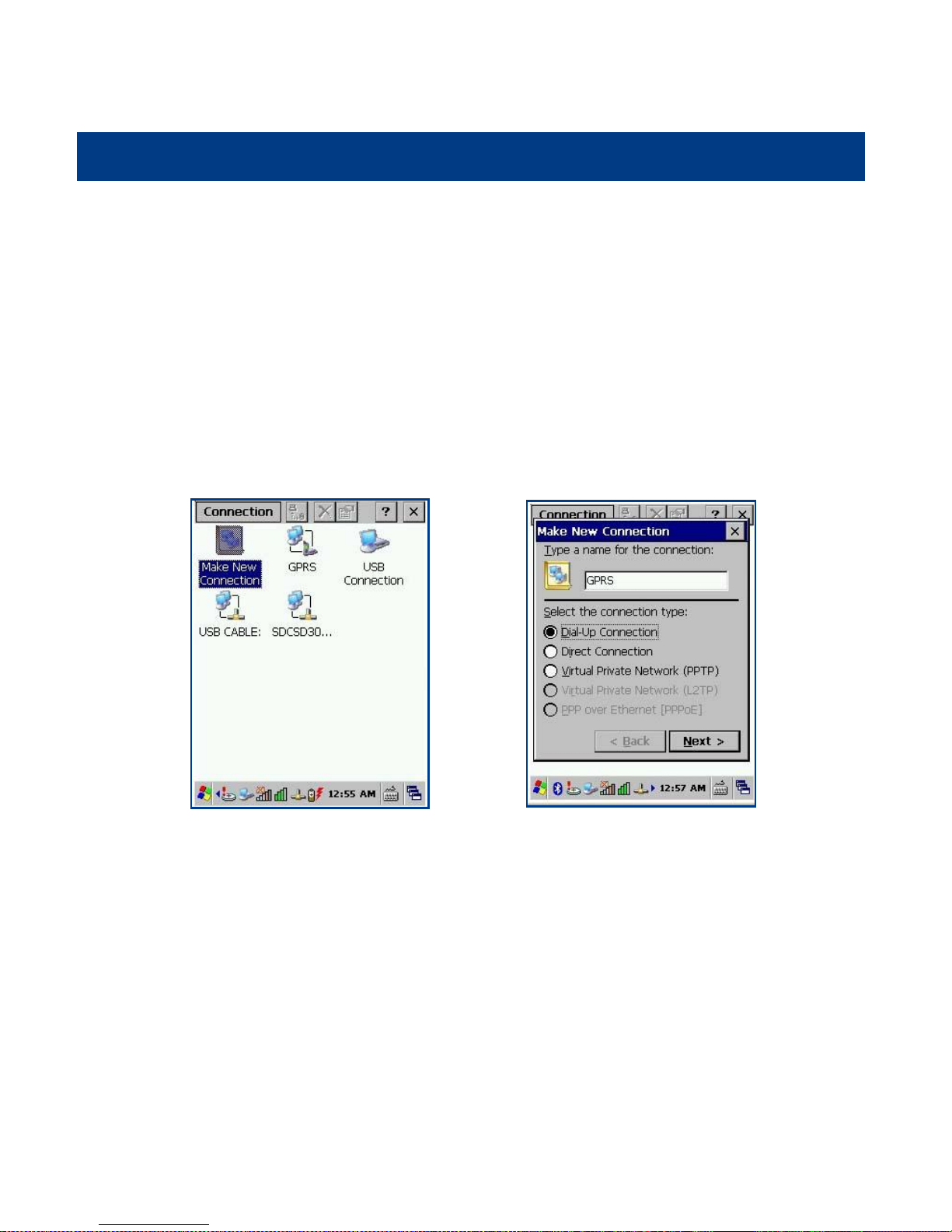

Make New Connection ............................................................................................................................................................. 30

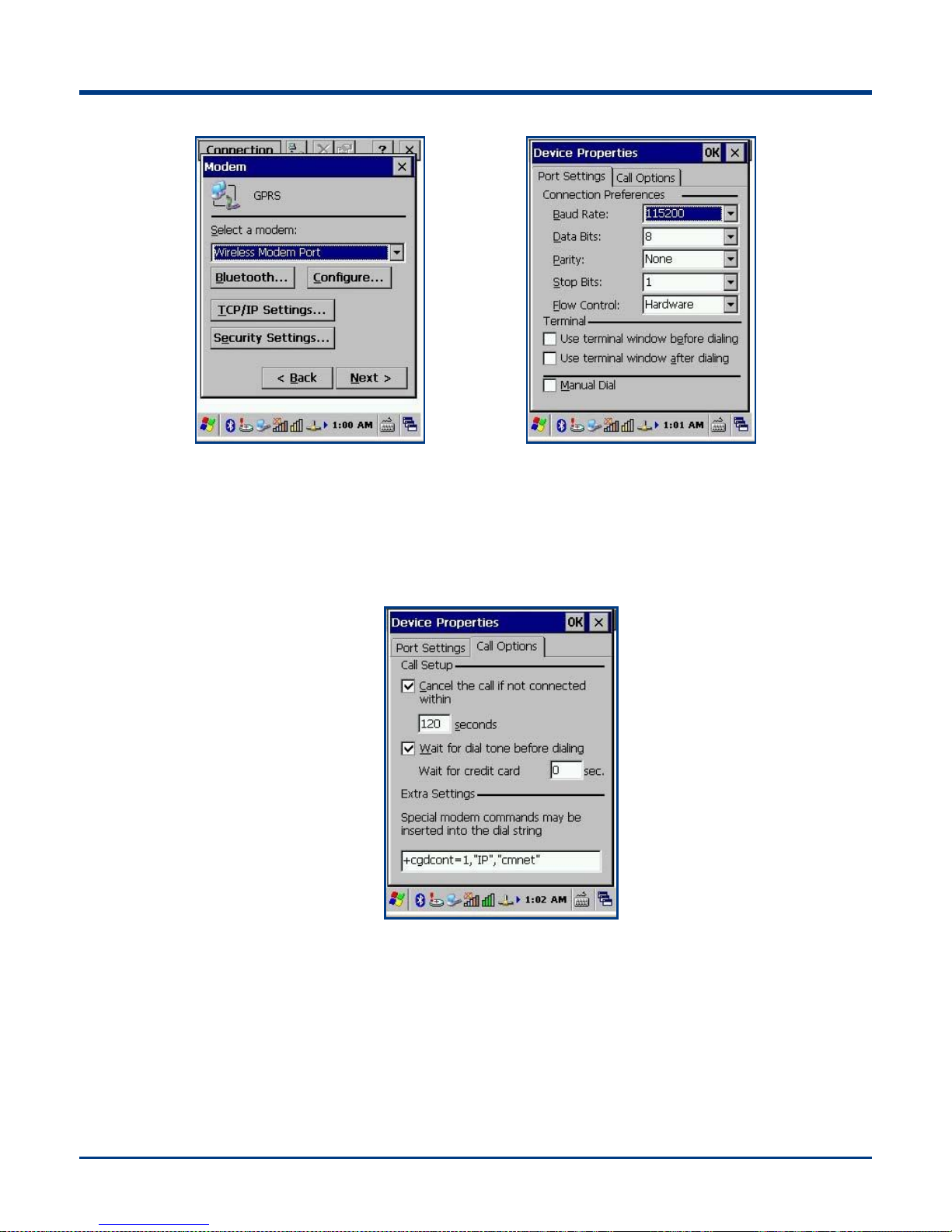

Setting Dial-Up Connection ..................................................................................................................................................... 32
Check GPRS Connection Status ............................................................................................................................................ 33

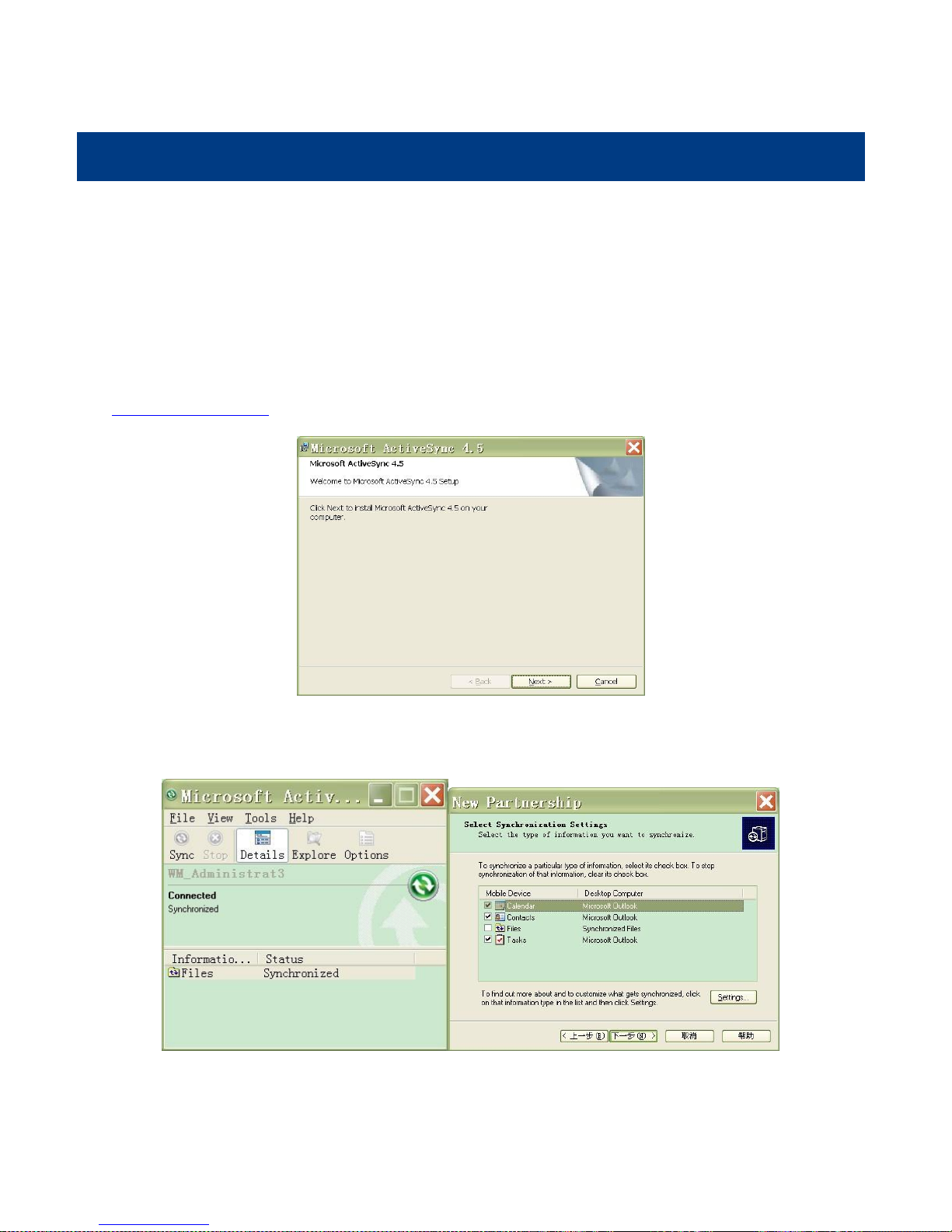

Chapter 7 Using ActiveSync ......................................................................................................................................................................... 34
Introduction ................................................................................................................................................................................ 34
Install .......................................................................................................................................................................................... 34
Synchronize Information .......................................................................................................................................................... 34
Chapter 8 Accessories ................................................................................................................................................................................... 35
Battery ........................................................................................................................................................................................ 35

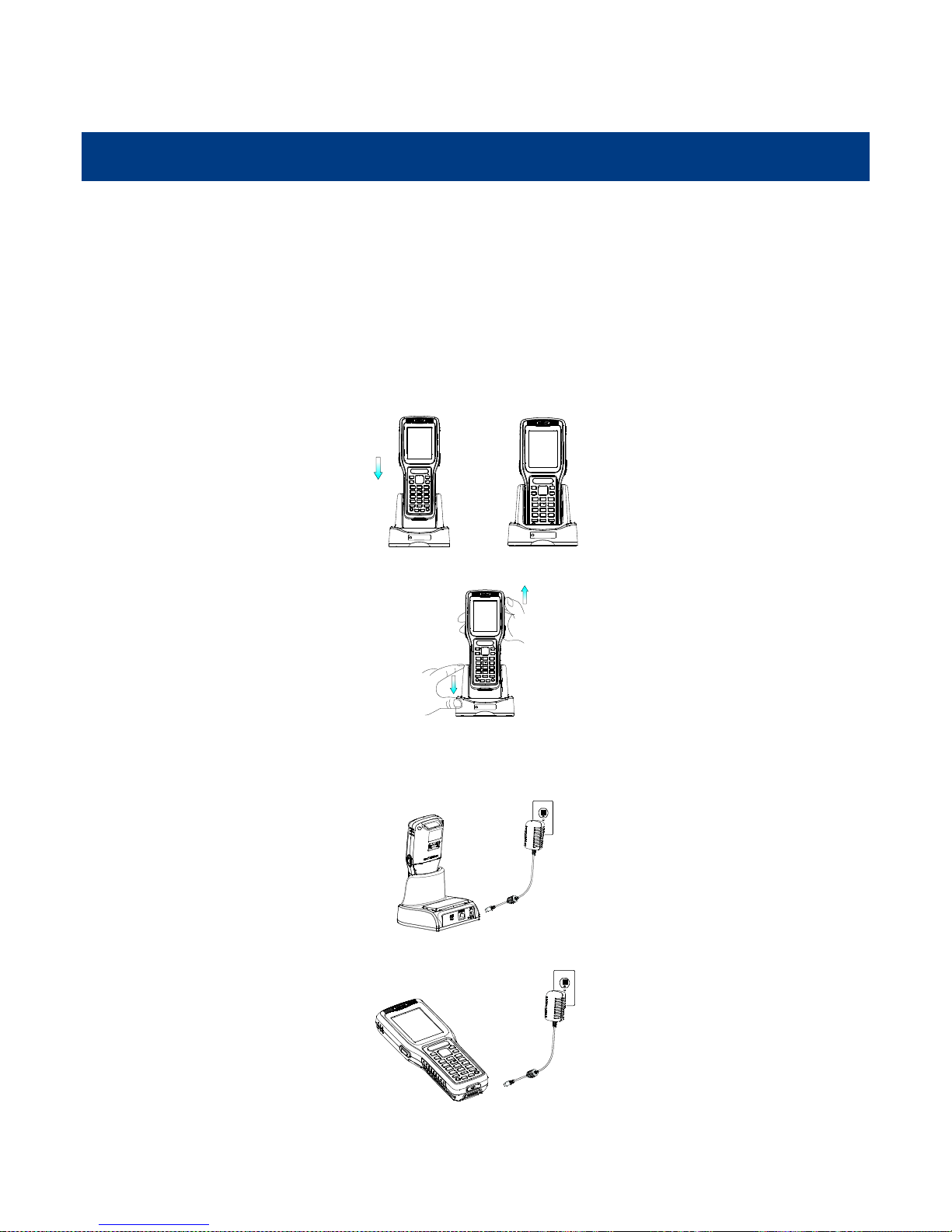

Cradle ......................................................................................................................................................................................... 35
Put PT30 into cradle ....................................................................................................................................................... 35
Pick up PT30 from cradle ............................................................................................................................................... 35
Charging .................................................................................................................................................................................... 35
Use cradle charging ........................................................................................................................................................ 35
Use AC adaptor charging ............................................................................................................................................... 35
LED charging indicator ............................................................................................................................................................ 36
LED indicator for Scanning/Decoding/Communication ....................................................................................................... 36

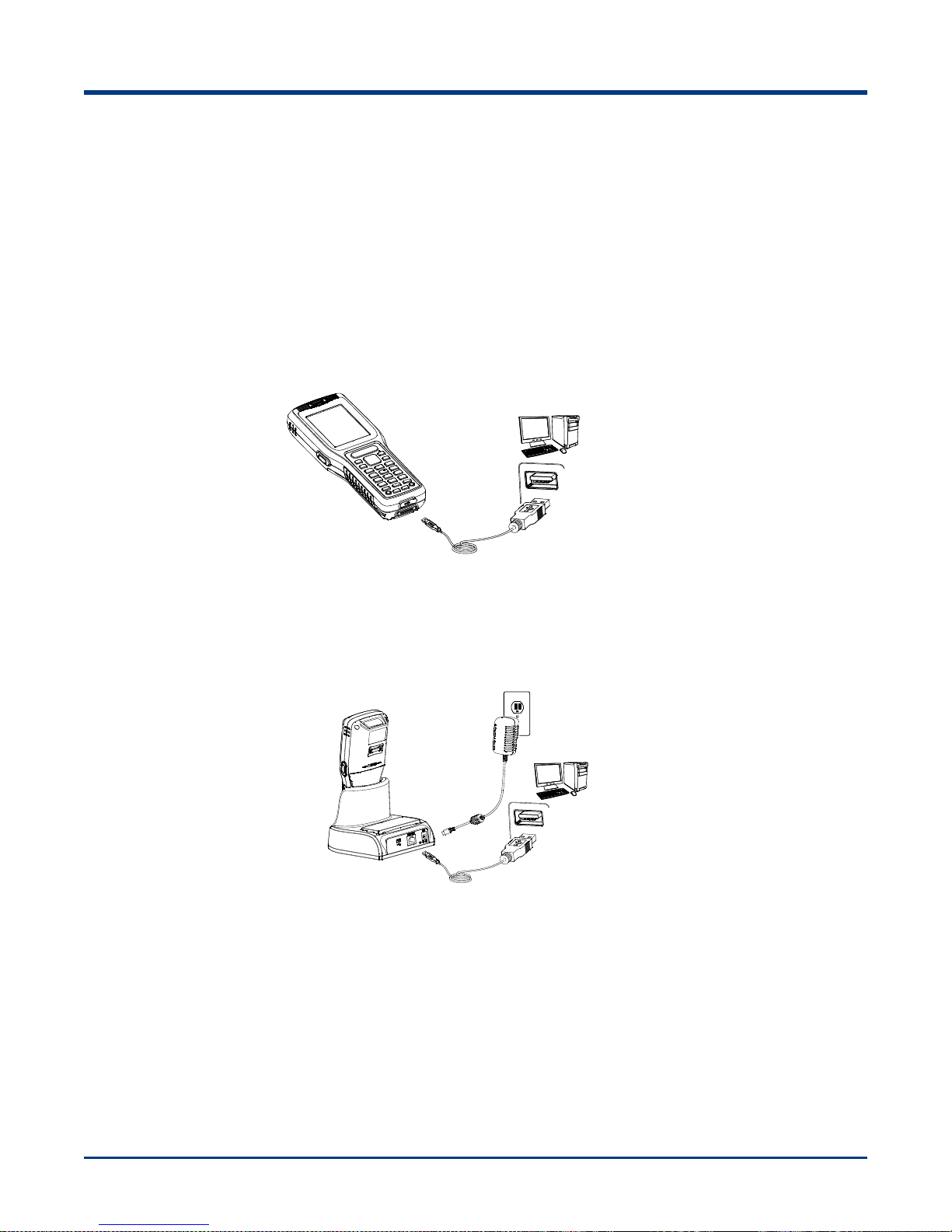

Connect Host PC via USB cable ............................................................................................................................................ 36
Connect Host PC via Cradle ................................................................................................................................ ................... 36
Chapter 9 Maintenance& Troubleshooting ................................................................................................................................................. 37
Introduction ................................................................................................................................................................................ 37
Considerations on using PT30................................................................................................................................................ 37
Disassembly and modification ....................................................................................................................................... 37
Connect power source .................................................................................................................................................... 37
Abnormal situation .......................................................................................................................................................... 37
Drop Damage................................................................................................................................................................... 37
LCD Display ..................................................................................................................................................................... 37
Stacking heavy objects ................................................................................................................................................... 37
Placed location ................................................................................................................................................................ 37
Use occasion ................................................................................................................................................................... 37
Caution ............................................................................................................................................................................. 38
Battery safety guidelines ................................................................................................................................................ 38
Page 5
Troubleshooting ........................................................................................................................................................................ 39
Page 6
Page 7
1
Chapter 1 About This Guide
Introduction
This guide provides information about using the NLS-PT30 series mobile computer and accessories.
Documentation Set
The documentation set for the NLS-PT30 provides information for specific user needs and includes:
NLS-PT30 Series Quick Start Guide ：Describes how to get the NLS-PT30 Series up and running.
NLS-PT30 Series User Guide ：This is the manual, Describes how to use the NLS-PT30 Series.
API Software Development Manual ：Describes how to use API for application development.
WinCE Software Utilities User Guide ：Describes how to use Newland's WinCE utilities software.
Specification
Performance
Processor
Marvell XScale PXA310, 806MHz CPU
Operation System
Microsoft Windows CE.NET 6.0
Memory
256MB RAM
128MB ROM for system area
2GB flash memory for user storage
Interface
RS232, USB 2.0, support USB charge
Physical
Dimensions (L x W x H)
189.5 x 76 x 45 mm (7.5 x 3 x 1.7 inch)
Weight
382g (Including battery)
Display
2.83” QVGA with backlight TFT Touch screen LCD, support sunlight readable
Keyboard
30 Keys Numeric with backlight
Notification
Vibrator, Speaker and LED
Battery
Main
3.7V, 3000mAh Rechargeable Li-Polymer battery
Backup
3.7V, 150mAh Rechargeable Li-Polymer battery (support 50hours data backup)
Expansion
MicroSD memory slot
Power Adaptor
Output: DC 5V, ≥ 1.5A; Input: AC 100~240V, 50~60Hz
Environmental
Operation Temperature
-10℃ to 50℃ (14℉ to 122℉)
Storage Temperature
-20℃ to 60℃ ( -4℉ to 140℉)
Humidity
5% ~ 95% (non-condensing)
Static Discharge
±15 kV (Air discharge), ±8 kV (Direct discharge)
Drop
1.2 m drop to concrete
Page 8
2
Environmental Sealing
IP54 sealing
Barcode / RFID
1D Barcode
Laser (≥ 4 mil)
Code128, EAN-13, EAN-8, Code-39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5,
ISBN/ISSN, Code 93, etc.
CCD (≥ 4 mil)
2D Barcode
CMOS (≥ 5 mil)
ALL 1D and PDF-417, QR Code, Data Matrix, Maxicode, Aztec, etc.
RFID
HF 13.56MHz, UHF 2.4GHz
Wireless
WLAN
Summit IEEE 802.11 b/g, security support EAP, WEP, WPA, WPA2, 802.1X
WWAN
2G
GSM/GPRS (850, 900, 1800, 1900 MHz)
WCDMA (850, 900, 1800, 1900, 2100 MHz) or (900, 1800, 1900, 2100 MHz)
3G
WPAN
Bluetooth Class II V2.0
Certificates
FCC Part15 Class B, CE EMC Class B, CCC
Software Version
Firmware information query tool can detect and display terminal software and hardware version information and helpful
future updates or maintenance.
The firmware information query tool can detect the information:
A. To determine the operation system version.
B. To determine the firmware version.
C. To determine the system configuration, production date and other information.
D. To determine the version of WIFI module, and WIFI and Bluetooth MAC addresses.
E. To determine the type and version of barcode engine.

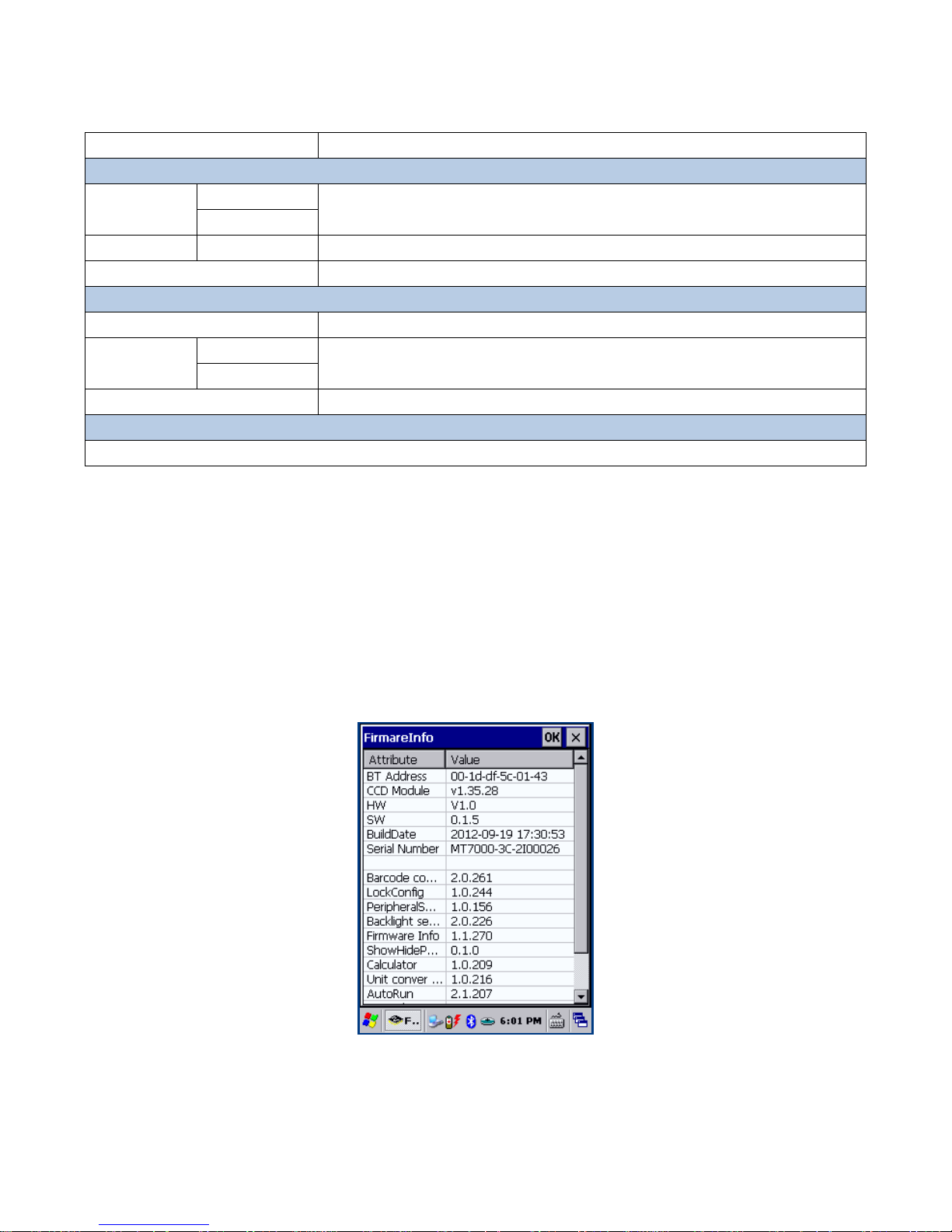

Tap “Start”→“Settings”→“Control Panel”→double clicks “Firmware Information”.
Figure 1.1: Firmware Information
Page 9
3
Chapter Descriptions
Chapter 1, About This Guide : general description of this manual.
Chapter 2, Getting Started : provides information on getting the PT30 Series up and running for the
first time.
Chapter 3, Using the PT30 Series : provides basic instructions for using the PT-30 Series,
Chapter 4, Using Bluetooth : explains how to use Bluetooth functionality.
Chapter 5, Using WiFi Communication : explainshow to use WiFi functionality.
Chapter 6, Using GPRS Communication : explainshow to use WiFi functionality.
Chapter 7, Using ActiveSync : synchronizes information on the mobile computer with information on
the host computer
Chapter 8, Accessories : describes the available accessories and how to use them with the
PT-30 Series.
Chapter 9, Maintenance & Troubleshooting : provides troubleshooting solutions for potential problems during PT-30
Series operation.
More Information
For more product and support information, please visit our web site: http://www.nlscan.com。
Service Information
Newland China
Phone
+86-400-608-0591
Email
Newland Europe
Phone
+31(0)-345-870-033
Email
Newland Taiwan
Phone
+886-2-7731-5388
Email
Newland North America
Phone
+1-510-490-3888
Email
Page 10
4
Chapter 2 Getting Started
Introduction
This chapter lists the parts and accessories for the PT-30 Series and explains how to install and charge the batteries, and
power on the PT-30 Series for the first time.
Unpacking
Carefully remove all protective material from the pack.
Verify that you received the following:
PT30 Mobile Computer
USB cable
AC adaptor
Li-Polymer battery
Tethered stylus
Hand strap
Quick Start Guide
Accessories
PT30 single slot cradle
PT30 cradle AC adaptor
USB cable
Getting Started

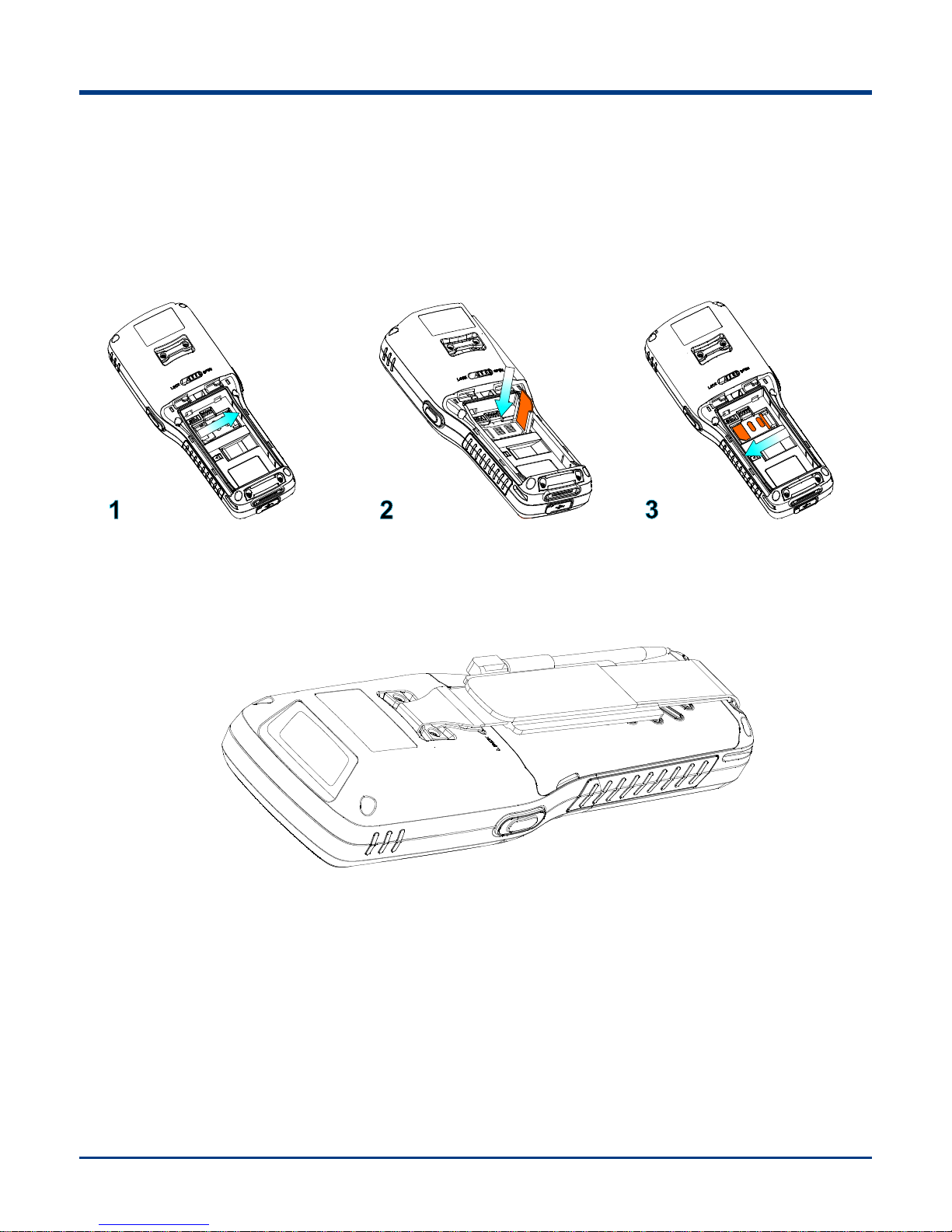

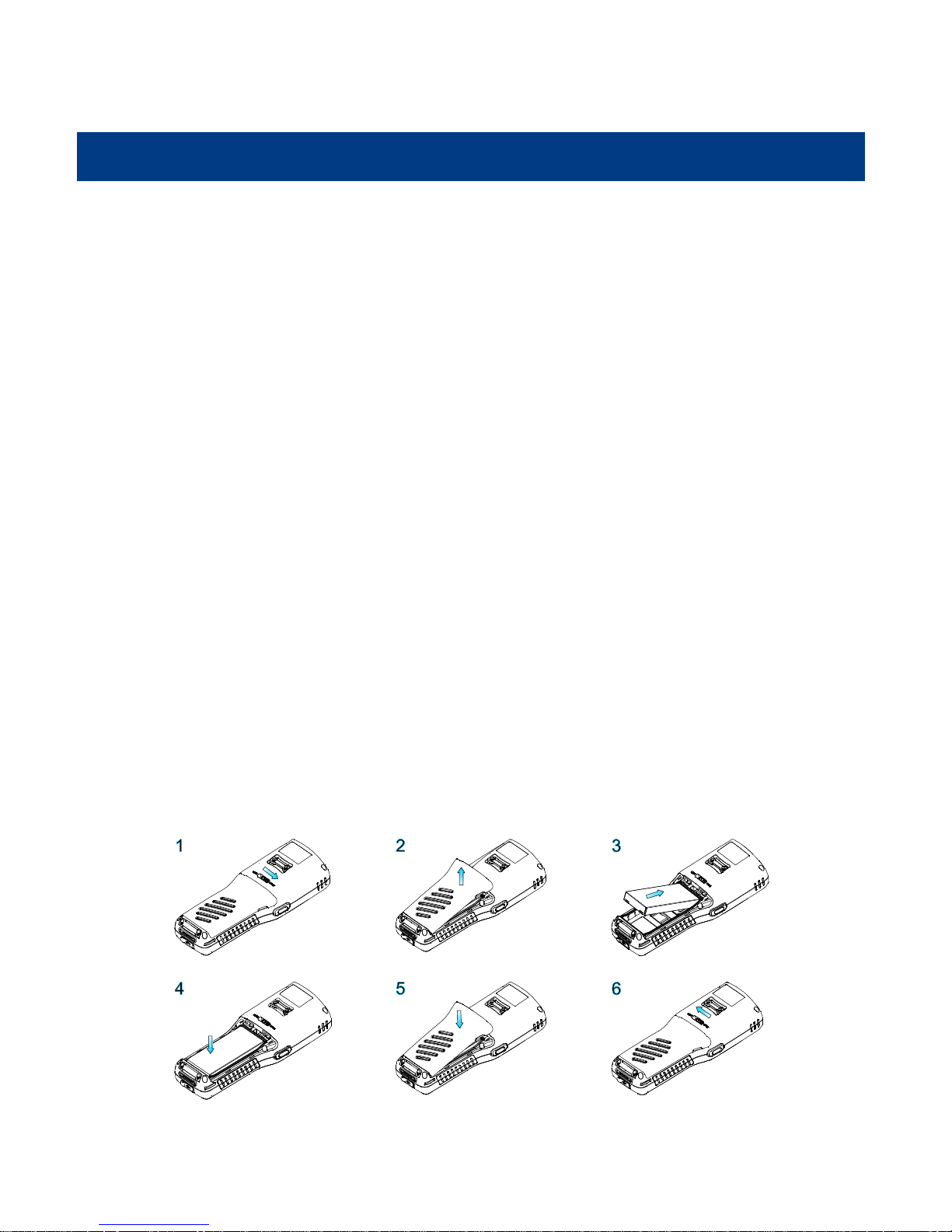

Installing the Main Battery
Page 11
5
1. Figure 1 indicates the direction to unlock the latch.
2. Figure 2 indicates the direction to take out the battery cover.
3. Follow the instructions of figure 3 and 4 to insert the battery.
4. Follow the instructions of figure 5 to close down the battery cover.
5. Push the latch to the lock position.
Charging the Battery
There are two ways to charge the battery:
Charge the terminal battery via USB connection to PC. Charging time: around 8-10 hours.
Charge the terminal battery via AC adaptor. Charging time: around 4 hours.
Charge the terminal battery at least 8 hours before its first use.
Charging indication: Charging: red LED; Fully Charged: green LED.
Keypads
1
SCAN key
Barcode reading button.
2
TOOL key
Pop-up shortcut menu, or perform shortcuts.
3
Backlight key
Open or close screen backlight
4
ALPHA key
Alpha or numeric input switching.
5
FUNC key
User defined application function keys.
6
Power key
To power on, sleep or wake up the terminal.
7
SHIFT key
To switching upper or lower case letters.
Page 12
6
Power On, Suspend and Wake Up
Power On:
Long press the power button for 2-3 seconds to start the terminal.
Suspend:
During terminal in power on status, long press the power button for 2 seconds to turn terminal into suspend mode
immediately.
Terminal no operation in a period of time will go into suspend mode,when you turn on the auto suspend function.
The timer for automatically into suspend mode can be set by:
Tap “Start”→“Settings”→“ControlPanel”→double clicks “Power”→“schemes”.
Wake Up:
During terminal in suspended status, press power button to wake up the terminal.
Calibrating the Screen
The touch screen calibration tool is for setting accuracy of the touch screen.
Tap “Start”→“Settings”→“Control Panel”→ double clicks “Stylus”→”Calibration”.
Click “Recalibrate” button then the screen becomes as shown in Figure 2.2.Carefully press and briefly hold the tip of stylus
on the center of each target that appears on thescreen.Repeat as the target moves around the screen then tap the screen
to continue.
Figure 2.1: Calibration
Figure 2.2: Recalibrate
Checking Battery Statues
To check the charge status of the main battery in the terminal.
Tap “Start”→“Settings”→”System”→double clicks“Power”.
Page 13
7
Figure 2.3: Power Properties
Figure 2.4: Power Properties - Schemes
Power schemes has four status; “Running”, “User Idle”, “System Idle” and “Suspend”:
When user operates on the keypad or taps the touch screen, system is in the running state.
In running state, within the time set in the operating conditions no any operation, system turn to the user idle state.
In user idle state, within the time set in the operating conditions no any operation, system turn to the system idle state.
In system idle state, within the time set in the operating conditions no any operation, system turn to suspend state.
Installing MicroSD Card
The MicroSD card slot provides secondary non-volatile storage. The slot is located under the battery. Refer to the
documentation provided with the card for moreinformation, and follow the manufacturer’s recommendations for use.
As shown below to install the MicroSD card, turn the card metal contact points face down then put into the slot.
Please note the following situations will lead to the MicroSD card is not working:
Card metal contact pads are not clean, battery voltage instability, the slot being squeezed, slot internal wire rust or bend
excessively, the card infected with a virus, the card is not properly formatted, damaged cards, slot damage.
Page 14
8
Installing SIM Card
The SIM card slot is located under the battery, and only support in GPRS model of PT-30 series.
1. Take out the battery and follow the figure 1 arrow indicate switch the SIM card cover to unlock position then open the
card cover.
2. Turn the SIM card metal contact points face down then put into the slot.
3. Switch the SIM card cover to lock position.
Adjusting the Hand Strip
The PT-30 Series handstrap is attached to the bottom of the terminal. Adjust the hand strap to increase comfort when
holding the terminal for extended periods of time.
Page 15
9
Chapter 3 Using the PT-30 Series
Introduction
This chapter provides the detailed instructions for using and setting the PT-30 Series.
Figure 3.1: Desktop Icons
Status Icons
The status bar at the bottom of the screen can contain the status icons listed in Table 3.1
Table 3.1 Status Icons.
Icon
Description
Bluetooth management tool.
Lowercase input. In state of digital input, pressed ALPHA key.
Uppercase input. In lowercase input state, pressed SHIFT key.
Uppercase lock. In lowercase input state, double pressed SHIFT key.
FUNC key pressed.
IP information.
Page 16
10
USB connection status.
Indicates battery charging.
WiFi signal status.
Displays current time.
Keyboard panel.
Background running program selection window.
Programs Icon
Table 3.2 Software utilities icons.
Icon
Program Name
Description
Stylus
For the touch screen calibration settings.
Light Setting
For the screen and keyboard backlight settings.
Peripheral Switch
Used to offer power control function for peripheral module.
Calculator
For numeric calculation.
UnitConver
Unit conversion tool.
Microsoft WordPad
Mocrosoft WordPad text editing tool.
Page 17
11
LockConfig
To keyboard and touch screen lock or unlock tool.
Wi-Fi
WiFi communication management and configuration tool.
Bluetooth Device
Properties
Bluetooth communication management and configuration tool.
Barcode Setting
Barcode engine configuration tool.
Autorun
Setting the programs and parameters which need to boot automatically.
SysBackupRestore
Backup/Restore system registry, configuration and data in storage
memory.
Firmware Information
For checking the system firmware information and version.
Putty
For Telnet terminal emulation tool.
RegEdit
System registry editing tool.
uEasyFileCE
Bluetooth file transfer utility.
Page 18
12

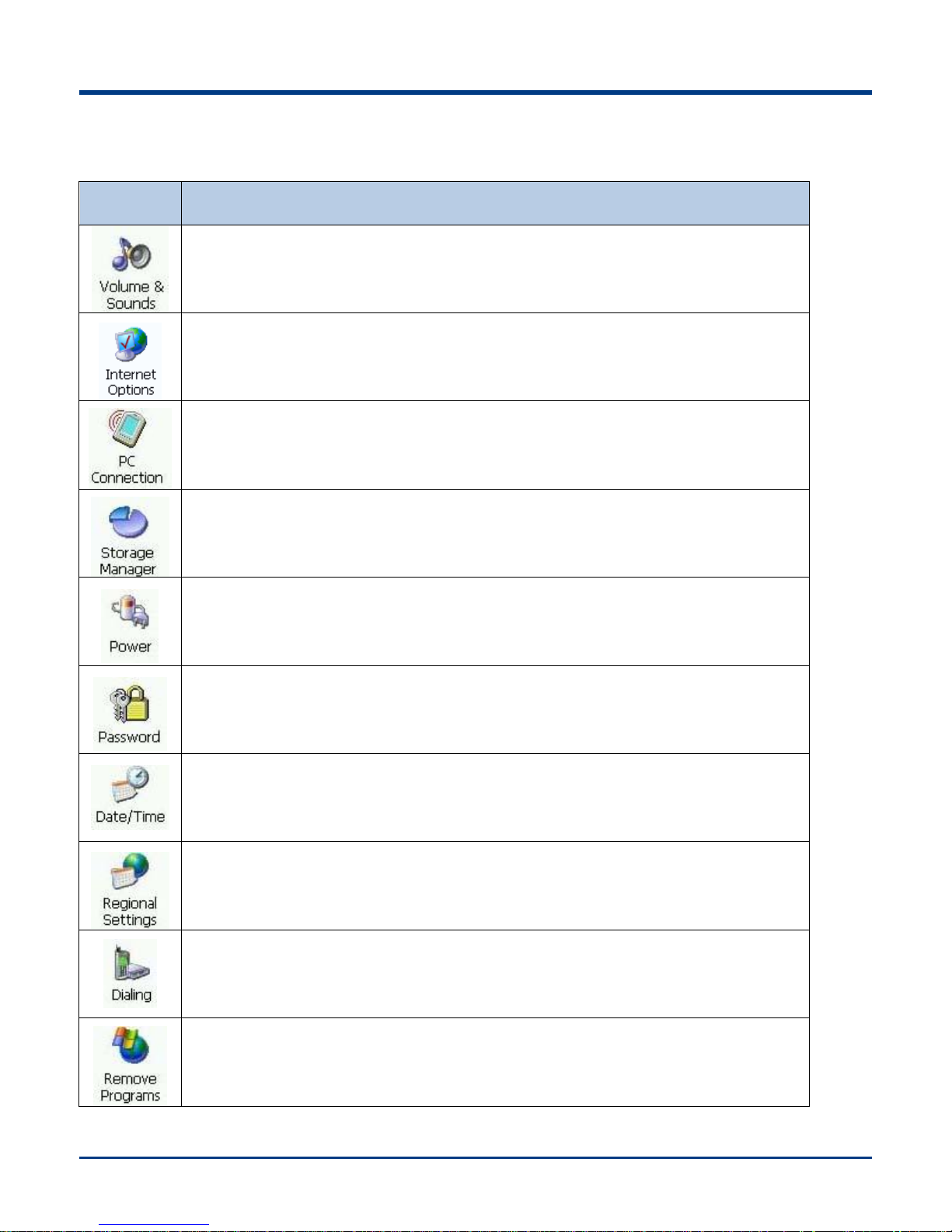

Setting Programs Icon
Icon
Description
System volume adjuster.
Internet options setting tool.
Enable/Disable connects with host PC.
Memory storage management and configuration.
Battery and devices power status and system power schemes settings.
Password attributes (power on password and screen saver password) settings.
System date, time and time zone settings.
Region, language and input method settings.
Dialing configuration.
To remove programs that installed on the terminal.
Page 19
13
Input panel setting.
Owner properties setting.
Network connects configuration.
System information.
Screen display interface and backlight configuration.
View the information about certificates installed on the terminal.
Keypads
Page 20
14
1
SCAN key
Barcode reading button.
2
TOOL key
Pop-up shortcut menu, or perform shortcuts.
3
Backlight key
Open or close screen backlight
4
ALPHA key
Alpha or numeric input switching.
5
FUNC key
User defined application function keys.
6
Power key
To power on, sleep or wake up the terminal.
7
SHIFT key
To switching upper or lower case letters.
Numeric Keypad input mode
On ALPHA key locked state
On ALPHA + SHIFT keylocked state
Numeric
Key
1st
2nd
3rd
4th
1st
2nd
3rd
4th
1 *
2 a b c A B C
3 d e f D E F
4 g h i G H I
5 j k l J K L 6 m n o M N O 7 p q r s P Q R S 8 t u v T U V
9 w x y Z W X Y Z
Function Keys Introduction
FUNN key + Backlight key: Lock/ Unlock function.
This locking function only work for one time then turn to unlock state automatically.
ALPHA and FUNC key is an independent processing, operation will not overwrite each other.
The SHIFT key is only works on the ALPHA key be pressed.
ALPHA and SHIFT key combination types:
The keyboard is in lowercase input state when the SHIFT key is not pressed. The status bar display lowercase
icon.
The SHIFT key pressed once. Status bar display uppercase icon and turn back to lowercase icon after pressed any
Page 21
15
alpha key.If the pressed key is not an alpha key, to give up the SHIFT operation back to lowercase state.
Double pressed the SHIFT key (within 0.5 seconds) turn to uppercase input state, statues bar display uppercase
icon. Pressed the SHIFT key again would turn back to lowercase state.
Long pressed or double pressed the TOOL key could popup the shortcut window.
Pressed the TOOL key + a number key, run the corresponding program.
Stylus
Use the PT30 Series stylus to select items and enter information. The stylus functions as a mouse.
Tap : Touch the screen once with the stylus to select the menu item.
Tap and Hold : Tap and hold the stylus on an item to see a list of actions available for that item.
Drag : Hold the stylus on the screen and drag across the screen to select text. Drag in a list to select multiple
items.
CAUTION: To prevent damage to the screen, do not use any device other than the Newlandprovided stylus.

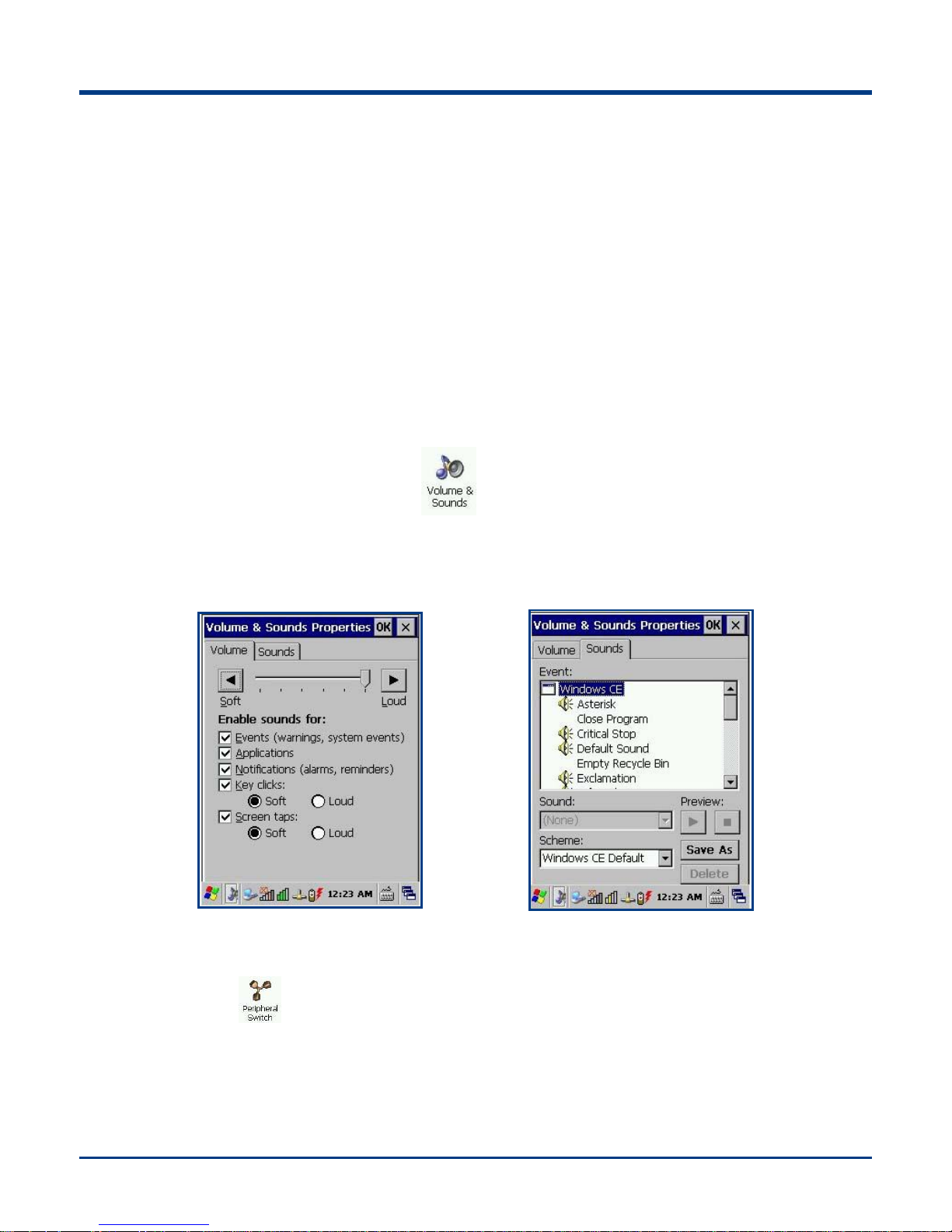

Adjust Volume
Adjust the system volume using the tool program in control panel
Tap “Start”→“Setting”→“ControlPanel”→double click “Volume & Sounds”
Click and move the slider to adjust the volume on "Volume and Sounds" dialog box.
Figure 3.2: Volume
Figure 3.3: Sounds
Peripheral modules power control
This tool program is for users to quickly open or close GPRS/3G/Bluetooth/WIFI/RFID power switch.
Tap“Start”→“Settings”→“ControlPanel”→double click “PeripheralSwitch” icon，
Tap WiFi icon switch button to turn the power of WiFi module to on/off. The operation method of GPRS/3G/Bluetooth/RFID
modules are same with WiFi. The switch display ”ON” means the power of module has been turned on, and “OFF” means
Page 22
16
turned off.
The default settings of GPRS/WiFi/RFID on PT30 is ’ON’, and Bluetooth is "OFF”.

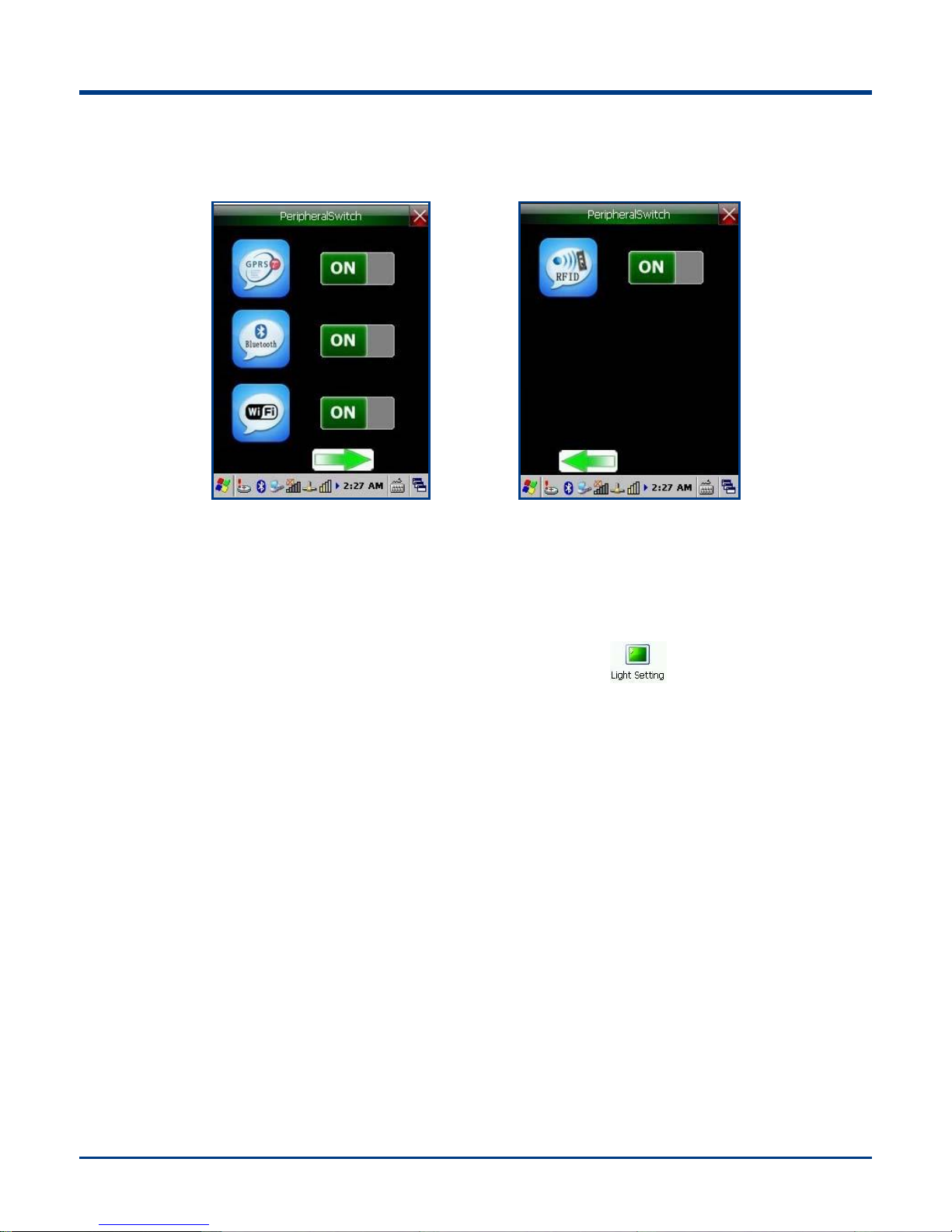

Figure 3.4：Peripheral Power Control 1
Figure 3.5：Peripheral Power Control 2
Change Backlight Settings
Use Light Setting program you can set the screen and keyboard backlight. Screen backlight has normal mode and
low-power mode. Use this tool can also be set according to the different needs of the backlight brightness and auto-off
timer.
Tap “Start”→“Settings”→“ControlPanel”→double click “Light Setting” as icon.
Screen backlight setting:
Normal Mode:
The backlight brightness can be set from 0-10 grade. You can drag the selected bar or click the up or down arrow
to set the grade.Touch the screen or press any key will activate the backlight.
Low-power Mode:
Low-power mode backlight brightness level can be set from 0 to the grade of normal mode.
Switch Timer
Set after how many seconds if there is no touch the screen or keyboard press, the backlight automatically turn into
low-power mode.
Keyboard backlight setting:
Set after how many seconds if there is no keyboard press, the backlight turn off automatically
When you no press any key in a period of time, the keyboard backlight will turn off automatically.
Page 23
17
Figure 3.6: Backlight setting
Memory storage management
“Storage Manager” is a tool for manage the memory.
Actions mode:
Format ：Format the selected memory, the data in memory will be destroyed after memory formatted.
Dismount ：Dismount the selected memory.
New Partitions ：Create a new partition in selected memory.
DeletePartitions ：Deletea exist partition in selected memory.
Caution: The memory configuration changes will destroy all the data in memory, please contact with
technical staff before change.
Figure 3.7: Memory Configuration
Page 24
18
Resetting the PT30
Warm reset:
Press the reset button to warm reset the terminal. It will take around 6-10 seconds to restart the system. User data in
memory will not to destroy.
Cold reset:
Cold reset the terminal by hold the power key and pressed reset button and release the power key when screen
redisplay.It will take around 16-20 seconds system reloading and start again.
Terminal will restart in factory default setting. User data in memory will destroy. You can use backup/restore tool to process
your data.
Notice：The battery cover must be closed before execute reset function, otherwise the terminal will turn into
suspend mode.
Locking the PT30
Use the device lock feature to prevent use of the device.
Tap“Start”→“Settings”→“ControlPanel”→double click “LockConfig” icon.
图 3.8: Lock configuration
Below status you can lock the keyboard and touch screen.
A. Terminal not operation in a period of time or by FUNC key + backlight button.
B. Pressed screen unlock button to unlock your terminal.
Page 25
19
Figure 3.9: Lock state
Figure 3.10: Unlock state
Barcode Settings
Barcode engine parameter configuration
Tap“Start”→“Settings”→“ControlPanel”→double click “Barcode Settings” icon.
Barcode Setting program include Normal setting, Barcode setting and Test three select pages.
A. Normal Setting:
Output Setting:
Output via API : Use program API libraries control to get the barcode data.
Output via keyboard : Output the barcode data to keyboard buffer to simulate keyboard input.
Output via clipboard : Output the barcode data to clipboard.
Decode Mode Setting:
Decode Mode:
One time read mode : Press key start to scanning barcode, and released key to stop scanning.
Start scan by key press : Press key start to scanning barcode until read success or time out to stop
scanning.
Continue read mode : Continue scanning barcode until change the reading mode.
Read control by API : Start or stop scanning barcode by API software control.
Time Out:
Setting the timer of time out for scanning barcode, default value is 4000ms.
Prefix and Suffix Setting:
Provided the barcode reading result plus prefix or suffix function.
Trigger button Config:
Enable/Disable the trigger key.
Press “start set” button to disable the trigger key or press a trigger key to set a new one.
Page 26
20
Decode Tips:
Select the indicate method for reading success.
Figure 3.11: Normal setting 1
Figure 3.12: Normal setting 2
Figure 3.13: Norma setting 3
B. Barcode Setting:
Depend on the mode of your terminal, barcode setting page will display difference setting item.
1D Barcode configuration:（Laser/CCD）
Each type of 1D barcode enables or disables.
Each type of 1D barcode detail configuration.
2D Barcode configuration:（CMOS）
Each type of 2D barcode enables or disables.
Each type of 2D barcode detail configuration.
Page 27
21
Figure 3.14: Barcode configuration
Figure 3.15: Barcode detail setting
C. Barcode Testing
Tap “Test” selection to display the below figure to test the barcode reading.
Figure 3.16: Barcode test
Reading 1D barcode
Adjust the terminal barcode reading angle or the distance between barcode with terminal.Let the width of the scan line
appropriately larger than the width of the barcode (about 4mm), in order to get the best reading.
Page 28
22
Right and wrong way of reading:
Reading 2D barcode
The best reading distance and angle:
A. Adjust the terminal focus lights aiming to the center of 2D barcode.
B. Adjust the reading distance between the terminal with barcode around 5-20 cm.
C. Adjust the reading angle:
The relative pitch angle (the α) with barcode and terminal is less than 45 degrees (0 is the best)
The relative skew angle (the γ) with barcode and terminal is less than 45 degrees (5~20 is the best)
The relative roll angle (the β) with barcode and terminal can be any angles (0~360 degrees).
Page 29
23
Chapter 4 Using Bluetooth Communication
Click the Bluetooth iconin desktop status bar to display the BT Configuration dialog window as shown in figure 4.2.
Figure 4.1: Desktop
Figure 4.2: Basic setting page
A. Basic setting page offer device name and pin code setting. You can select to use default pin code and setting your
default pin code.
B. Option setting page offer you to use different communication mode as shown in figure 4.3.
Figure 4.3: Option setting page
Figure 4.4: Service setting page
C. Service setting page offer you to use virtual COM port service as shown in figure 4.4.
D. Following figure offer pairing, searching devices and service functions.
Page 30
24
E. Application program will take the initiative to connect the last time connected Bluetooth device to communication.
Figure 4.5: Pair & Link page
Figure 4.6: Device searching
Figure 4.7: Service searching
Figure 4.8: Favorite page
Page 31
25
Chapter 5 Using WiFi Communication
A. Main Window
The Main window provides an overview of the current wireless network connection configuration (Active Profile)
The following image (in Figure 5.1) is the SCU Main windows for Windows CE.
Figure 5.1: SCU Main Window
Enable Radio/Disable Radio
When the radio is enabled, select this button (which displays Disable Radio) to disable it. When the radio is disabled, select the
same button (which now displays Enable Radio) to enable it. When disabled, the radio does not attempt to make a connection to an
access point.
Active Profile
To displays the name of the active profile. Use the drop-down menu to select a different profile.
Note: If ThirdPartyConfig is selected (and after the device goes through a power cycle), WZC (Windows Zero Configuration) or
another application is used to configure the SSID, Auth Type, EAP Type, and Encryption settings.
Status
To indicates the current status of the Summit radio. Connection statuses include:
Down - The radio is not recognized by Summit software and therefore is not associated and nor
authenticated.
Disabled - The radio is disabled. To enable the radio, tap Enable Radio located on the SCU Main window. When
the radio is disabled, it does not attempt to make a connection to an access point.
Not Associated - The radio has not established a connection to an access point.
Associated - The radio has established a connection to an access point.
Page 32
26
If the radio Encryption type is set to WEP or a pre-shared key (WPA-PSK or WPA2-PSK), it should now be capable of obtaining an IP
address (either statically assigned or through DHCP) and passing traffic.
If the radio Encryption type requires EAP authentication then an EAP Type must be properly configured in order for the device to
obtain an IP address and be capable of passing traffic.
<EAP type> Authenticated - The radio has established a connection to an access point and has completed EAP authentication
successfully.
Radio Type
Indicates the type of radio installed in the device. For example:
BG - Indicates a Summit 802.11g radio which supports 802.11b and 802.11g.
ABG - Indicates a Summit 802.11a/g radio which supports 802.11a, 802.11b, and 802.11g.
N - Indicates a Summit 802.11n radio which supports 802.11a, 802.11b, 802.11g, and 802.11n.
B. Profile Window
Profile settings are radio and security settings that are stored for each configuration profile. When a profile is selected a s the active
profile on the Main window, the settings for that profile become active.
Notes: When the ThirdPartyConfig profile is selected, a power cycle must be performed.
The following image (in Figure 5.2)is the SCU Profile windows for Windows CE

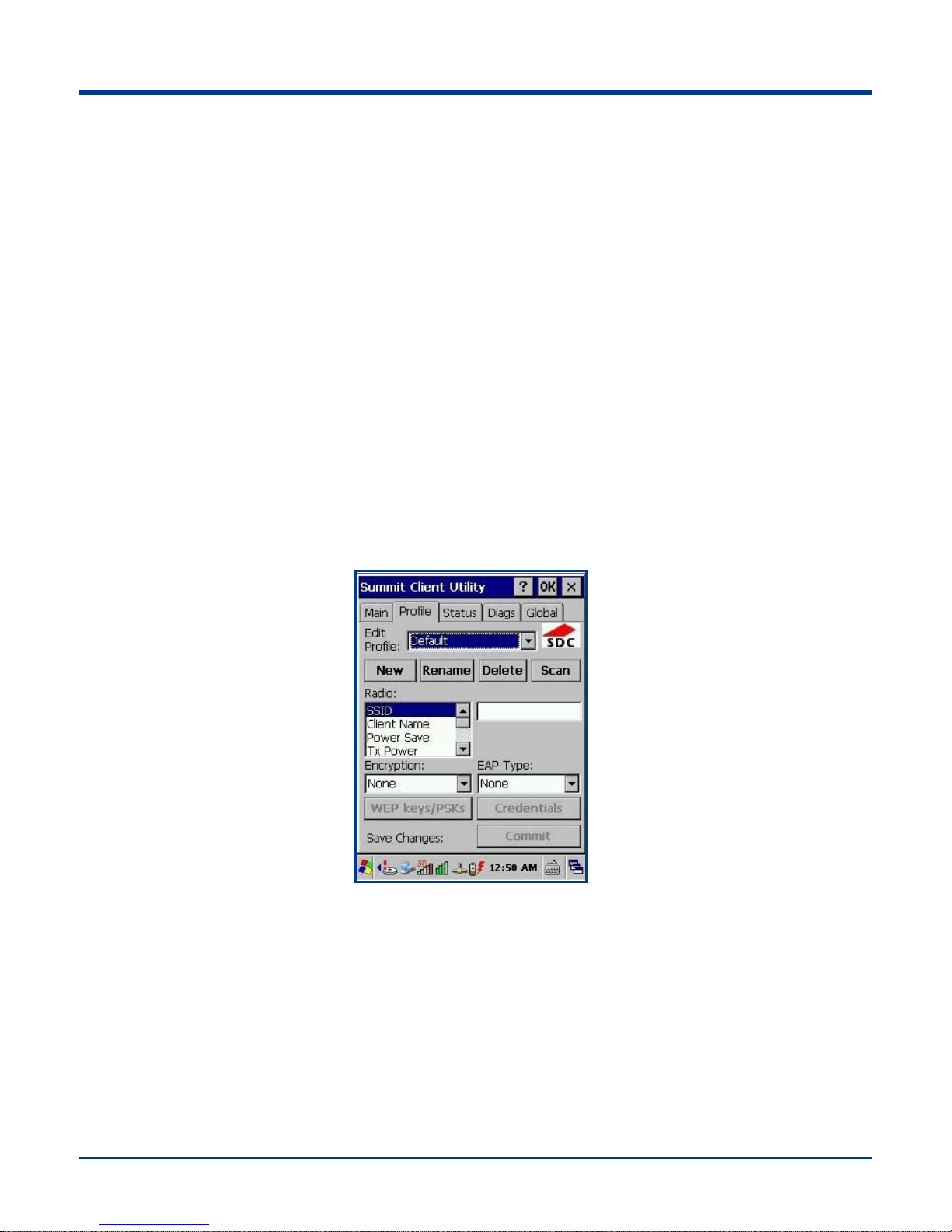

Figure 5.2: SCU Profile Window
Profile changes are not saved to the profile until you tap Commit.
Using Scan to Create a Profile
When you tap Scan on the Profile window, SCU displays a list of that are broadcasting their SSIDs. Figure 5.3 below is an example of
a Scan window.
Page 33
27
Figure 5.3: Scan Window
Each row shows an AP's SSID, its received signal strength indication (RSSI), and whether or not data encryption is in use (true or
false). You can sort the list by tapping on the column headers. If the scan finds more than one AP with the same SSID, the list
displays the AP with the strongest RSSI and the least security. Every five seconds, the Scan window updates the RSSI value for each
of the APs in the list. To scan for new APs and view an updated list, tap Refresh.
If you are authorized as an administrator in SCU, you can create a profile for any SSID in the list. To create a profile, double-tap the
row for the SSID; or tap the row and then tap Configure
Figure 5.4: Scan Window
If you tap Yes on the dialog box, then SCU creates a profile for that SSID, with the profile name being the same as the SSID (or the
SSID with a suffix such as "_1" if a profile with the SSID as its name exists already). If the AP is using WEP, then SCU opens a dialog
box in which you can specify WEP keys. If the AP is using EAP, then SCU opens a dialog box in which you can specify login
credentials for the EAP type (which SCU assumes is LEAP). After you enter information on a dialog box, you return to the SCU Profile
window, where you can view and edit profile settings. If you make any changes, then you must tap Commit to save the changes.
C. Status Window
Page 34
28
The Status window provides status information on the radio connection between the client device and the access point to which it's
associated.
The following image is the SCU Status windows for Windows CE.

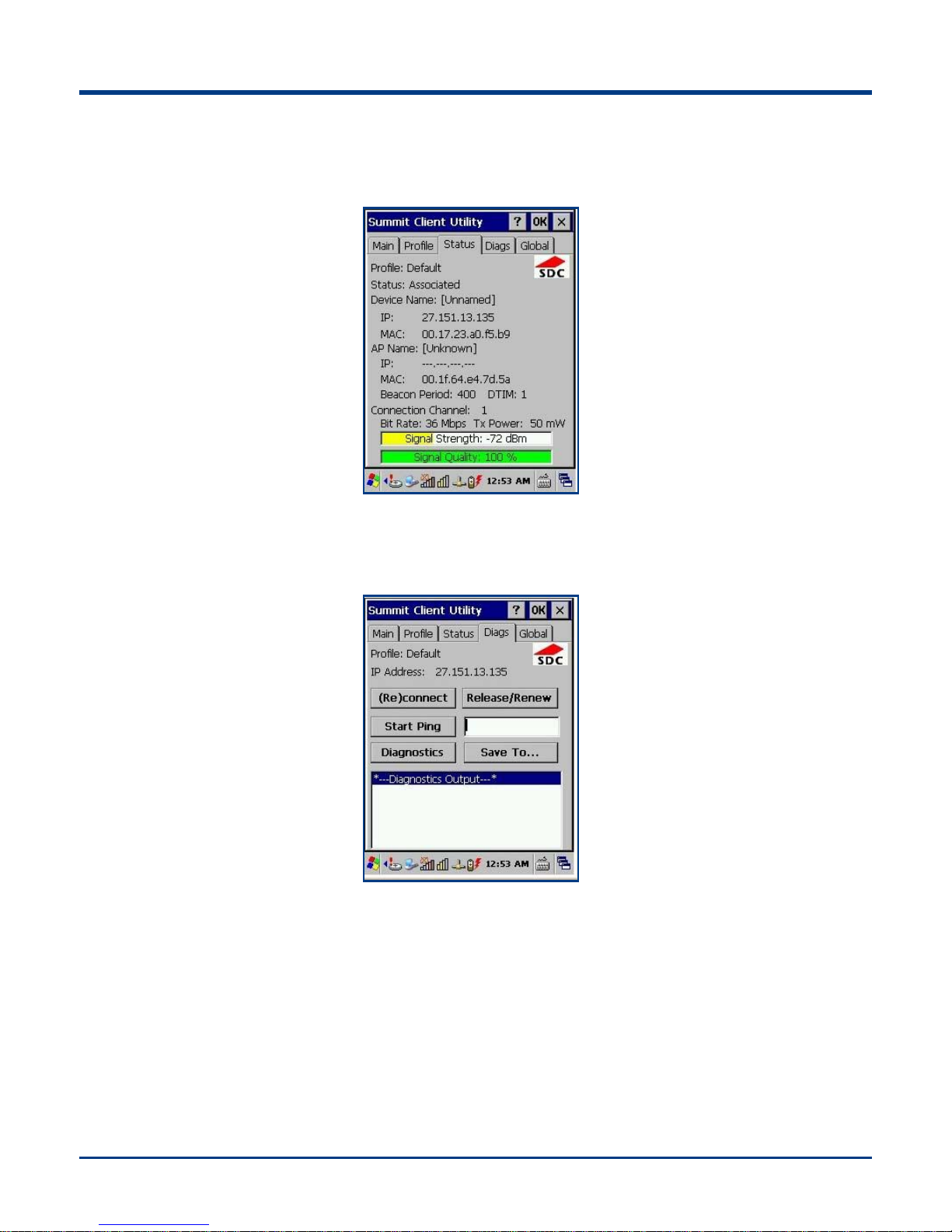

Figure 5.5: Status Window
D. Diags Windows
The Diagswindows enables you to troubleshoot connection issues with SCU. The following image is the SCU Diags windows for
Windows CE.
Figure 5.6:Diags window
(Re)connect
Initiate a reconnect of the radio: Disable and enable the radio, apply (or reapply) the current profile, attempt to associate to the
wireless LAN, and attempt to authenticate to the wireless LAN.
Release/Renew
Obtain a new IP address through DHCP release/renew.
Start Ping/Stop Ping
Start a continuous ping to the address in the edit box next to the button. Once the button is tapped, its name and function changes
to Stop Ping. Pings continue until you tap Stop Ping, move to a different SCU window (other than Diags or Status), exit SCU, or
Page 35
29
remove the radio.
E. Global Window
Global settings include radio and security settings that apply to all profiles and settings that apply to SCU itself. An administrator
can define and change most global settings on the Global window in SCU.
The following image is the SCU Global windows for Windows CE

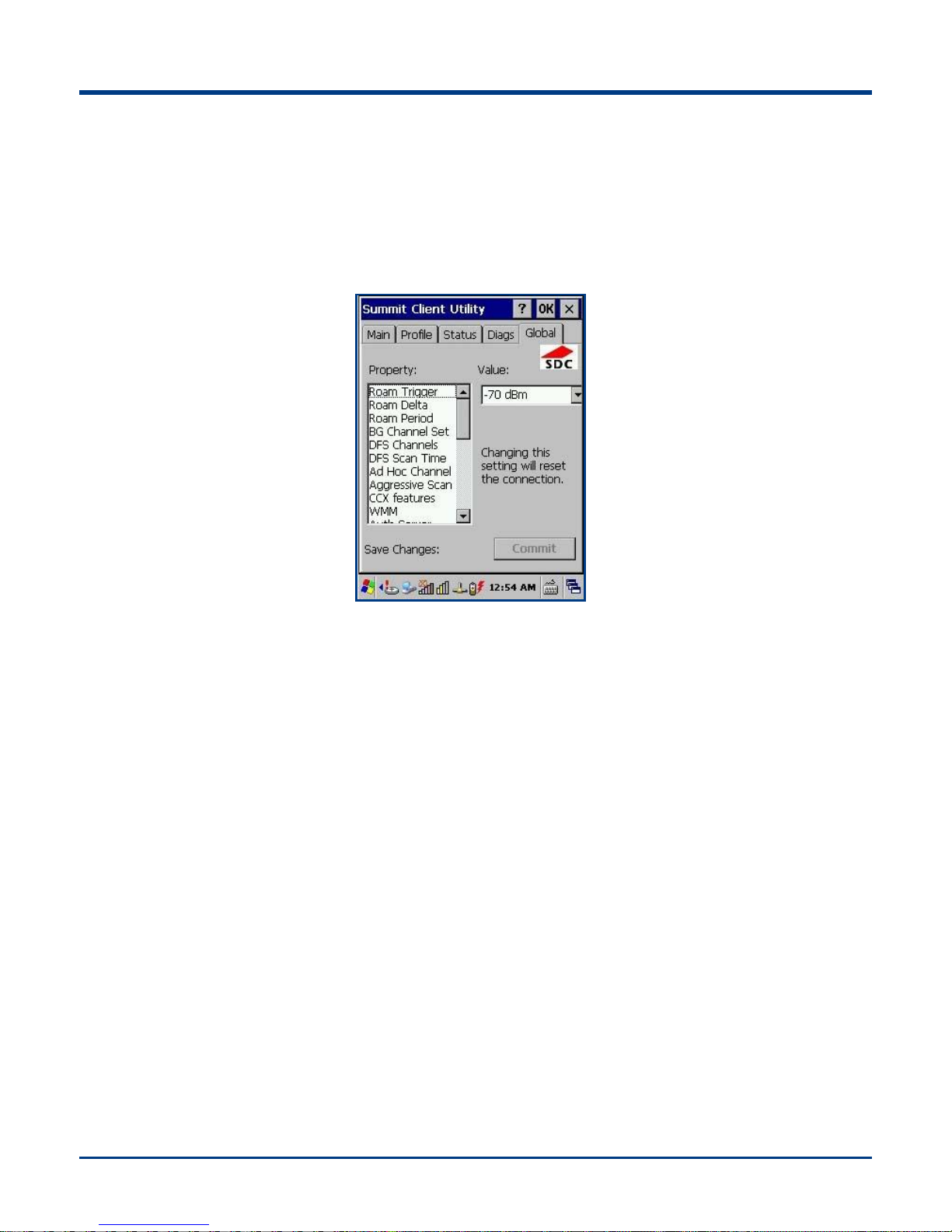

Figure 5.7: Global window
Page 36
30
Chapter 6 Using GPRS Communication
Ensure an activated SIM card, from the phone service provider, is installed in the terminal. The default of PT30 already has a
GPRS connection. You can tap “Start”→“Settings”→“ControlPanel”→“Network and Dial-up Connections”, double clicks the
GPRS icon to start the communication if you located in China. If you are not located in China, you should modify GPRS
connection or create a new GPRS connection follow the instruction of telecommunication service provider.
Make New Connection
The steps of make new connection are:
A. Double click the Make New Connection icon as shown in figure 6.1.
B. Naming the connection name as shown in figure 6.2 than tap Next button.
Figure 6.1: Make New Connection
Figure 6.2: Naming the connection
C. Selecte the “Wireless modem Port” in the field of "Select a mode" as shown in figure 6.3 and tap “Configure…” button.
D. Skip the configuration if you did not change the default parameter values in the Port Settings (see figure 6.4).
Page 37
31
Figure 6.3: Modem setting
Figure 6.4: Port Setting
E. Tap the “Call Options” tab (see figure 6.5). enter [+cgdcont=1,“IP”,“cmnet”] in the bottom of field.
This “cmnet” means a service point of GPRS service provider. Different GPRS service provider offer different service
name. Please contact with your service provider to get the information, and tap OK button to save it.”
Figure 6.5: Call option
F. As shown in figure 6.6, enter [*99***1#] into phone number field. Different GPRS service provider offer different
number. Tap “Finish” save it
G. As shown in figure 6.7, screen will display the "GPRS" new linker. Double clicks the GPRS icon to start the
connection.
Page 38
32

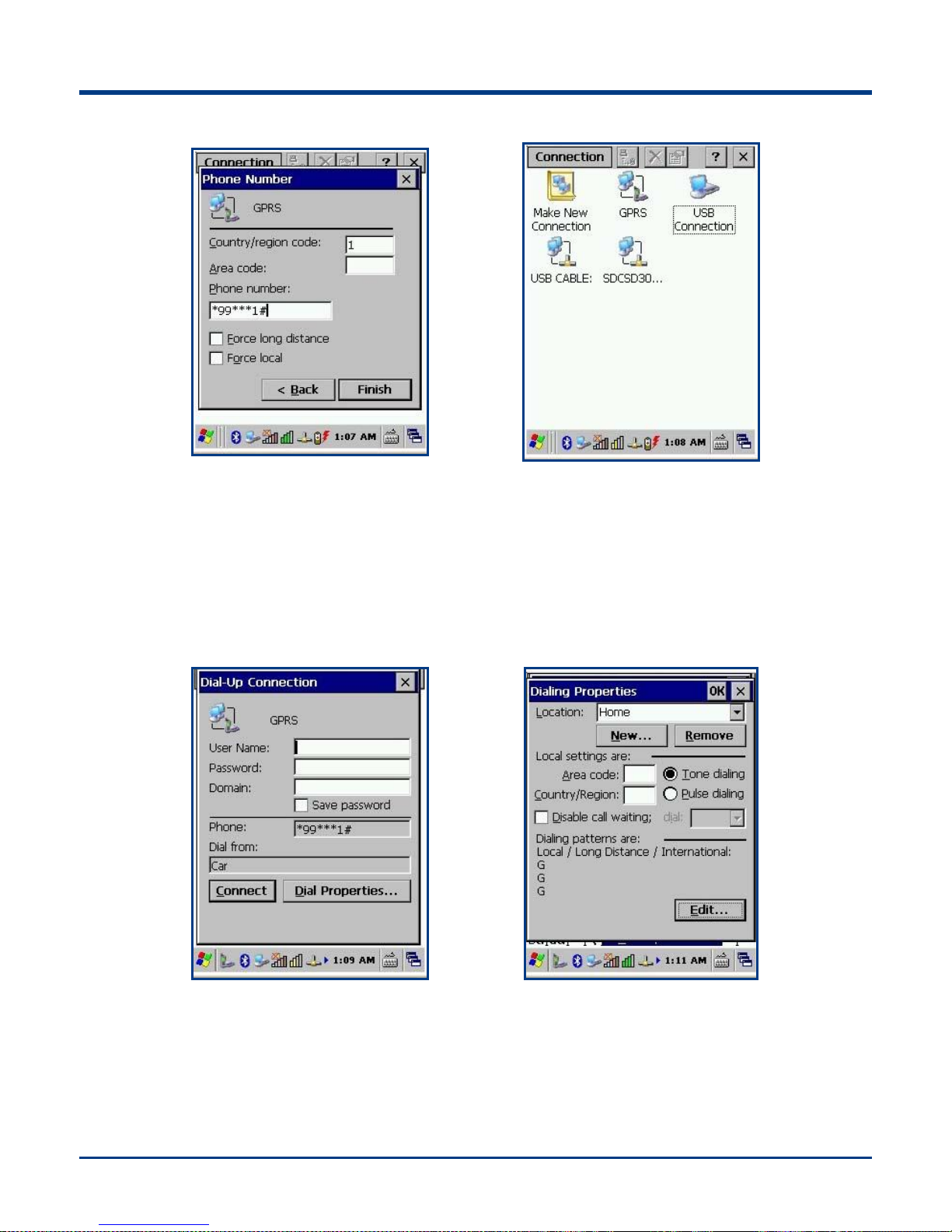

Figure 6.6 Set phone number
Figure 6.7: Connect
Setting Dial-Up Connection
The step of setting dial-up connection is:
A. Click the “Dial Properties…” button that is shown in figure 6.8 to setting.
B. Click the “Edit…” button that is shown in figure 6.9 to setting.
Figure 6.8: Dial-up connection
Figure 6.9: Dialing properties
C. Enter “G” in three input fields that is shown in figure 6.10, and click “OK” button to confirm. Then the screen return to
upper page (figure 6.9),click “OK” button to confirm again.
D. Screen turn to figure 6.11, and click “Connect” button start connection.
Page 39
33
E. Wait around 3-5 seconds, the GPRS connection should be successes.

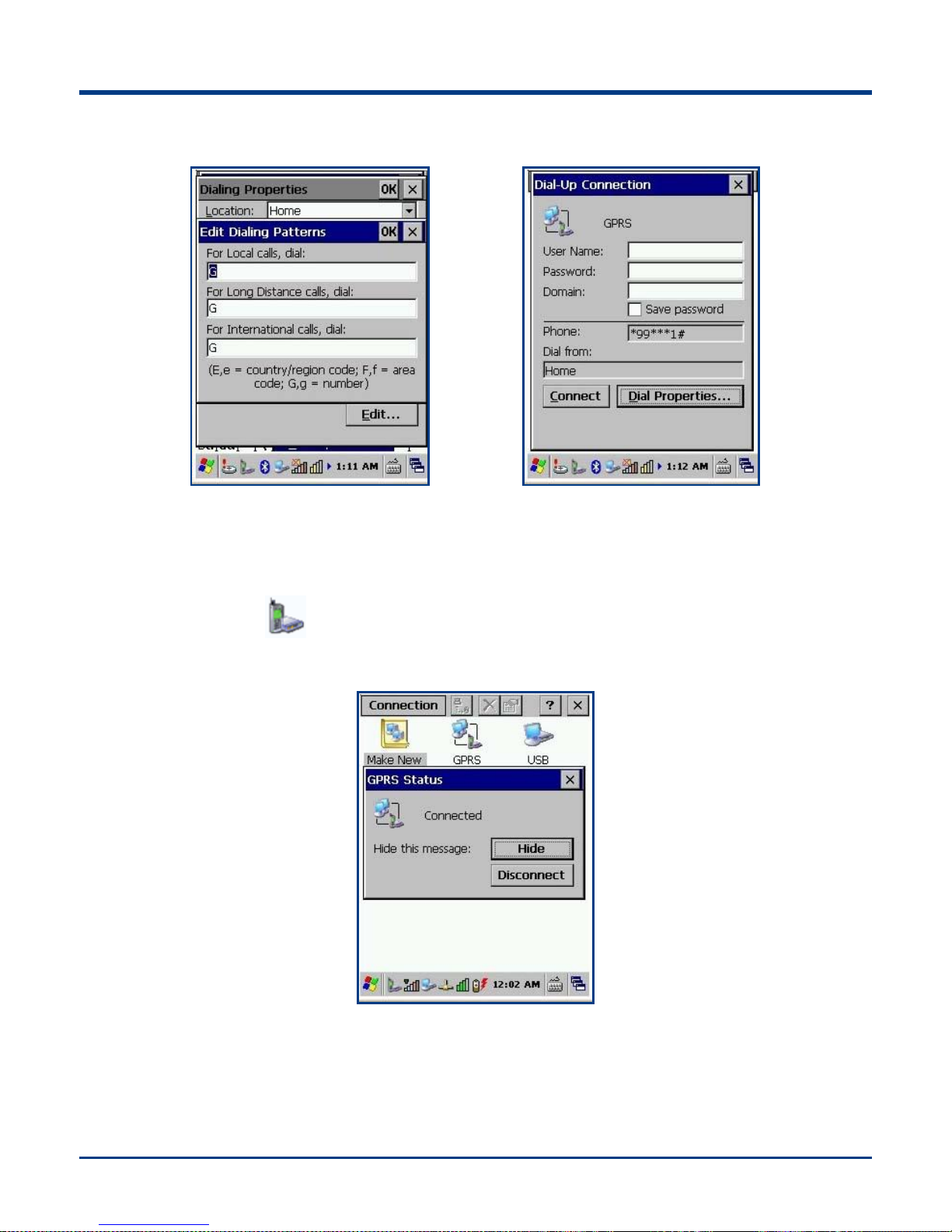

Figure 6.10
Figure 6.11
Check GPRS Connection Status
Click the “Dial Properties “ icon in status bar as to open the dialog window shown as figure 6.12 to display the GPRS
connection status.
Figure 6.12 GPRS status
Page 40
34
Chapter 7 Using ActiveSync
Introduction
Microsoft ActiveSync (version 4.5 or higher) on theHost computer is use to synchronize information on the mobile computer
with the host computer.
Install
To install ActiveSync on the host computer, download version 4.5 or higher from the Microsoft web site at
http://www.microsoft.com Refer to the installation description included with the ActiveSync software.
Figure 7.1 ActiveSync install interface
Synchronize Information
Figure 7.2: Synchronize detail information Figure 7.3 Select synchronize item
Page 41
35
Chapter 8 Accessories
Battery
Terminal battery capacity too low will cause the terminal malfunction. Please charge the battery at less than 8 hours for
sure the main battery and backup battery capacity was in full charge states.
Cradle
Put PT30 into cradle
Pick up PT30 from cradle
Charging
Use cradle charging
Use AC adaptor charging
Page 42
36
LED charging indicator
Red light long bright : During charge.
Green light long bright : Charge complete.
LED indicator for Scanning/Decoding/Communication
Red light bright : During scan barcode.
Green light bright : Success decoded barcode.
Blue light flash : Communication module (BT/WIFI/GPRS/3G)during communication.
Connect Host PC via USB cable
1. Open the USB port cover which is located in bottom of PT30.
2. Plug in USB cable connector to PT30 USB port and the other sides of cable connect to host PC.
Notice: Please make sure the host PC already installed Microsoft ActiveSync before connection.
Connect Host PC via Cradle
1. Put the PT30 into cradle.
2. Plug in USB cable connector to cradle USB port and the other sides of cable connect to host PC.
Notice: Please make sure the host PC already installed Microsoft ActiveSync before connection.
Page 43
37
Chapter 9 Maintenance& Troubleshooting
Introduction
This chapter includes considerations on operation and battery charging, and providestroubleshooting solutions for
potential problems during the terminal operation.
Considerations on using PT30
Disassembly and modification
Please do not attempt to disassemble or modify the terminal, if cause the damage to the terminal, Newland does not
assume warranty responsibility.
Connect power source
Please use the terminal original power adapter otherwise there is a risk of damage to the terminal.
Abnormal situation
Leave far away from fire source during battery charging. Turn off the power when you found abnormal odor, overheating or
smoke situation and contact Newland service center, there is a risk of fire if continue charge.
Drop Damage
If the terminal caused the damage because drop down. Please turn off the power and contact with Newland service center
for help.
LCD Display
Do not stress or impact LCD screen, it may cause the broken glass of the LCD panel. If the glass of the LCD panel is
broken, please do not touch the liquid, for fear to cause skin burns or infection.
Stacking heavy objects
Do not place heavy objects stacked on the terminal in order to avoid heavy objects lose balance and fall over cause injury.
Placed location
Do not placed the terminal in unstable, too moisture or dust places. It may cause to fire or electric shock, and also do not
placed in direct sunlight for a long time.
Use occasion
Due to the terminal wireless module electromagnetic waves radiation will affect some instruments, so in the particular
occasion that prohibited to use the wireless devices, such as aircraft, gas stations. Please do not use the wireless terminal
in these occasions.
Page 44
38
Caution
If the terminal lost power or abnormal cause can not boot up, try a hardware reset to start it, the method is to press
the reset button with needles. The location of reset button, please refer to the related chapter.
Please do not throw or drop the terminal to avoid the LCD screen is damaged or cause the program interrupt
execution to make the memory data loss, or other consequences of affecting the normal operation.
Clean the reading window periodically. Do not touch the transparent glass of the scanning window to avoid scratch or
stain glass affecting reading performance.
Please do not use sharp objects to touch the screen, it may cause the screen is damaged or the internal short circuit.
Please use a soft and dry cloth to wipe the terminal, and do not use a damp cloth, benzene, thinner or other volatile
chemicals to avoid the terminal keyboard and shell variant of aging.
Do not let the terminal face down in order to avoid the keyboard disoperation.
The environment temperature great change will lead to the terminal surface condensation, please dry the terminal
before use.
Battery safety guidelines
Battery in fire will cause an explosion.
Battery can charge and discharge at least more than 500 times. Please renew the battery when the battery
noticeably in shorter battery life.
Using the battery only provided from Newland, and also use the power adapter only provided from Newland to
charge the battery.
Please unplugged the adapter when battery was fully charged, and do not continue to charge the battery. Since
overcharging may shorten battery life. A fully charged battery is left unused, the battery will gradually discharge. It will
not cause any abnormal states.
Do not use the damage or abnormal battery or adaptor already.
Please correctly collect and dispose of the battery,and do not dispose the battery as general garbage.
Page 45
39
Troubleshooting
Problem
Cause & Solution
Type
Description
Keyboard
Keyboard malfunction or
wrong character display.
May be the keyboard components damage or cable loose contact between
with mainboard socket. Please contact Newland maintenance or after
service center.
Battery
Battery indicator doesn't light
when charging.
Check the adapter plugged in power outlet or contact with the terminal is well
or not.
Battery noticeably in short
battery life.
Check the battery whether is fully charged or malfunction.
Replace a battery if the battery is malfunction.
Battery is depleted.
Replace the battery.
USB
USB cannot communication.
Make sure the communication cable is plugged in well.
Make sure the connector or port whether is obstruction.
If there is no above situation, it may be the components failure, please
contact the maintenance or after service center.
LCD
Screen
Cannot see characters on
display.
Check the terminal whether is powered on.
Check the terminal whether is in suspended mode. Wake up the terminal
first if yes.
Check the battery whether is in low states. Recharging the battery if yes.
Check the battery whether is poor contact. Reload the battery if yes.
Check the battery whether is depleted. Replace the battery if yes.
If there is no above situation, it may be the components failure, please
contact the maintenance or after service center.
System
Does not power on.
Battery is in too low states may cause cannot turn on. Charging the
battery over 8 hours then try again.
Replaced a battery if the battery was damage.
If there is no above situation, it may be the components failure, please
contact the maintenance or after service center.
System crash.
Possible the user application to cause the terminal crashes, please check
your application whether is safe.
May be the terminal accidental power down, please use the needles to
reset the terminal.
If reset does not work, try use cold reset to reboot the system.
Page 46
Headquarters / 总部
福建新大陆自动识别技术有限公司
地址：福建省福州市马尾区儒江西路 1 号新大陆科技园
邮编：350015
电话：+86 - (0) 591-83979222
传真：+86 - (0) 591-83979208
Newland Europe BV/ 欧洲新大陆有限公司
Rolweg 25, 4104 AV Culemborg, The Netherlands
TEL: +31 (0) 345 87 00 33
FAX: +31 (0) 345 87 00 39
Email: [email protected]
WEB: www.newland-id.com
Tech Support: [email protected]
Newland North America Inc. /北美新大陆有限公司
Address: 46559 Fremont Blvd., Fremont, CA 94538, USA
TEL: 510 490 3888
Fax: 510 490 3887
Email: [email protected]
WEB: www.newlandna.com
Newland Taiwan Inc. / 台灣新大陸資訊科技股份有限公司
7F-6, No. 268, Liancheng Rd., Jhonghe Dist. 235, New
Taipei City, Taiwan
新北市 235中和區連城路 268號 7樓之 6 (遠東世紀廣場 J 棟)
TEL: +886 2 7731 5388
FAX: +886 2 7731 5389
Email: [email protected]
WEB: www.newland-id.com.tw
Loading...
