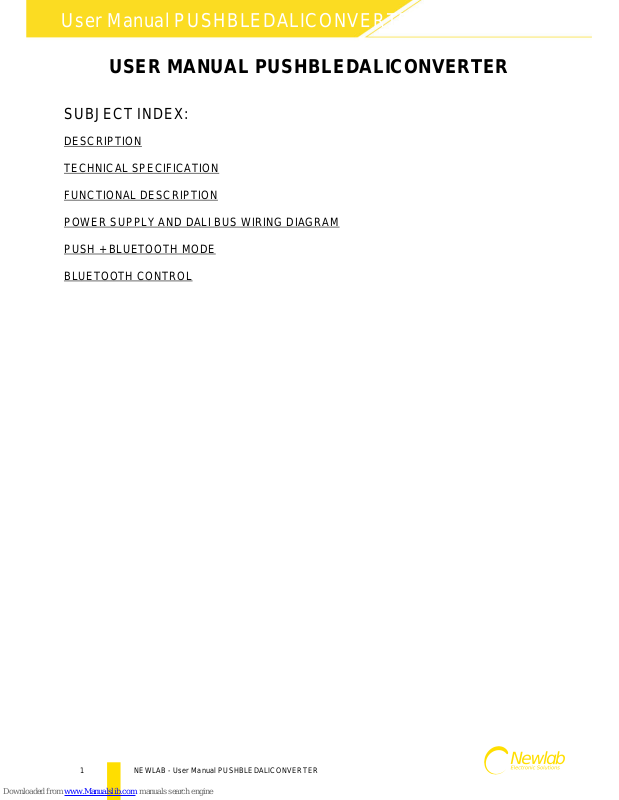

User Manual PUSHBLEDALICONVERTER
USER MANUAL PUSHBLEDALICONVERTER
SUBJECT INDEX:
DESCRIPTION
TECHNICAL SPECIFICATION
FUNCTIONAL DESCRIPTION
POWER SUPPLY AND DALI BUS WIRING DIAGRAM
PUSH + BLUETOOTH MODE
BLUETOOTH CONTROL
1 NEWLAB - User Manual PUSHBLEDALICONVERTER
User Manual PUSHBLEDALICONVERTER
PUSHBLEDALICONVERTER
L440MA04T2A03
Mono channel Dimmers with Output Tension PWM.
Input Range: 8-53V DC.
Output Tension PWM 8-53V DC with current from 0A to 12A (576W at 48V
DC).
Controllable with Android/iOS app Newlab Go.
Input Controls
Type Qty
Insulated Push button 1
Bluetooth LE 1
Output Sync
Type Qty
PWM 1
DALI 1
TECHNICAL NOTES
- Mono channel Dimmers with Output Tension PWM.
- Input Range: 8-53V DC.
- Power 144W @ 12V, 288W @ 24V, 576W @ 48V.
- Output Tension PWM 8-53V DC with current from 0A to 12A (576W at 48V DC).
- Input Controls: Insulated Push button x1, Bluetooth LE x1.
- Output Sync: PWM x1, DALI x1.
- PWM Frequency: 390 Hz.
- Thermal foldback: 150 C. Degrees on uC.
- Storage Temperature Min: -40 Max: 60 C. Degrees.
- Working Temperature Min: -20 Max: 50 C. Degrees.
- Printed Circuit UL.
- Protection Class: IP20.
- Peso: 44 gr.
- Standard Dimension 40x80x24.45 mm.
- Dimension with accessories 40x100x24.45 mm.
- Reverse polarity protection.
- Open circuit protection.
- Surge voltage protection.
2 NEWLAB - User Manual PUSHBLEDALICONVERTER
User Manual PUSHBLEDALICONVERTER
CODE INPUT
VOLTAGE
(MAX) OUTPUT
CURRENT
N. OUTPUT
CHANNELS
MAX OUTPUT
POWER
CONTROL
INPUTS
CASE DIMENSION
mm
L440MA04T2A03 8-53V DC 12A 1 576W at 48V DC Insulated Push button x1
Bluetooth LE x1
YES 40x80
h 24.45
3 NEWLAB - User Manual PUSHBLEDALICONVERTER
User Manual PUSHBLEDALICONVERTER
FUNCTIONAL DESCRIPTION
PUSHBLEDALICONVERTER device allows the control of DALI compliant devices via PUSH interface and/or via
Bluetooth Low Energy with Newlab GO app.
The PUSHBLEDALICONVERTER controls external devices by broadcasting DALI commands (DAPC), it is not
necessary to configure DALI Addresses on controlled devices.
POWER SUPPLY AND DALI BUS WIRING DIAGRAM
POWER SUPPLY AND DALI BUS WIRING DIAGRAM PUSHBLEDALICONVERTER - FIGURE N. 1
The PUSHBLEDALICONVERTER dimmer has to be powered according to the polarity showed in FIG. 1
through the DC IN (+ and -) terminals.
In case the power supply polarity is inverted no damage will be caused to the device.
The LED (LED PWR) positioned on the circuit board indicates the presence of power supply.
The LED (LED DIM) shows the dimming level of the output.
The LED load connection is optional and has to be made by using the OUT (L+ CH1- ) terminals.
4 NEWLAB - User Manual PUSHBLEDALICONVERTER
User Manual PUSHBLEDALICONVERTER
PUSH + BLUETOOTH MODE
In order to activate this mode of control/operation it is necessary connect the DALI bus between the DALI
terminals and an N.O. PUSH button to PUSH terminals according to Figure 1 (DC voltage range:10÷265V, AC
12÷265Vac 50÷65Hz).
No polarization is needed for the input signal.
The maximum current absorbed by the PUSH interface is about 2mA.
PUSH input drive the intensity.
The dimmer saves the output position in order to restore the set level in case of power failure (preset).
PUSH interface operation
Single Click (rapid press (<1sec))
- Turns on or off the output (ON/OFF).
Double Click (rapid press (<1sec))
- Sets maximum brightness (output= 100%)
Long Press (long press (>1sec))
- If the dimmer is in OFF position, it sets the output to the minimum value (default= 1%)
- If the dimmer is in ON position, the long press enables the output dimming (up/down).
The maximum current absorbed by the PUSH interface is about 2mA.
5 NEWLAB - User Manual PUSHBLEDALICONVERTER
User Manual PUSHBLEDALICONVERTER
BLUETOOTH CONTROL
In order to activate this mode of control/operation it is necessary to install the Newlab Go App on the Android or
iOS device that you want to use for the PUSHBLEDALICONVERTER dimmer control.
The implemented features are:
Switching on and off and the brightness level control of each individual light point.
Ability to group together and control several light points with just a simple command.
Creation and recall of your favourite lighting sceneries.
The system management from a single simplified user interface.
THE BLUETOOTH LE CONNECTION DOES NOT REQUIRE PAIRING PROCEDURE
Newlab Go App features (* depending on the device only some functions may be available)
Dimmer management at 1 or 4 channels with different modes of operation:
- Mono channel
- 4 synchronized channels
- RGB (3 channels or 3 zones)
- RGB + White (4 channels or 4 zones)
- Dynamic White
6 NEWLAB - User Manual PUSHBLEDALICONVERTER
User Manual PUSHBLEDALICONVERTER
In order to install the app on your Apple or Android device you need to scan the desired QRCode to be
automatically redirected to the product data sheet of the Newlab Go application.
As an alternative you can download the app by clicking on one of two links below:
Apple:
https://itunes.apple.com/it/app/newlab-go/id1151044984?mt=8
Android:
https://play.google.com/store/apps/details?id=com.newlablight.newlabgo
There is also a video guide on YouTube at the following link:
https://www.youtube.com/watch?v=R0c7MLK7Cbc
7 NEWLAB - User Manual PUSHBLEDALICONVERTER
