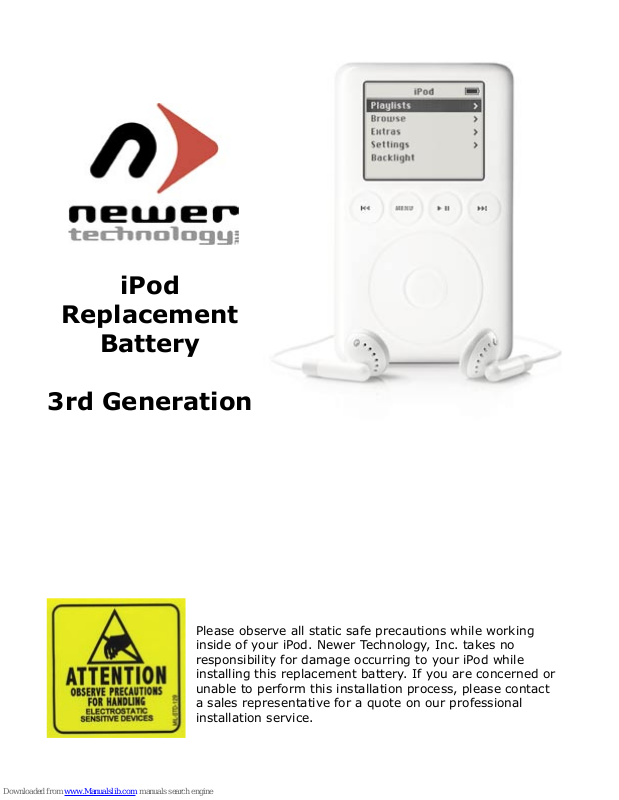

Newer Technology iPod, Replacement Battery Replacement Instructions Manual

iPod

Replacement

Battery

3rd Generation

Please observe all static safe precautions while working
inside of your iPod. Newer Technology, Inc. takes no
responsibility for damage occurring to your iPod while
installing this replacement battery. If you are concerned or
unable to perform this installation process, please contact
a sales representative for a quote on our professional
installation service.

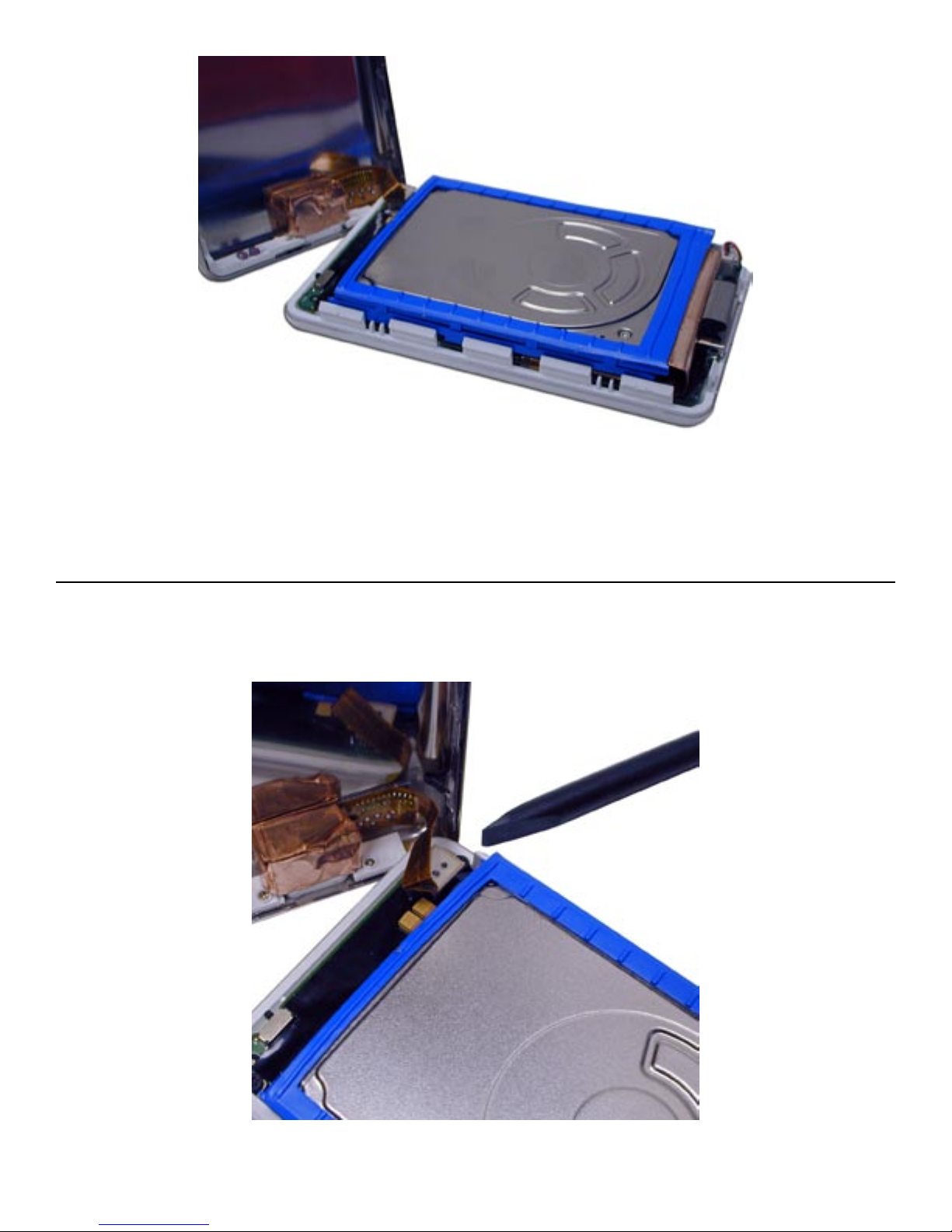

Begin by laying your iPod on it’s back on a soft work surface.

Using the included nylon screwdriver tool, gently insert the pointed end between the
metal back casing and the acrylic front of the iPod, at the middle of the unit at the clip
points shown. You will insert the tool from the face of the unit, pointed toward the back
(metal) portion of the case. Once inserted, work the tool from the center of the unit,
towards the top and bottom (left to right in this picture.

You may find that if, you press inwards on the chrome back along the edge where these
clips are located, you will find one spo

- insert your tool there to begin.

NOTE: This is by far NOT an easy process. Expect to fail repeatedly. Sometimes, a
thumbnail is necessary to begin the process. If the included tool becomes damaged, you
can resharpen it using a razor knife - don’t cut yourself!

t that is a little more forgiving than the rest of it
