SPARE PARTS CATALOG
NK-TVT TEA SERIES
FRESH BREWED TEA BREWERS
NK-TVT TEA SERIES
Fresh Brewed Tea System Dual Dilution/4 Button
22-Jan-13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
2
NK-TVT TEA SERIES
Fresh Brewed Tea System Dual Dilution/4 Button
TABLE OF CONTENT
Base Assembly Pages 4
Cover Assembly Page 5
Valve Assembly Pages 6 & 7
Tank Assembly Pages 7 – 9
Miscellaneous Components Pages 9 – 14
22-Jan-13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
3
NK-TVT TEA SERIES
Fresh Brewed Tea System Dual Dilution/4 Button
ITEM # IMAGE DESCRIPTION UM
Base Assembly
705487
100078
105048
701634
701681
Base & Tray Assembly, NK-TVT 24 5/8”
Bumper Foot With Screw 1 EA.
Screw With Washer, 8-32 x 3/8” PPHMS 1 EA.
Face Plate Base, Single Dispenser 1 EA.
Top, Base GXF-T 24 5/8” 1 EA.
1 EA.
701683
705437
Tray Assembly, Spot Welded Slim Dispenser 1 EA.
Bottom, Base GXF-T 24 5/8” 1 EA.
22-Jan-13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
4
NK-TVT TEA SERIES
Fresh Brewed Tea System Dual Dilution/4 Button
ITEM # IMAGE DESCRIPTION UM
Cover Assembly
705229
100254
110625
110623
110624
Cover Assembly, NK PI
Decal, Warning (Hot Surface) 1 EA.
Cover & Grid Assembly, Plastic Black Pour In 1 EA.
Grid Only, Plastic Black Pour In 1 EA.
Cover Only, Plastic Black Pour In 1 EA.
1 EA.
705748
NK Cover Blank, PI 1 EA.
22-Jan-13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
5
NK-TVT TEA SERIES
Fresh Brewed Tea System Dual Dilution/4 Button
ITEM # IMAGE DESCRIPTION UM

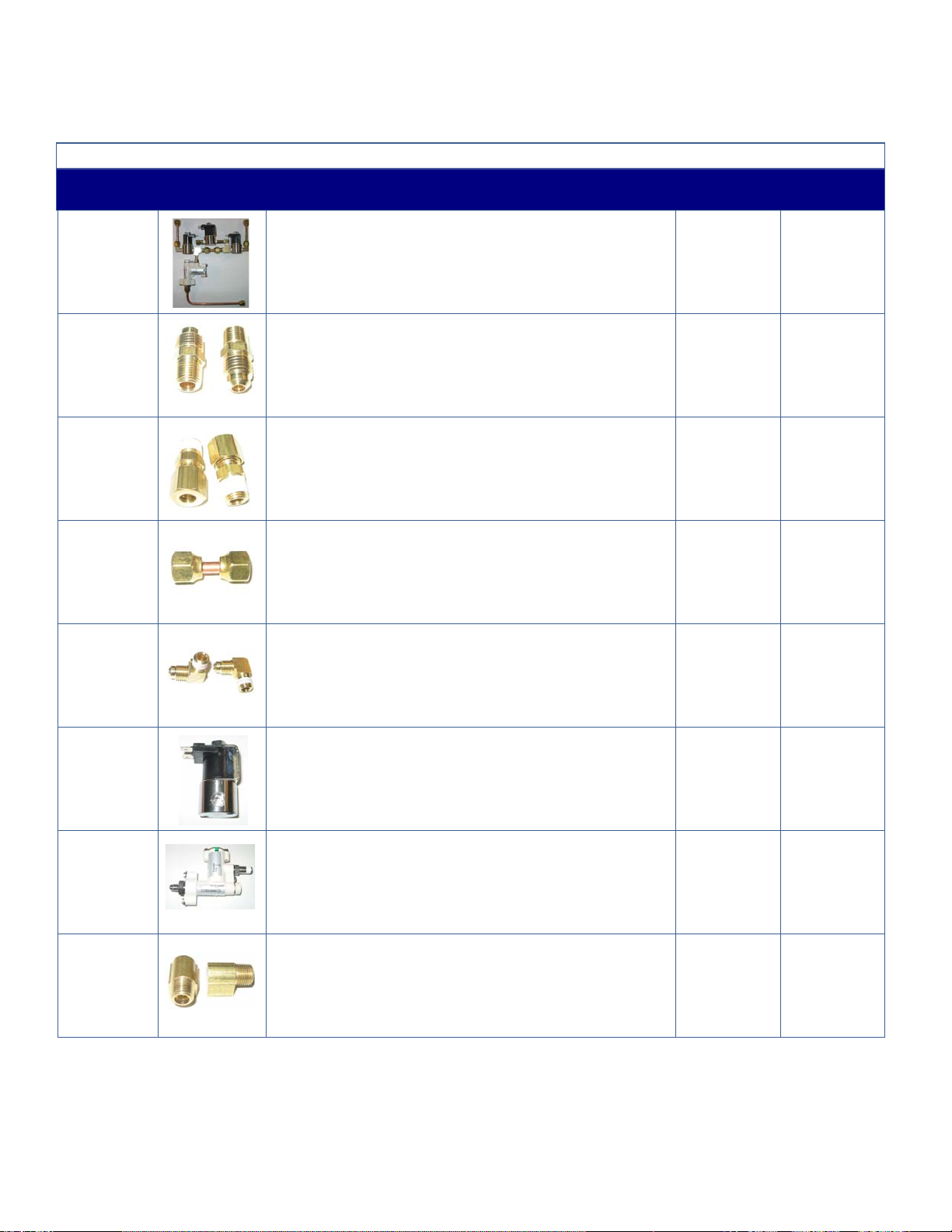

Valve Assembly
705479
100154
100155
100161
100177
Valve Assembly, NKT Dual Dilution
Male Connector, 1/4” F x 1/8” 1 EA.
Male Connector, 1/4" C x 1/8” NPT 1 EA.
Swivel Nut Assembly, 1/4" x .030” x .88” 1 EA.
Male Elbow, 1/4" F x 1/8” NPT
1 EA.
1 EA.
100255
103474
202017
Solenoid Valve, Kip
PDS Valve Assembly, High Flow Flare/Plug/Stem 1 EA.
Street Elbow, 1/8” NPT x 1/8” NPT 1 EA.
22-Jan-13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
6
NK-TVT TEA SERIES
Fresh Brewed Tea System Dual Dilution/4 Button
ITEM # IMAGE DESCRIPTION UM
Valve Assembly - Continued
767105
800043
Tank Assembly
705481
100061
Street Tee, 1/8” NPT x 1/8” NPT x 1/8” NPT 1 EA.
Nipple, 1/8” x 1/8” NPT x 1 1/2"
Tank Assembly, NK-TVT 1750W Dual Dilution
8-32 Nut, Hex SS 1 EA.
1 EA.
1 EA.
704119
704221
705480
100025
Tank Lid Assembly, NK-TVT 1750W Dual Dilution 1 EA.
Tank Only, K 1 EA.
Gasket, Tank Silicone 1 EA.
Spray Head Gasket 1 EA.
22-Jan-13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
7
NK-TVT TEA SERIES
Fresh Brewed Tea System Dual Dilution/4 Button
ITEM # IMAGE DESCRIPTION UM

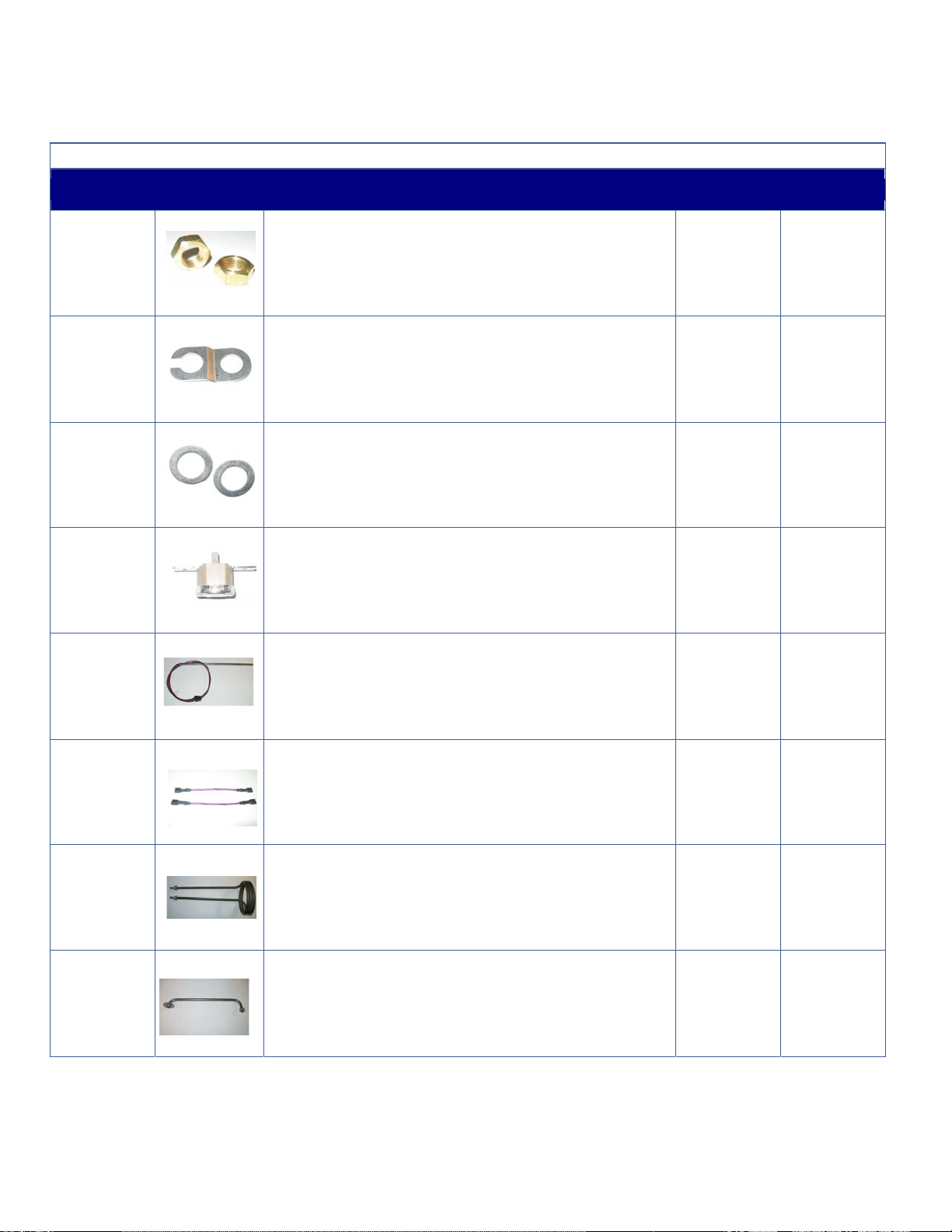

Tank Assembly - Continued
100190
100269
100409
111592
151677
1/2 –20 Jam Nut, Brass 1 EA.
Hi-Limit Thermostat Bracket 1 EA.
Gasket, Brass .520 ID 1 EA.
Manual Thermostat Straight Tabs, 221F 1 EA.
Temperature Probe, Dual Thermistor 7.312” 1 EA.
152198
202025-10
700069
Lead Wire, 14GA Violet-Black 4” Teflon 1S-1S 1 EA.
Heating Element Only, 1750W 120V 1 EA.
Spray Head Tube Assembly, K 1 EA.
22-Jan-13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
8
NK-TVT TEA SERIES
Fresh Brewed Tea System Dual Dilution/4 Button
ITEM # IMAGE DESCRIPTION UM
Tank Assembly - Continued
705214
781555
Miscellaneous Components
100003
100022
Tank Lid Only, NK Pour Over 1 EA.
Gasket, Silicone Delivery-Siphon 1 EA.
Bushing, Snap 3/4" Plastic 1 EA.
Power Cord, 14/3 120V 15 Amp 1 EA.
100054
#8 Lock Washer, External Tooth SS 1 EA.
100065
100163
Screw, 6-32 x 5/16” PPHMS
[Used On The Control Board]
Terminal Block, 120V 1 EA.
100176
Male Connector, 1/4" F x 1/4" F 1 EA.
22-Jan-13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
9
NK-TVT TEA SERIES
Fresh Brewed Tea System Dual Dilution/4 Button
ITEM # IMAGE DESCRIPTION UM

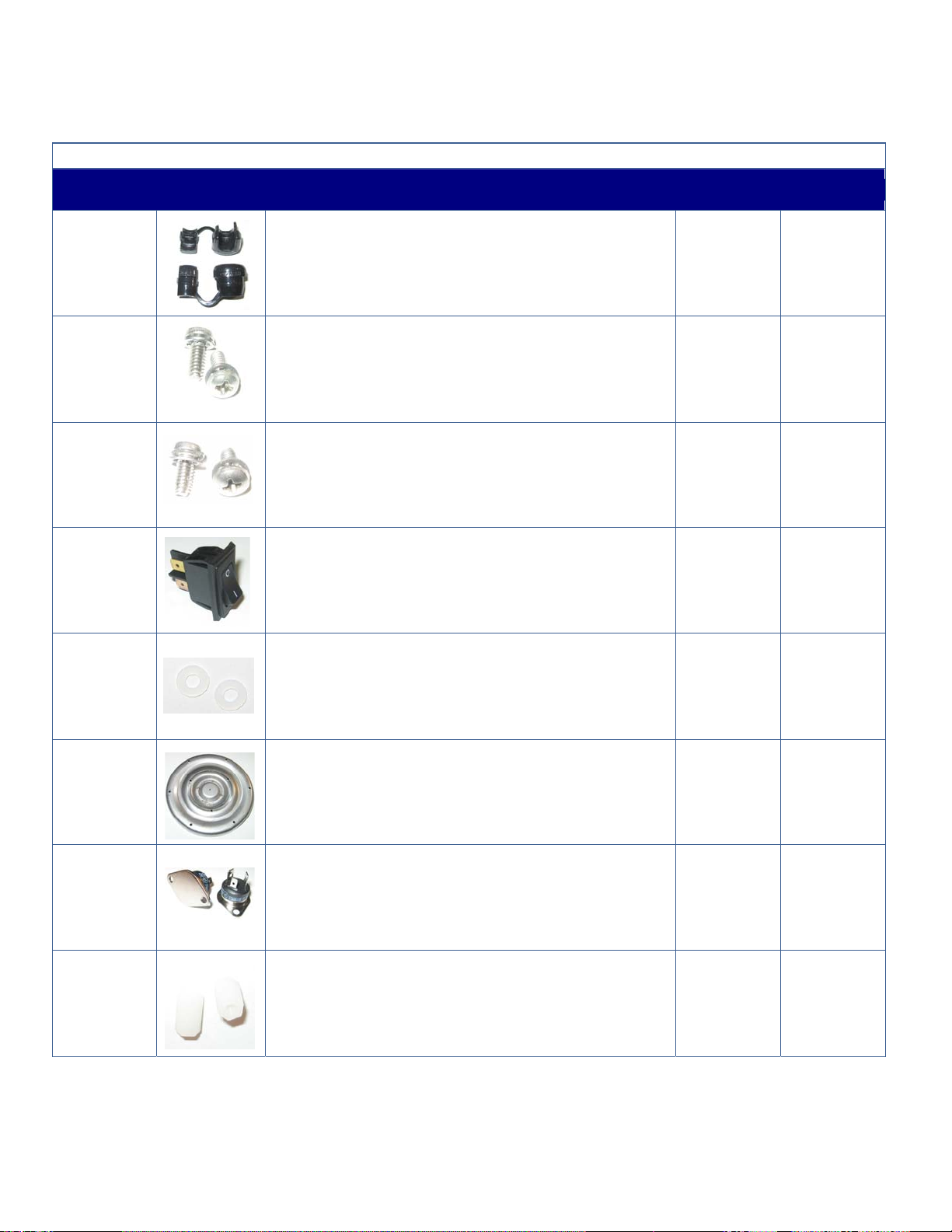

Miscellaneous Components - Continued
101035
105043
105048
110626
110941
Grommet, Strain Relief 14/3
Screw With Washer, 6-32 x 3/8” SS
[Used On The Heat Sink & Triac]
1 EA.
1 EA.
Screw With Washer, 8-32 x 3/8” PPHMS 1 EA.
Switch, Rocker Rectangular DP/ST 1 EA.
Nylon Washer, .151” x .345” x .031”
[Used On The Control Board]
1 EA.
111223
Spray Head, Siphon RD C/H 1 EA.
111684
Triac, 40A 600V 1 EA.
120025
Spacer, Nylon 6-32 x 3/8” Hex 7/16” L
[Used On The Control Board]
22-Jan-13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
10
NK-TVT TEA SERIES
Fresh Brewed Tea System Dual Dilution/4 Button
ITEM # IMAGE DESCRIPTION UM

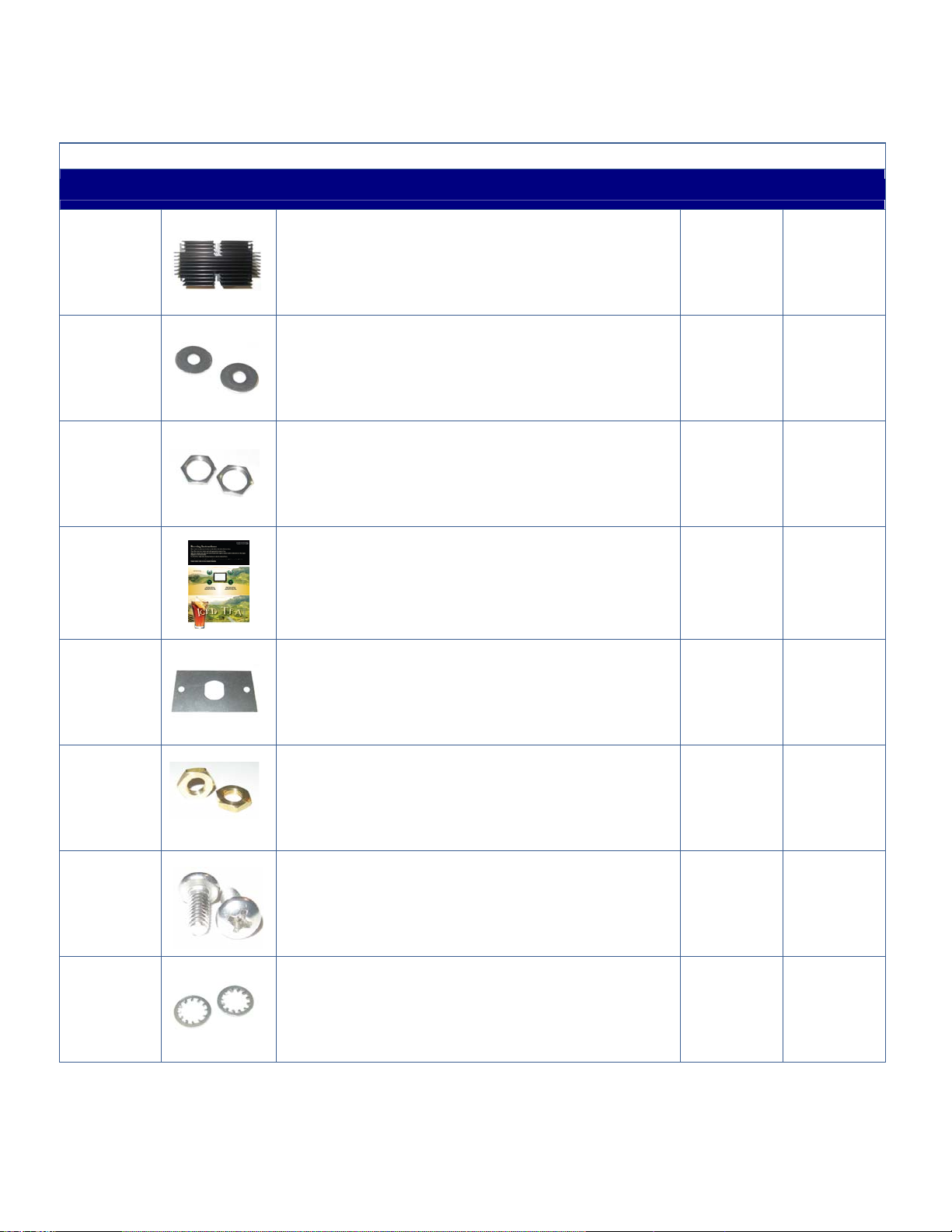

Miscellaneous Components - Continued
121659
152164
201173
400801
511005
Heat Sink, 4/6” x 2.4” x 1.5” 1 EA.
Washer, .218 ID x .562 OD SS 1 EA.
Spray Head Nut, 7/16-20” SS 1 EA.
Label Kit, TVT BBOX 4B NEWCO 1 EA.
Power Cord Plate, 120 V 15 Amp 1 EA.
511023
511027
511046
Brass Nut, 7/16-20” x 11/16” Hex 1 EA.
Screw, 8-32 x 3/8” SPHMS SS 1 EA.
Washer, 7/16” Internal Tooth SS 1 EA.
22-Jan-13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
11
NK-TVT TEA SERIES
Fresh Brewed Tea System Dual Dilution/4 Button
ITEM # IMAGE DESCRIPTION UM

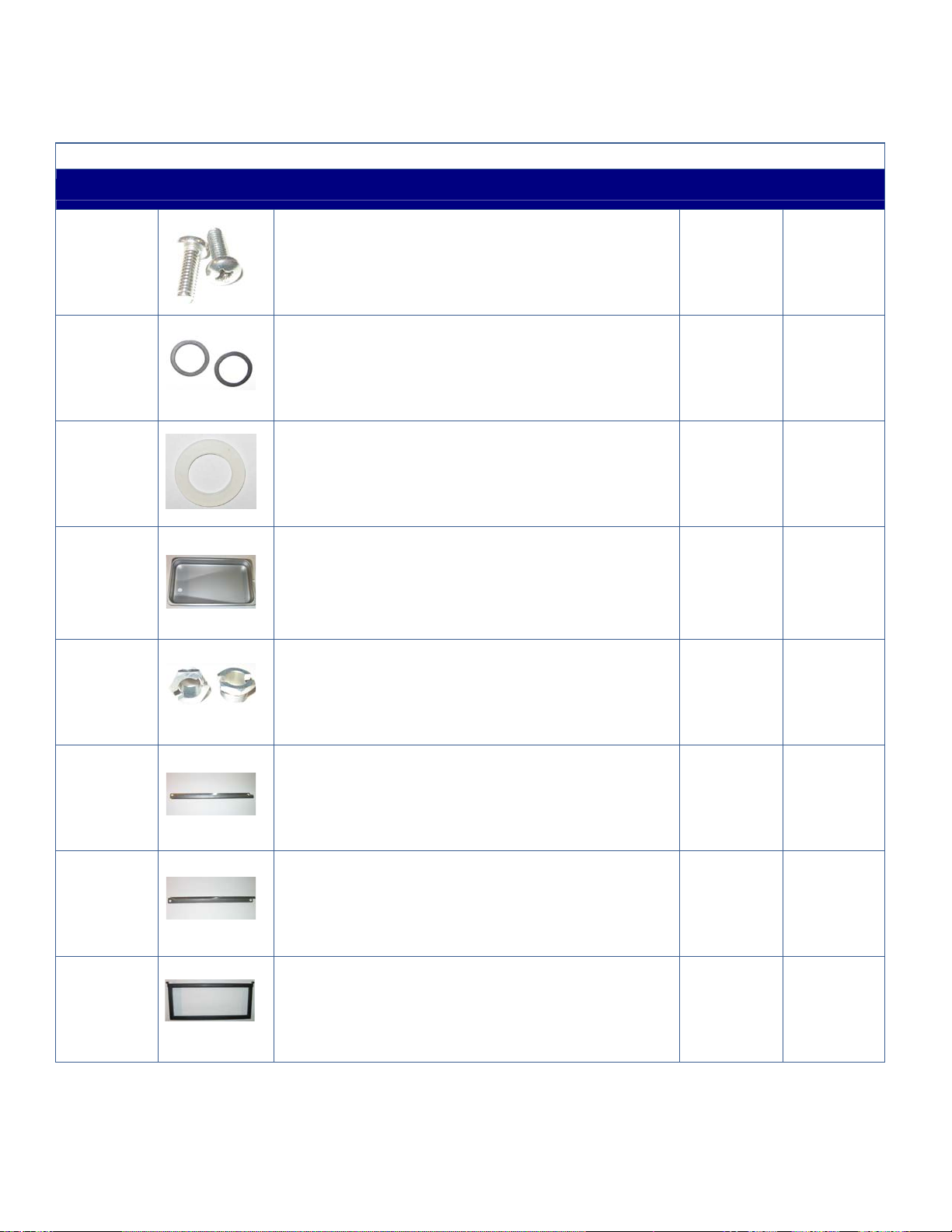

Miscellaneous Components - Continued
511087
700015
700016
700060
701200
Screw, 8-32 x 1/2" SPHMS SS 1 EA.
Washer, 1” OD x 3/4" ID SS 1 EA.
Silicone Gasket, 1.062” OD x .672” ID 1 EA.
Receiving Pan, Auto 1 EA.
Nut, Hex Slotted 3/4-16” 1 EA.
701319
701676
705186
LH Brew Rail 1 EA.
RH Brew Rail
Frame, NK Branding Cover 1 EA.
22-Jan-13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
12
NK-TVT TEA SERIES
Fresh Brewed Tea System Dual Dilution/4 Button
ITEM # IMAGE DESCRIPTION UM

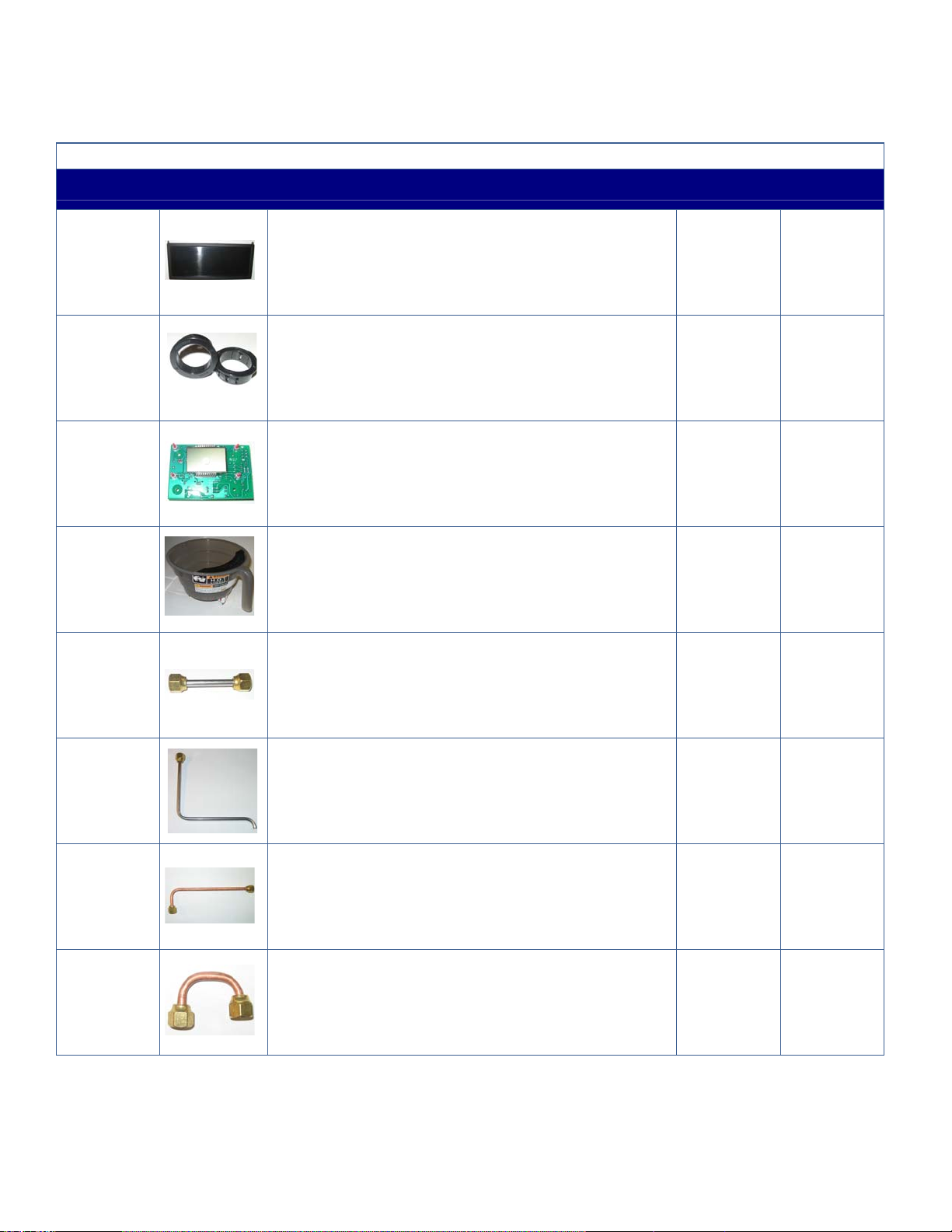

Miscellaneous Components - Continued
705225
705228
705473
800801
701346
Cover, Brand K/NK Without Faucet 1 EA.
Bushing, Snap 1 1/8” 1 EA.
Control Board, TVT 4 Button 1 EA.
Brew Basket, Dual Dilution Trimmed 1 EA.
Tube Assembly, 1/4 ” x .028” x 1.875 SS 1 EA.
705012
705484
705485
Tube Assembly, External Dilution SS
Tube Assembly, Inlet NK-TVT DD 8” 1 EA.
Tube Assembly, NK-TVT DD 3.19” 1 EA.
22-Jan-13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
13
NK-TVT TEA SERIES
Fresh Brewed Tea System Dual Dilution/4 Button
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components - Continued
705486
705886
100284
Tube Assembly, NK-TVT DD 3.5” 1 EA.
Tube Assembly, Copper 1/4" x 3.75” 1 EA.
Plastic Tie Wrap, 5 3/4" 1 EA.
