MODEL: LCD-1
HOT LIQUID COFFEE
DISPENSING UNIT
“FRESH COFFEE AT THE
TOUCH OF A BUTTON”
SPARE PARTS CATALOG
LCD-1
HOT LIQUID COFFEE DISPENSING MACHINE
26-Sep-12 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
2
LCD-1
HOT LIQUID COFFEE DISPENSING MACHINE
TABLE OF CONTENTS
Door Assembly Pages 4 - 5
Pump Assembly Page 6
Tube Assemblies, BIB & Others Page 7
Valve Assembly Page 8
Tank Assembly Pages 9 – 12
Miscellaneous Components Pages 13 - 18
26-Sep-12 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
3
LCD-1
HOT LIQUID COFFEE DISPENSING MACHINE
ITEM # IMAGE DESCRIPTION UM
Door Assembly
121298-BPC
100192
102333
105043-B
111668
Door Assembly, LCD-1 BPC
Rivet, Pop SS 1 EA.
Screw, 6-32 x 3/8” Combo Head Self Tapping SS 1 EA.
Screw, 6-32 x 3/8” With Washer PPHMS Black 1 EA.
Nut, 6-32 Acorn Locking SS 1 EA.
1 EA.
120350
121297
121301
Membrane Switch, 7 Button LCD 1 EA.
Hinge, Door LCD-1 1 EA.
Magnet, Door 1 EA.
26-Sep-12 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
4
LCD-1
HOT LIQUID COFFEE DISPENSING MACHINE
ITEM # IMAGE DESCRIPTION UM
Door Assembly - Continued
121302
121308
121318-BPC
121320
121321
Bumper, Clear 11/32” x 5/64” 1 EA.
Bracket, Display Board LCD-1 1 EA.
Panel, Door With Lock BPC LCD-1 1 EA.
Label, Hot Coffee LCD-1 1 EA.
Label, Switch Hot Coffee LCD-1 1 EA.
121402
201265
Board Assembly, Display LCD-1 1 EA.
Plug, DD .750” x .625” Plastic Black 1 EA.
26-Sep-12 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
5
LCD-1
HOT LIQUID COFFEE DISPENSING MACHINE
ITEM # IMAGE DESCRIPTION UM
Pump Assembly
104155
104204
107151
120391
120428
Pump Head Assembly, LCD-2 1 EA.
Tubing, Neoprene .117 x .197 x 13 5/8” [121405] 1 EA.
Tube/Hose, Barb 1/4 x 3/16 1 EA.
Tube/Hose, 1/4 x 3/16 Modified [107151] 1 EA.
Mounting Bracket, Pump LCD-2 1 EA.
121404
121406
500024
Spring, 5.5” Peri Pump LCD 1 EA.
Spring, 4.0” Peri Pump LCD 1 EA.
Screw, 2.6 mm x 5.0 mm FHMS SS 1 EA.
26-Sep-12 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
6
LCD-1
HOT LIQUID COFFEE DISPENSING MACHINE
ITEM # IMAGE DESCRIPTION UM

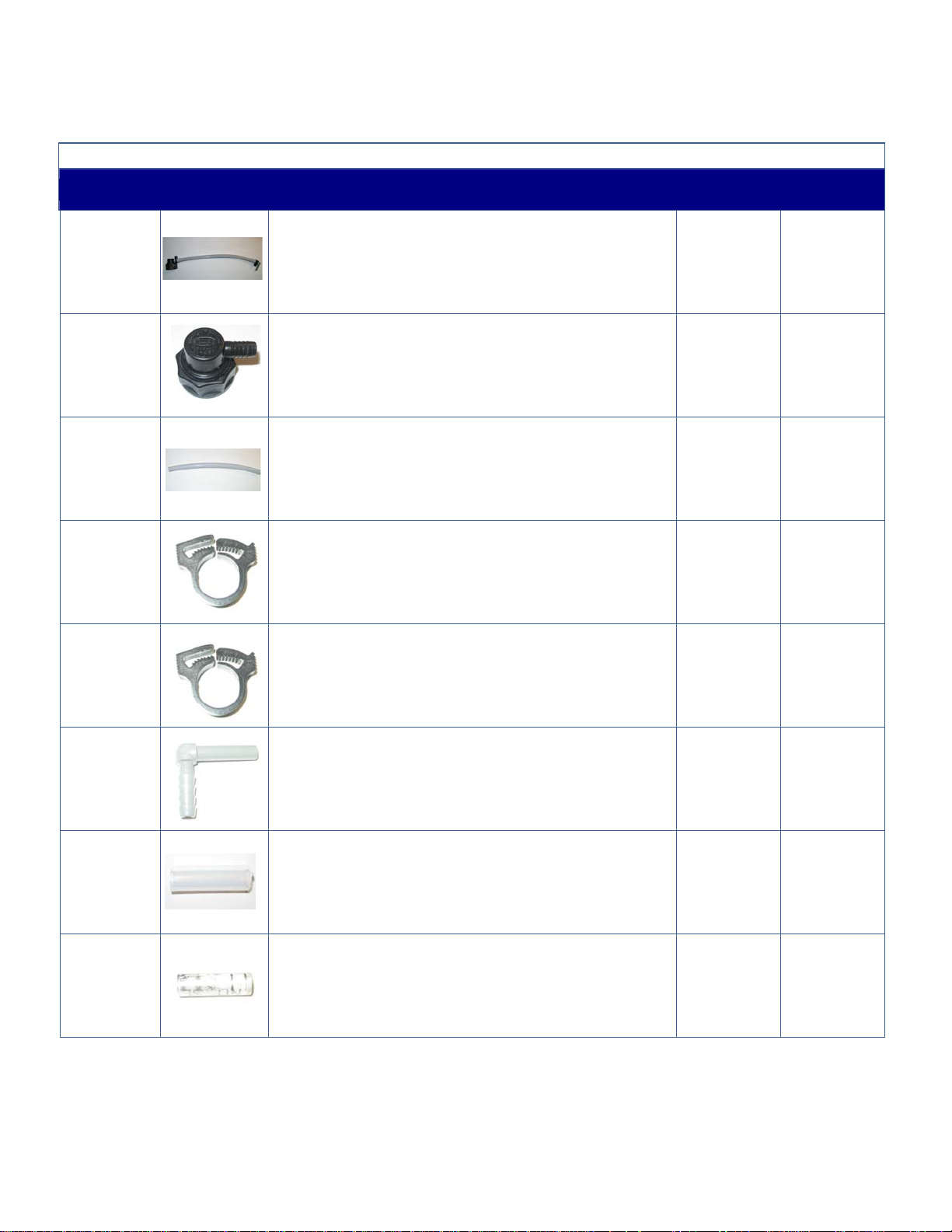

Tube Assemblies, BIB & Others
120422
107117
120383
120683
120864
Tube Assembly, BIB 12.00”
Connector, Scholle 1910L 1 EA.
Silicone Tubing, Grey 1/4 x 1/2 x 12.00” [111240] 1 EA.
Clamp, SNP6-10C2 Black [Small] 1 EA.
Clamp, SNP8-10C2 Black [Large] 1 EA.
1 EA.
205189
111816
121315
Tube, Silicone 3/8” x 1/2" x 1.5” [102544] 1 EA.
Elbow, 1/4 x 1/4 Trimmed 1 EA.
Tubing, SS .312 x .020 x 1.00” [100966]
26-Sep-12 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
7
LCD-1
HOT LIQUID COFFEE DISPENSING MACHINE
ITEM # IMAGE DESCRIPTION UM
Valve Assembly
120378
100177
101377
201175
202103
Valve Assembly, LCD-1
Elbow, Male 1/4F x 1/8P 1 EA.
Fitting, Solenoid 1/8P 1 EA.
Valve, Solenoid .50 Restrictor N&GA 1 EA.
Strainer/Flow Control Body With Caps, Only
1 EA.
1 EA.
110114
790019
706452
Flow Control Screen, PDS 1 EA.
Nylon Gasket, Flow Control 1 EA.
Label, Arrow Check Valve 1 EA.
26-Sep-12 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
8
LCD-1
HOT LIQUID COFFEE DISPENSING MACHINE
ITEM # IMAGE DESCRIPTION UM
Tank Assembly
120688
100003
100054
100061
100284
Tank Assembly, 1600W LCD-1
Snap On Bushing 3/4" Plastic 1 EA.
Lock Washer, #8 SS
1 EA.
1 EA.
Nut, 8-32 Hex SS 1 EA.
Tie, Plastic 5 3/4" 1 EA.
103579
111634
111635
Plug Tank, MOO 1 EA.
Hose Clamp, .459ID 1 EA.
Hose Clamp, .574ID 1 EA.
26-Sep-12 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
9
LCD-1
HOT LIQUID COFFEE DISPENSING MACHINE
ITEM # IMAGE DESCRIPTION UM
Tank Assembly - Continued
120533
120577
120584
120898
120899
Silicone Tubing, 1/4" x 1/2" x 16.00” [781871] 1 EA.
Silicone Tubing, 5/16” x 7/16” x 20.00” [120576] 1 EA.
Silicone Tubing, 5/16” x 7/16” x 12.00” [120576] 1 EA.
Tank Only, Insulated LCD-1 1 EA.
Tank Lid Assembly, 1600W LCD-1 1 EA.
100269
101938
500398
Bracket, Hi-Limit Thermostat 1 EA.
Silicone Grommet, .359” ID x .875” OD 1 EA.
Probe Assembly, 1.818” With Bushing 1 EA.
26-Sep-12 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
10
LCD-1
HOT LIQUID COFFEE DISPENSING MACHINE
ITEM # IMAGE DESCRIPTION UM
Tank Assembly - Continued
111593
120927
120928-10
151677
400001
Hi Limit Thermostat, Vertical Tabs 221F 25A 1 EA.
Tank Lid Only, Punched LCD-1 1 EA.
Element Tank, 1650W 120V LCD-1 1 EA.
Temperature Probe, Dual 7.312” 1 EA.
Washer, SS Element [120928-10] 1 EA.
500038
500350
120929
Silicone Grommet, No Slit .060 1 EA.
Silicone Grommet, Probe 1 EA.
Tank Gasket Only, LCD-1 1 EA.
26-Sep-12 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
11
LCD-1
HOT LIQUID COFFEE DISPENSING MACHINE
ITEM # IMAGE DESCRIPTION UM
Tank Assembly - Continued
121336
121342
121348
411039
102068
Mounting Bracket, Tank LCD-1 1 EA.
Label, 4 Pcs. Tank LCD-1 C/HW/W/D 1 EA.
Silicone Tube Right Angle 7” [121347] 1 EA.
Hose Clamp, .510ID 1 EA.
Valve, Dump 120V Deltrol 1 EA.
26-Sep-12 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
12
LCD-1
HOT LIQUID COFFEE DISPENSING MACHINE
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components
100003
100054
100061
100078
100161
Snap On Bushing, 3/4" Plastic 1 EA.
Lock Washer, #8 SS
1 EA.
Nut, 8-32 Hex SS 1 EA.
Foot, bumper With Screw 1 EA.
Tube Assembly, Copper 1/4' x .030” x .88” 1 EA.
100190
100191
100192
Jam Nut, 1/2 – 20 Brass 1 EA.
Nut, 6-32 Hex SS 1 EA.
Pop Rivet, SS 1 EA.
26-Sep-12 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
13
LCD-1
HOT LIQUID COFFEE DISPENSING MACHINE
ITEM # IMAGE DESCRIPTION UM

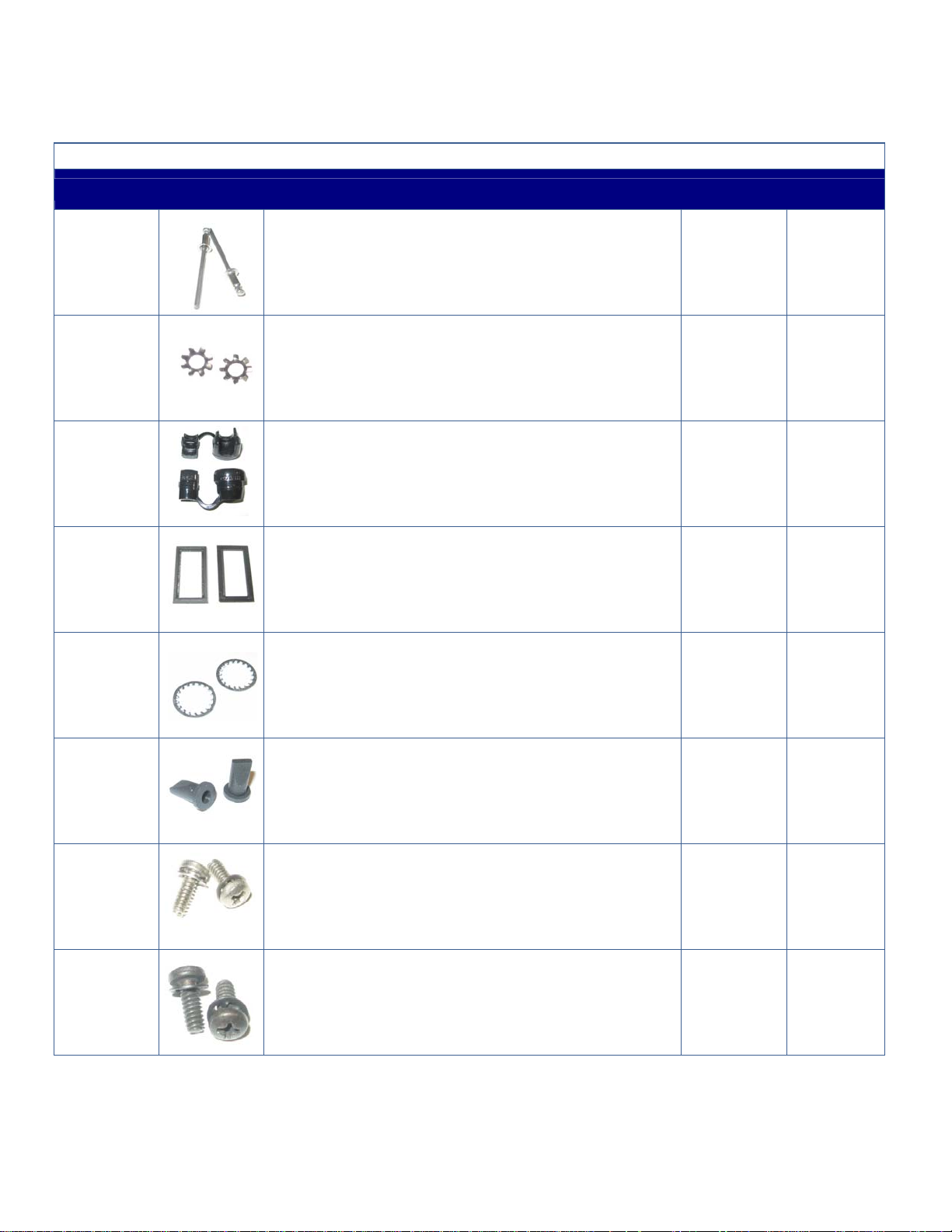

Miscellaneous Components - Continued
100194
100212
101035
104015
104137
Pop Rivet, SS Flat Head 1 EA.
#6 Lock Washer, External Tooth SS 1 EA.
Grommet, Strain Relief 14/3 1 EA.
Bezel, Adaptor Black Plastic 1 EA.
Washer, Star Lock .690 ID 1 EA.
104151
105043
105043-B
Check Valve, Duck .301 x 0.656 1 EA.
6-32 x 3/8” PPHMS With Washer SS 1 EA.
6-32 x 3/8” PPHMS With Washer Black 1 EA.
26-Sep-12 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
14
LCD-1
HOT LIQUID COFFEE DISPENSING MACHINE
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components - Continued
105048
105115
107331
110626
110958
Screw, 8-32 x 3/8” Washer PPHMS SS 2 EA.
Transformer, 120VP 24VCT 40VA 1 EA.
Tee, hose 3/8” KYNAR 1 EA.
On – Off Switch, Power 1 EA.
Relay, 12V DC 1 EA.
111634
120436
120575
Hose Clamp, .459ID 1 EA.
Spring Retainer Clip, Mix Chamber 1 EA.
Plug, Tank Drain 5/16” Tube 1 EA.
26-Sep-12 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
15
LCD-1
HOT LIQUID COFFEE DISPENSING MACHINE
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components - Continued
120578
120580
120581
120585
121294
Clamp, Drain LCD-1 1 EA.
Lead Wire, 14GA Violet/Black Teflon 2-2 1 EA.
Lead Wire, 14GA Violet/Black Teflon 1S-2 1 EA.
Control Board Assembly, LCD-1 1 EA.
Mixing Chamber, Double Stem One Out 1 EA.
121295
121296
121304
Mounting Bracket, Mixing Chamber 1 EA.
Lower Panel, Front LCD-1 1 EA.
Drip Tray Only, LCD-1 1 EA.
26-Sep-12 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
16
LCD-1
HOT LIQUID COFFEE DISPENSING MACHINE
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components - Continued
121305
121306
121307
205083
511050
Grid Only, Drip Tray LCD-1 1 EA.
Cover Only, LCD-1 1 EA.
Rear Panel, LCD-1 1 EA.
Bulkhead Union, 1/4" Tube 1 EA.
Snap On bushing, Split 3/4" 1 EA.
700021
701309
Nut, Knurled 8-32 Brass 1 EA.
Screw, 6-32 x 1/2" Internal Washer 1 EA.
781040
Bulkhead, Cappuccino Water 1 EA.
26-Sep-12 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
17
LCD-1
HOT LIQUID COFFEE DISPENSING MACHINE
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components - Continued
781533
781843
800204
111177
Screw, 8-32 x 7/8” PPHMS SS 1 EA.
Power Cord, 14/3 With Shrink 1 EA.
Elbow, Outlet BF 1 EA.
Nut, For Valve Assembly [120378] 1 EA.
26-Sep-12 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
18
LCD-1
HOT LIQUID COFFEE DISPENSING MACHINE
26-Sep-12 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
19
LCD-1
HOT LIQUID COFFEE DISPENSING MACHINE
26-Sep-12 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
20
