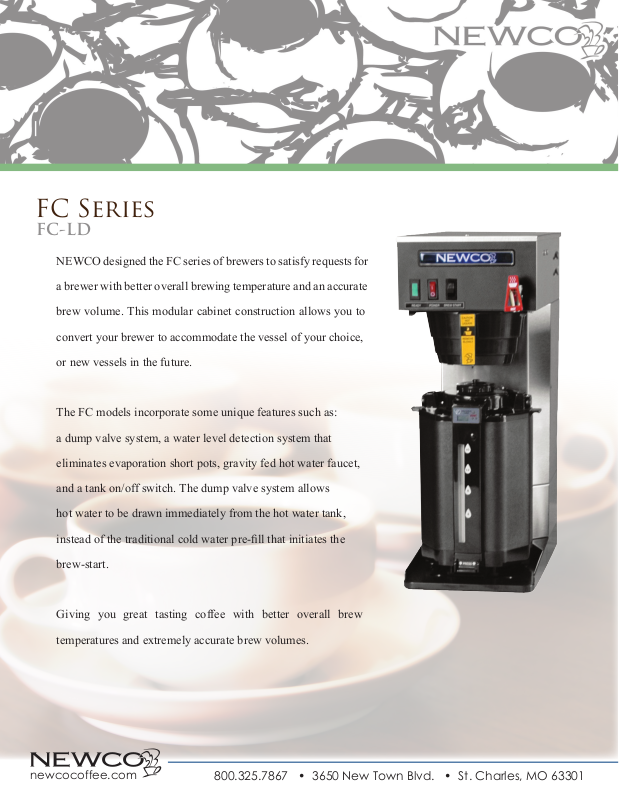

Newco FC-LD User Manual
FC Series
FC-LD
NEWCO designed the FC series of brewers to satisfy requests for
a brewer with better overall brewing temperature and an accurate
brew volume. This modular cabinet construction allows you to
convert your brewer to accommodate the vessel of your choice,
or new vessels in the future.
The FC models incorporate some unique features such as:
a dump valve system, a water level detection system that
eliminates evaporation short pots, gravity fed hot water faucet,
and a tank on/off switch. The dump valve system allows
hot water to be drawn immediately from the hot water tank,
instead of the traditional cold water pre-ll that initiates the
brew-start.
Giving you great tasting coffee with better overall brew
temperatures and extremely accurate brew volumes.
newcocoffee.com
800.325.7867 • 3650 New Town Blvd. • St. Charles, MO 63301
FC Series
AUTO-ARM:
Pre-checks water temperature before brewing to ensure optimum brew temperature.
FC-LD
STYLE: Automatic
BREW OPERATIONS: Analog / Digital timer
HEATING SYSTEM: Tank Reservoir
WATER DELIVERY: Dump
TANK SYSTEM: Open
VOLTAGE: 120V or 120V/240V Only
CABINET: Modular
FLOW REGULATION: Flow Washer
BACKUP POUR IN: No
FAUCET: Gravity
READY LIGHT:
Provides visual notication to user as to when brewer is at optimum temperature.
GRAVITY FED HOT WATER FAUCET:
Provides larger volume of hot water for allied products. Faucet can be used during a brew cycle
without adversely aecting pot level.
SMART BASE DESIGN:
ermal base designed to accommodate several dierent vessels which provides more exibility when
choosing a thermal dispenser. Smart base design easily centers each thermal vessel directly under the
brew basket.
DUMP VALVE OPERATION:
Faster overall brew cycle. Dump valve operation provides more consistent brew volumes under erratic
water pressure conditions. Coee prole will remain more consistent once set.
EASE OF SERVICE:
Components are located in the top of the machine. Eliminates the need to pull machines from locations
and disconnect water in order to make minor adjustments or repairs.
Item # Model H W D Ship Wt. Volts Watts Amps Volts Watts Amps
101893 FC-LD 21.2 8.5 16.4 28 120 1750 14.6 120 1400 12.5
