Newco FC-3S User Manual

SPARE PARTS CATALOG
FC-S3 FC-5 FC-3 FC-TD FC-AP FC-LD FC-S
FC SERIES BREWERS
FC-TS
FC SERIES
7
13
27
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
TABLE OF CONTENT
Base Assemblies Pages 3 - 5 Cover Assemblies Pages 6 ­Tank Assemblies Pages 8 ­Fill Tube Assembly
Page 14
Valve Assembly With Bracket
Pages 14 - 16
Valve Assembly With Spray Head Tube
Pages 17 – 18
Miscellaneous Components Pages 19 –
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
2
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM
Base Assemblies
101985-B
121210-B
110385
100003
100010
Base Assembly, 3 Station Black
[FC-3 Model Only]
Base Assembly, 1 Station Black
[FC-S3 Model Only]
Base, LDR 8.5” Wide Black
[FC-S, FC-AP, FC-LD, FC-TD & FC-TS Models Only]
Snap On Bushing, 3/4" Black Plastic 1 EA.
Warming Plate Assembly Black 1 EA.
1 EA.
1 EA.
1 EA.
100008
100054
100061
Porcelain Plate, Black With Studs 1 EA.
#8 Lock Washer, External Tooth SS 1 EA.
8-32 Nut, Hex SS 1 EA.
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
3
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM
Base Assemblies - Continued
100086
100187
100078
100160
100254
Support Plate, Warming Element 1 EA.
Warming Element, 100W 120V Short
[Recommended Stocking Part]
Bumper Foot With Screw 1 EA.
Screw, 4-40 x 5/8” SPHMS SS 1 EA.
Decal, Warning “Hot Surface” 1 EA.
1 EA.
101896
101897
102333
Screw, Combo Head 6-32 x 3/8” SS
Stove Top
[FC-3 Only]
Louver Plate
[FC-3 Only]
[FC-3 Only]
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
1 EA.
1 EA.
4
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM
Base Assemblies - Continued
102811
102814
102792
102794
102826
Base Top, 3 Station Blank
[FC-3 Only]
1 EA.
Base Bottom, 3 Station Spot Welded
[FC-3 Only]
1 EA.
Base, Top 1-Station Ace Blank
[FC-S3 Only]
1 EA.
Base Bottom, Blank 1 Station ACE
[FC-S3 Only]
1 EA.
Face Plate, Base 3 Station SS
[FC-3 Only]
1 EA.
102826-B
Face Plate, Base 3 Station Black
[FC-3 Only]
102825
Face Plate, Base 1 Station SS
[FC-S3 Only]
102825-B
Face Plate, Base 1 Station Black
[FC-S3 Only]
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
1 EA.
1 EA.
5
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM
Covers
109968
109964
100003
100010
100008
Cover Plain, Thermal
[FC-3, FC-TD, FC-AP, FC-LD, FC-S Only]
Cover Assembly, 2 Station Step Up
[FC-S3 Only]
Snap On Bushing, 3/4" Black Plastic 1 EA.
Warming Plate Assembly Black 1 EA.
Porcelain Plate, Black With Studs 1 EA.
1 EA.
1 EA.
100054
100061
100086
#8 Lock Washer, External Tooth SS 1 EA.
8-32 Nut, Hex SS 1 EA.
Support Plate, Warming Element 1 EA.
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
6
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM
Covers – Continued
100187
100160
100254
102333
104304
Warming Element, 100W 120V Short
[Recommended Stocking Part]
Screw, 4-40 x 5/8” SPHMS SS 1 EA.
Decal, Warning “Hot Surface” 1 EA.
Screw, Combo Head 6-32 x 3/8” SS 1 EA.
Cover Only, 2 Station Step Up Blank
[FC-S3 Only]
1 EA.
1 EA.
705370
NK Stove 2 Station Cover
[FC-S3 Only]
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
7
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM
Tank Assemblies
101995
103395
120027
100043
100054
Tank Assembly, FC 1400W 120V
[FCAP/LD, FC-3, & FC-S3]
Tank Assembly, FC 1750W 120V
[FC-AP, FC-LD, FC-S, & FC-TD Only]
Tank Assembly, FC-TS 1750W 120V
[FC-TS Only]
Thermostat Knob 1 EA.
#8 Lock Washer, External Tooth SS 1 EA.
1 EA.
1 EA.
1 EA.
100061
101720
100149
Female Connector, 3/8” C x 1/8” NPT 1 EA.
Male Elbow, 1/4" C x 1/8” NPT S&N 1 EA.
8-32 Nut, Hex SS 1 EA.
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
8
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM
Tank Assemblies - Continued
100166
100170
100190
100209
100269
Sleeve, 3/8” Compression Brass
[Inlet & Spray Head Tube]
Nut, 3/8” Compression Brass
[Inlet & Spray Head Tube]
Jam Nut, 1/2 – 20” Brass 1 EA.
Capillary Clip, Thermostat 1 EA.
Hi Limit Thermostat Bracket 1 EA.
1 EA.
1 EA.
100409
100431
100030
Gasket Brass, .520” ID Tinplated 1 EA.
Nut, Brass 9/16-24” x 11/16” Hex Tinplated 1 EA.
Gasket, Brass .566” ID Tinplated 1 EA.
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
9
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM

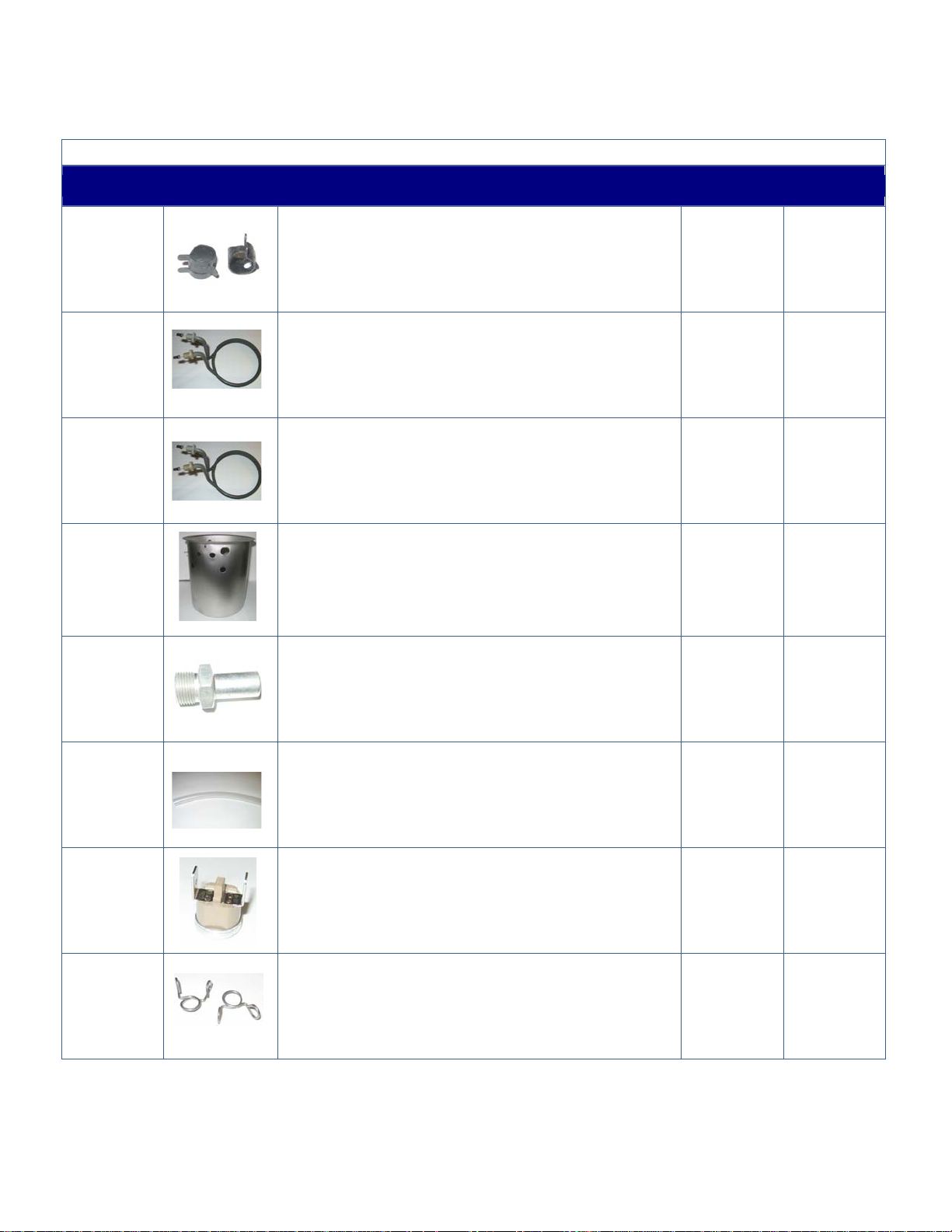

Tank Assemblies - Continued
100440
102580
100071
101863
102835
Hose Clamp, LP Brewers 1 EA.
Heating Element, 1400W 120V
[FC-3, FC-S3, & FCAP/LD Only]
[Recommended Stocking Part]
Heating Element, 1750W 120V
[FC-AP, FC-LD, FC-S, FC-TD, FC-TS Only]
[Recommended Stocking Part]
Tank Only, 6Y Faucet
[FC-3, FC-S3, FC-AP, FC-LD, FC-S, FC-TD, & FC-AP/LD Only]
Bulkhead Fitting, Faucet Outlet Tinplated 1 EA.
1 EA.
1 EA.
1 EA.
152131
Silicone Tubing 3/8” x 5/8” x 9.50” [152213] 1 EA.
111593
Manual Thermostat Vertical Tab 221F 25A
[Recommended Stocking Part]
111635
Hose Clamp, .574” ID 1 EA.
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
10
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM

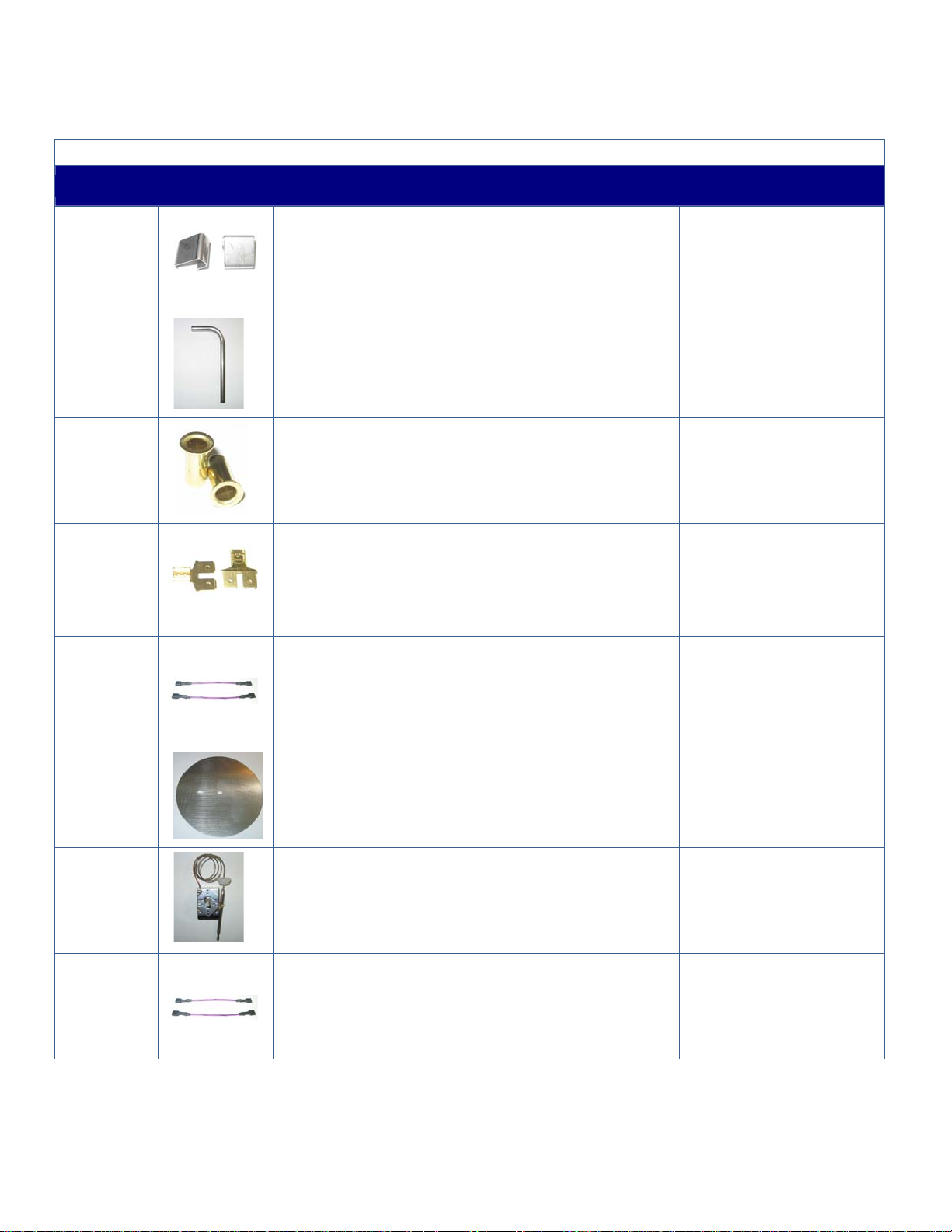

Tank Assemblies - Continued
120729
152701
201112
201178
311045
Tank Clip, ACE – FC Brewers 1 EA.
Tube, SS 3/8” x .028” x 2.0” x 5.53” x 90 Degrees 1 EA.
Brass Insert, 1/4" ID Tube Tinplated 1 EA.
Male Adaptor, Double .250 1 EA.
Lead Wire, 14GA Violet – Black 6” Teflon 1S – 1S 1 EA.
700387
704215
108215
Thermostat, Main Assembly I/H KP121524 4.78”
Lead Wire, 14GA Violet – Black 7” Teflon 1S – 1S 1 EA.
Plate, Heat Spreader Aluminum 1 EA.
[Recommended Stocking Part]
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
11
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM

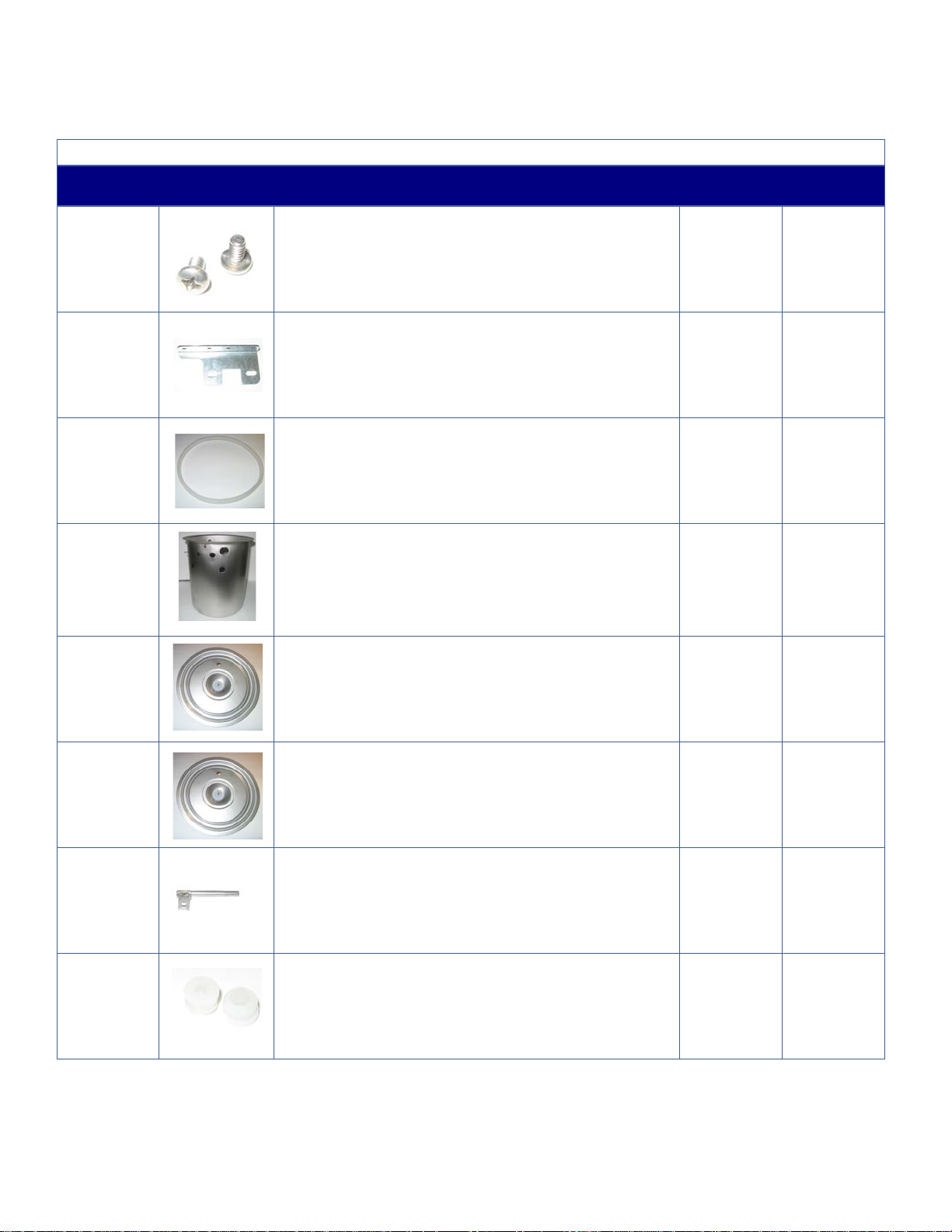

Tank Assemblies - Continued
110666
704217
781181
101862
101988
Screw, 6-32 x 1/4 “ PPHMS SS [Thermostat] 1 EA.
Thermostat Bracket, RS ACE/FC 1 EA.
Silicone Gasket, Tank 23” 1 EA.
Tank Only, 6Y Faucet
[FC-TS Only]
Tank Lid Assembly, FC/MK
[FC-3, FC-S3, FC-AP, FC-LD, FC-S, FC-TD, & FC-TS Only]
1 EA.
1 EA.
110979
500354
108441
Tank Lid Assembly With Probe, BBCW
[FCAP/LD Only]
Probe, 1.537” Passivated 1 EA.
Plug, Tank Cover Silicone Natural Vented 1 EA.
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
12
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM

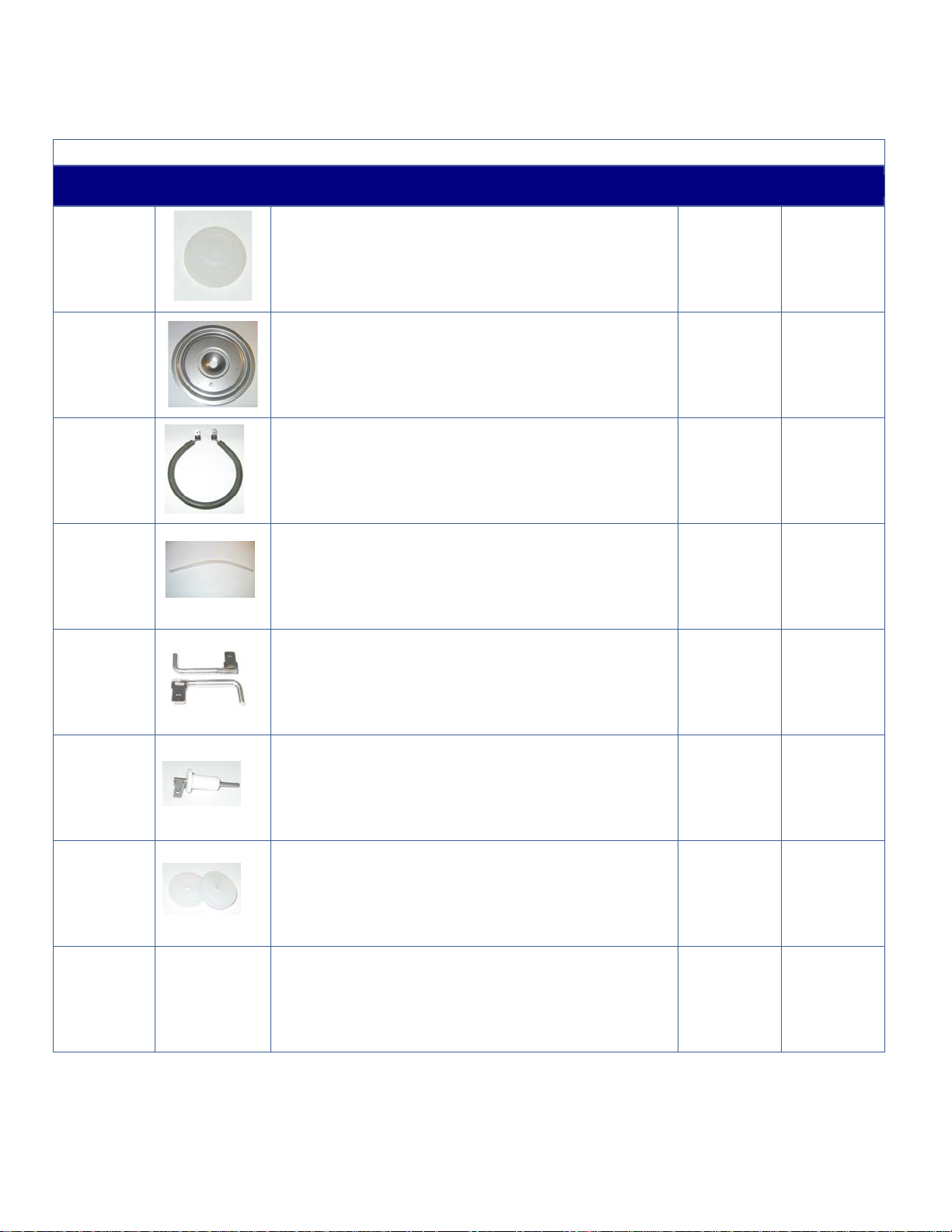

Tank Assemblies - Continued
500038
121848
100642
104049
500378
Silicone Grommet, No Slit .060 1 EA.
Lid Only, Punched 1 EA.
Warming Element, 100W 220V
[Recommended Stocking Part]
Silicone Tubing, 1/4 “ x 3/8” x 6.00” [152218] 1 EA.
Probe, 90x1.75”x.560 Passivated
[FCAP/LD Only]
1 EA.
1 EA.
500396
500350
Probe Assembly, 1.537” With Bushing 1 EA.
Grommet, Probe Bushing 5/16” 1 EA.
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
13
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM
Fill Tube Assembly – Teflon
101991
103400
110944
110946
202044
Fill Tube Assembly FC Series – Teflon
[FC-3, FC-S3, FC-AP, FC-LD, FC-S, FC-TD, & FC-AP/LD Only]
Teflon Tube, 3/16” x 1/4" x 13.00” [100445] 1 EA.
Sleeve, 1/4" Self Aligning Brass 1 EA.
Nut, 1/4" Self Aligning Compression Brass 1 EA.
Insert, Tubing 3/16” Tin Plated 1 EA.
1 EA.
Valve Assembly With Bracket
104651
100149
100154
[FC-3, FC-S3, FC-AP, FC-LD, FC-S, FC-TD, & FC-AP/LD Only]
Valve Assembly With Bracket, FC
Male Elbow, 1/4" C x 1/8” NPT S&N 1 EA.
Male Connector, 1/4" F x 1/8” NPT 1 EA.
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
14
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM
Valve Assembly With Bracket - Continued
100255
104650
100292
100294
100299
Kip Solenoid Valve
[Recommended Stocking Part]
Flow Control Assembly, .750 GPM Fl x Fl [101750] 1 EA.
1 EA.
Flow Control Washer, .750 GPM Pink
[Recommended Stocking Part]
1 EA.
Flow Control Cap, 1/4" Flare 1 EA.
Flow Control Screen 1 EA.
202052
790019
101993
Flow Control Body, 1/4' Flare 1 EA.
Flow Control Gasket, Nylon 1 EA.
Solenoid Bracket, FC 1 EA.
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
15
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM
Valve Assembly With Bracket - Continued
104225
700905
120741
100149
100250
Screw, 10-32 x 1/4" PPHMS Washer SS 1 EA.
Swivel Nut Assembly, 1/4” x .030” x 1.25” x 1.25” 90 Deg. 1 EA.
Valve Assembly, FC-TS Only
Male Elbow, 1/4" C x 1/8” NPT S&N 1 EA.
Solenoid Valve, Skinner
[Recommended Stocking Part]
1 EA.
1 EA.
100395
511023
511046
Male Connector, 1/4" F x 1/8” NPT 1 EA.
Nut, Brass 7/16-20” x 11/16” Hex 1 EA.
Washer, 7/16” Internal Tooth SS 1 EA.
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
16
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM
Valve Assembly With Spray Head Tube
108420
100025
121844
105095
105022
Valve Assembly With Spray Head Tube
[FC-3, FC-S3, FC-AP, FC-LD, FC-S, FC-TD, & FC-AP/LD Only]
Spray Head Gasket 1 EA.
Spray Head Tube Assembly, No Vent FC Short 1 EA.
Dump Valve Assembly With Vent Tube
Silicone Tube, 1/8” x 1/4" x 2.50” [773186] 1 EA.
1 EA.
1 EA.
105092
111635
411039
Dump Valve Only With Vent Hole
[Recommended Stocking Part]
Hose Clamp, .574” ID 1 EA.
Hose Clamp, .510” ID 1 EA.
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
17
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM
Valve Assembly With Spray Head Tube - Continued
701982
120029
100440
121847
201112
Silicone Tube, 3/8” x 5/8” x 2.00” [152213] 1 EA.
Valve Assembly, With Spray Head Tube
[FC-TS Only] [Recommended Stocking Part]
Hose Clamp, LP Brewers
[FC-TS Only]
Spray Head Tube, FC Tele No/Vent Tall
[FC-TS Only]
Brass Insert, 1/4" ID Tube Tinplated
[Vent Tube]
1 EA.
1 EA.
1 EA.
1 EA.
110507
110440
152171
“O” Ring, 1/4-3/8” x 1/16”
[Vent Tube]
Hose Clamp, LP
[Vent Tube]
Silicone Tubing, 1/4 “ x 3/8” x 7.00”
[152218] [Vent Tube]
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
1 EA.
1 EA.
18
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components
100003
100022
100024
100054
100061
Snap On Bushing, 3/4" Black Plastic 1 EA.
Power Cord, 14/3 120 V 15 Amp 1 EA.
5 Hole Spray Head, SS
[Recommended Stocking Part]
#8 Lock Washer, External Tooth SS 1 EA.
8-32 Nut, Hex SS 1 EA.
1 EA.
100085
102307
111220
Lighted On – Off Switch, 120 V
[Recommended Stocking Part]
Face Plate, Plastic Thermal FC
Label, Face Plate Thermal FC 1 EA.
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
1 EA.
19
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components - Continued
100191
100192
100212
100254
100500
Nut, Hex 6-32 SS 1 EA.
Pop Rivet, SS 1 EA.
#6 Washer External Lock, SS 1 EA.
Decal, Warning “Hot Surface” 1 EA.
Rocker Switch, On – Off Black
[Recommended Stocking Part]
1 EA.
100557
100571
105043
Line splice .250 22 – 10 Gauge 1 EA.
Screw, Combo Head 8-32 x 3/8”
[Ground]
Screw With Washer, 6-32 x 3/8” PPHMS SS 1 EA.
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
20
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM

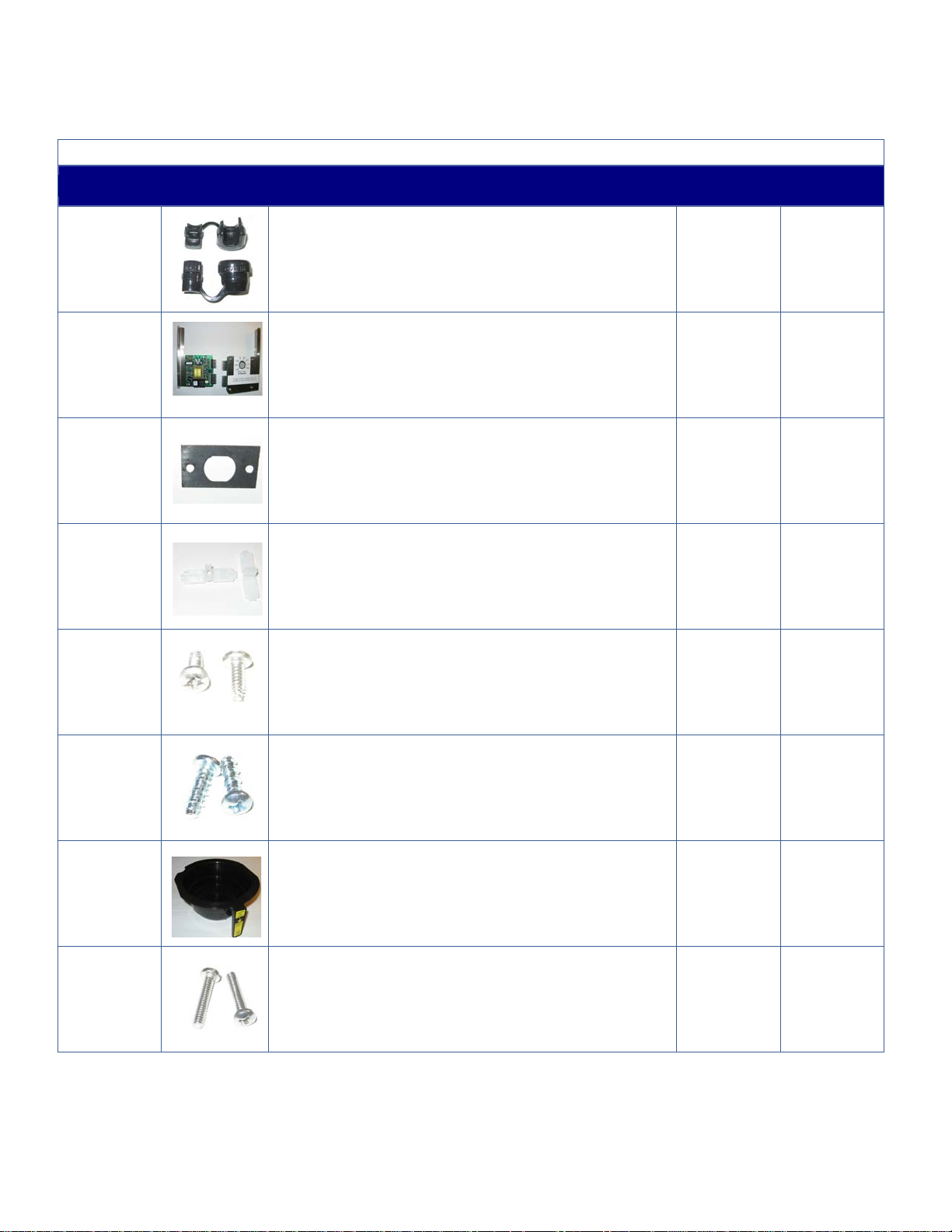

Miscellaneous Components - Continued
101035
101867
101898
102129
102333
Grommet, Strain Relief 14/3 1 EA.
Control Board Assembly, FC
[Recommended Stocking Part]
Cord Plate, FC 1 EA.
Sleeve, Insulation 1/4" Straight 1 EA.
Screw, Combo Head 6-32 x 3/8” SS 1 EA.
1 EA.
110359
110985
120024
Screw, #8 x 1/2" PPHZPS Hi – Lo
Brew Basket Assembly, BW MOD VAC Black
[Recommended Stocking Part]
Screw, 6-32 x 3/4" PPHMS SS 1 EA.
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
1 EA.
21
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components - Continued
120142
201173
201178
201985
511027
Snubber, Digi II Board 1 EA.
Spray Head Nut, 7/16 – 20” SS 1 EA.
Receptacle Adaptor, Double .250 1 EA.
Start Switch, Black
[Recommended Stocking Part]
Screw, 8-32 x 3/8” SPHMS SS
1 EA.
1 EA.
511053
702062
781697
Terminal Block, 240 V 1 EA.
Lamp, Green Rectangular 120 V
[Recommended Stocking Part]
Clamp, Adhesive 1 EA.
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
22
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components - Continued
101959
111445
701449
781513
100060
Barrier, Timer Fish Paper
[FC-3 & FC-S3 Only]
Server, 1.9L Short SS
[FC-S Only]
Light Red, Rectangular 120 V
[FCAP/LD Only] [Recommended Stocking Part]
Brew Basket Assembly, Combo Without Stop
[FCAP/LD Only] [Recommended Stocking Part]
1 EA.
1 EA.
1 EA.
1 EA.
Screw, 8-32 x 5/8” SS
[FC-TS Only]
1 EA.
100065
Screw, 6-32 x 5/16” PPHMS
[FC-TS Only]
100149
100164
Male Elbow, 1/4" C x 1/8” NPT S&N
[FC-TS Only]
Sleeve, 1/4" Compression
[FC-TS Only]
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
1 EA.
1 EA.
23
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components - Continued
100165
100242
100275
100685
104137
Nut, 1/4" Compression
[FC-TS Only]
Screw, 8-32 x 1/4" SPHMS SS
[FC-TS Only]
Screw, 6-32 x 3/16” SS
[FC-TS Only]
Bump On, Black
[FC-TS Only]
1 EA.
1 EA.
1 EA.
1 EA.
Washer, Star Lock .690” ID 1 EA.
105096
105110
110307
Screw, 8-32 x 3/8” SPHMS Black Zinc
[FC-TS Only]
Screw, 6-32 x 3/8” Combo Black Zinc
[FC-TS Only]
PDS Valve Assembly, High Flow Fl x Plug
[FC-TS Only] [Recommended Stocking Part]
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
1 EA.
1 EA.
24
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components - Continued
110931
110999
111225
120732-B
120735
Screw, M4 x 8mm PFHMS ZPS
[FC-TS Only]
Faucet, Plastic Black
[Recommended Stocking Part]
Spray Head, Dump Round
[FC-TS Only] [Recommended Stocking Part]
Cover Plain, Black FC-TS 1 EA.
Brew Rail, RH FC 1 EA.
1 EA.
1 EA.
1 EA.
120736
120740
120775
Brew Rail, LH FC 1 EA.
Tubing, Copper 6.25” FC-TS 1 EA.
Tank Shelf Assembly, FC-TS 1 EA.
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
25
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM

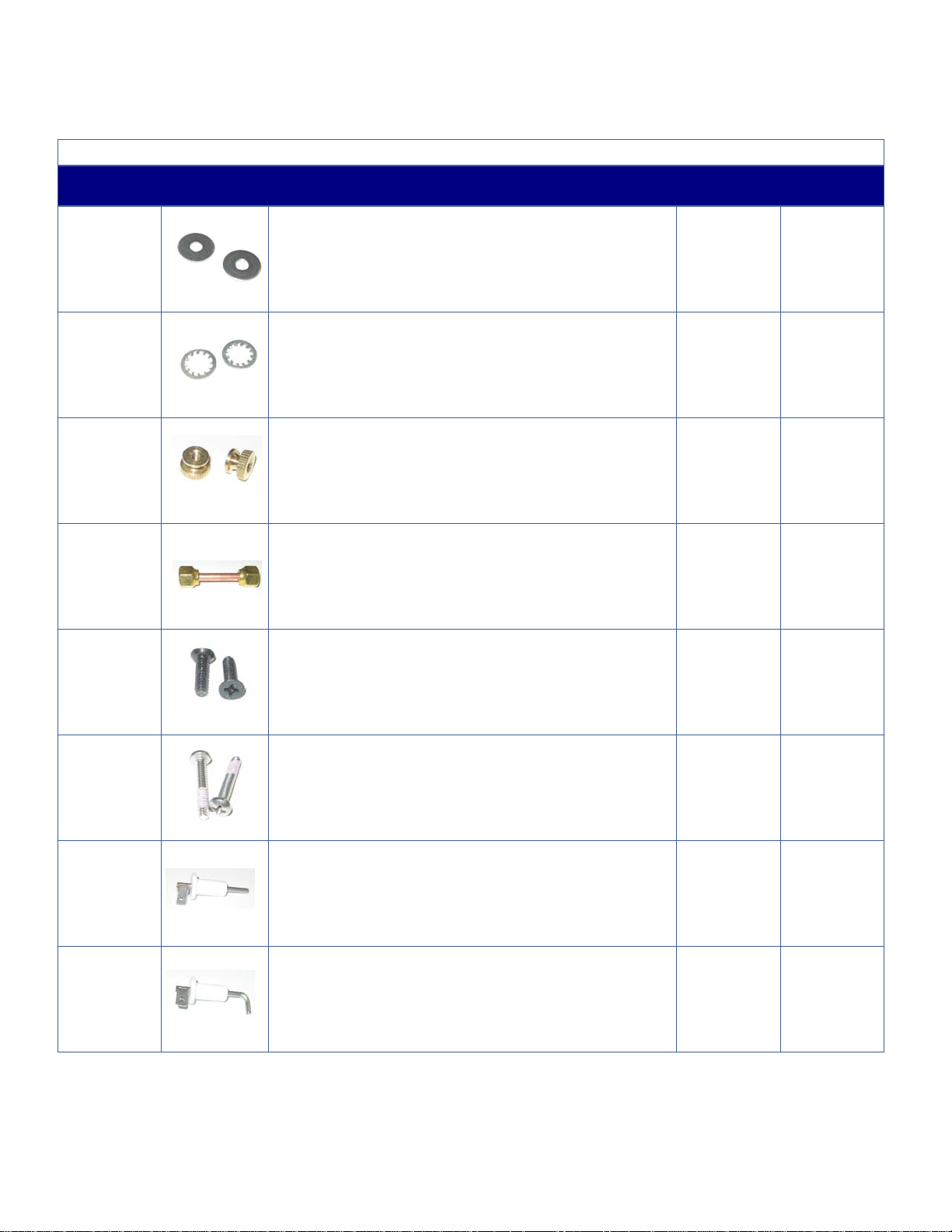

Miscellaneous Components - Continued
152164
511046
700021
700904
701518-B
Washer, .218” ID x .562” OD SS
[FC-TS Only]
Washer, 7/16” Internal Tooth SS
[FC-TS Only]
1 EA.
1 EA.
Nut, Knurled 8-32 Brass
[FC-TS Only]
Swivel Nut Assembly, 1/4" x .030” x 1.75”
[FC-TS Only]
Screw, 6-32 x 1/2" PFHMS (U/C) Black 1 EA.
1 EA.
1 EA.
704224
Screw, 6-32 x 7/8” SPHMS SS
[FC-TS Only]
500396
500407
Probe Assembly, 90x1.75”x.560 With Bushing
Probe Assembly, 1.537” 1 EA.
[FCAP/LD Only]
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
1 EA.
26
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
ITEM # IMAGE DESCRIPTION UM

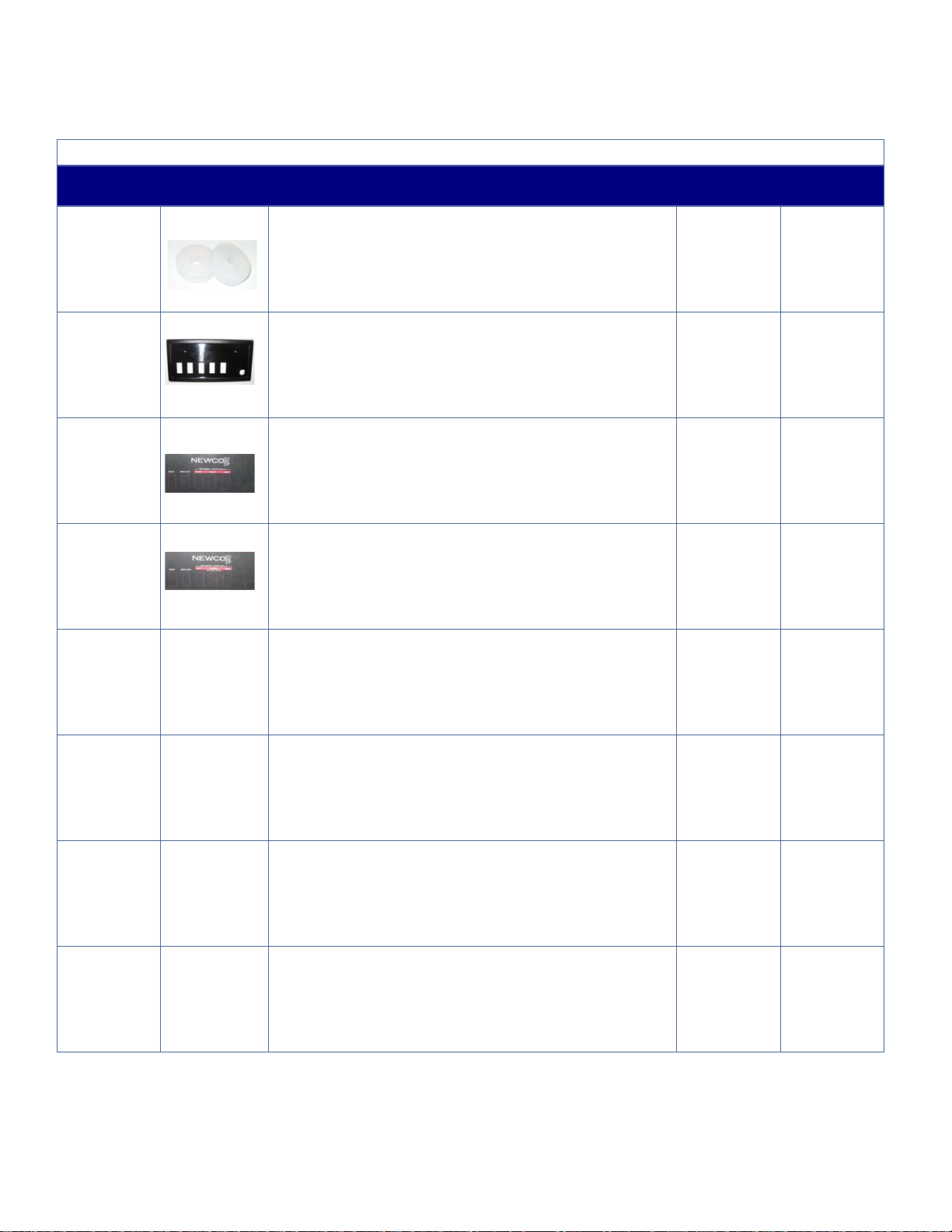

Miscellaneous Components - Continued
500350
102308
109962
109961
Grommet, Probe Assembly 1 EA.
Face Plate, Plastic Warmer 5-1 FC 1 EA.
Switch Plate Label, Warmer 5-1 FC
[FC-3 & FC-3S]
Switch Plate Label, Warmer 5-1 FC
[FC-5]
1 EA.
1 EA.
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
27
FC SERIES
Glass Bowl & Thermal Brewing Systems With Dump Valve Feature
15-Oct-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
28
Loading...
