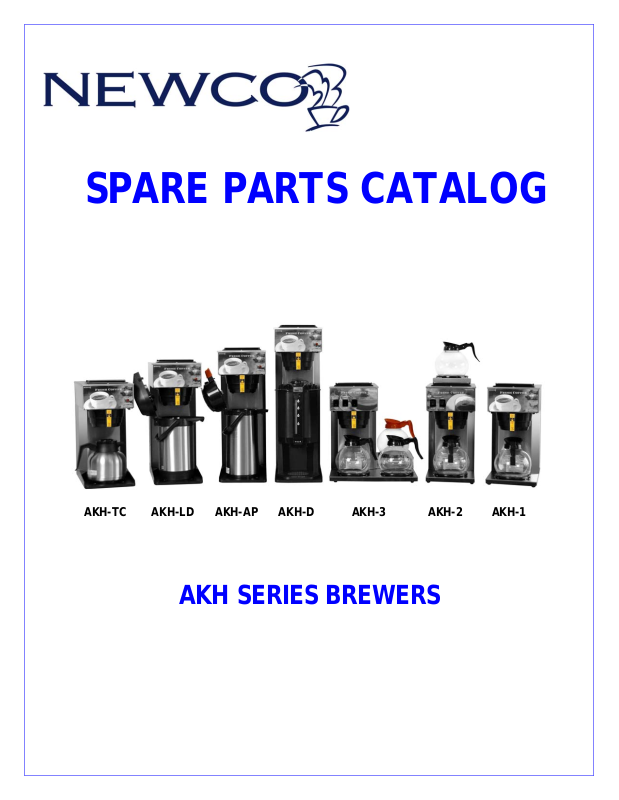

Page 1
SPARE PARTS CATALOG
AKH-TC AKH-LD AKH-AP AKH-D AKH-3 AKH-2 AKH-1
AKH SERIES BREWERS
Page 2
AKH SERIES
8
16
Heat Pump Brewing Systems
TABLE OF CONTENT
Base Assemblies Pages 3 - 5
Cover Assemblies Pages 6 Tank Assemblies Pages 9
Receiving Pan Assembly With Float
Pages 10 – 11
Miscellaneous Components Pages 12 –
30-Apr-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
2
Page 3
AKH SERIES
Heat Pump Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Base Assemblies
101826
101773
110385
100003
100010
Base Assembly, 3 Station
[AKH-3 Model Only]
Base Assembly, 1 Station
[AKH-1 & AKH-2 Models Only]
Base, LDR 8.5” Wide Black
[AKH-TC, AKH- AP, AKH- LD, & AKH-D Models Only]
Snap On Bushing, 3/4" Black Plastic 1 EA.
Warming Plate Assembly Black 1 EA.
1 EA.
1 EA.
1 EA.
100008
100054
100061
Porcelain Plate, Black With Studs 1 EA.
#8 Lock Washer, External Tooth SS 1 EA.
8-32 Nut, Hex SS 1 EA.
30-Apr-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
3
Page 4
AKH SERIES
Heat Pump Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Base Assemblies - Continued
100086
100187
100078
100160
100254
Support Plate, Warming Element 1 EA.
Warming Element, 100W 120V Short
[Recommended Stocking Part]
1 EA.
Bumper Foot With Screw 1 EA.
Screw, 4-40 x 5/8” SPHMS SS 1 EA.
Decal, Warning “Hot Surface” 1 EA.
100316
T-100 Base
[AKH-3 Model Only]
102792
102811
Base, Top 1 – Station Blank ACE
[AKH-1 & AKH-2 Models Only]
Base Top, 3 Station Blank
[AKH-3 Model Only]
30-Apr-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
1 EA.
1 EA.
4
Page 5
AKH SERIES
Heat Pump Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Base Assemblies - Continued
102814
102794
102826
102826-B
102825
Base Bottom, 3 Station Spot Welded
[AKH-3 Model Only]
1 EA.
Base Bottom, Blank 1 Station ACE
[AKH-1 & AKH-2 Models Only]
1 EA.
Face Plate, Base 3 Station SS
[AKH-3 Model Only]
1 EA.
Face Plate, Base 3 Station Black
[AKH-3 Model Only]
1 EA.
Face Plate, Base 1 Station SS
[AKH-1 & AKH-2 Models Only]
1 EA.
102825-B
Face Plate, Base 1 Station Black
[AKH-1 & AKH-2 Models Only]
102845
Plate, Louver 3 Station Base Stove
[AKH-3 Model Only]
30-Apr-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
1 EA.
5
Page 6
AKH SERIES
Heat Pump Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Covers
Cover Plain, Pour In Assembly
102611
[AKH-1, AKH-3, AKH-TC, AKH-LD,
AKH-AP, & AKH-D Models Only]
1 EA.
110786
100010
100008
100054
100061
Cover Assembly, 1 Sta. Step Up Pour In Assembly
[AKH-2 Model Only]
Warming Plate Assembly Black 1 EA.
Porcelain Plate, Black With Studs 1 EA.
#8 Lock Washer, External Tooth SS 1 EA.
8-32 Nut, Hex SS 1 EA.
1 EA.
100086
100187
Support Plate, Warming Element 1 EA.
Warming Element, 100W 120V Short
[Recommended Stocking Part]
1 EA.
30-Apr-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
6
Page 7
AKH SERIES
Heat Pump Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Covers – Continued
100160
100192
100254
102333
110625
Screw, 4-40 x 5/8” SPHMS SS 1 EA.
Pop Rivet, SS 1 EA.
Decal, Warning “Hot Surface” 1 EA.
Screw, Combo Head 6-32 x 3/8 SS 1 EA.
Cover & Grid Black Plastic Pour In 1 EA.
110623
110624
110681
Grid Only, Black Plastic Pour In 1 EA.
Cover Only, Black Pour In 1 EA.
Cover Only, 1 Sta. Pour In Blank
[AKH-2 Model Only]
30-Apr-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
7
Page 8
AKH SERIES
Heat Pump Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Covers – Continued
511050
705371
110682
Bushing, Snap Split 3/4"
[AKH-2 Model Only]
NK Stove 1 Sta. Cover 1 EA.
Cover Only, AK Pour In Assembly
[AKH-1, AKH-3, AKH-TC, AKH-LD,
AKH-AP, & AKH-D Models Only]
1 EA.
1 EA.
30-Apr-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
8
Page 9
AKH SERIES
Heat Pump Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Tank Assemblies
Heat Pump Assembly 1775W 120V
102424
102422
102421
[AKH-LD, AKH-AP, AKH-D, & AKH-TC Models Only]
[Recommended Stocking Part]
Heat Pump Assembly 1575W 120V
[AKH-1 & AKH-2 Models Only]
[Recommended Stocking Part]
Heat Pump Assembly 1475W 120V
[AKH-3 Models Only]
[Recommended Stocking Part]
1 EA.
1 EA.
1 EA.
102624
Hi Limit Thermostat, Auto
[Recommended Stocking Part]
1 EA.
30-Apr-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
9
Page 10
AKH SERIES
Heat Pump Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Receiving Pan Assembly With Float
110939
100025
100104
101925
101938
Pan Assembly, Receiving With Float
Spray Head Gasket 1 EA.
Washer, Lock 3/8” External Zinc 1 EA.
Spray Head Tube Assembly 1 EA.
Grommet, Silicone .359 ID x .875 OD 1 EA.
1 EA.
101954
102164
Silicone Tubing, 3/8” x 5/8” x 13.00”
[152213]
Receiving Pan, Punched L/Switch 1 EA.
102658
Silicone Tubing, 3/8” x 5/8” x 7.00”
[152213]
30-Apr-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
1 EA.
10
Page 11
AKH SERIES
Heat Pump Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Receiving Pan Assembly With Float - Continued
110907
111635
111636
120911
Float Switch Assembly
[Recommended Stocking Part]
Hose Clamp, .574 ID 1 EA.
Hose Clamp, .672 ID 1 EA.
Plug Only 1 EA.
1 EA.
30-Apr-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
11
Page 12
AKH SERIES
Heat Pump Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components
100054
100061
100212
100284
100500
#8 Lock Washer, External Tooth SS 1 EA.
8-32 Nut, Hex SS 1 EA.
Washer, #6 External Lock SS 1 EA.
Plastic Tie Wrap, 5 3/4" 1 EA.
Rocker Switch, On – Off Black
[Recommended Stocking Part]
1 EA.
101035
101730
101924
[AKH-TC, AKH-LD, AKH-AP, & AKH-D Models Only]
Grommet, Strain Relief 14/3 1 EA.
Indicating Light Assembly, Red
[Recommended Stocking Part]
Cover, Receiving Pan Expansion 1 EA.
30-Apr-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
12
Page 13
AKH SERIES
Heat Pump Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components – Continued
102246
102333
102799
102800
105043
Cord & Harness Assembly
[AKH-TC, AKH-LD, AKH-AP, & AKH-D Models Only]
1 EA.
Screw, Combo Head 6-32 x 3/8 SS 1 EA.
Right Hand Brew Rail – ACE 1 EA.
Left Hand Brew Rail – ACE 1 EA.
Washer, 6-32 x 3/8” PPHMS SS 1 EA.
110359
110942
105043
Screw, #8 x 1/2" PPHZPS Hi – Lo 1 EA.
Bracket Assembly With Relay 1 EA.
Screw, 6-32 x 3/8” Washer PPHMS SS
[110942]
30-Apr-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
13
Page 14
AKH SERIES
Heat Pump Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components - Continued
Relay 120V
110908
[Recommended Stocking Part]
[110942]
1 EA.
110923
110985
111445
120304
151158
Bracket, Relay
[110942]
Brew Basket Assembly, BW MOD VAC black
[Recommended Stocking Part]
Thermal Server, 1.9L Short 1 EA.
Face Plate Label, AKH Thermal Heating
[AKH-TC, AKH-LD, AKH-AP, & AKH-D Models Only]
Spray Head, Clear .300 C98
[Recommended Stocking Part]
1 EA.
1 EA.
1 EA.
1 EA.
201178
201207
Receptacle Adaptor, Double .250 1 EA.
64 Oz. Pour In Pitcher 1 EA.
30-Apr-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
14
Page 15
AKH SERIES
Heat Pump Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components - Continued
511027
700902
705228
900625
100192
Screw, 8-32 x 3/8” SPHMS SS 1 EA.
75 Oz. Pour In Pitcher
[AKH-AP & AKH-D Models Only]
Bushing, Snap 1 1/8”
[AKH-LD, AKH-AP, & AKH-D Models Only]
Adaptor, Female Push On .250” 1 EA.
Pop Rivet, SS
[AKH-LD, AKH-AP, & AKH-D Models Only]
1 EA.
1 EA.
1 EA.
Switch, Lighted On – Off 120V
100085
100498
100557
[AKH-3, AKH-2, & AKH-1 Models Only]
[Recommended Stocking Part]
Dummy Switch, Blank
[AKH-3, AKH-2, & AKH-1 Models Only]
[Recommended Stocking Part]
Line Splice, .250 22 – 10 Gauge
[AH-3 Model Only]
30-Apr-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
1 EA.
1 EA.
15
Page 16
AKH SERIES
Heat Pump Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components - Continued
110340
120613
120612
120611
781843
Cord & Harness Assembly
[AKH-3 Model Only]
1 EA.
Face Plate Label, AKH-3 1 EA.
Face Plate Label, AKH-2 1 EA.
Face Plate Label, AKH-1 1 EA.
Power Cord, 14/3 120V 15A
[AKH-2 & AKH-1 Models Only]
1 EA.
30-Apr-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
16
