Page 1
SPARE PARTS CATALOG
TC LD AP TD S LP
ACE SERIES BREWERS
TS
Page 2
ACE SERIES
7
13
15
22
Glass Bowl & Thermal Brewing Systems
TABLE OF CONTENT
Base Assemblies Pages 3 - 5
Cover Assemblies Pages 6 Tank Assemblies Pages 8 Micro Switch & Bracket Assemblies
Page 14
Valve & PDS Assemblies Pages 14 Miscellaneous Components Pages 16 –
29-Dec-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
2
Page 3
ACE SERIES
Glass Bowl & Thermal Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Base Assemblies
102842-B
102795-B
110385
100003
100010
Base Assembly, 3 Station Black ACE [LP Model Only]
Base Assembly, 1 Station Black ACE [S Model Only]
Base, LDR 8.5” Wide Black
[TC, AP, LD, TD, & TS Models Only]
Snap On Bushing, 3/4" Black Plastic 1 EA.
Warming Plate Assembly Black 1 EA.
1 EA.
1 EA.
1 EA.
100008
100054
100061
Porcelain Plate, Black With Studs 1 EA.
#8 Lock Washer, External Tooth SS 1 EA.
8-32 Nut, Hex SS 1 EA.
29-Dec-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
3
Page 4
ACE SERIES
Glass Bowl & Thermal Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Base Assemblies - Continued
100086
100187
100078
100160
100254
Support Plate, Warming Element 1 EA.
Warming Element, 100W 120V Short
[Recommended Stocking Part]
Bumper Foot With Screw 1 EA.
Screw, 4-40 x 5/8” SPHMS SS 1 EA.
Decal, Warning “Hot Surface” 1 EA.
1 EA.
100316
102792
102333
Base, Top 1 – Station Blank ACE [S Model Only] 1 EA.
Screw, Combo Head 6-32 x 3/8 SS [LP Model Only] 1 EA.
T-100 Base [LP Model Only] 1 EA.
29-Dec-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
4
Page 5
ACE SERIES
Glass Bowl & Thermal Brewing Systems
ITEM # IMAGE DESCRIPTION UM

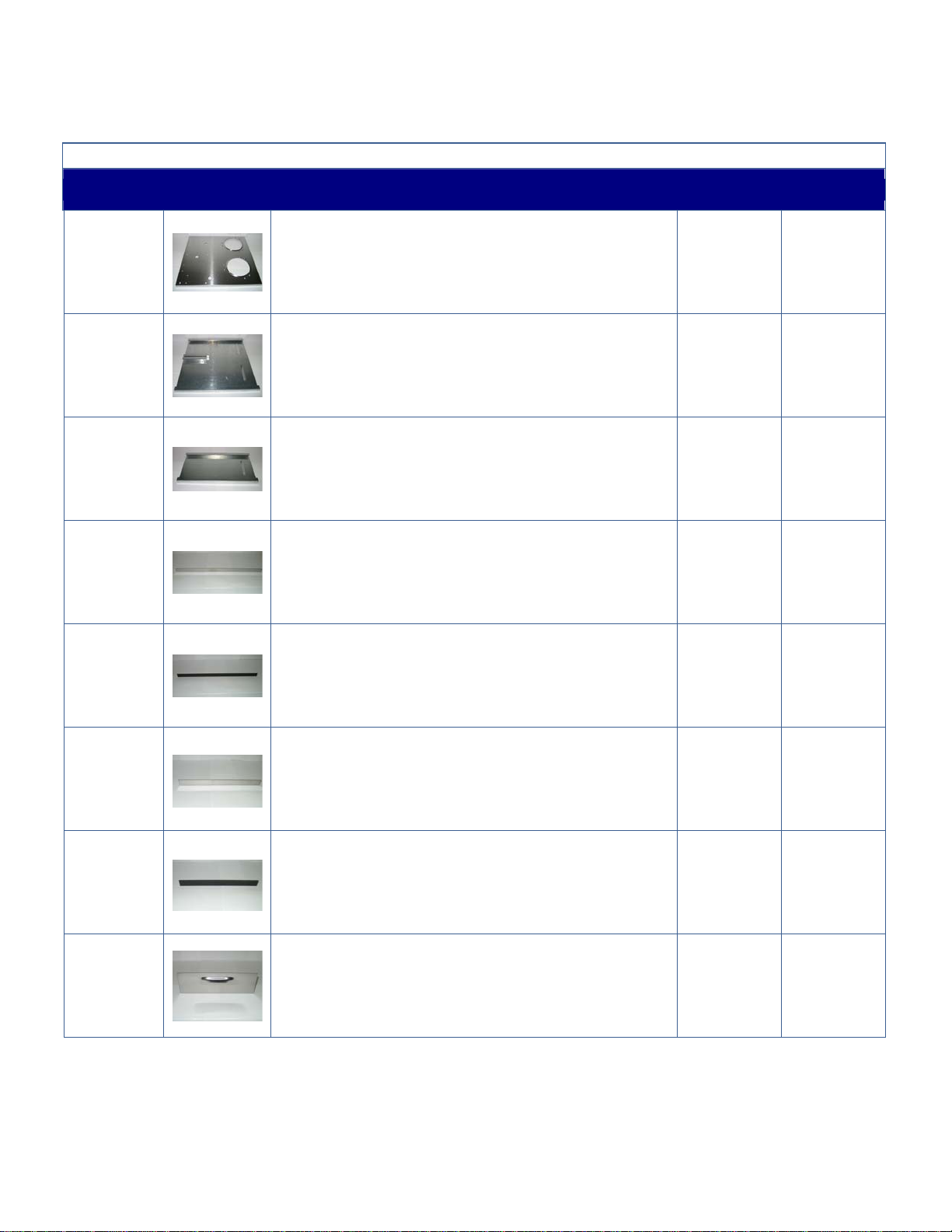

Base Assemblies - Continued
102811
102814
102794
102826
102826-B
Base Top, 3 Station Blank [LP Model Only] 1 EA.
Base Bottom, 3 Station Spot Welded [LP Model Only] 1 EA.
Base Bottom, Blank 1 Station ACE [S Model Only] 1 EA.
Face Plate, Base 3 Station SS [LP Model Only] 1 EA.
Face Plate, Base 3 Station Black [LP Model Only] 1 EA.
102825
102825-B
102845
Face Plate, Base 1 Station SS [S Model Only] 1 EA.
Face Plate, Base 1 Station Black [S Model Only] 1 EA.
Plate, Louver 3 Station Base Stove [LP Model Only] 1 EA.
29-Dec-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
5
Page 6
ACE SERIES
Glass Bowl & Thermal Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Covers
102789
102791-B
100003
100010
100008
Cover Plain, ACE Model
[AP, LD, LP, TC, TD, & TS Models Only]
Cover Assembly, 2 Station Step Up Black
[S Model Only]
Snap On Bushing, 3/4" Black Plastic 1 EA.
Warming Plate Assembly Black 1 EA.
Porcelain Plate, Black With Studs 1 EA.
1 EA.
1 EA.
100054
100061
100086
#8 Lock Washer, External Tooth SS 1 EA.
8-32 Nut, Hex SS 1 EA.
Support Plate, Warming Element 1 EA.
29-Dec-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
6
Page 7
ACE SERIES
Glass Bowl & Thermal Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Covers – Continued
100187
100160
100254
102333
102790
Warming Element, 100W 120V Short
[Recommended Stocking Part]
Screw, 4-40 x 5/8” SPHMS SS 1 EA.
Decal, Warning “Hot Surface” 1 EA.
Screw, Combo Head 6-32 x 3/8 SS 1 EA.
Cover Only, 2 Station Step Up Blank [S Model Only] 1 EA.
1 EA.
705370
NK Stove 2 Station Cover [S Model Only] 1 EA.
29-Dec-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
7
Page 8
ACE SERIES
Glass Bowl & Thermal Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Tank Assemblies
102798
102859
100030
100043
100054
Tank Assembly, ACE 1400W 120V
[LP, S, & TC Models Only]
Tank Assembly, ACE 1750W 120V
[AP, LD, TD, & TS Models Only]
Gasket, Brass .566ID Tinplated 1 EA.
Thermostat Knob (102299) 1 EA.
#8 Lock Washer, External Tooth SS 1 EA.
1 EA.
1 EA.
100061
100135
100149
Male Elbow, 1/4C x 1/8NPT S&N 1 EA.
8-32 Nut, Hex SS 1 EA.
Bulkhead Fitting, Outlet 1 EA.
29-Dec-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
8
Page 9
ACE SERIES
Glass Bowl & Thermal Brewing Systems
ITEM # IMAGE DESCRIPTION UM

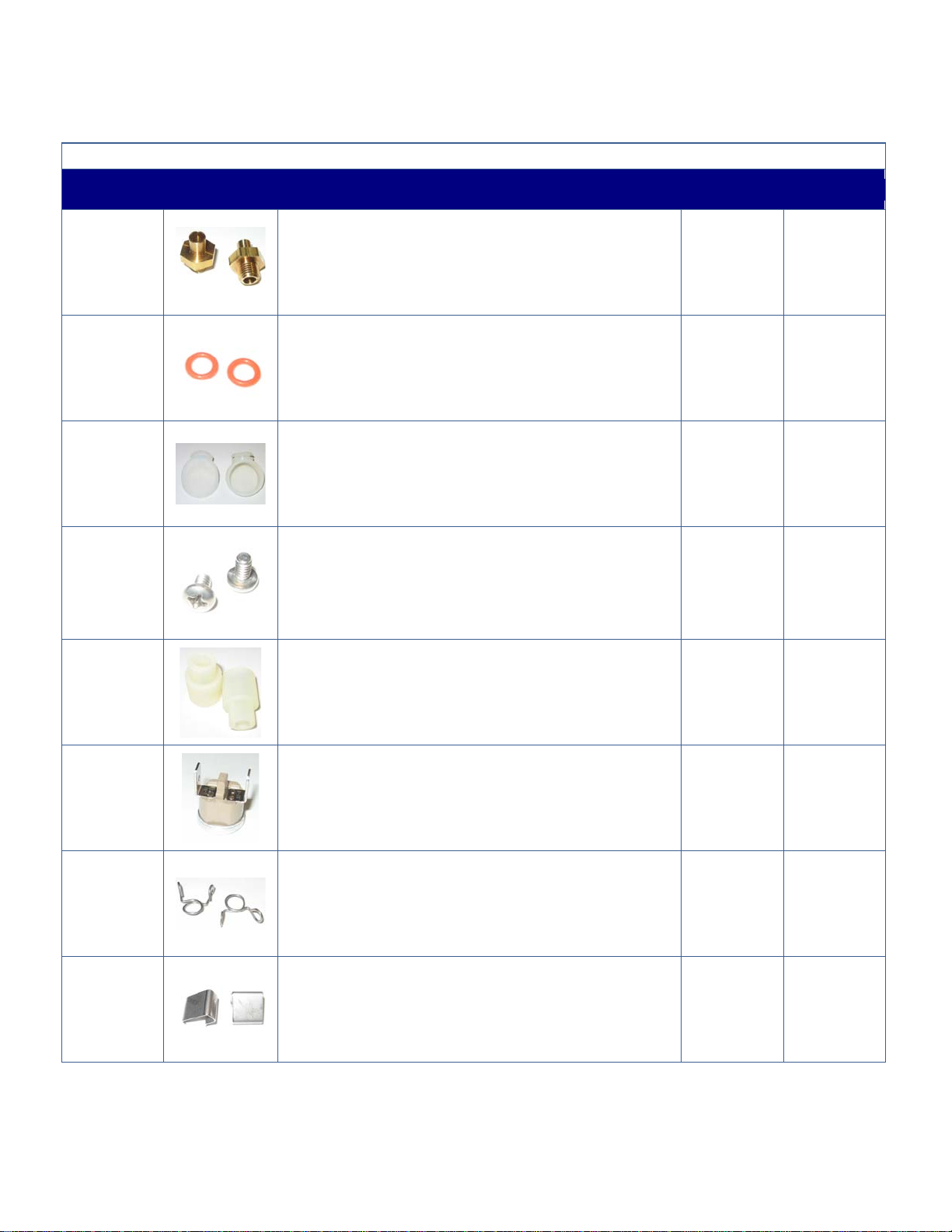

Tank Assemblies - Continued
100166
100170
100190
100209
100212
Sleeve, 3/8” Compression Brass
[Inlet & Spray Head Tube]
Nut, 3/8” Compression Brass
[Inlet & Spray Head Tube]
Jam Nut, 1/2 – 20 Brass 1 EA.
Capillary Clip, Thermostat 1 EA.
Washer, #6 External Lock SS [Thermostat] 1 EA.
1 EA.
1 EA.
100269
100409
Hi Limit Thermostat Bracket 1 EA.
Gasket Brass, .520 ID Tinplated 1 EA.
100431
Nut, Brass 9/16-24 x 11/16 Hex Tinplated 1 EA.
29-Dec-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
9
Page 10
ACE SERIES
Glass Bowl & Thermal Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Tank Assemblies - Continued
100440
102580
100071
102797
102831
Hose Clamp, LP Brewers 1 EA.
Heating Element, 1400W 120V
[LP, TC, & S Models Only]
[Recommended Stocking Part]
Heating Element, 1750W 120V
[AP, LD, TD, & TS Models Only]
[Recommended Stocking Part]
Tank Only, ACE Faucet 1 EA.
Connector Fitting, Female 3/8C x 1/8NPT 1 EA.
1 EA.
1 EA.
102835
102874
Bulkhead Fitting, Faucet Outlet Tinplated 1 EA.
Silicone Tubing 3/8” x 5/8” x 9.00” [152213] 1 EA.
108104
Thermostat Bracket, Main ACE 1 EA.
29-Dec-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
10
Page 11
ACE SERIES
Glass Bowl & Thermal Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Tank Assemblies - Continued
108248
110507
110595
110666
111105
Adaptor Fitting, 1/4NPS x 3/8 Tube 1 EA.
“O” Ring, 1/4" x 3/8”OD x 1/16” Wall Silicone 1 EA.
Silicone Vacuum Breaker 1 EA.
Screw, 6-32 x 1/4 “ PPHMS SS [Thermostat] 1 EA.
Nipple, Fitting VIP Silicone 1 EA.
111593
Manual Thermostat Vertical Tab 221F 25A
[Recommended Stocking Part]
111635
Hose Clamp, .574 ID 1 EA.
120729
Tank Clip, ACE – FC Brewers 1 EA.
29-Dec-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
11
Page 12
ACE SERIES
Glass Bowl & Thermal Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Tank Assemblies - Continued
152198
152701
201112
201178
701942
Lead Wire, 14GA Violet – Black 4” Teflon 1S – 1S 1 EA.
Tube, SS 3/8 x .028 x 2.0 x 5.53 x 90 Degrees 1 EA.
Brass Insert, 1/4 ID Tube Tinplated 1 EA.
Male Adaptor, Double .250 1 EA.
Silicone Tubing, 1/4 “ x 3/8” x 5.25” [152218] 1 EA.
704215
781181
Thermostat, Main I/H KP121524 4.78
[Recommended Stocking Part]
Silicone Gasket, Tank 23” 1 EA.
29-Dec-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
12
Page 13
ACE SERIES
Glass Bowl & Thermal Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Tank Assemblies - Continued
104012
500354
152207
500038
121848
Tank Lid Assembly, ACE
Probe 1.537” Passivated 1 EA.
Plug, Tank Cover Silicone Natural 1 EA.
Silicone Grommet, No Slit .060 1 EA.
Lid Only, Punched With Vent Hole 1 EA.
1 EA.
500396
500350
Probe Assembly, 1.537” With Bushing 1 EA.
Grommet, Probe Bushing 5/16” 1 EA.
29-Dec-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
13
Page 14
ACE SERIES
Glass Bowl & Thermal Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Micro Switch & Bracket Assemblies
102862
100160
102807
102841
Valve & PDS Assemblies
Micro Switch & Bracket Assembly
Screw, 4-40 x 5/8” SPHMS SS 1 EA.
Micro Switch Bracket Assembly 1 EA.
Micro Switch With Offset
[Recommended Stocking Part]
1 EA.
1 EA.
108404
108425
100296
100442
Valve & PDS Assembly ACE – IA
Valve Assembly, No Flow Washer
[Recommended Stocking Part]
Cap, Flow Control Compression 1 EA.
Male Elbow, 1/4F x 3/8NPT Tinplated 1 EA.
29-Dec-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
1 EA.
14
Page 15
ACE SERIES
Glass Bowl & Thermal Brewing Systems
ITEM # IMAGE DESCRIPTION UM

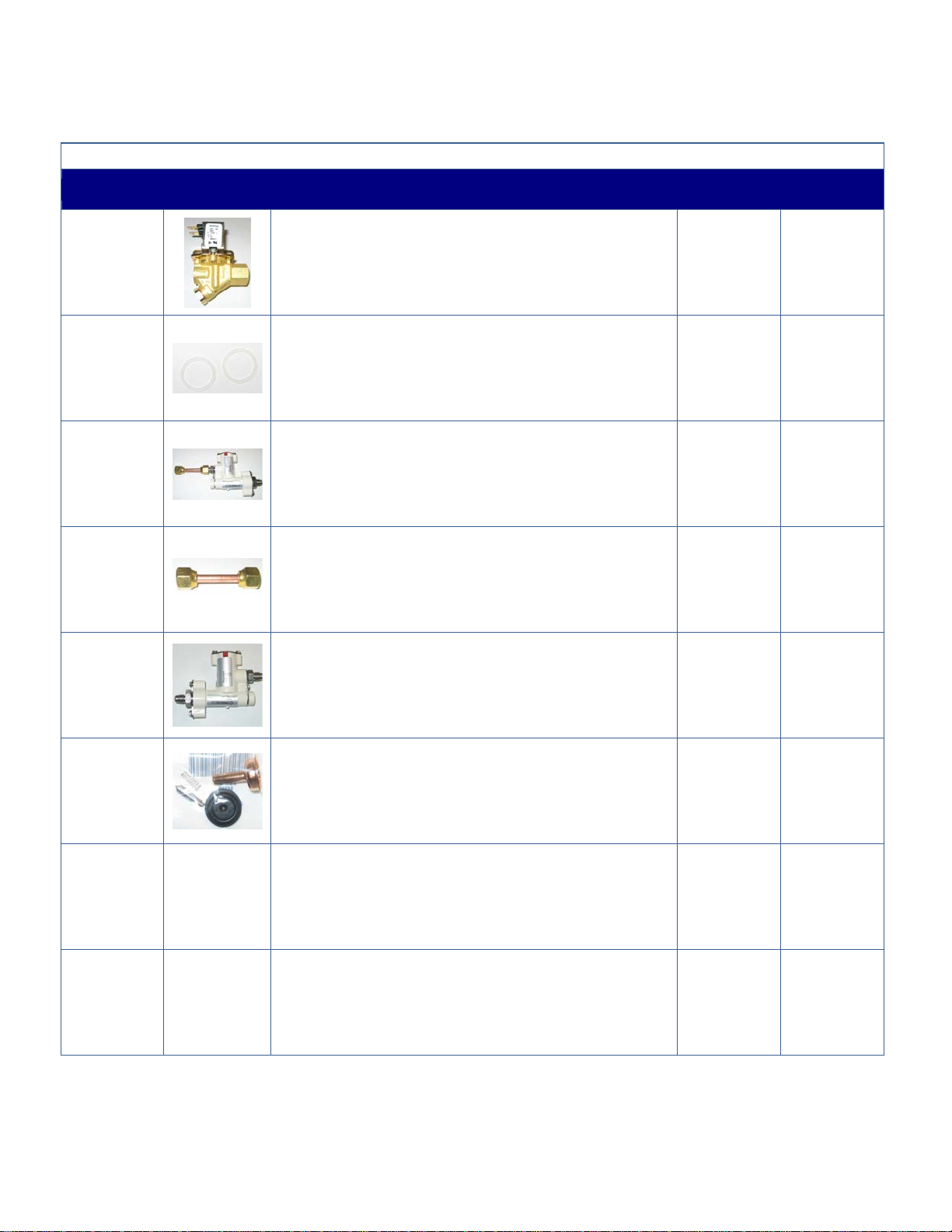

Valve & PDS Assemblies - Continued
Solenoid Valve, S-45
102780
[Recommended Stocking Part]
1 EA.
790019
110322
700904
110305
201158
Flow Control Gasket, Nylon 1 EA.
PDS Valve Assembly, Low Flow ACE 1 EA.
Tubing, Copper 1/4" X .030 X 1.75” 1 EA.
PDS Valve Assembly Only, Low Flow
Flare – Plug
[Recommended Stocking Part]
Solenoid Repair Kit [102780]
[Recommended Stocking Part]
1 EA.
1 EA.
29-Dec-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
15
Page 16
ACE SERIES
Glass Bowl & Thermal Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components
100003
100022
100024
100025
100054
Snap On Bushing, 3/4" Black Plastic 1 EA.
Power Cord, 14/3 120V 15A 1 EA.
Spray Head, SS 5 Hole
[Recommended Stocking Part]
Spray Head Gasket 1 EA.
#8 Lock Washer, External Tooth SS 1 EA.
1 EA.
100061
8-32 Nut, Hex SS 1 EA.
Lighted On – Off Switch, 120V
100085
100153
[Recommended Stocking Part]
Tube, Ace Back Compression 1 EA.
29-Dec-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
16
Page 17
ACE SERIES
Glass Bowl & Thermal Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components - Continued
100164
100165
100254
100500
100557
Sleeve, 1/4" Compression 1 EA.
Nut, 1/4" Compression 1 EA.
Decal, Warning “Hot Surface” 1 EA.
Rocker Switch, On – Off Black
[Recommended Stocking Part]
Line splice .250 22 – 10 Gauge 1 EA.
1 EA.
101011
101035
102333
Washer, 1/2" External Tooth SS 1 EA.
Grommet, Strain Relief 14/3 1 EA.
Screw, Combo Head 6-32 x 3/8 SS 1 EA.
29-Dec-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
17
Page 18
ACE SERIES
Glass Bowl & Thermal Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components - Continued
102770
102775
102783
102799
102800
Faucet With Red Handle, ACE
[Recommended Stocking Part]
Lamp, “Ready” – Green / “Brew” – Amber 120V
[Recommended Stocking Part]
Spray Head Tube, ACE 1 EA.
Right Hand Brew Rail – ACE 1 EA.
Left Hand Brew Rail – ACE 1 EA.
1 EA.
1 EA.
102864
105043
108160
Screw, 6-32 x 1/4" SFHMS (U/C) 1 EA.
Washer, 6-32 x 3/8” PPHMS SS 1 EA.
Label, Face Plate Warmer ACE
[LP & S Models Only]
29-Dec-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
18
Page 19
ACE SERIES
Glass Bowl & Thermal Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components - Continued
108155
110965
110985
121723
201112
Label, Face Plate Thermal
[AP, LD, TC, TD, & TS Models Only]
Washer, #6 Internal Tooth 1 EA.
Brew Basket Assembly, BW MOD VAC black
[Recommended Stocking Part]
Control Board Assembly, Super ACE
[Recommended Stocking Part]
Brass Insert, 1/4 ID Tube Tinplated 1 EA.
1 EA.
1 EA.
1 EA.
201173
201178
201985
Spray Head Nut, 7/16 – 20 SS 1 EA.
Receptacle Adaptor, Double .250 1 EA.
Start Switch, Black
[AP, LD, LP, S, TC, & TD Models Only]
[Recommended Stocking Part]
29-Dec-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
19
Page 20
ACE SERIES
Glass Bowl & Thermal Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components - Continued
511027
700904
100275
100284
100571
Screw, 8-32 x 3/8” SPHMS SS 1 EA.
Tubing, Copper 1/4" X .030 X 1.75” 1 EA.
Screw, 6-32 x 3/16” SS
Screw, Combo Head 8-32 x 3/8”
[TS Model Only]
Plastic Tie Wrap, 5 3/4"
[TS Model Only]
[TS Model Only]
1 EA.
1 EA.
1 EA.
102618
102884
104015
Cover, Solenoid Valve – ACE 1 EA.
Lamp, “Heating” - Red/ “Brew” - Amber
[TS Model Only]
[Recommended Stocking Part]
Bezel Adaptor, Plastic Black
[TS Model Only]
29-Dec-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
1 EA.
20
Page 21
ACE SERIES
Glass Bowl & Thermal Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components - Continued
105110
108045
110359
110626
111725
Screw, 6-32 x 3/8” Combo Black Zinc
[TS Model Only]
Momentary Switch, Red STDP
[TS Model Only]
[Recommended Stocking Part]
1 EA.
1 EA.
Screw, #8 x 1/2" PPHZPS Hi – Lo
[TS Model Only]
Rocker Switch, Rectangular DP/ST
[TS Model Only]
[Recommended Stocking Part]
Control Board Assembly, Tele ACE
[TS Model Only]
[Recommended Stocking Part]
1 EA.
1 EA.
1 EA.
120755
120774
152164
Tank Shelf Assembly, Tele ACE
[TS Model Only]
Barrier, Control Board Tele ACE
[TS Model Only]
Washer, .218 ID x .562 OD SS
[TS Model Only]
29-Dec-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
1 EA.
1 EA.
21
Page 22
ACE SERIES
Glass Bowl & Thermal Brewing Systems
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components - Continued
700021
701799
781843
726308
500041
Nut, Knurled Brass 8-32
[TS Model Only]
Terminal, Connect QC .250 1 EA.
1 EA.
Power Cord, 14/3 120V 15A With Shrink
[TS Model Only]
Adaptor, Double Tab .250 - Brass
[TS Model Only]
Positive Lock Receptacle Insulator
[Used On Micro Switch]
1 EA.
1 EA.
1 EA.
500382
103785
NA
[Consists of: 1 ea. 500350, Probe Assy., & Instruction]
Probe Assembly Kit, 1.537”
Hex Nut, 4-40 Nylon Insert SS
[Used On Micro Switch]
1 EA.
1 EA.
29-Dec-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
22
Page 23
ACE SERIES
Glass Bowl & Thermal Brewing Systems
29-Dec-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
23
Page 24
ACE SERIES
Glass Bowl & Thermal Brewing Systems
29-Dec-14 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
24
Loading...
