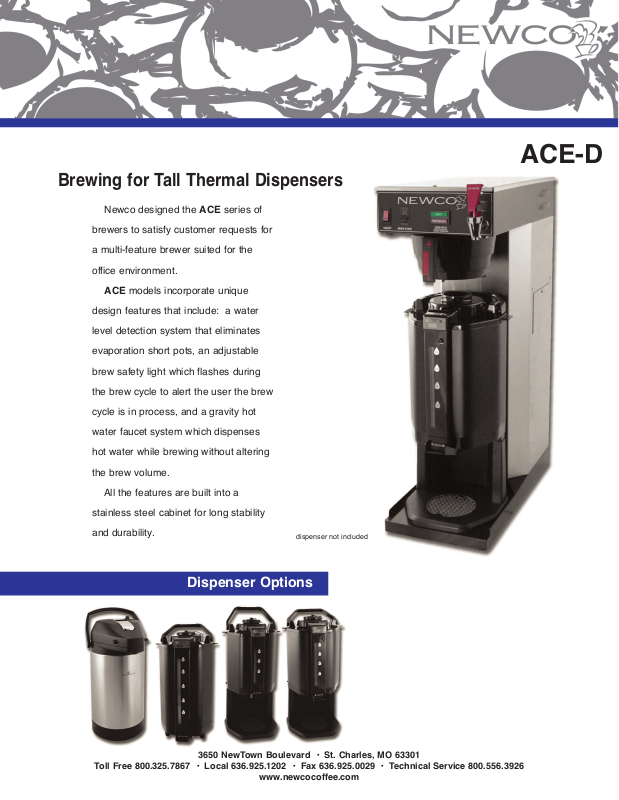

Brewing for Tall Thermal Dispensers
Newco designed the ACE series of
brewers to satisfy customer requests for
a multi-feature brewer suited for the
office environment.
ACE models incorporate unique
design features that include: a water
level detection system that eliminates
evaporation short pots, an adjustable
brew safety light which flashes during
the brew cycle to alert the user the brew
cycle is in process, and a gravity hot
water faucet system which dispenses
hot water while brewing without altering
ACE-D
the brew volume.
All the features are built into a
stainless steel cabinet for long stability
and durability.
dispenser not included
Dispenser Options
3650 NewTown Boulevard • St. Charles, MO 63301
Toll Free 800.325.7867 • Local 636.925.1202 • Fax 636.925.0029 • Technical Service 800.556.3926
www.newcocoffee.com
Page 2
ACE-D
Ready light indicates optimum
•
brew temperature
Flashing brew light alerts user that
•
coffee is brewing
Universal base for perfect dispenser
•
alignment
Gravity fed hot water faucet for tea,
•
soups and hot coco
Tank “ON/OFF” switch for easy installation
•
Pulse brewing option - when turned “on”
•
allows pulsation of water over coffee
grounds of coffee
Auto arm capable. When activated locks
•
out brew cycle until optimum temperature
is achieved
PDS Valve. The most accurate flow con-
•
trol on the market, eliminating service calls
due to inconsistent pot levels
Base
Model
Ace D w/PDS
Part
Number
108455-B
Volts
120
Amps
USA/Can
14.58
11.67
*Cord not included on 240v models
Electrical: 120V models are 2 wires plus
ground service rated 120V, single phase, 60Hz.
120/240 V models are 3 wires plus ground service
rated 120/240 V, single phase, 60Hz
1400w
Cubic
Feet
7.27 27 lbs Yes
Ship
Weight
Cord
Attached
Tank
Wattage
USA/Can
1750w
Plumbing: Water line should be 20-90 PSI
and have a minimum flow rate of 1.5 GPM.
Mechanical connection on brewer is 1/4” male
flare connector.
#ACED2003 051607
