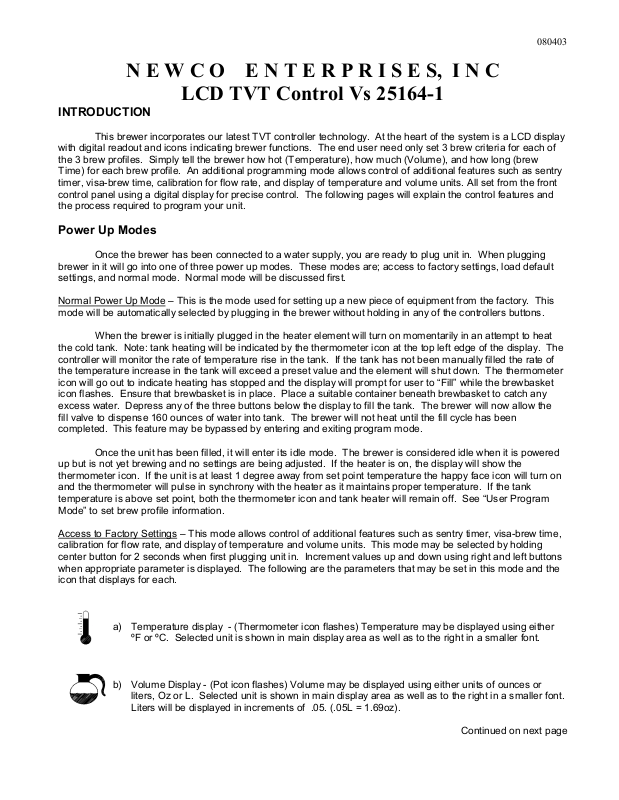

Newco 25164-1 Installation Manual

080403

N E W C O E N T E R P R I S E S, I N C

LCD TVT Control Vs 25164-1

INTRODUCTION

This brewer incorporates our latest TVT controller technology. At the heart of the system is a LCD display
with digital readout and icons indicating brewer functions. The end user need only set 3 brew criteria for each of
the 3 brew profiles. Simply tell the brewer how hot (Temperature), how much (Volume), and how long (brew
Time) for each brew profile. An additional programming mode allows control of additional features such as sentry
timer, visa-brew time, calibration for flow rate, and display of temperature and volume units. All set from the front
control panel using a digital display for precise control. The following pages will explain the control features and
the process required to program your unit.

Power Up Modes

Once the brewer has been connected to a water supply, you are ready to plug unit in. When plugging
brewer in it will go into one of three power up modes. These modes are; access to factory settings, load default
settings, and normal mode. Normal mode will be discussed first.

Normal Power Up Mode
mode will be automatically selected by plugging in the brewer without holding in any of the controllers buttons.

When the brewer is initially plugged in the heater element will turn on momentarily in an attempt to heat
the cold tank. Note: tank heating will be indicated by the thermometer icon at the top left edge of the display. The
controller will monitor the rate of temperature rise in the tank. If the tank has not been manually filled the rate of
the temperature increase in the tank will exceed a preset value and the element will shut down. The thermometer
icon will go out to indicate heating has stopped and the display will prompt for user to “Fill” while the brewbasket
icon flashes. Ensure that brewbasket is in place. Place a suitable container beneath brewbasket to catch any
excess water. Depress any of the three buttons below the display to fill the tank. The brewer will now allow the
fill valve to dispense 160 ounces of water into tank. The brewer will not heat until the fill cycle has been
completed. This feature may be bypassed by entering and exiting program mode.

Once the unit has been filled, it will enter its idle mode. The brewer is considered idle when it is powered
up but is not yet brewing and no settings are being adjusted. If the heater is on, the display will show the
thermometer icon. If the unit is at least 1 degree away from set point temperature the happy face icon will turn on
and the thermometer will pulse in synchrony with the heater as it maintains proper temperature. If the tank
temperature is above set point, both the thermometer icon and tank heater will remain off. See “User Program
Mode” to set brew profile information.

Access to Factory Settings
calibration for flow rate, and display of temperature and volume units. This mode may be selected by holding
center button for 2 seconds when first plugging unit in. Increment values up and down using right and left buttons
when appropriate parameter is displayed. The following are the parameters that may be set in this mode and the
icon that displays for each.

a) Temperature display - (Thermometer icon flashes) Temperature may be displayed using either

ºF or ºC. Selected unit is shown in main display area as well as to the right in a smaller font.

b) Volume Display - (Pot icon flashes) Volume may be displayed using either units of ounces or

liters, Oz or L. Selected unit is shown in main display area as well as to the right in a smaller font.
Liters will be displayed in increments of .05. (.05L = 1.69oz).

– This is the mode used for setting up a new piece of equipment from the factory. This

– This mode allows control of additional features such as sentry timer, visa-brew time,

Continued on next page

080403

c) Sentry timer – (Pot & Clock icons flash) Will countdown after each brew (0:30min – 19:59 hours)

After any brew, the sentry timer will activate & the CLOCK icon will turn on. The CLOCK icon will
flash when the sentry timer expires to indicate the brewed beverage is no longer “fresh” (unless a
new brew is started before the timer is allowed to expire).

d) Visa time – (Clock & Brew Basket icons flash) This time will always be added to the end of the

brew cycles to allow for the coffee to finish draining from the brew basket. Timer display aids in
preventing premature removal of either the brew basket or the dispenser. Each brew cycle Visa
brew time setting is controlled independently and may be set between 30 seconds and 19
minutes and 59 seconds. Brew 1,2, and 3 are displayed sequentially.

e) Calibration Countdown – (Brew Basket Flashes) Will dispense water for 1 minute if either left/right

button is pressed.

f) Calibration Value – (Brew Basket Flashes) 1 minute flow rate setting. The volume of water

dispensed for 1 minute must be entered for volume calibration purposes. Calibration is
necessary if the programmed brew volume is not being dispensed.

When “End” is displayed the user may press either the right/left buttons to exit the factory settings menus. The
machine will then continue to operate in idle mode as described under Normal Power Up Mode.

Load Default Settings
settings are not necessarily the same as factory settings which have been customized for brewer. This mode
may be selected by holding in the 2 outer buttons for 2 seconds while plugging unit in.

– Loads default settings for all three brew profiles and factory settings. Note: Default

Other Modes

User Program Mode
program mode. The heater will be disabled in this mode. The controller will scroll through all 4 settings (shown
below) for each of 3 brew profiles (Pr1, Pr2, Pr3) if the center button is pressed repeatedly. The left/right buttons
will either adjust up/down or toggle a value. The 4 available settings are:

a) Brew Temperature – (Thermometer icon flashes) The minimum temperature at which a brew will

start. Temperature may be set between 170-212.

b) Brew Volume - (Pot icon flashes)The combined total volume of concentrate and dilution to be

dispensed. Brew volume may be set for volumes between 30 and 704 ounces (5-1/2 gallons).
Coffee can only be set for 300 ounce max. See “Delay Or Brewtime” below.

c) Delay Or Brewtime – (In tea mode clock and basket icon flash, in coffee mode basket will not be

displayed) TEA mode, this setting represents the delay between concentrate dispense and dilution
dispense. If no delay is desired, 0:00 may be entered. In COFFEE mode, this setting represents the
amount of time though which the volume of water is to be dispensed. The basket icon will have
disappeared.

The brewer will continue to cycle through profiles until you choose to exit. To exit user program mode press
center button until “End” is displayed and select by depressing either left or right button.

- By holding the center button continuously for 10 seconds, the machine will enter its user
