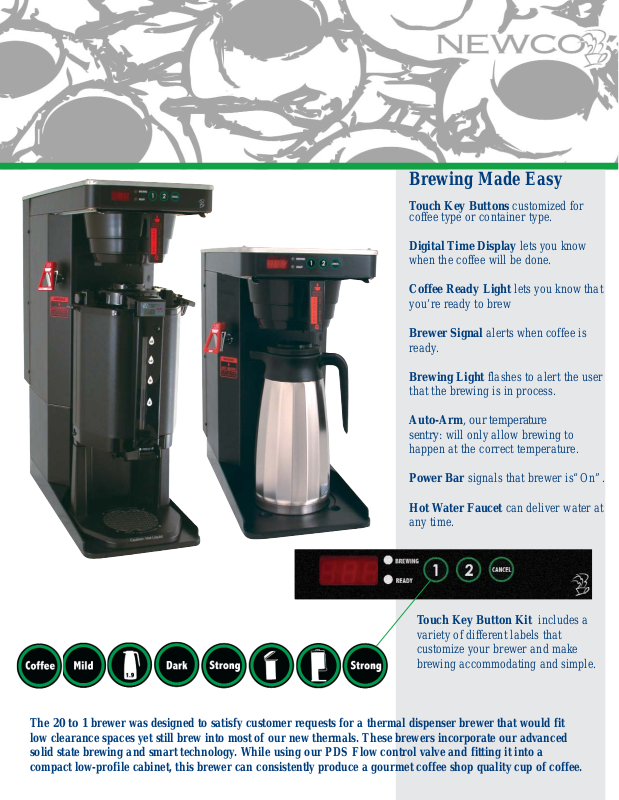

Newco 20:1 User Manual
Brewing Made Easy
Touch Key Buttons customized for
coffee type or container type.
Digital Time Display lets you know
when the coffee will be done.
Coffee Ready Light lets you know that
you’re ready to brew
Brewer Signal alerts when coffee is
ready.
Brewing Light flashes to alert the user
that the brewing is in process.
Auto-Arm, our temperature
sentry: will only allow brewing to
happen at the correct temperature.
Power Bar signals that brewer is“On”.
Hot Water Faucet can deliver water at
any time.
Touch Key Button Kit includes a
variety of different labels that
customize your brewer and make
brewing accommodating and simple.
The 20 to 1 brewer was designed to satisfy customer requests for a thermal dispenser brewer that would fit
low clearance spaces yet still brew into most of our new thermals. These brewers incorporate our advanced
solid state brewing and smart technology. While using our PDS Flow control valve and fitting it into a
compact low-profile cabinet, this brewer can consistently produce a gourmet coffee shop quality cup of coffee.
800.325.7867
636.925.1202
www.newcocoffee.com
Newco Enterprises
3650 New Town Blvd.
St. Charles, MO 63301
20 : 1 Brewer
Technical Features
* 3 Independent Brew Selections with adjustable Brew time and Brew volume.
* Modular Tank and Automator System
* Universal Base easily locates container and eliminates counter top messes.
* Modular Cabinet you can easily convert the brewer height with patented Riser system.
* Hot Water Faucet can be located on either side. (special order on right)
* Gourmet Sprayhead for rain drop brewing.
* Easy Set-Up!
Easy Set-Up! Set-up on the 20 to 1 Brewing system is easy. Simply plumb in water
supply, plug in the system’s built in cord, and turn the machine on. The 20 to 1
System will sense a dry probe and begin filling the tank automatically. Once the water
in the tank has reached the proper level, the element will automatically turn on and
begin heating. In minutes, the correct brewing temperature will be reached, and you’re
ready to brew!
Label Kit
Part # 119996
S
pecifications 20 :1:
Shipping weight: 24lbs
Electrical:
120V 240V
US 14.6 Amps 14.6 Amps
CA 11.7 Amps 14.6 Amps
20:1 and 20:1 TD Dimensions
Specifications 20 :1 TD:
Shipping weight: 28lbs
Electrical:
120V 240V
US 14.6 Amps 14.6 Amps
CA 11.7 Amps 14.6 Amps
