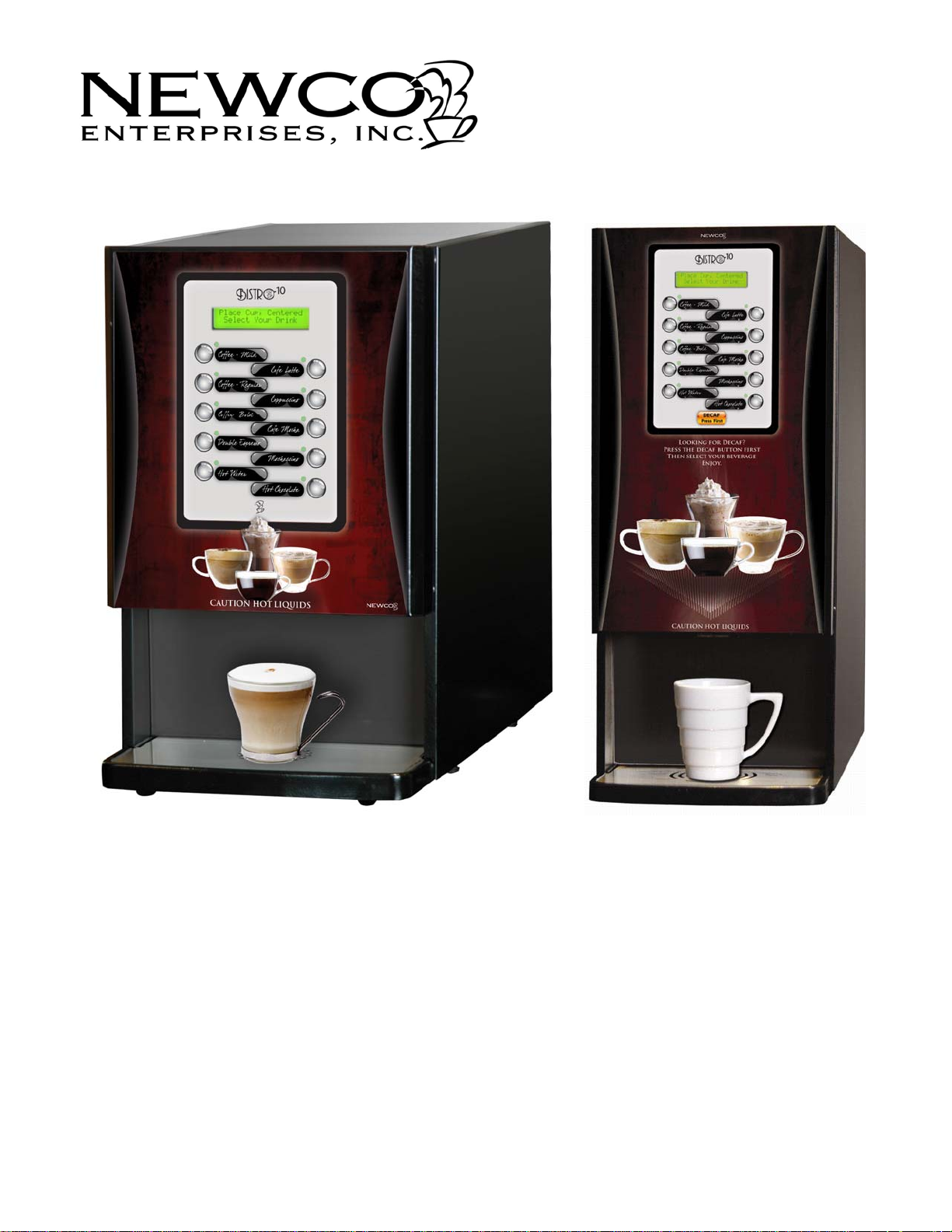

BISTRO MODEL 10-S & 10-T
BISTRO 10-S BISTRO 10-T
SPARE PARTS CATALOG
Page 2
BISTRO 10S & BISTRO 10T
9
11
17
LIQUID COFFEE SPECIALTY DRINK MACHINE
TABLE OF CONTENTS
HOPPER & WHIPPER ASSEMBLY Pages 3 - 4
TUBE ASSEMBLY, BIB Page 5
TANK ASSEMBLY Pages 6 SWITCHES Page 9
DOOR ASSEMBLY Pages 10 HOSE & TUBE ASSEMBLIES Page 12
PUMP HEAD ASSEMBLY Page 12
MISCELLANEOUS COMPONENTS Pages 13 -
1-11 -13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
2
Page 3
BISTRO 10S & BISTRO 10T
LIQUID COFFEE SPECIALTY DRINK MACHINE
ITEM # IMAGE DESCRIPTION UM
Hopper & Whipper Assembly
767195
767196
767390
781566
767197

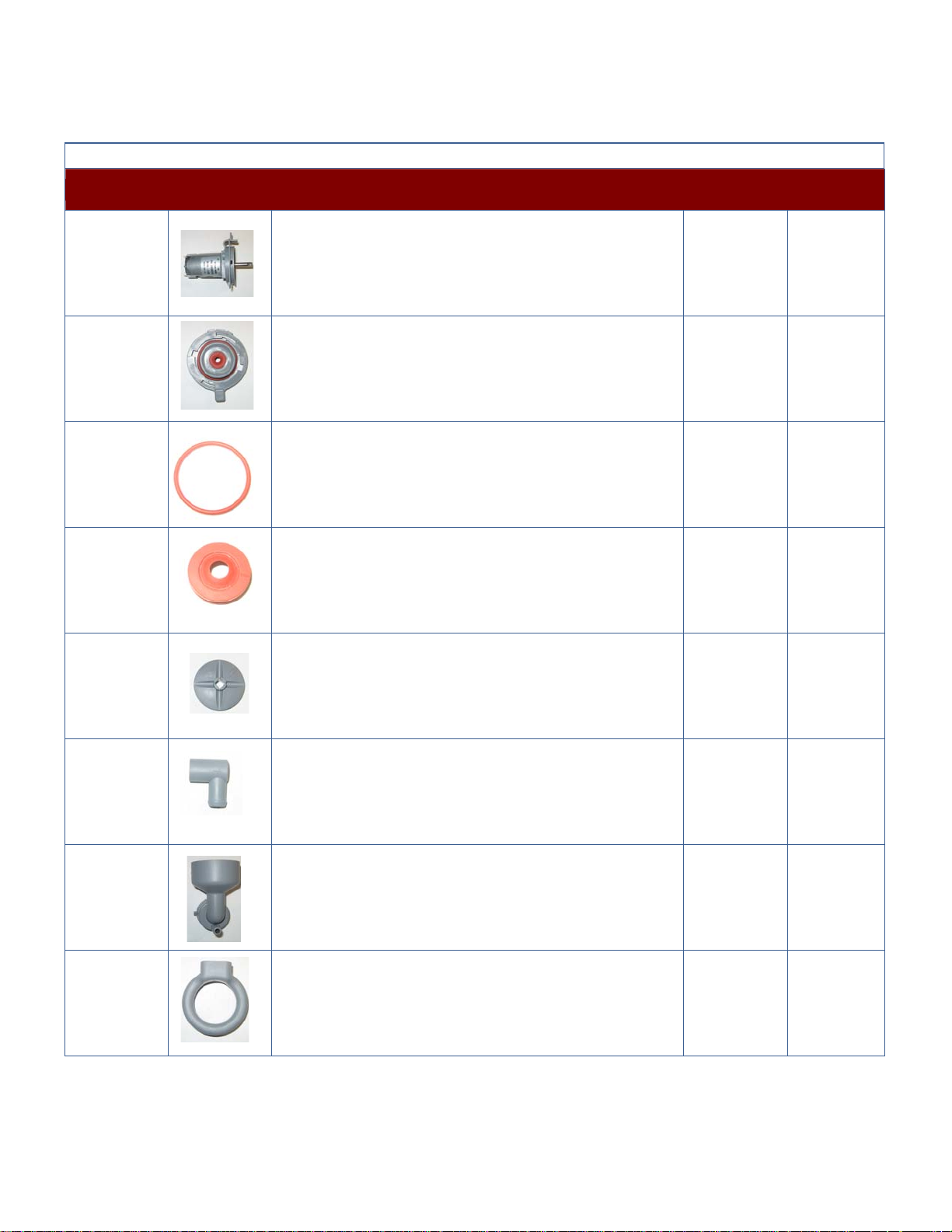

Whipper Motor, CX-2 1 EA.
Base, Mounting Whipper Assembly CX-2 1 EA.
O – Ring, Whipper Base Red 1 EA.
Seal, Whipper Shaft 1 EA.
Impeller, Whipper CX-2 1 EA.
767200
767365
767376
Nozzle, Whipper CX-2 1 EA.
Bowl, Whipper Modified CX-2 1 EA.
Cap, Steam Whipper Modified CX-2 1 EA.
1-11 -13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
3
Page 4
BISTRO 10S & BISTRO 10T
LIQUID COFFEE SPECIALTY DRINK MACHINE
ITEM # IMAGE DESCRIPTION UM
Hopper & Whipper Assembly
781587
123034
123035
123063
123064

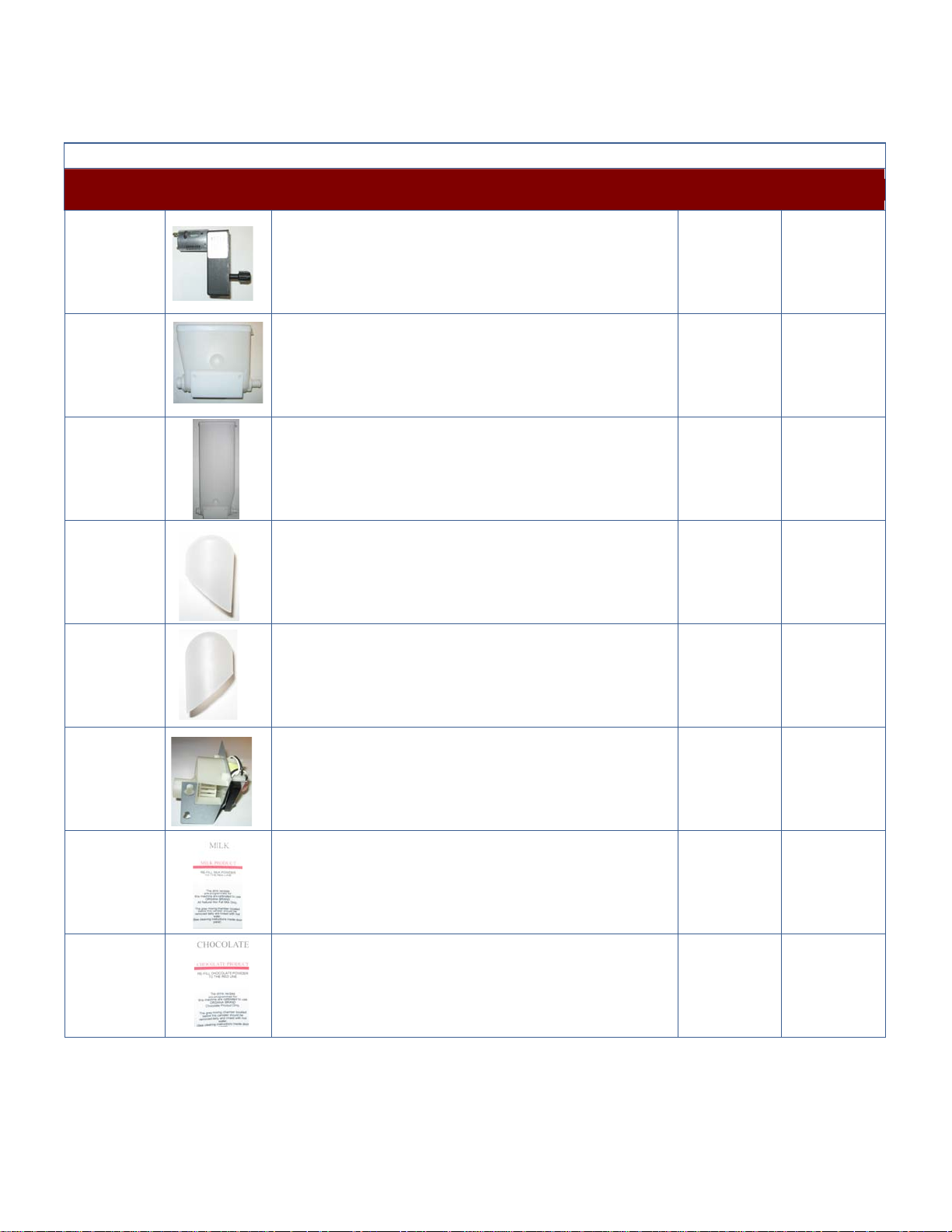

Motor, Auger 90 RPM 24VDC 1 EA.
Hopper Assy., 2 lbs Bistro 10 [Short Version] 1 EA.
Hopper Assy., 4 lbs Bistro 10 [Tall Version] 1 EA.
Nozzle, RH Bistro 10 1 EA.
Nozzle, LH Bistro 10 1 EA.
781647
123056
123057
Blower Motor Assembly 1 EA.
Label, Milk Hopper Bistro 10 1 EA.
Label, Chocolate Hopper Bistro 10 1 EA.
1-11 -13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
4
Page 5
BISTRO 10S & BISTRO 10T
LIQUID COFFEE SPECIALTY DRINK MACHINE
ITEM # IMAGE DESCRIPTION UM

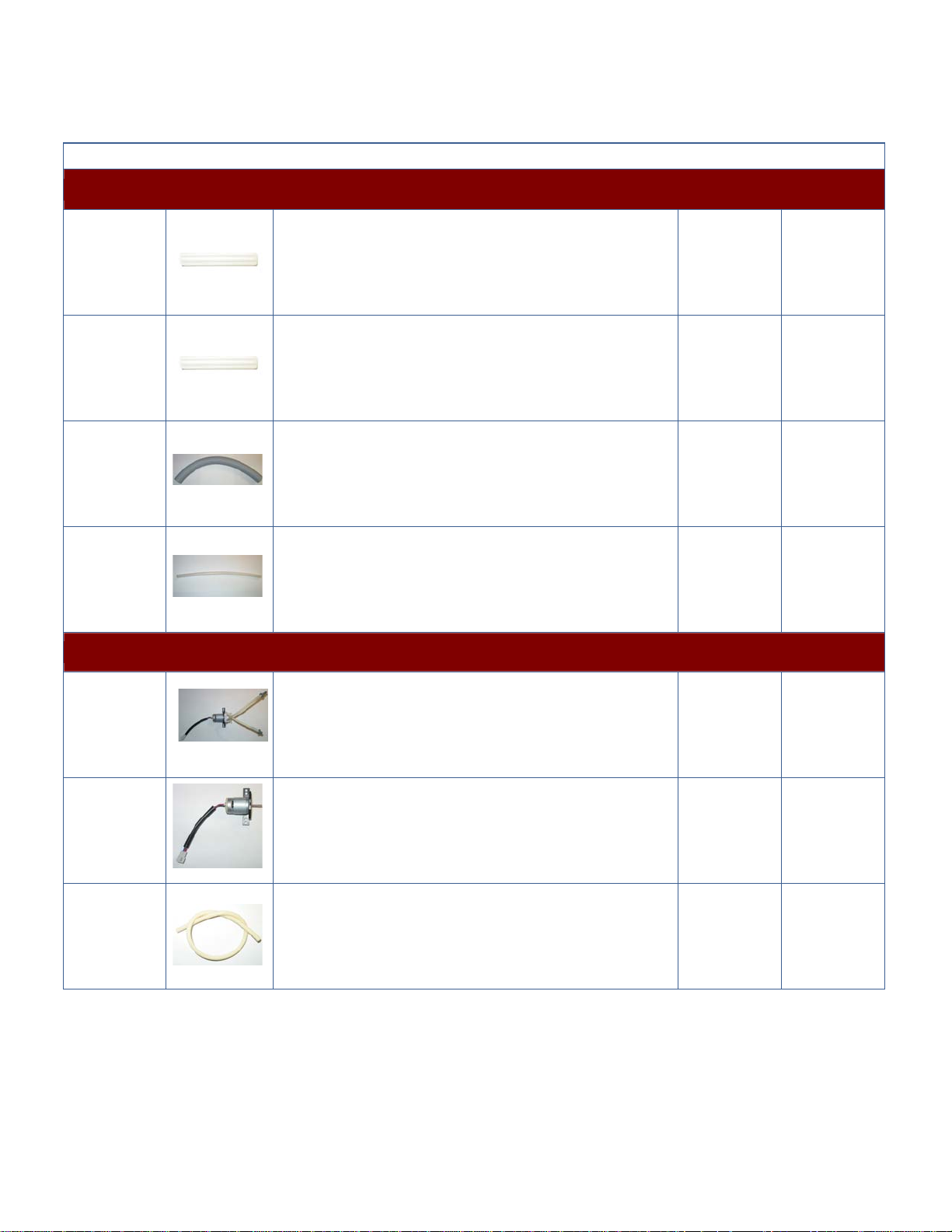

Tube Assembly, BIB
120422
123060
107117
120383
120683
Tube Assembly, BIB 12.00” 1 EA.
Tube Assembly, BIB 18.00” [Tall Version Only] 1 EA.
Connector, Scholle 1910L 1 EA.
Silicone Tubing, Grey 1/4 x 1/2 x 12.00” 1 EA.
Clamp, SNP6-10C2 Black [Small] 1 EA.
120684
205189
123061
Silicone Tube, Grey 1/4 x 1/2 x18.00” [Tall Version Only] 1 EA.
Clamp, SNP8-10C2 Black [Large] 1 EA.
Elbow, 1/4 x 1/4 Trimmed 1 EA.
1-11 -13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
5
Page 6
BISTRO 10S & BISTRO 10T
LIQUID COFFEE SPECIALTY DRINK MACHINE
ITEM # IMAGE DESCRIPTION UM

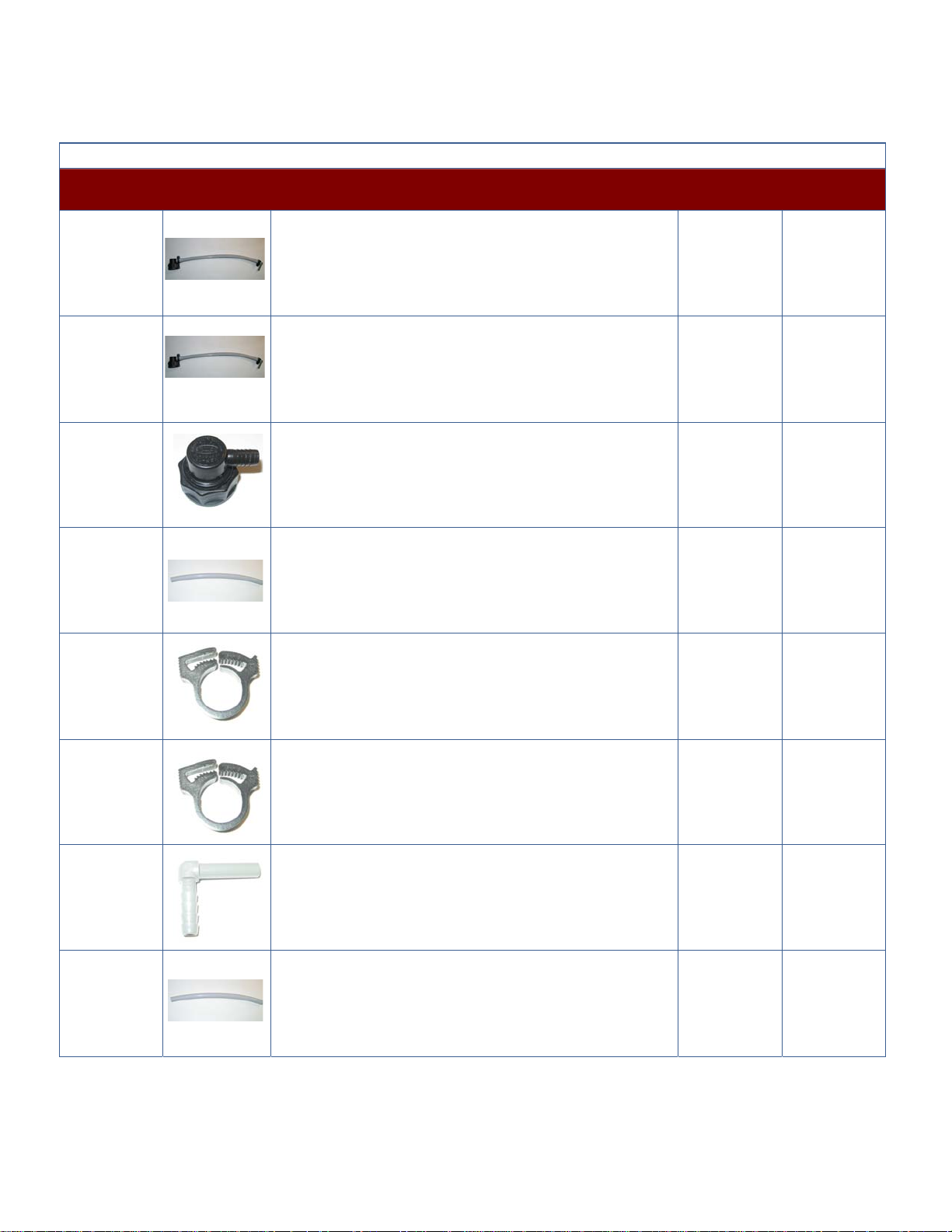

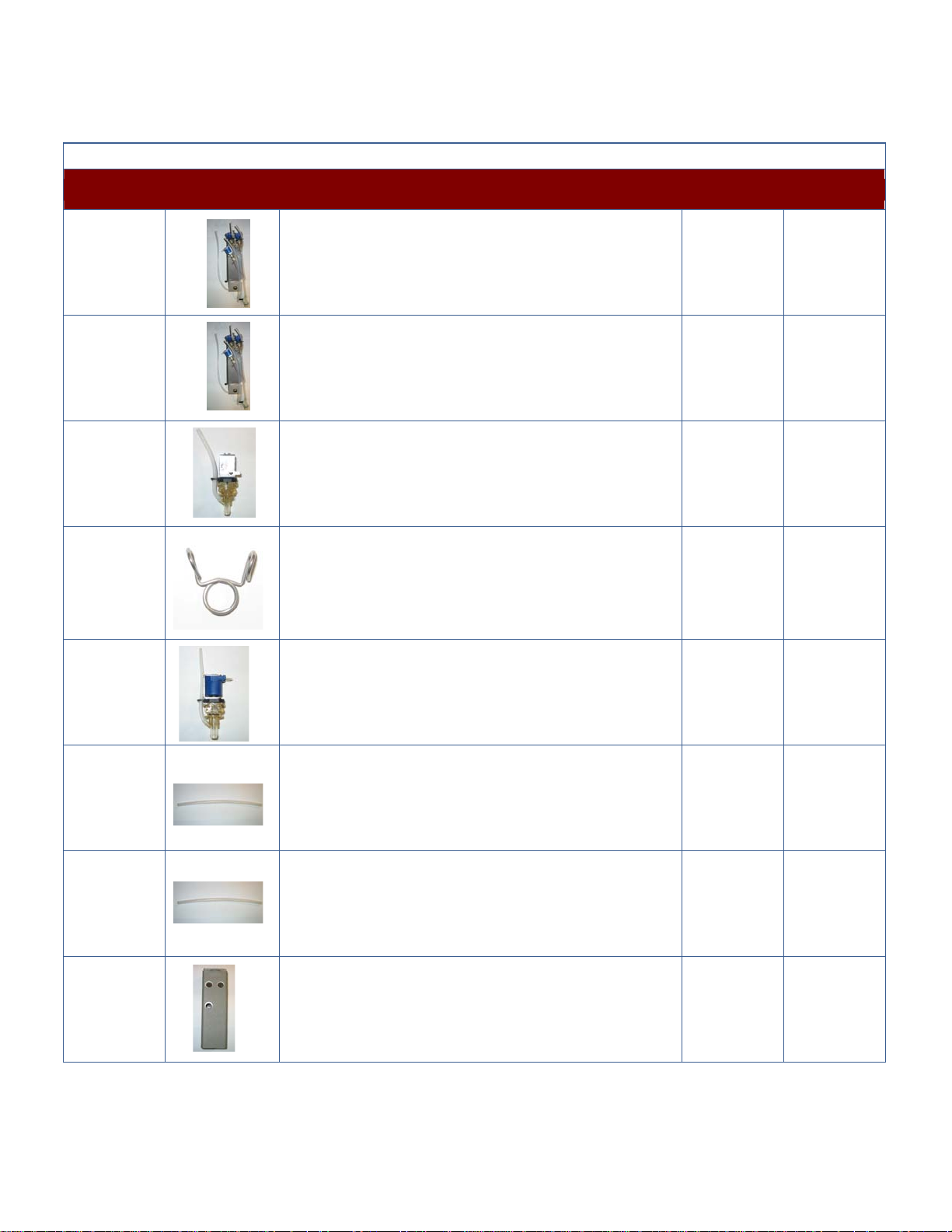

Tank Assembly
123008
NA
102068
111634
122995
Tank Assembly, 1600W Bistro 10 1 EA.
Tank Assembly, 1400W Bistro 10 [Canada] 1 EA.
Dump Valve, 120V With Gasket 1 EA.
Hose Clamp, .459 ID 1 EA.
Solenoid Valve, Dump 8” Vent Bistro 10 1 EA.
120577
121898
120898
Silicone Tubing, 5/16 x 7/16 x 20.00” 1 EA.
Silicone Tubing, 5/16 x 1/2 x 13.50” 1 EA.
Tank Only, With Insulation 1 EA.
1-11 -13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
6
Page 7
BISTRO 10S & BISTRO 10T
LIQUID COFFEE SPECIALTY DRINK MACHINE

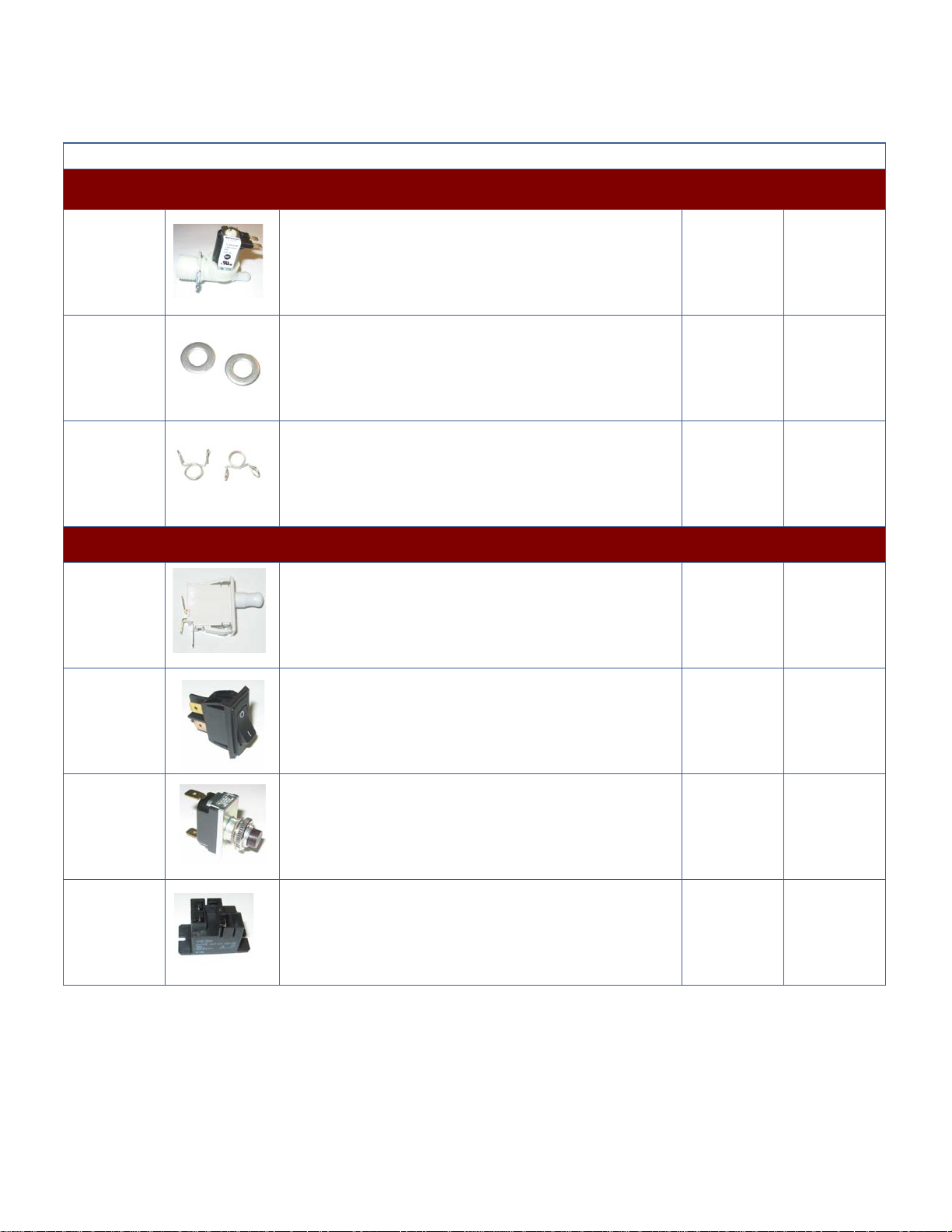

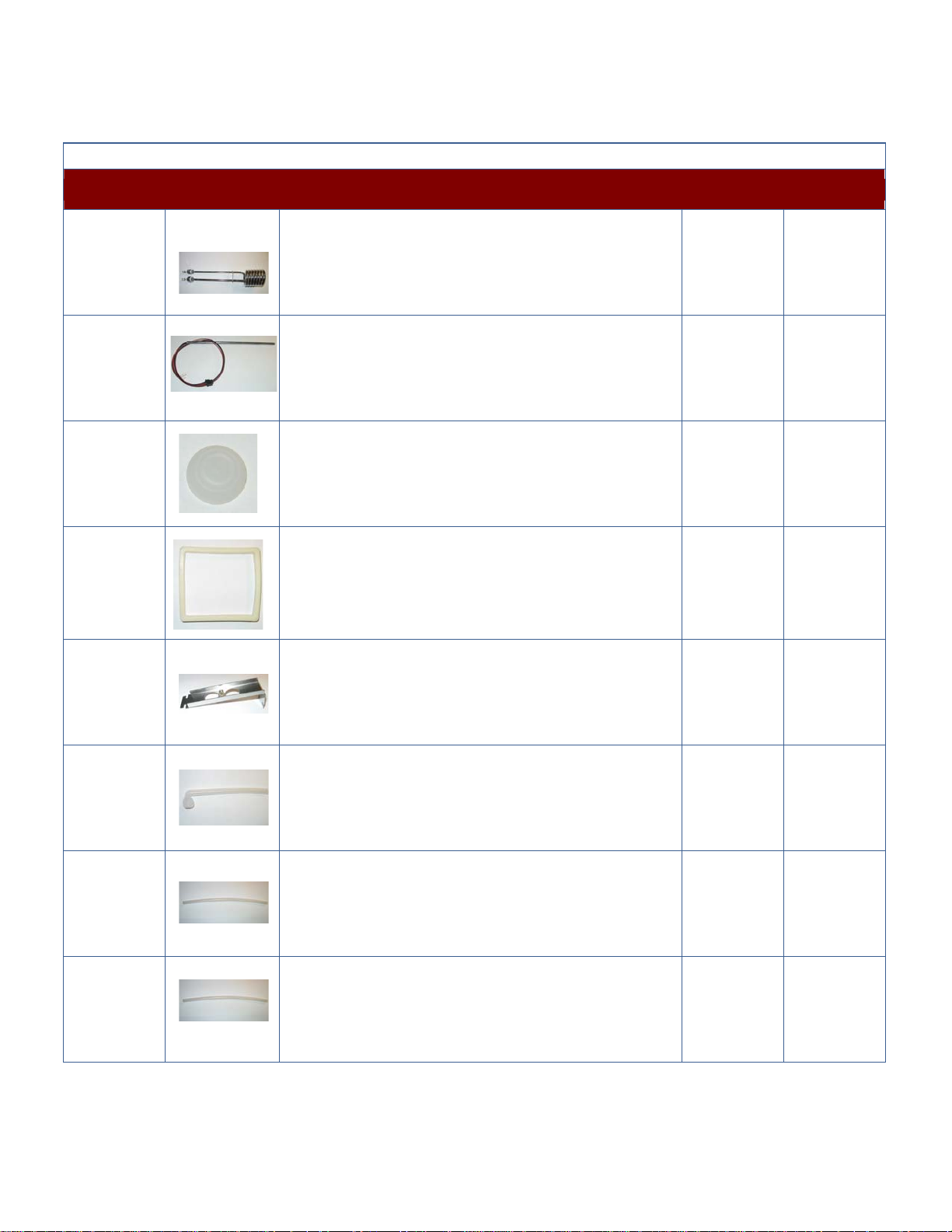

ITEM # IMAGE DESCRIPTION UM

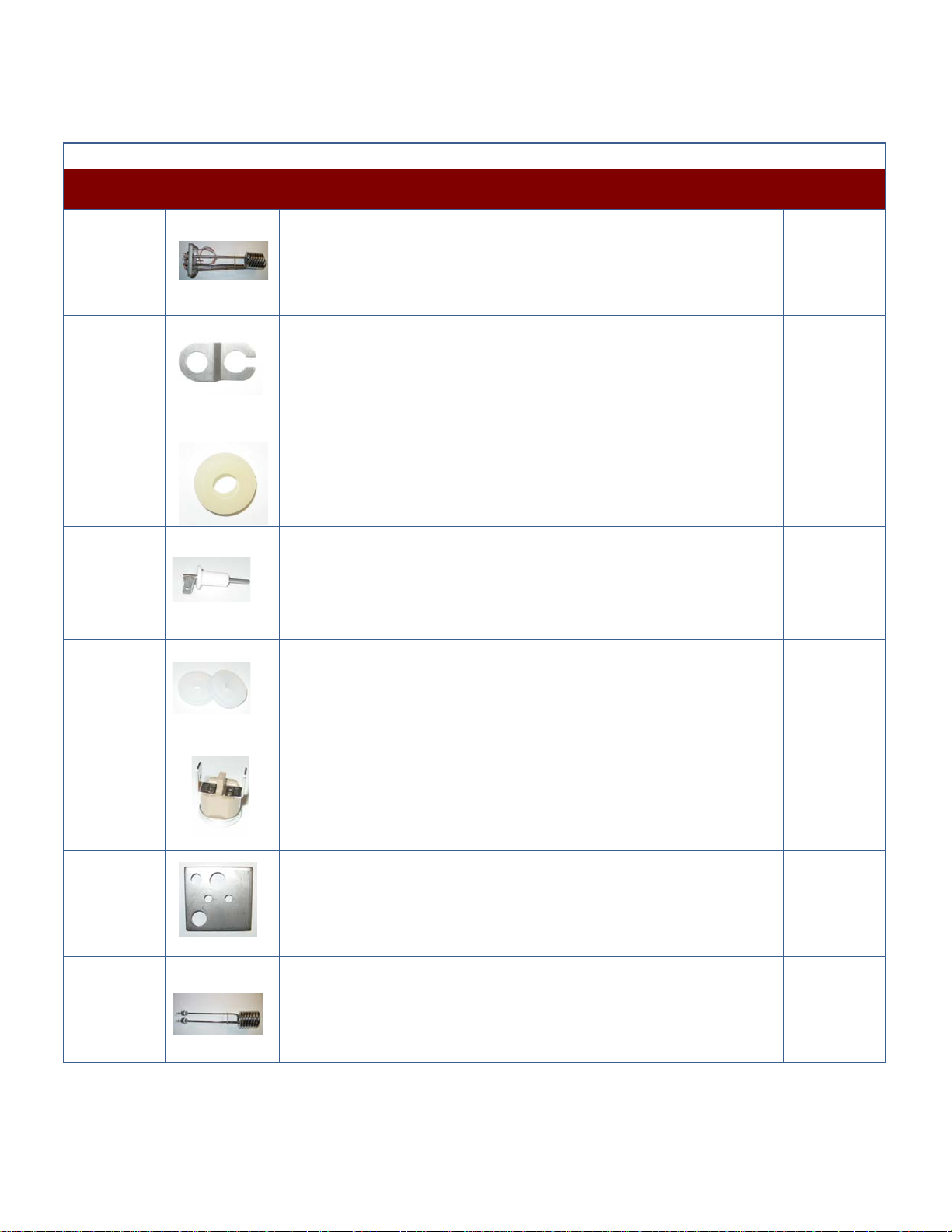

Tank Assembly - Continued
120899
100269
101938
500398
500350
Tank Lid Assembly, 1600W 1 EA.
Bracket, Hi Limit Thermostat 1 EA.
Silicone Grommet, .359ID x .875OD 1 EA.
Probe Assembly, 1.818” With Bushing 1 EA.
Grommet, Probe Bushing 5/16” 1 EA.
111593
120927
120928-10
Manual Thermostat, Vertical Tabs 221F 25A 1 EA.
Tank Lid Only, Punched 1 EA.
Main Element, 1600W 120V 1 EA.
1-11 -13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
7
Page 8
BISTRO 10S & BISTRO 10T
LIQUID COFFEE SPECIALTY DRINK MACHINE
ITEM # IMAGE DESCRIPTION UM
Tank Assembly - Continued
NA
151677
500038
120929
120933

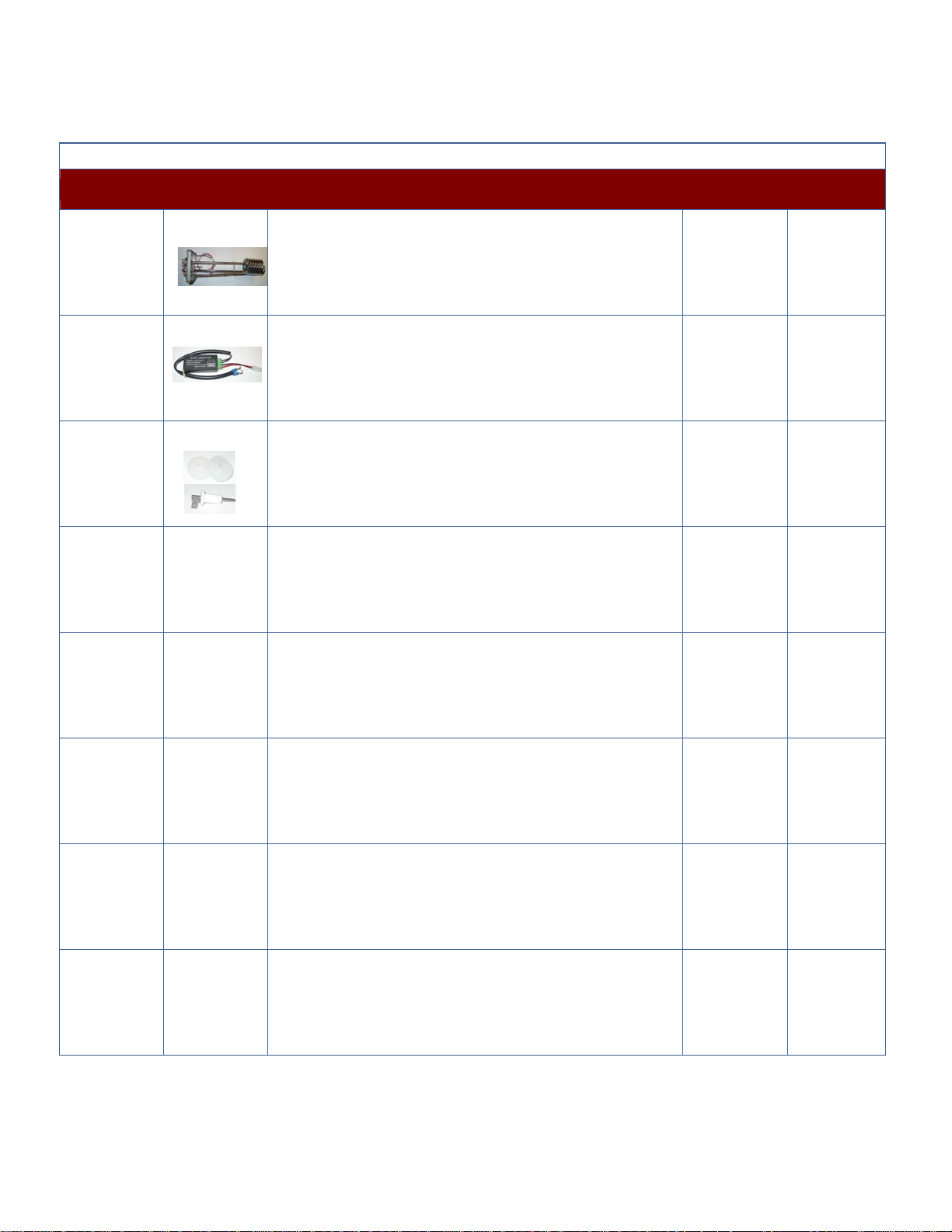

Main Element, 1400W 120V [Canada] 1 EA.
Temperature Probe, Dual 7.312” 1 EA.
Silicone Grommet, No Slit .060 1 EA.
Gasket, Tank LCD 1 Series 1 EA.
Retaining Bracket, Tank LCD 1 Series 1 EA.
121348
121897
121896
Silicone Tube, Right Angle Con 7” 1 EA.
Silicone Tubing, 5/16 x 1/2 x 8.375” 1 EA.
Silicone Tubing, 5/16 x ½ x 12.50” 1 EA.
1-11 -13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
8
Page 9
BISTRO 10S & BISTRO 10T
LIQUID COFFEE SPECIALTY DRINK MACHINE
ITEM # IMAGE DESCRIPTION UM
Tank Assembly - Continued
201175
400001
411039
Switches
103416
Solenoid Valve, .50 Restrictor 1 EA.
Washer, SS Element 1 EA.
Hose Clamp, .510 ID 1 EA.
Waste Bin Switch, Push/Pull 1 EA.
110626
100343
110958
On – Off Switch, Power 1 EA.
Flush Switch 1 EA.
Relay, 12V DC 1 EA.
1-11 -13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
9
Page 10
BISTRO 10S & BISTRO 10T
LIQUID COFFEE SPECIALTY DRINK MACHINE
ITEM # IMAGE DESCRIPTION UM
Door Assembly
123005-BPC
123045-BPC
100191
100212
105043-B
Door Assembly, BPC Bistro 10 [Short Version] 1 EA.
Door Assembly, BPC Bistro 10 [Tall Version] 1 EA.

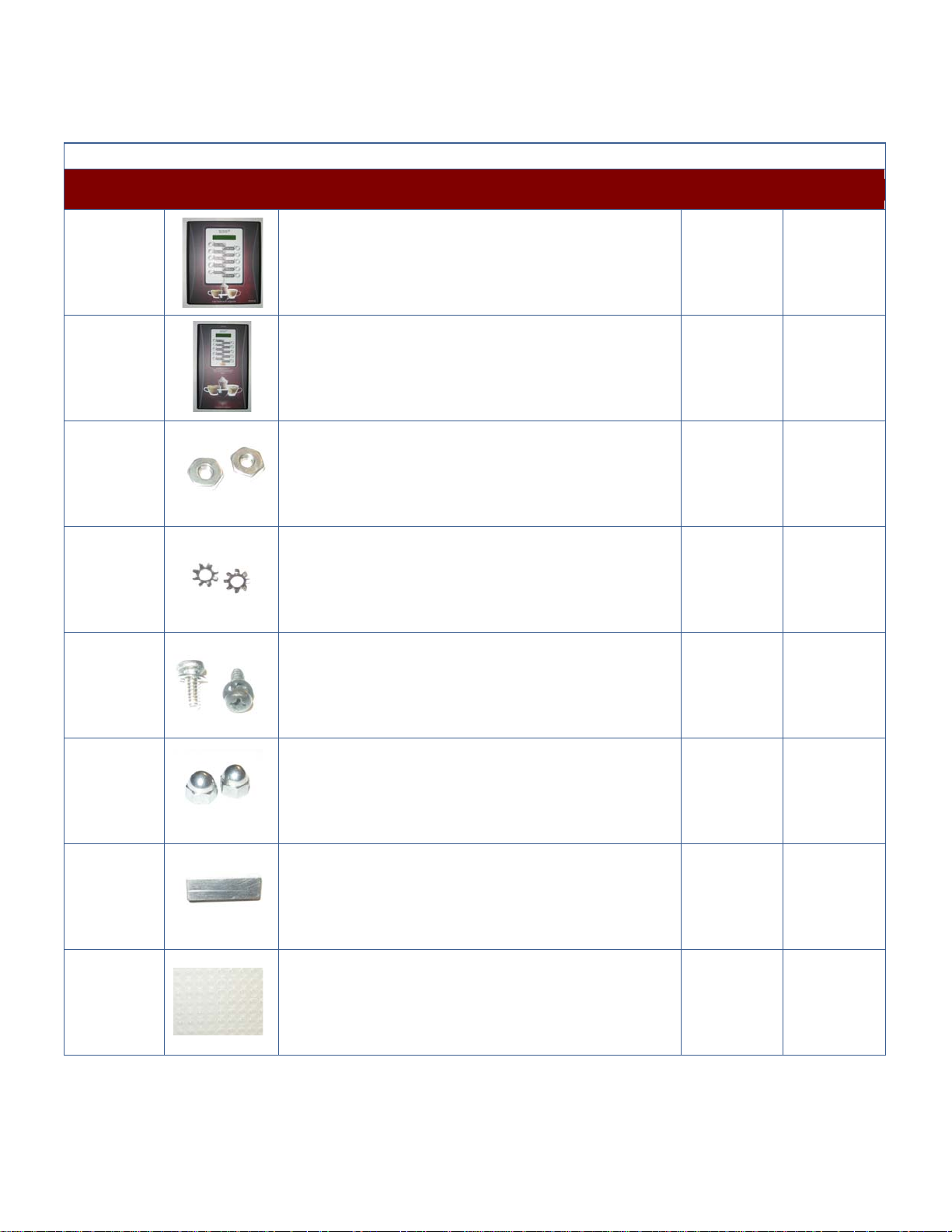

Nut, Hex 6-32 SS 1 EA.
Washer, #6 External Lock SS 1 EA.
Screw, 6-32 x 3/8 PPHMS With Washer Black 1 EA.
111668
121301
121302
Nut, Acorn 6-32 Locking SS 1 EA.
Magnet, Door 1 EA.
Bumper, Clear 11/32 x 5/64 1 EA.
1-11 -13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
10
Page 11
BISTRO 10S & BISTRO 10T
LIQUID COFFEE SPECIALTY DRINK MACHINE
ITEM # IMAGE DESCRIPTION UM
Door Assembly - Continued
123046
400521
767159
781259
781258
Label, Door Bistro 10 [Tall Version] 1 EA.
Label, Door Bistro 10 [Short Version] 1 EA.

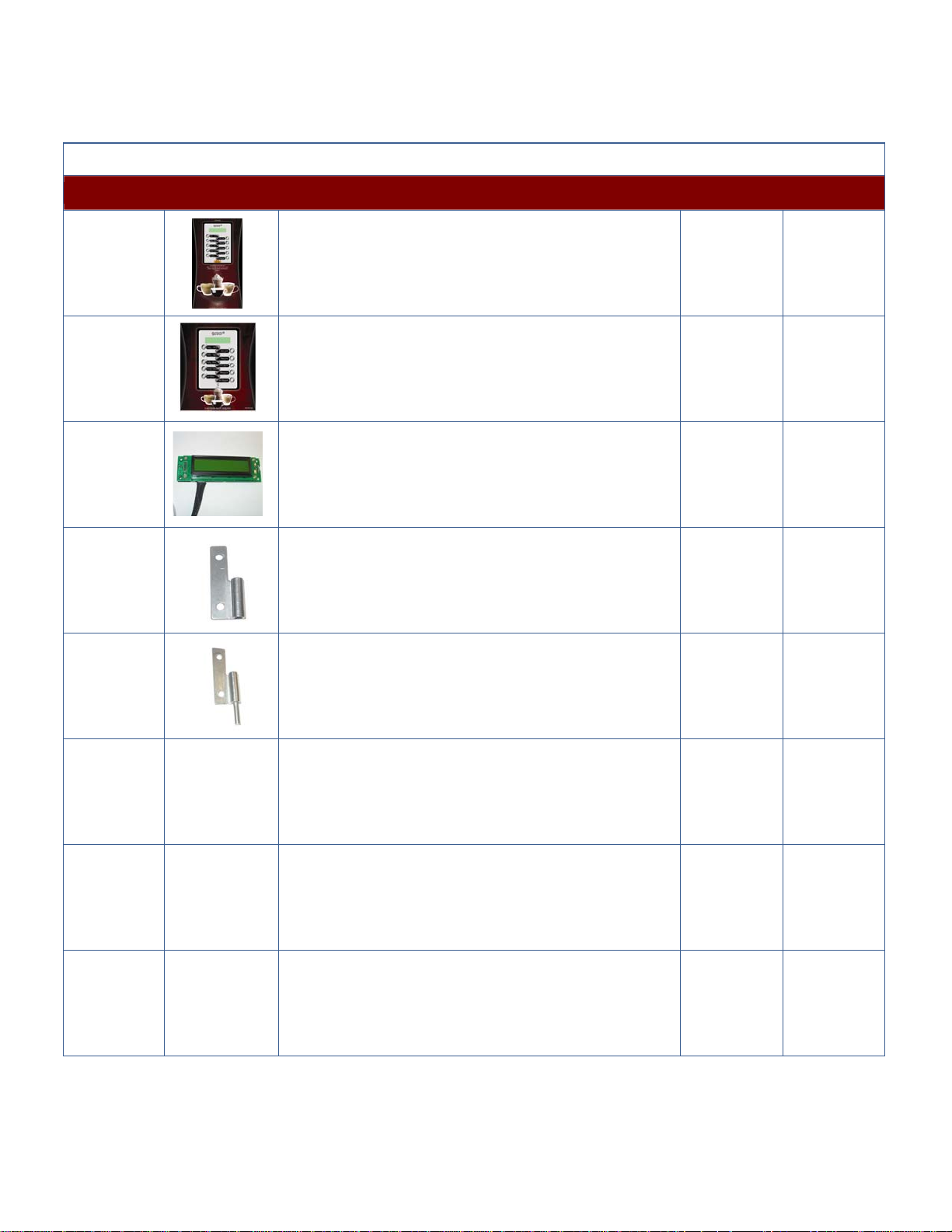

Display Board 1 EA.
Hinge, Female 1 EA.
Hinge, Male 1 EA.
1-11 -13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
11
Page 12
BISTRO 10S & BISTRO 10T
LIQUID COFFEE SPECIALTY DRINK MACHINE
ITEM # IMAGE DESCRIPTION UM
Hose & Tube Assemblies
123051
123054
767398
121895
Pump Head Assembly
Silicone Tubing, 5/16 x 7/16 x 2.00” 1 EA.
Silicone Tubing, 5/16 x 7/16 x 1.25” 1 EA.
Hose, PVC Grey 1.25 x 1.56 x 17” 1 EA.
Silicone Tubing, 5/16 x 1/2 x 24.00” 1 EA.
104155
104190
104204
1-11 -13 NEWCO ENTERPRISES 1.800.325.7867
Tubing, Neoprene .117 x .197 x 12.25” 1 EA.
Pump Head Assembly 1 EA.
Motor Assembly, Pump – 3 Roller 1 EA.
www.newcocoffee.com
12
Page 13
BISTRO 10S & BISTRO 10T
LIQUID COFFEE SPECIALTY DRINK MACHINE
ITEM # IMAGE DESCRIPTION UM

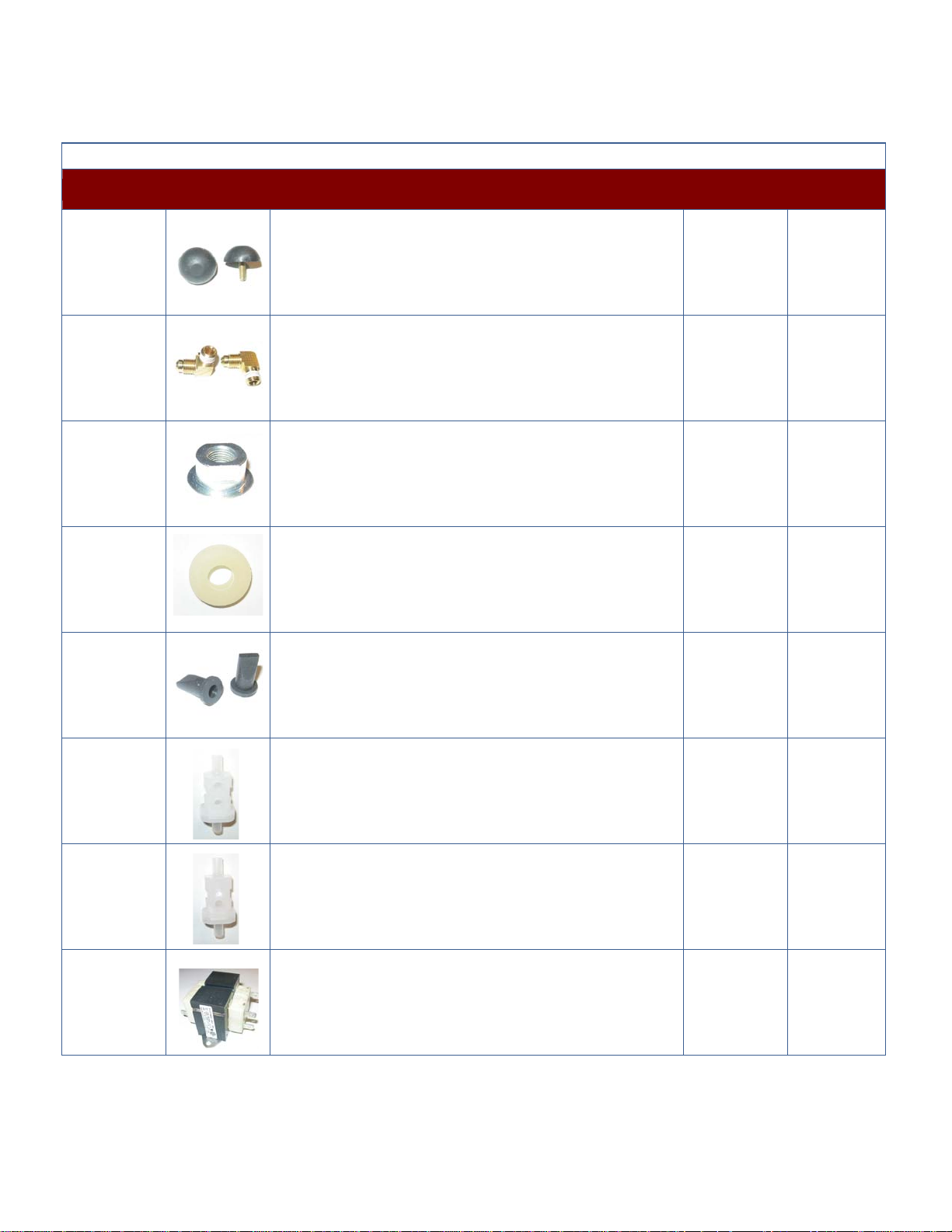

Miscellaneous Components
100078
100177
101377
101938
104151
Foot, Bumper With screw 1 EA.

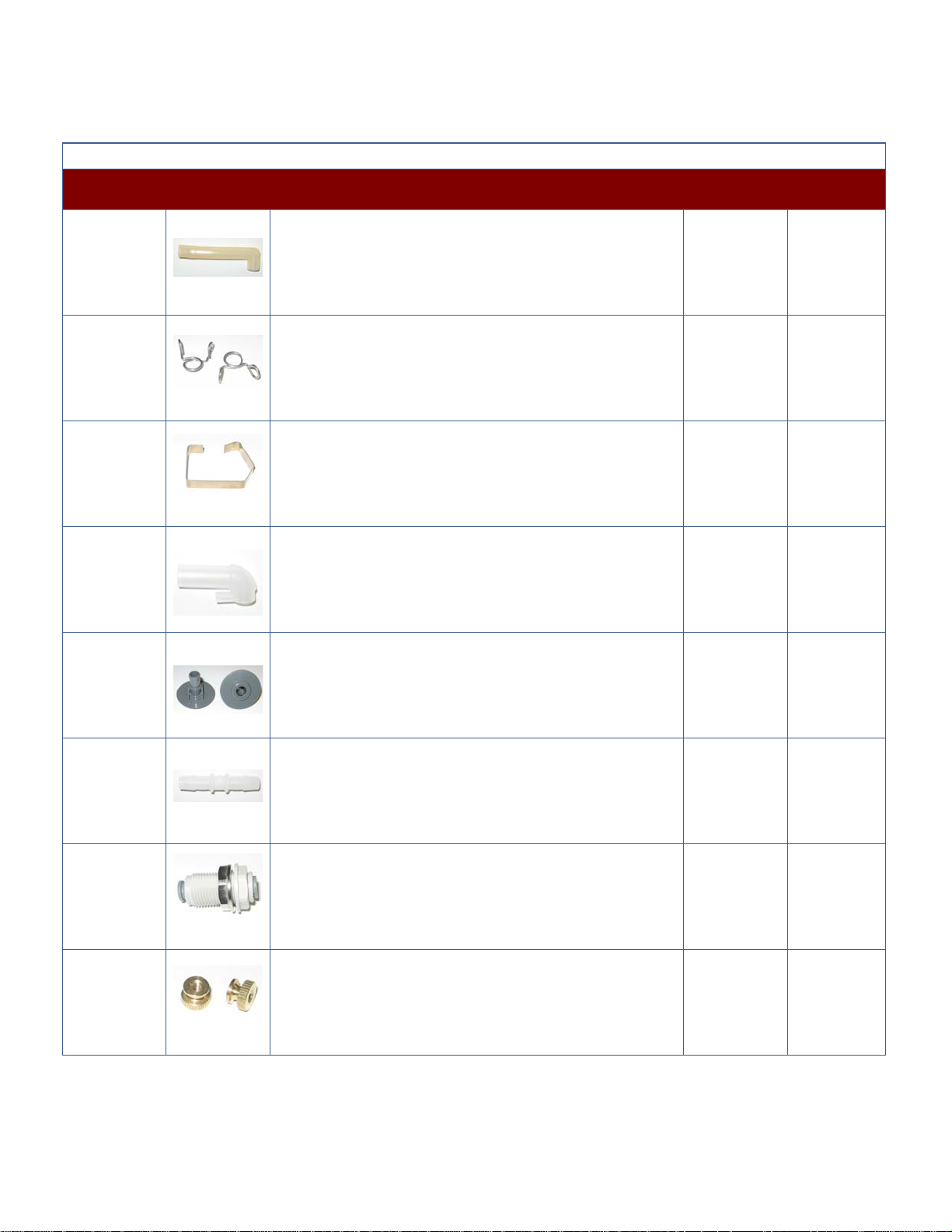

Elbow, Male 1/4F x 1/8P 1 EA.
Fitting, Solenoid 1/8P 1 EA.
Silicone Grommet, .359ID x .875OD 1 EA.
Check Valve, Duck .301 x 0.656 1 EA.
104161
Chamber, Mix Double Stem [Tall Version Only] 1 EA.
121294
Chamber, Mix Double Stem One Out [Short Version Only] 1 EA.
105115
Transformer, 120VP 24VCT 40VA 1 EA.
1-11 -13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
13
Page 14
BISTRO 10S & BISTRO 10T
LIQUID COFFEE SPECIALTY DRINK MACHINE
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components - Continued
111058
111634
120436
123018
123028
Silicone Elbow, 4” Valve To Inlet 1 EA.
Hose Clamp, .459ID 1 EA.
Spring Retainer Clip, Mix Chamber 1 EA.
Nozzle, Dispense Bistro 10 1 EA.
Bulkhead With Shield, Bistro 10 1 EA.
123068
Coupler, 3/8” (CO-6NK) 1 EA.
205083
Bulkhead Union, 1/4 Tube 1 EA.
700021
Knurled Nut, 8-32 Brass 1 EA.
1-11 -13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
14
Page 15
BISTRO 10S & BISTRO 10T
LIQUID COFFEE SPECIALTY DRINK MACHINE
ITEM # IMAGE DESCRIPTION UM

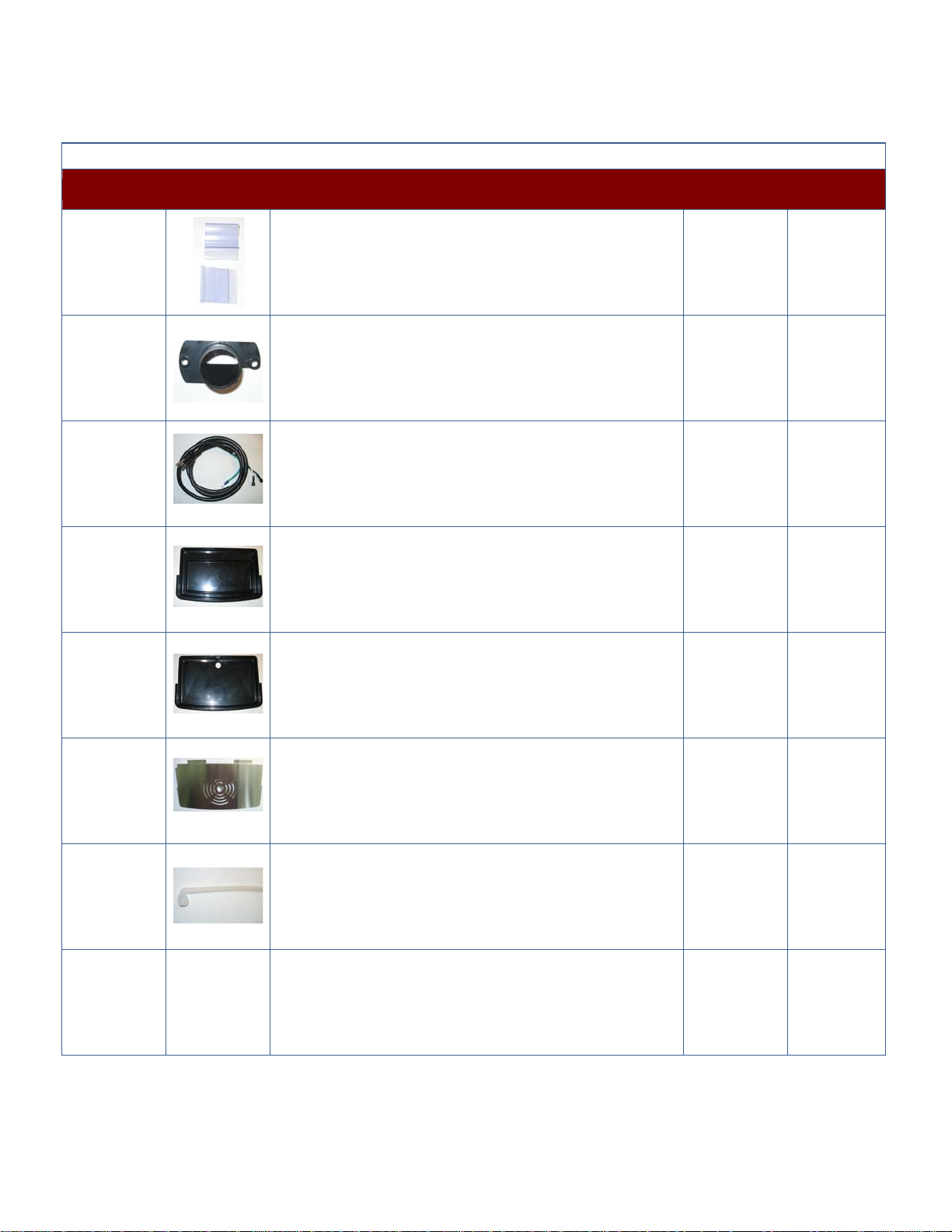

Miscellaneous Components - Continued
781697
781718
781843
784025
123069
Clamp, Adhesive 1 EA.
Manifold, Suction 1 EA.
Power Cord, 14/3 With Shrink 1 EA.
Drip Tray, 12” Plastic MC2 1 EA.
Drip Tray, 12” With Drain Bistro 10 1 EA.
123002
121347
Grid, Drip Tray Cover, SS Bistro 10 1 EA.
Silicone Tube, Right Angle 18.5” 1 EA.
1-11 -13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
15
Page 16
BISTRO 10S & BISTRO 10T
LIQUID COFFEE SPECIALTY DRINK MACHINE
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components - Continued
123021
121295
123017
123067
100054

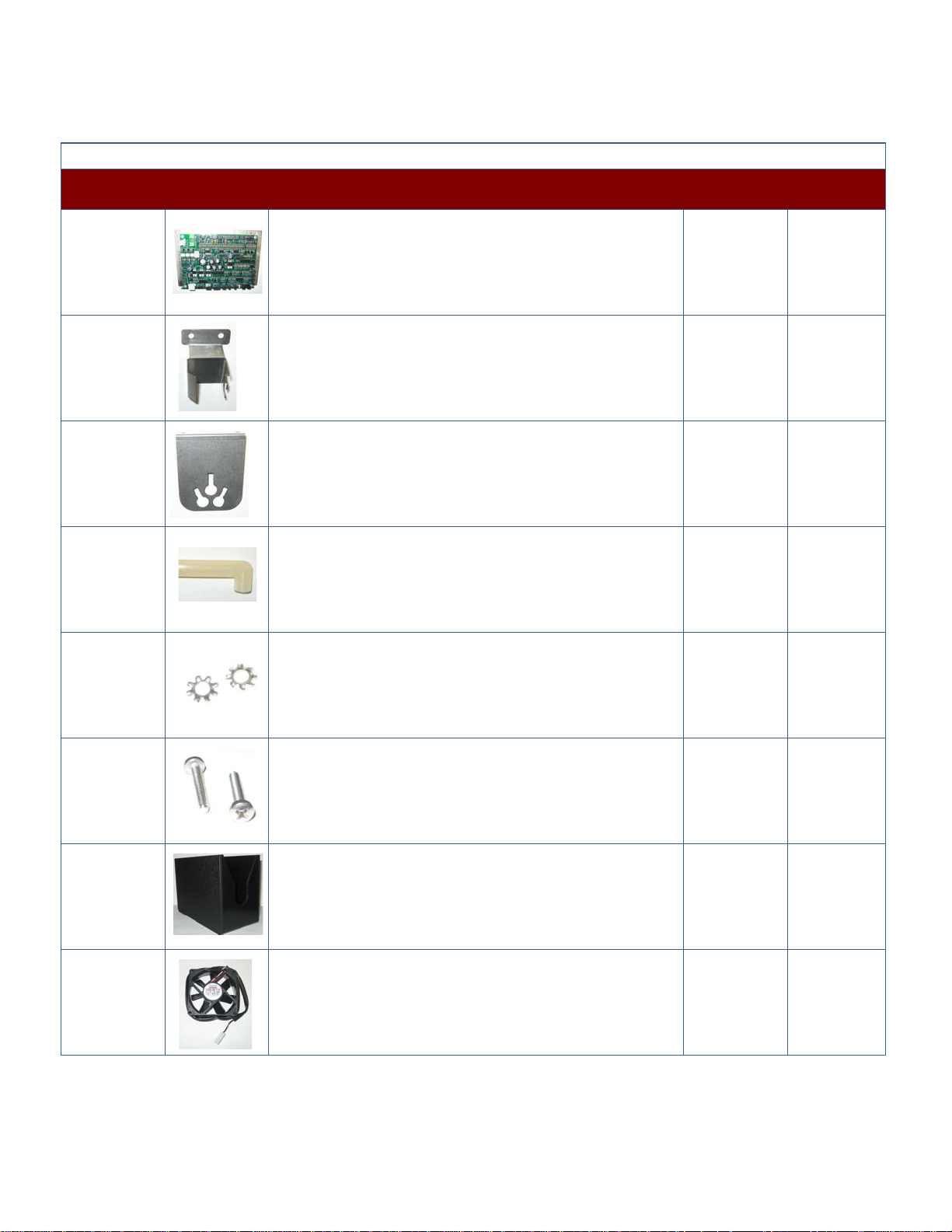

Board Assembly, Bistro 10 1 EA.
Bracket, Mounting Mix Chamber 1 EA.
Bracket, Mounting Hosed Position Bistro 10 1 EA.
Elbow, Silicone 2.25 Inches 1 EA.
Lock Washer, #8 SS
[Used To Secure Retaining Bracket To Tank Lid & Fan]
1 EA.
781533
121929
103600
[Used To Secure Retaining Bracket To Tank Lid]
Screw, 8-32 x 7/8 PPHMS SS
Tray, Coffee Bin 1/2 Gallon Bistro 10 1 EA.
Fan Assembly 1 EA.
1-11 -13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
1 EA.
16
Page 17
BISTRO 10S & BISTRO 10T
LIQUID COFFEE SPECIALTY DRINK MACHINE
ITEM # IMAGE DESCRIPTION UM

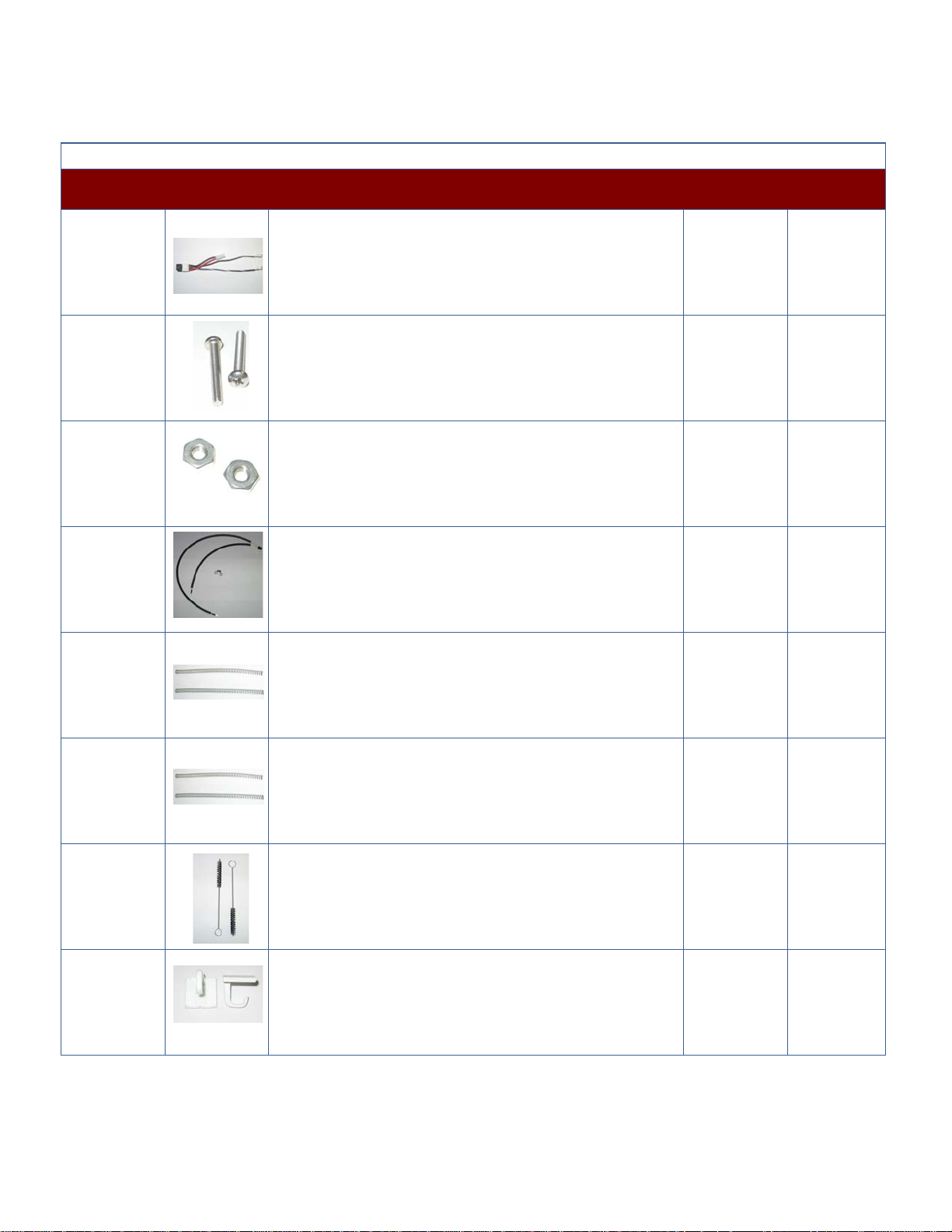

Miscellaneous Components - Continued
123092
781539
100061
122992
121404
Fan Harness, with Rectifier & Capacitor 1 EA.
Screw, 8-32 x 1 3/8 PPHMS SS 1 EA.
Nut, 8-32 Hex SS 1 EA.
LED & Harness, Bistro 10 1 EA.
Spring, 5.5” Peristaltic Pump [104155] 1 EA.
121406
111622
104023
Spring, 4.0” Peristaltic Pump [104155] 1 EA.
Brush, Tube 1 EA.
Hook, Brush 1 EA.
1-11 -13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
17
Page 18
BISTRO 10S & BISTRO 10T
LIQUID COFFEE SPECIALTY DRINK MACHINE
ITEM # IMAGE DESCRIPTION UM
Miscellaneous Components - Continued
NA
121470
500384
Tank Lid Assembly, 1400W [Canada] 1 EA.
Power Converter Assembly, 24AC/12VDC 1 EA.
Probe Assembly Kit, 1.818”
[Consists of: 1 ea. of 500350 - Grommet,
500398 - Probe Assy., & Instruction]
1 EA.
1-11 -13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
18
Page 19
BISTRO 10S & BISTRO 10T
LIQUID COFFEE SPECIALTY DRINK MACHINE
1-11 -13 NEWCO ENTERPRISES 1.800.325.7867
www.newcocoffee.com
19
