DEAR CUSTOMERS
Thank you for purchasing the liquid crystal display TV. This product employs
2
new integrate circuits (I
low power consumption, emits no radiation,and other advantage characteristics. This
product is shaped with modern style and is easy to be carried with. The color LCD TV set is
the most suitable display for cable monitor system, car VCD and GPS system for motorcars
and ships. You will certainly benefit from this monitor in lots was ;to name some of then :
comfort ,safety, space-saving.
We hope that you will have the enjoyment of your new mini color TV set.
To ensure the best use of the unit, please read this handbook carefully beforehand.
C Bus) and high quality TFT LCD modules. It is putting out with its
NOTICE
1. Please use the adapter attached in the accessory.
2．Do not remove the rear panel of this product. If in need of service
please call a qualified technician.
3、Do not expose this product to direct sunlight, heat or humid
conditions.
4、Keep away from strong light while using this product so as to obt ain
the clearest and the most colorful picture.
5、Avoid heavy impact or drop onto the ground.
6、Do not use chemical solutions to clean this unit. Please simply wipe
with a clean soft cloth to keep the brightness of the surface.
Page 4
CONTANTS
1．FIGURE -------------------------2．REMOTE CONTROLLER --------
3．MATCHED CABLE---------------------------
4. OPERATION --------------------------
5. ACCESSORIES -----------------------------6．PARAMETER -------------------------7．TROUBLESHOOTING--------------------
FIGURE

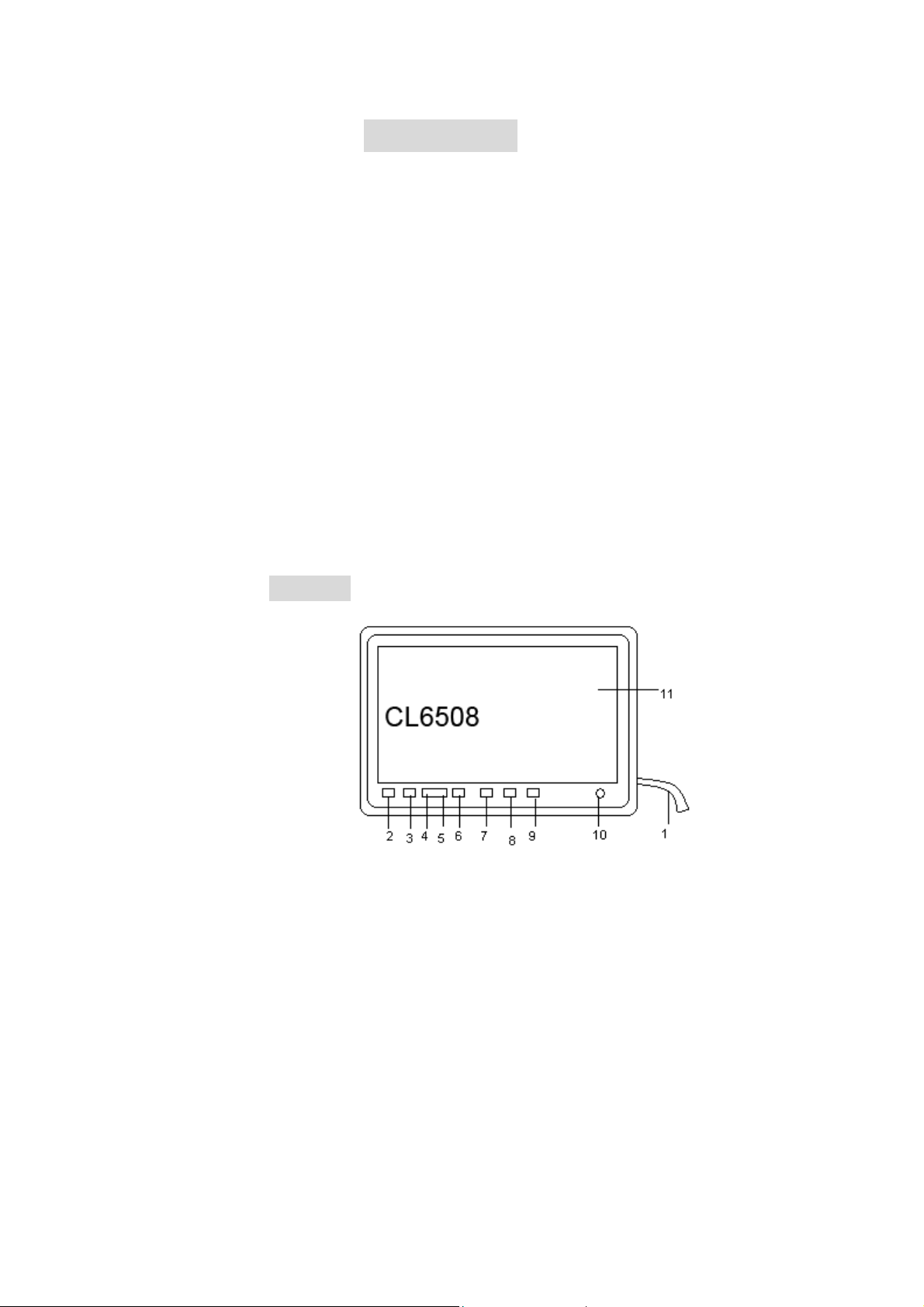

1. A/V signal input cable
2. Infrared receiving window
3. MENU: To activate the menu
4. - : Volume down
5. +: Volume up
6. A/V: Switch video signals
7. L/R: To reversal image left and right
8. U/D: To reversal image up and down
9. Power on /off
10. Earphone jack
11. Liquid crystal display
Page 5
A/V cable
1. 5-pin AV signal input plug
2. Red video 2 input plug
3. Yellow video 1 input plug
4. White audio input plug
5. Power input jack

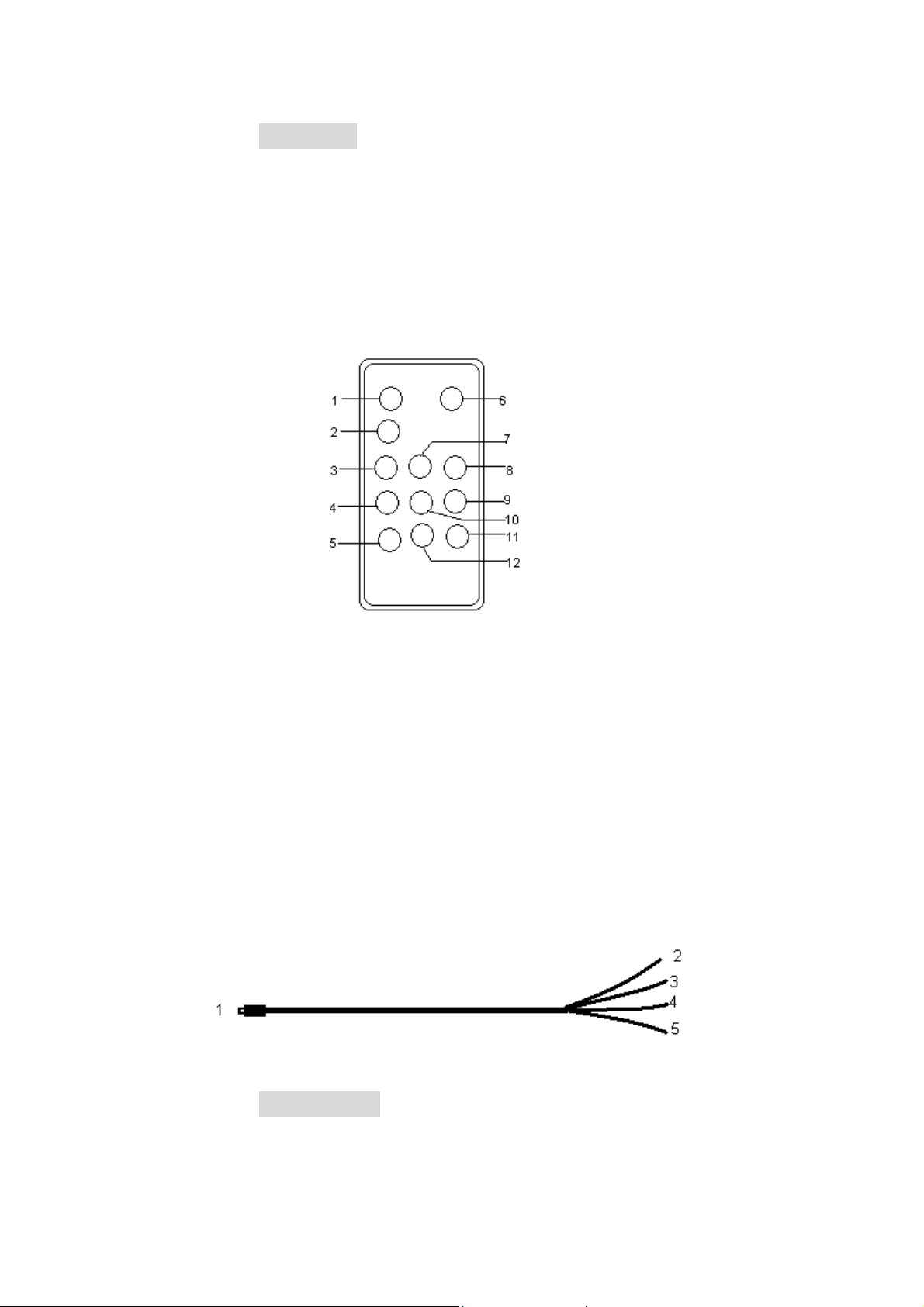

1. MUTE
2. DISPLAY SCALE SWITCH
3. AV SWITCH
4. < :Volume down or to adjust the value of function
5. To witch display mode
6. Power on / off
7. ^ : To select function on OSD menu
8. L/R: To switch image left and right
9. >: Volume up or to adjust the value of function
10. To activate OSD menu
11. To switch picture system: soft , standard, vivid.
12. v :To select function on OSD menu
OPERATON
Attention :When installing the unit ,make sure the 5-pin plug of the A/V
cable enclosed aim at the 5-pin A/V signal input jack of the unit and insert.
Page 6
Then the other ends of the cable should be connected to the correspond signal
(red: video2 input, yellow: video1 input, white: audio input, black: power input ).
The input voltage should be betweenDC11v-13v .Ensure to use output power
is larger than 10w, or it will not work properly!
1. A V1/AV2
After connecting the power, the monitor will be at standby state. Press “POW” button of
the unit or “Pow” on the remote controller, the monitor begins to work, and press the same button
again, the monitor return to standby state .When the unit is working you can press AV to switch
between AV1 and AV2.
2. volume
You can turn down or turn up volume by pressing - / + on the unit or press < / > on the
remote controller.
3. picture
It is applied to adjusting brightness, contrast ,color of the image on OSD menu. Note ,if
there is not further operation the menu will disappear in 10 seconds .Press MENU once to activate
the PICTURE item ,it will appear as picture .Press ^ or v on the remote controller to select the
function such as BRIGHT, CONTRAST , COLOR then press < or > to adjust the value of
function .Or you can press FUNC on the unit to activate BRIGHT CONTRAST COLOR in turn
then press – or + (vol-/vol+) to adjust the value.
4. timer
BRIGHTNESS 32
CONTRAST 40
COLOR 32
Press MENU a second time it will activate TIMER item . Press ^/V to select the
function then use < / > to adjust . Select CLOCK for instance you can press </> to set the initial
time. Then press ^/ V to select TIME ON or TIME OFF .TIME OFF is use to set the time you
want the unit turn off automatically .If you set CLOCK AT 14:00 and set the TIME OFF at 14:30
the unit will turn off in 30 minutes. TIME OFF is to set the time you want the unit to turn on
automatically. Alarm clock is also designed in the unit to alert you at the given time. Select
ALARM to set the time by pressing < / > , the unit will be blue screen and the current time after
timing.
TIMER
TIME -- /-ON -- / -OFF --/ -ALARM --/-CH-TIME --/-POS. 0
CH-TIME means to set the time of predetermined channel to turn on automatically, after
that press < / > to set the channel number you demanded at POS .
5. function
Press three times to activate the FUNCTION .as picture.
Page 7
BLUE SCREEN :When you set the BLUE SCREEN on, it means it will be blue screen
when there is no signal. Press ^ / v to select BLUE SCREEN then press </> to set it on.
COLOR: You can set the color system automatically by carry out the COLOR AUTO .
INPUT: It is to show the present signal inputted.
X-TURN: Carry out X-TUURN ON to invert image left and right
Y-TURN: Carry out Y-TUURN ON to invert image up and down
LANG: Press </> to choose the language of the menu after setting it .Such as English
Chinese.
FUNCTION
BLUE SCREEN ON
AUTO SHUT ON
SOUND D/K
COLOR AUTO
INPUT
X-TURN ON
Y-TURN OFF
LANG CHIN/ENG
It is approved to invert image up and down or left and right just as mentioned above .You
also can press

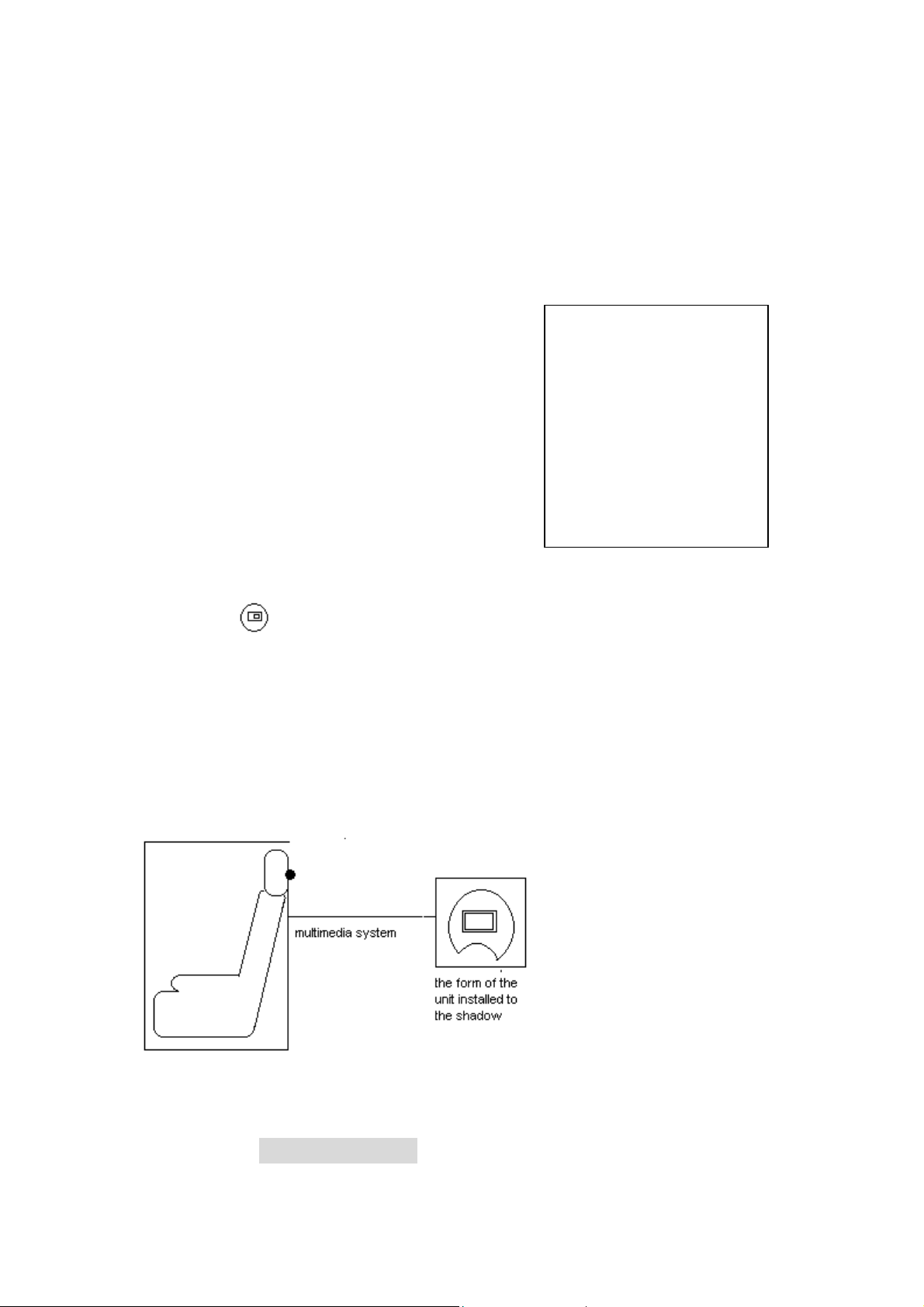

6. installation
on the remote controller to switch the display scale between 16:9 and 4:3.
ACCESSORIES
Page 8
Remote controller 1piecer
A/V cable 1piece
Power cord 1piece
Bracket 1piece
Operation manual 1copy
AC adapter 1piece (optional)
PARAMETER
Model
DISPLAY SCREEN
Color
Input voltage Display
system
CL6508
TFTLCD6’’(152mm)
280800pixels
PAL N TSC
DC11-13V
<=9.5W
PRODUT SPECIFICATION
MODEL SIZE
N.W.
16:9
CL6508
162*109*28(mm)
176*122*31(mm) with framework
372g
TROUBLESHOOTING
CASE COUNTERMEASURE
Only black &white picture The color saturation contrast and brightness are
not proper ,adjust PICTURE
No picture To check power inputted and connection
Remote controller doesn’t work ,check if the
battery is installed properly
To check if the battery is out .Remote signal is
interfered by some obstruction.
