New Age RTCB16 User Manual

New Age Industrial Corp., Inc.

PO Box 520 • 16788 US Hwy 36 • Norton, Kansas 67654

Phone: [phone] • Fax: [phone] • www.NewAgeIndustrial.com

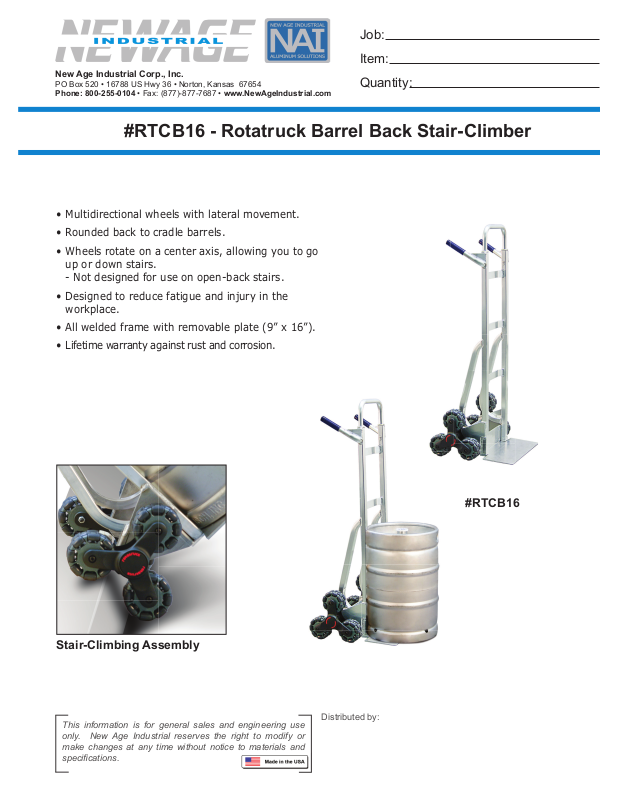

#RTCB16 - Rotatruck Barrel Back Stair-Climber

• Multidirectional wheels with lateral movement.

• Rounded back to cradle barrels.

• Wheels rotate on a center axis, allowing you to go
up or down stairs.

- Not designed for use on open-back stairs.

• Designed to reduce fatigue and injury in the
workplace.

• All welded frame with removable plate (9” x 16”).

Job:

Item:

Quantity:

• Lifetime warranty against rust and corrosion.

#RTCB16

Stair-Climbing Assembly

This information is for general sales and engineering use
only. New Age Industrial reserves the right to modify or
make changes at any time without notice to materials and

specifi cations.

Distributed by:

New Age Industrial Corp., Inc.

15"

20"

51 1/4"

PO Box 520 • 16788 US Hwy 36 • Norton, Kansas 67654

Phone: [phone] • Fax: [phone] • www.NewAgeIndustrial.com

#RTCB16 - Rotatruck Barrel Back Stair-Climber

MATERIAL:

• Framework is constructed out of 1¼” x 1¼” x
.070” wall tubing.

• Handle is constructed out of 1” diameter pipe.

• Bolt on nose plate is 9” x 18”.

CASTERS:

• Cart capacity is 485#.

• Equipped with two stairclimbing assemblies
comprised of three triple wheel housings.

Job:

Item:

Quantity:

GUARANTEE:

• Casters carry a Two-Year Guarantee.

• Truck carries a Lifetime Guarantee against
rust and corrosion and also carries a Five­ Year Guarantee against workmanship and
material defects.

Rotacaster wheels have the ability to move in any

direction while mounted to a fi xed position - Using
rollers rather than a swivel mount. They are designed
to reduce fatigue and injury in the workplace

18 1/4"

Model Size Wt. Ship
No. W-H-D Cap. Wt.

RTCB16 ....18-¼” x 51-¼” x 20” ............. 485# ..........40#

Equipped with Rotacaster stairclimber wheels (#C568).

Stair glide wear strips are standard.

Replacement:

47092 .... Stair Glide Wear Strips (2).

This information is for general sales and engineering use
only. New Age Industrial reserves the right to modify or
make changes at any time without notice to materials and

specifi cations.
