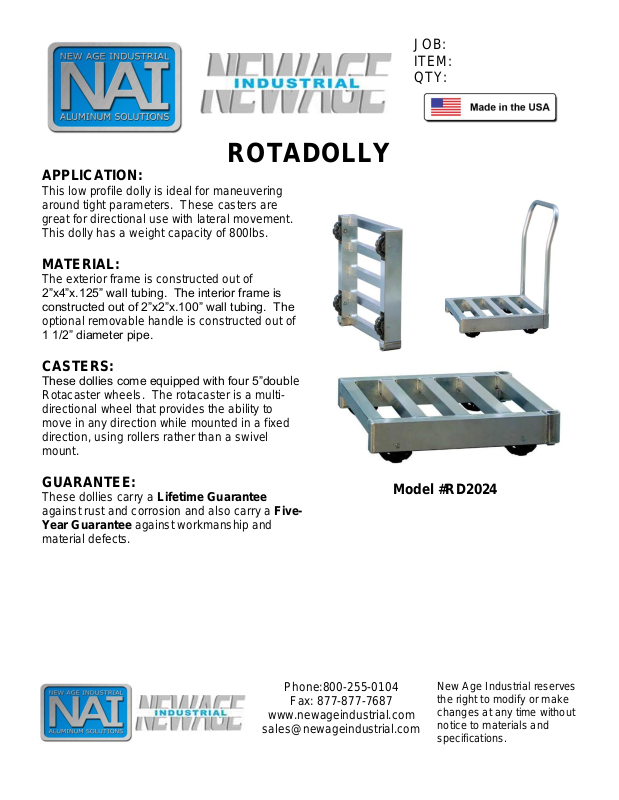

ROTADOLLY

APPLICATION:

This low profile dolly is ideal for maneuvering
around tight parameters. These casters are
great for directional use with lateral movement.
This dolly has a weight capacity of 800lbs.

MATERIAL:

The exterior frame is constructed out of

2”x4”x.125” wall tubing. The interior frame is
constructed out of 2”x2”x.100” wall tubing. The

optional removable handle is constructed out of
1 1/2” diameter pipe.

CASTERS:

These dollies come equipped with four 5”double
Rotacaster wheels. The rotacaster is a multi­directional wheel that provides the ability to
move in any direction while mounted in a fixed
direction, using rollers rather than a swivel
mount.

GUARANTEE:

These dollies carry a Lifetime Guarantee
against rust and corrosion and also carry a Five-
Year Guarantee against workmanship and
material defects.

Model #RD2024

Phone:[phone]

Fax: [phone]

www.newageindustrial.com

[e-mail]

New Age Industrial reserves
the right to modify or make
changes at any time without
notice to materials and
specifications.

Model #RD2024

Model No.

Size-W

Size-H

Size-D

Deck Size

RD2024

20"

5 5/8"

26"

20"X24"

RD2036

20"

5 5/8"

38"

20"X36"

60377-HANDLE FOR 20" DOLLY

RD2424

24"

5 5/8"

26"

24"X24"

RD2436

24"

5 5/8"

38"

24"X36"

60328-HANDLE FOR 24" DOLLY
