JOB:
ITEM:
QTY:

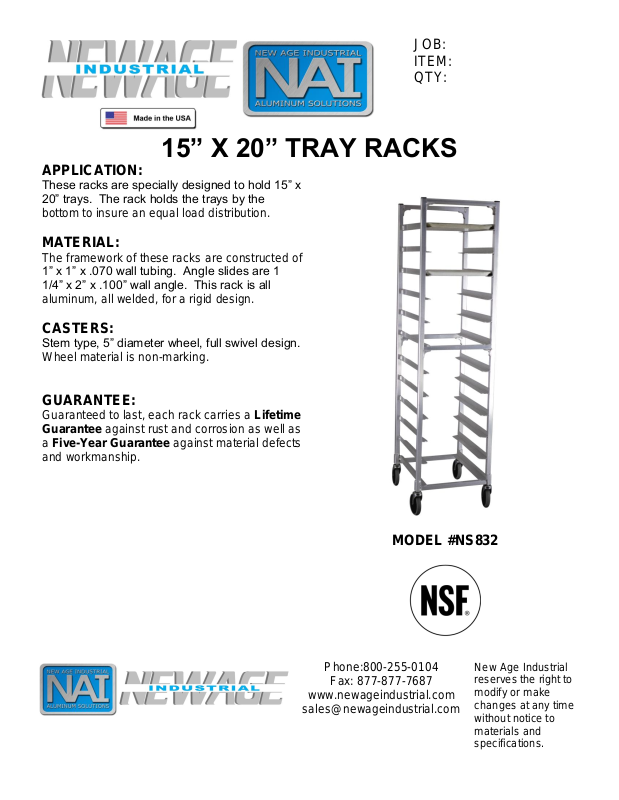

15” X 20” TRAY RACKS

APPLICATION:

These racks are specially designed to hold 15” x
20” trays. The rack holds the trays by the

bottom to insure an equal load distribution.

MATERIAL:

The framework of these racks are constructed of

1” x 1” x .070 wall tubing. Angle slides are 1
1/4” x 2” x .100” wall angle. This rack is all

aluminum, all welded, for a rigid design.

CASTERS:

Stem type, 5” diameter wheel, full swivel design.

Wheel material is non-marking.

GUARANTEE:

Guaranteed to last, each rack carries a Lifetime
Guarantee against rust and corrosion as well as

a Five-Year Guarantee against material defects
and workmanship.

MODEL #NS832

Phone:[phone]

Fax: [phone]

www.newageindustrial.com

[e-mail]

New Age Industrial
reserves the right to
modify or make
changes at any time
without notice to
materials and
specifications.

MODEL #NS833

Model

No.

Size-W

Size-H

Size-D

Runner

Spacing

Pan Cap.

Side Loading Unit

NS833

23 1/8"

69"

30 1/2"

5" TYP.

24

End Loading Unit

NS832

17 7/8"

69"

21"

5" TYP.

12

Side Loading Unit-Double Deep with Stainless Steel Top

NS834

23 1/8"

38"

30"

5" TYP.

12

Side Loading Unit-Doube Deep, No Top

NS834A

23 1/8"

38"

30"

5" TYP.

12
