XFP-TR10-13T-ER
Short/mid haul 13T 10Gigabit Optical transceiver XFP
User manual
Rev. A
Nevion
Nordre Kullerød 1
3241 Sandefjord
Norway
Tel: +47 33 48 99 99
nevion.com
23051 XFP-TR10-13T-ER Rev. A
Nevion Europe
P.O. Box 1020
3204 Sandefjord, Norway
Support phone 1: +47 33 48 99 97
Support phone 2: +47 90 60 99 99
Nevion USA
1600 Emerson Avenue
Oxnard, CA 93033, USA
Toll free North America: (866) 515-0811
Outside North America: +1 (805) 247-8560
E-mail: support@nevion.com
See http://www.nevion.com/support/ for service hours for customer support globally.
Rev.
Repl.
Date
Sign
Change description
A - 2014-11-06
AD
Initial revision.
Nevion Support
Revision history
Current revision of this document is the uppermost in the table below.
nevion.com | 2
23051 XFP-TR10-13T-ER Rev. A
Contents
Revision history ........................................................................................................ 2
1 Product overview ................................................................................................... 4
2 Specifications ........................................................................................................ 5
General environmental requirements for Nevion equipment .................................... 6
Product Warranty...................................................................................................... 7
Appendix A Materials declaration and recycling information .................................... 8
A.1 Materials declaration ..................................................................................................... 8
A.2 Recycling information .................................................................................................... 8
nevion.com | 3
23051 XFP-TR10-13T-ER Rev. A
1 Product overview
XFP-TR10-13T-ER is a 1310nm 10Gigabit XFP transceiver that consist of an optical
transmitter and an optical receiver. This XFP is well suited for transportation of a single optical
source for short/mid haul applications.
The XFP’s have the ability to report information such as wavelength, signal presence,
received signal level, launch power and internal temperature. This information is available in
some of Nevion’s XFP based products presented through their respective element
management system.

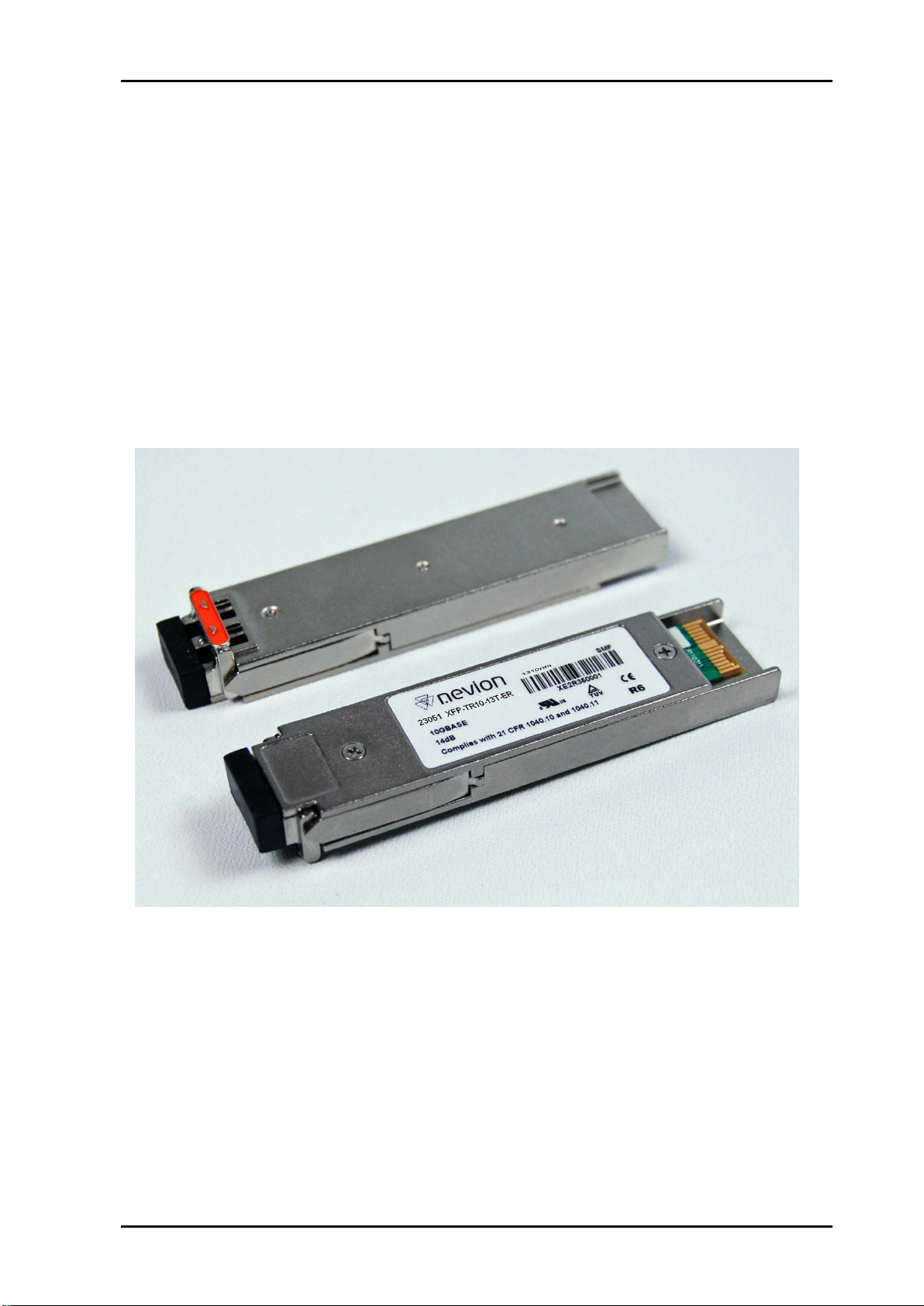

Figure 1: XFP-TR10-13T-ER
nevion.com | 4
23051 XFP-TR10-13T-ER Rev. A
2 Specifications
Power < 3W,
Size XFP compliant, dimensions defined by the XFP
Multi-Sourcing Agreement (MSA).
Control Multicon Gyda control and status
Operating case temperature 0 to +70 °C
Supported standards
Ethernet 10GBASE-ER/EW
Fiber Channel 1200-SM-LL-L 10G
SONET OC-192 IR-2, OC-192 IR-3
SDH STM S-64.2b, STM S-64.3b
ITU-T G.709
Optical input
Connector LC/UPC single mode
Wavelength 1270nm to 1600nm
Optical budget 14dB
Sensitivity -15dBm
Overload +0.5dBm
Optical output
Connector LC/UPC single mode
Wavelength 1310nm (1290-1330nm)
Center wavelength spacing 100 GHz (0.8nm)
Extinction ratio min 6dB
Power -1 to +4dBm
nevion.com | 5
23051 XFP-TR10-13T-ER Rev. A
1.
The equipment will meet the guaranteed performance specification under the
following environmental conditions:
-
Operating room temperature
range:
0°C to 70°C
-
Operating relative humidity range:
<95% (non-condensing)
2.
The equipment will operate without damage under the following environmental
conditions:
-
Temperature range:
-20°C to 85°C
-
Relative humidity range:
<95% (non-condensing)
General environmental requirements for Nevion equipment
nevion.com | 6
23051 XFP-TR10-13T-ER Rev. A
Product Warranty
The warranty terms and conditions for the product(s) covered by this manual follow the
General Sales Conditions by Nevion, which are available on the company web site:
www.nevion.com
nevion.com | 7
23051 XFP-TR10-13T-ER Rev. A
組成名稱
Part Name
Toxic or hazardous substances and elements
鉛
Lead
(Pb)
汞
Mercury
(Hg)
镉
Cadmium
(Cd)
六价铬
Hexavalent
Chromium
(Cr(VI))
多溴联苯
Polybrominated
biphenyls
(PBB)
多溴二苯醚
Polybrominated
diphenyl ethers
(PBDE)
XFP-TR10-13T-ER
O O O O O
O
O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is
below the limit requirement in SJ/T11363-2006.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used
for this part is above the limit requirement in SJ/T11363-2006.
Appendix A Materials declaration and recycling
information
A.1 Materials declaration
For product sold into China after 1st March 2007, we comply with the “Administrative Measure
on the Control of Pollution by Electronic Information Products”. In the first stage of this
legislation, content of six hazardous materials has to be declared. The table below shows
the required information.
This is indicated by the product marking:
A.2 Recycling information
Nevion provides assistance to customers and recyclers through our web site
http://www.nevion.com/. Please contact Nevion’s Customer Support for assistance with
recycling if this site does not show the information you require.
Where it is not possible to return the product to Nevion or its agents for recycling, the following
general information may be of assistance:
Before attempting disassembly, ensure the product is completely disconnected from
power and signal connections.
All major parts are marked or labeled to show their material content.
Depending on the date of manufacture, this product may contain lead in solder.
Some circuit boards may contain battery-backed memory devices.
nevion.com | 8
