Nevion Web Panel User Manual

Web Panel

Web-based Control Panel for VikinX and Flashlink

User manual

Rev. 5

Nevion

Nordre Kullerød 1
3241 Sandefjord
Norway
Tel: [phone]

nevion.com

Web Panel Rev. 5

Nevion Europe

P.O. Box 1020

3204 Sandefjord, Norway
Support phone 1: [phone]
Support phone 2: [phone]

Nevion USA

1600 Emerson Avenue

Oxnard, CA 93033, USA

Toll free North America: [phone]

Outside North America: [phone]

E-mail: [e-mail]

See http://www.nevion.com/support/ for service hours for customer support globally.

Rev.

Repl.

Date

Sign

Change description

5 4 2013-12-20

JIH

Updated for version 3.0

4 3 2012-10-01

JIH

New profile and 2.0 adjustments

3 2 2008-03-27

JGS

Updated system requirements

2 1 2007-10-11

CAA

Updated and clarified text

1 0 2007-09-24

JGS

Updated pictures with new layout

0 - 2007-09-19

JGS

Initial revision

Nevion Support

Revision history

Current revision of this document is the uppermost in the table below.

nevion.com | 2

Web Panel Rev. 5

Contents

Revision history ........................................................................................................ 2

1 Introduction ............................................................................................................ 4

1.1 Product Overview .......................................................................................................... 4

1.2 System Overview .......................................................................................................... 5

2 Installation ............................................................................................................. 6

2.1 System Requirements ................................................................................................... 6

2.2 Client Requirements ...................................................................................................... 6

2.3 Firewall Requirements ................................................................................................... 6

2.4 Web Panel Server ......................................................................................................... 6

2.5 Internet Information Services (IIS) ................................................................................. 9

3 Configuration ....................................................................................................... 12

3.1 Pre-requisites ................................................................ ...............................................12

3.2 Create Web Panel configurations .................................................................................12

3.3 Web Panel Templates ..................................................................................................16

3.3.1 Single-bus .................................................................................................................16

3.3.2 Dual-bus ....................................................................................................................16

3.3.3 Multi-bus ...................................................................................................................17

3.3.4 Salvo .........................................................................................................................18

3.3.5 Custom Buttons .........................................................................................................18

4 Operation ............................................................................................................. 19

4.1 Web Panel Address .....................................................................................................19

4.2 Panel Selection ................................ ................................................................ ............19

4.3 Function buttons ...........................................................................................................19

4.3.1 Panel Enable .............................................................................................................19

4.3.2 Take On/Off ..............................................................................................................20

4.3.3 Take ................................ .......................................................................................... 20

4.3.4 Lock ..........................................................................................................................20

4.3.5 Protect.......................................................................................................................20

4.4 Crosspoint Switching ....................................................................................................21

4.4.1 Source Buttons ..........................................................................................................21

4.4.2 Destination Buttons ...................................................................................................21

4.4.3 Source-to-Destination Buttons ...................................................................................21

4.4.4 Categories .................................................................................................................21

4.4.5 Salvos .......................................................................................................................22

5 Administration ...................................................................................................... 23

5.1 Overview ......................................................................................................................23

5.1.1 Menu Bar ..................................................................................................................24

5.1.2 Status Bar .................................................................................................................25

5.1.3 Options ......................................................................................................................25

5.1.4 Product Key Manager ................................................................................................27

5.2 Load Configuration .......................................................................................................28

5.3 Logging ................................ ........................................................................................29

5.3.1 Log Files ...................................................................................................................29

5.4 Product Keys ................................................................................................................30

Product Warranty.................................................................................................... 32

nevion.com | 3

Web Panel Rev. 5

1 Introduction

1.1 Product Overview

The Web Panel provides a Web-based alternative to traditional hardware control panels
and offers more flexibility when it comes to button layout on the screen and to accessibility.
The Web Panel, combined with a touch screen display, gives you both the ease-of-use of a
traditional control panel and the flexibility of the Web Panel.

The Web Panel supports control of VikinX routers (or any third-party router integrated with
Multicon) and Flashlink equipment through invocation of pre-defined setups (so-called
salvos). The Web Panel comes with control panel templates that can be configured for most
purposes.

The Web Panel server software is installed on a Windows server machine, while the user
interface is accessed from any client computer running a Web browser. Switching between
different control panels is as easy as following a Web link.

Version 3.0 of the product is also tablet ready and may be accessed from Chrome or Safari
mobile browsers on Android™ or iOS™ devices. This enables such devices to be used for
control of VikinX or Flashlink systems.

Key features:

 Web-based user interface for VikinX router control
 Full support for virtual router, categories, salvos, lock and protect of destinations
 Support for multiple users with access control
 Configurable Web Panel templates available (software configurable buttons)
 Client log-in via standard Web browser (platform independent router control from

PC, Mac or Linux)

nevion.com | 4

Web Panel Rev. 5

Third-party

Routing

Web Panel

Server

Multicon

Controller

Chrome

Routing

Signal

Processing

Firefox

Internet

Explorer

1.2 System Overview

The Web Panel Server enables clients to control routing and signal processing resources
via a standard web browser. The application runs on a standard Windows computer/server
and uses Internet Information Services (IIS) as its web server.

A client connects to the Web Panel Server via HTTP and retrieves the necessary web
pages. A Web Socket connection is established between the client and the Web Panel
server for handling user actions and feedback.

The Web Panel Server also connects to a Multicon controller for handling router commands
and status.

Note! Running the Web Panel Server requires a Multicon controller.
Web Panel server is not supporting a direct connection to a Sublime router on
TCP/IP.

The Web Panel server loads a configuration created by the administrator using the Nevion
Configurator. All the configuration files can be uploaded to the Web Panel server by the
Nevion Configurator.

nevion.com | 5

Web Panel Rev. 5

2 Installation

The Web Panel server may be installed from a CD delivered by Nevion or from an
installation file downloaded from www.nevion.com.

Note! Version 3.0 of the product is highly recommended and this version is
designed for use with Multicon controllers

2.1 System Requirements

In order to run the Web Panel Server, please verify these minimum hardware requirements:

 1 GHz or faster processor
 1 GB RAM
 1 GB free disk space
 100/1000 Mb/s network interface

The following operating systems are supported for the Web Panel Server:

 Windows Professional 7
 Windows 8 Pro
 Windows Server 2008 R2 Standard
 Windows Server 2012 Standard

2.2 Client Requirements

The following browser requirements applies for the clients:

 Internet Explorer 10 and newer
 Firefox 25 and newer
 Chrome 31 and newer

Supported browser for mobile devices

 Chrome 31 and newer

Note! JavaScript must be enabled in the web browser to use the Web Panel
product.

2.3 Firewall Requirements

The following firewall openings are required from client computers (web browser) to the
Web Panel Server:

 TCP port 80 (HTTP)
 TCP port 10002 (Web Sockets)

The following firewall openings are required from the Web Panel Server to Multicon
controllers:

 TCP port 4381 (MRP)

2.4 Web Panel Server

Follow these steps to install the Web Panel server:

1. Double-click on the WebPanelServerInstaller_X.Y.Z.exe installation package.

nevion.com | 6

Web Panel Rev. 5

2. Follow the instructions given by the installation wizard.
Click “Next >” to proceed.

3. License agreement

Select the “I accept the terms in the license agreement” and click “Next >” to
proceed.

4. Destination folder

Verify that the destination folder is correct. Click the “Change…” button if you want
to change the destination folder.

Click “Next >” to proceed.

5. Summary
Click “Install” to install the Web Panel server after verifying the summary.
The installation program will now install the Web Panel server.

6. Finished
Click “Finish” to complete the installation

7. Run as administrator

nevion.com | 7

Web Panel Rev. 5

Right click on the Web Panel Server desktop icon and select “Properties”.
On the “Compatibility” tab check “Run this program as an administrator” and click

“OK”.

8. Start the Web Panel server by double-clicking the desktop icon.

Open the Web Panel Server application and enter your name, company and product
key you received when you ordered the product.

nevion.com | 8

Web Panel Rev. 5

Note! Make sure the company name is identical to the one printed next to
your product key!

9. Open configuration

Click “Cancel” to proceed if no configuration has been created and published yet

using the Nevion Configurator.

2.5 Internet Information Services (IIS)

Note! This procedure is written for Windows 7 and may deviate on other

Windows OS versions.

Follow these steps to install and/or configure IIS:

1. Verify IIS installation

In the Web Panel Server application, open “Tools”->”Internet Information Services
(IIS)”. If IIS is not installed on your computer, select “Yes” to install it. Web Panels
will not work until IIS is installed.

2. Install IIS

This step is only applicable if “Yes” was selected in the previous step.
Select “Internet Information Services” as shown below with default features enabled

and click “OK”.

nevion.com | 9

Web Panel Rev. 5

3. Configure IIS

In the Web Panel Server, open “Tools”->”Internet Information Services (IIS)”.

Expand the tree on the left hand side of the “IIS Manager” dialog and locate the
“Default Web Site”, right click it and select “Add Virtual Directory…”.

The following settings are recommended:
Alias: WebPanel

Directory: C:\WebPanel (Select C:\ and click “Make new directory” if it does not
exist)

Click “OK”.

4. Reboot the computer to complete IIS installation

nevion.com | 10

Web Panel Rev. 5

5. After reboot, verify that IIS is installed by opening the following page in a web

browser: http://localhost
The following image should be displayed:

nevion.com | 11

Web Panel Rev. 5

3 Configuration

To configure Web Panels the Nevion Configurator must be used. This application allows
you to build button configurations for Web Panels and publish the configurations to the web
server.

3.1 Pre-requisites

Before you start making button configurations for Web Panels in the Nevion Configurator,
there are some tasks that should be done. For further information about using the Nevion
Configurator, please see the Nevion Configurator online help.

 Use the Nevion Configurator to detect your system controllers (Multicon) and

configure your system with correct levels and mnemonics.

 Create one or more virtual router mappings for your system. Configure names, icons

and categories in the virtual router mapping.

Note! Web Panels require a virtual router. It is not possible to configure a web
panel without sources or destinations from a virtual router, except for salvos.

 If you plan to use salvos on the Web Panels the salvos must be created prior to

creating the Web Panel button configurations.

3.2 Create Web Panel configurations

Follow these steps to create a Web Panel configuration:

1. Select “Web panel”->”Web configurations”.

Click the “New” button to create a new web configuration.

2. Create new web configuration

nevion.com | 12

Web Panel Rev. 5

Enter a meaningful name/description for the new web configuration.
Click “Add” or “Remove” to add/remove controllers to be used from the list of

available controllers in the system.

3. Add web panel

Click the “New” button and select a web panel type to add to the configuration

based on the available template. Click “OK”.

4. Create button configuration

nevion.com | 13

Web Panel Rev. 5

The Control Panel Button Configuration is opened when OK is clicked. For further
information about configuring control panels in the Nevion Configurator online help.

Click OK to complete the configuration.

5. Add more web panels

Repeat the above step if more web panels should be added to the same
configuration.

Finally select web panels to be added to the configuration and click the Add button.

6. Create IP filters

nevion.com | 14

Web Panel Rev. 5

The web panel product support filtering of client IP address that may connect to it.
Click on “New” to create a new filter and enter from and to IP addresses and click

Set. Multiple IP ranges may be added this way.

7. Publish web configuration to Web Panel server

Enter the path where to publish the Web Panel Server configuration or select the
location using the Browse button. The recommended location during installation is
C:\WebPanel

Click “Publish” to publish the files and “OK” to complete the web configuration.

Note! If the Web Panel Server is not running on the same computer as the
Nevion Configurator, it may be necessary to copy the configuration files over
the network using Windows Explorer.

8. Start Web Panel Server

When the Web Panel server is started for the first time, the application prompts to
open a configuration file.

Browse for the configuration file (e.g. C:\WebPanel\WebPanelConfiguration.xml)
and click “Open”.

This message will only appear as long as there is no valid configuration file to be
found when you start the Web Panel server. If a configuration has previously been
opened select “File”->”Open...” from the menu.

9. Set Network Interface

Select “Tools”->”Options…” from the menu and set the appropriate network
interface under “Network settings”.

For more information about options please refer to section 5.1.3.

nevion.com | 15

Web Panel Rev. 5

3.3 Web Panel Templates

The following Web Panel templates are available and configurable with the button
configuration wizard:

 Single bus 8x1, 16x1, 32x1, 64x1 and 128x1
 Dual bus 8x2, 16x2, 32x2, 64x2 and 128x2
 Multi bus 8x8, 16x16, 32x32, 64x64 and 128x128
 Salvo 4, 8, 16 or 32
 Custom X buttons

It is also possible to set the number of buttons per row in a web panel. The default is 8.

3.3.1 Single-bus

These templates consists of 8, 16, 32, 64 or 128 source-to-destination buttons and the
standard set of function buttons.

3.3.2 Dual-bus

These templates consists of 8, 16, 32, 64 or 128 source buttons, two destination buttons
and the standard set of function buttons.

nevion.com | 16

Web Panel Rev. 5

3.3.3 Multi-bus

These templates consists of 8, 16, 32, 64 or 128 source buttons, 8, 16, 32, 64 or 128
destination buttons and the standard set of function buttons.

nevion.com | 17

Web Panel Rev. 5

3.3.4 Salvo

These templates consists of 4, 8, 16 or 32 salvo buttons and the standard set of function
buttons.

3.3.5 Custom Buttons

This template consists of a user defined number of buttons, configurable to any of the
available functions.

nevion.com | 18

Web Panel Rev. 5

4 Operation

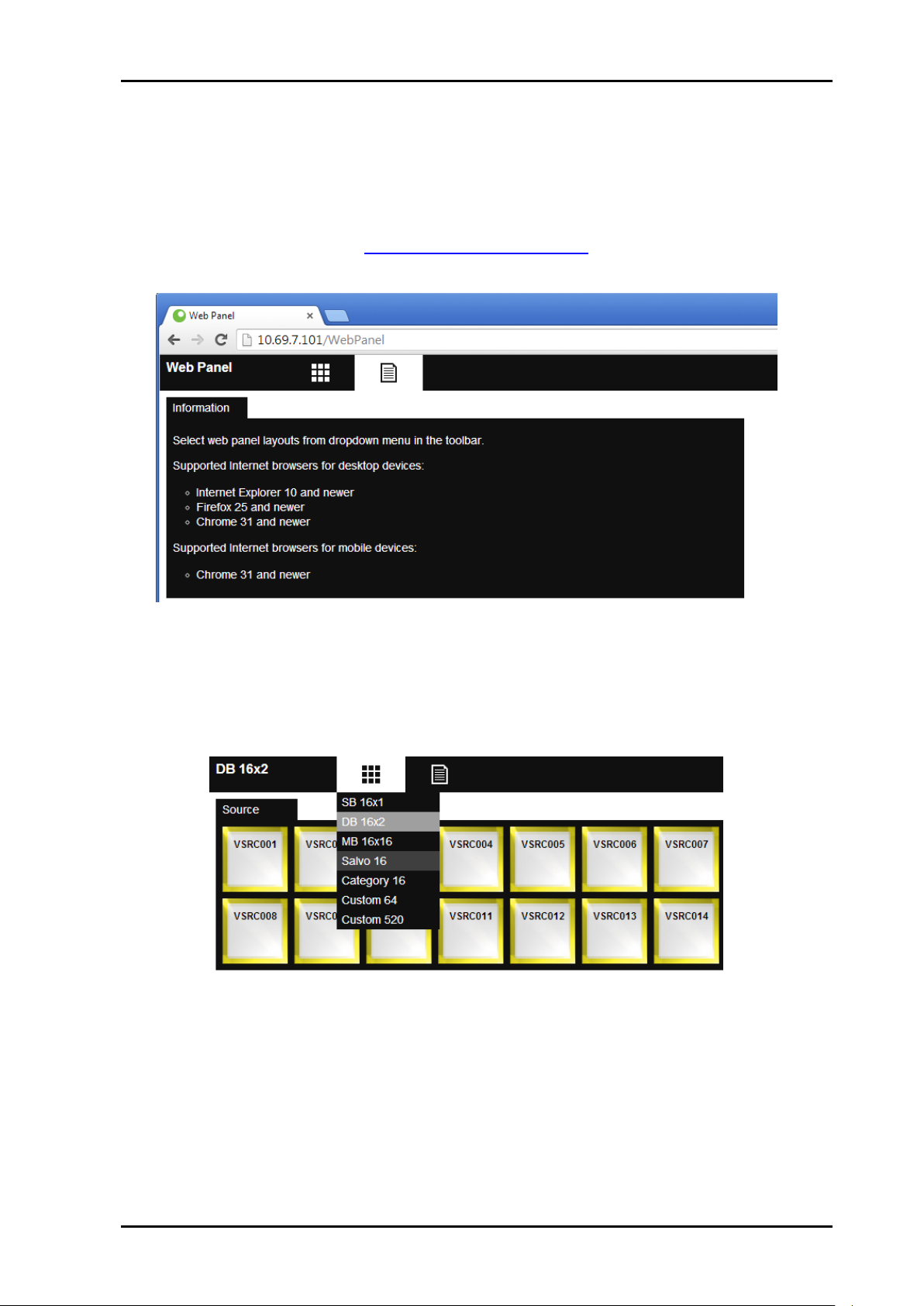

4.1 Web Panel Address

To open the Web Panel an IP address has to be entered in the web browser’s address bar.
The address consists of the IP address shown in the Web Panel Server and the virtual
directory created in the IIS (e.g. http://<IPAddress>/WebPanel).

4.2 Panel Selection

The user can easily switch between the panels by hovering over the panel selection icon
and clicking the panel name.

4.3 Function buttons

This section describes the functionality of the standard function buttons.
Every function button described here is optional and can be left out of any button

configuration.

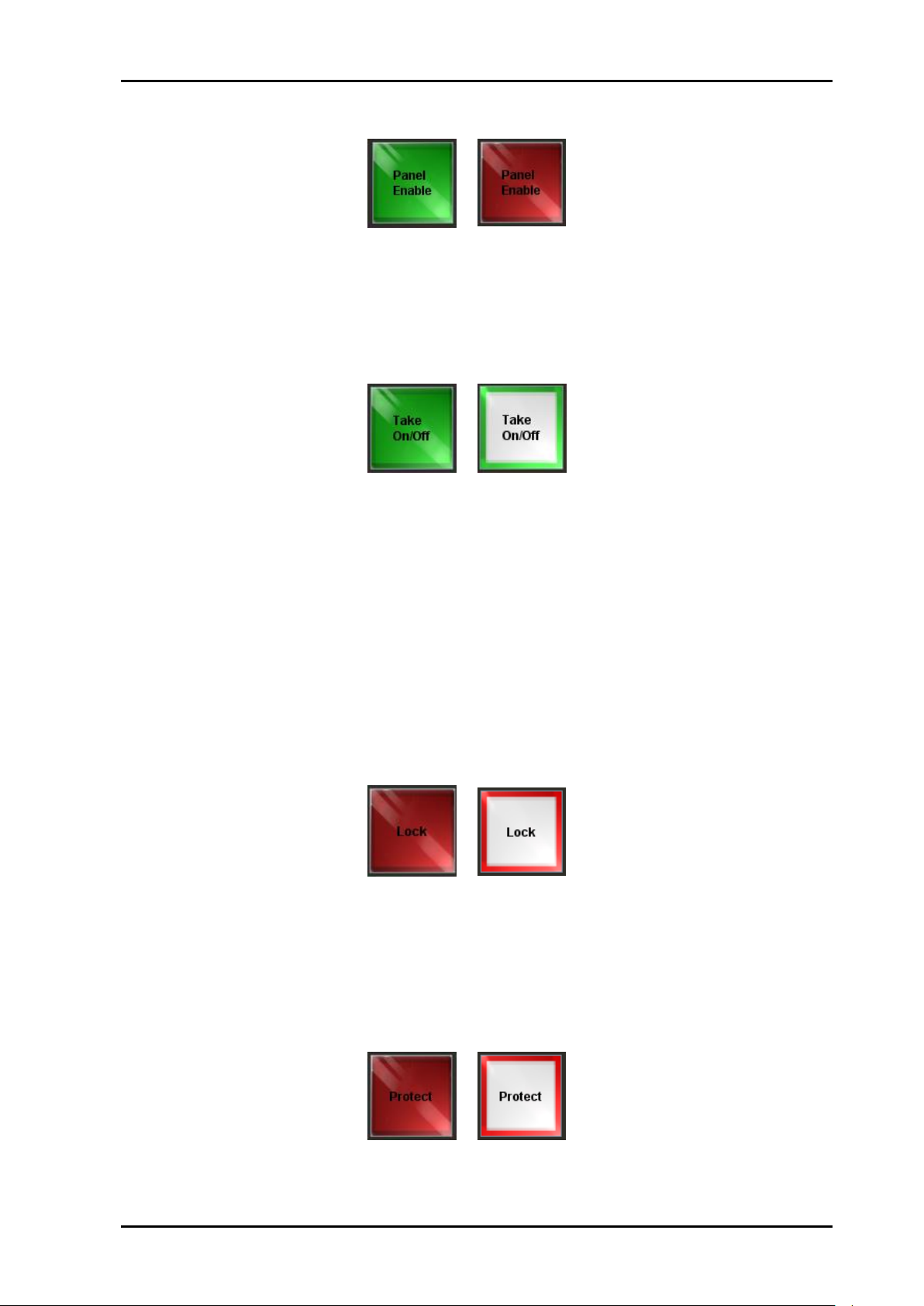

4.3.1 Panel Enable

This button is used to enable or disable a Web Panel (all buttons).

nevion.com | 19

Web Panel Rev. 5

One click on the button changes its state between:

Enabled Disabled

4.3.2 Take On/Off

This button is used to enable or disable the “Take” button. When the “Take” button is
enabled, all cross point switching must be acknowledged by clicking the “Take” button, for

example when switching a source to a destination or when switching a salvo.
One click on the button changes its state between:

Enabled Disabled

4.3.3 Take

This button is used to acknowledge cross point switching when enabled.
When Take is enabled, this button will blink according to level selection when the user tries

to switch the router.
One click on the button acknowledges the currently selected switch command. This button

also has a built in timer turning it off if not clicked within a certain time period.

4.3.4 Lock

This button is used to lock a destination. When a destination is locked nobody can switch it.
The destination must be unlocked before it can be switched again.

To lock or unlock, select a destination and click the lock button. If the selected destination is
already locked, it will be unlocked. Otherwise, it will be locked.

Locked Unlocked

4.3.5 Protect

This button is used to protect a destination. When a destination is protected nobody can
switch it, except for the user that protected it. The destination must be unprotected before it
can be switched again.

To protect or unprotect, select a destination and click the protect button. If the selected
destination is already protected, it will be unprotected. Otherwise, it will be protected.

Protected Unprotected

nevion.com | 20

Web Panel Rev. 5

4.4 Crosspoint Switching

Switching a cross point using source and destination buttons requires a destination oriented
operation.

1. Select which destination to switch

2. Select source

3. Press take to confirm (optional)

4.4.1 Source Buttons

A source button represents a source as defined in the virtual router mapping.

Sources are used in dual- and multi-bus panels.

4.4.2 Destination Buttons

A destination button represents a destination as defined in the virtual router mapping. The
button also displays the current status of the corresponding destination.

The "Breakaway" status indicates that there is a level breakaway on that destination,
meaning that the destination does not match one specific source on all levels.

Destinations are used in dual- and multi-bus panels.

4.4.3 Source-to-Destination Buttons

A source-to-destination button switches one source to a pre-selected destination.

Source-to-destination buttons are typically used in single bus panels.

4.4.4 Categories

Category buttons are used when there are more sources than source buttons or more
destinations than destination buttons. A category button scrolls through multiple pages of
predefined sources or destinations and changes the contents of the corresponding buttons.

The “VTR” category contains all VTRs.

nevion.com | 21

Web Panel Rev. 5

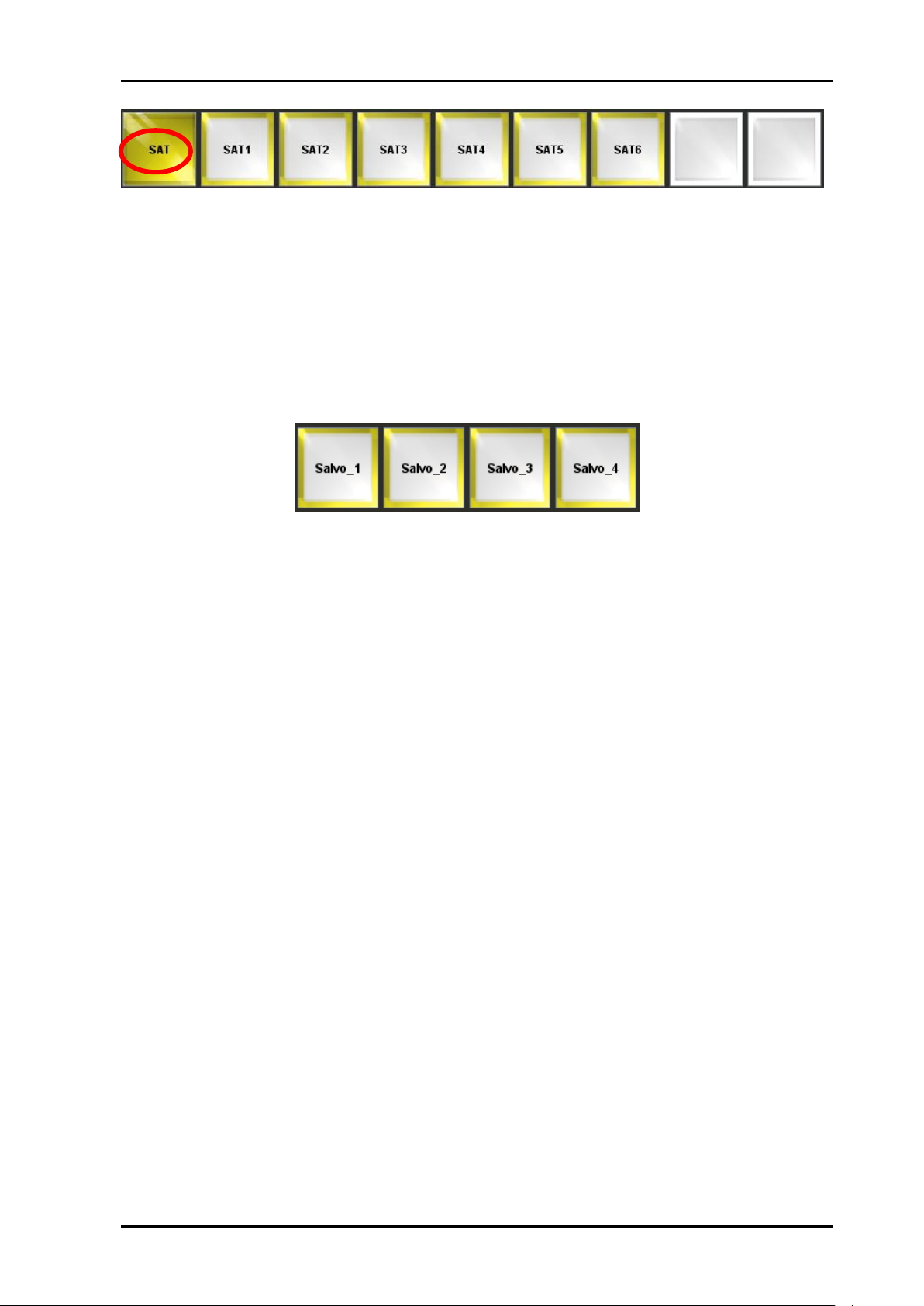

The “SAT” category contains all satellite feeds (SAT).
Clicking the category select button (indicated by a red ring in the figure above), all the

category display buttons change their content accordingly. Please see the Nevion
Configurator online help for more information about categories.

4.4.5 Salvos

Salvo buttons (macro, preset) are used when several cross points are switched to perform
a specified and identical task each time. Typical uses can be: setting up monitor walls,
play&record VTRs, transmission setup etc. One click on a salvo button can for example
send 512 crosspoints in one command.

nevion.com | 22

Web Panel Rev. 5

User

Displays user- and lock id of the current web panel.

IP address:Port

Displays the client’s IP address and port used to connect to the server.

Active panel

Displays the name of the web panel currently used by the client.

Connected

Displays the time and date the client connected.

5 Administration

The Web Panel Server is a Windows application designed to run without any user
interaction. Once the application is set up and started there is no need for any further user
operations.

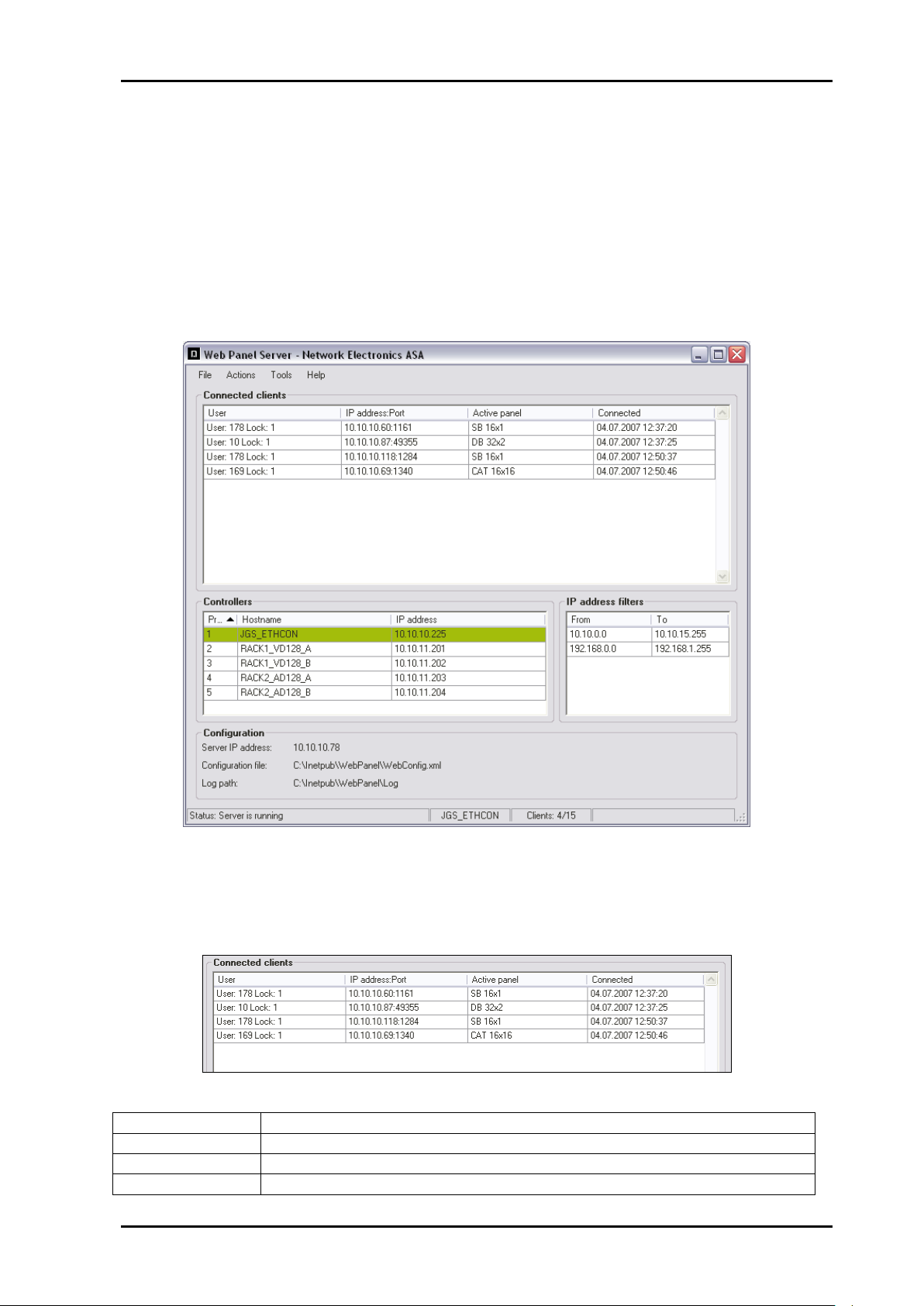

5.1 Overview

The user interface displays connected clients, configuration info, connected controllers and
IP address filters.

Connected clients

All clients logged in are displayed in the “Connected clients” list. The number of currently

connected clients and the number of maximum allowed clients are both shown on the
status bar.

The columns in the “Connected clients” list can be described as follows:

nevion.com | 23

Web Panel Rev. 5

Priority

Displays the priority of the controller. If a controller fails, the server
connects to the next controller in the list.

Hostname

Displays the hostname of the controller.

IP address

Displays the IP address of the controller.

From

The filter accepts client IP addresses from this address, inclusive.

To

The filter accepts client IP addresses to this address, inclusive.

Open…

Opens a file browse dialog for locating a configuration file. The default
file name is: “WebConfig.xml”.

Exit

Stops the Web Panel server and shuts down the application.

Controllers

The “Controllers” list displays the system controllers as defined in the configuration files in
prioritized order.

IP address filters

The “IP address filters” list displays the IP filters as defined in the configuration files.

Configuration

The “Configuration” section displays the current IP address of the Web Panel server, the
currently selected configuration file and the currently selected log file destination.

5.1.1 Menu Bar

The menu bar is used for starting and stopping the server, opening configuration files and
configuring options.

File Menu

Actions Menu

nevion.com | 24

Web Panel Rev. 5

Start server

Starts the server if it isn’t running.

Stop server

Stops the server if it is running.

Internet
Information
Services (IIS)

Opens the IIS configuration dialog.

Options…

Opens the “Options” dialog. See chapter 5.1.3 for more information
about settings in the “Options” dialog.

Display computer IP
Settings

Shows a small dialog with the current Web Panel server
IP settings.

Release Log

Opens the release log for the Web Panel server.

Product Key Manager

Use this to configure the product keys. See chapter 5.1.4
for more information about managing product keys.

About

Displays a dialog with information about version and
copyrights.

Current server status.

Controller
connection.

Client
connections.

Reserved for
future use.

Tools Menu

Help Menu

5.1.2 Status Bar

The status bar shows the current server status, the current controller connection status and
the number of connected clients as well as the number of maximum allowed clients.

5.1.3 Options

The options dialog can be opened from “Tools”->”Options…”.

nevion.com | 25

Web Panel Rev. 5

Network
settings

Select which Network Interface Card (NIC) to be used for communication
with controllers and clients. Displays the currently selected NIC and
corresponding IP address. Note it is possible to use different NICs for
controller and client connections.

Configuration
updates

Select one of the following options:

 Automatically apply new configuration. If the configuration file is

modified, the modifications are automatically applied to the server.

 Ask for confirmation before applying. If the configuration file is

modified, a manual confirmation is needed in order for the
modifications to be applied to the server.

Advanced
network
settings

Possibility to set virtual IPs that is used for communication with controllers
and clients. The virtual IP is used instead of the physical IP of the network
interface.

nevion.com | 26

Web Panel Rev. 5

Logging

Use the “Browse” button to select the log file path. Displays the directory
where the log files are stored on the Web Panel server.

Select the number of minutes between each time the Web Panel server
writes log entries to the log file.

Select how often a new log file is created:

 New file every hour. A maximum of 24 files will be created every

day (smaller file sizes).

 New file every day (24 hours). A maximum of 1 file will be created

every day (larger file sizes).

5.1.4 Product Key Manager

The Product Key Manager holds the keys for the Web Panel server and the Nevion
Configurator, if they run on the same computer.

Click the “Add new” button to add a product key to the Product Key Manager. Click “Delete”
to delete a selected product key from the Product Key Manager. Changes to the product
keys will be applied immediately in the software.

nevion.com | 27

Web Panel Rev. 5

Enter your name, your company’s name and the new product key to add a product key to

the Product Key Manager.
If you already have a valid product key in the system, the user- and company names will be

disabled since all product keys on one computer must be registered to the same user and
company.

Warning! It is possible to change the user- and company names by clicking the
“Edit” buttons. However, this may render other product keys useless and is not
recommended. Only product keys matching the currently set user- and
company names will be activated.

5.2 Load Configuration

The configuration files are created by the Nevion Configurator and published to a local
folder on the computer running the Web Panel server.

The Web Panel Server must locate the “WebPanelConfiguration.xml” file created by Nevion
Configurator and open it. This file contains all the Web Panel button layouts, virtual router
mapping, salvos, controller settings, IP filters etc.

Select “File”->”Open…” in the Web Panel server file menu to browse for the configuration
file. The selection is saved to registry and used next time the Web Panel server is started.

nevion.com | 28

Web Panel Rev. 5

5.3 Logging

The Web Panel server can be configured to log all activities to file. Log options can be
modified in the “Options” dialog, located at “Tools”->”Options”.

Logging can be enabled and disabled using the “Logging” checkbox.

The destination of the log files can be modified by clicking the “Browse” button. All local and
network drives can be used as the log destination, which indicates the directory where the
log files will be stored.

The Web Panel server collects log entries in an internal buffer and writes the collected
entries to a log file at user defined intervals. Set the log interval as the number of whole
minutes between each time the log file is accessed.

At times with a lot of activity, the update interval should be relatively short to limit the size of
the internal log buffer. On the other hand, when there is little activity, the update interval
may be increased accordingly.

When a log entry is written to file, its timestamp is verified and a new log file is created if
necessary. The maximum number of log files created every day is user defined:

 Every hour; yields a maximum number of 24 log files per day.
 Every day; yields a maximum number of 1 log file per day.

Depending on how the log files shall be used, these configurations can be changed to fit the
needs for statistics and analysis tools.

In a normal broadcast application one log file every day and log file updates each 10 minute
is suitable.

5.3.1 Log Files

The log file is a standard ASCII text file with comma separated values. It can easily be
imported into other applications for statistics and analysis, e.g. Microsoft Excel.

nevion.com | 29

Web Panel Rev. 5

The log files are stored in a specific directory structure within the main log path directory as

defined in the “Options” dialog. The directory structure is created based on the log entries’

timestamps and sorts the log files after year, month, day and hour:

“..\<log path>\<year>\<month>\<date>\<log file>.log”

New folders are created every new day, month or year. Filenames are defined by the log
entries’ timestamp date and appended the hour if the interval for new log files is set to new
file every hour. In case only one log file is created per day, the time is omitted in the file
name.

5.4 Product Keys

Each product key enables a certain amount of clients, “clients” meaning the number of

users currently logged in to the Web Panel server.

Note! If you have a 1 user license for the Web Panels you can use your own
computer, log out and then use another computer. But you cannot use two
computers at the same time.

nevion.com | 30

Web Panel Rev. 5

When you order the Web Panel product from Nevion you can choose between several
client limitations:

 1 user license
 5 user license
 10 user license

If you buy a 5 user license and need to upgrade later you will receive a new product key to
be inserted into the product key manager. The number of maximum allowed clients will then
be increased according to your purchase.

nevion.com | 31

Web Panel Rev. 5

Product Warranty

The warranty terms and conditions for the product(s) covered by this manual follow the
General Sales Conditions by Nevion, which are available on the company web site:

www.nevion.com

nevion.com | 32
