Nevion 3GHD-EO-2-SFP User Manual

3GHD-EO-2-SFP
Dual SD/HD/3G-SDI electrical to optical converter
with SFP
User manual
Rev. B
Nevion
Nordre Kullerød 1 3241 Sandefjord Norway Tel: +47 33 48 99 99
nevion.com
3GHD-EO-2-SFP Rev. B
Nevion Europe P.O. Box 1020
3204 Sandefjord, Norway Support phone 1: +47 33 48 99 97 Support phone 2: +47 90 60 99 99
Nevion USA
1600 Emerson Avenue
Oxnard, CA 93033, USA
Toll free North America: (866) 515-0811
Outside North America: +1 (805) 247-8560
E-mail: support@nevion.com
See http://www.nevion.com/support/ for service hours for customer support globally.
Rev.
Repl.
Date
Sign
Change description
B A 2015-03-26
AD
Connections updated, Figure 13 added.
A - 2014-10-28
AJM
Initial document
Nevion Support
Revision history
Current revision of this document is the uppermost in the table below.
nevion.com | 2
3GHD-EO-2-SFP Rev. B
Contents
Revision history ........................................................................................................ 2
1 Product overview ................................................................................................... 4
2 Specifications ........................................................................................................ 5
2.1 General ......................................................................................................................... 5
2.2 Electrical Inputs ............................................................................................................. 5
2.3 Electrical Outputs .......................................................................................................... 5
2.4 Optical Outputs ............................................................................................................. 5
2.5 Standards ...................................................................................................................... 5
3 Configuration ......................................................................................................... 6
3.1 Multicon Gyda configuration .......................................................................................... 6
3.2 Configuration through DIP settings ................................................................................ 7
3.2.1 Cable EQ ................................................................................................................... 9
3.2.2 Re-clocker mode ........................................................................................................ 9
3.2.3 Automatic change over ............................................................................................... 9
3.2.4 Dual converter configuration example .......................................................................10
3.2.5 Dual converter with changeover configuration example .............................................11
4 Operation ............................................................................................................. 12
4.1 Module status ...............................................................................................................12
4.1.1 Multicon Gyda status interface ..................................................................................12
5 Connections ........................................................................................................ 13
5.1 Mounting the connector module ...................................................................................13
5.2 Terminal format support ...............................................................................................14
5.3 GPI ALARM – Module Status Outputs ..........................................................................14
5.3.1 GPI connections ........................................................................................................14

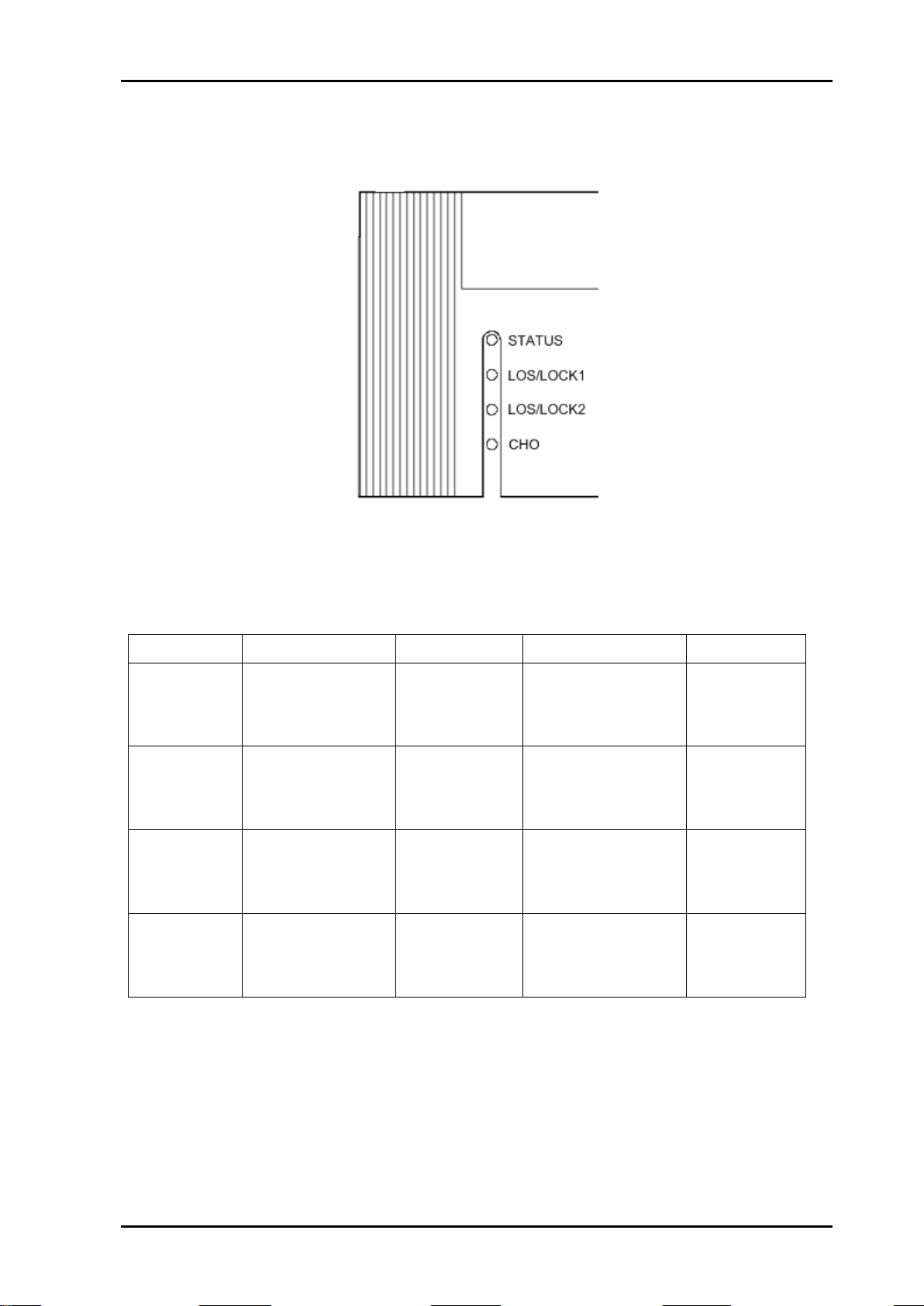

5.4 Front panel – Status monitoring ...................................................................................16
General environmental requirements for Nevion equipment .................................. 17
Product Warranty.................................................................................................... 18
Appendix A Materials declaration and recycling information .................................. 19
A.1 Materials declaration ....................................................................................................19
A.2 Recycling information ...................................................................................................19
nevion.com | 3
3GHD-EO-2-SFP Rev. B
1 Product overview
The Flashlink 3GHD-EO-2-SFP is a dual multi bit-rate electrical to optical converter module providing high performance media conversion for various signal formats from 19.4Mbps up to 2970Mbps. Unmatched signal accuracy, even in critical applications with pathological signal patterns makes the 3GHD-EO-2-SFP the first choice for all optical transport demands.
The 3GHD-EO-2-SFP can transport all SD, HD and 3G signal formats in addition to DVB-ASI and SMPTE310M. It performs optical refreshing and signal re-clocking, which is selectable on application. The optical inputs are embedded in optional SFP module, which makes the module configurable to application specific needs. The open system platform of Nevion Flashlink system allows easy interoperability with third party fiber optical systems.
The 3GHD-EO-2-SFP unit has also two electrical outputs for each converter, which reduces the need for additional DA’s.
Figure 1 Block diagram of the 3GHD-EO-2-SFP dual converter
nevion.com | 4
3GHD-EO-2-SFP Rev. B
2 Specifications
2.1 General
Power 2.5W maximum without SFP
3.5W typical with dual SFP Control Control system for access to setup and module status with
BITE (Built-In Test Equipment)
Temp. range 0 to +40 °C
2.2 Electrical Inputs
Number of inputs 2 Connector BNC Impedance 75 ohm Return loss >15dB @ 5-1485MHz >10dB @ 1485-2970MHz Signal level Nom. 800mV
2.3 Electrical Outputs
Number of outputs 4 (2 per converter) Connector BNC Impedance 75 ohm Return loss >15dB @ 5-1485MHz >10dB @ 1485-2970MHz Peak to peak signal level 800mV +/- 10% Signal polarity 1 inverting and 1 non-inverting (per converter)
2.4 Optical Outputs
Number of inputs 2 Transmission circuit fiber Single mode 9/125um Connector LC/UPC, single mode Optical wavelength See manual for installed SFP Optical power See manual for installed SFP
2.5 Standards
Supported standards for electrical and optical ports: SMPTE292M, SMPTE259M, SMPTE297M, SMPTE305.2M, SMPTE310M, SMPTE424M,
DVB-ASI EN50083-9.
nevion.com | 5
3GHD-EO-2-SFP Rev. B
3 Configuration
Configuration of this card can either be done from Multicon Gyda element manager or locally on the card by dipswitches.
3.1 Multicon Gyda configuration
Below is a snapshot from the Multicon Gyda interface.
Figure 2 Configuration tab
nevion.com | 6
3GHD-EO-2-SFP Rev. B
3.2 Configuration through DIP settings
The 3GHD-EO-2-SFP can support a number of different broadcast formats. The correct configuration can either be set with the two Dipswitches on the card or through the GYDA Control System. The layout is shown in the drawing below with the DIP switches to the upper left position.
Figure 3 3GHD-EO-2-SFP board layout
nevion.com | 7
3GHD-EO-2-SFP Rev. B
Switch #
Label
Function, DIP=OFF
Function, DIP=ON
Comment
1
EQ1
Bypass
Automatic cable Equalizer
Automatic cable Equalizer on electrical input 1
2
EQ2
Bypass
Automatic cable Equalizer
Automatic cable Equalizer on electrical input 2
3 Not used
4
Latch
Non-latching switch. Will automatically return to main when input signal is ”good”
Latching switch. Must be reset to return from standby to main
“Sticky” switching ”good” is depending
on switch criteria in change-over mode.
5
Main
Input 1 is main
Input 2 is main
Select’s main input to
changeover
6 Not used
7 Not used
8
OVR
GYDA control. Configuration with GYDA
Override GYDA control. Configuration with DIP switch
Select configuration from GYDA
9
RCL1
Reclocker 1 bypass
Reclocker 1 enabled
Sets reclocker mode for output 1
10
CHO1
Change over disabled
Change over enabled
Enables change over for output 1
11
SEL1
Input 1 to output 1
Input 2 to output 2
This setting are overridden if DIP 10 (CHO1) is enabled
12 Not used
13
RCL2
Reclocker 2 bypass
Reclocker 2 enabled
Sets reclocker mode for output 2
14
CHO2
Change over disabled
Change over enabled
Enables change over for output 2
15
SEL2
Input 1 to output 2
Input 2 to output 2
This setting are overridden if DIP 14 (CHO2) is enabled
16 Not used
Table 1: DIP settings.
All DIP switches are off when pointing towards the release handle.
nevion.com | 8
3GHD-EO-2-SFP Rev. B
3.2.1 Cable EQ
Electrical input cable eq. can be turned on and off. If SDI signal is used on the input it is advised to set the EQ to on. The input will then adjust for the loss of high frequency component from SDI signal. This will increase the working cable length on the input. If none SDI signal is used on the input, turning of EQ may help increase the cable length if required.
3.2.2 Re-clocker mode
The re-clocker can be set to re-clock or bypass from DIP#9 and DIP#13 or from GYDA. When re-clocker is set to re-clock mode jitter from signal is removed. Accepted bitrates is
270, 1483.5, 1485, 2967 and 2970Mbps. When re-clocker is set to bypass the converter accepts all bitrates between 2 to 2970Mbps.
Note that in this mode the jitter is not removed and this can cause problems for equipment following the converter.
3.2.2.1 Transparency
This converter only looks at the bitrates and not the content. This means that any signal with correct bitrates is converted. The product is transparent to data in the ancillary space like embedded audio.
3.2.3 Automatic change over
This module has the possibility to have an automatic change over on the input. This can be used in redundancy systems where the user wants automatically switch to a backup port when the main input loses signal. This function can be selected with DIP#10 and Dip#14. The main and backup input can be selected with DIP#5 or from GYDA.
3.2.3.1 Trigger condition and latching
Loss of electrical signal on input trigs the automatic change over. When the main input lose electrical signal the backup input is selected. When the backup input is active an alarm is displayed in GYDA. When the main input electrical signal is restored the converter switches immediately back to main input and alarm is restored if latch is set to off. If latch is set to on the fall back to main input will not happen before the reset is applied to the changeover from the config pan in Multicon Gyda.
Note that bit error or loss of lock on re-clocker does not trigger the automatic change over.
nevion.com | 9
3GHD-EO-2-SFP Rev. B
Electrical input 1
O2
O2
Optical output 2
O1
O1
Optical output 1
Reclocker 2
3G/HD/SD-SDI
Reclocker 1
3G/HD/SD-SDI
EQ1 EQ2
Latch
Main
OVR
ON
18
RCL1
CHO1
SEL1
RCL2
CHO2
SEL2
ON
18
Electrical input 2
Electrical input 1
O2
O2
Optical output 2
O1
O1
Optical output 1
Reclocker 2
3G/HD/SD-SDI
Reclocker 1
3G/HD/SD-SDI
EQ1 EQ2
Latch
Main
OVR
ON
18
RCL1
CHO1
SEL1
RCL2
CHO2
SEL2
ON
18
Electrical input 2
Electrical input 1
O2
O2
Optical output 2
O1
O1
Optical output 1
Reclocker 2
3G/HD/SD-SDI
Reclocker 1
3G/HD/SD-SDI
EQ1 EQ2
Latch
Main
OVR
ON
18
RCL1
CHO1
SEL1
RCL2
CHO2
SEL2
ON
18
Electrical input 2
Electrical input 1
O2
O2
Optical output 2
O1
O1
Optical output 1
Reclocker 2
3G/HD/SD-SDI
Reclocker 1
3G/HD/SD-SDI
EQ1 EQ2
Latch
Main
OVR
ON
18
RCL1
CHO1
SEL1
RCL2
CHO2
SEL2
ON
18
Electrical input 2

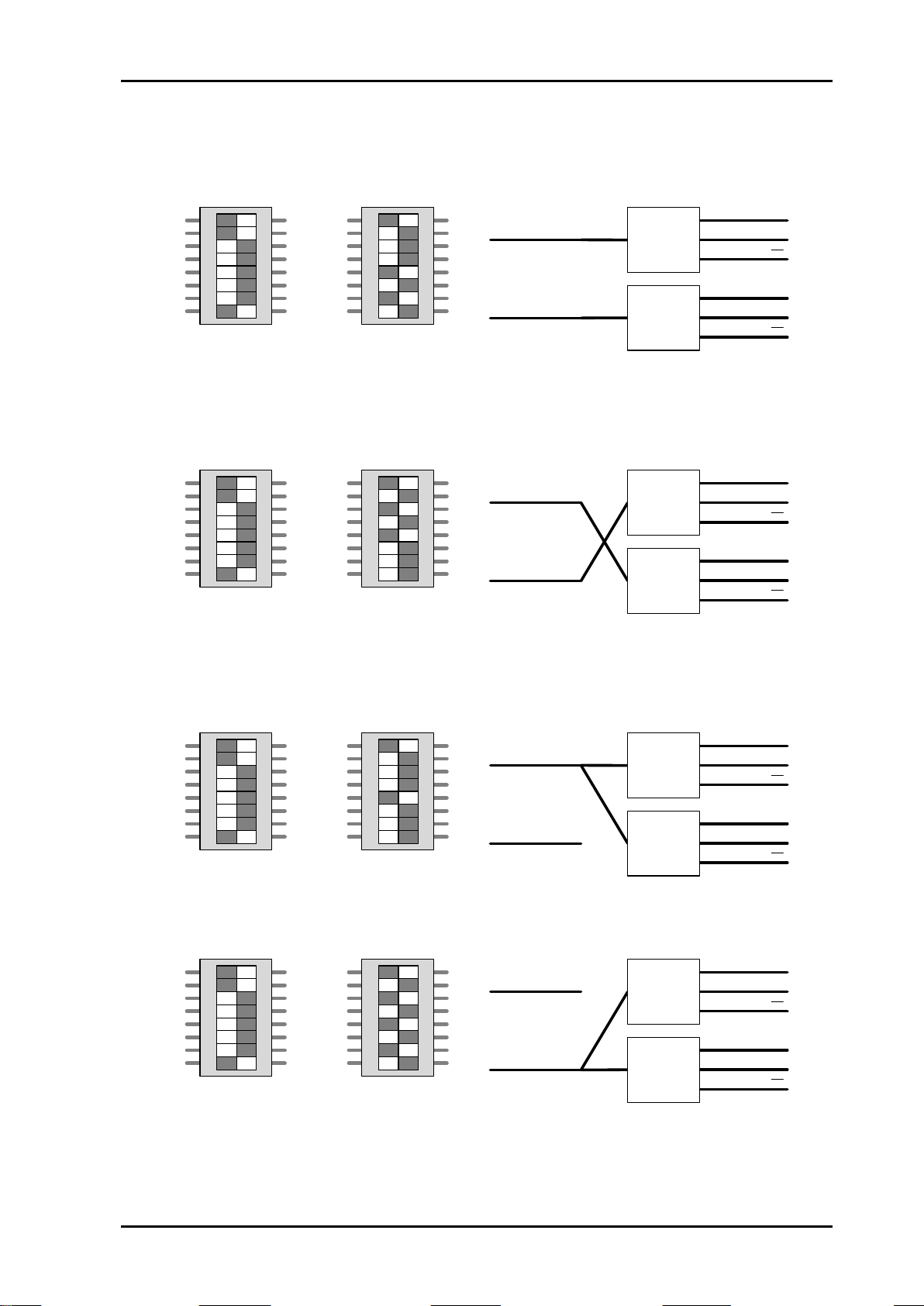

3.2.4 Dual converter configuration example
Figure 4 Dual EO converter, standard setup
Figure 5 Dual EO converter, input swap
Figure 6 Dual EO converter with DA, input 1
nevion.com | 10
Figure 7 Dual EO converter with DA, input 2
3GHD-EO-2-SFP Rev. B
Electrical input 1
O2
O2
Optical out 2
O1
O1
Optical out 1
Reclocker 2
3G/HD/SD-SDI
Reclocker 1
3G/HD/SD-SDI
EQ1 EQ2
Latch
Main
OVR
ON
18
RCL1
CHO1
SEL1
RCL2
CHO2
SEL2
ON
18
Electrical input 2
Change
over
Electrical input 1
O2
O2
Optical out 2
O1
O1
Optical out 1
Reclocker 2
3G/HD/SD-SDI
Reclocker 1
3G/HD/SD-SDI
EQ1 EQ2
Latch
Main
OVR
ON
18
RCL1
CHO1
SEL1
RCL2
CHO2
SEL2
ON
18
Electrical input 2
Change
over
Electrical input 1
O2
O2
Optical out 2
O1
O1
Optical out 1
Reclocker 2
3G/HD/SD-SDI
Reclocker 1
3G/HD/SD-SDI
EQ1 EQ2
Latch
Main
OVR
ON
18
RCL1
CHO1
SEL1
RCL2
CHO2
SEL2
ON
18
Electrical input 2
Change
over
3.2.5 Dual converter with changeover configuration example
Figure 8 Changeover on all output, optical 1 as main
Figure 9 Changeover on all output, optical 2 as main
Figure 10 Changeover on output 1, optical 1 as main. Optical 2 on output 2
nevion.com | 11
3GHD-EO-2-SFP Rev. B
4 Operation
4.1 Module status
The status of the module can be monitored in three ways.
1. GYDA System Controller (optional).
2. GPI at the rear of the sub-rack.
3. LED’s at the front of the sub-rack.
Of these three, the GPI and the LED’s are mounted on the module itself, whereas the GYDA
System Controller is a separate module giving detailed information on the card status.
4.1.1 Multicon Gyda status interface
Figure 11 Dual converter status tab
The on-board temperature measurement is a feature used for monitoring variations in temperature over time and can be accessed thru SNMP. The absolute value of the temperature measurement has little value of its own as it does not reflect the temperature inside the electronics nor the ambient frame temperature.
nevion.com | 12
3GHD-EO-2-SFP Rev. B
5 Connections
The 3GHD-EO-2-SFP has a dedicated connector module; 3GHD-EO-2-C1. This module is mounted at the rear of the sub-rack. The layout of the module is shown in the figure below.
Figure 12 Connector module for 3GHD-EO-L-2-SFP
Figure 13: Fiber layout
Out1 as shown in Figure 13 will always have the lowest wavelength when CWDM and DWDM SFP’s is installed. So if the SFP installed is a 23033 SFP-3G-EO-2­C1xxx/C1xxx with the wavelengths 1590/1610, Out1 will be 1590 and Out2 will be 1610.
5.1 Mounting the connector module
The details of how the connector module is mounted, is found in the user manual for the sub­rack frame FR-2RU-10-2.
This manual is also available from our web site: http://www.nevion.com
nevion.com | 13
3GHD-EO-2-SFP Rev. B
Terminal
Function
Supported Format
Mode
OPT1 OPT2
Optical output
SDI, DVB-ASI, SMPTE310, Transparent
Output
I/O1 I/O2 O1 O2
Electrical input
SDI, DVB-ASI, Transparent
Intput O1
O2
Electrical Output Reclocked DA output
SDI, DVB-ASI, Transparent
Output
O1–– O2––
Electrical Output Reclocked DA inverted output
SDI, Transparent
Output
GPI ALARM
Open Collector Alarms
Wired alarms
OC Output
Signal
Name
Pin #
Mode
Status
General error status for the module.
Pin 1
Open Collector This is normally closed.
LOS1
Loss of signal on input 1.
Pin 2
Open Collector
LOS2
Loss of signal on input 2. Only for dual converter
Pin 3
Open Collector Ground
0V / gnd pin.
Pin 8
0V.
5.2 Terminal format support
The different input and output ports on 3GHD-EO-2-SFP can support a number of formats. The table below show which signal formats are supported on the selected terminals.
Unused inputs should be terminated to avoid alarms triggered by noise.
Table 2 Signal support
5.3 GPI ALARM – Module Status Outputs
These outputs can be used for wiring up alarms for third party control systems. The GPI outputs are open collector outputs, sinking to ground when activated. The GPI connector is shown in figures below.
Electrical maximums for GPI outputs:
Max current: 100mA Max voltage: 30V
5.3.1 GPI connections
3GHD-EO-SFP module GPI pinning:
nevion.com | 14
3GHD-EO-2-SFP Rev. B
Figure 14 GPI connector
nevion.com | 15
3GHD-EO-2-SFP Rev. B
Diode \ State
Red LED
Yellow LED
Green LED
No light
Status
Module is faulty, or module is initializing.
N/A
Module is OK Module power is OK
Module has no power
LOS/LOCK1
No input signal on electrical output 1.
Input signal on electrical output 1 but reclocker not in lock.
Input signal on electrical output 1 and reclocker in lock.
LOS/LOCK2
No input signal on electrical output 2.
Input signal on electrical output 1 but reclocker not in lock.
Input signal on electrical output 1 and reclocker in lock.
CHO
Main input selected on cho
N/A
Backup input assigned to cho
No ouput signal assign to the cho block
5.4 Front panel – Status monitoring
The status of the module can be easily monitored visually by the LED’s at the front of the
module. The LED’s are visible through the front panel as shown in the figure below.
Figure 15 Front panel LED’s
The 3GHD-EO-2-SFP has 3 LED’s each showing a status corresponding to the GPI pinning. When DIP#3 is on the LED’s are used as an optical power meter.
Table 3 Front panel LED’s
nevion.com | 16
3GHD-EO-2-SFP Rev. B
1.
The equipment will meet the guaranteed performance specification under the following environmental conditions:
-
Operating room temperature range:
0°C to 45°C
-
Operating relative humidity range:
<90% (non-condensing)
2.
The equipment will operate without damage under the following environmental conditions:
-
Temperature range:
-10°C to 55°C
-
Relative humidity range:
<95% (non-condensing)
General environmental requirements for Nevion equipment
nevion.com | 17
3GHD-EO-2-SFP Rev. B
Product Warranty
The warranty terms and conditions for the product(s) covered by this manual follow the General Sales Conditions by Nevion, which are available on the company web site:
www.nevion.com
nevion.com | 18
3GHD-EO-2-SFP Rev. B
組成名稱
Part Name
Toxic or hazardous substances and elements
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
六价铬
Hexavalent
Chromium
(Cr(VI))
多溴联苯
Polybrominated
biphenyls
(PBB)
多溴二苯醚
Polybrominated
diphenyl ethers
(PBDE)
3GHD-EO-2-SFP
O O O O O
O
O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in SJ/T11363-2006.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement in SJ/T11363-2006.
Appendix A Materials declaration and recycling information
A.1 Materials declaration
For product sold into China after 1st March 2007, we comply with the “Administrative Measure
on the Control of Pollution by Electronic Information Products”. In the first stage of this legislation, content of six hazardous materials has to be declared. The table below shows the required information.
This is indicated by the product marking:
A.2 Recycling information
Nevion provides assistance to customers and recyclers through our web site
http://www.nevion.com/. Please contact Nevions Customer Support for assistance with
recycling if this site does not show the information you require. Where it is not possible to return the product to Nevion or its agents for recycling, the following
general information may be of assistance:
Before attempting disassembly, ensure the product is completely disconnected from
power and signal connections.
All major parts are marked or labeled to show their material content. Depending on the date of manufacture, this product may contain lead in solder. Some circuit boards may contain battery-backed memory devices.
nevion.com | 19
Loading...
