Nevco MPCX2 Operator Instructions Manual

Scoreboard Operator’s Instructions

MPCX2 Baseball Control

Since 1934

Retain this manual in your permanent files

Rev. 8/27/2015 135-0254

LED models:

Incandescent models:

1000*

1003
1006

1010*

1020
1025
1030
1035
1415

1500
1503
1506
1508
1510
1515
1520
1525
1530
1535
1540
1550
9505
9515

1600
1603
1604
1606
1608
1609
1610
1615
1620
1625
1630
1632
1635
1640
1650

3656
3680
3685
3688
7616
7680
7685
8601
8602
9605
9715

NEVCO, Inc.

301 East Harris Avenue

Greenville, IL 62246-2151 USA

USA TOLL-FREE 800-851-4040

CANADA TOLL-FREE 800-461-8550

International Telephone: [phone]

Website: www.nevco.com

Email: [email protected]

Note: Some features may not be available

on some models.

*Not compatible with certain older scoreboards

These Instructions are for the Following Models:

Thank You for choosing NEVCO. We appreciate your business.

The following instructions will help you become familiar with the operation and features of the scoreboard

Please take a few minutes to study this manual, and to practice with the control.

If you ever have any questions or comments, please call or email us.

To view or receive the most recent copy of the Guarantee, please visit our website, www.nevco.com

Thank You

system.

NEVCO GUARANTEE

or call 1-618-664-0360

STRIKE (adds 1)
(hold to clear Balls and Strikes)

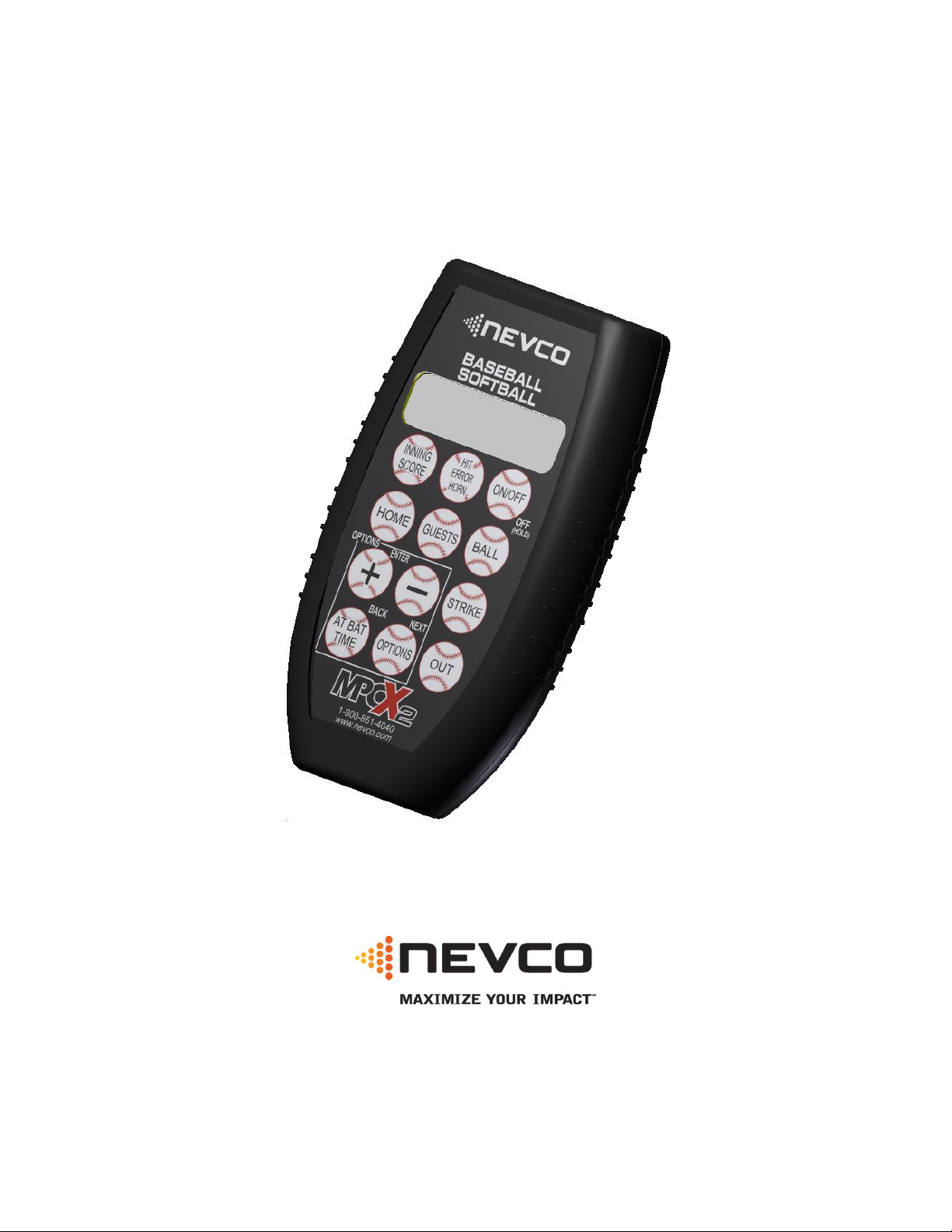

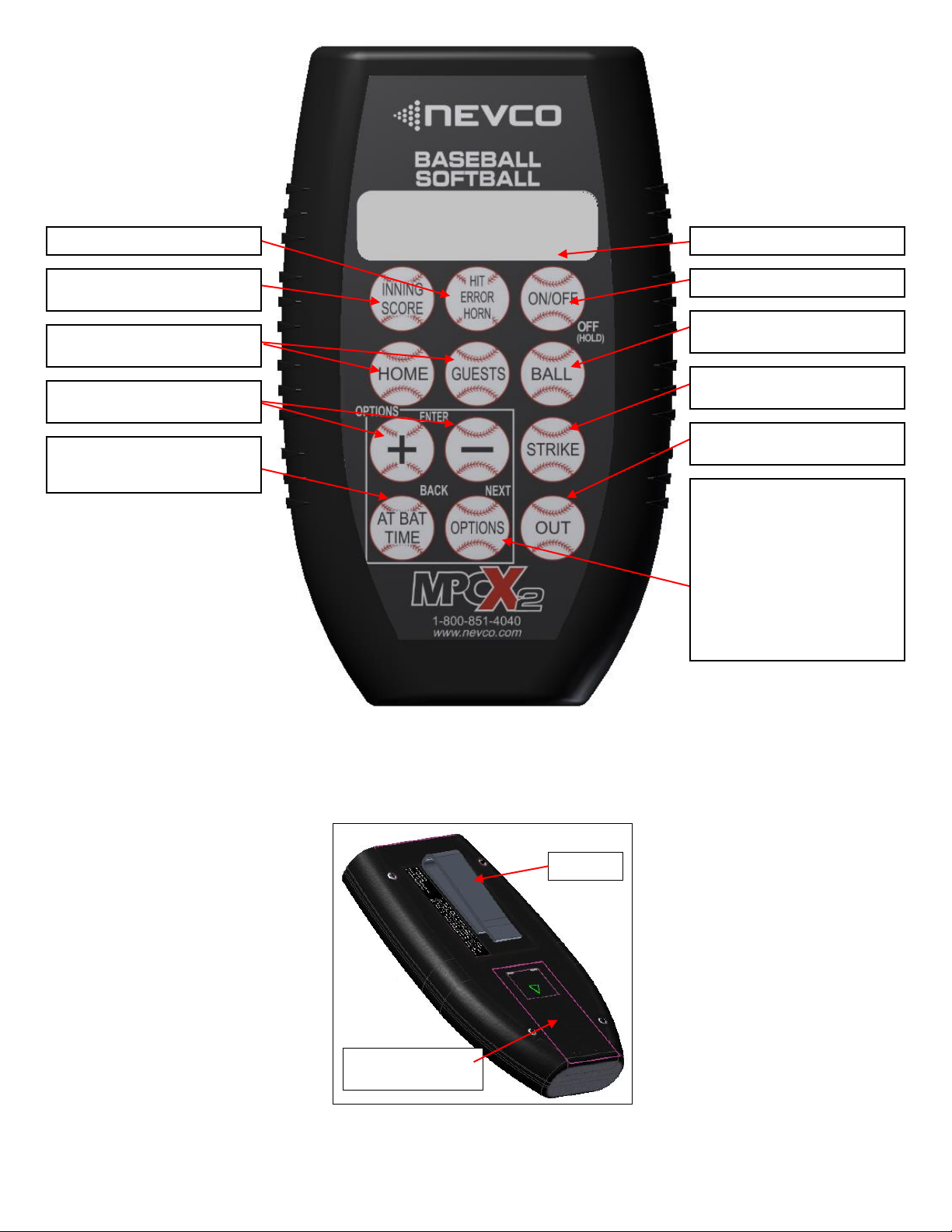

MPCX2 BASEBALL CONTROL (front view)

BALL (adds 1)
(hold to clear Balls and Strikes)

OUT (adds 1)
(hold to clear Balls, Strikes, and Outs)

HIT / ERROR / HORN

INNING / SCORE (also functions as
Escape)

Selects HOME or GUESTS
(for scoring and hit & error)

Add to or Subtract from the selected
feature

AT BAT / TIME
(Batter Number) /
(Timer Control / Time Settings)

LCD Display (16 characters x 2 lines)

Power ON / OFF Switch

OPTIONS key
Allows you to:
Clear Scoreboard
Edit Electronic Team Names
Set Brightness of Scoreboard
Check Battery Level
Check Signal Strength
Link Control to Receiver Network
Select Scoreboard Model Type

MPCX2 CONTROL (rear view)

Belt Clip

Battery Compartment
Cover (2 x AA)

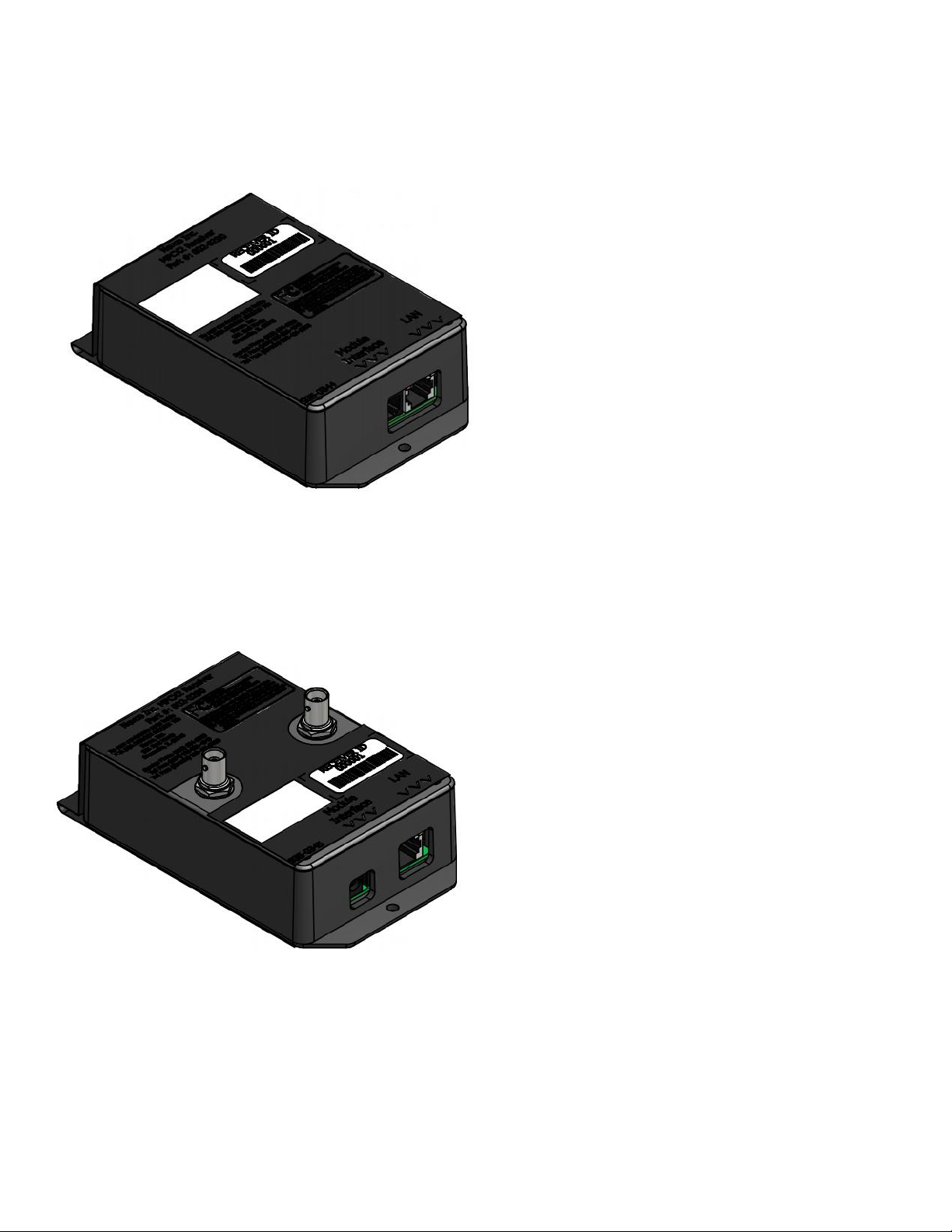

MPCX2 Receiver for use with outdoor x6xx
and indoor x7xx scoreboards.

MPCX2 Receiver for use with scoreboards
that pre-date x6xx outdoor and x7xx indoor
scoreboards. (Boards that have coax input
only)

NOTE: This version can also be used in addition (but
not simultaneous operation) to a W6 system for dual
operation by connecting the W6 receiver or wired
coax of the MPC-5/6 connection to the coax input of
the X2 receiver.

TABLE OF CONTENTS

QUICK START GUIDE ................................................................................................................ 1

KEYBOARD FUNCTIONS .......................................................................................................... 4

GREETING SCREEN .................................................................................................................. 4

MAIN SCREEN ............................................................................................................................ 5

BALL, STRIKE OUT SCREEN .................................................................................................. 6

HIT / ERROR / HORN SCREEN ................................................................................................ 7

AT BAT SCREEN ......................................................................................................................... 8

TIME SCREEN ............................................................................................................................. 9

OPTIONS MENU ......................................................................................................................... 10

TROUBLESHOOTING CHART .............................................................................................. 17

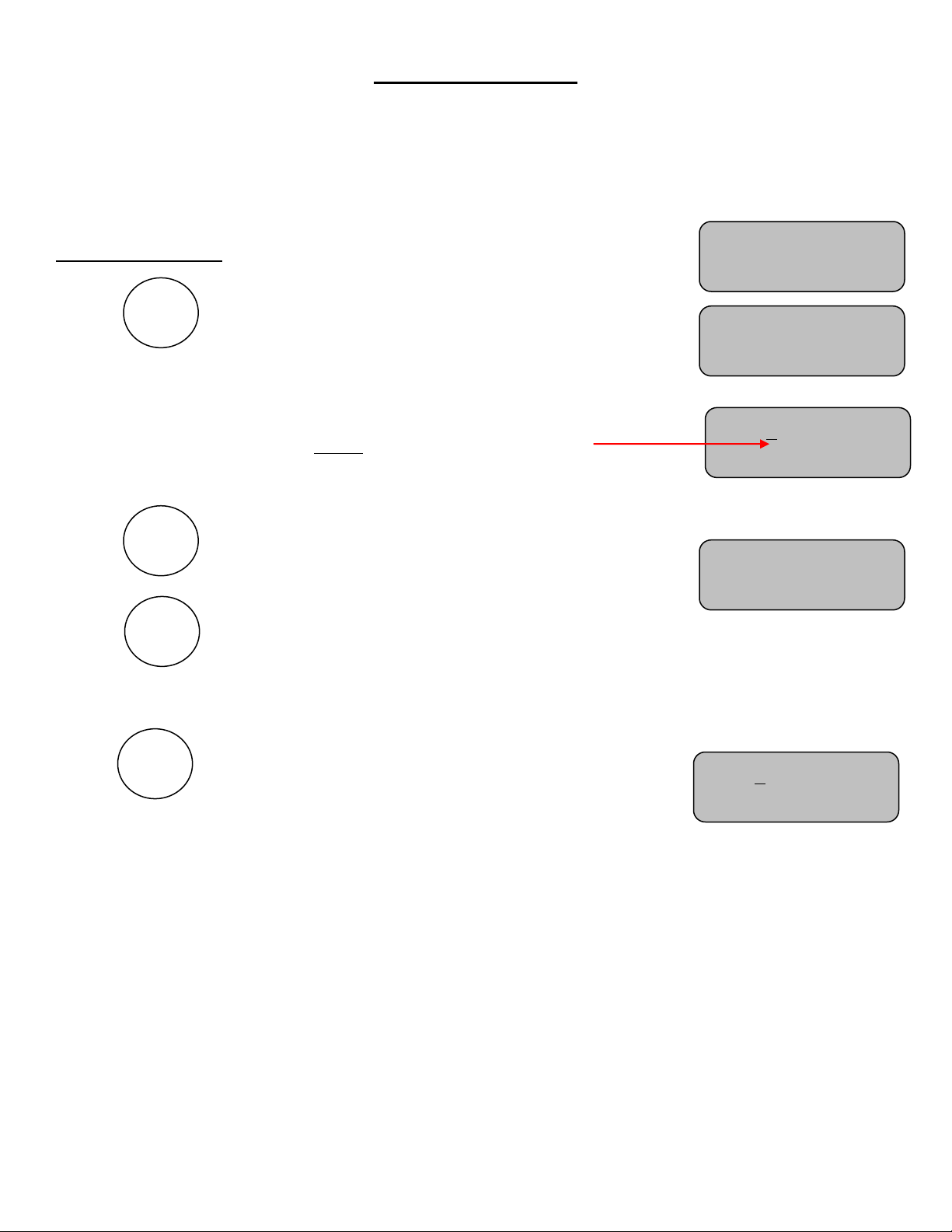

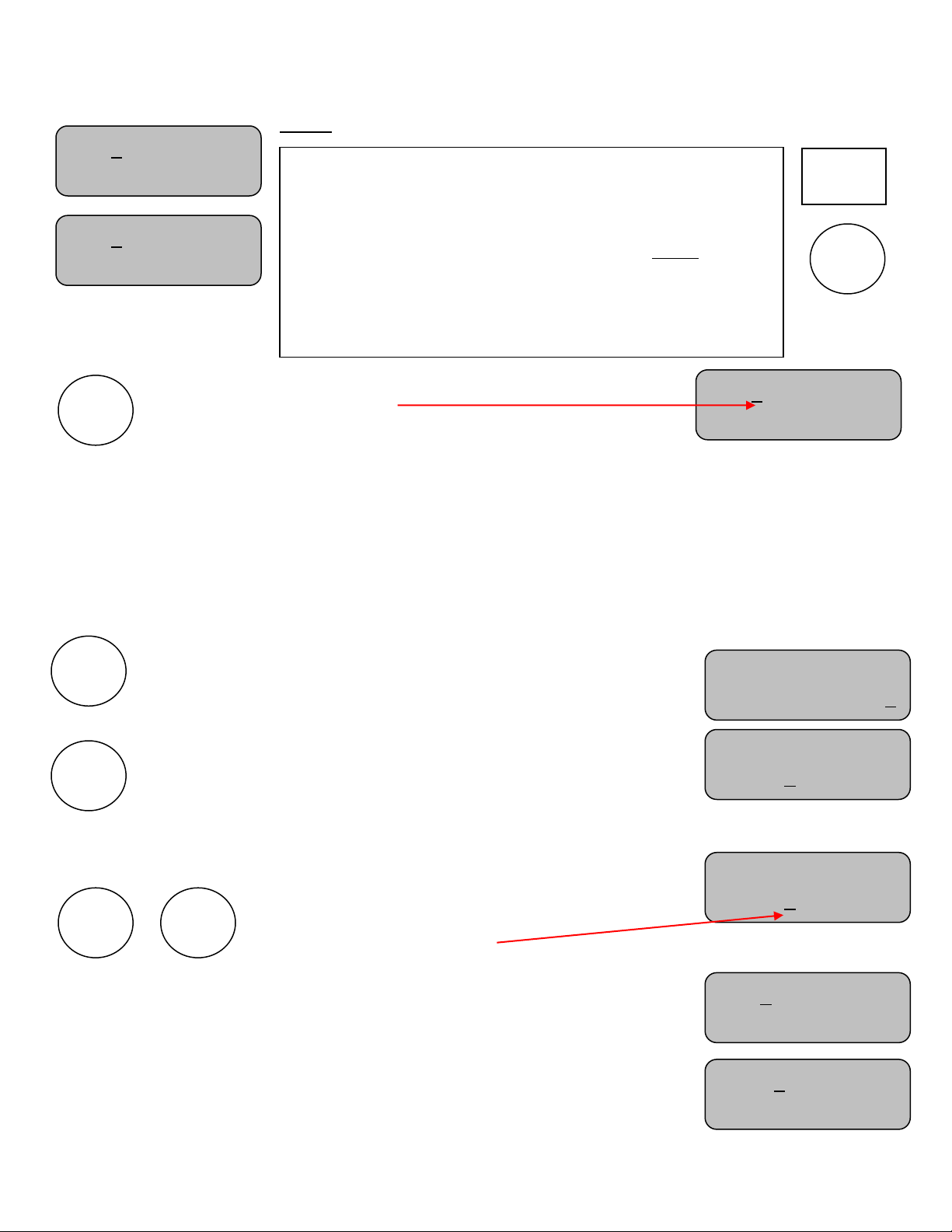

STARTUP GUIDE

ON/OFF

Inn: 1
Home: 0 Guest: 0

OPTIONS

Clear Scoreboard

Press (+)

+

MPCX2 v01.00

2.4 GHz

Scanning

Inn: 1
Home: 0 Guest: 0

INNING

SCORE

Note: It is assumed here that the control has been configured for the correct scoreboard type and the control has
been linked to the desired receiver(s). Both functions are explained in the setup guide that comes with a new
control. (See the MPCX2 Control / Receiver setup procedure below for more information). It is assumed that
the receiver is powered ON.

To Start a New Game

Press
The control will display a greeting while it establishes
communications with its receiver(s). (Up to 20 seconds).

Note: v01.00 for example, indicates the software version of
the control

Next the display will show the inning and the score.
Note: The cursor indicates the active function.

Press
The control will display

Press to clear the scoreboard data.

Press To go to the main screen. The control will display
Note: The inning is automatically set to 1.

You are now ready for the game to begin.

1

Inn: 1
Home: 1 Guest: 0

INNING

SCORE

HOME

GUESTS

+

At Bat: _

AT BAT

TIME

+

-

At Bat: 45

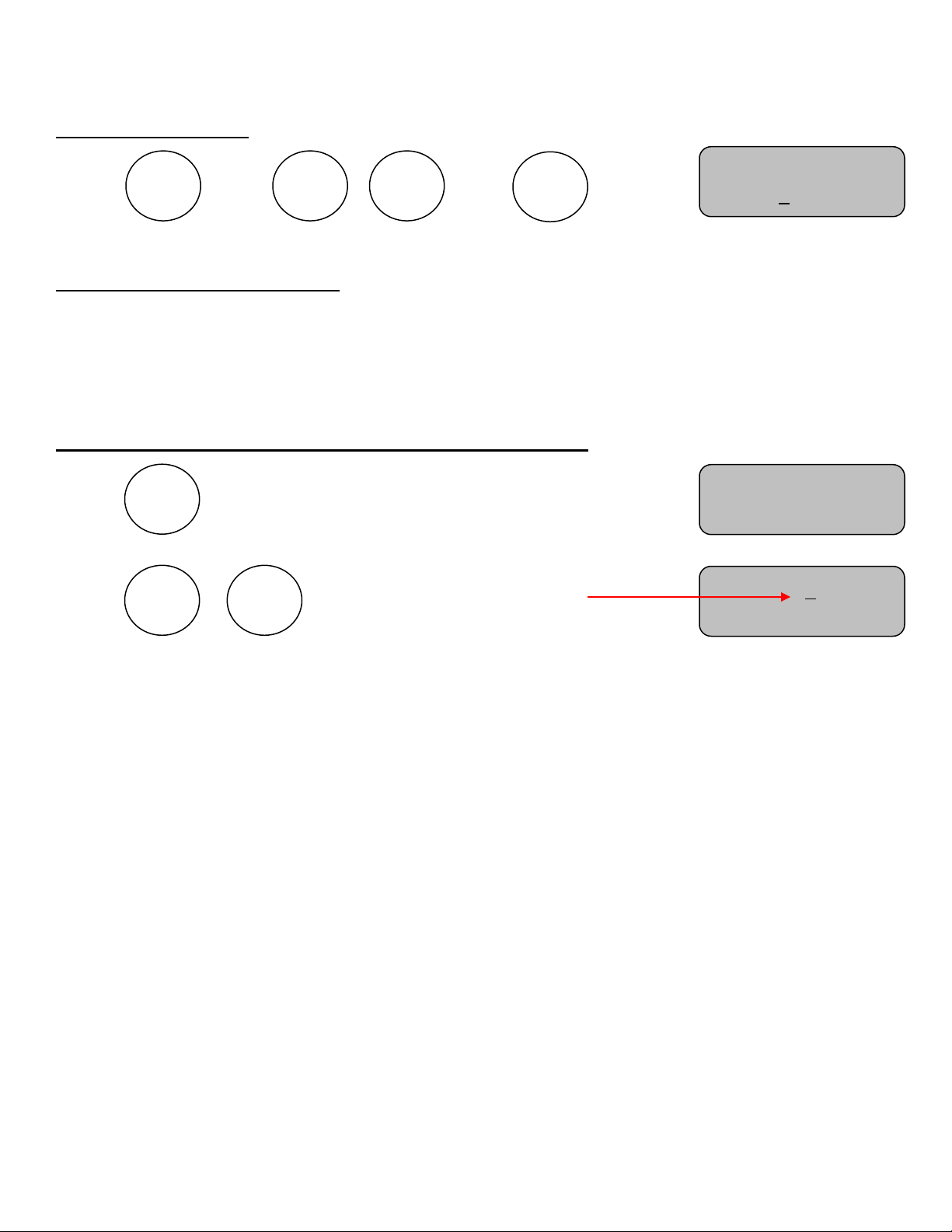

To add a run to the score

Press then or then

To increment Balls, Strikes and Outs

The BALL, STRIKE and OUT keys are all additive (adds one with each press of the key).
Press and hold the BALL or STRIKE key to reset the Balls and Strikes.
Press and hold the OUT key to reset the Balls, Strikes, and Outs.

To enter the At Bat information (for scoreboards that support At Bat)

Press

The control will display

or
Use the keys to enter the player’s number.
Note: Hold the key down for fast advance.

2

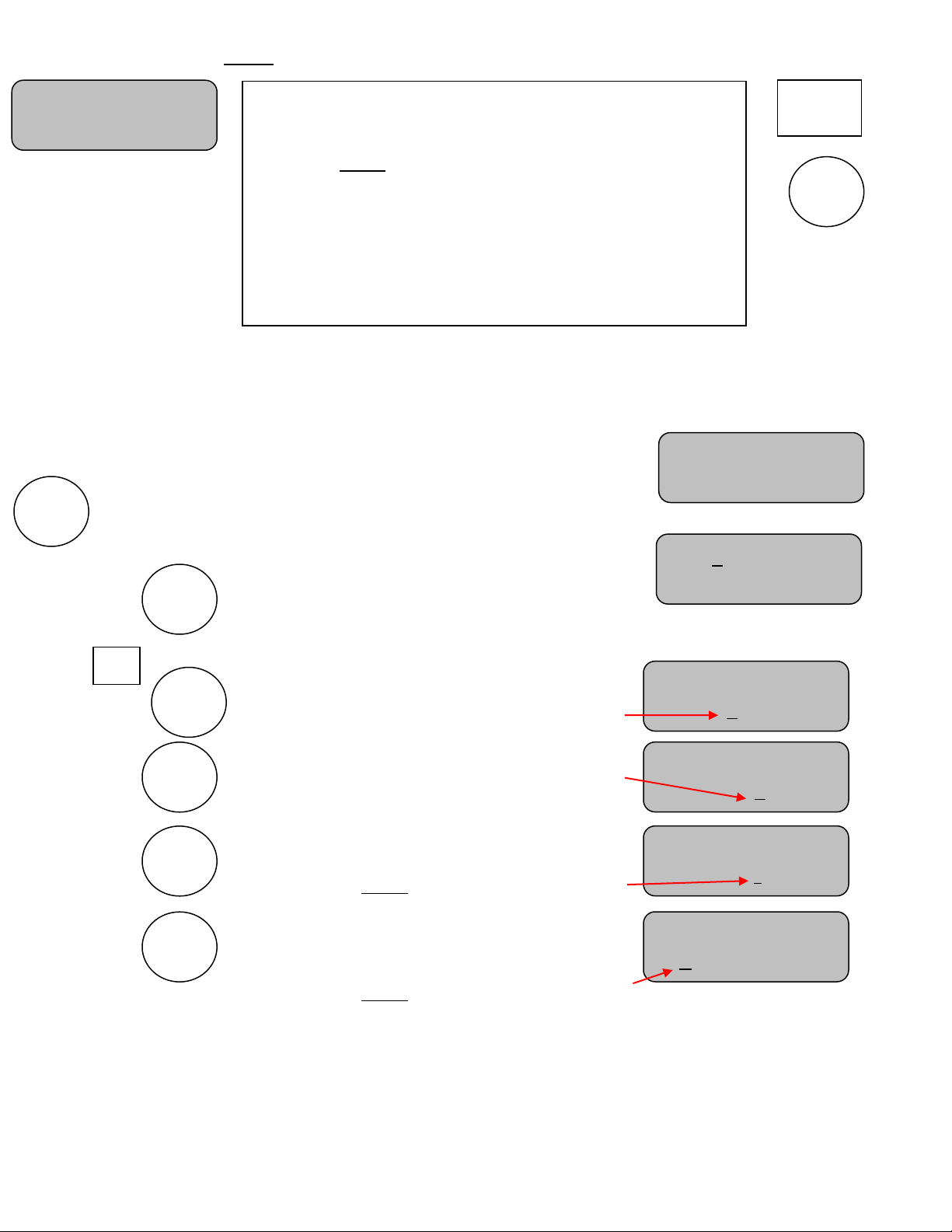

To Set the Time (for scoreboards that support a Clock)

Inn: 1 Time: ON
Home: 0 Guest: 0

AT BAT

TIME

Timer

Press(+)

AT BAT

TIME

Inn: 1 Time: OFF
Home: 0 Guest: 0

AT BAT

TIME

Timer

Press(+)

Time Direction

(+)UP (-)Down

Set Time:

0:00

Set Time:

0:00

AT BAT

TIME

AT BAT

TIME

AT BAT

TIME

+

Auto Horn

(+)On (-)Off

AT BAT

TIME

Note: To display Time on scoreboard models 1520, 1020,
or 1620 (Inning and Time are displayed in the same digits),
set the Inning to Zero. Otherwise it will display the inning.

Press

The control will display

Note: Pressing the “+” key after a time has been

entered will start the clock.

Press
The control will display
Use the “+” and “-” keys to enter the minutes.
Note: Hold the key down for fast advance.

Press The control will display
Use the “+” and “-” keys to enter the seconds.
Note: Hold the key down for fast advance.

Press The control will display
Select the timer Direction.

Press The control will display
Use the “+” and “-” keys to enable or disable
the Auto Horn.

Press AT BAT / TIME to return to the first timer screen.
Press INNING / SCORE to return to the main screen.

To start the timer

Press

The control will display

Press to start the timer.
The control will display

To stop the timer

Press

The control will display

Please consult the following sections of this manual for more details, functions, and features

3

KEYBOARD FUNCTIONS

ON/OFF

ON/OFF

GREETING

When the control is Powered ON, the greeting showing the
type of control and the sport is displayed. This greeting
continues to be displayed while the control establishes
communications with its receiver(s). (May take up to 20
seconds)

Accessed

by

pressing

MPCX2 v01.00

2.4 GHz

Scanning

GREETING screen

When you are done using the control turn it OFF to conserve
batteries by holding down the OFF key for 2 seconds.

Note: Always power ON the receiver(s) (scoreboard(s)) first, and wait a few seconds for the
receiver(s) to initialize (red LED illuminates) before powering ON the control. If the control is
already ON, turn it OFF, wait a few seconds, and then turn it back ON.

Note: If the scoreboard fails to respond to the control, power the control OFF, wait a few
seconds, and then try again. Please allow time for each control to complete its powering ON
process (main screen appears) before turning ON another control.

4

MAIN screen

Inn: 1
Home: 0 Guest: 0

HOME

GUESTS

INNING

SCORE

+

-

Inn: 1 Time: OFF
Home: 0 Guest: 0

Accessed

by

pressing

MAIN

The main screen shows the Inning, the Timer Status (for
boards with timers), and the Scores. You must use this screen if
you want to change the Inning or Scores. Press INNING /
SCORE any time to return to this screen. The cursor indicates
the currently selected function. Use the HOME, GUESTS, or

INNING / SCORE keys to select the function, then, use the “+”

or “-” keys to change its value and send it to the scoreboard.

You should keep this screen displayed during the game.

INNING

SCORE

Inn: 1
Home: 0 Guest: 0

Inn: 1
Home: 0 Guest: 0

Inn: 1
Home: 0 Guest: 0

Inn: 1
Home: 1 Guest: 0

Inn: 0

Home: 0 Guest: 0

Inn: 0 Time:OFF

Home: 0 Guest: 0

Allows you to set the inning.

Use the “+” or “-” keys to set the inning.

Note: With an Inning by Inning board, when the game goes
past 10 innings the scoreboard will continue to keep score.
Advancing to the 11th inning will blank the line score and the
11th inning will be in the 1st inning spot. With 9 inning
scoreboards, the 10th inning will not be displayed.
Incrementing or decrementing inning to a value 1 through
10 will display innings 1-10.

Use the “Home” or “Guests” keys to select the team whose

data you want to change.

Note: Inning by Inning boards will display blanks in the line

score until “Home” or “Guests” is incremented. If the guest
line score is blank and “Home” is selected, then the guest
line score will be set to 0. Advancing to the next inning while
the current home line score is blank will set the home line
score to 0.
Note: If the overall score somehow does not match the line
score, then the inning can be set to 0 and the overall score
can be adjusted to match.

Use the “+” or “-” keys to change the data
for the selected feature.

Note: If, when the main screen appears, it shows Inning 0 and the
scoreboard remains dark and will not respond to the control, then the
receiver was not found. Power the control OFF, make sure all associated
receivers are powered ON, and try the control again. Please allow time for
each control to complete its powering ON process (main screen appears)
before turning ON another control.

5

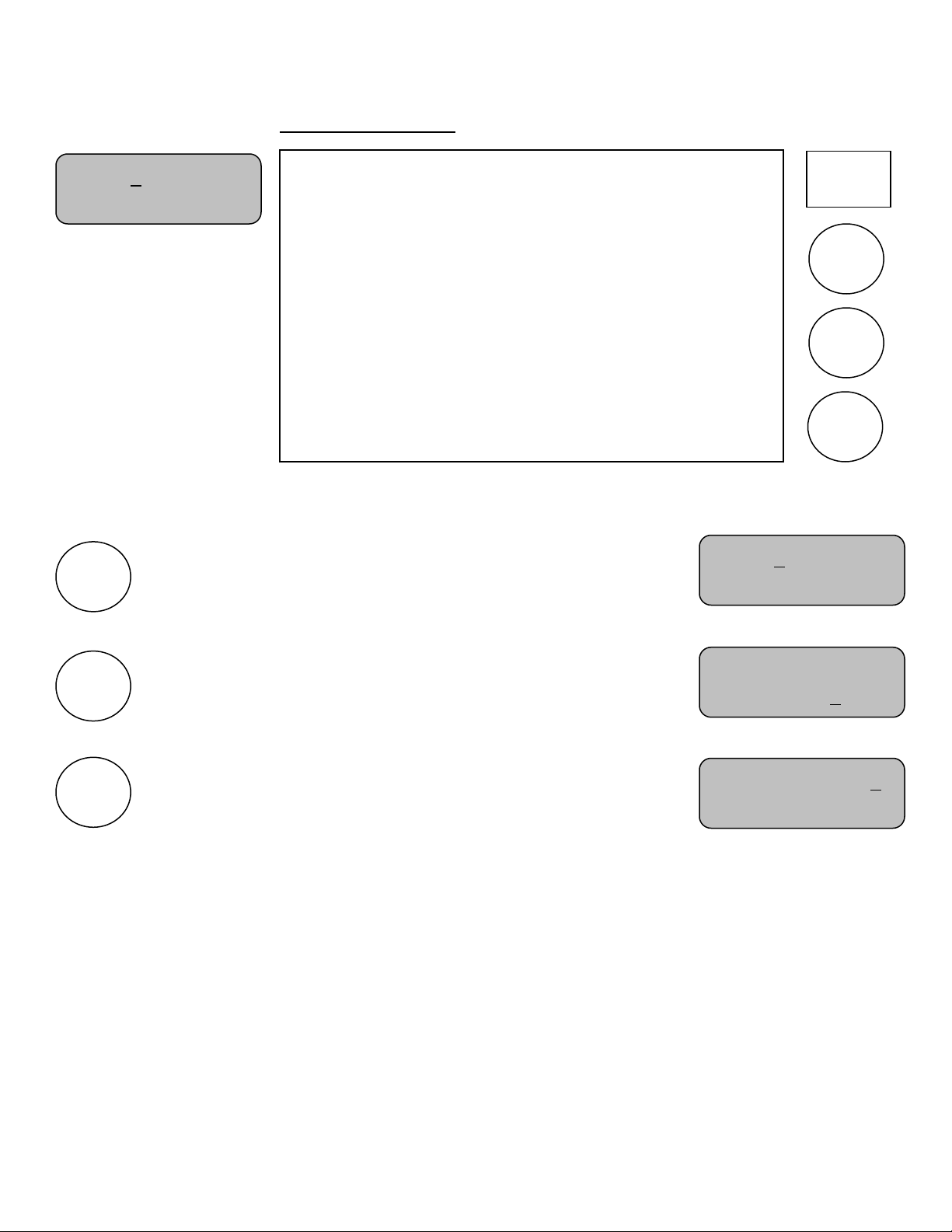

BALL, STRIKE OUT screen

Balls:1 Outs:0

Strikes:0

BALL

OUT

STRIKE

Balls:0 Outs:1

Strikes:0

Balls:0 Outs:0

Strikes:1

Accessed

by

pressing

BALL, STRIKE, OUT

This screen shows the Balls, Strikes, and Outs. It appears
when a BALL, STRIKE, or OUT key is pressed. Press and
release one of these keys to add one to its count. If you press
and hold BALL or STRIKE, the Balls and Strikes will be reset
(cleared). Pressing and holding OUT will reset (clear) the Balls,
Strikes, and Outs.

Balls: 1 Outs: 0

Strikes: 0

BALL

STRIKE

OUT

Each press of this key increases the Ball count by 1.
Once selected, you can also use the “+” or “-” keys to change the
data.
Note: Press and hold the BALL key to reset the Balls and Strikes.

Each press of this key increases the Strike count by 1.

Once selected, you can also use the “+” or “-” keys to change the
data.

Note: Press and hold the STRIKE key to reset the Balls and Strikes.

Each press of this key increases the Out count by 1.

Once selected, you can also use the “+” or “-” keys to change the
data.

Note: Press and hold the OUT key to reset the Balls, Strikes, and
Outs.

6

HIT / ERROR / HORN screen

HIT

ERROR

HORN

Hits

Home: 0 Guest: 0

HIT

ERROR

HORN

Press (+)

for Horn

HIT

ERROR

Accessed

by

pressing

HIT / ERROR / HORN

These screens provide access to the Hits and Errors functions
as well as the Horn. The cursor indicates the currently selected
team. Use the HOME or GUESTS keys to select the team, then,

use the “+”key to turn ON the Hit or Error indicator on the

scoreboard. The indicator will flash a few tines, then turn OFF
automatically.

Note: If you are using inning by inning scoring the total Hits or
Total Errors is incremented when the “+” key is pressed. (You
may also use the “-” key for corrections if needed.

Hits

Home: _ Guest:

HIT

ERROR

HORN

Errors

Home: 0 Guest: 0

Press this key to select the Hit function.

Use the “+” key to set hits to 0 and to increment. Use the “-“

key to decrement the hits. Use the “Home” or “Guests” key

to move the cursor.

Note: Hits will be blank on initialization.
Note: On boards that support Hits indicators. Incrementing

Hits will either put a digital “H” or bulls eye on the
scoreboard. A keypress of Ball, Strike, Out, or incrementing
the score or inning will clear the indicator.

Press this key a second time to select the Errors function

Use the “+” key to set hits to 0 and to increment. Use the “-“

key to decrement the hits. Use the “Home” or “Guests” key

to move the cursor.

Note: Errors will be blank on initialization.
Note: On boards that support Errors indicators.

Incrementing Errors will either put a digital “E” or bulls
eye on the scoreboard. A keypress of Ball, Strike, Out, or
incrementing the score or inning will clear the indicator.

Press this key a third time to access the Horn.
Use the “+” key to sound the Horn.
Note: Some scoreboards may not have a horn.

7

AT BAT screen (for scoreboards without a timer)

At Bat: 45

AT BAT

TIME

Accessed

by

pressing

AT BAT
This screen is for entering the AT BAT information. Use the

“+” or “-” keys to enter the player number. (Hold down the “+”
or “-” keys for fast advance).

AT BAT

TIME

At Bat: _

Note: Some models of scoreboards have digits for both At Bat and Time. However, the
MPCX2 only supports either one depending on the controller Scoreboard Model
configuration.

Allows you to enter the At Bat information.
Use the “+” or “-” keys to enter the player number.

Note: Hold the key down for fast advance.
Note: Pressing the HOME or GUESTS key will change

possession with boards that have possession indicators.

8

TIME screen (for scoreboards with a timer)

Set Time:

0:00

Time Direction

(+)UP (-)Down

Set Time:

0:00

Timer

Press(+)

Inn: 1 Time: ON
Home: 0 Guest: 0

AT BAT

TIME

AT BAT

TIME

AT BAT

TIME

Accessed

by

pressing

TIME

This screen handles the time functions. You must be at this
screen in order to start the time. It also allows you to set the
time. The cursor indicates the Minutes or Seconds as being
selected. Use the AT BAT / TIME key to step to the desired
element of time, then, use the “+” or “-” keys to change its
value and send it to the scoreboard. (Hold down the “+” or “-”
keys for fast advance).
Additional presses of the AT BAT / TIME key will allow you
to change the direction the timer will count, and to disable or
enable the Auto Horn.

Timer

Press(+)

AT BAT

TIME

AT BAT

TIME

+

Auto Horn

(+)On (-)Off

AT BAT

TIME

Or

Note: To display Time on scoreboard models 1520, 1020, or 1620 (Inning and Time are displayed in the

same digits), set the Inning to Zero. Otherwise it will display the inning.

Note: Some models of scoreboards have digits for both At Bat and Time. However, the MPCX2 only supports
either one depending on the controller Scoreboard Model configuration.

Note: If you are operating a scoreboard that has a timer, the
AT BAT / TIME key is used to stop the timer when it is running.
If the timer is stopped and time is still left, it will prompt you to press “+” to start
the timer.

Press “+” to start the timer
and return to the main screen.

Note: If there is not a time set, then it will not return to the

main screen and it will stay on the “Timer Press (+)”screen.

Press To set the Minutes:
Use the “+” and “-” keys to enter the minutes.

Press Again to set the Seconds:
Use the “+” and “-” keys to enter the seconds.
Note: Hold the key down for fast advance.

Press Again to select the timer Direction:
Use the “+” and “-” keys to select the direction.
Note: The cursor indicates the current setting.

Press Again to access the Auto Horn option:
Use the “+” and “-” keys to enable or disable
The Auto Horn.
Note: The cursor indicates the current setting.

Note: Press INNING / SCORE any time to return to the main screen.

Note: Some timers will display tenths of seconds while others display only whole seconds. In all cases the time is divided into

fractions of a second for greater accuracy. It may be possible to start and stop the time and see no change in the displayed time even
though several fractions of a second may have been counted off. The fractions of seconds are always cleared when a new time is set.

9

Options Menu

OPTIONS

Clear Scoreboard

Press(+)

Edit ETN

Press(+)

Guests ETN

Press (+)

Home ETN

Press (+)

Home ETN

_

Several option settings are available to fine tune the scoreboard system to your needs. These settings are saved
in the control. They are remembered even if the control is turned OFF or the batteries removed. When a control
turns ON the scoreboard, these settings are sent to the scoreboard and are used to define how it operates. This
allows each coach or group to have their own control with its unique option choices, thus eliminating the need
to set up the options every time the scoreboard is used. For example, Brightness (Baseball – day time) (Soccer –
night time).

It is also possible to use more than one control to operate the scoreboard. For instance, the Time can be
controlled by one person while someone else operates the rest of the scoreboard with another control.

Standard Options

The options key can be used to access the following features. Each press of the options key moves you
to the next option screen.

Note: In this illustration the cursor indicates the default factory settings.
Note: You can return to the main screen at any time by pressing PERIOD / SCORE.

Allows you to clear the scoreboard data.
Note: The period will be set to 1, scores will be set to 0, and all other
data are set to blank.

Allows you to edit the Electronic Team Name for both Home and
Guest.

Note: The ETN can only be edited when time is stopped.

Note: After pressing the “+” key to get into the ETN menu, press the

“Options” button to switch between Home and Guest ETN’s.

Use the “+” to go increment the alphabet and the “-“ key to decrement
the alphabet. Use the “Options” button to advance the cursor.

Note: Hold the key down for fast advance.

10

Auto Horn

(+)On (-)Off

Set Time of Day

Press (+)

Signal Strength

L>>>>>>>>>>>>H

Battery Level

L>>>>>>>>>>>>H

Brightness

(+)HIGH (-)LOW

Time Up/Down

(+)Up (-)Down

Allows you to set the direction the timer will count.

Note: In baseball the Time Up/Down control is in the At Bat / Time
button.

Allows you to select the Brightness Level of the
scoreboard. (High or Low)

Allows you to enable or disable the automatic horn. (Sounds for about 4
seconds when time has expired).
Note: In baseball the Auto Horn control is in the At Bat / Time button.

Turns the control OFF and blanks all scoreboard functions except Time.
Uses the displayed time as the set time if it is a valid Time Of Day.
Otherwise blanks the entire scoreboard.

Note: Not all scoreboard models support Time Of Day and thus not all
controllers will display Time of Day.

Reports the condition of the batteries in the control.

Note: “Low Battery!!!” Will display when it is approaching time to
change batteries. When 0 bars of battery life are left the batteries must
be replaced immediately.

Allows you to check signal strength when connected to a receiver.
Used as an indication of reliability of communications.
Affected by distance, battery condition, obstructions and signal
interference.

11

Advanced Options

Enter Code to

Change Settings

Link Menu

Press (+)

HOME

GUESTS

+

-

Add a Rec ID

Press (+)

Delete a Rec ID

Press (+)

View Rec ID’s

Press (+)

OPTIONS

Scoreboard Model

Setting Scoreboard Model

The next press of the options key will display one of the following screens. It indicates which

of the scoreboard model series the control is currently configured to operate. Use the “+” key

to toggle thru the scoreboard models. Press the OPTIONS key again to exit the options
routine. The last scoreboard series displayed will become the new control configuration.

This menu option allows you to access settings that affect how the control
operates. Generally, these settings need not be changed and should only be
changed by an experienced operator or under direction from the Nevco Service
Department.

Press the following key sequence:

a. Segment timer - (Segment time) (+) (-) (Auto Horn)
b. Shot Clock/Pitch Time/Delay Of Game - (Reset 1) (+) (-) (Reset 2)

to gain access to the following additional menu items.
Or
Press the OPTIONS key to return to the main screen.

This menu option allows the user to add a receiver ID, delete a receiver ID, and
to view the status of which ID’s are programmed and enabled or disabled. Press
the button to scroll through the different link menus.

Please refer to sections “Mating a New Control to Receiver(s)” and “Adding,

Deleting or Enabling/Disabling Receiver ID’s” for detailed instructions.

Refer to the Scoreboard Model table found below for the appropriate
scoreboard model to be used with your scoreboard.

12

ON/

OFF

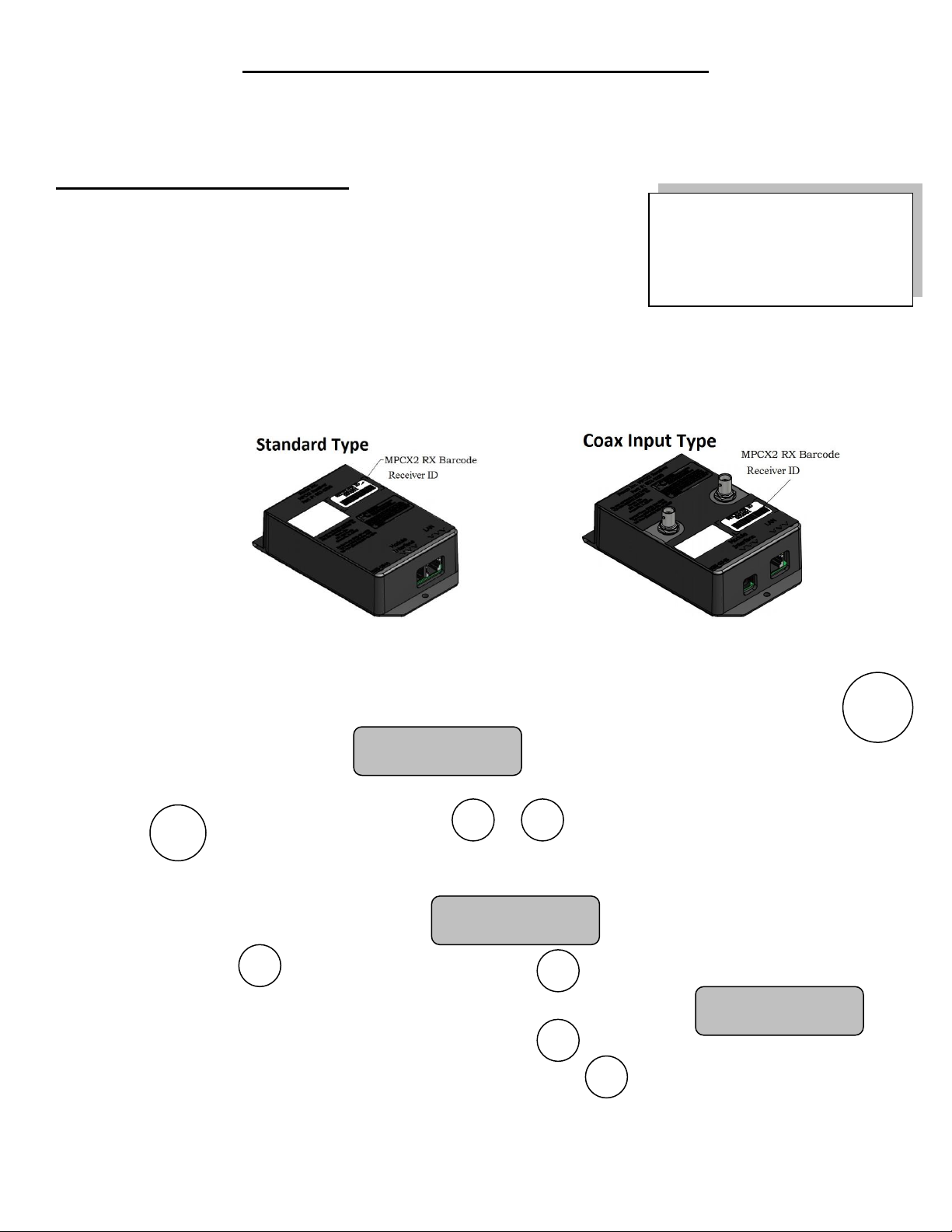

MPCX2 Control / Receiver setup procedure

Enter Rec ID:

000000

Reset Now?

(+)NOW (-)LATER

Add Another?

(+)YES (-)NO

Options

Record Receiver ID’s Here

Before using the MPCX2 control it must be mated to the receiver(s) and set for the model of scoreboard that
you wish to operate.

Mating a New Control to Receiver(s)

Step 1. Record the receiver(s) ID’s located on the receiver box before

installation for future reference. Multiple receivers can be
used with multiple controllers all on the same network.

Step 2. Install the receiver(s) into the scoreboard and power up the

receiver(s) that are to be used.
a. Standard Installation – Uses the RJ12 output of the receiver.
b. Rain Type Box Installation – Uses the coax output of the receiver and a 9VDC power

supply.

Step 3. Wait approximately 15 seconds after the receiver has been turned on before turning on the

MPCX2 controller in order to allow enough time for the receiver to be initialized.

Step 4. Insert the batteries included with the MPCX2 control or turn the control ON by pressing

The display will read:

Step 5. Enter in the receiver ID’s located on the receiver box using the controller keypad buttons

(NEXT) to move the cursor and or to increment or decrement each digit.

When done press the (BACK) button in the lower left corner.

Step 6. The screen will then prompt with.

Step 7. Pressing will reset the controller. Pressing will allow additional receiver ID’s to be

Step 8. If additional receivers are to be added then select and repeat steps 5 through 6. If

entered into the controller and will display the message.

additional receivers do not need to be added then select and the controller will be reset.

13

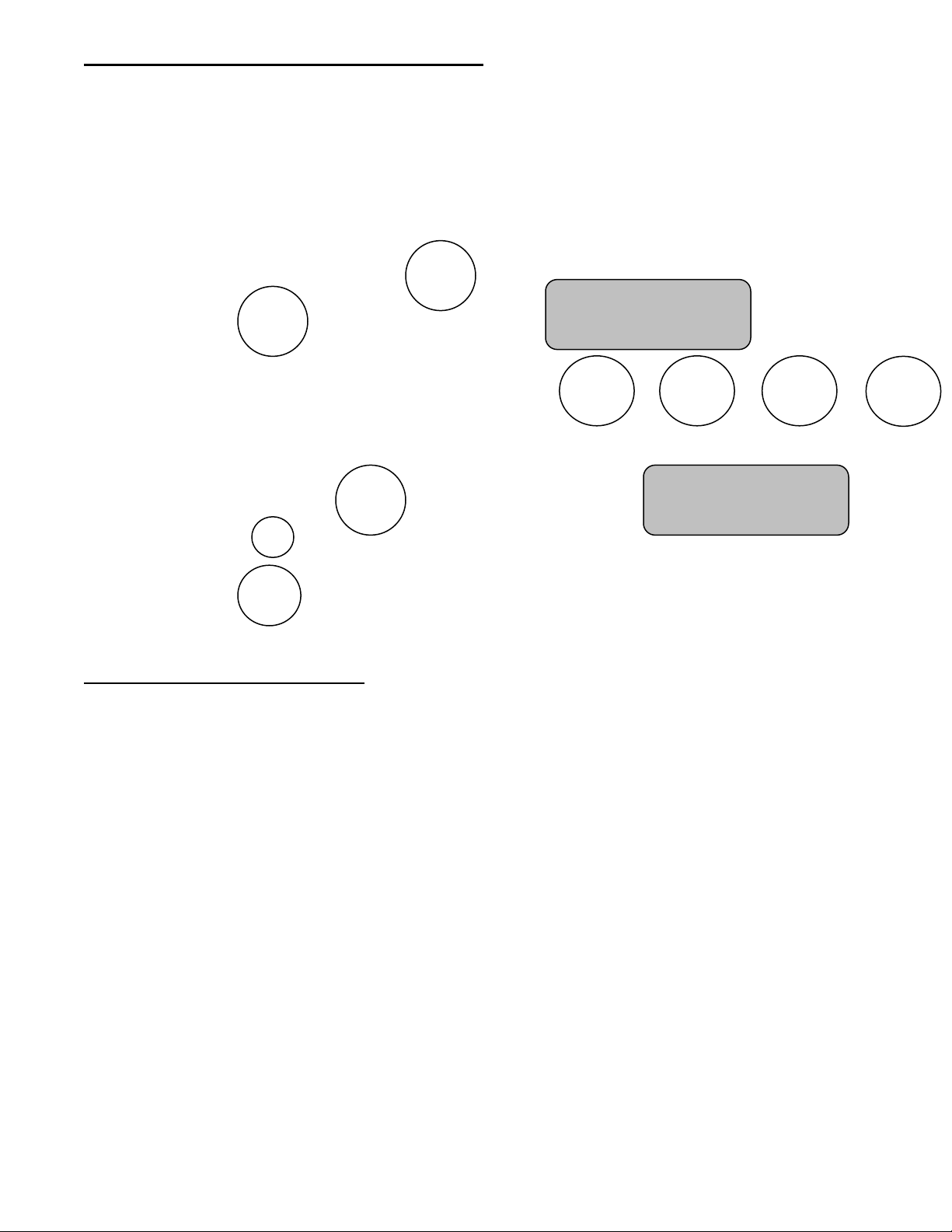

Setting the Control for Your Model of Scoreboard

Scoreboard Model

(+)

Enter Code to

Change Settings

ON/
OFF

Options

HOME

GUESTS

+

-

Options

+

Options

This procedure is not necessary if you have one of the following models:

1500, 1510, 1530, 1535, 1550, 1600, 1610, 1630, 1635, 1650, 1000, 1010, 1030, 1035, 3500,
3502, 3504, 3514, 3515, 3516, 3520, 3525, 3534, 3550, 1632, 9605, 9505, 9715, 9515, 3400,
3402, 3404, 3414, 3415, 3416, 3425, 3434, 9405, 9550, SCD-5, SCD-7, S60-LED, S60, SCD-4.
And for any sport except Soccer: 2700, 2710, 2715, 2740, 2750, 2760, 2770, 2775, 2600, 2610,
2615, 2640, 2650, 2670, 2675, 2500-D, 2500, 2500-A4-D, 2500-A4, 2540, 2540-A4, 2550-D,
2550, 2560, 200, 230, 9510, 9715, 9515, 9710, 2400, 2400-A4, 2440, 2440-A4, 2450, 2460,
9410

Step 1. Turn the control on by pressing

Step 2. Press the button until the display reads

Step 3. Enter the “Code” with the buttons in the sequence

a. Segment timer - (Segment time) (+) (-) (Auto Horn)
b. Shot Clock/Pitch Time/Delay Of Game - (Reset 1) (+) (-) (Reset 2)

Step 4. Continue pressing the button until the display reads
Step 5. Press the key to select the scoreboard model shown in the table below.

Step 6. Press the key to exit the menu.

Multiple Receivers and Controllers
Both multiple controllers and receivers can be on the same network.

Multiple Controllers

For example, one person with a controller can control Game Time and another person with a separate
controller can control Game Score of the same game on the same scoreboard. Multiple controllers can
be used for any combination of game data.

If a second controller is powered on after the first powered on controller has been initialized, then the

second controller will be configured with the same Scoreboard Model described in the “Setting the

Control for Your Model of Scoreboard” section.

Multiple Receivers

Multiple receivers can be used on the same network. One example could be separate scoreboards for
the same game or in the case of basketball one receiver controls the scoreboard while other receiver(s)
control the shot clock(s).

14

MPCX2

Control

Scoreboard Model

Screen to Select

Football

3500, 3502, 3504, 3514, 3515, 3516, 3520, 3525, 3534, 3550, 1632,

9605, 9715, 9505, 9515, 3400, 3402, 3404, 3414, 3415, 3416, 3425,

3434, 9405

Type A (+)

7504, 7505, 7516, 7520, 7524, 7525, 7530, 9505, 9515, 7404, 7405,
7416, 7424, 7425, 7430, 9405, 3600, 3602, 3604, 3614, 3615, 3616,
3617, 3618, 3619, 3620, 3621, 3625, 3634, 3650, 3655, 3656, 3658,

7604, 7614, 7624, 7605, 7615, 7625, 7616, 7620, 7630, 7631, 7632

Type B (+)

All 36XX, 76XX, and 86XX boards

X6XX (+)

3680, 3685, 3688, 7680, 7685 (Reorders Intelligent Caption to Ball On,

Down, To Go, Quarter)

X6XX Legacy (+)

Soccer

1515, 9505, 9515, 1615, 1632, 9605, 9715, 1415

Type A (+)

1520, 1525, 9505, 9515, 1620, 1625, 9605, 9715, 1020, 1025, 9405,

9410

Type B (+)

3502, 3504, 3514, 3515, 3516, 3520, 3525, 3534, 3550, 3555, 9605,
9505, 9715, 9515, 3402, 3404, 3414, 3415, 3416, 3425, 3434, 3455,

9405

Type C (+)

7504, 7524, 9505, 9515, 9605, 9715, 7404, 7405, 7424

Type D (+)

7604, 7605, 7614, 7615, 7616, 7620, 7624, 7625, 7630, 7631, 7632,
3600, 3602, 3604, 3614, 3615, 3616, 3617, 3618, 3619, 3620, 3621,
3625, 3634, 3650, 3655, 7505, 7516, 7520, 7525, 7530, 9505, 9515,
9715, 7405, 7416, 7425, 7430, 9405, 9410, 3680, 3685, 3688, 7680,

7685, 8601, 8602

Type E (+)

Supports Intelligent Captions

200, 230, 24xx, 25xx, 26xx, 27xx, 9510, 9515, 9710, 9715

Type F (+)

3656, 3657

Type G (+)

Supports Intelligent Captions

4455, 4465, 4755, 4555, 4565, 4765

Type H (+)

SCD / DGT

/ PCD

SCD-5, SCD-7A, SCD-T7A, SSC-7, SSC-T5, SSC-T9, S60-LED, S60,

SCD-4

Shot Clock (+)

DGT-6

Delay Of Game (+)

DGT-5, DGT-2, 3020

Legacy DOG (+)

SEG-14,SEG-18

Segment Timer (+)

9520, 9620

Pitch Timer (+)

Tennis

9550 Set one control to each of 6 courts =>
9650 Set one control to each of 6 courts =>

9651B
9652B

Standard

Current Court: 1

New Court: 2

15

MPCX2

Control

Scoreboard Model

Screen to Select

Baseball

1000, 1010, 1030, 1035, 1500, 1510, 1530, 1535, 1550

Standard (+)

1003, 1006, 1503, 1506, 1508, 1540, 1603, 1604, 1606, 1608, 1609

Score by Inn (+)

1020, 1025, 1515, 1520, 1525, 9505, 9515, 9605, 9715

With Timer (+)

1615, 1620, 1625, 1632, 3656, 3680, 3685, 3688, 7616, 7680, 7685,

8601, 8602

X6XX Timer (+)

1600, 1609, 1610, 1630, 1635, 1640, 1650, 3656, 3680, 3685, 3688,

7680, 7685, 8601, 8602

X6XX Standard

(+)

Pitch Count

PCD-(A, 08, 10, 16, 18) With Models 1000, 1010, 1030, 1035, 1500,

1510, 1530, 1535, 1550

Standard (+)

PCD-(A, 08, 10, 16, 18) With Models 1003, 1006, 1503, 1506, 1508,

1540, 1603, 1604, 1606, 1608, 1609

Score by Inn (+)

PCD-(A, 08, 10, 16, 18) With Models 1015, 1020, 1025, 1515, 1520,

1525, 9505, 9515, 9605, 9715

With Timer (+)

PCD-(A, 08, 10, 16, 18) With Models 1615, 1620, 1625, 1632, 3656,

3680, 3685, 3688, 7616, 7680, 7685

X6XX Timer (+)

PCD-(A, 08, 10, 16, 18) With Models 1600, 1609, 1610, 1630, 1635,

1640, 1650, 3600, 3656, 3680, 3685, 3688, 7680, 7685

X6XX Standard

(+)

Basketball,

Volleyball,
Wrestling,

or Hockey

No setting required

Type A (+)

Segment

Timer

27xx, 26xx, 25xx, SEG-14, SEG-18, 9710, 9510, 200, 230, SSC-7,

SSC-T5, SSC-T9, SCD-7A, SCD-T7A, SCD-T5, SCD-5, SCD-4,

9715, 9515, S60-LED, S60, 4755, 4555-D, 24xx, 9410,

Type A (+)

3500, 3502, 3504, 3514, 3515, 3516, 3520, 3525, 3534, 3550, 36xx,

1632, 9605, 9505, DGT-6, DGT-5, 9405, 3020, 3400, 3402, 3414,

3415, 3416, 3425, 3434, 3455, 9515, 9715

Type B (+)

36xx, 76xx, 7504, 7505, 7516, 7520, 7524, 7525, 7530, 9605, 9505,

DGT-6, DGT-5, 9405, 7404, 7405, 7416, 7424, 7425, 7430, DGT-2,

9515, 9715

Type C (+)

1520, 1525, 1515, 9505, 1620, 1625, 1615, 9605, 9715, 9405, 9515

Type D (+)

SEG-14 and SEG-18 Segment Time only

Type E (+)

SEG-14 and SEG-18 Segment Number only

Type F (+)

All X6XX boards with timers

X6XX (+)

16

TROUBLESHOOTING CHART

Scoreboard will not turn ON when control
is turned ON

Control continues to search after an
unusually long time

Data won’t change on control

Control display shows incorrect
information

Cannot turn the time ON

Receiver not working or
receiver/scoreboard not powered up

Cycle power to receiver/scoreboard

Control signal weak
Check signal

strength (see
Options menu)

Out of Range

Battery level low

Replace batteries

Control in a poor
location

Make sure the control is in clear line of
sight of the scoreboard

Move closer to scoreboard

Control is linked to extra unwanted
receivers or wanted receivers are not
powered ON.

Use the Options Menu to check the
receivers the control is linked to and
the receivers on its list.

Control is not linked to this scoreboard
Find and use the control for this

scoreboard.

Link the control to this scoreboard or
group (see Options Menu)

Didn’t sync up

Power control OFF, then ON

Control is ON but scoreboard/timer is
OFF (data is changing on control)

No power to scoreboard

Check all switches, breakers, and fuses

Bad connection between Receiver and
scoreboard module

Check all cables and connections

Scoreboard/timer is ON but does not
respond to control

Control and receiver are not communicating

Turn control OFF, then ON to establish
communications

My control will not operate scoreboard
(Out of Range)

Poor connection with bad line of sight to
the scoreboard or distance is too great.

Return to a closer location with direct
line of sight and verify Signal Strength.
If that does not work then cycle power
to controller

I cannot set the time

The time is running

Stop the time first

Cannot turn the time ON

Time at 0.0 and set to count down

Set some time on the clock

Scoreboard is ON – Control is OFF

Batteries were removed while scoreboard
ON

Batteries were completely discharged while
scoreboard is on

Install batteries -- power ON

Cycle power at scoreboard

Not all controls of a multi-control
scoreboard system will operate the
scoreboard

Multiple controllers were powered on at the
same time and not all connected

Power cycle the controllers that are not
operating the scoreboard.

Scoreboard connected to MPCX2 is
displaying data in the wrong places,
incorrect data, or horn constantly sounds.

Control is not configured for correct
scoreboard model series

Reconfigure the control (see options
menu)

Problem Cause Solution

If the problem persists please contact the Nevco Service Department.

800-851-4040

17

LED Status

MPCX2 Connection Status

Solid On

The receiver is powered on, but a connection attempt has not yet been made, or a connection
attempt was unsuccessful.

Blinking Fast
(multiple times a second)

The receiver is in the network and connected. The receiver may appear to not be blinking due to it
blinking very quickly. If the receiver is connected to Scorbitz through the Ethernet jack, then it
will blink more visibly.

Blinking Slow
(approximately once a second)

The receiver is not connected but connection attempts are being made. Each slow blink is a
connection attempt. If the receiver is intended for the network and it is flashing slowly but never
connects then verify that the receiver list in the MPCX2 control is correct.

Solid Off

The receiver is not powered on. It is also possible that the receiver is powered on but for some
reason the LED has been turned off. If this is suspected to be the case then cycle power to the
receiver and the LED should turn on after a brief delay.

LED STATUS

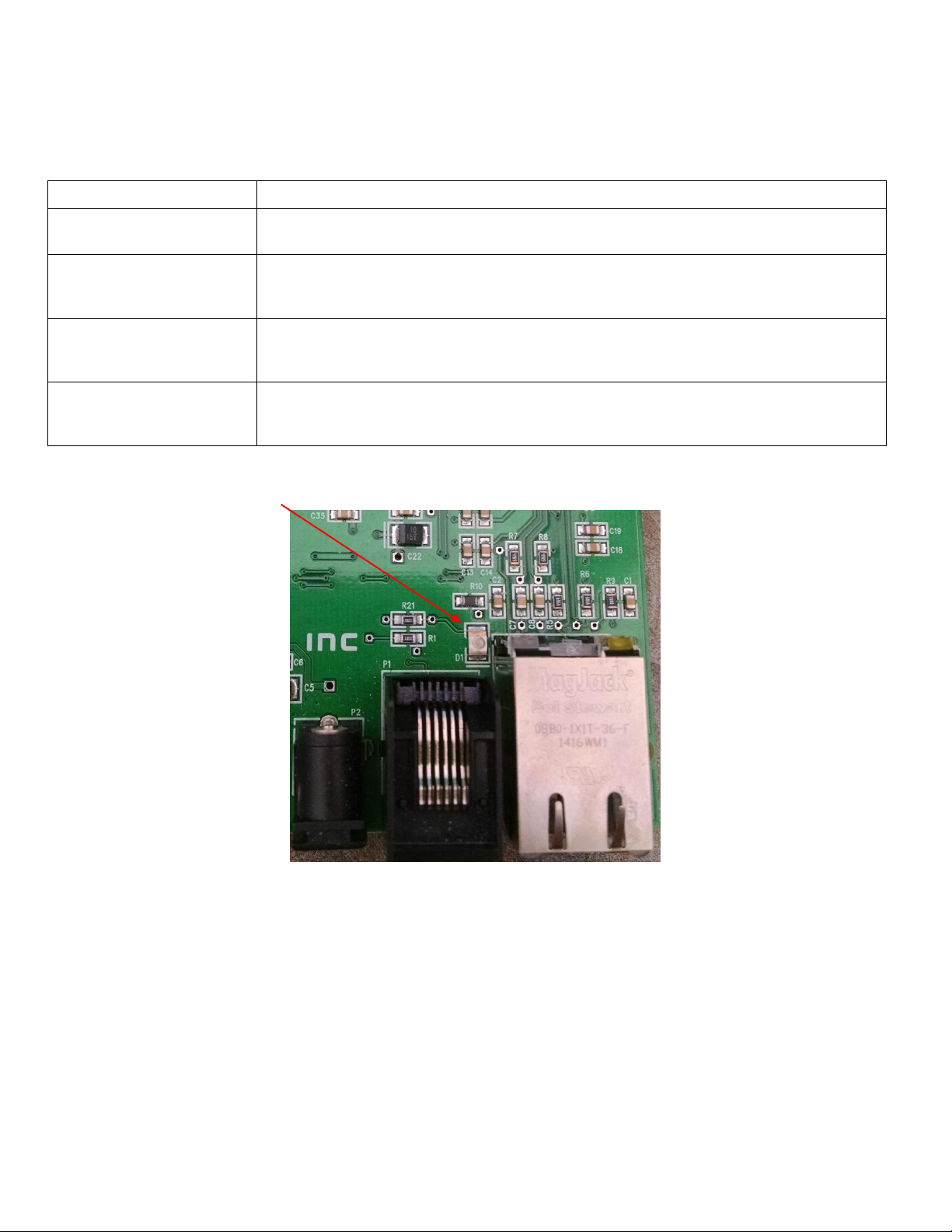

The receiver has a red status LED next to the RJ12 and Ethernet jack. It can be used to diagnose the status of the
MPCX2 receiver.

MPCX2 receiver status LED

RECEIVER IDENTIFICATION ON POWERUP

On powerup the receiver connected to the OCM will identify itself by flashing from the most significant 2
digit numbers to the least significant 2 digit numbers. For example, a receiver with ID 123456 will flash 12,
34, and then 56 on power up. This is used to distinguish which X2 receiver is connected to which OCM’s
without having to open up the scoreboard.

18

WARNING: To satisfy FCC RF exposure requirements for mobile transmitting devices, a separation distance of 20 cm or
more should be maintained between the antenna of this device and persons during device operation. To ensure compliance,
operations at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in
conjunction with any other antenna or transmitter.

Features

Specifications

MPCX2 Control:

Size:

o Small and light weight (fits in or clips to pocket)

Approximately 3¼” x 5½” x

7

/8”

o Electronic Team Name and Caption Support

Weight:
5½ oz. (including batteries)

o Tactile confirmation of key pressed

Keypad:

o High visibility transflective display

12 keys

o Convenient wireless operation

Display:

o Built in wireless signal strength meter

32 character LCD

o Power conservation circuitry

Power requirements:

o Built in battery meter

Two AA cells (included)

o Long battery life

Operating distance:

o Uses inexpensive, readily available AA batteries

1000 feet (Clear line of sight)

o Sealed keyboard

Receiver Output:

o No slip grip

One BNC connector (2 loads with up to 1000
ft. coax each)

o Ergonomic single hand operation

Operating temperature:

o Internal antenna

0°F to 150°F

o Mate multiple controls to same scoreboard

o Operate multiple scoreboards

Certifications:

o Retrofits to existing wired installations

FCC part 15 Class B
CE
RoHS

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:

—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/ TV technician for help.

The user is cautioned that changes and modifications made to the equipment without the approval of Nevco could void the user’s authority to operate this equipment.

This class B digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations.
Cet appareil numerique de la classe B repecte toutes les exigences du Reglement sure le materiel brouller du Canada.
