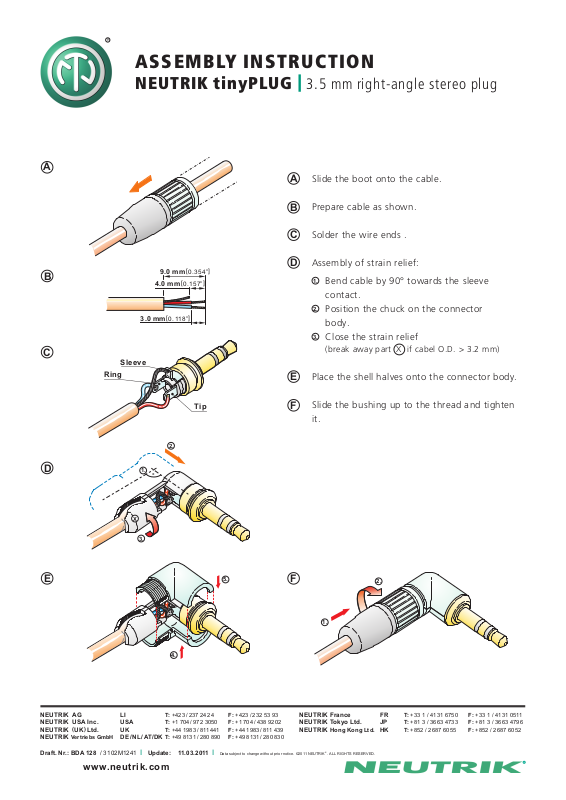

ASSEMBLY INSTRUCTION
NEUTRIK tinyPLUG 3.5 mm right-angle stereo plug
|
A
A
Slide the boot onto the cable.
Prepare cable as shown.
B
Solder the wire ends .
C
Assembly of strain relief:
[ ]
0.35 4”
B
4.0 mm
3.0 mm
9.0 mm
[ ]
0.118”
[ ]
0.15 7”
C
Sle ev e
Rin g
D
1.
Bend cable by 90° towards the sleeve
contact.
2.
Position the chuck on the connector
body.
3.
Close the strain relief
(break away part X if cabel O.D. > 3.2 mm)
Place the shell halves onto the connector body.
E
Tip
Slide the bushing up to the thread and tighten
F
it.
2.
D
E
1.
X
3.
5.
4.
F
1.
2.
