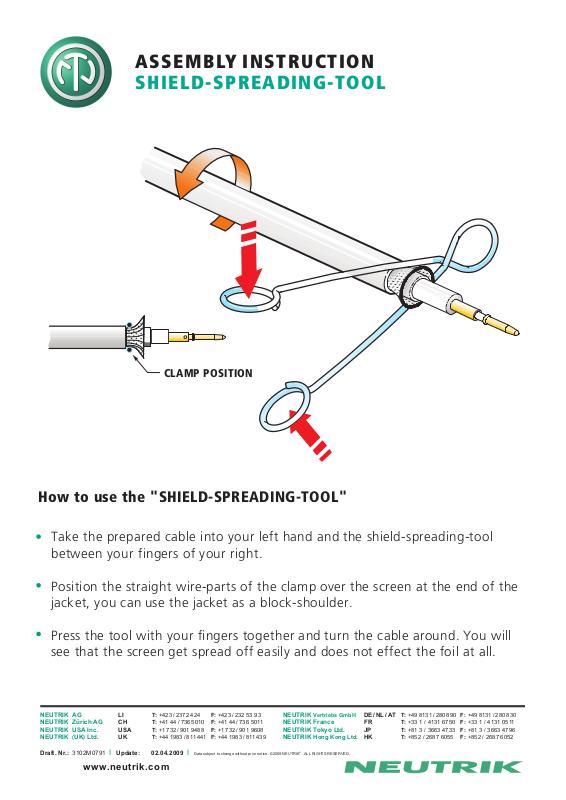

ASSEMBLY INSTRUCTION
SHIELD-SPREADING-TOOL

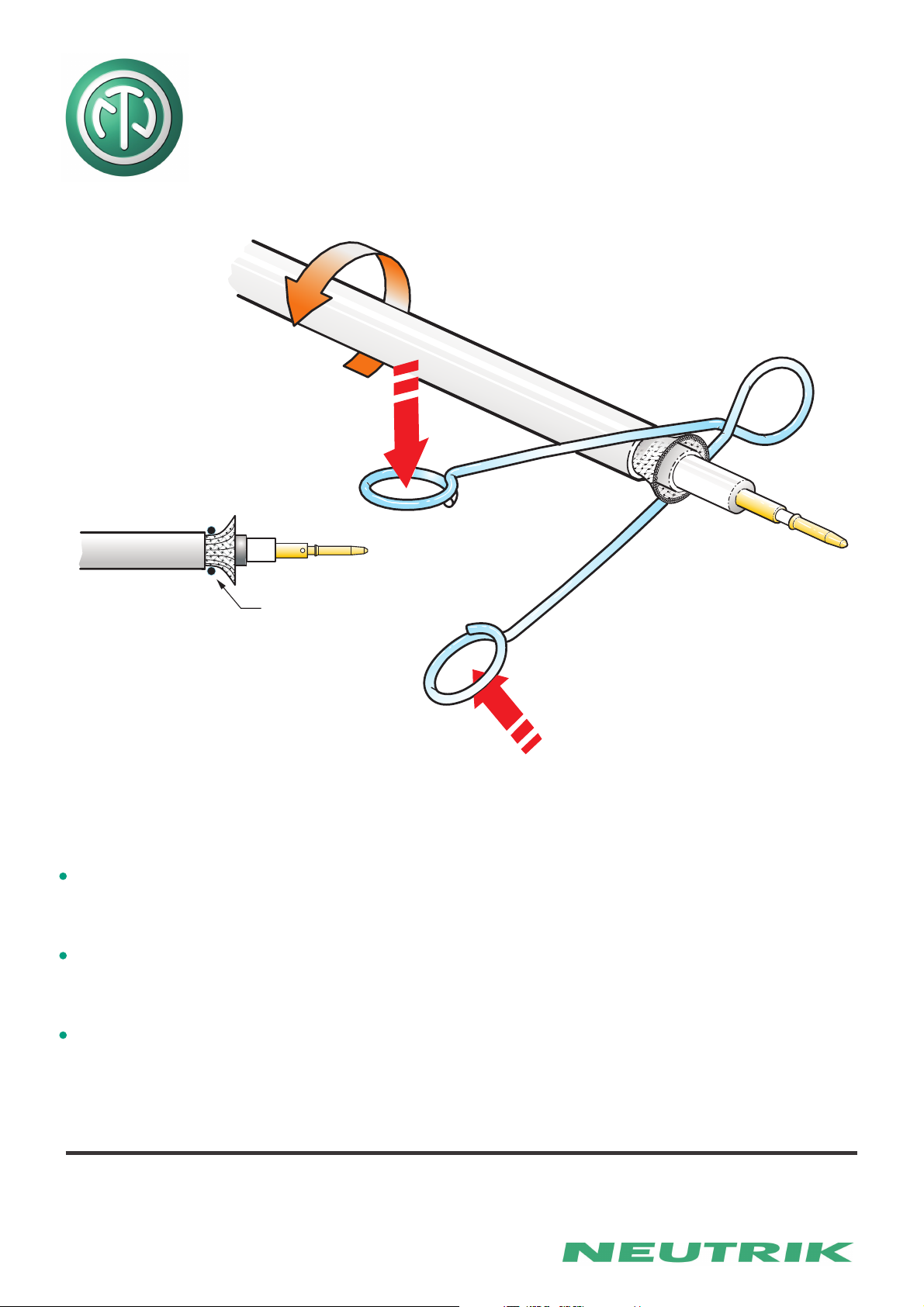

CLAMP POSITION
How to use the "SHIELD-SPREADING-TOOL"
Take the prepared cable into your left hand and the shield-spreading-tool
between your fingers of your right.
Position the straight wire-parts of the clamp over the screen at the end of the
jacket, you can use the jacket as a block-shoulder.
Press the tool with your fingers together and turn the cable around. You will
see that the screen get spread off easily and does not effect the foil at all.
