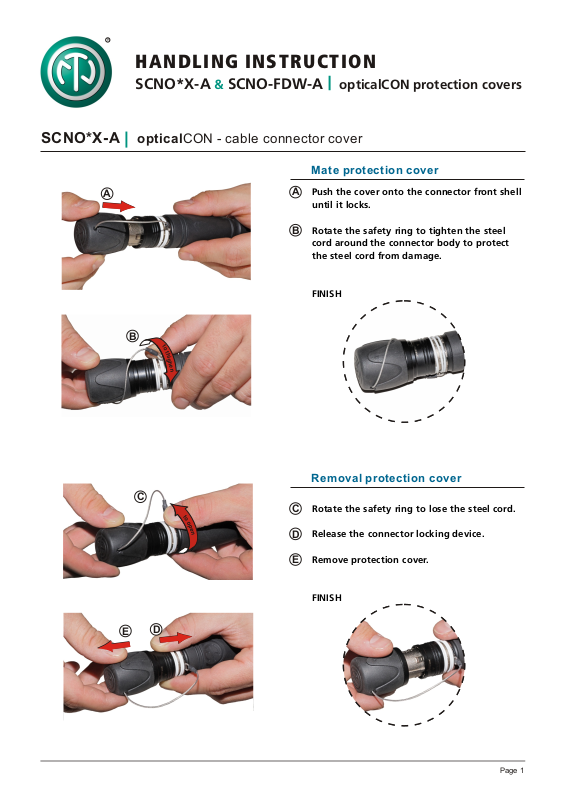

HANDLING INSTRUCTION
SCNO*X-A opticalCON protection & SCNO-FDW-A covers
SCNO*X-A opticalCON - cable connector
A
cover
|
Mate protection cover
A
Push the cover onto the connector front shell
until it locks.
Rotate the safety ring to tighten the steel
B
cord around the connector body to protect
the steel cord from damage.
FINISH
B
t
o
t
h
i
g
h
e
n
|
Removal protection cover
C
Rotate the safety ring to lose the steel cord.
C
Release the connector locking device.
D
Remove protection cover.
E
FINISH
E
D
Page 1
Page 2
opticalCON - Handling Instruction SCNO*X-A & SCNO-FDW-A
I
SCNO-FDW-A opticalCON - chassis connector
cover
|
Dust cover assembly
A
Mount steel cord onto the opticalCON chassis
connector.
Dust cover handling
Push the cover completely into the chassis
1.
2.
B
until you feel a locking snap.
Applications example:
B
NEUTRIK AG LI T: +423 / 237 24 2 4 F: + 423 / 232 53 93
NEUTRIK USA Inc. USA T: +1 704 / 972 3050 F: +1 704 / 438 9202
NEUTRIK UK Ltd. UK T: +44 1983 / 811 441 F: +44 1983 / 811 439
NEUTRIK Vertriebs Gm bH DE / NL / AT/DK T: +49 8131 / 280 890 F: +49 8131 / 280 830
Draft. Nr.: BDA 320 / 3102M1961 Update: 06.12.2012
( )
www.neutrik.com
I I
Data subject t o change without prior n otice. 2012 NEUTRIK . ALL RIGHT S RESERVED. NEUTRIK are re gistered trademark.
Cover application of chassis and cable
connector (SCNO*X-A & SCNO-FDW-A).
Mate cable connector and chassis connector
B
cover to avoid contamination as long the
connector is plugged.
