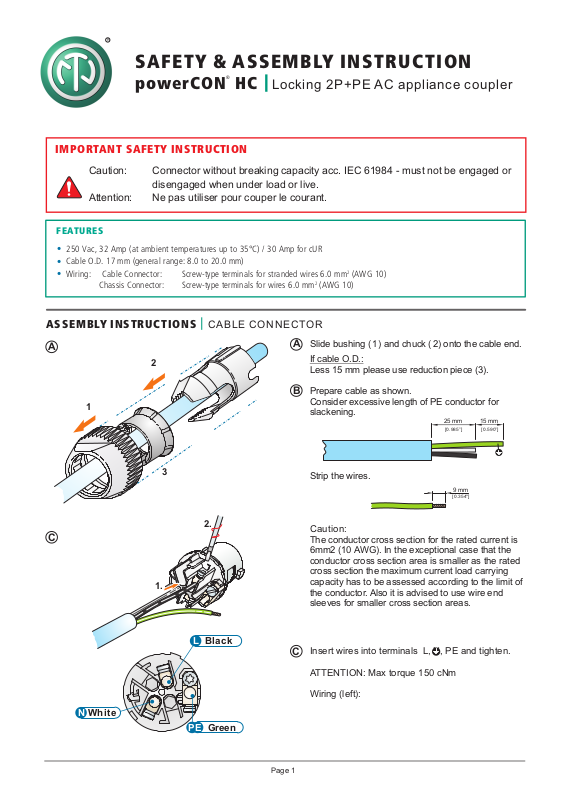

SAFETY & ASSEMBLY INSTRUCTION
powerCON HC Locking 2P+PE AC appliance coupler
®
IMPORTANT SAFETY INSTRUCTION
Caution: Connector without breaking capacity acc. IEC 61984 - must not be engaged or
disengaged when under load or live.
Attention: Ne pas utiliser pour couper le courant.
FEATURES
·
250 Vac, 32 Amp (at ambient temperatures up to 35°C) / 30 Amp for cUR
·
Cable O.D. 17 mm (general range: 8.0 to 20.0 mm)
·
Wiring: Cable Connector: Screw-type terminals for stranded wires 6.0 mm (AWG 10)
Chassis Connector: Screw-type terminals for wires 6.0 mm (AWG 10)
|
2
2
ASSEMB LY INSTRUCT I ONS
A
2
1
3
C
1.
|
CABLE CONNECTOR
A
B
2.
Slide bushing ( 1 ) and chuck ( 2) onto the cable end.
If cable O.D.:
Less 15 mm please use reduction piece (3).
Prepare cable as shown.
Consider excessive length of PE conductor for
slackening.
Strip the wires.
Caution:
The conductor cross section for the rated current is
6mm2 (10 AWG). In the exceptional case that the
conductor cross section area is smaller as the rated
cross section the maximum current load carrying
capacity has to be assessed according to the limit of
the conductor. Also it is advised to use wire end
sleeves for smaller cross section areas.
25 mm 15 mm
[0.98 5”] [ 0.590”]
9 mm
[0.35 4"]
White
N
L
PE
Black
Green
Page 1
Insert wires into terminals L, N, PE and tighten.
C
ATTENTION: Max torque 150 cNm
Wiring (left):
ASSEMBLY INSTRUCTION powerCON HC
I
1.
2.
1. Push insert and chuck into housing.
DD
Important: Align the chuck and insert by
positioning the nose into keyway.
2. Tighten bushing using open wrench 27 mm,
min. torque 3.5 Nm.
Assembled Connector
|
ASSEMB LY INSTRUCT I ONS
RECEPTA C L E
Wiring:
Strip the wires. Insert wires to terminals and tighten.
L
10 mm
[0.39 4"]
Black
White
N
PE
Green
ATTENTION: Max torque 150 cNm
Panel cutout (rear side):
30.0
25.0
3
Ø
0
.
0
Ø 3.8
2.
1.
Note: Conductor colors according to color coding of North American cords.
NEUTRIK AG LI T: +423 / 237 24 2 4 F: +423 / 232 53 93
NEUTRIK USA Inc. USA T: +1 704 / 972 3050 F: +1 704 / 438 9202
NEUTRIK UK Ltd. UK T: +44 1983 / 811 441 F: +44 1983 / 811 439
NEUTRIK Vertriebs Gm bH DE / NL / AT/DK T: +49 8131 / 280 890 F: +49 8131 / 280 830
Draft. Nr.: BDA 178 / 3102M1481 Up date: 23.12 .2011
( )
I I
Data subject t o change without prior n otice. 2011 NEUT RIK . ALL RIGHTS RESERVED.
