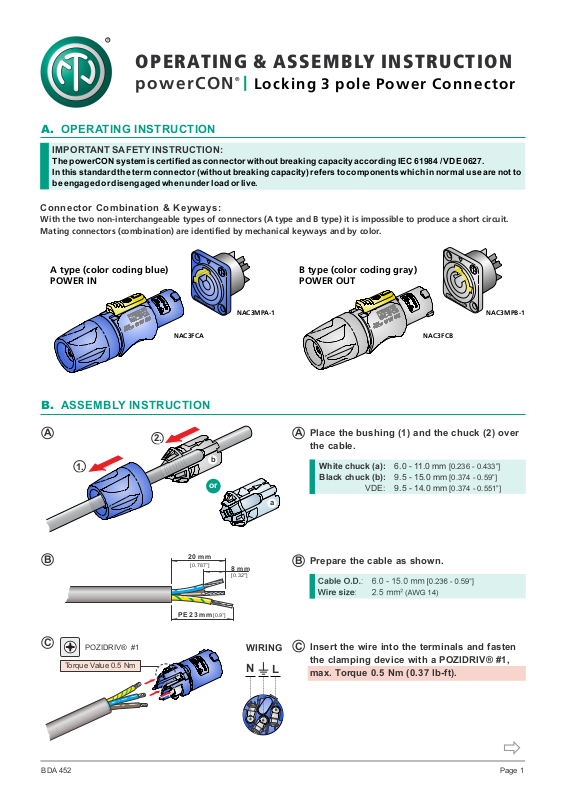

OPERATING & A S S E M B LY I N S T R U C T I O N
powerCON Loc king 3 pole Po wer Con nector
A. OPERATING INSTRUCTION
IMPORTANT SAFETY INSTRUCTION:
The powerCON system is certified as connector without breaking capacity according IEC 61984 / VDE 0627.
In this standard the term connector (without breaking capacity) refers to components which in normal use are not to
be engaged or disengaged when under load or live.
Connector Combination & Keyways:
With the two non-interchangeable types of connectors (A type and B type) it is impossible to produce a short circuit.
Mating connectors (combination) are identified by mechanical keyways and by color.
®
A type (color coding blue)
POWER IN
L
I
E
C
HT
NAC3FCA

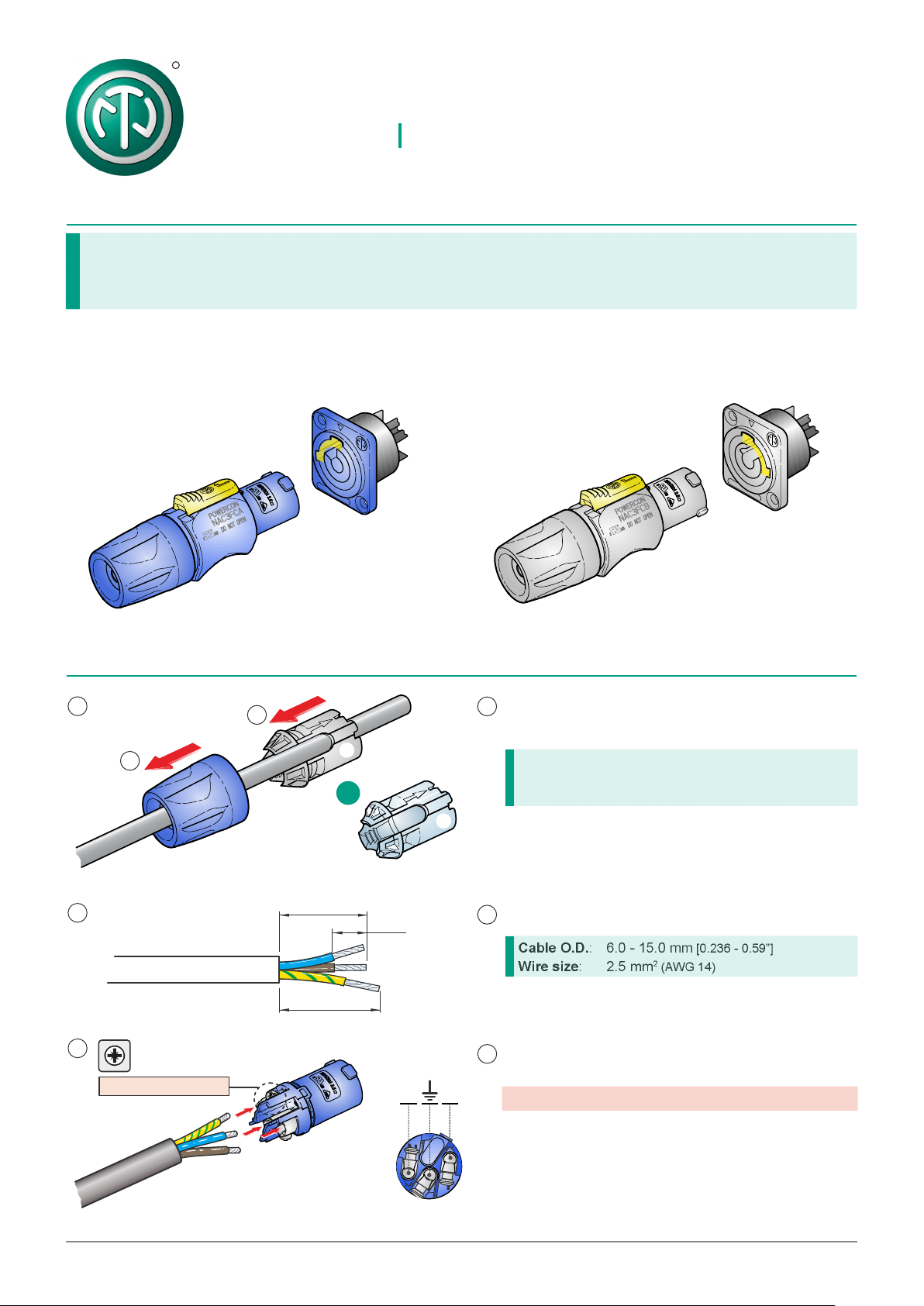

B. ASSEMBLY INSTRUCTION
A
1.
2.
B type (color coding gray)
POWER OUT
L
IE
CH
TE
EN
S
T
E
I
N
NAC3MPA-1
NAC3FCB
A
Place the bushing (1) and the chuck (2) over
NS
T
EIN
NAC3MPB-1
the cable.
b
or
a
White chuck (a): 6.0 - 11.0 mm [0.236 - 0.433”]
Black chuck (b): 9.5 - 15.0 mm [0.374 - 0.59”]
VDE: 9.5 - 14.0 mm [0.374 - 0.551”]
B
C
POZIDRIV® #1
Torque Value 0.5 Nm
20 mm
[0.78 7”]
PE 23 mm
[0.9” ]
8 mm
[0.32 "]
WIRING
N
L
Prepare the cable as shown.
B
Cable O.D.: 6.0 - 15.0 mm [0.236 - 0.59”]
Wire size: 2.5 mm (AWG 14)
C
Insert the wire into the terminals and fasten
2
the clamping device with a POZIDRIV® #1,
max. Torque 0.5 Nm (0.37 lb-ft).
ð
Page 1BDA 452
Page 2

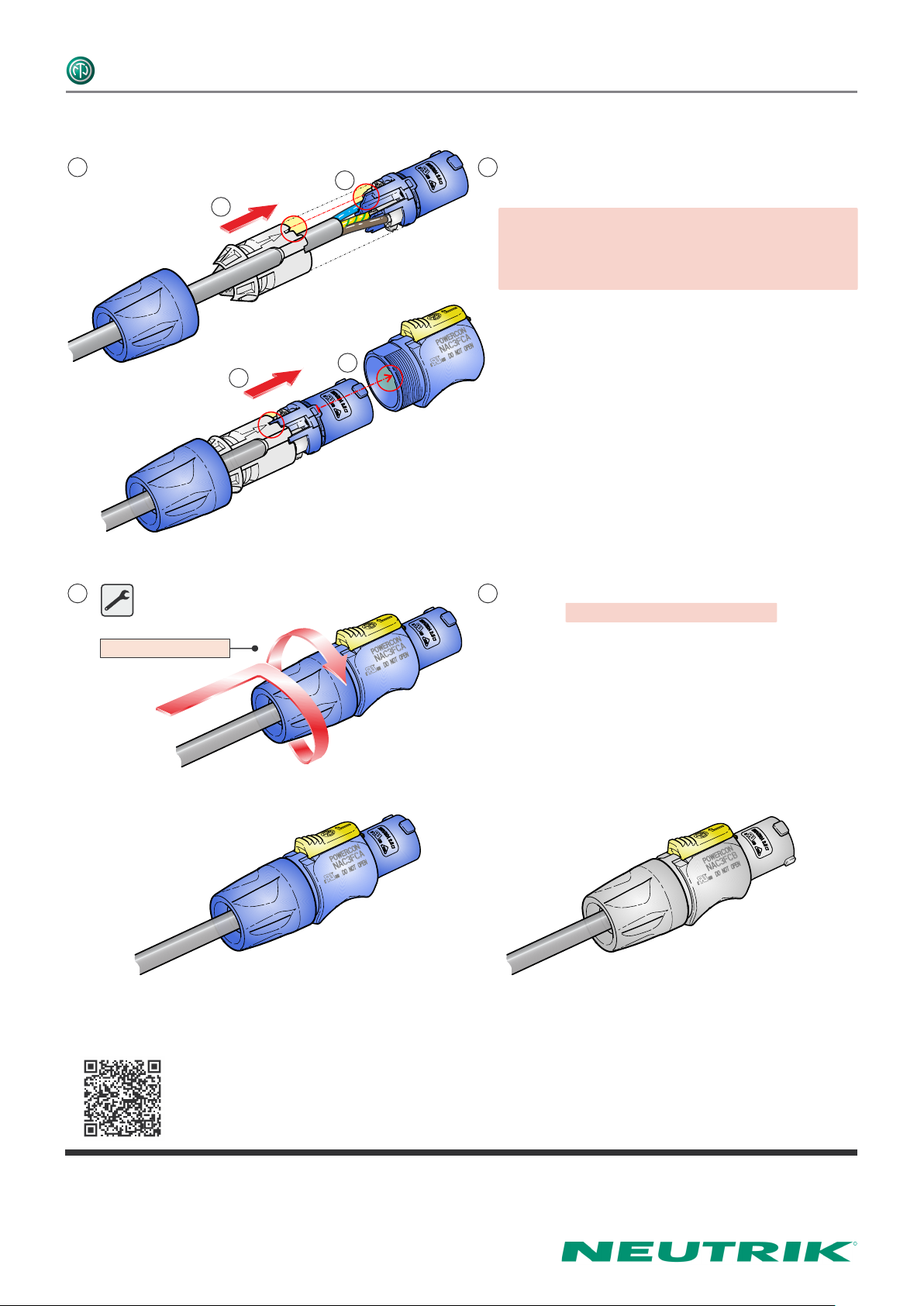

ASSEMBLY INSTRUCTION Locking 3 pole powerCON
I
D D
a
1.
b
2.
E E
Wrench size
7/8" (SW22)
Slide the insert and the chuck (1) into the
housing (2).
Important:
Align the chuck by positioning the nose into (a)
the recess.
Pay attention to the guiding keyway!(b)
Fasten bushing by means of a fork wrench 7/8”
(SW 22), min. Torque 2.5 Nm (1.8 lb-ft).
Torque Value 2.5 Nm
FINISHED powerCON
NAC3FCA NAC3FCB
Find more details of powerCON on www.neutrik.com.
