Circular Adapters .................................................... 105
D Shape Adapters .................................................... 106
Ordering Information ............................................... 107
AES / EBU Digital Impedance Transformer Adapters ..... 108
DMX Adapters ......................................................... 109
Modules & Audio Transformers ................................. 110
Ordering Information ............................................... 111
Goosenecks ............................................................. 112
Various connector standards in the professional and semi-professional audio and video world lead constantly to interconnection problems.
Neutrik
®
made it as a rule to serve the customers‘ needs in all
connector belongings and offers therefore a variety of problem solvers.
With our adapter series we have a solution for the most
known interconnection difficulties and on top of this we offer
modules of the most common connector types to fulfil specific
needs beyond that.
Miniature balancing adapters are the answer to known noise
and grounding problems and for customized designs we recommend our proven audio transformers in combination with
our modules.
NEUTRIK® ACCESSORIES
All our adapters and connectors are soldered with lead free
ROHS compliant solder.
Neutrik
®
is proud of being ROHS compliant with all our products and on top of this we became „Sony Green Partner“
already in the year 2003.
Look for the Logo
105
www.neutrik.com
Adapter
Circular Adapters
●
Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
●
Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard)
●
Rugged diecast shell for best reliability
NA2FP NA2MPMM NA3MJ
NA3FP
NA4FC-F
NA3FM
NA3FJ
NA2FBNC
Example drawing. Find more info on www.neutrik.com
to identify the original
Adapter
Quality Thinking
106
D Shape Adapters
●
Problem solvers for various intermating problems for professional and semi-professional applications
●
Rugged aluminium extrusion housings for best reliability
●
Colour coding on all RCA types
NA2BBNC-D9B NA2M-D2B-TX NA4MP-J NA4MP-MX
Miniature transformer balancing adapters NA2*-TX
●
1:1 transformer 200 Ω : 200 Ω
●
Low cost solution for unbalanced/balanced line conversion and passive
DI applications, where no earth or gain switching is required.
●
MAX INPUT LEVEL FOR 1% THD
+4dBu @ 60Hz (SOURCE = 200 Ω / LOAD = 200 Ω )
–6dBu @ 60Hz (SOURCE = 200 Ω / LOAD = 10K Ω ) NA2F-D0B-TX
NA2BBNC-D9B NA2MP-J
Example drawing. Find more info on www.neutrik.com
Ordering Information
www.neutrik.com
- Quality Design
107
Part No. Port 1 Port 2 Comments
NA2FBNC 3 pole XLR female BNC socket
1)
NA2FP 3 pole XLR female TS
2)
,1/4" plug
1)
NA2FPMF 3 pole XLR female RCA / phono socket
1)
NA2FPMM 3 pole XLR female RCA / phono plug
1)
NA2MBNC 3 pole XLR male BNC socket
1)
NA2MP 3 pole XLR male TS
2)
,1/4" plug
1)
NA2MPMF 3 pole XLR male RCA / phono socket
1)
NA2MPMM 3 pole XLR male RCA / phono plug
1)
NA3FF 3 pole XLR female 3 pole XLR female gender conversion adapter
NA3FF-B 3 pole XLR female 3 pole XLR female gender conversion, black plating
NA3FJ 3 pole XLR female TRS
2)
,1/4" jack locking jack
NA3FM 3 pole XLR female 3 pole XLR male extention adapter
NA3FMX 3 pole XLR female 3 pole XLR male contacts 2 - 3 inverted
NA3FP 3 pole XLR female TRS
2)
, 1/4" plug
NA3JJ stereo 1/4" jack TRS
2)
, 1/4" jack extension adapter, locking jack
NA3MJ 3 pole XLR male TRS
2)
, 1/4" jack locking jack
NA3MM 3 pole XLR male 3 pole XLR male gender conversion adapter
NA3MM-B 3 pole XLR male 3 pole XLR male gender conversion, black plating
NA3MP 3 pole XLR male TRS
2)
,1/4" plug
NA4FC-F Speakon
®
NL4FC 3 pole XLR female speaker adapter
3)
NA4FC-M Speakon® NL4FC 3 pole XLR male speaker adapter
3)
NA4LJX Speakon® NL4FX TS 2), 1/4" jack speaker adapter
3)
NA4MP-F Speakon® NL4MP 3 pole XLR female speaker adapter
3)
NA4MP-J Speakon® NL4MP TS 2), 1/4" jack speaker adapter
3)
NA4MP-M Speakon® NL4MP 3 pole XLR male speaker adapter
3)
NA4MP-M-X Speakon® NL4MP Speakon® NL4MP speaker adapter 1+ / 1- inverted
3)
NA5FF-B 5 pole XLR female 5 pole XLR female gender conversion adapter, black plating
NA5MM-B 5 pole XLR male 5 pole XLR male gender conversion adapter, black plating
NA2BBNC-D4B BNC socket RCA / phono socket colour coded yellow
NA2BBNC-D9B BNC socket RCA / phono socket colour coded white
NA2F-D0B-TX 3 pole XLR female RCA / phono socket colour coded black
4)
NA2F-D2B-TX 3 pole XLR female RCA / phono socket colour coded red
4)
NA2F-J-TX 3 pole XLR female 1/4" jack ground lifted
4)
NA2M-D0B-TX 3 pole XLR male RCA / phono socket colour coded black
4)
NA2M-D2B-TX 3 pole XLR male RCA / phono socket colour coded red
4)
NA2M-J-TX 3 pole XLR male 1/4" jack ground lifted
4)
NE8FF EtherCon® EtherCon® RJ45 coupler
NL4MMX 4 pole Speakon
®
4 pole Speakon® lockable coupler
NL8MM 8 pole Speakon
®
8 pole Speakon® lockable coupler
1)
... Wired according to IEC 268-12: pin 2 = signal, pin 1 and 3: connected to ground
2)
... TRS-Tip, Ring, Sleeve contact (stereo); TS-Tip, Sleeve contact (mono)
3)
... Detailed wiring info on www.neutrik.com
4)
... Unbalanced / balanced line conversion, 1:1 transformer 200 Ω : 200 Ω
D Shape Adapters
Circular Adapters
Quality Thinking
Adapter
108

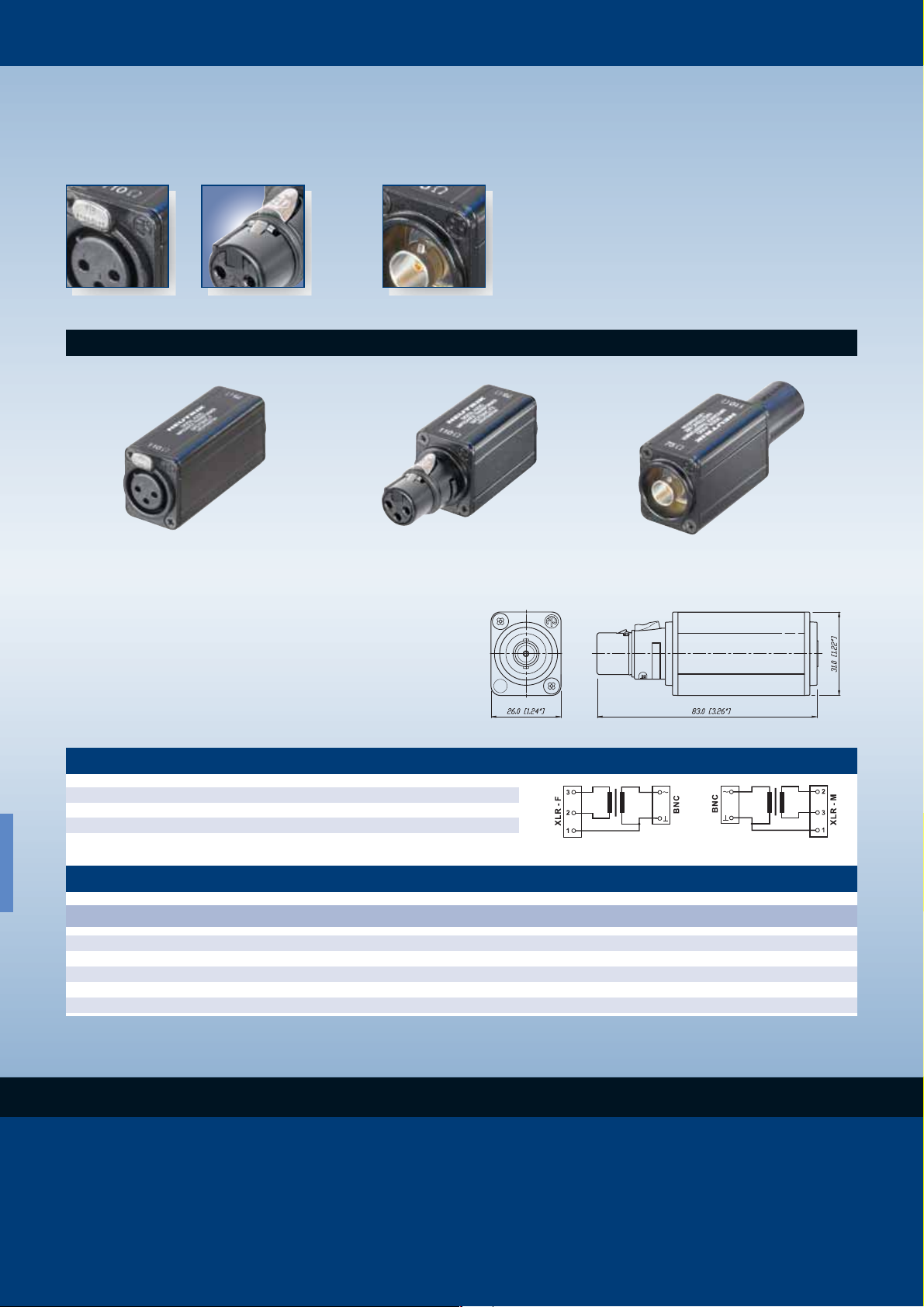

AES / EBU Digital Impedance Transformer Adapters
●
Allow long cable runs for digital audio signals via low
attenuation coax lines
●
Match balanced to coaxial lines
●
Match impedances 110 Ω to 75 Ω
●
Simple use, passive units
NADITBNC-F NADITBNC-FX NADITBNC-MX
NADITBNC-FX
Part No. Port 1 Port 2 Comments
Ordering Information
Input Output
NADITBNC-F 3 pole XLR female chassis female BNC chassis 110 Ω XLR input and 75 Ω BNC output
NADITBNC-M 3 pole XLR male chassis female BNC chassis 75 Ω BNC input and 110 Ω XLR output
NADITBNC-FX 3 pole XLR female cable con. female BNC chassis 110 Ω XLR input and 75 Ω BNC output
NADITBNC-MX 3 pole XLR male cable con. female BNC chassis 75 Ω BNC input and 110 Ω XLR output
Technical Data
Maximum voltage / Max. power: 5 Vp-p / 250mW
Frequency band: 0.1 MHz to 6 MHz
Insertion loss:
<
0.3 dB @ 0.1 MHz to 10 MHz
VSWR / Return loss:
<
1.1 / > 26.4 dB
NADITBNC-F
NADITBNC-M
- Quality Design
Adapter
109
www.neutrik.com
DMX Adapters
●
Compact XLR 3 to 5 pole adapters for lighting (DMX) applications
●
Solve interconnection problems of the old (3-pole) and new (5-pole) DMX standard
●
Enable usage of standard 3-pole microphone cable for DMX applications
●
Based on the worldwide accepted standard XLR connectors
●
Reliable and rugged diecast shell
NA3F5M NA3F5M NA3M5F
Part No. Port 1 Port 2 Comments
NA3F5M 3 pole XLR female 5 pole XLR male for DMX lighting applications
NA3M5F 3 pole XLR male 5 pole XLR female for DMX lighting applications
Ordering Information
3-pole 5-poleNA3F5M
Quality Thinking
Modules & Audio Transformer
110
Modules & Audio Transformers
●
Multifunctional modules allow to design customized adapters to suit specific needs
●
Based on the X Series connector system
●
NTE transformers and switch can be built in
●
Professional look, rugged diecast shell
NM3FXI NM3P KMX SM2/2
Audio Transformer selection Guide
Audio Transformer
●
Professional audio transformers for multiple applications, as e.g.
microphone or line inputs
●
Very low distortion, excellent frequency response
●
Cost effective cable version for free wiring
●
Fully permalloy-shielded studio versions
NTE10-3 NTL1
NM3FD-B
NTE1
1 : 1 200 : 200 200 / 2k, (600 / 10k) -3 General purpose, splitting, XLR inline
NTE4
1 : 4 200 : 3.2k 200 / 10 K -7 Mic input step-up
NTE10/3
1 : 3 200 : 1.8k 200 / 10 K -7 General purpose mic input step-up
1 : 10
200 : 20k
200 / 50 K
-6
NTL1
1 : 1 10k : 10k 600 / 10k +19 Line input
NTM1
1 : 1 200 : 200 200 / 2k +7 Mic input, splitting
NTM4
1 : 4 200 : 3.2k 200 / 10k +9 Mic input step-up
* measured with typical source / load impedances
Wiring: NTE*... free wires, NTL / NTM*... PCB mount, shielded;
Find detailed specifications on www.neutrik.com
Part No.
Turns Ratio Impedance Source / load Max. Input
Applications
(prim : sec) ratio impedance in Ω level* @ 50 Hz,
1% THD [dBu]
www.neutrik.com
- Quality Design
Ordering Information
111
Connector module Coupler / housing Transformer / switch
NM3FXI
XLR female
M17x1 outside
NM3MXI
XLR male
M17x1 outside
NM2P
mono 1/4" plug
M17x1 inside
NM3P
stereo 1/4" plug
M17x1 inside
NM3J
stereo 1/4" jack
M17x1 inside
NMPMM
RCA male
M17x1 inside
NMPMF
RCA female
M17x1 inside
NM3FD-B
black plated
D-Shape
NM3MD-B
black plated
D-Shape
KM
M 17x1 inside
KMX
M 17x1 inside
VM
M 17x1 outside
VMX
M 17x1 outside
CM
cable outlet
M 17x1 inside
NA-Housing
1)
black plated
screws included
NTE1
1:1
NTE4
1:4
NTE10/3
1:3:10
SM2/2
2x2 switch
M17x1 outside
Module Selection Guide
1)
... Combinations possible with all D Shape connectors like e.g. NC3FD-L-1, NF2D,
NBB75DSI, etc.
NM3FXI
KM
SM2/2
NTE1
(inside)
KMX
NM3MXI
NM3FXI
KM
SM2/2NTE1
KMX NM3MXI
Example:
Goosenecks
112
Goosenecks
GNS18 GNS50
Part No. Description
Ordering Information
GN36
GN18 M17x1 inside thread at both ends (∅ 12 mm, 230 mm length)
GN36 M17x1 inside thread at both ends (∅ 13 mm, 360 mm length)
GN50 M17x1 inside thread at both ends (∅ 15 mm, 500 mm length)
Gosseneck sets:
GNS18 Gooseneck set GN18, NC3FX-Spec., cable outlet, NAM5 adapter, M17x1 bolt thread
GNS36 Gooseneck set GN16, NC3FX-Spec., cable outlet, NAM5 adapter, M17x1 bolt thread
GNS50 Gooseneck set GN50, NC3FX-Spec., cable outlet, NAM5 adapter, M17x1 bolt thread
Accessories:
NAM4 M17x1 outside thread, 5/8" 27 UNS inside thread
1)
NAM5 3/8" inside thread, 5/8" 27 UNS outside thread
1)
GF1 Panel-mounting kit: Flange ∅ 63.5 mm including mounting bolt M17x1, 30 mm length
1)
MSG Mounting bolt M17x1, 30 mm lenght
1)
1)
... Find detailed specifications on www.neutrik.com
GNS Set consisting of:
NC3FX-Spec GN Cable outlet NAM5 M17x1 bolt
●
For flexible and secure mounting of microphones, lamps etc.
●
Versatile, modular system allows various combinations
●
Durable stainless steel spiral, no rust, no noise, non-reflective black finish
●
Theft proof microphone connection on GNS version (securing ring and fixing screw)
