ASSEMBLY INSTRUCTION
figure 1
figure 2
NP3TT-P
A
7
10
|
0.173” Bantam-Type Miniature Plug
15
4
4
(4.4 mm)

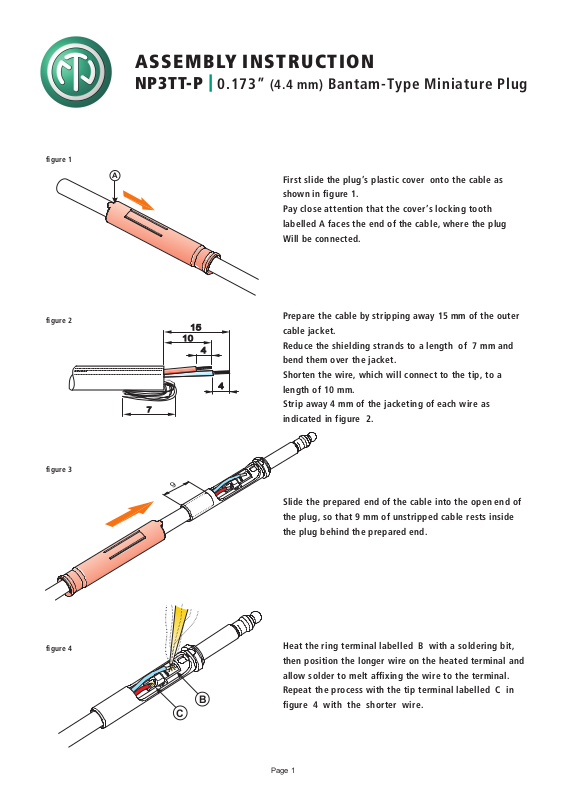

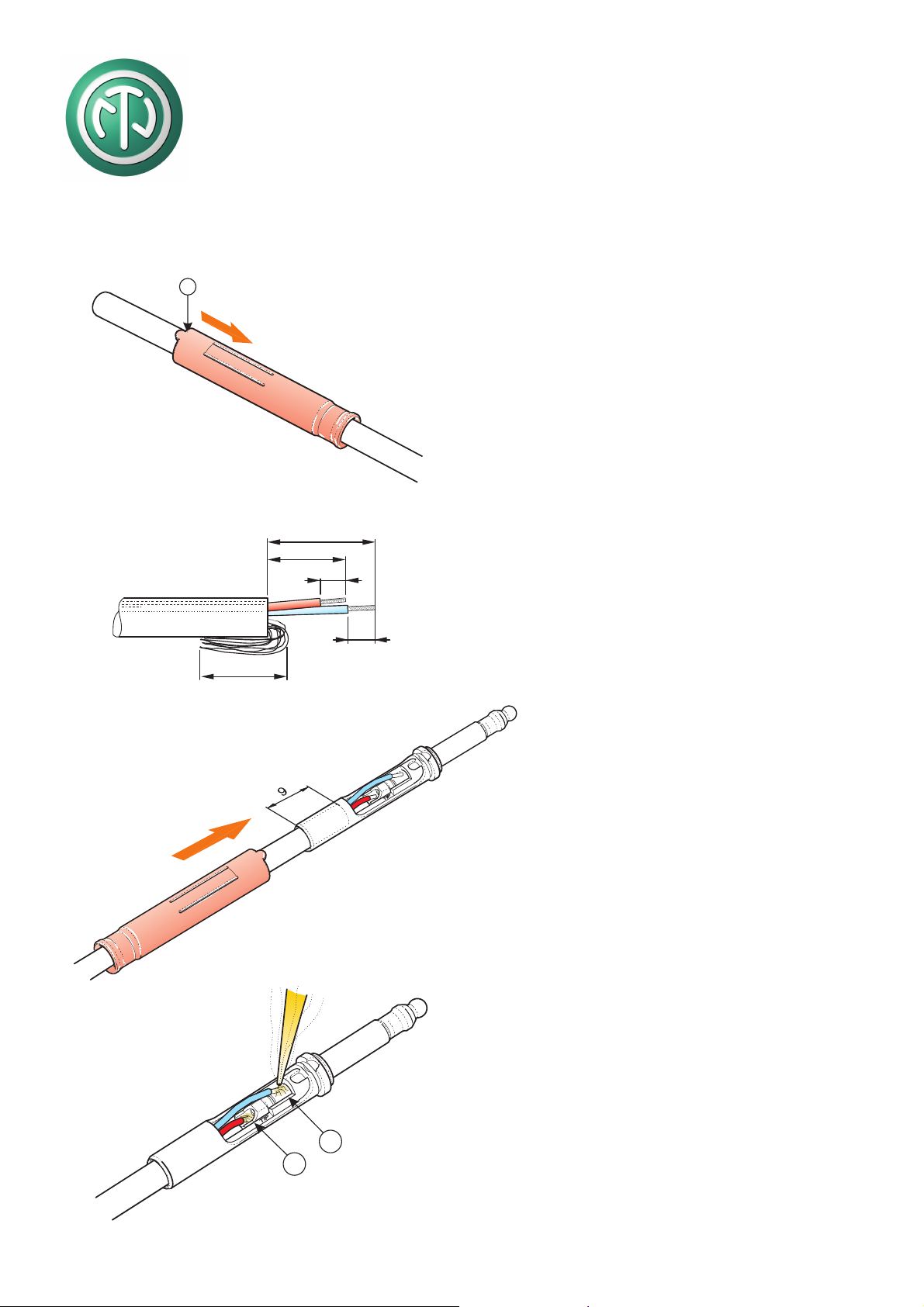

First slide the plug’s plastic cover onto the cable as
shown in figure 1.
Pay close attention that the cover’s locking tooth
labelled A faces the end of the cable, where the plug
Will be connected.
Prepare the cable by stripping away 15 mm of the outer
cable jacket.
Reduce the shielding strands to a length of 7 mm and
bend them over the jacket.
Shorten the wire, which will connect to the tip, to a
length of 10 mm.
Strip away 4 mm of the jacketing of each wire as
indicated in figure 2.
figure 3
figure 4
Slide the prepared end of the cable into the open end of
the plug, so that 9 mm of unstripped cable rests inside
the plug behind the prepared end.
Heat the ring terminal labelled B with a soldering bit,
then position the longer wire on the heated terminal and
allow solder to melt affixing the wire to the terminal.
B
Repeat the process with the tip terminal labelled C in
figure 4 with the shorter wire.
C
Page 1
Page 2

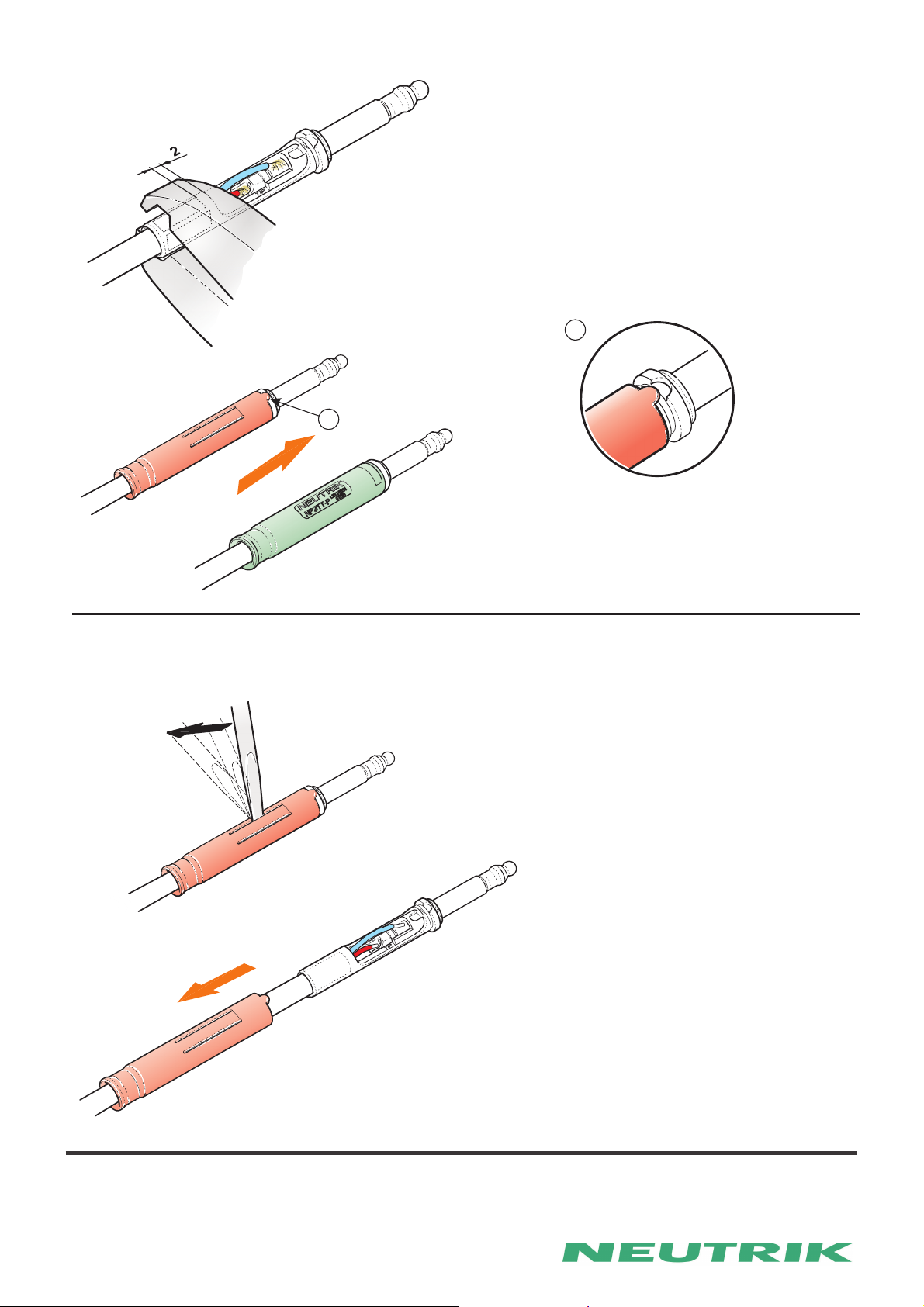

figure 5
figure 6
Next crimp the end of the plug containing the cable with
a standard 5.41 mm hexagonal crimping Tool (RG 58).
Crimp only in the area designated in figure 5!
D
D
Finish the installation sliding the cover over the plug, so
that the cover’s locking tooth rests in the plug’s notch
labelled D displayed in figure 6.
Disassembly
figure 1
figure 2
Position a screw driver into one of the two tiny slots as
shown in figure 1 and bend out the plastic snap.
Slide the plastic cover from the connector.
