TRUST
THE
ORIGINAL
speakON
®
Connectors
speakON speakON
Content Page
speakON SPX Series, 2 & 4 Pole Cable Connector ......... 4
speakON FC Series, 4 and 8 Pole Cable Connector ....... 6
speakON Adapter, 4 & 8 Pole ...................................... 7
speakON Chassis Connector, 2,4 & 8 Pole .................... 8
speakON
speakON STX Series, 4 & 8 Pole Cable Connector .......... 10
speakON STX Series, 4 & 8 Pole Chassis Connector ........ 11
Technical Data ............................................................ 12
Ordering Information:
Cable Connectors ....................................................... 13
Accessories for Cable Connector .................................. 13
Chassis Connectors .................................................... 14
Accessories for Chassis Connectors .............................. 15
Wiring ........................................................................ 16
General information:
Definition, Abbreviation & Useful Information .............. 17
Neutrik Part Number Guide ......................................... 18
Neutrik Product Line ................................................... 19
Combo ........................................................ 9
speakON® Connectors
Introduction
The Neutrik speakON® Series, known in the professional
audio industry as "The loudspeaker connector" has become
the state of the art in speaker and amplifier connectivity.
Introduced in 1987 speakON was invented by Neutrik as a
result of customer demand for a reliable speaker connection.
The pro audio market quickly realized the advantages of this
completely new connection system.
The design is optimized for loudspeaker applications with
an outstanding cost-performance ratio. As market leader for
speaker connections we are proud to offer an all-encompassing product line for the specific needs of today‘s market. Recent designs such as the STX series and the speakON
Combo offer solutions for nearly every speaker application.
2
setting standards
Integrated Design
One of Neutrik's goals is to create products that are
easily distinguished from other manufacturers. We have
successfully achieved this in our engineering efforts as well
as the patent and trademark protection granted for our
unique products. To further establish a clear difference
between Neutrik and our competitor’s products we give
our customer the means to easily identify original Neutrik
products. Therefore all of our new products such as the SPX
and the STX series are designed according to the protected
integrated design. (EU-Pat.: DM/057 379, US-Pat. Pending,
CHINA-Pat.: 02305192.2 / 193.0/194.9 / 195.7)
Features & Benefits
Today's speakON series is a result of a continuous product
improvement process. The principal idea has been kept and
optimized with material and design modifications over the
years.
A traditional speakON stands for:
•
Reliable and robust, easy and fast to assemble
•
2, 4 and 8 pole cable and chassis connectors in various
versions
•
Optimal "Quick Lock" system for speaker applications
•
Neutrik proven and unique chuck type cable strain relief
•
Outstanding cost-performance ratio
•
De facto standard
•
Meets all worldwide safety requirements (IEC, UL, ...)
Beyond that, the latest designs as the SPX and STX series offer:
•
Up to 50 A current rating
•
Only 3 parts with 1 piece strain relief design for even
easier assembly
•
Convertable right-angle version
•
Weatherproof and extremely robust
www.neutrik.com 3
Ø 35.0 [1.378“]
62.0 [2.44“]
Ø 35.0 [1.378“]
117.0 - 121.0 [4.60 - 4.76“]
speakON speakON
Quick lock Chuck type strain
relief

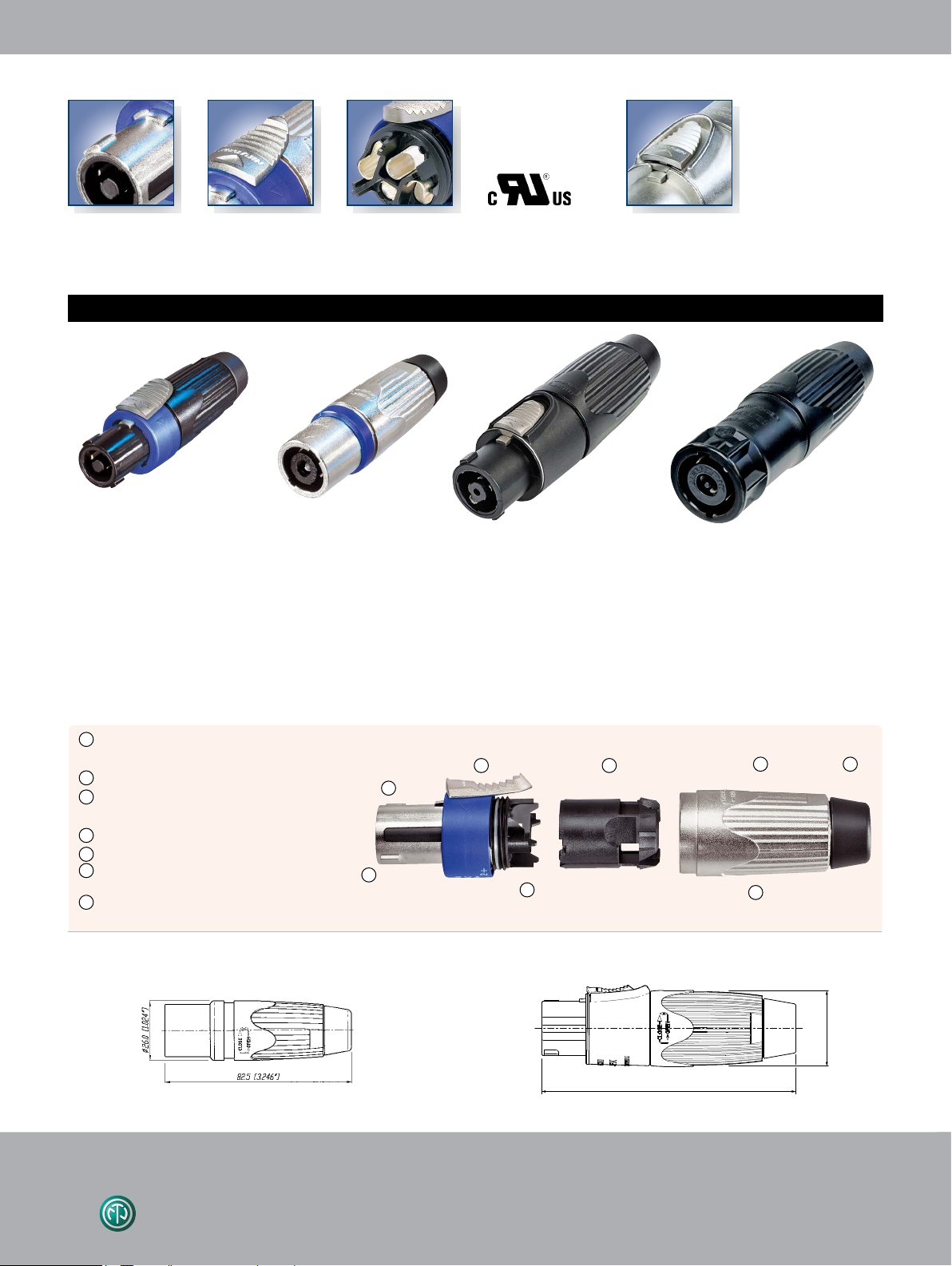

speakON® SPX Series 2 & 4 Pole Cable Connector
•
Current rating 40 A rms continuous
•
Up to 50 A audio signal, duty cycle 50%
•
Only 3 parts, easy to assemble
•
High impact materials – long-lasting and reliable
•
Easy and extremely precise locking system "Quick Lock"
•
Improved grip on latch
•
1 piece strain relief, chuck for 7 to 14.5 mm cable O.D.
•
Color coding possible
•
Improved screw-type termination for highest pull-out force
•
Integrated design guarantees "Made by NEUTRIK®"
Right angle
conversion
NL4FXNL2FX NL4FRX
NL4FX NL4FRX
4
71.5-76.5 [2.815-3.011“]
setting standards
Ø 26.0 [1.024“]
62.0 [2.44“]
74.0 - 79.0 [2.91 - 3.10“]
Design Criteria
This second generation of speakON connectors features
higher current rating for the operation of high power speakers and amplifiers carrying more than 1`000 Watts. Only 3
parts make it fast and easy to assemble with a more reliable
2
1
3 4 5
Improved SPX-Series screw contacts! (Wire position after assembly)
1 3
2
5
α
6
4
performance. Our unique design makes it possible to change
easily and quickly from a straight connector to the right-angle
version, even without disconnecting the cable.
1 Easy and extremely precise locking system
"Quick Lock"
2 Improved grip on latch
3 1 piece strain relief, chuck for 7 to 14.5 mm
cable O.D., with accessory NLRR 5-8 mm
4 Color coding possible
5 Integrated design guaranties
"Made by NEUTRIK®"
1 Progressive clamping as wire is pushed for-
ward
2 Acts as screw locking device due to side forces
3 Large combi drive - M4 screw
4 Wire size 1.5 - 4 mm2 (AWG 12)
for 6 mm2 (AWG 10) remove screw & solder
5 Pull out force > 200 N @ 80 cNm
6 Gas tight connection
Assembly
Prepare cable as shown. HINT:
25 mm[1.0"
]
12 mm[0.5"
For easy wiring especially of thick
cables, first screw on the inner con-
]
tacts 1+ and 2+ and afterwards the
outer contacts 1- and 2- !
Use screwdriver Pozidriv #1 only.
www.neutrik.com 5
speakON speakON
housing
Quick lockGlass reinforced
speakON® FC Cable Connector Series
NL4FC NL8FC
•
4 pole – branded with unique hologram – guarantees
genuine and authentic Neutrik product
Up to 30 A rms current rating
•
•
Glass reinforced materials for housing and inserts
•
Unique Neutrik chuck type strain relief
•
Precise keyway for secure mating
•
Accurate twist lock latching system
•
4 pole in new design with more ergonomic latch
Keying:
NL2FX
NL2MP
NL4MP
NL4FC
NL4FC NL8FC
Ø 26.0 [1.024“]
76.5-80.0 [3.012-3.150“]
6
setting standards
Ø 26.0 [1.024“]
71.5-76.5 [2.815-3.011“]
Ø 35.0 [1.378“]
74.0 - 79.0 [2.91 - 3.10“]
62.0 [2.44“]
117.0 - 121.0 [4.60 - 4.76“]
1/4" Jack adapter Extention coupler
speakON® Adapter
NA4LJX NL4MMX NL8MM
NL4MMX:
NL4MMX + NL4FX:
(locked on the cable)
Features permanent secure
connection on a speakON cable
connector using 2
nd
lock.
Changes gender to male when
permanently locked on the
cable.
Secure Lock!
NA4LJX
Ø 6.35 [1/4“]
Ø 26.0 [1.024“]
78.0 [3.07“]
NL4MM NL8MM
www.neutrik.com 7
NL4MPXX NL4MDXX-V-2 NL4MDXX-H-3
24.0 [0.945“] 2.55 [0.1“]
4.5 [0.177“]
30.45 [1.199“] 2.55 [0.1“]
4.5 [0.177“]
26.0 [1.02“]
31.0 [1.22“]
26.0 [1.02“]
31.0 [1.22“]
15.5 [0.61“]
30.45 [1.199“] 2.55 [0.1“]
4.5 [0.177“]
26.0 [1.02“]
31.0 [1.22“]
15.5 [0.61“]
speakON speakON
Reinforced locking
3/16" flat tabsNickel housing Vertical PCB mount
area
speakON® Chassis Connector
NL2MDXX-V NL4MDXX-H-3 NL4MPXX NL4MPRXX NL8MPRXX
•
Standard version up to 30 A rms, ultra high current version
up to 50 A audio current
•
Glass reinforced materials
•
Precise keyway for secure mating
•
Accurate twist lock latching system
• Metal front plate (8 pole) or metal insert in locking area
(2 & 4 pole)
• Various mounting and wiring possibilities
• "Air tight design", optimized for speaker applications
• D or G panel cutouts to be easily mounted on audio industry
standard panels
• 4 pole branded with unique hologram
NL4MDXX-H-3
NL4MPRXX
26.0 [1.02“]
30.45 [1.199“] 2.55 [0.1“]
31.0 [1.22“]
15.5 [0.61“]
4.5 [0.177“]
NL4MPXX
NL4MDXX-V-2
8
26.0 [1.02“] 21.25 [0.837“] 2.55 [0.1“]
31.0 [1.22“]
4.5 [0.177“]27.3 [1.075“]
26.0 [1.02“]
31.0 [1.22“]
24.0 [0.945“] 2.55 [0.1“]
4.5 [0.177“]
setting standards
NL8MPRXX
PCB solder pinsLocking key
speakON
NLJ2MDXX-V
•
D-size flange
•
Compatible PCB layout and panel mount to NL4MD-V-1
(NL4MD-H)
•
Cost saving – combines two connectors in one housing
•
Mates with all 2, 4 pole speakON® and 1/4" Phone Plugs
• PA-wiring: 1+ is connected to TIP, 1- to the SLEEVE
• PCB layout of NLJ2MD-V is compatible with NL4MD-V and
PCB layout of NLJ2MD-H is compatible with NL4MD-H
®
Combo
NLJ2MDXX-V
Combines a speakON® and 1/4" Phone Jack – one for two
www.neutrik.com 9
speakON speakON
Reinforced locking Latch lock XL-solder contacts Protected latch
speakON® STX Series Cable Connectors
NLT4FX-BAG NLT4MX NLT8FX NLT8MX-BAG
•
Up to 50 A current rating
•
Robust and durable all metal housing
•
Sealing ring provides weatherproof IP 54 rating in mated condition on 4 pole version
•
Reinforced metal quick lock system for ease and precise locking
•
Extra large solder contacts for up to 6 mm² (AWG 10) wires
•
Compatible with all available speakON products
1 Easy and extremely precise locking system
"quick look", reinforced with metal
2 Improved grip on latch
3 1 piece strain relief, chuck for cables from
9 to 16 mm O.D.
4 Extreme rugged "Touring Approved"
5 Rubber sealing boot
6 Integrated Design garanties "Made by
NEUTRIK®"
7 X-large solder contacts for up to 6 mm2
(AWG 10) wires
NLT4MX NLT8FX
4
1
2 3
7
4 5
6
10
Ø 35.0 [1.378“]
117.0 - 121.0 [4.60 - 4.76“]
setting standards
Robust metal
housing
XL-solder contacts 1/4" flat tabs
speakON
NLT4FPXX-BAG NLT4MDXX-V NLT4MPXX-BAG NLT8MPXX-BAG
®
STX Series Chassis Connectors
• Extremely robust metal housing designed for harsh and
demanding environment
• Weatherproof design features sealing gaskets
• 4 type range
– also male cable connector and female receptacle
on 4 pole version
• All-metal housing makes the STX Series rugged and durable
• Weatherproof built-in gasket meets IP 54 protection class (4 pole)
• Ideal product for touring applications and harsh environments
NLT4MPXX
• Best electrical performance up to 50 A audio current
• Uses precise “Quick Lock” system
Compatible with all currently available speakON products
•
• 4 pole version has UL recognized components, CSA listed
NLT4FPXX
NLT8MPXX
www.neutrik.com 11

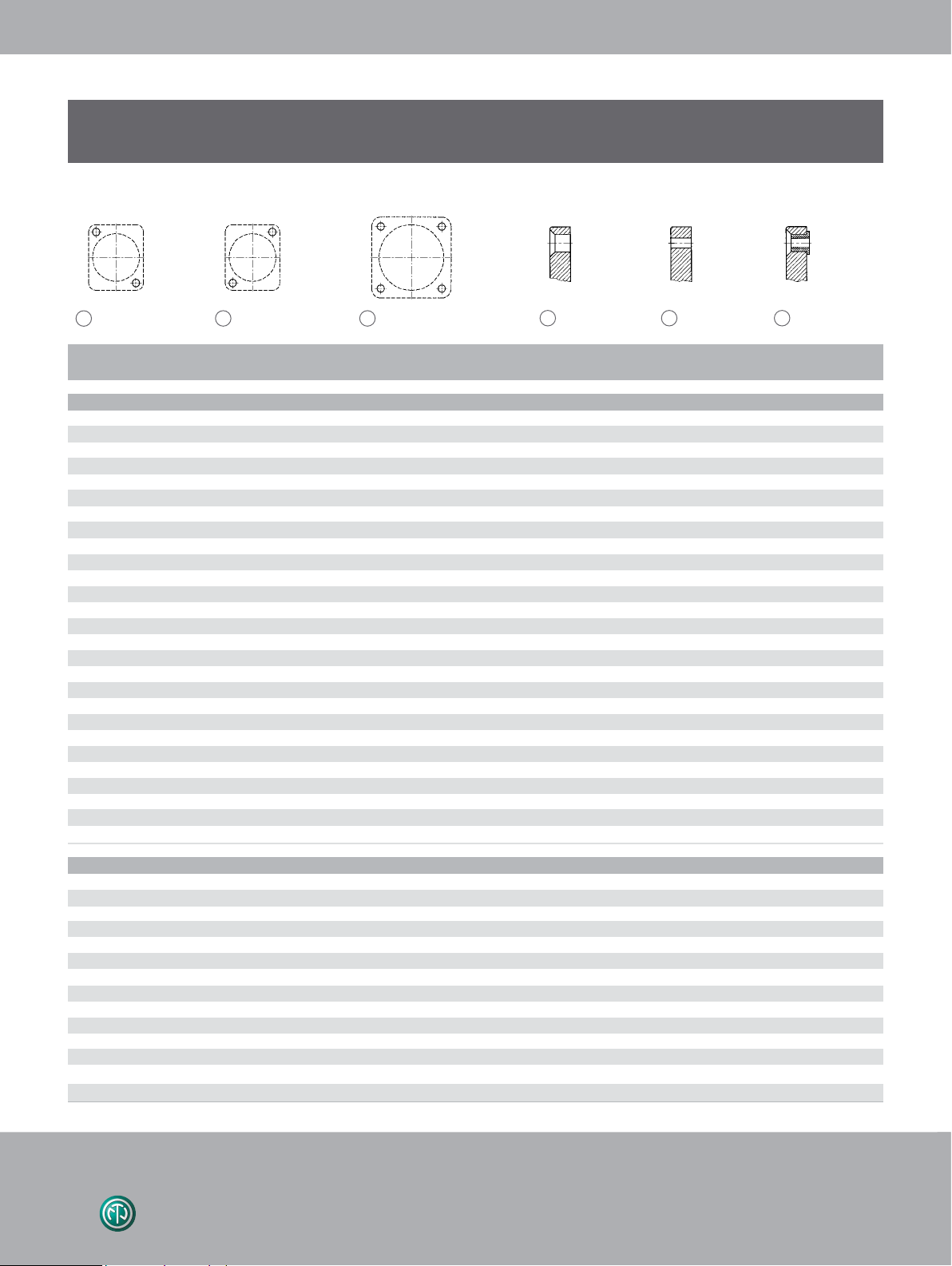

Technical Data Ordering Information
Specification SPX STX speakON speakON Adapter STX
Series Series FC Chassis + Series
Cable Con. Cable Con. Cable Con Combo Chassis
Electrical
Number of contacts 2
Rated current per contact 40 A rms continuous
CSA approved rating 25 A (4 pole) rms continuous
50 A audiosignal, duty cycle 50%
Combo 15 A rms continuous - - Rated voltage 250 V ac
Contact resistance after lifetime
Insulation resistance
<
2 mΩ
>
1 GΩ
Dielectric strength 4 kV peak
1/4" Jack 1.5 kV peak - - - -
Mechanical
Locking System Quick lock (latch)
Life time (mating cycles)
>
5'000
+
4 4 + 8 4 + 8 2, 4, 8 2, 4, 8 4 + 8
30 A 30 A** 15 A
-
40 A 40 A 30 A
>
MΩ
100
≤
3
10 A - -
-
≤
3
≤
3
>
Cable O.D. range (mm) 2 pole 6 - 10 - - - - 4 pole 7 - 14.5 9 - 16 6 - 15 - - 8 pole - 8 - 20 8 - 20 - - -
Wiring screw type terminals
soldering
flat tabs for 3/16"FASTON
flat tabs for 1/4" FASTON
®
(4.8 x 0.5 mm) -
®
(6.3 x 0.8 mm) -
PCB-version -
4 mm2 (AWG 12)
6 mm2 (AWG 10) 6 mm2 (AWG 10) 4 mm2 (AWG 12)
-
- - - -
- -
- - Insertion / withdrawal force Combo Jack: ≤ 20 N / > 10 N - - Cable retention force
Material
≥
220 N*
4 mm2 (AWG 12)
- - -
(ST) - -
-
(UC) -
- -
100
-
MΩ
-
Housing Polyamide PA 6 30% GR - PBTP 20% GR
Zinc diecast (ZnAI4Cu1) (8 pole)
- - - - -
- - -
Insert Polyamide PA 6 30% GR - - PBTP 20% GR
Contacts Brass (CuZn39Pb3)
- - - -
- - Bronze (CuSn6) - - -
Spring copper Contact plating 4 µm Ag
Locking Element Zinc diecast (ZnAI4Cu1)
Chuck Polyacetal (POM)
Bushing Polyamide (PA 6 15% GR)
Environment
Temperature range -30 °C to +80 °C
Protection class IP 54 (mated condition) IP 50 (8 pole, mated cond.) -
Flammability UL94HB (*: UL94 V-0)
Finger- Safety IP2X/IEC 61984
Approvals UL-Recognized, CSA listed
Solderability complies with IEC 68-2-20
*: subject to cable O.D. and material
**: NL4MD-V-S - Rated current per contact: 20A
4 pole
-
- - -
- - -
- -
- - -
- - -
*
(UC) -
-
4 pole
-
(FP)
12
setting standards
Ordering Information Cable Connectors
SPX Series
NL2FX 2 pole Cable connector with chuck and blue bushing, intermates with 4 pole chassis connector and
makes contact with +1/-1
NL4FX 4 pole Cable connector with chuck and black bushing
NL4FX-2 4 pole Cable connector with chuck and red bushing
NL4FX-4 4 pole Cable connector with chuck and yellow bushing
NL4FX-5 4 pole Cable connector with chuck and green bushing
NL4FX-9 4 pole Cable connector with chuck and white bushing
NL4FRX 4 pole Right-angle cable connector with chuck and black bushing
FC Series
NL4FC 4 pole Cable connector with latch lock
NL8FC 8 pole Cable connector with latch lock
Adapters
NA4LJX 4 / 2 pole Adapter from speakON cable connector to 2 pole 1/4" Jack, wiring: +1 to TIP and -1 to SLEEVE
NL4MMX 4 pole Lockable coupler to extend two 4 pole cables
NL8MM-BAG 8 pole Coupler to extend two 8-pole cables, black-chrome metal housing, chuck and bushing
STX Series
NLT4FX 4 pole Female cable connector,nickel metal housing, chuck and bushing
NLT4FX-BAG 4 pole Female cable connector, black-chrome metal housing, chuck and bushing
NLT4MX 4 pole Male cable connector, nickel metal housing, chuck and bushing
NLT4MX-BAG 4 pole Male cable connector, black-chrome metal housing, chuck and bushing
NLT8FX 8 pole Female cable connector, nickel metal housing, chuck and bushing
NLT8FX-BAG 8 pole Female cable connector, black-chrome metal housing, chuck and bushing
NLT8MX-BAG 8 pole Male cable connector, black-chrome metal housing, chuck and bushing
Accessories
LCR-* LRX NLRR BSL-* HTFAC
SPX Series
LCR-* Colored coding rings for the right-angle version of the SPX Series.
Available in blue (Standard), white, red, green and yellow.
LRX Right-angle speakON conversion kit for changing the straight connector into a right-angel version without
removing the cable from the insert.
NLRR Strain relief reduction ring for NL4FX for thin loudspeaker cables with an O.D. of 5 to 8 mm
HTFAC Hand tool for tightening the bushing of the speakON NL4FC and the powerCON 20A cable connectors.
FC Series
BSL-* Colored 2 component bushing for NL4FC
*: 0 - Black, 1- Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Grey, 9 - White; Must be ordered in multiples of 100.
www.neutrik.com 13
Ordering Information
Ordering Information Chassis Connectors
Hole layout:Flange layout:
D-size
standard
hole
A
B
D-size
mirrored hole
position
ED
Self tapping
screw holes
(A-screw)
with four
holes
CountersunkG-size flange
C
Metal M3
thread
F
Pole Flange size Flange Fastening Color Wiring Remarks
layout method
Traditionally
NL2MPXX 2 D-size A D black 3/16" flat tabs* Does not intermate with 4-pole cable connector
NL2MDXX-H-3 2 D-size A E black horizontal PCB Does not intermate with 4-pole cable connector
NL2MDXX-V 2 D-size A D black vertical PCB Does not intermate with 4-pole cable connector
NL2MDXX-V-3 2 D-size A E black vertical PCB Does not intermate with 4-pole cable connector
NL4MPXX 4 D-size A D black 3/16" flat tabs*
NL4MP-1 4 D-size A E grey 3/16" flat tabs*
NL4MP-2 4 D-size B E black 3/16" flat tabs*
NL4MPXX-3 4 D-size A E black 3/16" flat tabs*
NL4MP-M3 4 D-size A F black 3/16" flat tabs*
NL4MD-H 4 D-size A E grey horizontal PCB
NL4MD-H-1 4 D-size A D black horizontal PCB
NL4MDXX-H-2 4 D-size B E black horizontal PCB
NL4MDXX-H-3 4 D-size A E black horizontal PCB
NL4MDXX-V 4 D-size A D black vertical PCB
NL4MDXX-V-3 4 D-size A E grey vertical PCB
NL4MDXX-V-2 4 D-size B E black vertical PCB
NL4MD-V-R 4 D-size A D red vertical PCB
NL4MD-V-S 4 D-size A E black vertical PCB switched contacts
NL4MPXX-ST 4 D-size A D black screw terminal
NL4MPXX-UC 4 D-size A D black 1/4" flat tabs* Ultra high current, up to 40 A rms
NL4MPRXX 4 round G-size flange C D black 3/16" flat tabs*
NL8MDXX-V 8 square G-size flange C D Ni vertical PCB
NL8MDXX-V-BAG 8 square G-size flange C D black chrome vertical PCB
NL8MDXX-V-3 8 square G-size flange C E Ni vertical PCB
NL8MPRXX 8 square G-size flange C D Ni 3/16" flat tabs*
NL8MPRXX-BAG 8 square G-size flange C D black chrome 3/16" flat tabs*
STX Series
NLT4MPXX 4 square G-size flange C D nickel 1/4" flat tabs*
NLT4MPXX-BAG 4 square G-size flange C D black chrome 1/4" flat tabs*
NLT4MDXX-V-3 4 square G-size flange C E nickel vertical PCB
NLT4MDXX-V 4 square G-size flange C D nickel vertical PCB
NLT4FPXX 4 square G-size flange C D nickel solder contacts
NLT4FPXX-BAG 4 square G-size flange C D black chrome solder contacts
NLT4FD-V-BAG 4 square G-size flange C D black chrome vertical PCB
NLT8MPXX 8 square G-size flange C D nickel 1/4" flat tabs*
NLT8MPXX-BAG 8 square G-size flange C D black chrome 1/4" flat tabs*
NLT8FPXX-BAG 8 square G-size flange C D black chrome solder contacts
*: flat tabs to be used with FASTON® connectors or to solder the wire (FASTON® is a trademark of AMP Inc.)
14
setting standards
Ordering Information Chassis Connectors
Pole Flange size Flange Fastening Color Wiring Remarks
layout method
Combo Series
NLJ2MDXX-V 2 D-size A E green vertical PCB
NLJ2MD-V-1 2 D-size A E grey vertical PCB
NLJ2MDXX-H 2 D-size A E green horizontal PCB
Accessories
A-Screw-1-8 E-Screw1-12Ni E-Screw1-12B NLFASTON MFD NDL SCL
SCDR SCDX SCCD-W SCDP-*
NZP1RU-12 SCNLT Example: SCNLT + NLT4MP*
A-Screw-1-8 Black self tapping PLASTITE
®
* screw 2.9 x 1.05 tri-rondular configuration, 8 mm long, panhead, for rear panel mount
(A, AA and speakON Combo)
E-Screw1-12NI Nickel self-tapping PLASTITE® countersunk screw 2.9 x 12 for rear panel mount, only suitable for panels with countersunk thru holes
E-Scre w1-12B Black self-tapping PLASTITE® countersunk screw 2.9 x 12 for rear panel mount, only suitable for panels with countersunk thru holes
NLFASTON FASTON® receptacle for tabs with "positiv lock" for use with NL4MP, NL4MPR, NL8MPR, Pack of 100 pcs.
MFD M3 mounting frame for D-size chassis
NDL dummyPLUG for 2 & 4 Pole chassis connector
NZP1RU-8 Panel 1RU housing with 8 D-shape cutouts
NZP1RU-12 Panel 1RU housing with 12 D-shape cutouts
SCL Plastic sealing cover to protect the connectors against dust and moisture
SCDR Rear end protection cover for D-size chassis connectors
SCDP-* D-Size sealing gaskets, color coding
SCDX Hinged cover seals D-size chassis connectors, IP 42 rated
SCCD-W Spring-loaded cover to seals for D-size chassis Connectors, IP 65 rated
SCNLT Gasket for NLT4MP
(To make a cabinet with an Amphenol EP cutout airtight, use the rubber sealing which covers the entire hole.)
(*: 0- black, 2- red, 4- yellow, 5- green, 6- blue, 9- white)
*PLASTITE® is a registered trademark of SFS Unimarket
www.neutrik.com 15
speakON Wiring
Wiring Suggestion
Positive signal on speaker pin "+" produces positive waveform from driver (moves cone outwards)
AMPLIFIER CABLE SPEAKER
Stereo
("HiFi")
POWER ("PA")
Standard
Bridged mono
Bi-Amp
4 Way System
one NL4MP socket
left channel pins 1+/1right channel pins 2+/2-
three NL4MP sockets
"A" socket:
left channel pins 1+/1"B" socket:
right channel pins 1+/1-
"M" socket:
left channel pins 1+/1right channel pins 2+/2-
one NL4MP socket
low frequency pins 1+/1high frequency pins 2+/2-
one NL8MPR socket
low frequency pins 1+/1low mid frequency pins 2+/2high mid frequency pins 3+/3high frequency pins 4+/4-
NL4FC on amplifier end, four conductor
cable splits into two pairs with NL4FX on
each end
a two-conductor cable for each channel
with NL4FX on both ends
a special two-conductor cable, on both
ends wired to pin 1+/2+ of NL4FX
a four-conductor cable on both ends
wired to pins 1+/1-, 2+/2- of NL4FX
an eight-conductor cable wired on both
ends to pins 1+/1-, 2+/2-, 3+/3-, 4+/4of NL8FC
AMPLIFIER CABLECABLE SPEAKER AMPLIFIER CABLECABLE SPEAKER
"+" = In phase (high) "-" = Ground (out of phase, low)
Lower numbers for lower frequencies.
one NL4MP per speaker
left speaker pins 1+/1right speaker pins 2+/2-
NL4MP pins 1+ to speaker coil "+"
NL4MP pins 1- and 2+ to speaker coil "-"
NL4MP pin 1+ to speaker coil "+"
NL4MP pins 1- and 2+ to speaker coil "-"
one NL4MP socket
low frequency pins 1+/1high frequency pins 2+/2-
one NL8MPR socket
low frequency pins 1+/1low mid frequency pins 2+/2high mid frequency pins 3+/3high frequency pins 4+/4-
Power "PA"Stereo "HiFi"
- 2 channel wiring
"100V
application"
LEFT
RIGHT
+1 +1
A
-1 -1
+2 +2
-2 -2
+1
-1
+2
+1 +1
B
-1 -1
+2 +2
-2 -2
+1 +1
A
-1 -1
+2 +2
B
-2 -2
two cable
-2
Y- cable
+2 +2
-2 -2
-1 -1
+1 +1
+1 +1
-1 -1
+2
-2
+1 +1
-1 -1
+2
-2
+1 +1
-1 -1
+2 +2
-2 -2
+1 +1
-1 -1
+2 +2
-2 -2
+2 +2
-2 -2
-1 -1
+1 +1
+2
-2
+2
-2
SIG+
SIG-
+1
A
B
A
- Mono briged wiring
Bi-Amp Power "PA"
B
A
-1
+2
-2
+1 +1
-1 -1
one cable
+2 +2
-2 -2
+1
B
-1
+2
-2
+1 +1
LF
-1 -1
one cable
+2 +2
HF
-2 -2
+1 +1
-1 -1
+2 +2
-2 -2
+1 +1
-1 -1
+2 +2
-2 -2
A
LF
HF
16
setting standards
Definitions, Abbreviations & Useful Information
Definitions, Abbreviations & Useful Information
ELEMENTS
Ag Silver
Al Aluminium
Au Gold
Co Cobalt
Cr Chromium
Cu Copper
Ni Nickel
P Phosphorus
Pb Lead
Pd Palladium
Sn Tin
Zn Zinc
SS Stainless Steel
ALLOYS, PLASTICS, POLYMERS
Brass (Alloy) CuZn39Pb3
Bronze (Alloy) CuSn6
Ck 67 Carbon Steel
EPDM Ethylene Propylene
GR Glass Reinforced
PA Polyamide
PBTP Polybutylene Terephthalate
POM Polyacetal
PTFE PolyTetraFluoroEthylene
(TEFLON)
PUR Polyurethane
MEASUREMENT LEGEND
N Newton
ΩΩ Ohm
µ Micro
OD Outside Diameter
m Meter(s)
k Kilo
ENGLISH TO METRIC CONVERSIONS
1/8 inch 3.175 millimeters (mm)
1/4 inch 6.35 millimeters (mm)
1 inch 25.4 millimeters (mm)
2.54 cm 1 inch
1 foot 30.48 centimeters (cm)
0.305 meter (m)
6 foot 1.828 meters (m)
50 foot 15.24 meters (m)
100 foot 30.48 meters (m)
1000 foot 304.8 meters (m)
METRIC TO ENGLISH CONVERSIONS
1 centimeter 0.3937 inches
1 meter 39.37 inches
3.281 meter 10 feet
10 meters 32.808 feet
50 meters 164.041 feet
100 meters 328.084 feet
OTHER ABBREVIATIONS
®
UL
Underwriters Laboratories
IP Rating Ingress Protection rating for objects and
water ACC IEC529/EN60529
IEC International Electrotechnical Commission
is the international standards and
conformity assessment body for all fields
ENEC – European norms electrical
certification, demonstrates compliance
with European safety standards.
VDE Association for Electrical, Electronic
and Information Technologies e.V.
AWG American Wire Gauge
of electrotechnology
UL Recognized Component Mark
NEUTRIK, crystalCON®, etherCON®, maxCON®, miniCON®, nanoCON®, neutriCON®, opticalCON®, powerCON®,
®
powerCON
TRUE1®, rofi®, rearTWIST®, silentPLUG®, speakON®, TOP®, DiWA®, XIRIUM®, are registered trademarks of
Neutrik AG.
www.neutrik.com 17
Part Number Guide
Neutrik® Part Number Guide
NC3FAH1-B-0-D
Packaging: D Cable connector: bulk packed
Assembly: D Chassis connector: disassembled push latch
Retention: w/o Latch lock
-0 Retention spring
-DA Asymmetric PUSH
Shell: B Black shell, gold contacts
BAG Black shell, silver contacts
Grounding: 0 Separate ground contact connected to shell, male only
1 Pin 1 & panel & shell connected, no separate ground contact
2 Separate ground contact connected to shell & panel, separate Pin 1
E Additional ground contacts
w/o number No ground / shell contact (except 4 / 5 pole), female only
Termination: H Horizontal PCB mount
HL Laterial left PCB mount
HR Laterial right PCB mount
L Solder cups
V Vertical PCB mount
Y IDC for wires (no ground)
M3 Mounting holes with M
M25 Mounting holes with M
- Not applicable
Series: A, AA, B, D, DL, DLX, MPR, P, PX, RX, X, XX
Gender: F Female
M Male
Number of Contacts: 2, 3, 4, 5, 6, 7, 8, 12
Connector Type: A Adapter
AC powerCON
B BNC
C XLR
D dummyPLUG
E etherCON
F RCA / CINCH
J (MJ, RJ, SJ) Jack
K Cable Assembly
L speakON
M Module
O opticalCON - Fiber Optic Connector
P Plug
PP Patch Panel
R Circular Connector
T Transformer
TOP True Outdoor Protection
®
®
- RJ45
®
- Loudspeaker
3 thread
2.5 thread
18
Definitions, abbreviations & useful information see page 17.
setting standards
Product Line
®
Neutrik
The premium brand of the Neutrik Group
LIECHTENSTEIN (HEADQUARTERS)
Neutrik AG, Im alten Riet 143, 9494 Schaan
T +423 237 24 24, F +423 232 53 93, neutrik@neutrik.com
GERMANY / NETHERLANDS / DENMARK / AUSTRIA
Neutrik Vertriebs GmbH, Felix-Wankel-Strasse 1, 85221 Dachau, Germany
T +49 8131 28 08 90, neutrik@neutrik.de
GREAT BRITAIN
Neutrik (UK) Ltd., Westridge Business Park, Cothey Way
Ryde, Isle of Wight PO33 1 QT
T +44 1983 811 441, sales
FRANCE
Neutrik France SARL, 52 rue d’aguesseau, 1er etage, 92100 Boulogne-Billancourt
T +33 1 41 31 67 50, info
USA
Neutrik USA Inc., 4115 Taggart Creek Road, Charlotte, North Carolina, 28208
T +1 704 972 30 50, info
JAPAN
Neutrik Limited, Yusen-Higashinihonbashi-Ekimae Bldg., 3-7-19
Higashinihonbashi, Chuo-ku, Tokyo 103
T +81 3 3663 47 33, mail
HONG KONG
Neutrik Hong Kong LTD., Suite 18, 7th Floor Shatin Galleria
Fotan, Shatin
T +852 2687 6055, sales
CHINA
Ningbo Neutrik Trading Co., Ltd., Shiqi Street, Yinxian Road West
Fengjia Villiage, Hai Shu District, Ningbo, Zhejiang, 315153
T +86 574 88250833, sales
@neutrik.co.uk
@neutrik.fr
@neutrikusa.com
@neutrik.co.jp
@neutrik.com.hk
@neutrik.com.cn
. ALL RIGHTS RESERVED.
®
ASSOCIATED COMPANIES
Contrik AG
Steinackerstrasse 35, 8902 Urdorf, Switzerland
T +41 44 736 50 10, contrik@contrik.ch
H. Adam GmbH
Felix-Wankel-Straße 1, 85221 Dachau, Germany
T +49 08131 28 08-0, anfrage@adam-gmbh.de
www.neutrik.com
speakON Connector Product Guide 2021/04 V21 – NPGE-L – Data subject to change without prior notice. © 2021 NEUTRIK
2021/04-V21
Loading...
