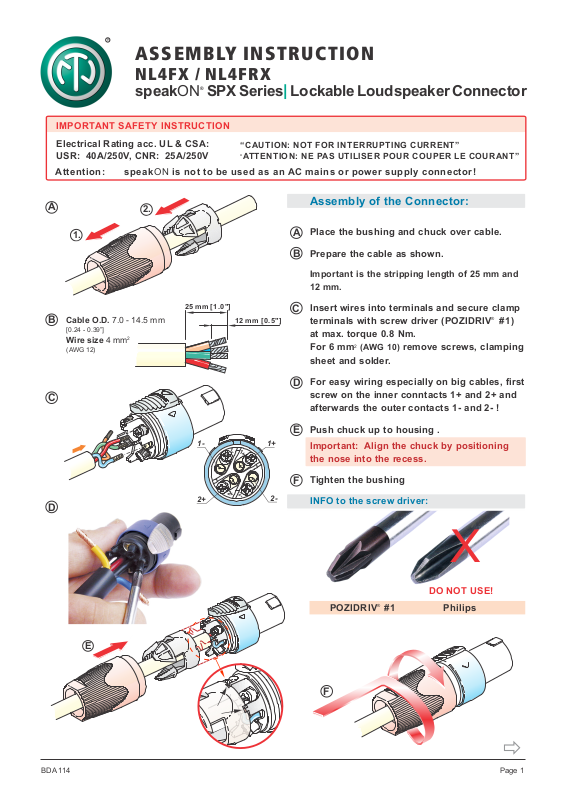

ASSEMBLY INSTRUCTION
NL 4 F X / NL4 F R X
speakON SPX Series Lockable Loudspeaker Connector
IMPORTANT SAFETY INSTRUCTION
®
Electrical Rating acc. UL & CSA:
USR: 40A/250V, CNR: 25A/250V
“CAUTION: N OT FOR INTERRUPTING CUR RENT”
“ ATTENTION : NE PAS UTILISE R PO UR COUP ER LE COURANT”
Attention: speak ON is n ot to be used as an AC mains or power supply connector!
A
1.
Cable O.D. 7.0 - 14.5 mm
B
[0.24 - 0.39”]
Wire size 4 mm
(AWG 12)
2.
25 mm [1.0"]
12 mm [0.5"]
2

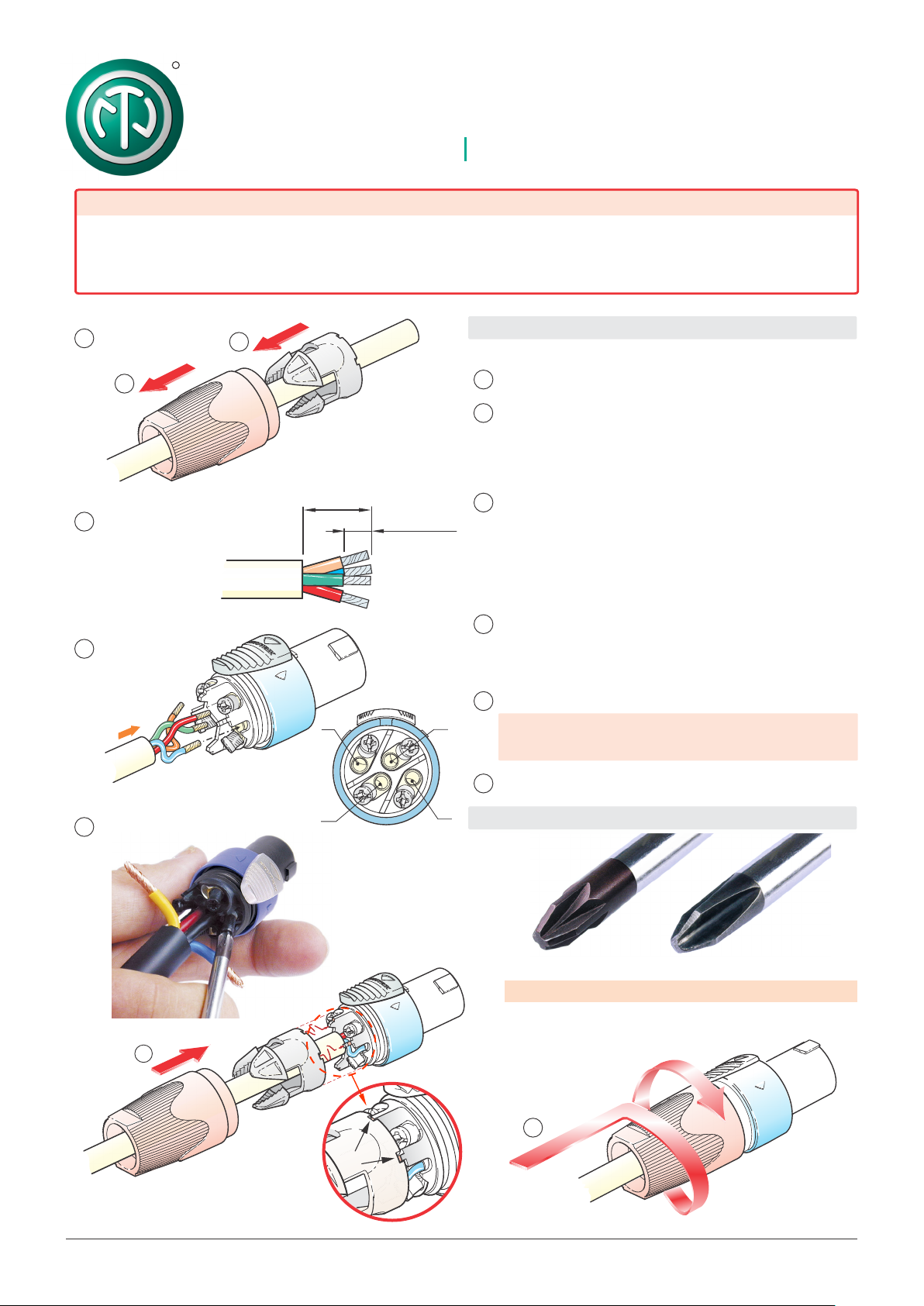

Assembly of the Connector:
Place the bushing and chuck over cable.
A
Prepare the cable as shown.
B
Important is the stripping length of 25 mm and
12 mm.
Insert wires into terminals and secure clamp
C
terminals with screw driver (POZIDRIV # 1)
at max. torque 0.8 Nm.
For 6 mm (AWG 10) remove screws, clamping
2
sheet and solder.
For easy wiring especially on big cables, first
D
C
screw on the inner conntacts 1+ and 2+ and
afterwards the outer contacts 1- and 2- !
®
Push chuck up to housing .
E
1-
2+
1-
2
+
2-
D
1+
1
+
2-
Important: Align the chuck by positioning
the nose into the recess.
Tighten the bushing
F
INFO to the screw driver:
X
DO NOT USE!
POZIDRIV # 1 Philips
E
F
®
BDA 114
ð
Page 1
Page 2
ASSEMBLY INSTRUCTION speakON NL4FX / NL4FRX
I

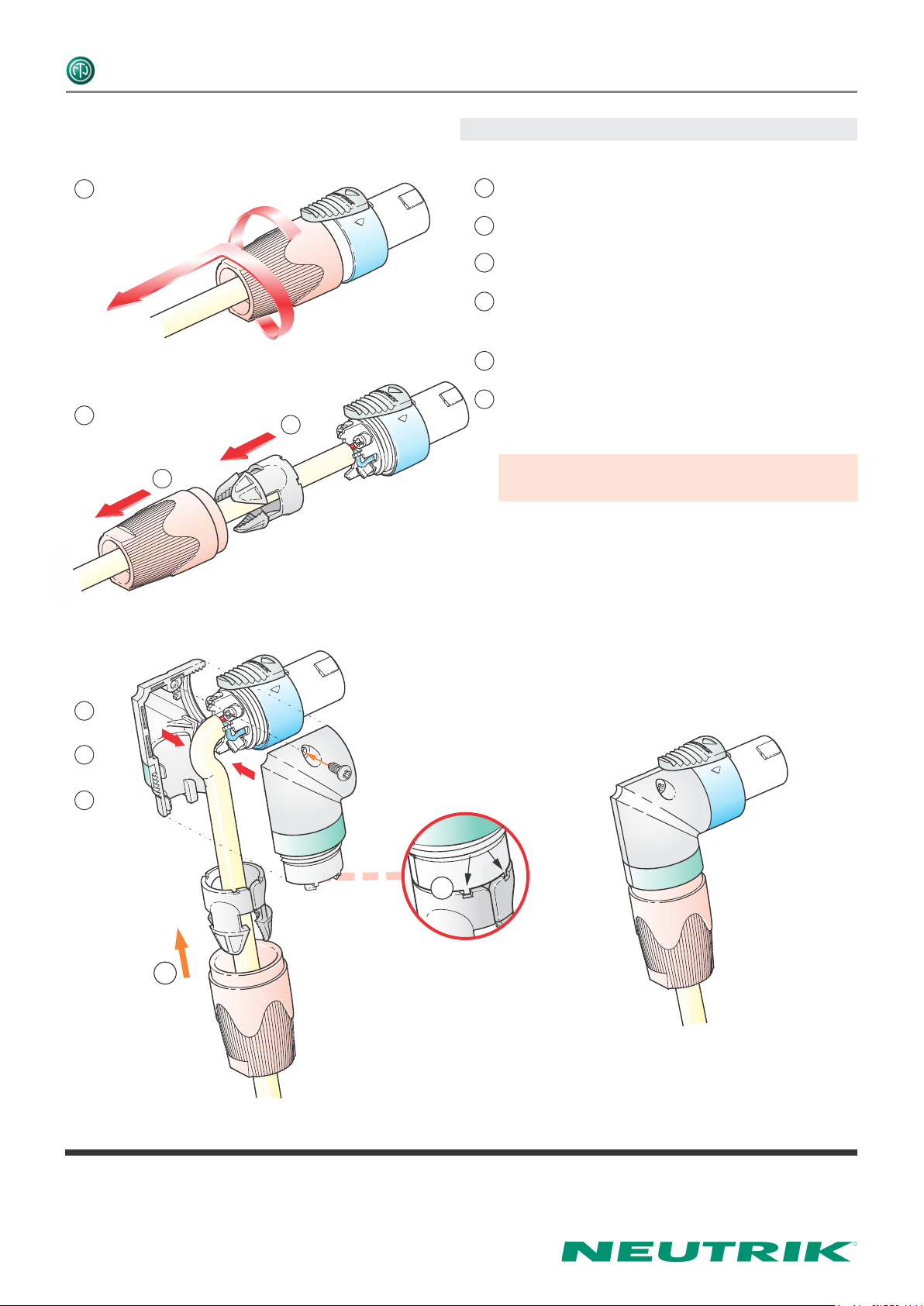

Assembly of the Conversion Kit LRX:
A
A
Open the bushing.
B
Slide the bushing and the chuck back.
C
Bend the cable as shown.
D
Position the two conversion shells to fit on
the connector thread.
E
Press together and fix by screw.
F
B
2.
Slide the chuck onto the housing and fasten
the bushing.
Important: Align the chuck by positioning
1.
the nose into the recess.
C
D
E
F
F
