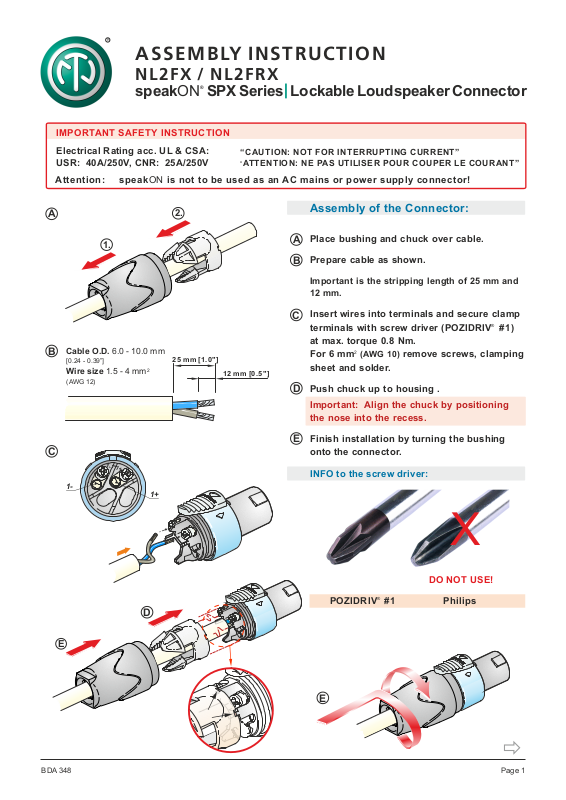

Neutrik NL2FX OPERATING & ASSEMBLY INSTRUCTION
R
ASSEMBLY INSTRUCTION
NL2FX / NL2FRX
speakON SPX Series Lockable Loudspeaker Connector
IMPORTANT SAFETY INSTRUCTION
Electrical Rating acc. UL & CSA:
USR: 40A/250V, CNR: 25A/250V
Attentio n: speakON is no t to be used as a n AC m ains or power supply connector!
A
1.
Cable O.D. 6.0 - 10.0 mm
B
[0.24 - 0.39”]
Wire size 1.5 - 4 mm
(AWG 12)
2
®
2.
25 mm [1.0"]
“CAUTIO N: NOT FOR INTER RUPTI NG CURRENT ”
“ ATTENTI ON: NE PAS UTI LISER P OUR COU PER LE CO URANT”
Assembly of the Connector:
Place bushing and chuck over cable.
A
Prepare cable as shown.
B
Important is the stripping length of 25 mm and
12 mm.
Insert wires into terminals and secure clamp
C
terminals with screw driver (POZIDRIV # 1)
at max. torque 0.8 Nm.
2
12 mm [0.5"]
For 6 mm (AWG 10) remove screws, clamping
sheet and solder.
Push chuck up to housing .
D
Important: Align the chuck by positioning
the nose into the recess.
®
Finish installation by turning the bushing
E
C
1-
1
+
1-
1+
onto the connector.
INFO to the screw driver:
X
DO NOT USE!
POZIDRIV # 1 Philips
D
E
E
®
BDA 348
ð
Page 1
ASSEMBLY INSTRUCTION speakON NL2FX / NL2FRX
I
Assembly of the Conversion Kit LRX:
A
A
Open the bushing.
B
Slide the bushing and the chuck back.
C
Bend the cable as shown.
Position the two conversion shells to fit on
D
the connector thread.
Press together and fix by screw.
E
B
2.
1.
Slide the chuck onto the housing and fasten
F
the bushing.
Important: Align the chuck by positioning
the nose into the recess.
C
D
E
F
F
NEUTRIK AG LI T: +423 / 237 24 2 4 F: +423 / 232 53 93
NEUTRIK USA Inc. USA T: +1 704 / 972 3050 F: +1 704 / 438 9202
NEUTRIK UK Ltd. UK T: +44 1983 / 811 441 F: +44 1983 / 811 439
NEUTRIK Vertriebs G mbH DE / NL / AT/DK T: +49 8131 / 280 890 F: +49 81 31 / 280 830
Draft. Nr.: BDA 348 Update: 25.10.2016 Data subject to c hange without prior not ice. 2016 NEU TRIK . ALL RIGHTS RESERVE D. NEUTRIK is a r egistered trademark.
( )
