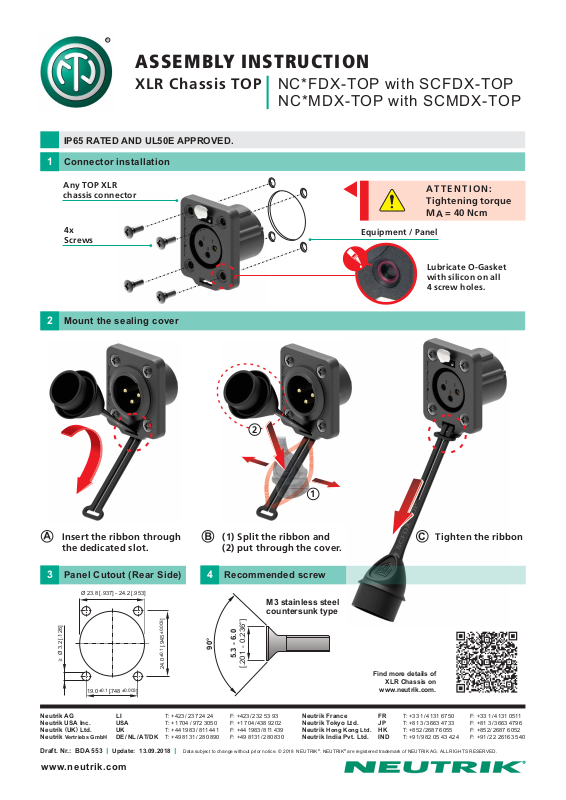

ASSEMBLY INSTRUCTION
XLR Chassis TOP NC*FDX-TOP with SCFDX-TOP
IP65 RATED AND UL50E APPROVED.
1 Connector installation
NC*MDX-TOP with SCMDX-TOP
Any TOP XLR
chassis connector
4x
Screws
2 Mount the sealing cover
ATTENTION:
Tightening torque
MA= 40 Ncm
E / Panelquipment
Lubricate O-Gasket
with silicon on all
4 screw holes.
2
Insert the ribbon through
the dedicated slot.
3 Panel Cutout (Rear Side)
Ø 23.8 [.937] - 24.2 [.953]
≥ Ø 3.2 [.126]
±0.1 ±0.003
19.0 [.748 ]
Neutrik AG LI T: +423 / 23724 24 F: +423 232 53 93/
Neutrik USA Inc. USA T: +1 704 / 972 3050 F: +1704 438 9202/
()
Neutrik
UK Ltd. UK T: +44 1983 / 811441 F: +44 1983 811 439/
Neutrik Vertriebs GmbH DE/NL/AT/DK T: +498131 / 280 890 F: +49 8131 280 830/
Draft. Nr.: BDA 553 Update: . .20113 09 8
II
±0.1 ±0.003
24.0 [.945 ]
Data subject to change without prior notice. 201 NEUTRIK ALL RIGHTS RESERVED8 . NEUTRIK are registered trademark of NEUTRIK AG. .©
(1) Split the ribbon and
(2) put through the cover.
4 Recommended screw
90°
5.3 - 6.0
[.201 - 0.236”]
www.neutrik.com
1
M3 stainless steel
countersunk type
Neutrik France FR T: +33 1 4131 6750 F: +33 1 4131 0511//
Neutrik Tokyo Ltd. JP T: +81 3 3663 4733 F: +81 3 3663 4796//
Neutrik Hong Kong Ltd. HK T: +852 2687 6055 F: +852 2687 6052//
Neutrik India Pvt. Ltd. IND T: + F: +91 22 26163 54091/ 982 05 43 424 /
®®
C
Find more details of
XLR Chassis on
www.neutrik.com.
Tighten the ribbon
